A polyurethane sun wheel is a flexible feeding and conveying component commonly used in automation equipment. It is designed with multiple elastic radial fingers that contact the surface of a moving material or workpiece.
Unlike a conventional gear, a polyurethane sun wheel is not primarily used for high-torque power transmission. Its main functions are pressing, feeding, guiding, separating and conveying materials through automated production equipment.
What Is a Polyurethane Sun Wheel?

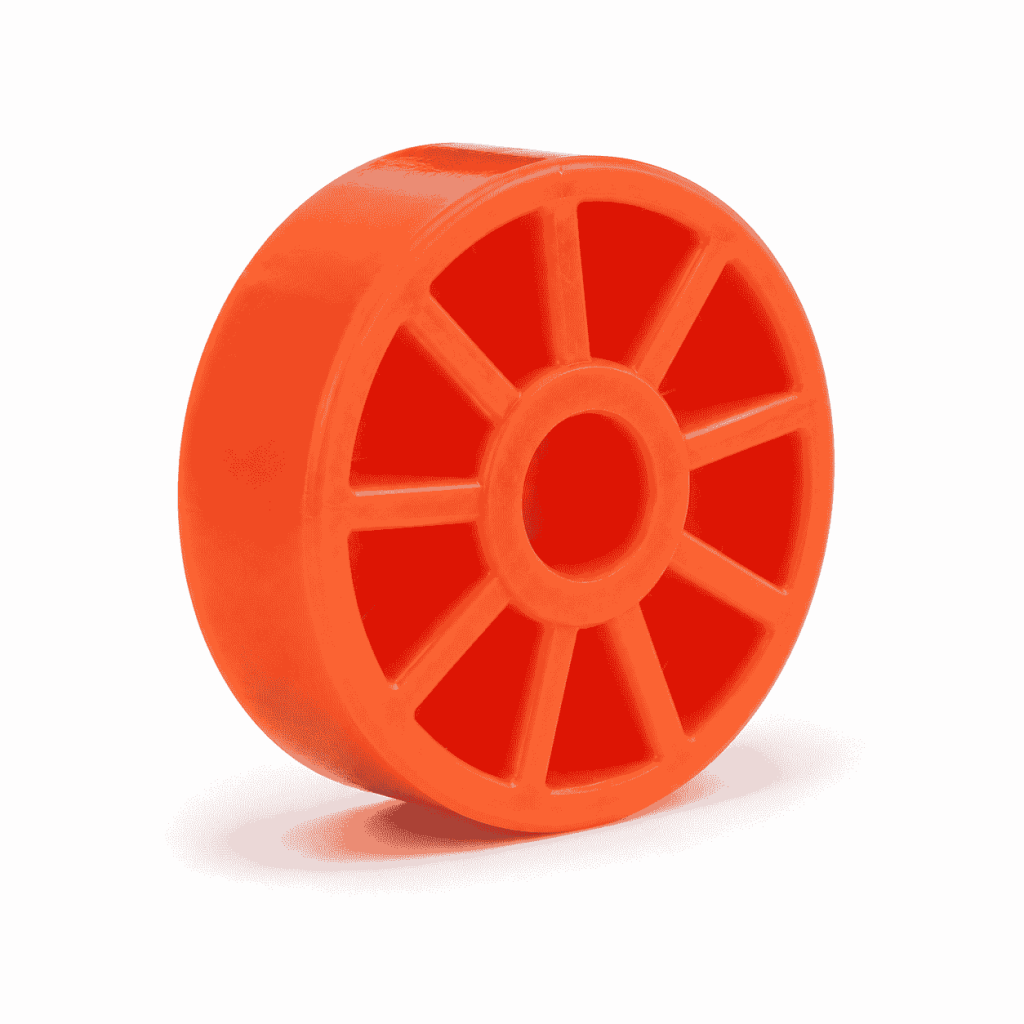

A polyurethane sun wheel normally consists of a central hub and multiple flexible fingers around the outer diameter. When a sheet, film, cable or lightweight workpiece passes under the wheel, the fingers deform independently and apply controlled pressure to the material.
This flexible structure allows the wheel to accommodate small variations in material thickness while maintaining stable surface contact. It also reduces the risk of scratches, pressure marks and deformation caused by rigid metal rollers.
Polyurethane is an engineering material known for its elasticity, wear resistance and impact-absorbing properties. More information about the material is available from the Wikipedia polyurethane overview.
Applications in Automation Equipment
Polyurethane sun wheels can be installed in different feeding, conveying and handling mechanisms, including:
- Automatic sheet-feeding machines
- Film and label conveying systems
- Wire and cable feeding equipment
- Printing and laminating machines
- Automatic inspection equipment
- Panel and profile conveying lines
- Material sorting equipment
- Lightweight workpiece transfer systems
In these applications, the polyurethane sun wheel rotates with a drive shaft or idler shaft. Its flexible fingers press lightly against the material and help it move toward the next processing station.
Stable Feeding and Material Guidance
Thin sheets, plastic films, labels, wires and lightweight components can easily slip, move sideways or enter the next workstation at an inconsistent speed.
The polyurethane sun wheel provides controlled friction between the wheel and the material. Its elastic fingers maintain contact with the surface and help stabilize the feeding direction without applying excessive pressure.
This makes it suitable for automated processes that require continuous and consistent material movement, such as inspection, cutting, printing, laminating, assembly and sorting.
Additional information about automated conveying equipment can be found in the Wikipedia conveyor system overview.
Surface Protection for Workpieces
Metal rollers and rigid plastic rollers may leave scratches or pressure marks on painted, coated, polished or printed products. This is especially common when the product thickness changes or when the feeding pressure is too high.
The flexible fingers of a polyurethane sun wheel distribute contact pressure across several points. This helps reduce hard impact and protects the surface of the workpiece during automatic conveying.
Typical materials handled by polyurethane sun wheels include:
- Plastic films
- Printed labels
- Paper sheets
- Plastic panels
- Coated metal sheets
- Insulated wires and cables
- Lightweight molded plastic parts
Problems Solved by Polyurethane Sun Wheels
A properly designed polyurethane sun wheel can help solve several common problems in automation equipment:
- Materials slipping during automatic feeding
- Inconsistent product spacing
- Materials moving sideways during conveying
- Pressure marks caused by solid rollers
- Surface scratches caused by metal contact
- Unstable contact with materials of different thicknesses
- High vibration during repeated feeding cycles
- Excessive noise caused by rigid component contact
Advantages of Polyurethane Material
Wear Resistance
Polyurethane provides good resistance to repeated friction and surface wear. This is important for sun wheels that continuously contact films, sheets, wires or other moving products.
Elastic Recovery
The radial fingers can deform when a product passes beneath the wheel and then return toward their original shape. This allows the wheel to adapt to small changes in material thickness.
Controlled Surface Grip
Polyurethane provides sufficient surface friction to feed and guide materials. It can reduce slipping without requiring excessive clamping pressure.
Impact Absorption
The elastic material absorbs part of the impact generated during equipment starting, stopping and repeated feeding. This can reduce vibration transmitted to the shaft and machine frame.
Lower Operating Noise
Polyurethane contact is generally quieter than repeated metal-to-metal or metal-to-product contact. This makes polyurethane sun wheels suitable for high-frequency automated production lines.
Polyurethane Sun Wheel Design Requirements
The performance of a polyurethane sun wheel depends on more than its outer diameter. The following factors should be considered during design and production:
- Polyurethane hardness
- Wheel outer diameter
- Wheel width
- Inner bore diameter and tolerance
- Number of radial fingers
- Finger length and thickness
- Hub material
- Shaft mounting method
- Operating speed
- Required feeding pressure
The bore tolerance affects the fit between the wheel and the shaft. The finger thickness and polyurethane hardness influence flexibility, contact pressure and wear resistance.
Choosing the Correct Polyurethane Hardness
A softer polyurethane sun wheel provides greater flexibility and gentler contact with the product. However, excessive deformation may reduce feeding accuracy.
A harder polyurethane wheel provides better dimensional stability and load capacity, but it may apply greater pressure to sensitive workpieces.
The correct hardness should be selected according to:
- Product weight
- Material thickness
- Surface condition
- Required feeding force
- Equipment operating speed
- Working temperature
- Exposure to oil, water or chemicals
- Continuous operating time

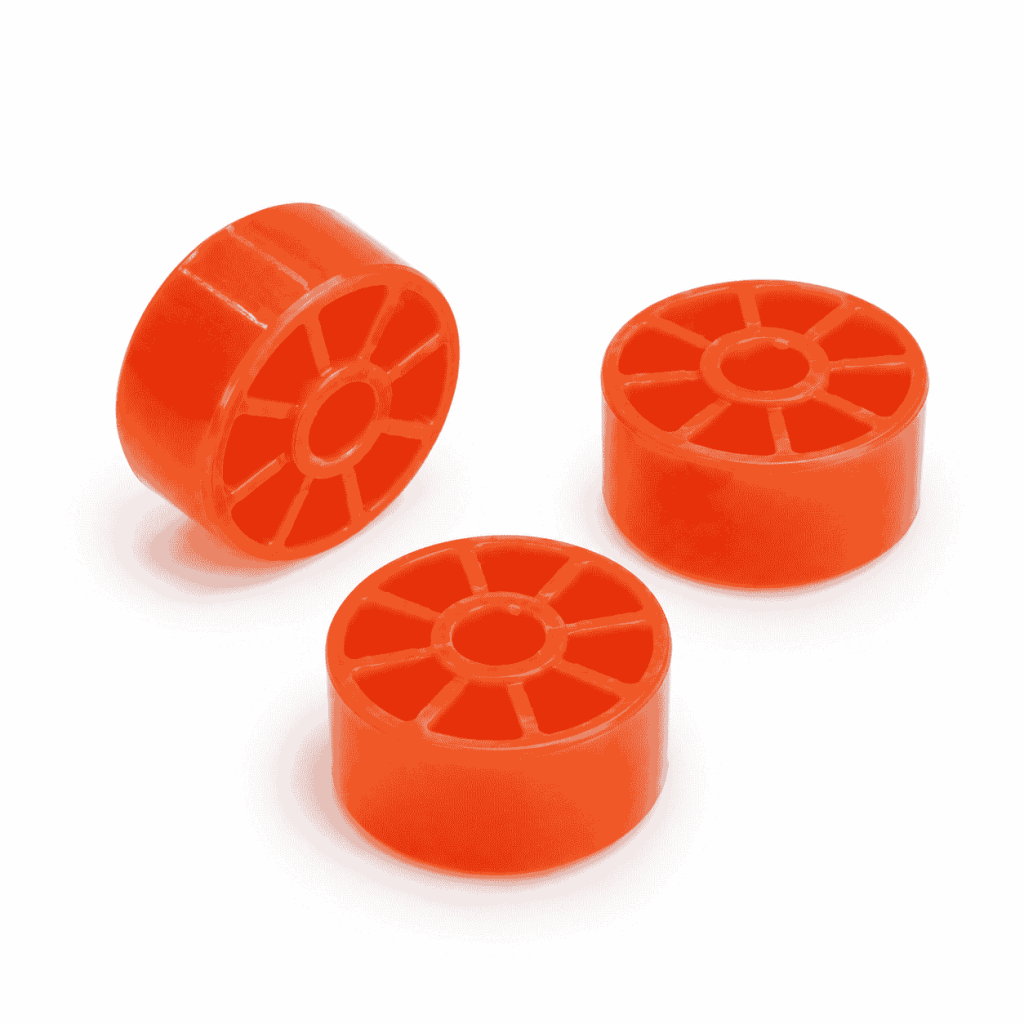

Custom Polyurethane Sun Wheels
Automation equipment often requires non-standard polyurethane sun wheels because the shaft size, installation space, product shape and feeding pressure vary between machines.
Custom polyurethane sun wheels can be produced according to technical drawings, existing samples or measured equipment dimensions.
Common customization options include:
- Different outer and inner diameters
- Customized finger shapes
- Different polyurethane hardness levels
- Metal or engineering plastic hubs
- Keyways and threaded holes
- Special mounting holes
- Single-wheel or multi-wheel arrangements
- Customized surface contact profiles
Conclusion
A polyurethane sun wheel for automation equipment is mainly used for flexible feeding, pressing, guiding, separating and conveying. It should not be confused with a conventional high-torque transmission gear.
Its elastic radial fingers help maintain stable contact with moving materials while reducing slipping, misalignment, scratches, pressure marks, vibration and operating noise.
By selecting the correct wheel diameter, bore tolerance, finger structure, polyurethane hardness and contact pressure, the sun wheel can provide stable and reliable performance in automated production equipment.
