UHMWPE Coding Machine Slider: 8 Best Proven Applications
UHMWPE Coding Machine Slider components are commonly used to guide, support, position, and stabilize products inside coding, printing, labeling, and automated packaging equipment.
During continuous production, cartons, bottles, bags, trays, and other products repeatedly contact the guide components of the machine. This repeated movement can create friction, vibration, operating noise, and surface wear. A properly machined UHMWPE slider helps products pass through the coding area smoothly while maintaining a stable printing position.
UHMWPE is widely selected for industrial sliding components because of its low-friction surface, wear resistance, impact resistance, low moisture absorption, and self-lubricating performance. More information about the material is available in this external explanation of ultra-high-molecular-weight polyethylene.
What Is a UHMWPE Coding Machine Slider?

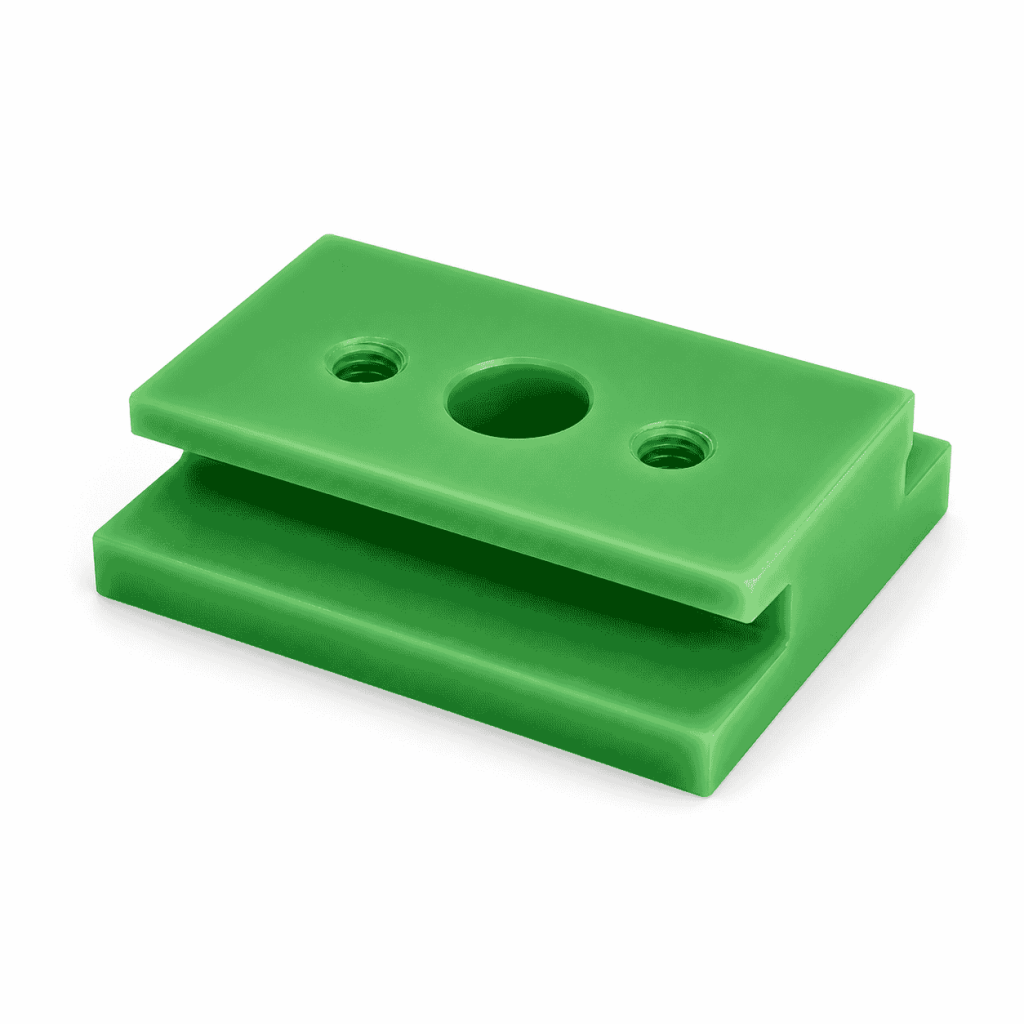

A UHMWPE Coding Machine Slider is a machined plastic component installed inside coding machines, conveyor systems, printing equipment, and packaging production lines.
Depending on the machine structure, the slider may be designed as a flat block, grooved guide, curved guide plate, side rail, support pad, positioning block, or wear strip.
Common machining features include:
- Mounting holes
- Countersunk holes
- Adjustment slots
- Guide grooves
- Curved entry surfaces
- Positioning steps
- Chamfered edges
- Threaded inserts
The dimensions and mounting structure are normally produced according to equipment drawings, physical samples, or actual installation measurements.
8 Application Scenarios of UHMWPE Coding Machine Sliders
1. Date Coding Machines
The first common application of a UHMWPE Coding Machine Slider is date coding equipment used on food, beverage, pharmaceutical, and daily chemical packaging lines.
Before a package reaches the coding position, it must remain properly aligned. UHMWPE sliders can be installed on both sides of the conveying path to guide bottles, cartons, bags, and containers into the required position.
The smooth surface reduces sliding resistance and helps prevent sudden movement that could affect the location or clarity of the printed production date.
2. Industrial Inkjet Coding Equipment
Industrial inkjet machines are used to print batch numbers, serial numbers, QR codes, barcodes, and traceability information.
In this equipment, a UHMWPE slider may be used as a side guide, product positioning block, conveyor wear strip, or adjustable support component.
Stable guidance is especially important when the product passes close to the printhead. A correctly installed slider helps reduce product shaking and keeps the printing distance more consistent.
3. Laser Marking Production Lines
Laser marking systems require products to enter the marking area in a stable and repeatable position. Excessive movement can cause the marked information to shift away from the required location.
A UHMWPE Coding Machine Slider can guide plastic bottles, aluminum cans, cartons, electronic housings, and molded components before they enter the laser marking station.
Compared with an exposed metal guide, the UHMWPE surface is less likely to scratch painted, printed, or polished product surfaces.
4. Food Packaging Equipment
Food packaging machinery often operates continuously and handles products at relatively high conveying speeds.
UHMWPE sliders can be installed near coding machines, sealing equipment, labeling machines, inspection devices, and conveyor transition areas. They provide a smooth contact surface for bags, trays, cartons, and plastic containers.
The low water absorption and chemical resistance of UHMWPE also make the material practical for production areas that require regular cleaning.
5. Beverage Bottling Lines
Bottles and cans must remain stable when passing through filling, labeling, inspection, and coding stations.
A UHMWPE Coding Machine Slider can be used as a bottle side guide or wear-resistant support. It helps control the conveying direction and reduces direct contact between the containers and the metal machine frame.
The low-friction surface allows bottles to move smoothly, especially in areas where products accumulate or change direction.
6. Pharmaceutical Packaging Machines
Pharmaceutical production lines require accurate product positioning and reliable equipment operation.
UHMWPE sliders can guide medicine cartons, blister packages, sealed bags, and plastic bottles through coding and inspection stations.
The material has low moisture absorption and provides a smooth contact surface, helping reduce package abrasion during repeated operation.
7. Carton Printing and Coding Systems
Cartons can enter a coding machine at slightly different positions or angles. Without an effective guide structure, the printed information may not remain in a consistent location.
A curved or inclined UHMWPE Coding Machine Slider can gradually guide each carton toward the required printing position.
The entry surface can be machined with a smooth radius or chamfer to reduce sudden impact. Long mounting slots may also be added so that operators can adjust the guide position for different carton sizes.
8. Automated Labeling and Traceability Lines
Coding equipment is frequently integrated with labeling machines, barcode scanners, weighing devices, cameras, and automatic inspection systems.
UHMWPE sliders can support product transfer between different sections of the line. They help reduce gaps, impact, vibration, and friction when a product moves from one conveyor section to another.
This stable transfer is useful for barcode reading, label inspection, product identification, and automated traceability systems.
Why Choose a UHMWPE Coding Machine Slider?
Excellent Wear Resistance
Guide components are repeatedly exposed to friction during continuous machine operation. UHMWPE provides good wear resistance, helping reduce frequent replacement of sliding and guiding components.
Low Coefficient of Friction
The smooth surface allows products and moving components to slide with less resistance. In many applications, the slider can operate without additional oil lubrication.
High Impact Resistance
Products may strike the side guides during high-speed conveying, accumulation, machine starts, or emergency stops. UHMWPE can absorb repeated impact without easily cracking.
Reduced Operating Noise
Replacing certain metal guide components with a UHMWPE Coding Machine Slider can reduce hard contact, vibration, and operating noise.
Low Moisture Absorption
UHMWPE absorbs very little moisture and does not rust. This allows the component to maintain stable performance in humid production areas and frequently cleaned environments.
Protection of Product Surfaces
The plastic contact surface is less likely to scratch bottles, cartons, painted parts, printed packaging, and molded plastic housings.
Common Machining Options
UHMWPE coding machine components can be manufactured using CNC milling, drilling, turning, routing, and other machining processes.
Common machining requirements include:
- Flat and parallel mounting surfaces
- Accurate hole spacing
- Curved or inclined guide surfaces
- Grooves for product positioning
- Countersunk mounting holes
- Long slots for adjustable installation
- Metal threaded inserts
- Chamfered or rounded edges
For additional material options and plastic machining information, explore our UHMWPE products and CNC plastic machining solutions.
Installation Recommendations
Correct installation is important for maintaining the service life and positioning accuracy of the slider.
- Check that the mounting surface is flat and clean.
- Confirm that the guide direction matches the product movement.
- Avoid overtightening the mounting bolts.
- Use suitable washers to distribute fastening pressure.
- Leave reasonable clearance for material expansion.
- Check that products can enter and leave the guide smoothly.
- Inspect the component regularly for uneven wear.
Conclusion
The UHMWPE Coding Machine Slider is suitable for date coding equipment, inkjet printers, laser marking systems, food packaging lines, beverage bottling equipment, pharmaceutical machines, carton printing systems, and automated traceability lines.
Its wear resistance, low friction, impact resistance, low moisture absorption, and smooth contact surface make it a practical guide and support component for continuous industrial equipment.
By selecting the correct structure, dimensions, mounting holes, and guide surfaces, manufacturers can improve product positioning, reduce friction, protect package surfaces, and maintain more stable coding performance.
