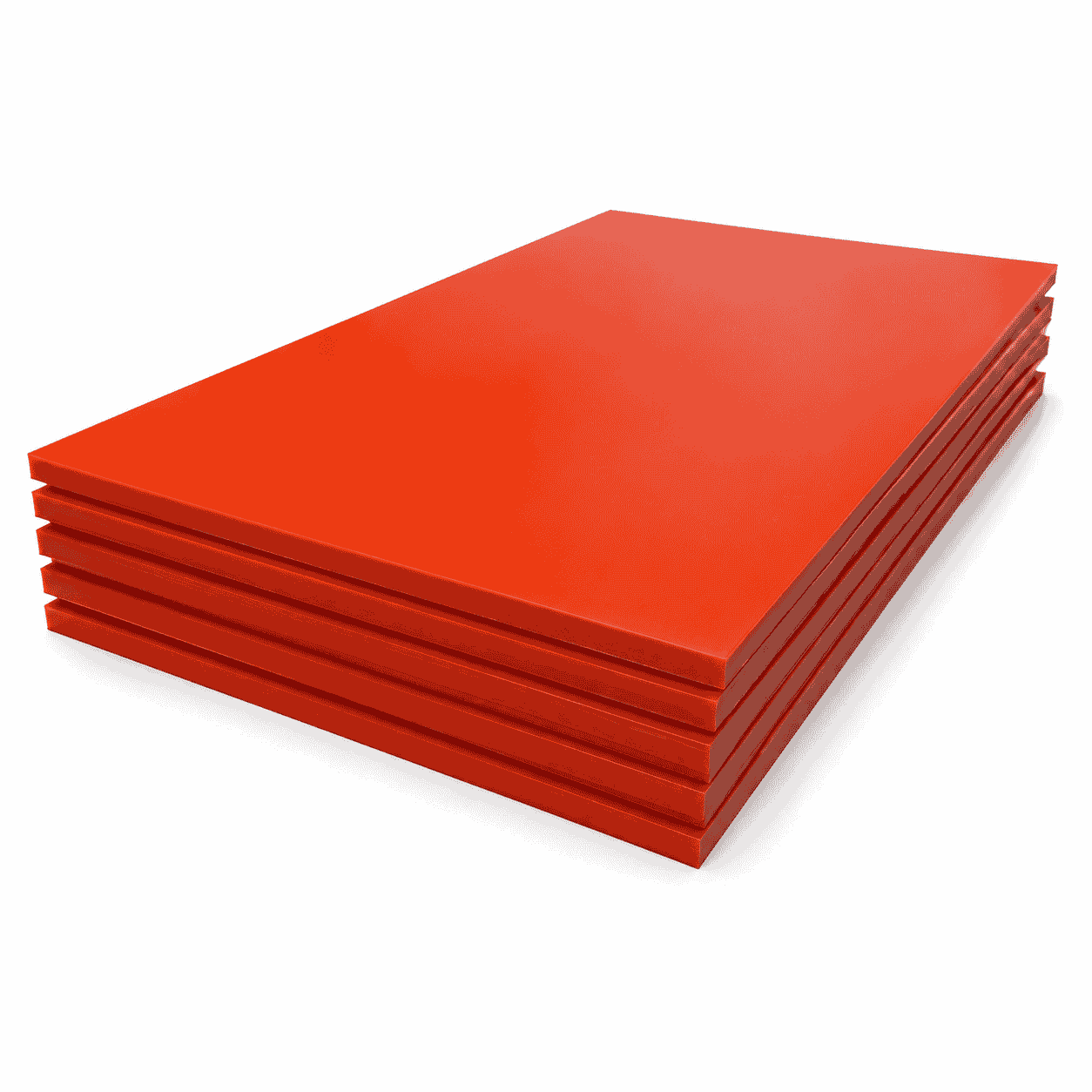

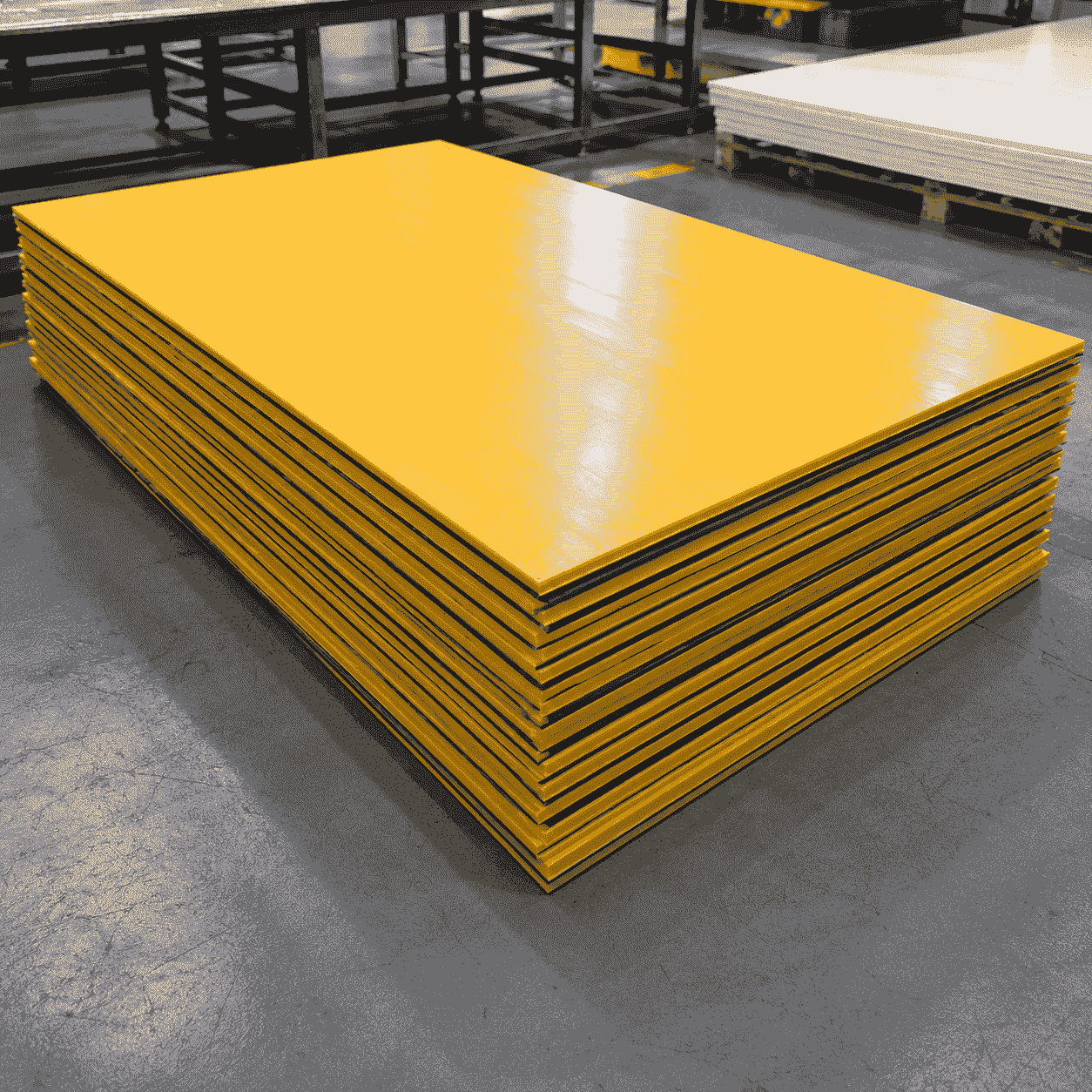

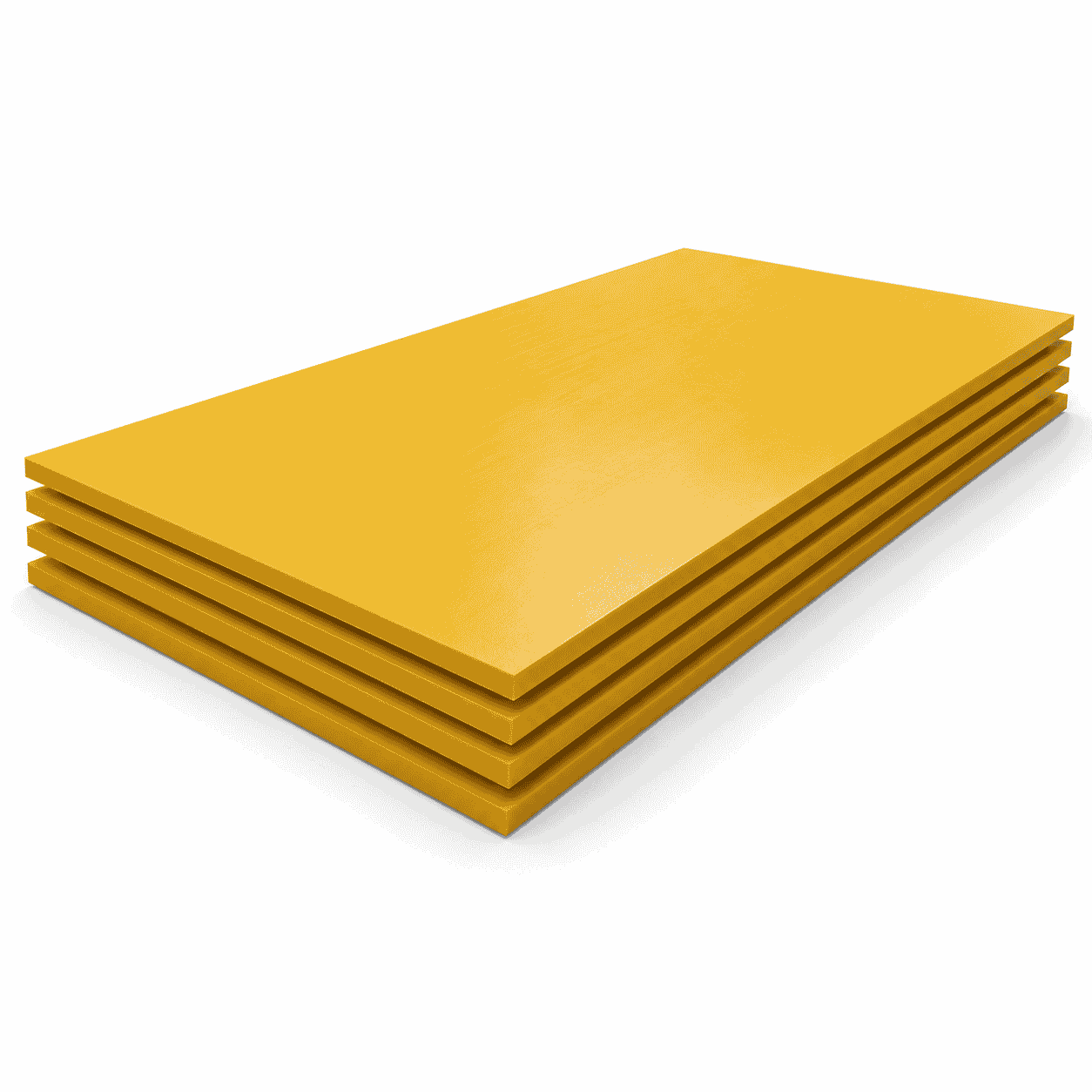

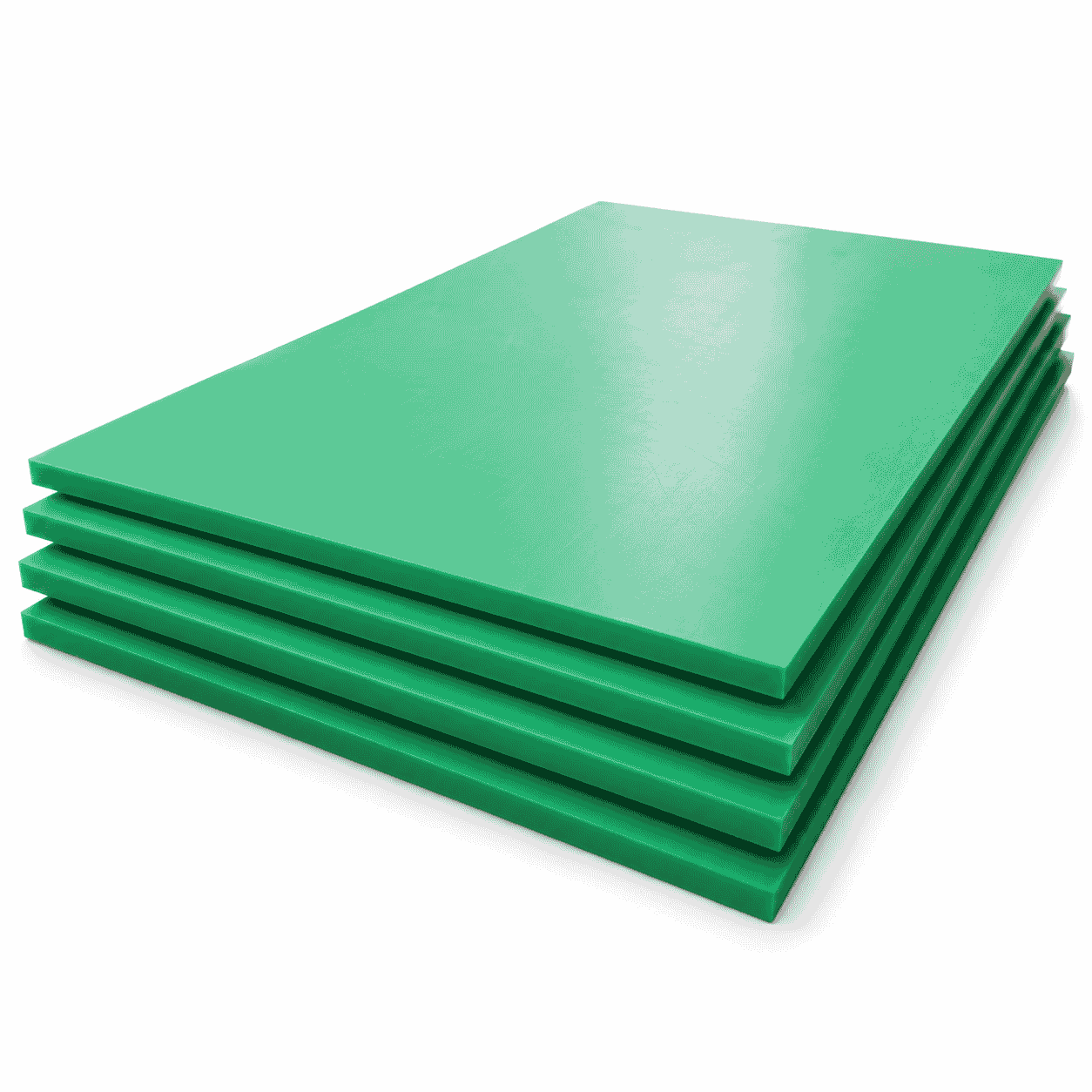

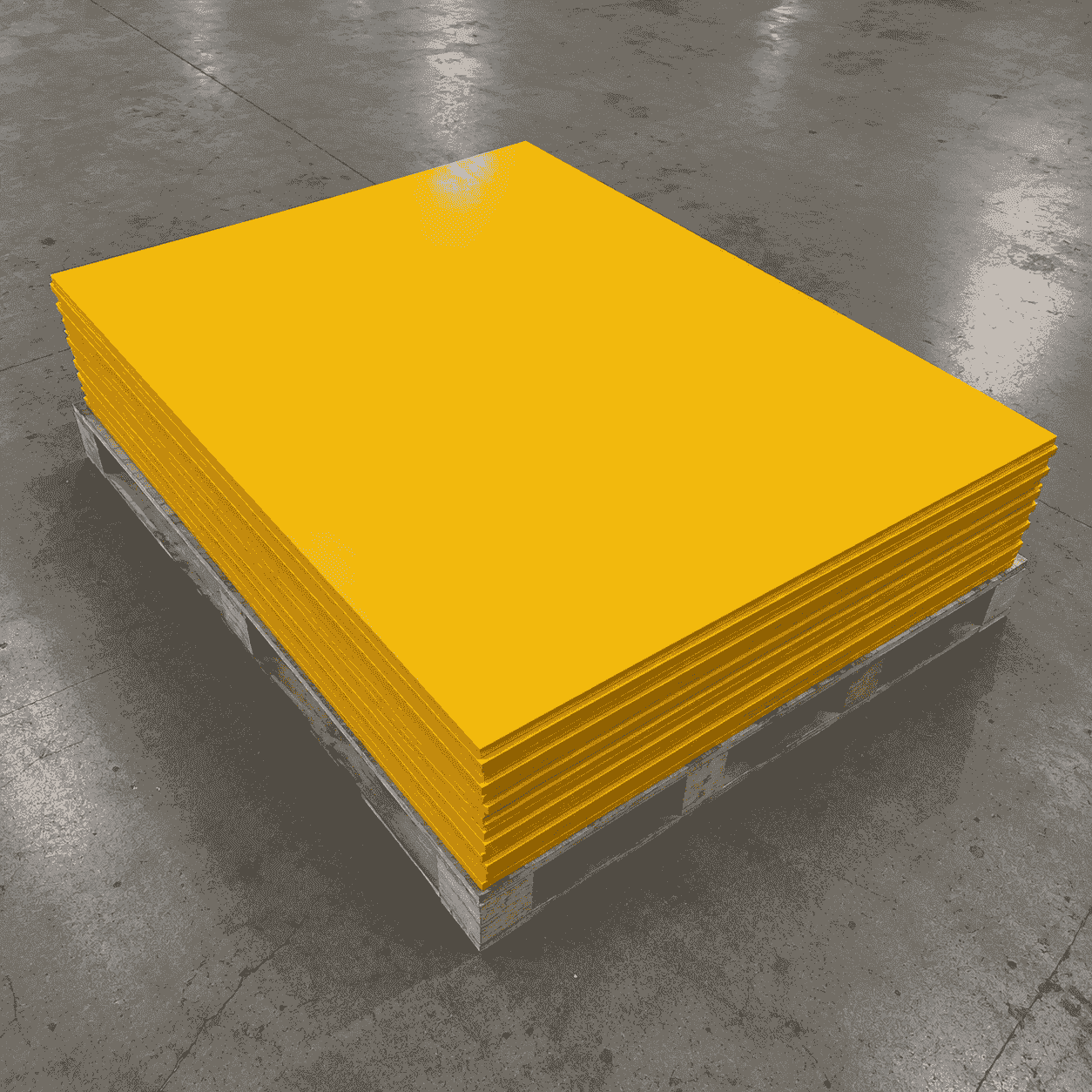

UHMWPE Sheet is a high-performance engineering plastic panel designed for industrial wear, impact, sliding and material-handling applications. The nominal 8 ft × 4 ft sheet size is equivalent to approximately 2440 × 1220 mm.
The material combines excellent abrasion resistance, high impact strength, low friction, self-lubricating performance and very low water absorption. It is suitable for equipment liners, conveyor guides, wear plates, sliding panels, support pads and CNC-machined machinery components.
Natural white, black, blue, green, yellow, red, orange and project-specified colors are available. Full-size sheets, cut-to-size blanks and finished components can be manufactured with holes, grooves, slots, steps and custom profiles.
UHMWPE Sheet is a durable engineering plastic panel manufactured from ultra-high-molecular-weight polyethylene. It is designed for industrial equipment exposed to continuous sliding, abrasive contact, repeated impact, vibration, moisture and bulk-material movement.
The nominal sheet size is 8 feet × 4 feet. The exact metric conversion is approximately 2438.4 × 1219.2 mm, while the commonly used commercial specification is approximately 2440 × 1220 mm.
UHMWPE Sheet combines excellent abrasion resistance, high impact strength, a low-friction working surface, self-lubricating performance and very low moisture absorption. It can be supplied as a complete molded panel, cut-to-size wear plate, equipment liner, guide panel, sliding surface or finished CNC-machined component.
Mounting holes, countersinks, counterbores, elongated slots, guide grooves, stepped surfaces, recessed structures and custom outside profiles can be manufactured according to customer drawings.
General information about the base material is available in the
Wikipedia explanation of ultra-high-molecular-weight polyethylene.
Additional information about polyethylene is available in the
Wikipedia explanation of polyethylene.
Information about friction, lubrication and wear is available in the
Wikipedia explanation of tribology.
UHMWPE Sheet is a solid thermoplastic engineering panel made from polyethylene resin with an extremely high molecular weight. UHMWPE is also commonly identified as PE-UHMW, PE1000 or UPE in the engineering-plastics industry.
Its extremely long molecular chains contribute to high toughness, impact resistance and resistance to repeated sliding and abrasive wear. Compared with standard polyethylene sheets, UHMWPE Sheet is normally selected for more demanding machinery, conveying and bulk-material-handling applications.
The sheet can be installed directly as a replaceable wear surface or processed into finished industrial components. Full panels can also be divided into strips, guide rails, liner plates, wear blocks, support pads and custom CNC-machined parts.
The color of a UHMWPE Sheet does not independently confirm UV stabilization, food-contact compliance, antistatic performance, electrical conductivity or flame retardancy. These functions require separately specified formulations and supporting technical documentation.
The exact metric conversion of an 8 ft × 4 ft panel is:
Some suppliers may also use dimensions such as 2400 × 1200 mm or 2440 × 1220 mm for similar products. These sizes should not automatically be treated as identical when the finished component requires strict dimensional tolerances.
The purchase order should clearly identify whether the required size refers to the molded blank, trimmed panel, minimum usable area or final CNC-machined dimensions.
UHMWPE Sheet is commonly produced by compression molding. UHMWPE powder, pigment and optional functional additives are prepared according to the required material specification.
The material is placed into a mold and consolidated under controlled temperature and pressure. After molding, the sheet is cooled gradually, removed from the mold, trimmed and inspected before optional planing or CNC machining.
General information about this manufacturing method is available in the
Wikipedia explanation of compression molding.
The selected UHMWPE resin, color pigment and functional additives are prepared according to the required grade. Available formulations can include standard, virgin, enhanced wear-resistant, UV-stabilized, antistatic and conductive UHMWPE.
The prepared UHMWPE powder is distributed inside the mold. Uniform filling helps control panel density, surface appearance, thickness and color consistency.
The material is consolidated under controlled temperature and pressure. The processing cycle depends on panel length, width, thickness, material grade and mold design.
The molded UHMWPE Sheet is cooled gradually. Controlled cooling helps reduce excessive internal stress, uneven shrinkage and panel warpage.
After demolding, the sheet edges are trimmed. Thick or large-format panels may be stored for stabilization before surface planing, rough machining and final finishing.
The molded panel can be cut, planed, drilled, turned, milled, grooved or CNC-machined according to the required component drawing.
UHMWPE Sheet is suitable for equipment exposed to continuous rubbing, sliding and abrasive material movement.
It can be used in contact with conveyor chains, belts, bottles, cartons, containers, powders, grains, coal, minerals, aggregates and moving mechanical components.
Actual service life depends on abrasive-material hardness, particle shape, sliding speed, contact pressure, impact frequency, operating temperature and installation quality.
The tough molecular structure helps UHMWPE Sheet withstand repeated impact and mechanical shock without easily cracking under appropriate operating conditions.
This makes the material suitable for loading areas, transfer points, impact plates, buffer pads, machinery stops and protective components exposed to vibration or falling materials.
The smooth working surface helps reduce resistance between moving products and equipment structures. Lower friction can support smoother movement and help reduce dragging, sticking, scratching and direct metal contact.
This property is useful for conveyor guides, chain rails, sliding plates, wear strips, hopper liners and product-transfer panels.
Many components manufactured from UHMWPE Sheet can operate without continuous oil or grease lubrication.
This can simplify maintenance and reduce the accumulation of lubricant, dust and abrasive particles around equipment. Whether additional lubrication is required depends on load, speed, contact pressure, mating material and operating temperature.
UHMWPE absorbs very little moisture compared with many conventional engineering plastics. Routine humidity, occasional washing or water exposure does not normally cause significant swelling.
This supports use in humid workshops, outdoor machinery, marine equipment, beverage machinery and periodically cleaned industrial systems.
UHMWPE Sheet does not rust and resists many commonly encountered acids, alkalis, salts and industrial chemicals.
Chemical compatibility should be evaluated separately when the sheet will contact strong oxidizing agents, specialized solvents, concentrated chemicals or elevated-temperature process media.
Installing UHMWPE Sheet between moving products and metal structures can help reduce direct metal-contact noise, equipment vibration and mechanical shock.
This characteristic is useful in conveyor systems, packaging machinery, automated production lines and bulk-material-handling equipment.
The panel can function as a replaceable working layer. When the contact surface reaches its maintenance limit, the UHMWPE Sheet can be replaced while the main steel structure remains in operation.
This can help protect more expensive equipment frames, hoppers, chutes, guide rails and machinery structures from direct wear.
The 8 × 4 ft format is convenient for material planning, storage, transportation and cutting-layout optimization.
Multiple smaller wear plates, strips or guide components can be arranged within one UHMWPE Sheet to improve material utilization.
UHMWPE Sheet can be saw-cut, planed, drilled, turned, milled, grooved and CNC-machined.
Available structures include mounting holes, countersinks, counterbores, elongated adjustment slots, guide grooves, stepped surfaces, curved profiles, recessed fastener positions and custom outside contours.
General information about computer-controlled machining is available in the
Wikipedia explanation of numerical control.
UHMWPE Sheet is suitable for industrial equipment requiring wear resistance, impact strength, low friction, moisture resistance or a replaceable plastic working surface.
Additional UHMWPE sheets, liner plates, wear panels and CNC-machined engineering plastic components are available through our
UHMWPE sheet and engineering plastic product center.
| Product Name | 8′ × 4′ UHMWPE Sheet |
|---|---|
| Focus Keyword | UHMWPE Sheet |
| Base Material | Ultra-high-molecular-weight polyethylene |
| Common Material Designation | PE-UHMW, PE1000, UPE or UHMWPE |
| Nominal Imperial Size | 8 ft × 4 ft |
| Exact Metric Conversion | Approximately 2438.4 × 1219.2 mm |
| Common Commercial Size | Approximately 2440 × 1220 mm |
| Common Thickness Range | 6–100 mm |
| Thick Panel Option | 100–200 mm after production-feasibility review |
| Extra-Thick Option | Thicknesses above 200 mm may require reduced panel dimensions |
| Standard Colors | Natural white, black, blue, green, yellow, red and orange |
| Special Color Options | Grey, dual-color or project-specified colors |
| Main Properties | Wear resistance, impact strength, low friction, self-lubrication and low water absorption |
| Production Method | Compression molding followed by controlled cooling and optional machining |
| Surface Options | As-molded, smooth, planed, lightly textured or CNC-machined |
| Available Grades | Standard, virgin, enhanced wear-resistant, UV-stabilized, antistatic and conductive grades |
| Processing Services | Cutting, planing, drilling, turning, milling, grooving and CNC machining |
| Supply Form | Full sheets, cut panels, wear plates, strips, blocks and finished components |
The dimensions listed above are common production options rather than guaranteed combinations. Maximum panel size, thickness, flatness and tight dimensional tolerance cannot always be achieved together.
Final dimensions should be confirmed according to molding capacity, material grade, thickness, edge-trimming allowance, required flatness, machining allowance and transportation conditions.
Relatively thin sheets are suitable for lightweight equipment liners, sliding surfaces, conveyor wear strips and protective panels.
Thin panels normally require continuous or closely spaced structural support.
This thickness range is commonly selected for conveyor guides, chain rails, sliding plates, hopper liners, chute liners and general industrial wear components.
Thicker panels provide additional impact absorption and machining allowance for mounting holes, guide grooves, steps and recessed structures.
Thick material can be evaluated for guide blocks, impact pads, machinery supports, positioning components and deeply machined industrial parts.
Full 8 × 4 ft availability depends on thickness, mold capacity, panel weight, cooling requirements and flatness specifications.
Standard UHMWPE is suitable for general wear plates, sliding guides, liners and low-friction machinery components.
A controlled virgin-resin formulation can be selected where consistent appearance, traceability or project-specific documentation is required.
An enhanced wear formulation can be evaluated for abrasive minerals, high-frequency sliding and equipment requiring longer replacement intervals.
A UV-stabilized formulation can be specified for outdoor equipment and sunlight-exposed components. Color alone does not confirm UV resistance.
An antistatic material grade can be evaluated where electrostatic accumulation must be reduced.
The required surface-resistance or volume-resistance range, testing voltage and test method should be specified before production.
Conductive UHMWPE provides lower electrical resistance than standard insulating material. Conductive and antistatic grades should not be treated as identical.
UHMWPE Sheet may be used in food-processing and packaging equipment when an appropriate documented formulation is selected.
The resin, pigments, stabilizers, additives and intended conditions of use must be reviewed as a complete material system. Sheet color alone does not demonstrate food-contact compliance.
UHMWPE Sheet can be supplied as a full molded panel, cut-to-size blank or finished CNC-machined component.
Available processing services include:
UHMWPE expands and contracts more than most metals when temperature changes. Finished dimensions may vary when the operating temperature differs significantly from the inspection temperature.
Large or thick panels may require blank stabilization, surface planing, rough machining, intermediate stress release and precision finishing.
Removing large quantities of material in several machining stages can help control cutting heat, internal stress and dimensional variation.
Critical dimensions, reference surfaces, mounting-hole positions, groove dimensions and tolerance requirements should be clearly identified on the drawing.
Extremely tight metal-like tolerances may not be practical across the complete 8 × 4 ft panel. Final tolerances should consider panel size, thickness, installation method and operating-temperature range.
UHMWPE Sheet can be installed using countersunk bolts, recessed fasteners, mechanical clamps, backing plates, metal inserts or equipment-specific mounting structures.
The supporting surface should be clean, reasonably flat and capable of supporting the panel evenly. Unsupported areas can increase movement and stress around mounting points.
Suitable thermal-expansion clearance should be provided around panel edges, mounting holes and joints.
Elongated holes, floating fasteners or sliding fixing structures may be considered for large panels exposed to significant temperature variation.
Fasteners should not be excessively tightened because concentrated pressure can deform UHMWPE around the mounting position.
For bulk-material and conveyor applications, joints and exposed edges should be arranged according to the direction of material movement to reduce catching points.
Quality inspection can be completed according to customer drawings and agreed technical requirements. Typical inspection items include:
To prepare an accurate quotation for UHMWPE Sheet, please provide:
The final UHMWPE Sheet grade, size, thickness tolerance, color and machining process should be confirmed according to customer drawings, operating conditions and production-feasibility review before manufacturing.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
