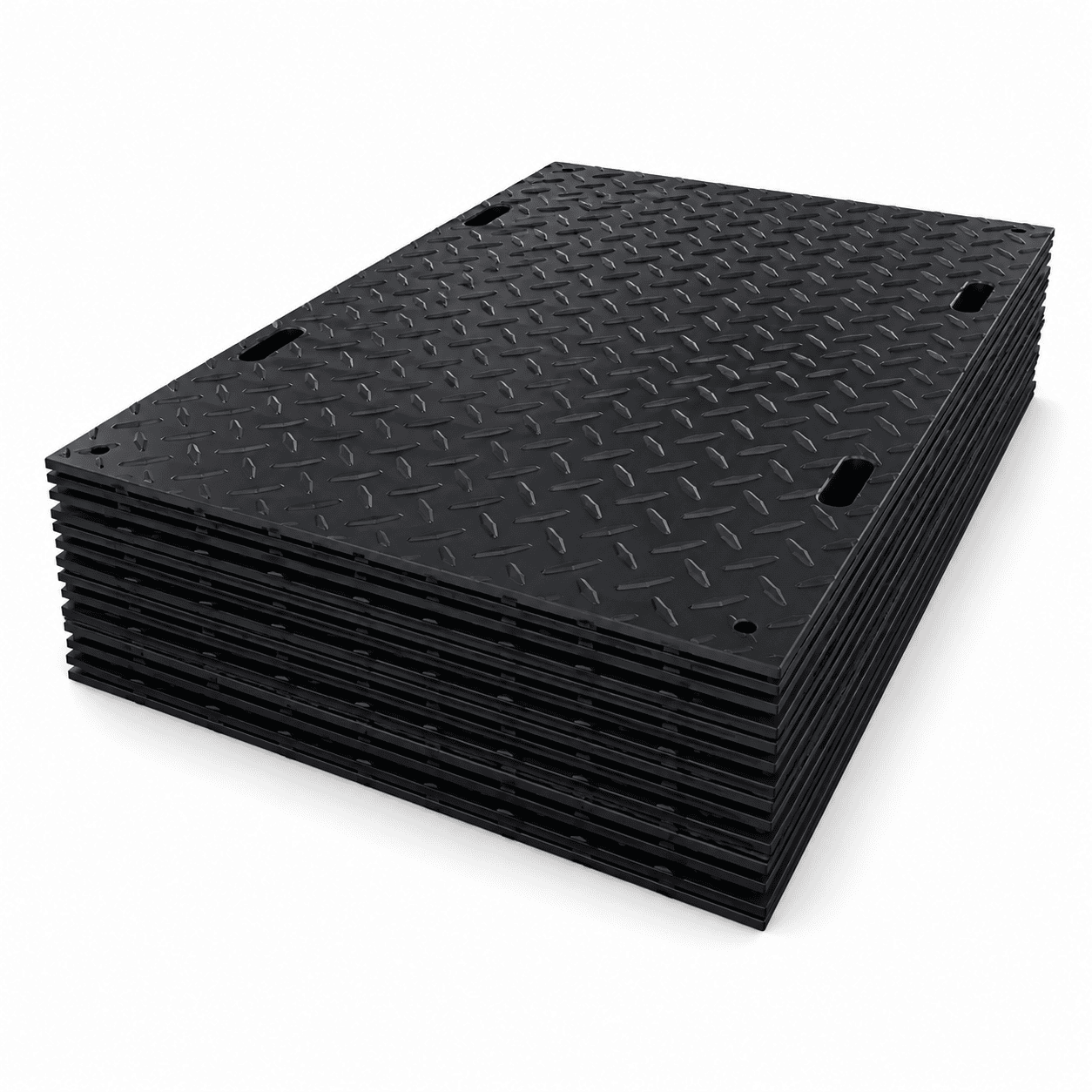

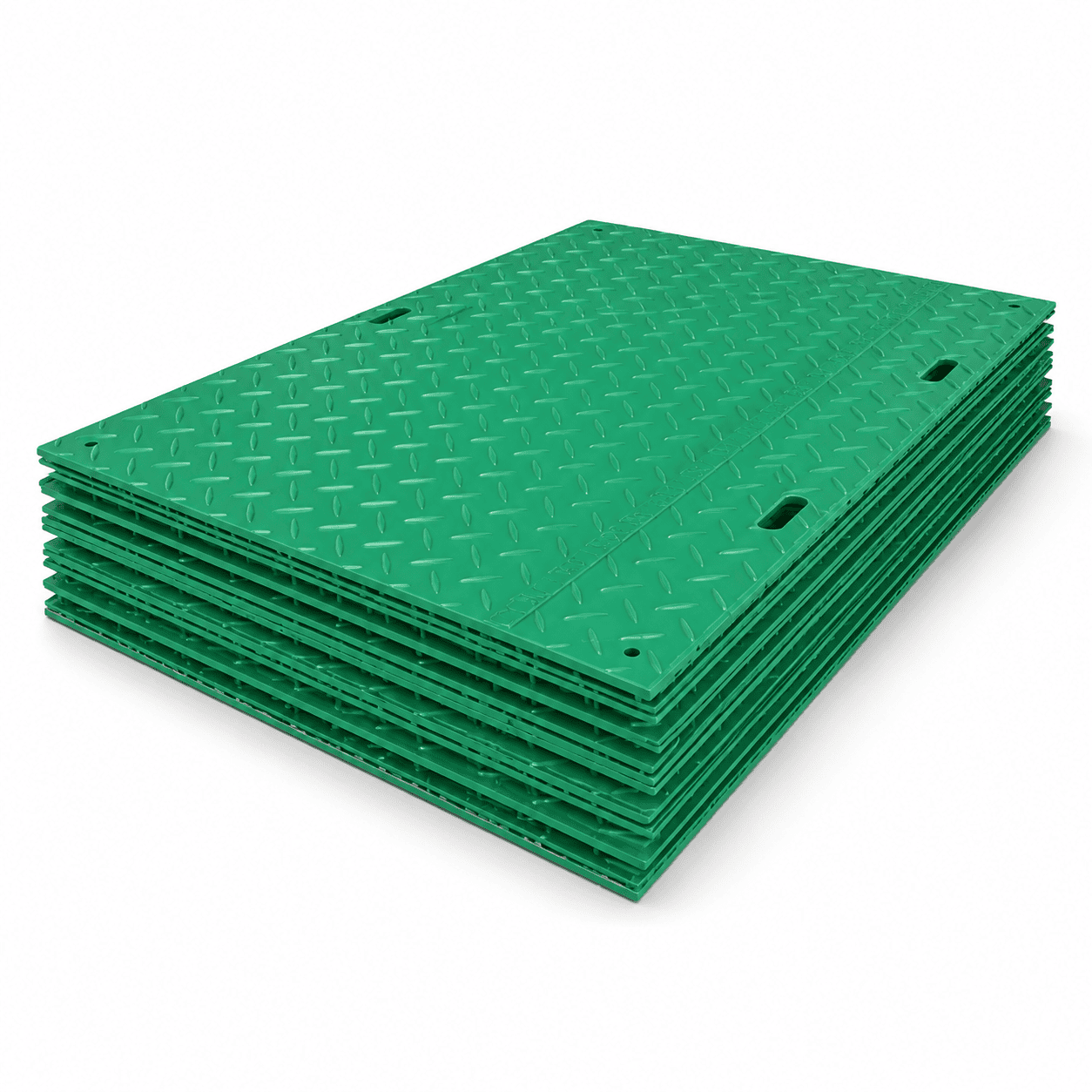

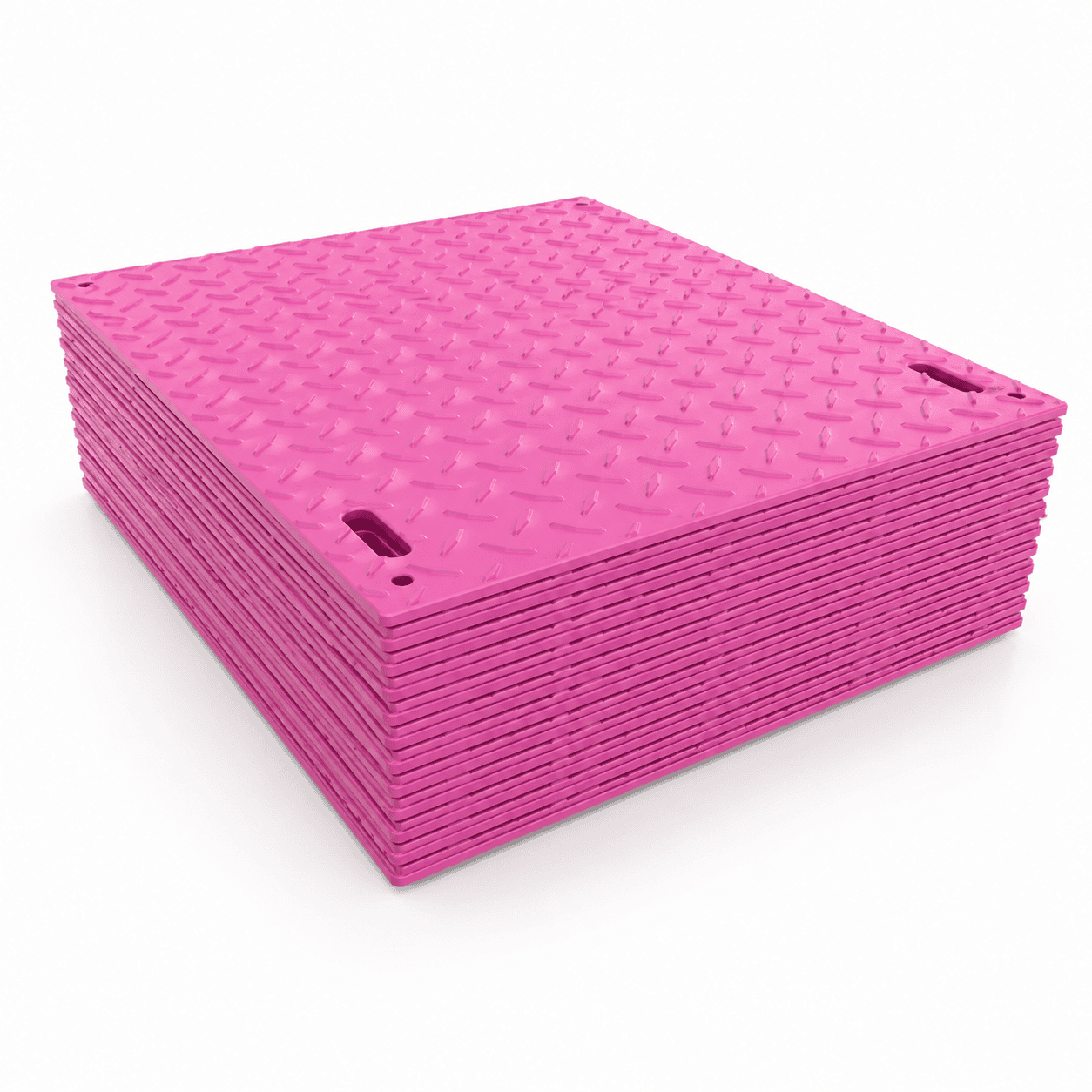

HDPE Composite Ground Mats are durable anti-slip access panels designed for temporary vehicle and equipment routes over mud, grass, sand, gravel, and soft ground. A common size is approximately 2440 × 1220 mm, with typical thickness options of 12.7 mm, 15 mm, and 20 mm. The raised traction surface, reusable HDPE structure, and modular connection system make the mats suitable for temporary roads, parking areas, industrial access, landscaping, utility operations, and ground protection.
HDPE Composite Ground Mats are durable temporary access panels designed to create stable routes for vehicles, equipment, and pedestrians over mud, grass, sand, gravel, soft soil, and other challenging surfaces. Manufactured from high-density polyethylene, these reusable mats feature a raised anti-slip traction pattern that helps improve tire grip while protecting the ground underneath.
The rectangular panel structure provides a practical balance between ground coverage, transportation, handling, and repeated use. Individual panels can be installed side by side or connected to form temporary roads, vehicle access routes, parking surfaces, equipment paths, and larger working areas.
Compared with conventional steel plates and timber boards, the HDPE structure does not rust and has low water absorption. The mats can be cleaned, stacked, transported, and reused across different projects, making them suitable for temporary access applications where a permanent road surface is unnecessary.
A common size for HDPE Composite Ground Mats is approximately 2440 × 1220 mm (8 × 4 ft). This widely used panel format provides good surface coverage while remaining practical for transportation and installation.
Typical reference specifications include:
The final mat size, thickness, weight, surface pattern, and connector configuration should be selected according to vehicle type, axle pressure, supporting ground strength, route layout, traffic frequency, and actual operating conditions.
One of the main features of these mats is the raised surface pattern. The upper face is designed with a structured anti-slip tread that increases contact between the mat and vehicle tires.
This is particularly useful when temporary access is required over:
The textured surface provides better traction than a completely smooth plastic sheet and helps create a more defined route for vehicles and equipment.
Depending on the required application, the mat can use a traction pattern on one side or both sides. A double-sided structure can provide traction for vehicle tires on the upper surface while also improving interaction with the supporting ground.
High-density polyethylene provides a useful combination of toughness, impact resistance, wear resistance, moisture resistance, and corrosion resistance.
These characteristics make HDPE Composite Ground Mats suitable for repeated outdoor installation where the panels may be exposed to rain, mud, soil, standing water, and changing weather conditions.
Unlike traditional steel access plates, HDPE does not rust. Compared with many timber boards, the material has low water absorption and does not absorb large amounts of moisture during wet outdoor use.
The surface can also be cleaned after use, allowing the panels to be inspected, stacked, transported, and installed at another location.
For general information about the base polymer, you can read more about polyethylene material properties.
HDPE Composite Ground Mats can be used to create temporary routes where vehicles or equipment need access across surfaces that may otherwise be damaged or difficult to travel over.
Typical applications include:
The modular structure allows the mats to be arranged according to the required route width and length. Additional panels can be added when the temporary roadway needs to be extended or widened.
Repeated vehicle movement over soft surfaces can create deep ruts, muddy tracks, compacted areas, and difficult driving conditions.
HDPE Composite Ground Mats help create a defined travel surface and spread vehicle contact across a wider area. This can help reduce direct tire contact with the underlying ground and limit repeated traffic damage.
Typical ground conditions include:
The mats should be installed on a reasonably supported surface. Deep holes, sharp objects, large unsupported voids, severe level changes, and unstable edges should be evaluated before regular vehicle traffic begins.
Different applications may require different tread configurations. Some access routes mainly require improved tire grip, while others need both vehicle traction and better contact with the supporting ground.
Typical surface configurations include:
The most suitable surface design should be selected according to vehicle type, tire structure, terrain, pedestrian requirements, and installation conditions.
Individual mats can be joined using suitable connection components to form a continuous temporary surface.
The connected modular system can be arranged as:
Connector quantity and installation position should be selected according to traffic direction, turning movements, braking forces, mat layout, and ground conditions.
Correct connection helps maintain alignment between adjoining panels and reduces unwanted movement during repeated use.
One of the main practical advantages of HDPE Composite Ground Mats is their reusable structure.
After a project is completed, the panels can be:
The consistent rectangular format allows efficient stacking during storage and transportation. This is useful for companies that regularly move temporary access systems between projects.
Before reuse, the surface pattern, panel edges, connector holes, and connecting components should be inspected for severe wear or damage.
These mats can be used for cars, pickup trucks, service vehicles, maintenance equipment, utility vehicles, and other machinery when the selected product specification and supporting ground conditions are appropriate.
Actual performance should not be determined by total vehicle weight alone. Important factors include:
A panel installed over firm and evenly supported ground can perform differently from the same product installed across deep mud, large holes, unsupported edges, or severe ground depressions.
For demanding equipment applications, project conditions should be reviewed before the final mat thickness, installation layout, and connector arrangement are selected.
Temporary access is often required across lawns, landscaped areas, sports fields, parks, and other surfaces where permanent road construction is not suitable.
HDPE Composite Ground Mats create a defined route that helps keep vehicle traffic within a controlled area.
This can help:
The actual level of ground protection depends on soil moisture, traffic frequency, vehicle pressure, installation duration, and the condition of the supporting surface.

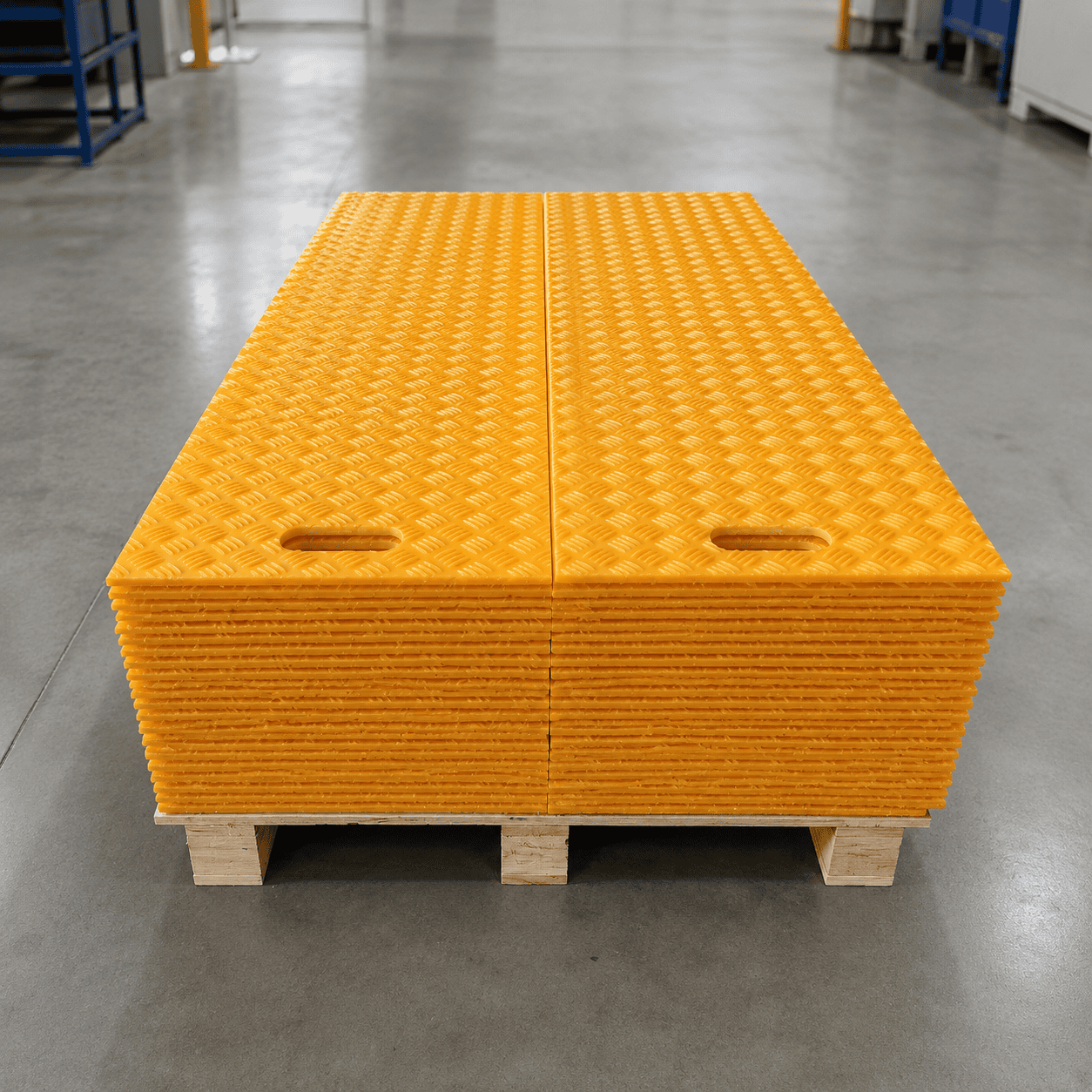

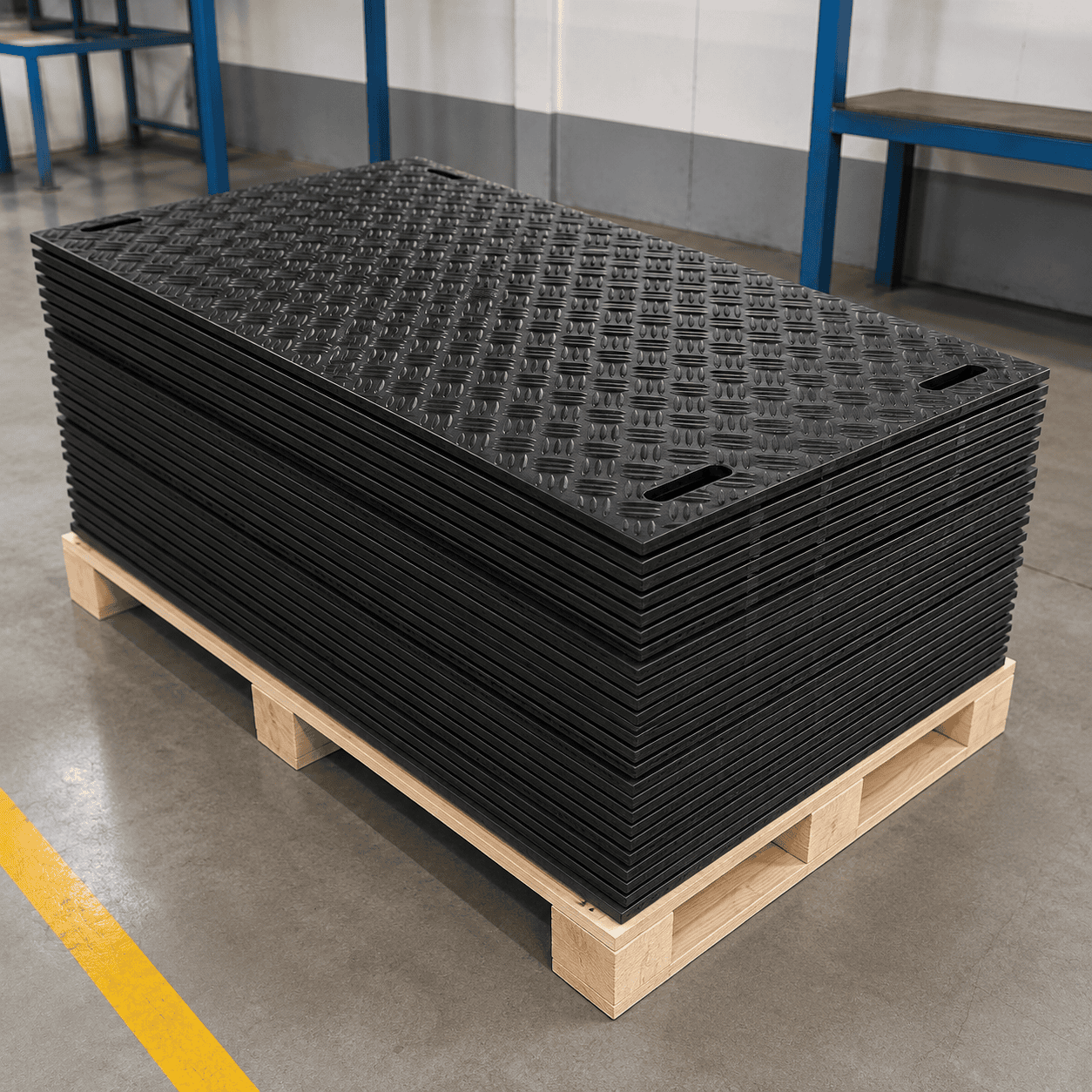

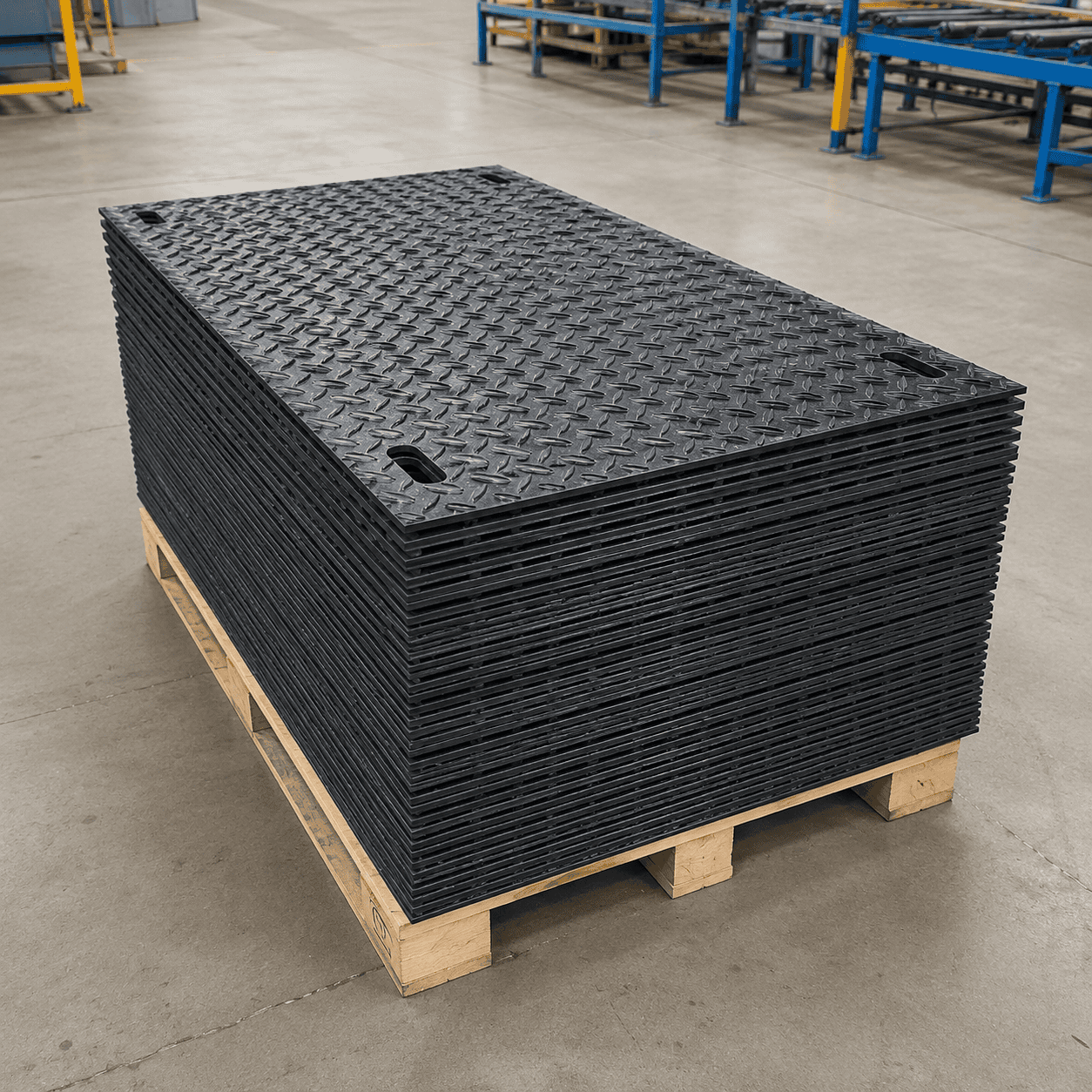

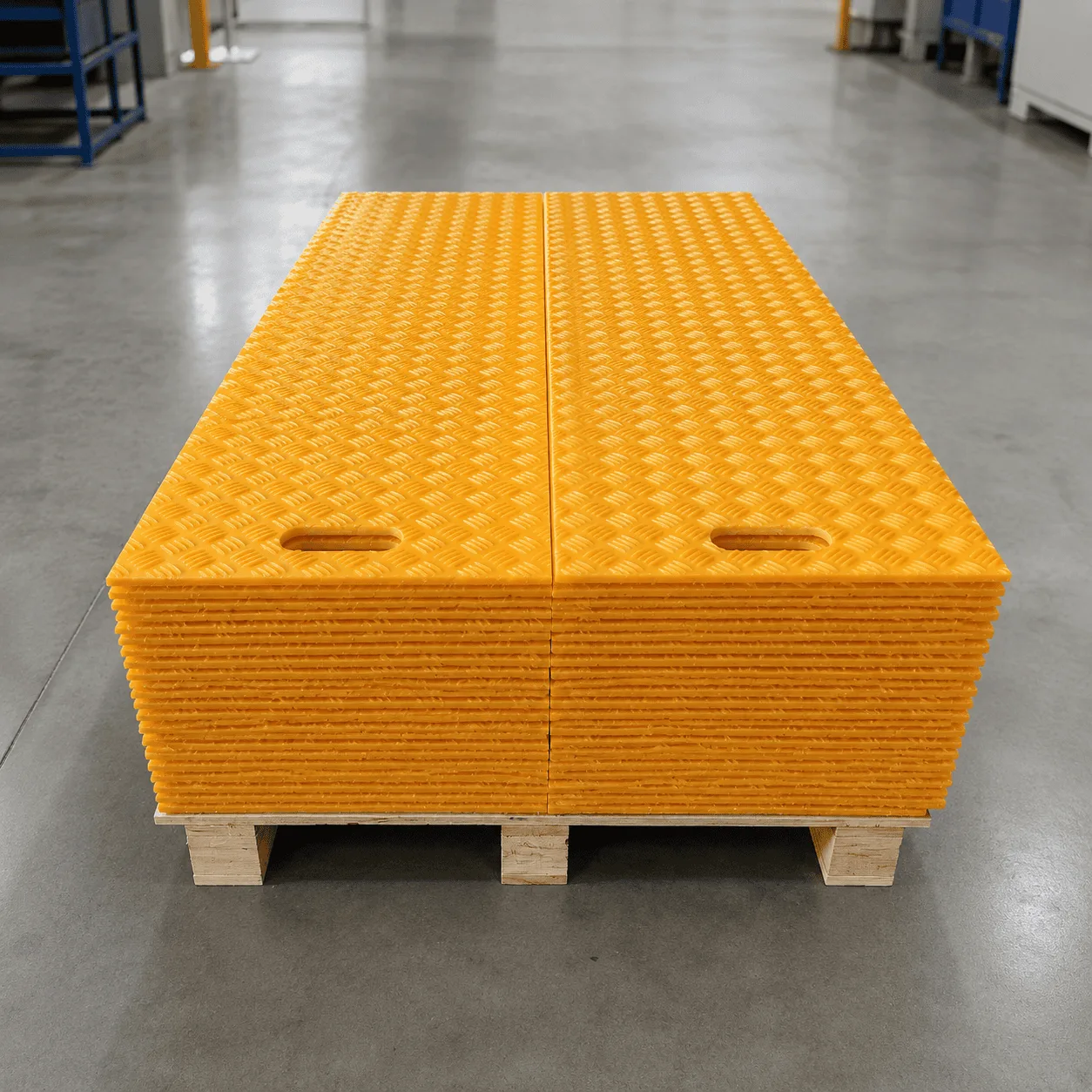

The flat rectangular panel format makes these mats suitable for stacked storage. Multiple panels can be arranged together for workshop storage, project preparation, and transportation.
The approximately 2440 × 1220 mm format is widely used because it provides a useful coverage area while remaining more manageable than very large heavy-duty industrial access panels.
For thicker or heavier mat specifications, suitable lifting and handling equipment should be selected according to actual panel weight and operating conditions.
You can also view our complete range of ground protection mats for temporary roads, vehicle access, heavy equipment routes, grass protection, soft-ground access, and industrial applications.
HDPE Composite Ground Mats provide a practical solution for temporary vehicle access, ground protection, equipment routes, parking areas, and outdoor operations. Their raised anti-slip surface, durable polyethylene construction, reusable panel design, and modular installation system make them suitable for a wide variety of temporary access applications.
A typical standard size is approximately 2440 × 1220 mm, with common thickness options of approximately 12.7 mm, 15 mm, and 20 mm. Final dimensions, thickness, tread design, and connection method should always be selected according to the actual vehicle type, ground conditions, traffic frequency, and project requirements.
