Wear-Resistant UHMWPE Liner Sheet is a heavy-duty engineering plastic lining plate developed for hoppers, chutes, silos, bunkers, coal bins, truck bodies and bulk-material-handling equipment.
The material combines excellent abrasion resistance, high impact strength, low friction, self-lubricating performance and very low water absorption. It helps improve material flow while protecting the supporting steel structure from repeated impact and sliding wear.
Blue and other colors are available in standard or large-format panels. Custom thicknesses, mounting holes, countersunk structures, slots, stepped joints and CNC-machined profiles can be produced according to equipment drawings.
Wear-Resistant UHMWPE Liner Sheet is a high-performance engineering plastic lining plate manufactured from ultra-high-molecular-weight polyethylene. It is designed for industrial equipment exposed to abrasive materials, repeated impact, continuous sliding, material accumulation and demanding operating conditions.
The material combines excellent wear resistance, high impact strength, a low-friction working surface, self-lubricating performance and very low moisture absorption. It can be installed inside hoppers, chutes, bins, silos, truck bodies and conveyor transfer systems to create a durable and replaceable material-contact surface.

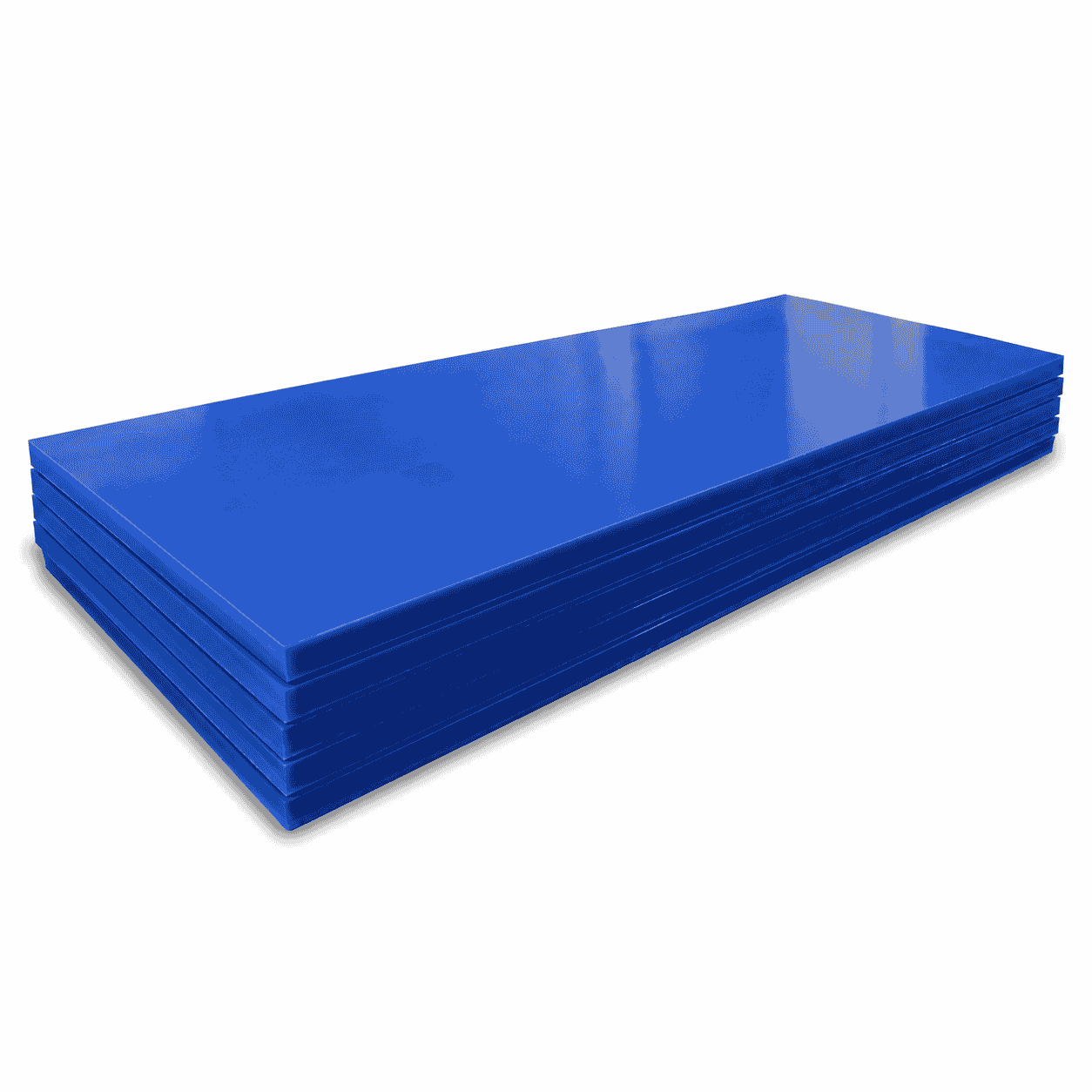

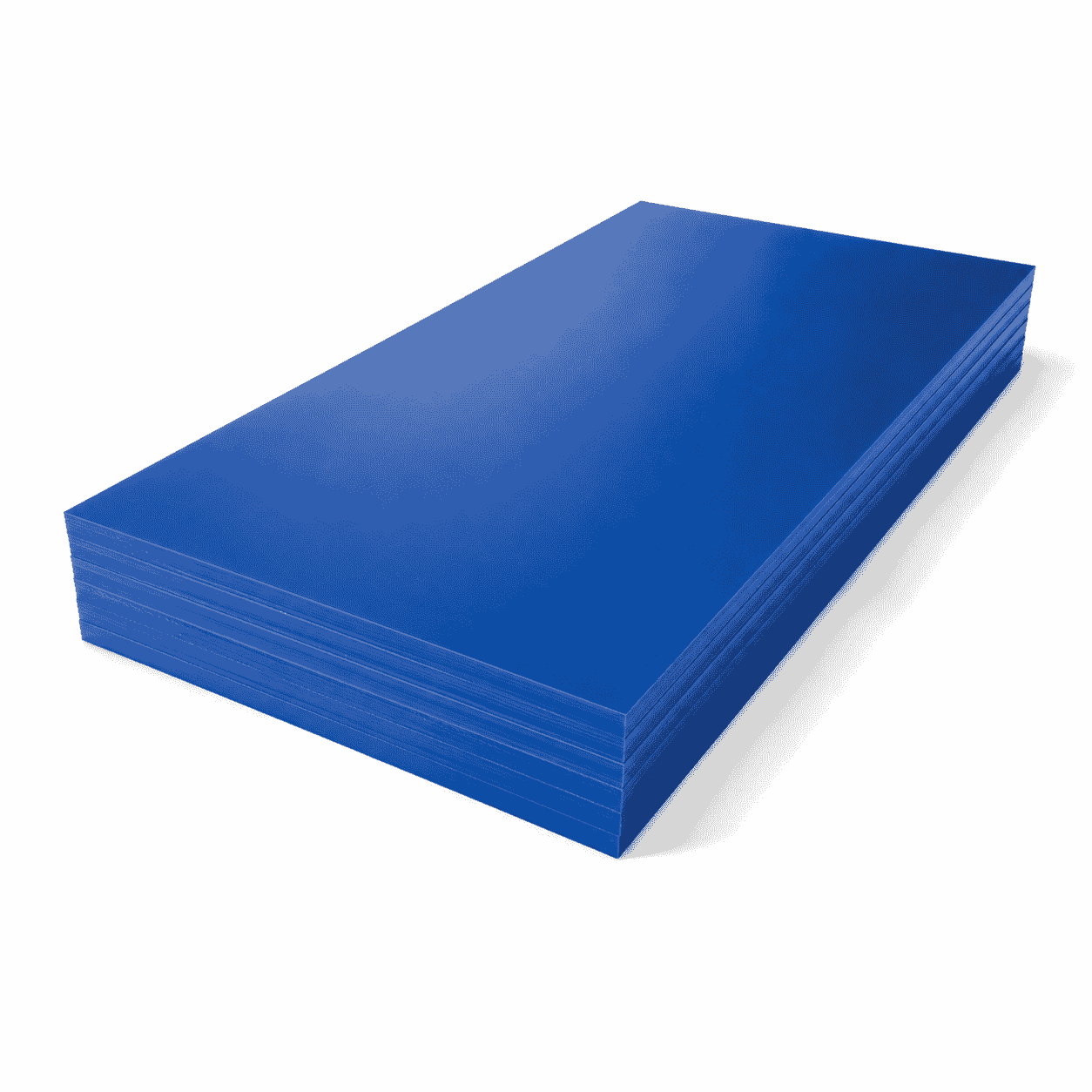

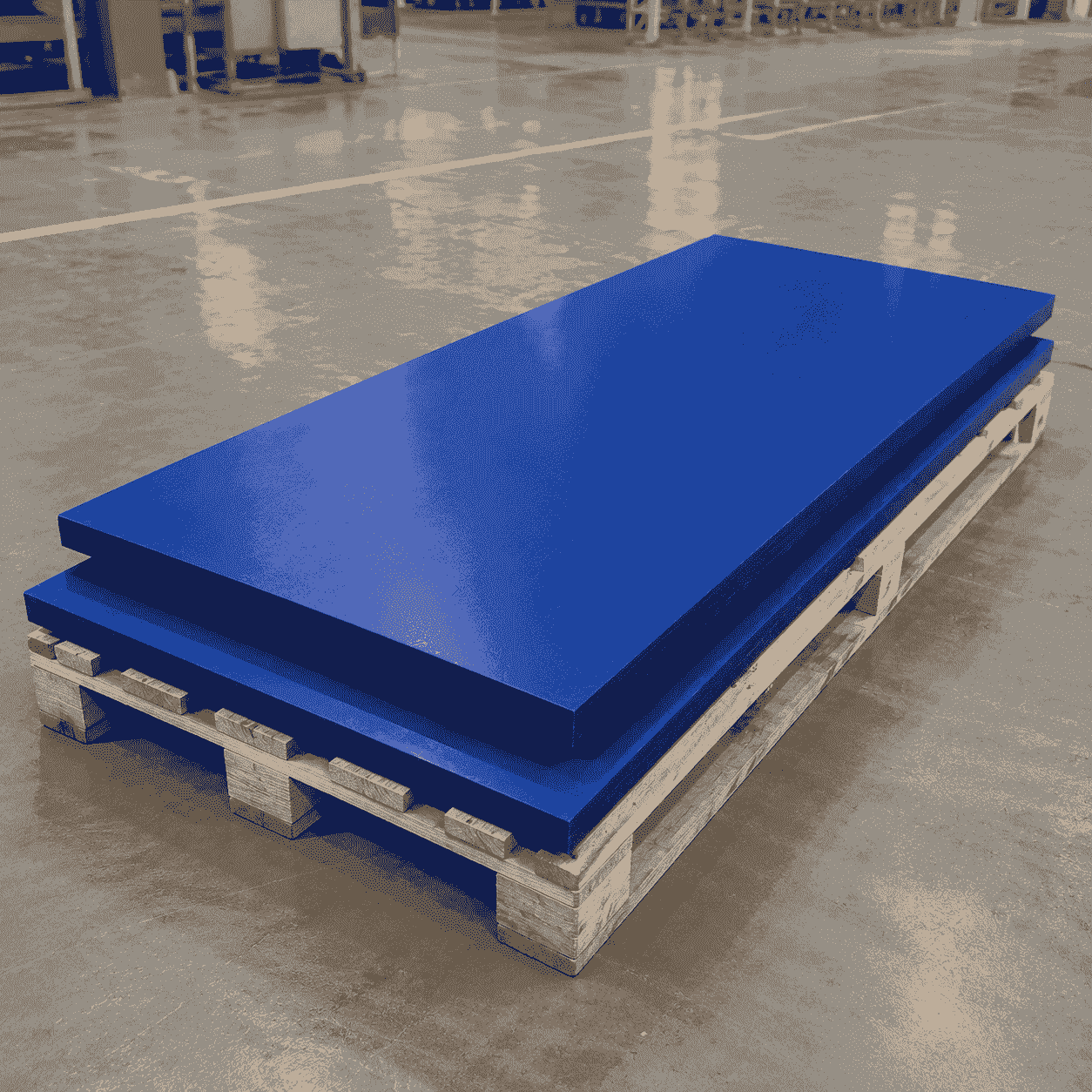

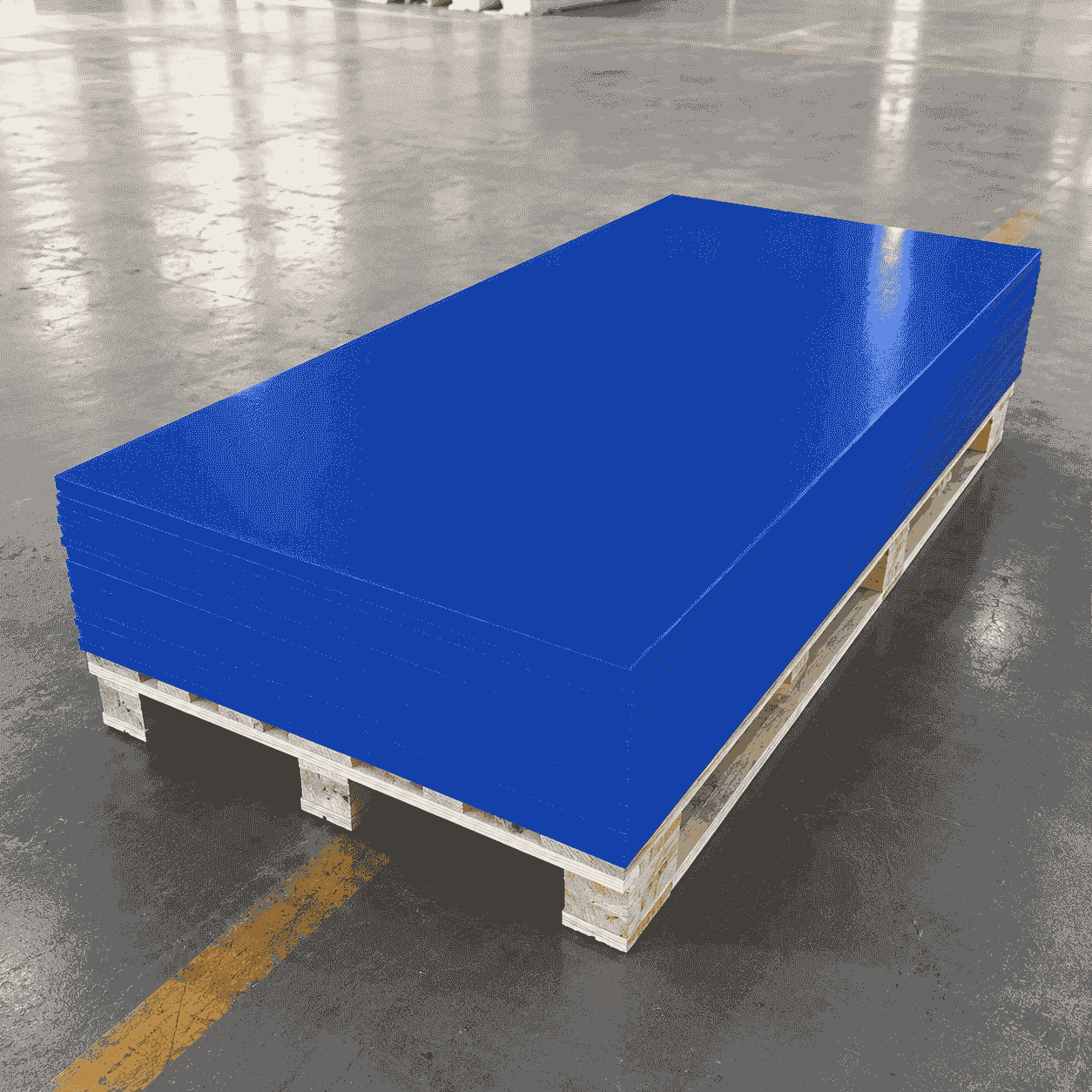

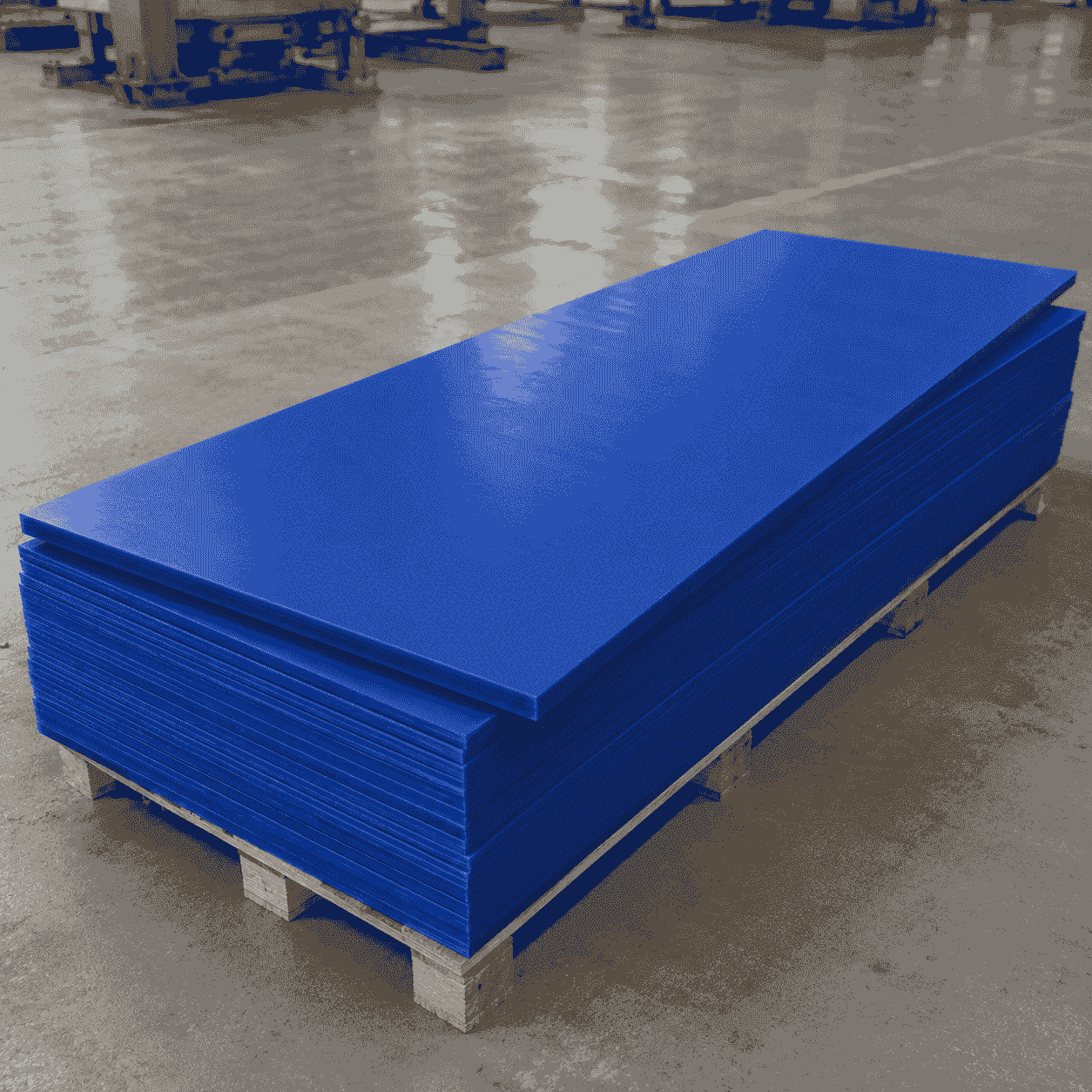

The blue liner shown in the product image can be supplied as a full molded sheet, cut-to-size lining panel, long wear strip or finished CNC-machined component. Length, width, thickness, mounting-hole positions, grooves, countersinks and outside profiles can be processed according to customer drawings.
General information about the base material is available in the
Wikipedia explanation of ultra-high-molecular-weight polyethylene.
Additional information about friction, lubrication and wear is available in the
Wikipedia explanation of tribology.
A Wear-Resistant UHMWPE Liner Sheet is a compression-molded polyethylene panel used as a replaceable wear and sliding surface inside industrial equipment. UHMWPE contains extremely long molecular chains that contribute to toughness, impact resistance and resistance to repeated abrasive contact.
When installed over a steel structure, the liner separates the conveyed material from the metal surface. This helps reduce direct steel wear, corrosion exposure, material sticking and operating noise.
The blue pigment is dispersed throughout the material rather than applied only as a surface coating. Cutting, drilling and machining therefore reveal the same general blue color inside the sheet.
Color alone does not confirm food-contact compliance, UV stabilization, antistatic performance, electrical conductivity or any branded material grade. These functions require separately specified formulations and supporting technical documentation.
The smooth surface of Wear-Resistant UHMWPE Liner Sheet helps reduce sliding resistance between the lining and bulk materials. Lower friction can help coal, grain, powders, minerals, aggregates and manufactured products move more smoothly through hoppers and chutes.
This can help reduce sticking, bridging, arching and material accumulation in suitable equipment. Actual flow performance depends on particle shape, moisture content, material temperature, wall angle, contact pressure and equipment design.
Rough, corroded or damaged steel surfaces can create points where bulk materials collect. Installing a smooth UHMWPE liner covers these uneven surfaces and creates a more uniform material-contact area.
The liner does not replace correct hopper-angle or material-flow design. Difficult materials may still require suitable wall angles, vibration systems, air assistance or other flow-control methods.
A properly installed liner prevents much of the conveyed material from directly contacting the supporting steel body. This helps reduce sliding abrasion, repeated impact and corrosion-related damage.
Because the liner is replaceable, worn sections can normally be removed without replacing the complete hopper, chute, silo or truck body.
Wear-Resistant UHMWPE Liner Sheet is suitable for equipment exposed to repeated rubbing and sliding wear. It can be used with coal, grain, sand, minerals, powders, cement ingredients, aggregates, waste materials and manufactured products.
Actual service life depends on particle hardness, particle shape, material-flow rate, contact pressure, impact angle, operating temperature and installation quality.
The UHMWPE structure provides high toughness and helps the lining withstand repeated impact without easily cracking under appropriate operating conditions.
This characteristic is useful in loading zones, transfer points, truck bodies, bins, hoppers and chutes where falling materials repeatedly strike the working surface.
The low-friction surface helps materials slide through equipment with less resistance. It can reduce material drag and support more consistent discharge from suitable hoppers, bins and chutes.
Friction performance varies according to material grade, surface finish, contact pressure, moisture and the characteristics of the conveyed product.
UHMWPE provides a naturally low-friction sliding surface. Most liner applications do not require continuous oil or grease lubrication.
This can simplify maintenance and avoid introducing lubricants into bulk-material-handling systems.
UHMWPE absorbs very little moisture compared with many conventional engineering plastics. This supports stable performance in humid production areas, outdoor material-handling systems and periodically washed equipment.
Wear-Resistant UHMWPE Liner Sheet does not rust and resists many commonly encountered acids, alkalis, salts and industrial chemicals.
Chemical compatibility should be reviewed separately when the liner will contact strong oxidizing agents, specialized solvents, concentrated chemicals or elevated-temperature process media.
Installing UHMWPE between moving materials and metal structures can help reduce direct metal contact, equipment vibration and operating noise.
The degree of noise reduction depends on liner thickness, supporting structure, conveyed material and equipment operating speed.
The liner acts as a replaceable wear component. When the working surface reaches its maintenance limit, individual panels can be removed while the main steel structure remains in service.
Wear-Resistant UHMWPE Liner Sheet can be cut, planed, drilled, milled, grooved and CNC-machined. Mounting holes, recessed bolt positions, overlapping edges, stepped joints and irregular profiles can be produced according to drawings.
Wear-Resistant UHMWPE Liner Sheet is primarily used in equipment handling abrasive, sticky or difficult-to-flow materials.
Additional UHMWPE sheets, liner panels and CNC-machined engineering plastic components are available through our
UHMWPE sheet and engineering plastic product center.
| Product Name | Blue Wear-Resistant UHMWPE Liner Sheet |
|---|---|
| Focus Keyword | Wear-Resistant UHMWPE Liner Sheet |
| Base Material | Ultra-high-molecular-weight polyethylene |
| Common Material Designation | PE-UHMW, PE1000 or UHMWPE |
| Standard Color | Blue |
| Optional Colors | Natural white, black, green, grey, yellow or project-specified colors |
| Main Function | Wear protection, friction reduction and material-flow improvement |
| Common Liner Thickness | 10–50 mm |
| Heavy-Duty Thickness | 50–100 mm |
| Thick Plate Option | More than 100 mm and up to approximately 200 mm after feasibility review |
| Common Sheet Size | 1000 × 2000 mm |
| 4 × 8 ft Equivalent | Approximately 1220 × 2440 mm |
| Optional Sheet Sizes | 1200 × 3000 mm, 1500 × 3000 mm and 2000 × 3000 mm |
| Large-Format Options | Approximately 1200 × 4700 mm, 1300 × 5000 mm, 1800 × 6000 mm or 2000 × 6000 mm after feasibility review |
| Available Grades | Standard, virgin, enhanced wear-resistant, UV-stabilized and project-specified grades |
| Processing Services | Cutting, planing, drilling, countersinking, grooving, edge machining and CNC processing |
| Supply Form | Full sheets, cut liner panels, wear strips and finished machined components |
The dimensions listed above are common manufacturing options rather than guaranteed combinations. Maximum sheet length, width and thickness cannot always be produced together in one panel. Final specifications should be confirmed according to mold capacity, material grade, flatness requirements, machining allowance and transportation conditions.
Relatively thin panels are suitable for lightly loaded chutes, conveyor transfer surfaces, protective linings and applications with continuous steel backing support.
Thin liner panels normally require closer fastener spacing and even structural support to reduce movement and local deformation.
This thickness range is commonly selected for hoppers, chutes, bins, truck bodies and general bulk-material-handling equipment.
It provides a practical balance between wear allowance, impact resistance, installation weight and machining flexibility.
Thicker panels can be used in high-impact loading zones, mining equipment, heavy bulk-material systems and applications requiring greater wear allowance.
Thick UHMWPE plates can be evaluated for impact blocks, deeply machined liners, support components and specialized industrial structures.
Production feasibility depends on overall dimensions, mold capacity, cooling time, internal stress, machining allowance and dimensional-tolerance requirements.
Standard panel sizes such as 1000 × 2000 mm and 1220 × 2440 mm are convenient for transportation, machining, installation and individual replacement.
Large-format panels can reduce the number of joints inside hoppers, bins, chutes, silos and truck bodies. Fewer correctly designed joints can help reduce material-catching points.
Panels approximately 4–6 metres long can be evaluated according to the required width, thickness, flatness, transportation conditions and equipment dimensions.
Standard UHMWPE is suitable for general liner applications involving sliding wear, repeated impact and bulk-material movement.
An enhanced wear formulation can be evaluated for aggressive minerals, high-frequency loading or equipment requiring a longer liner-replacement interval.
UV-stabilized UHMWPE can be specified for outdoor truck bodies, open hoppers and equipment exposed to sunlight. Color alone does not confirm a specific level of UV resistance.
Where electrostatic accumulation is a concern, a separately formulated antistatic or conductive UHMWPE grade may be required.
The required surface resistance, volume resistance, test method, testing voltage and environmental conditions should be specified before production.
Some specialized liner products use glass-filled, lubricant-filled or other modified UHMWPE formulations. These materials may provide different wear, friction, hardness and dimensional properties from standard UHMWPE.
Trademarked material names should only be used when the supplied material has been verified as the corresponding brand and grade.
Wear-Resistant UHMWPE Liner Sheet can be supplied as a complete molded panel, cut-to-size liner or finished component manufactured according to customer drawings.
Available processing services include:
Liner joints should be positioned according to the direction of material flow. An exposed upstream edge can catch bulk materials and increase local wear.
Depending on the equipment structure, panels may use overlapping joints, stepped edges, tongue-and-groove structures or staggered multilayer joints.
The final edge structure should consider liner thickness, material-flow direction, supporting-steel condition and installation accessibility.
Wear-Resistant UHMWPE Liner Sheet can be installed with countersunk bolts, recessed fasteners, mechanical clamps, weld studs, backing plates or equipment-specific fixing systems.
The steel backing surface should be clean, even and capable of supporting the liner. Unsupported areas can allow excessive movement and increase stress around the fasteners.
UHMWPE expands and contracts more than steel when temperature changes. Mounting holes and panel joints should therefore provide suitable expansion clearance.
Fasteners should not be excessively tightened because concentrated pressure can deform the material around bolt holes.
The service life of Wear-Resistant UHMWPE Liner Sheet depends on the complete operating environment rather than thickness alone.
Quality inspection can be completed according to customer drawings and technical requirements. Typical inspection items include:
To prepare an accurate quotation for Wear-Resistant UHMWPE Liner Sheet, please provide:
The final Wear-Resistant UHMWPE Liner Sheet grade, panel dimensions, thickness, joint design and installation method should be confirmed according to the equipment structure, conveyed material and production-feasibility review before manufacturing.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
