CNC Machined Nylon Air Ring Sleeve for wet shotcrete machine and concrete spraying robot nozzle assemblies. The thick-walled sleeve features a precision inner bore and multiple radial holes for air distribution, connection or positioning. Available in PA6, MC nylon, PA66 and modified nylon grades, with the diameter, length, hole pattern and fitting tolerance manufactured according to drawings or physical samples.
The Nylon Air Ring Sleeve is a CNC-machined cylindrical component designed for the air-ring and nozzle assembly of wet-mix shotcrete machines, concrete spraying robots and related spraying equipment. It is normally installed around or inside the nozzle connection area, where it works with the compressed-air passage to help distribute air around the concrete stream.

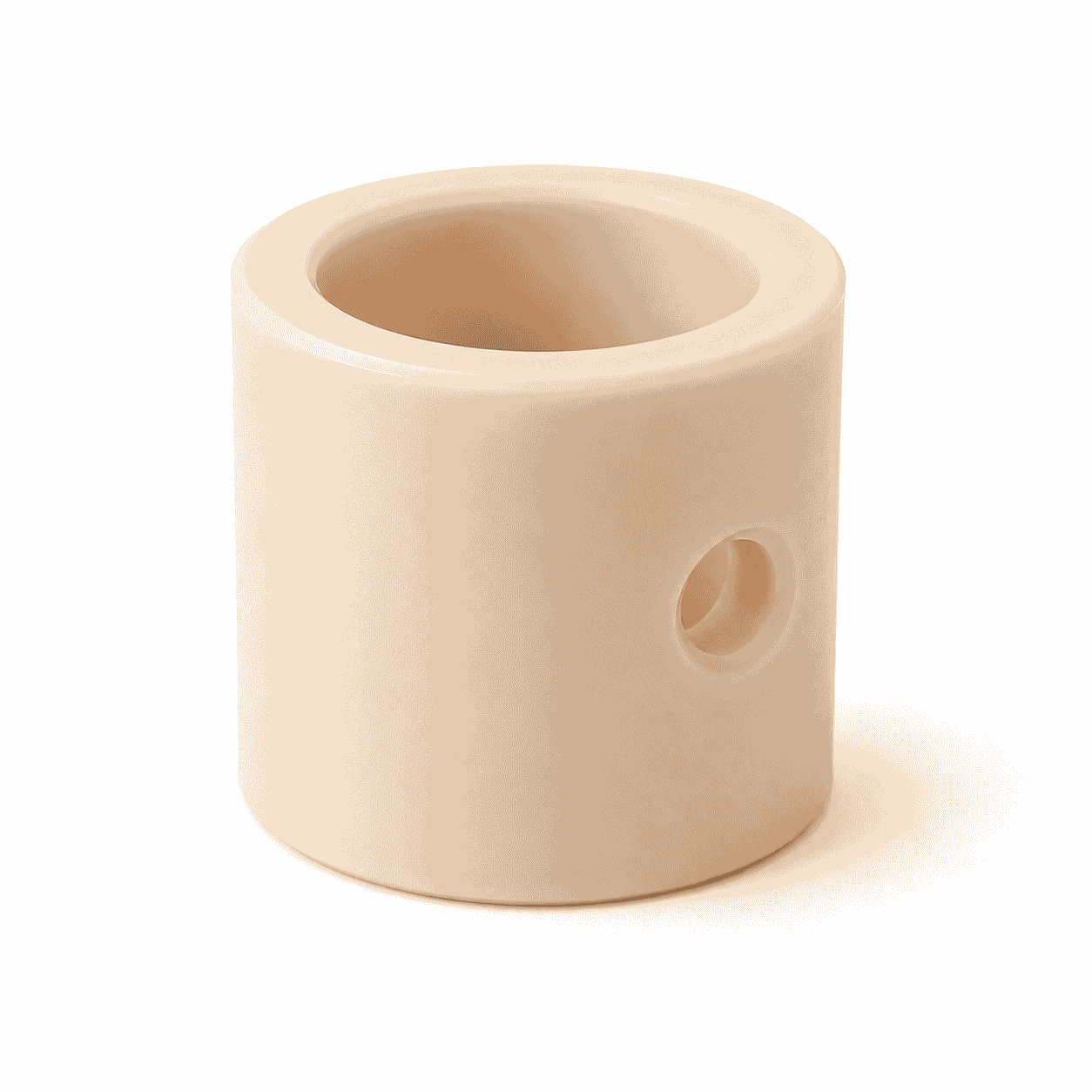

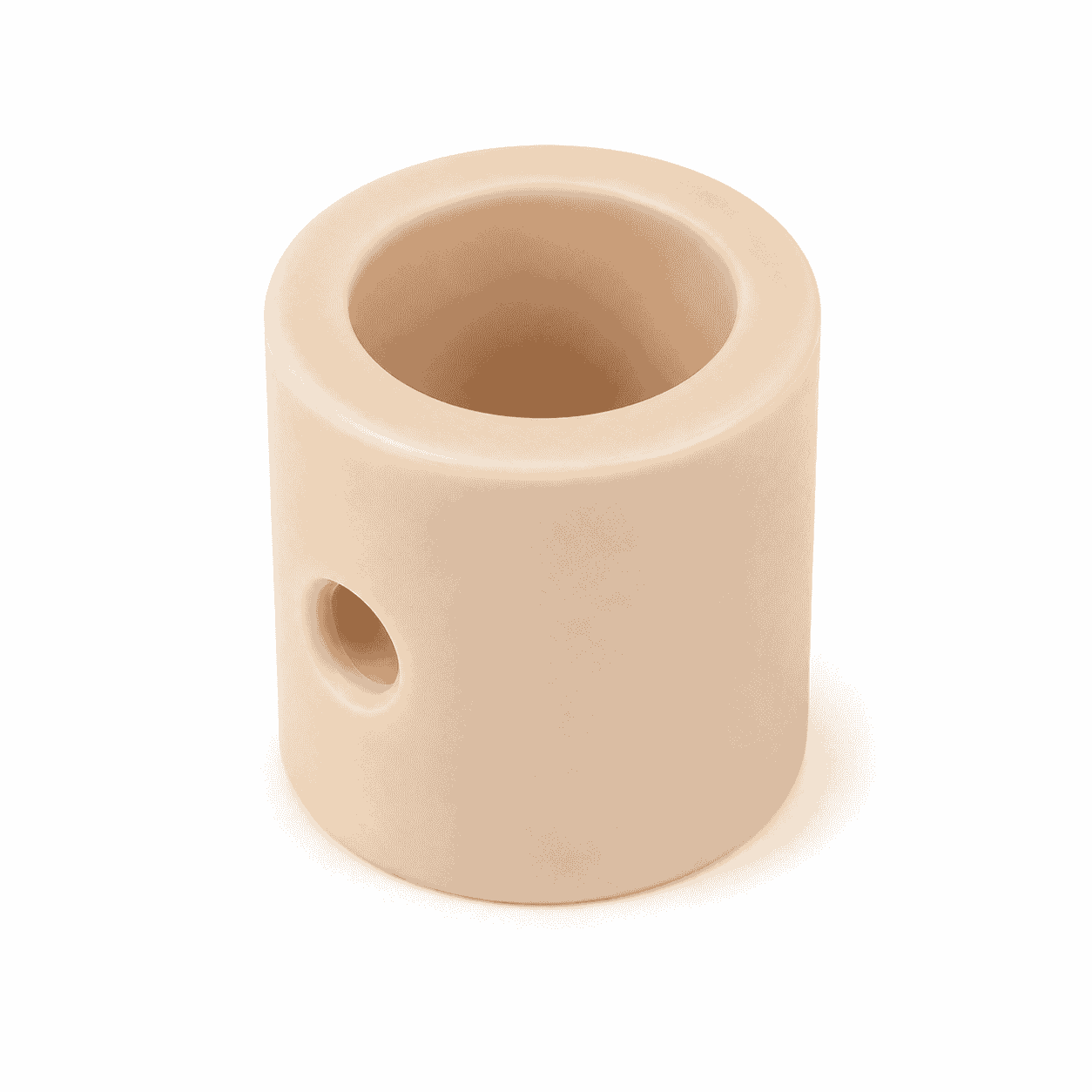

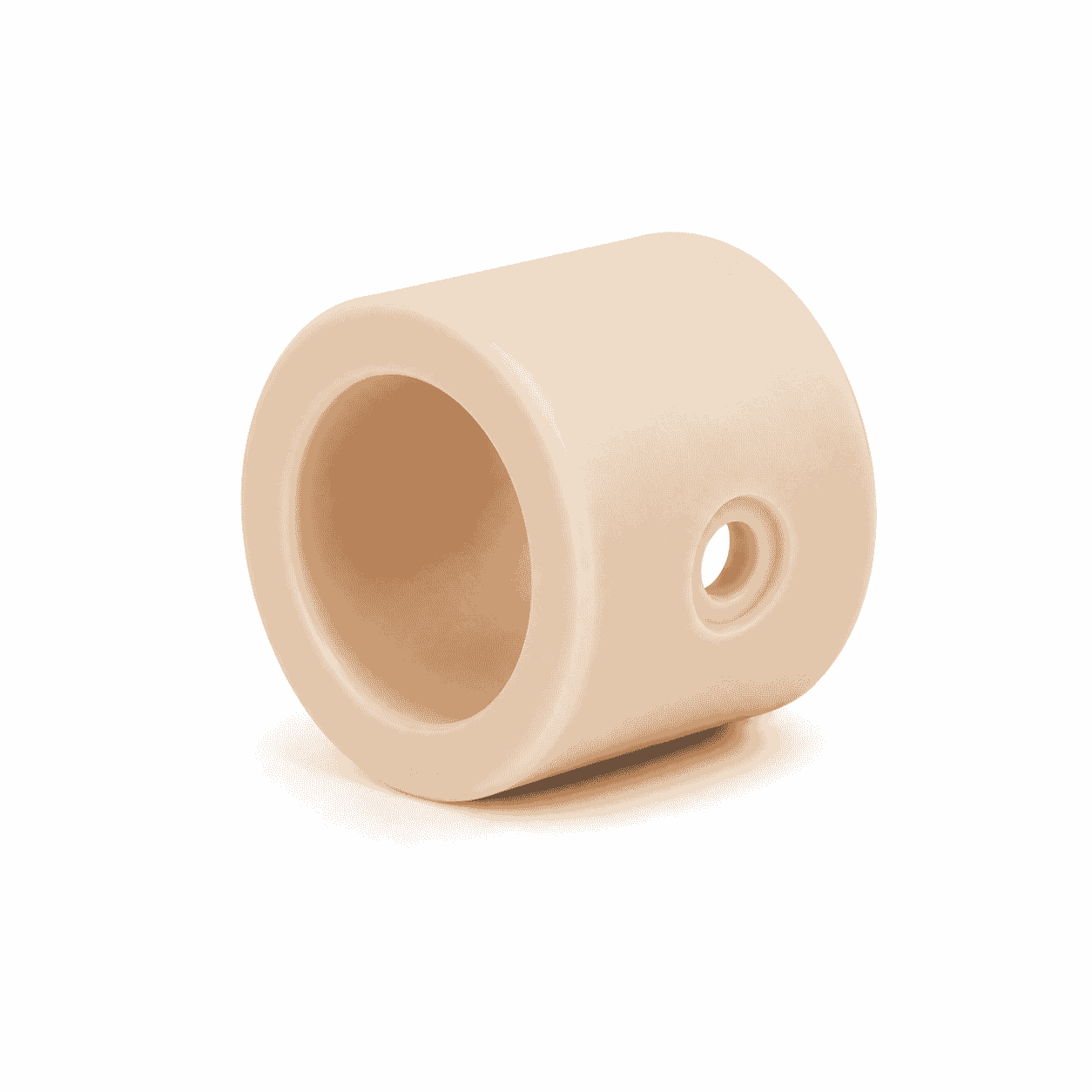

The product shown in the image has a thick tubular body, a smooth central bore and multiple radial holes positioned along the outer wall. These holes may function as air-injection, connection or positioning features, depending on the original equipment design. Their diameter, quantity, angle and spacing must therefore be manufactured according to the confirmed drawing, physical sample or equipment assembly data.
In wet-mix shotcrete operation, prepared concrete is pumped through a delivery hose to the nozzle, while compressed air is introduced near the nozzle to increase discharge velocity and form the required spray pattern. The air-ring structure must maintain stable air distribution and clear flow passages. A blocked, incorrectly positioned or dimensionally inaccurate sleeve may reduce air delivery, disturb the spray pattern, increase rebound or produce uneven material placement.
The sleeve provides a controlled interface between the nozzle body, compressed-air passage and internal material channel. When compressed air enters the surrounding air chamber, it is directed through the radial ports toward the discharge area. The air helps accelerate and break up the wet concrete stream before it reaches the receiving surface.
This process assists the nozzle in producing a more concentrated and stable spray, provided that the air pressure, concrete flow, accelerator dosage and nozzle geometry are correctly matched. The component may also act as a replaceable isolation or protective sleeve between metal nozzle parts.
Using an engineering plastic sleeve at the fitting interface can reduce direct metal-to-metal contact, simplify replacement and protect selected mating surfaces. However, the precise function varies among shotcrete machine brands and nozzle structures, so the installation position and airflow direction must be checked before production.
This component can be machined from Polyamide PA Nylon Rod. Available material options may include natural PA6, cast MC nylon, PA66, oil-filled nylon, MoS₂-filled nylon and other modified polyamide grades.
Nylon is a family of synthetic polymers characterized by amide linkages. It can be processed into molded or machined engineering components for mechanical applications. A general explanation of the material is available in the Wikipedia overview of nylon.
PA6 and MC nylon may be suitable for many general mechanical sleeves because they provide a practical balance of toughness, wear resistance and machinability. PA66 can be considered where increased rigidity or mechanical strength is required. Oil-filled or wear-modified nylon may be evaluated where repeated assembly, vibration or sliding contact creates additional friction.
The final nylon grade should be selected according to compressed-air conditions, mechanical impact, abrasive contamination, operating temperature, humidity, chemical exposure and expected replacement interval.
Nylon can absorb moisture and may undergo dimensional change in humid or water-contact environments. This factor is particularly important when the inner bore has a close fit with a metal nozzle body or when the radial holes must align precisely with an external air channel. The fitting clearance should therefore be confirmed for the actual operating environment.
The Nylon Air Ring Sleeve is mainly considered for wet shotcrete machines, concrete spraying robots, tunnel spraying equipment and related nozzle assemblies. Shotcrete is concrete or mortar conveyed through a hose and pneumatically projected at high velocity onto a surface. Further background is available from the Wikipedia explanation of shotcrete.
These applications are provided as general references. The component should only be installed after its dimensions, material grade, hole pattern and airflow direction have been checked against the equipment manufacturer’s assembly requirements.
Through our CNC Plastic Machining service, the Nylon Air Ring Sleeve can be produced by turning, boring, drilling, milling, tapping, grooving and chamfering. Production can be based on technical drawings, physical samples or complete installation dimensions.
Available machining details include:
Where several radial holes form an air-distribution pattern, their angular position and passage cleanliness require careful inspection. Partial blockage, burrs or incorrect alignment may interfere with the airflow entering the nozzle assembly.
Critical inspection points include the fit between the inner bore and nozzle body, concentricity of the cylindrical surfaces, distance between each radial hole, remaining wall thickness around the holes and smoothness of the internal passage.
Machining burrs and chips should be removed to prevent them from entering the compressed-air path or obstructing installation. The end faces should also be checked for flatness when they are used as positioning or sealing surfaces.
For batch orders, first-piece inspection, process sampling and final inspection can be applied to control the consistency of the bore, hole pattern, wall thickness and overall length. Products can also be separated according to drawing number or production batch to reduce mixing during equipment assembly and maintenance.
The radial holes and internal air passages should be checked regularly because concrete residue, accelerator deposits and other contaminants may gradually reduce the effective airflow area. Cleaning methods should avoid damaging the hole geometry or enlarging the original ports.
The sleeve should be replaced when excessive wear, cracking, deformation, loose fitting or blocked passages affect the nozzle assembly. Replacement frequency depends on the material grade, concrete mixture, operating pressure, cleaning method and daily working time.
To manufacture the Nylon Air Ring Sleeve accurately, please provide the outside diameter, inner diameter, overall length, material grade, hole diameter, number of holes, hole angle, axial spacing, fitting tolerance and required quantity.
Information about the shotcrete machine model, nozzle structure, operating pressure, working temperature, cleaning method and contact medium is also useful when reviewing the material grade and dimensional clearance.

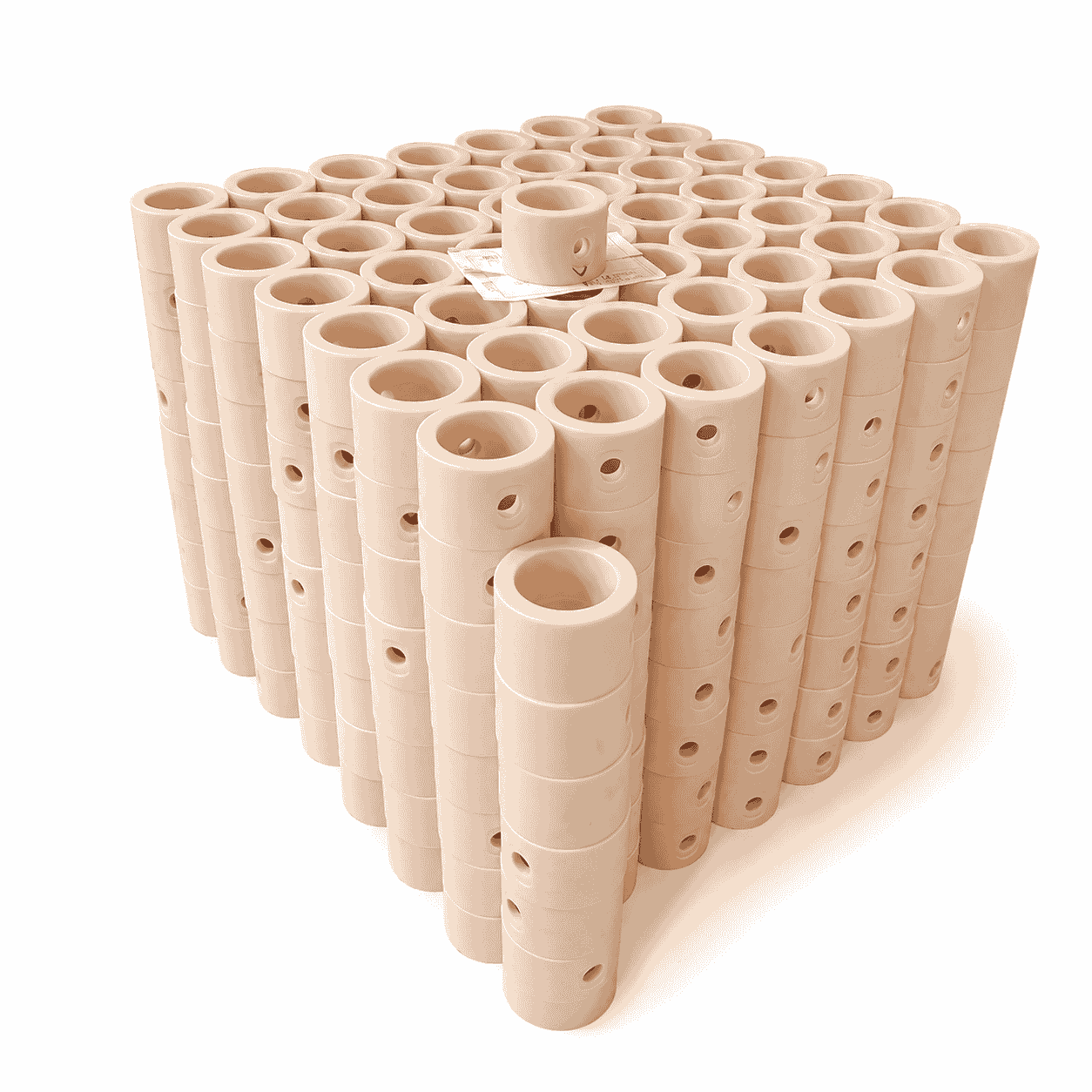

The image is provided as an appearance and batch-production reference only. It does not establish a universal standard size or confirm a specific shotcrete machine model. Final specifications must follow the approved drawing, measured sample or verified installation data.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
