CNC Machined Nylon Auger Screw with an integral helical flight, cylindrical hub and precision center bore for material feeding, conveying, metering, separating and guiding applications. Available in PA6, MC nylon, PA66 and modified nylon grades, with pitch, flight thickness, helix direction, bore and shaft connection manufactured according to drawings or physical samples.
The CNC Machined Nylon Auger Screw is a precision engineering plastic component designed for material feeding, axial conveying, pushing, separating, metering or guiding applications in industrial machinery. The products shown in the image feature a natural-colored cylindrical hub, a central mounting bore and an integral helical flight extending around the outside surface.
When the component is installed on a rotating shaft, the helical flight can push a corresponding material or movable part in the axial direction. Depending on the equipment design, it may function as a short auger, feed screw, metering screw, separator screw, guide spiral or replaceable conveying element.

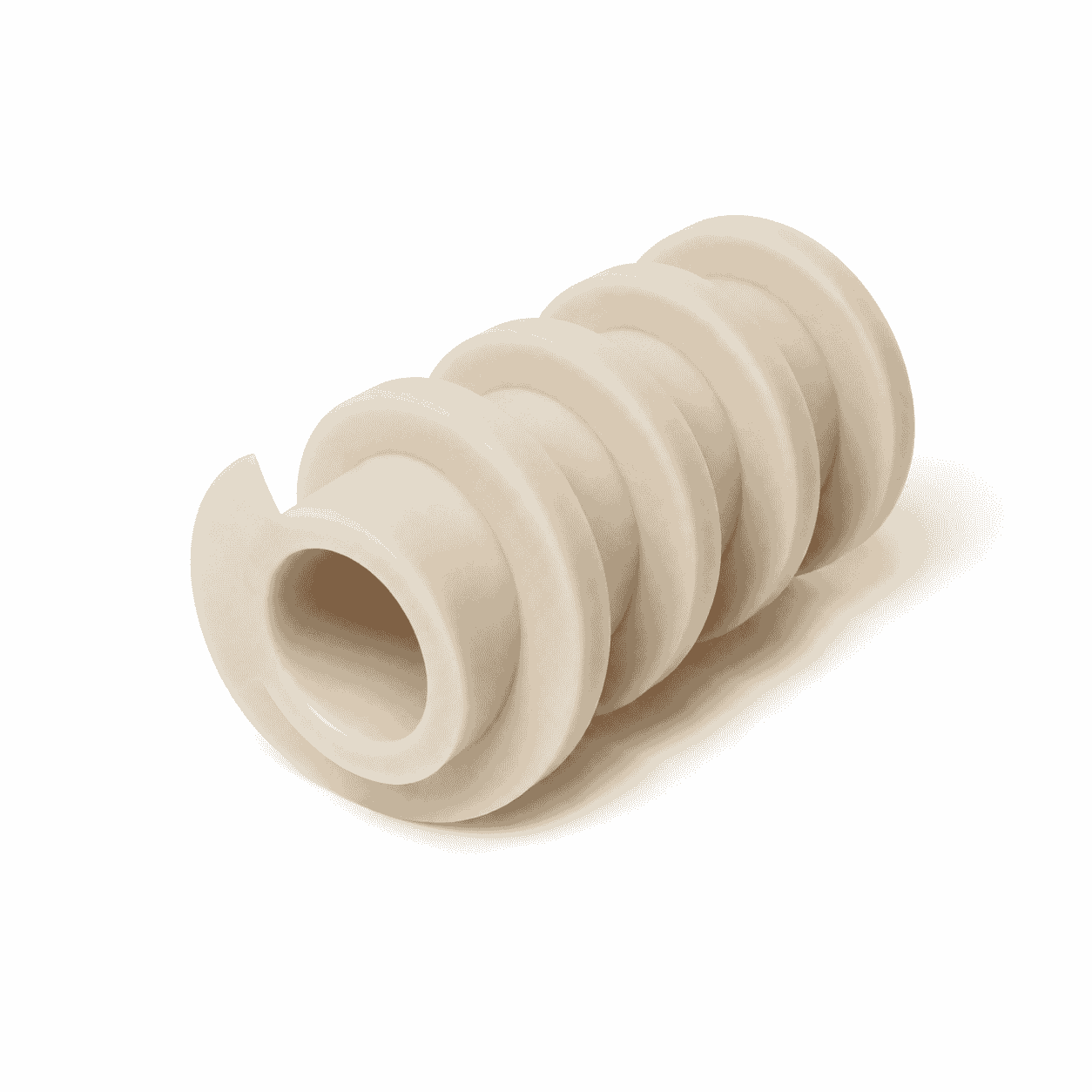

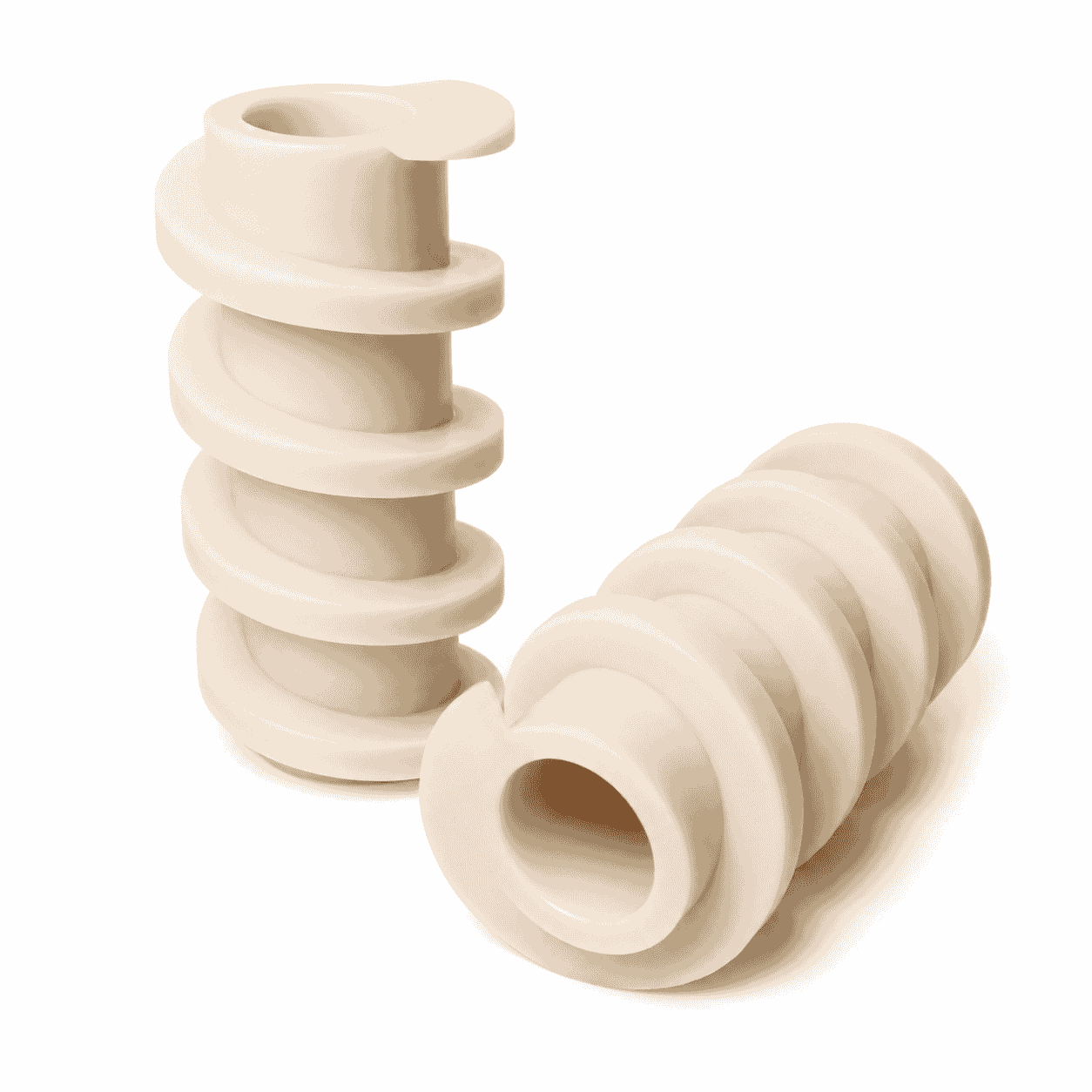

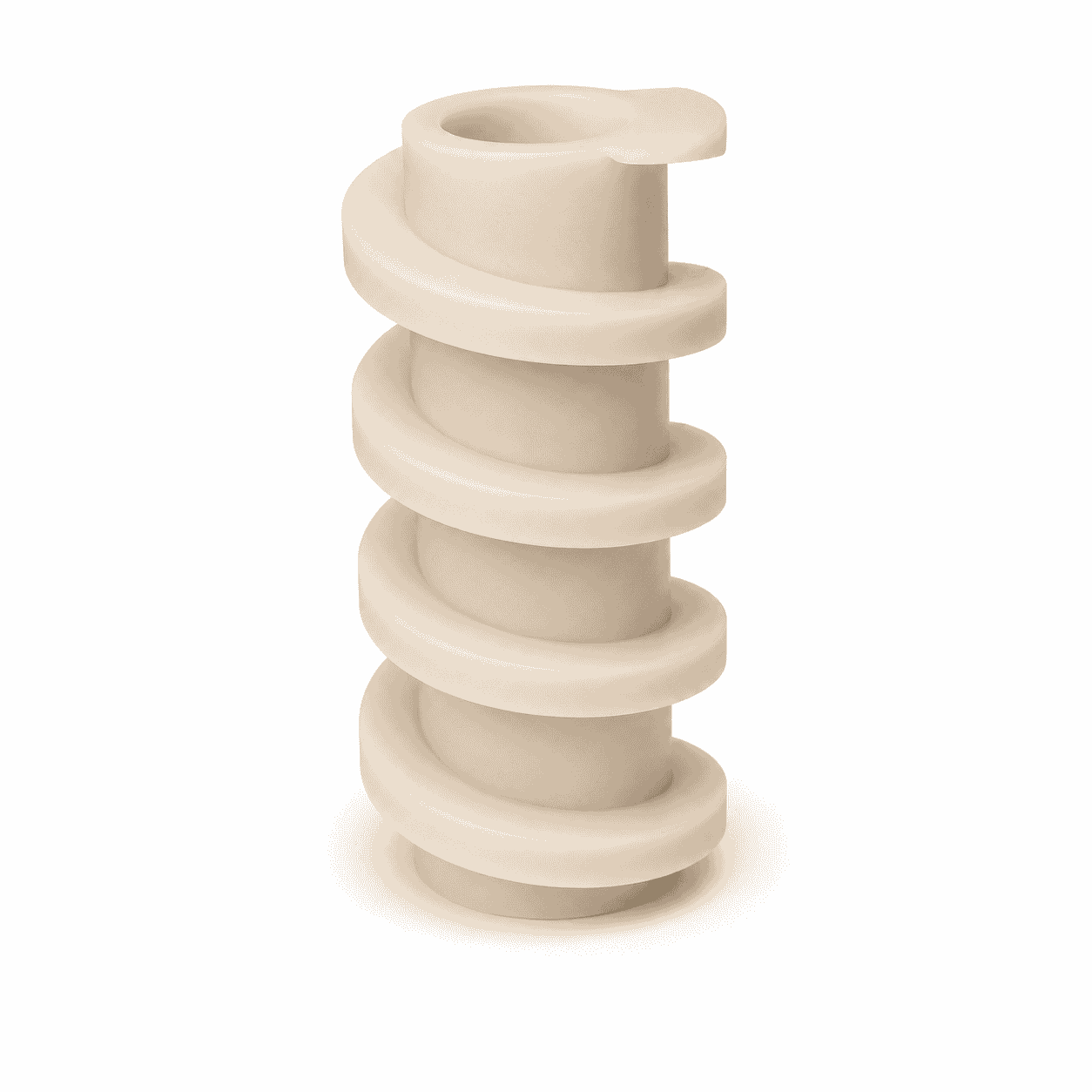

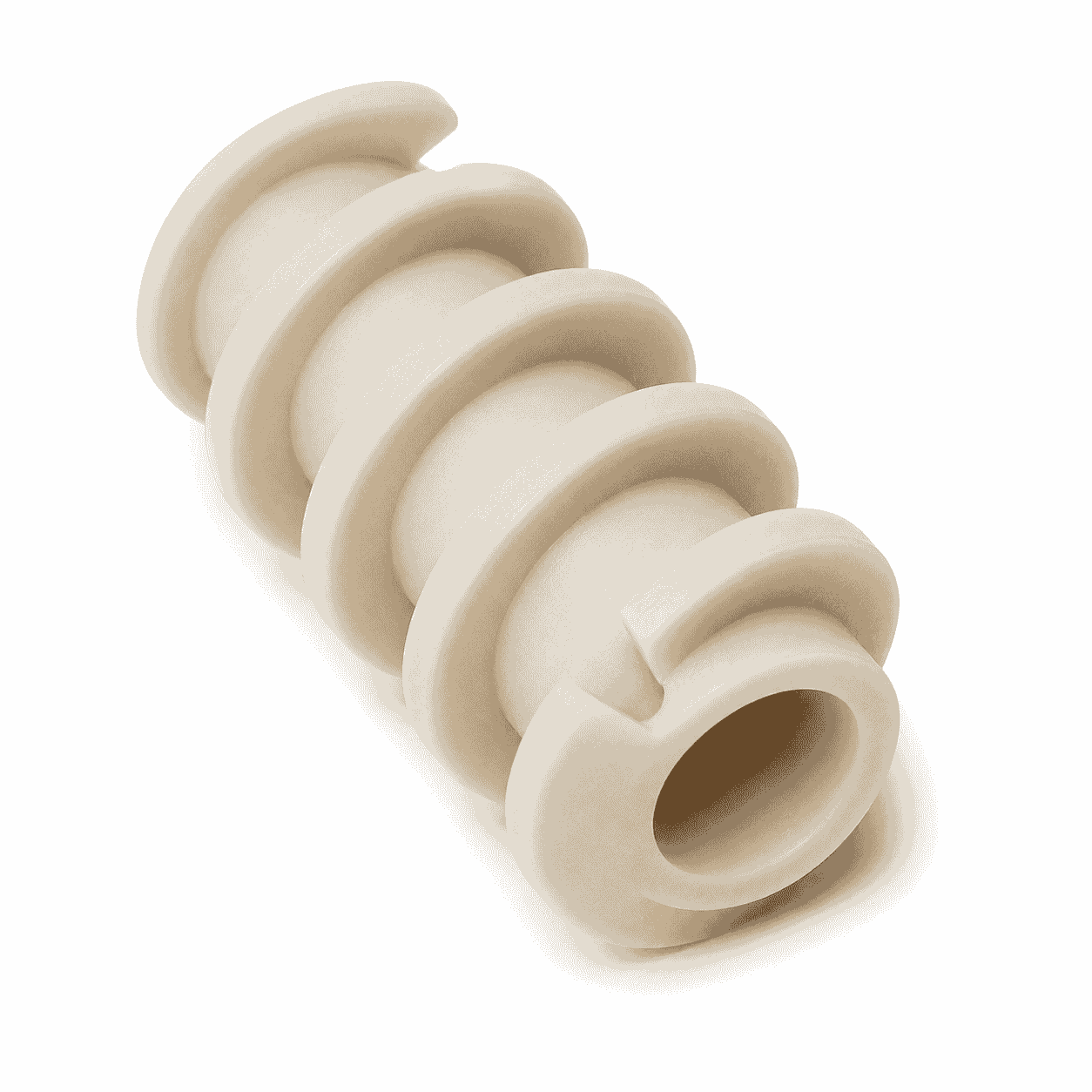

The pictured product has a relatively thick helical flight with rounded transitions between the flight and the central hub. The center bore provides the installation interface for a shaft, sleeve or drive connection. Final dimensions, rotation direction, pitch, material grade and fitting structure must follow the approved drawing, physical sample or verified equipment data.
The image does not confirm one universal machine model, nylon grade, conveying capacity, operating torque or food-contact certification. Application suitability must be evaluated according to the actual material, load, speed and working environment.
A screw conveyor or auger normally uses a rotating helical flight to move material through a tube, trough, housing or other controlled passage. As the screw rotates, the flight applies an axial pushing force to the material in contact with its surface.
The conveying direction depends on the helix direction and the direction of rotation. A right-hand and a left-hand auger of the same dimensions will move material in opposite axial directions when rotated in the same direction.
The actual operating function depends on several design parameters:
A larger pitch generally moves material farther during each revolution, while a smaller pitch may provide more controlled feeding. However, the final feed rate cannot be calculated from pitch alone because fill level, material flow, inclination, friction and rotational speed also affect performance.
This component can be machined from Polyamide PA Nylon Rod, cast nylon tube or a suitable molded nylon blank. Available material options may include PA6 nylon, cast MC nylon, PA66 nylon, oil-filled nylon, MoS₂-filled nylon and other modified polyamide grades.
Nylon is a family of synthetic polymers characterized by repeating amide linkages. Different nylon grades provide different combinations of toughness, rigidity, mechanical strength, wear resistance and machinability. General material information is available from the Wikipedia explanation of nylon.
PA6 may be considered for general-purpose conveying and guiding components requiring balanced toughness and machining performance. Cast MC nylon may be suitable for larger-diameter or thicker screw components. PA66 may be evaluated where increased rigidity and mechanical strength are required.
Oil-filled or MoS₂-modified nylon may be considered where the screw repeatedly contacts a housing, guide surface or conveyed component and reduced friction is required. The appropriate material should be selected according to load, rotational speed, temperature, humidity, abrasion, chemical exposure and expected service life.
The natural or cream color shown in the image does not independently identify the nylon grade. Similar-looking products may use different base materials or additives. Where a specific nylon grade is required, it should be confirmed through the technical drawing, purchase specification or raw-material certificate.
The helical flight is the main functional structure of the CNC Machined Nylon Auger Screw. Its outside diameter determines the relationship with the surrounding tube or housing, while its pitch influences the axial movement created during each revolution.
The flight thickness must provide sufficient strength for the expected load without occupying unnecessary conveying space. Thin flights can reduce resistance but may deform under impact or torque. Excessively thick flights may reduce available material volume and increase component weight.
The transition between the flight and central hub should use an appropriate radius where possible. Sharp internal corners may concentrate stress and increase the possibility of cracking during repeated loading or sudden blockage.
Available flight structures may include:
Variable-pitch or multiple-start structures require confirmation from the original equipment design because changing the pitch or number of starts may significantly alter the feed rate and torque requirement.
The center bore connects the nylon screw to the shaft or drive assembly. The pictured components appear to use a straight central bore, but other installation structures can be produced according to the application.
Available shaft-connection options include:
A plain round bore may be suitable where the screw is retained by a pin, adhesive, interference fit or external fastener. A keyway, polygonal bore or metal insert may be required where the component must transmit greater torque.
The shaft fit should prevent unwanted movement without creating excessive stress in the nylon hub. Forcing an undersized plastic bore onto a shaft may cause cracking, while excessive clearance may result in impact, vibration and inaccurate rotation.
The CNC Machined Nylon Auger Screw can be considered for machinery requiring controlled material movement, separation, feeding or component guidance.
A screw conveyor uses a rotating helical blade, often called a flight, to move liquid, semi-solid or granular materials. General information about this mechanism is available from the Wikipedia explanation of screw conveyors.
More engineering plastic parts used in conveying equipment can be viewed on our Conveyor Systems application page.
Nylon components may be used in selected food, packaging or clean-process equipment, but the appearance or natural color of the product does not confirm food-contact compliance.
Where the screw directly contacts food, medicine or drinking-water materials, the nylon grade, pigment, additives, cleaning method and relevant compliance documents must be confirmed before production.
The finished component should also use suitable surface finishing, edge treatment and cleaning procedures. Internal corners, grooves and machining marks that could retain residue should be reviewed according to the sanitation requirements of the equipment.
The clearance between the screw outside diameter and surrounding housing is an important operating parameter. Insufficient clearance may cause rubbing, heat generation, restricted rotation and rapid wear. Excessive clearance may reduce conveying efficiency or allow material to bypass the helical flight.
Nylon can absorb moisture and may undergo dimensional change in humid or water-contact environments. Temperature changes can also affect the outside diameter and bore dimensions. Environmental conditions should therefore be considered when determining the finished clearance.
The installation should also confirm:
A screw installed in the wrong rotational direction may move the material away from the intended outlet. The helix direction and motor rotation should therefore be checked before operation.
Through our CNC Plastic Machining service, the CNC Machined Nylon Auger Screw can be produced by turning, milling, boring, drilling, grooving, contour machining, keyway machining, chamfering and deburring.
Available machining details include:
The product can be manufactured according to two-dimensional drawings, three-dimensional models, physical samples or verified installation dimensions. Complex spiral geometry should preferably be supplied as a complete three-dimensional model together with critical tolerance requirements.
For batch production, first-piece inspection should be completed before continuous machining. Important inspection dimensions include the outside diameter, overall length, center bore, flight pitch, flight thickness, helix direction and end position.
The helical flight should be inspected for burrs, sharp edges, incomplete machining, cracks and excessive tool marks. The center bore and drive features should remain clean to avoid installation interference.
Pitch consistency should be checked because variation between turns can affect conveying continuity. Concentricity between the center bore, hub and outside flight also influences rotational stability and running clearance.
During batch production, dimensional sampling helps control variation caused by tool wear, material temperature and internal stress. Products with different helix directions or pitch specifications should be clearly separated and identified.
The screw should be inspected periodically for flight wear, cracks, deformation, loose shaft connections and signs of contact with the housing. Abnormal noise, increased motor current or reduced feed rate may indicate blockage, misalignment or excessive friction.
Hard particles, metal fragments and other foreign objects may damage the nylon flight or create sudden torque overload. Appropriate screening or overload protection may be required according to the conveyed material.
The component should not be struck directly with a metal hammer during installation. Where a metal insert or shaft connection is used, tightening torque should be controlled to avoid damaging the nylon hub.
A nylon auger should not automatically be treated as a direct replacement for every steel screw conveyor. High-temperature, high-torque, highly abrasive or safety-critical applications require a complete engineering review.
The finished component should not be assigned a conveying capacity, pressure rating or service life solely from its outside dimensions. Performance depends on the material grade, pitch, speed, load, housing clearance and conveyed medium.
If the original equipment uses a metal auger, changing to nylon may alter rigidity, thermal expansion, torque capacity and wear behaviour. Material substitution should be reviewed before production.
To manufacture the CNC Machined Nylon Auger Screw accurately, please provide the outside diameter, hub diameter, overall length, center bore, helical pitch, number of turns, flight thickness, helix direction, shaft connection and required quantity.
Please also provide the equipment model, conveyed material, particle size, operating speed, expected torque, installation angle, housing inside diameter, working temperature, humidity, cleaning method and required material certification where available.

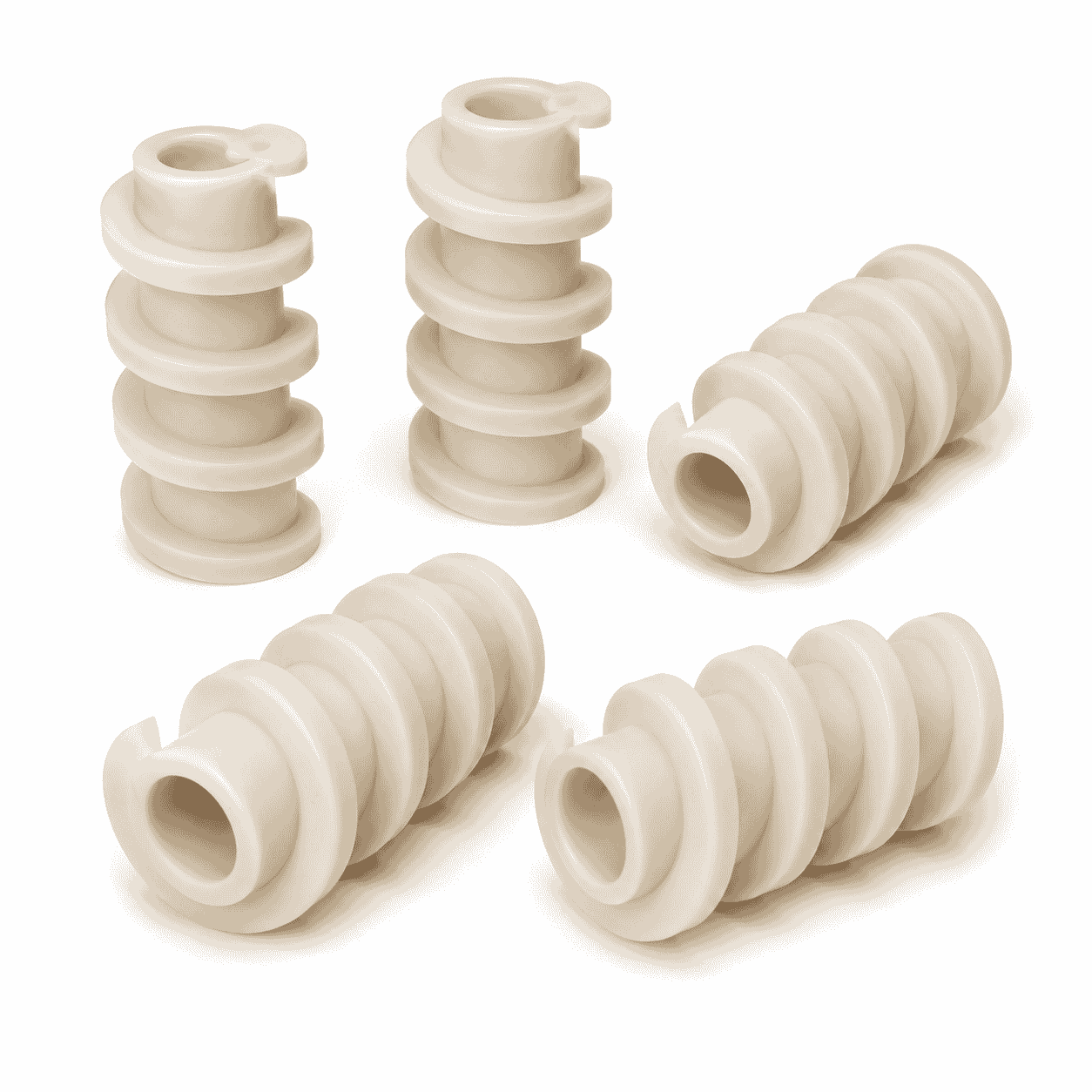

The image is provided as an appearance and structural reference only. It does not confirm a universal size, nylon grade, feed rate, torque capacity or equipment compatibility. Final specifications must follow the approved drawing, physical sample and actual operating requirements.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
