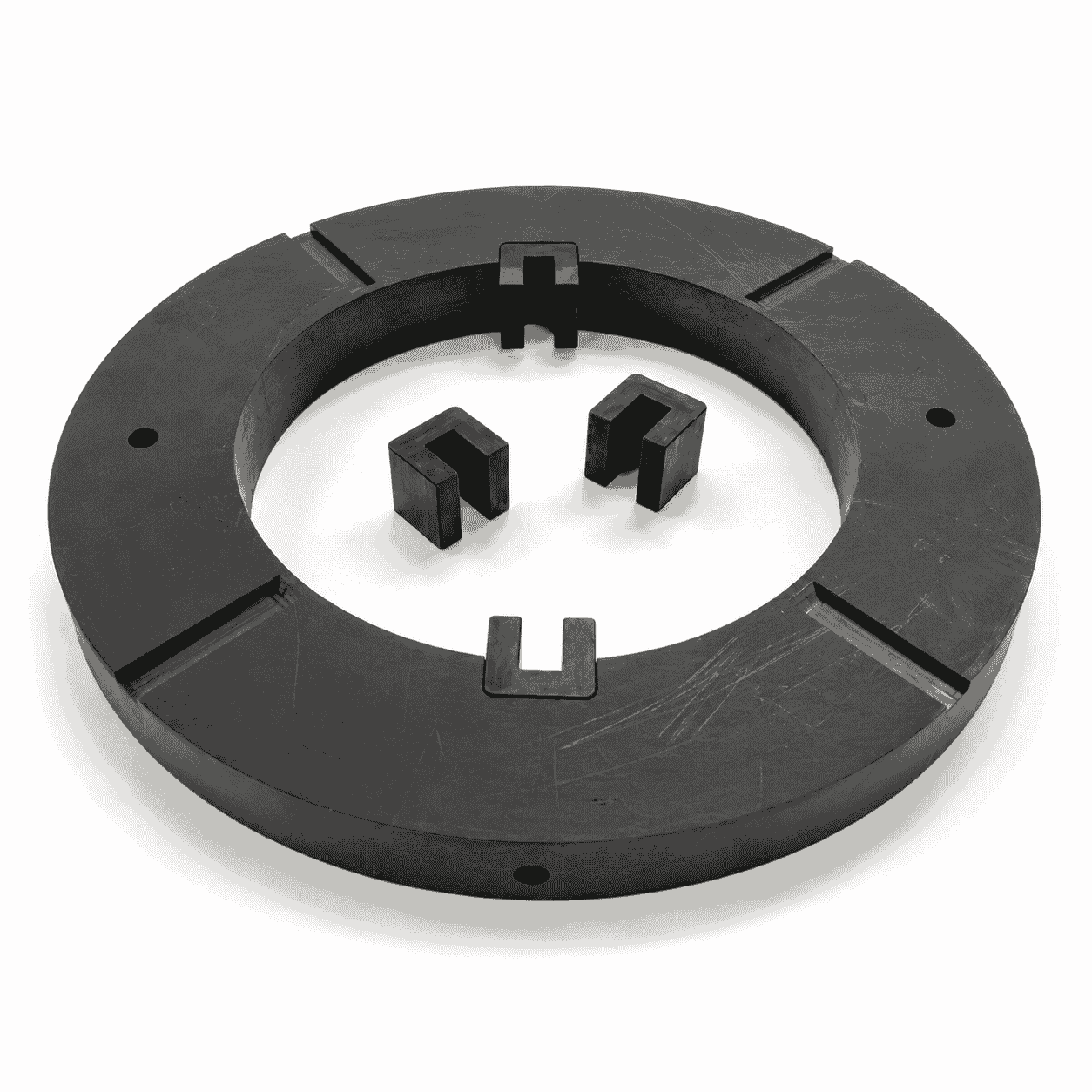

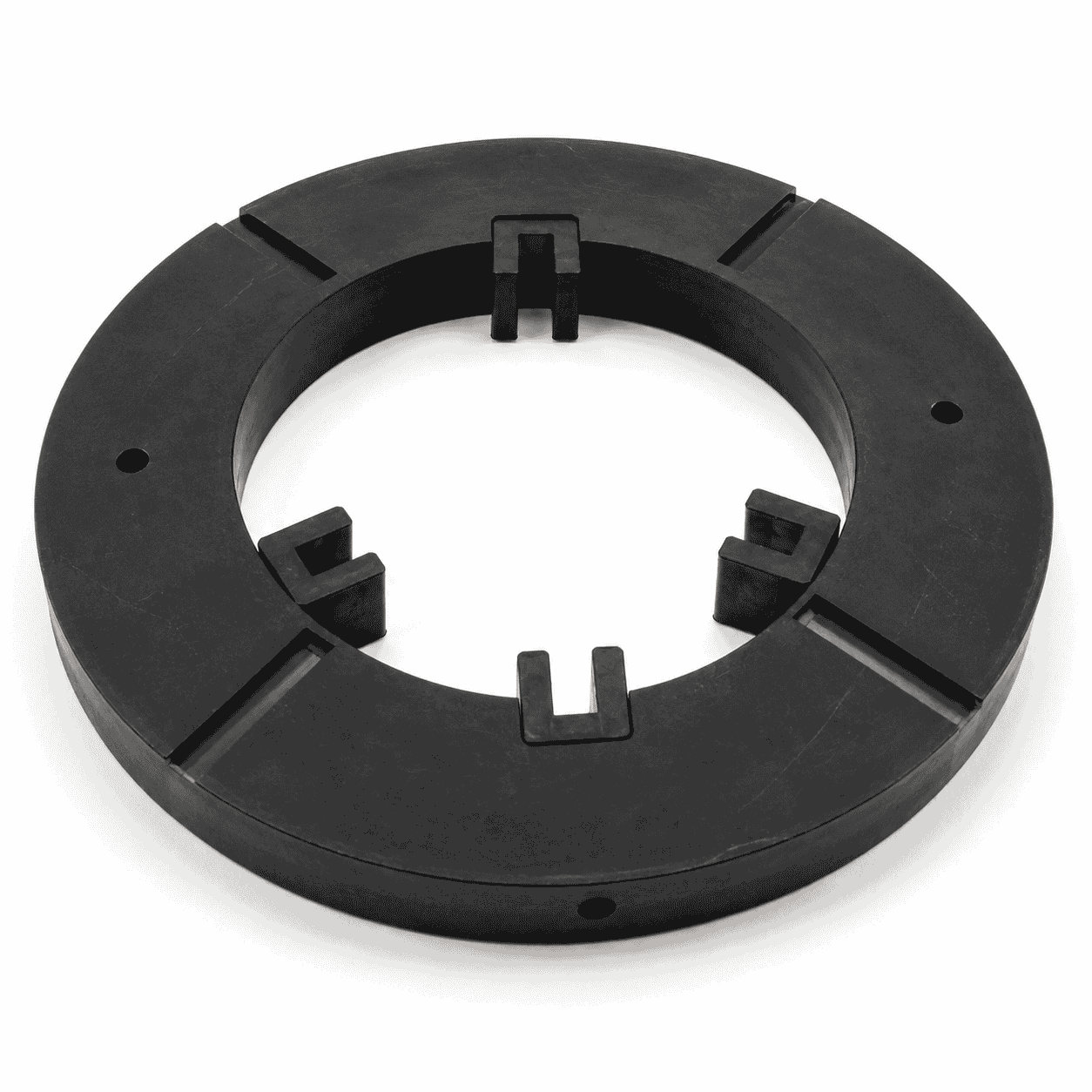

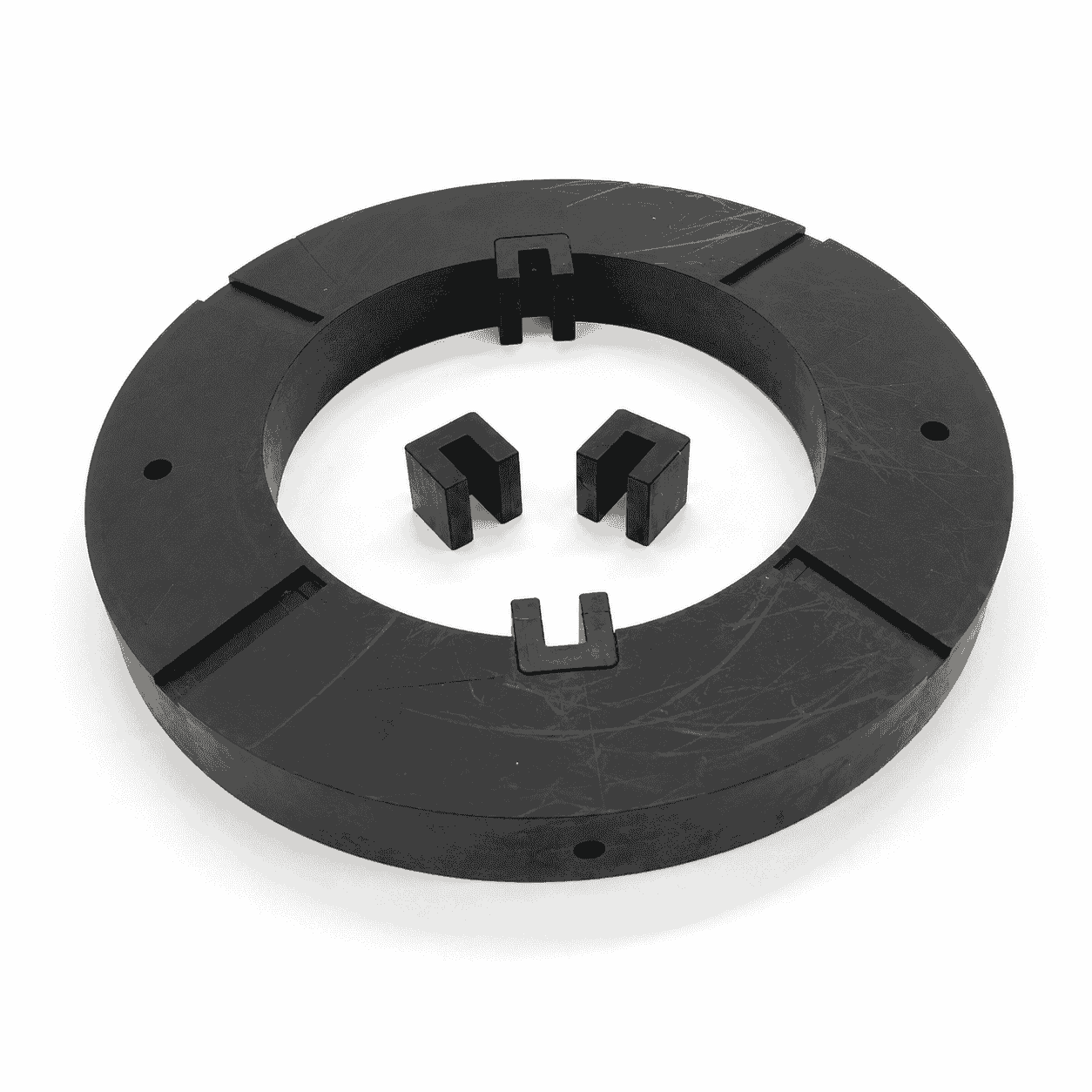

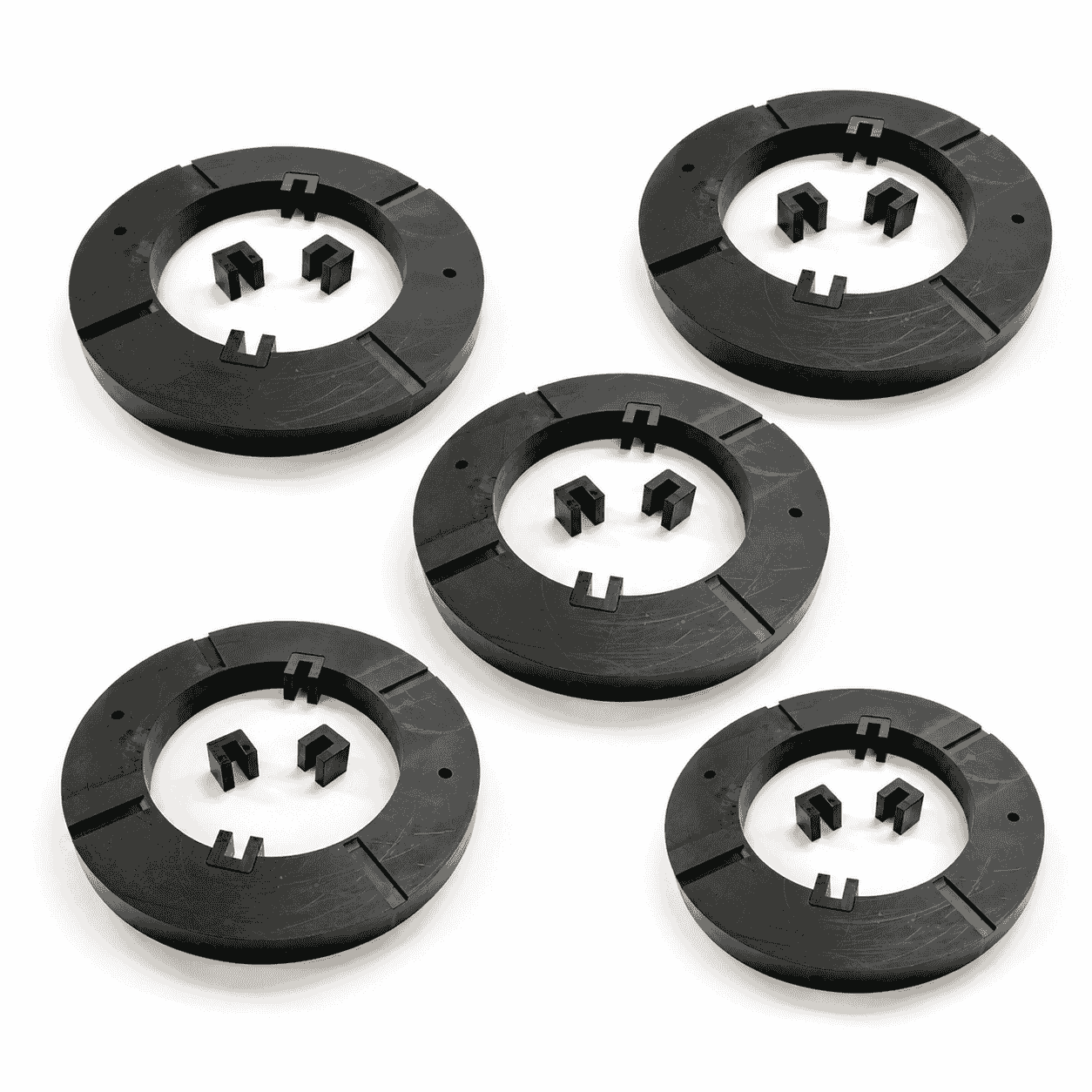

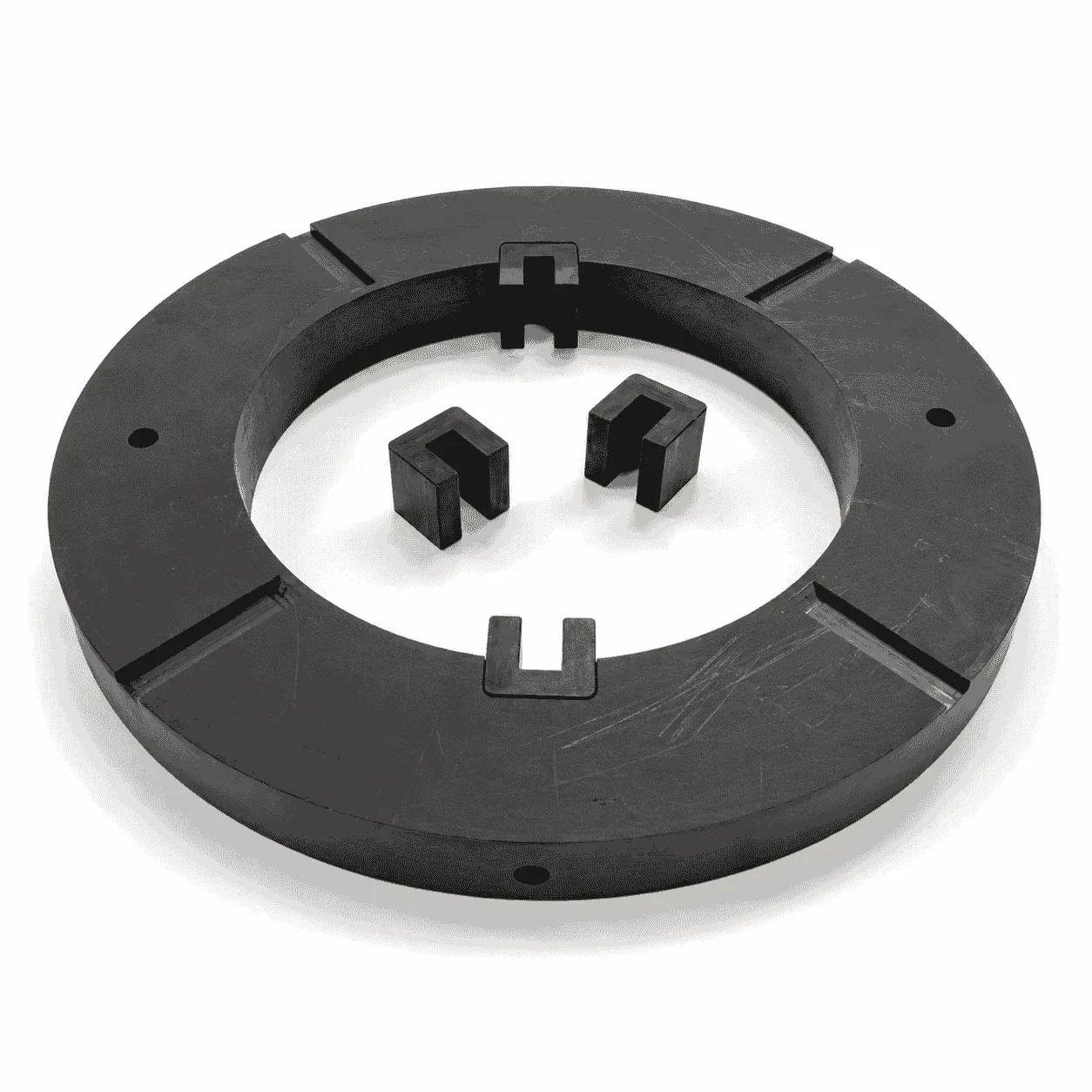

CNC Machined POM Washer Ring is a custom annular engineering plastic component used for mechanical spacing, axial support, positioning, load distribution, wear isolation and equipment surface protection.
Available in POM-C, POM-H and modified acetal grades, with custom outside diameters, inside diameters, thicknesses, radial slots, mounting holes, locating grooves and retaining structures manufactured according to drawings or physical samples.
CNC Machined POM Washer Ring is a custom annular engineering plastic component used for spacing, axial separation, surface protection, load distribution, positioning and wear isolation in automation equipment and industrial machinery.
The ring can be installed between rotating parts, fixed supports, equipment housings, flanges, guide assemblies and other mechanical components. Its annular body provides a continuous supporting surface, while custom slots, mounting holes, locating grooves and retaining structures can be added according to the equipment assembly.
The outside diameter, inside diameter, finished thickness, segmented grooves, fastening holes and matching retaining blocks can be manufactured according to technical drawings, physical samples and actual operating conditions.
A conventional washer is generally installed between a fastener or mechanical component and its supporting surface to distribute load, maintain spacing or protect the contact area.
A CNC Machined POM Washer Ring is larger and more structurally customized than a standard flat washer. In addition to basic spacing and load-distribution functions, it can contain locating sections, radial slots, mounting holes, retaining features and replaceable contact surfaces.
Depending on the equipment design, the component may function as:
The CNC Machined POM Washer Ring uses a circular or annular body with a large central opening. Different machined features can be incorporated into the ring according to the surrounding equipment structure.
Available structural options include:
A segmented or slotted ring can simplify installation around an existing shaft, housing or assembly. Radial slots can also provide clearance for adjacent structures, fasteners or limited dimensional movement.
The ring maintains a specified axial or radial distance between two mechanical components. Its finished thickness can be adjusted according to the required installation clearance and equipment alignment.
The annular working surface can support axial contact between suitable mechanical components. Load capacity depends on contact area, pressure, speed, temperature and duration of loading.
The broad circular surface distributes contact pressure over a larger area, helping reduce localized pressure on equipment housings, flanges, covers and mounting surfaces.
The replaceable POM ring separates metal components that would otherwise contact each other directly. This helps protect more expensive shafts, flanges, housings and machine frames from wear.
A smooth POM working surface can reduce scratching, indentation and hard contact on machined, polished, painted or coated equipment surfaces.
Machined grooves, slots and retaining blocks can help maintain the position of the ring and limit unwanted movement of the corresponding mechanical assembly.
Where limited sliding or rotational movement occurs, the POM ring provides a lower-friction contact surface than many unlubricated metal-to-metal combinations.
The engineering plastic contact layer can absorb part of the impact and vibration transmitted between rigid metal components, helping reduce abnormal contact noise.
Standard unfilled POM is electrically insulating. A suitable POM washer ring can provide mechanical separation and electrical isolation between equipment components.
POM, also known as polyoxymethylene or acetal, is an engineering thermoplastic widely used for precision mechanical components requiring stiffness, low friction and dimensional stability.
General material information is available from Wikipedia’s explanation of polyoxymethylene.
Related material options are available from our Polyoxymethylene POM Acetal Sheet category.
POM provides relatively stable machined dimensions under normal industrial conditions. This helps maintain the required ring thickness, internal diameter, hole positions and assembly clearance.
POM is more rigid than many softer general-purpose plastics. Properly designed ring sections can maintain flatness and profile under suitable mechanical loads.
The material provides useful sliding performance against many plastic and metal mating surfaces. This makes it suitable for selected spacer, guide and low-speed axial contact applications.
POM can withstand repeated contact and limited sliding movement. Actual service life depends on pressure, speed, surface finish, alignment, lubrication and operating temperature.
POM can be machined into accurate circular profiles, radial slots, retaining grooves, mounting holes and stepped surfaces without requiring a dedicated injection mold.
Compared with nylon, POM generally experiences less moisture-related dimensional change. This is useful where the internal diameter, ring thickness and fitting clearance must remain controlled.
Sharp cutting tools and suitable machining parameters can produce smooth contact surfaces, reducing burrs and uneven friction during installation and operation.
A POM washer ring is lighter than a comparable solid steel ring, simplifying transportation, installation, replacement and equipment maintenance.
POM does not rust like ordinary carbon steel and is suitable for many general industrial environments involving humidity, lubricants and routine equipment contamination.
POM-C is commonly used for general industrial washer rings, spacer plates, guide components and precision machined parts. It provides a balanced combination of dimensional stability, machinability and mechanical performance.
POM-H can be considered where higher rigidity, mechanical strength or fatigue performance is required. Material selection should also consider ring diameter, wall thickness, temperature, chemical exposure and machining requirements.
The exact POM grade cannot be identified from color alone. Black, white and other colored materials should be confirmed through the material specification or production documentation.
CNC Machined POM Washer Ring components can be used in different types of automation equipment and industrial machinery.
Typical applications include:
The final application must be confirmed according to the complete equipment drawing, load direction, rotational speed and assembly method.
A properly designed CNC Machined POM Washer Ring can help address:
Each CNC Machined POM Washer Ring can be manufactured according to the corresponding shaft, flange, housing and equipment assembly.
Available custom options include:
Our CNC Plastic Machining service supports POM washer rings manufactured according to 2D drawings, 3D models and physical samples.
General information about programmed machine-tool operation is available from Wikipedia’s explanation of computer numerical control.
Available machining operations include:
Large-diameter POM washer rings require suitable machining sequences, workpiece support and clamping control. Removing a large central area or machining several deep radial slots may release internal material stress and affect flatness.
Important machining considerations include:
Thin ring sections and large differences in wall thickness should be evaluated carefully to reduce deformation during machining and long-term use.
To manufacture a CNC Machined POM Washer Ring correctly, the following information should be provided or confirmed:
When the original drawing is unavailable, a replacement POM washer ring can be manufactured from an existing sample. Wear, compression, distortion and damaged edges should be evaluated before dimensions are reproduced.
Important sample inspection items include:
Providing the corresponding shaft, flange, housing or assembly dimensions helps restore the original design rather than copying worn measurements directly.
Important inspection items for a CNC Machined POM Washer Ring include:
Where possible, the completed ring should be checked with the corresponding shaft, flange, housing, inspection gauge or dimensional model before delivery.
The load capacity of a CNC Machined POM Washer Ring cannot be determined from the material name, diameter or thickness alone. It is affected by contact area, pressure, speed, temperature, support conditions and duration of loading.
POM may deform gradually under excessive continuous pressure, particularly at elevated temperatures. High-load assemblies may require greater ring thickness, increased supporting area, metal reinforcement or an alternative material.
POM should also be evaluated carefully in environments involving strong mineral acids, chlorine-based media, oxidizing chemicals, high-temperature steam or continuous elevated temperatures.
For high-speed thrust-bearing applications, heavy axial loads or safety-critical assemblies, the complete friction, temperature and structural conditions should be reviewed before material selection.
CNC Machined POM Washer Ring is a custom annular engineering plastic component used for mechanical spacing, axial support, positioning, load distribution, wear isolation and equipment surface protection.
POM-C, POM-H and modified acetal grades can be selected according to rigidity, dimensional accuracy, friction, load, temperature and environmental requirements.
Outside diameter, inside diameter, thickness, radial slots, mounting holes, locating grooves, retaining blocks and identification marks can be manufactured according to technical drawings, physical samples and actual operating conditions.
