Heavy Equipment Access Mats are durable composite polyethylene ground protection panels designed for vehicles, mobile equipment, service routes, and outdoor access across mud, grass, sand, soft soil, and other unstable surfaces.
A typical main specification measures approximately 2440 × 1200 × 12.7 mm, weighs around 41.7 kg, and has a stated load capacity of up to 80 tonnes under suitable ground and installation conditions.
The one-piece panel features a raised traction surface and integrated hand holes, making it suitable for temporary equipment routes, industrial access, utility work, landscaping protection, event operations, and outdoor ground protection.
Heavy Equipment Access Mats are durable composite polyethylene ground protection panels designed to create temporary access routes for vehicles, mobile equipment, service traffic, and personnel across mud, grass, sand, wet soil, gravel, and other surfaces that can be damaged by repeated traffic.

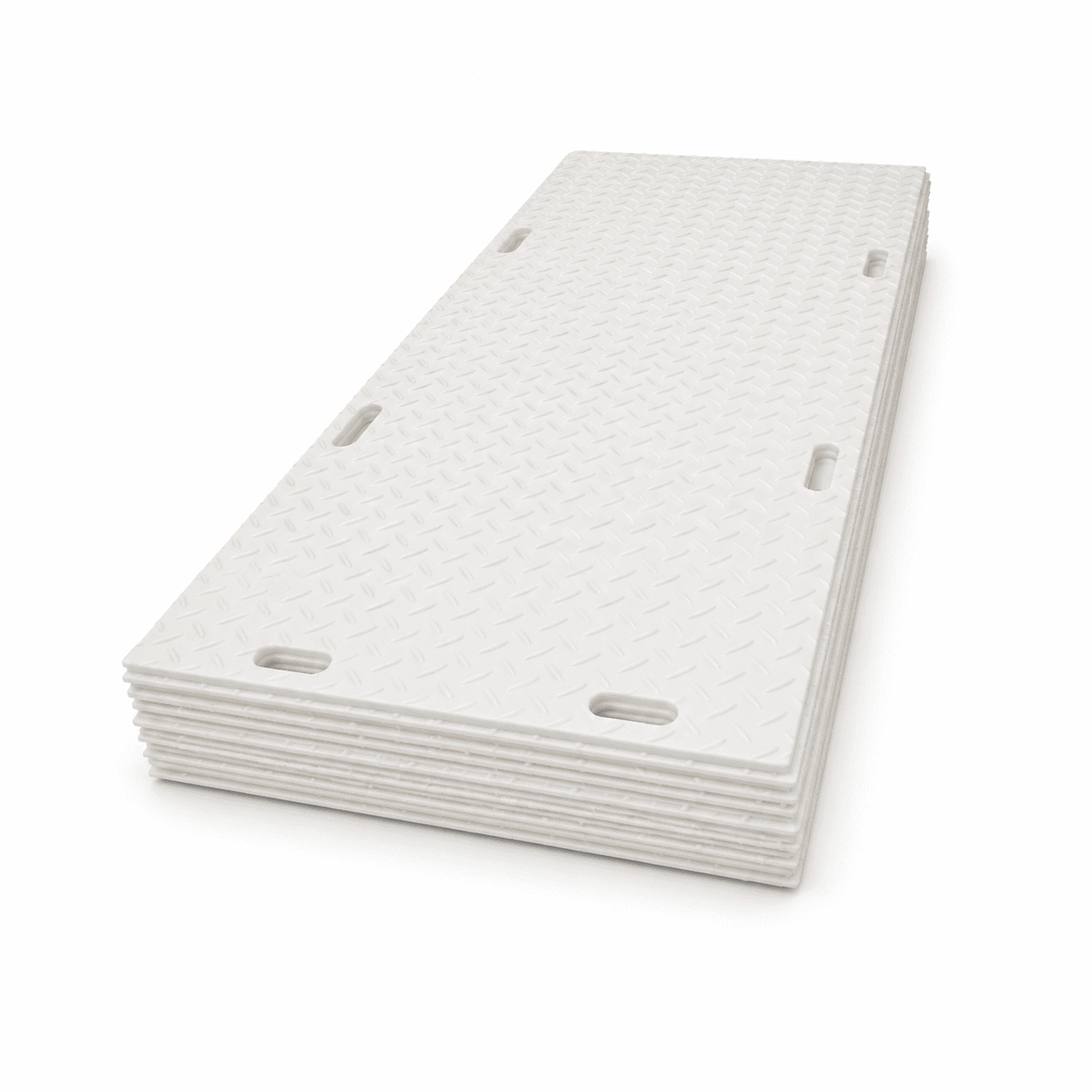

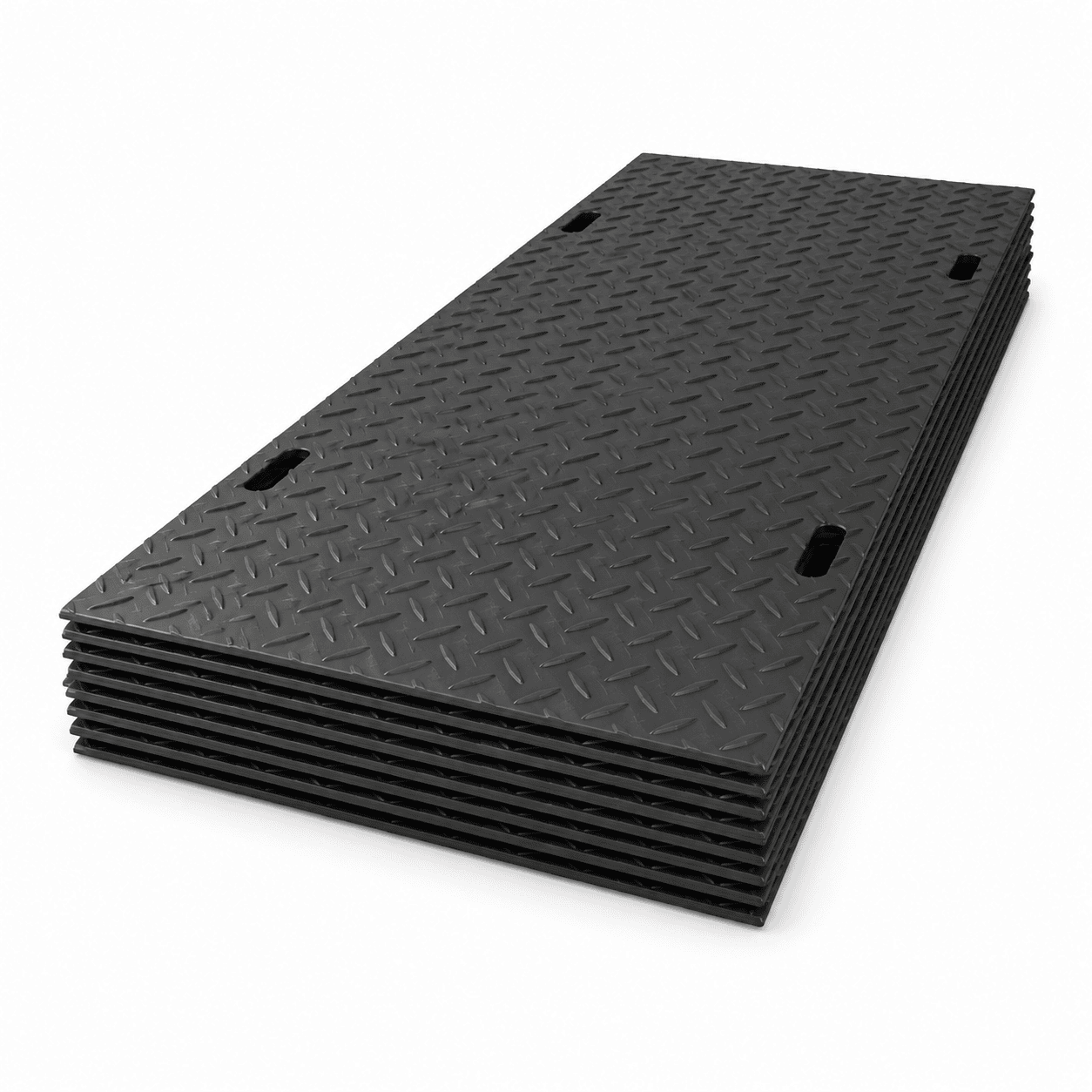

The product shown features a one-piece panel structure with a raised directional traction pattern and integrated hand holes. This design combines ground protection, vehicle traction, practical handling, and repeated-use capability in a single temporary access panel.
A typical main specification for this type of mat is approximately 2440 × 1200 × 12.7 mm. A panel of this size weighs around 41.7 kg and has a stated load capacity of up to approximately 80 tonnes under suitable ground, support, connection, and operating conditions.
Heavy Equipment Access Mats are suitable for temporary equipment routes, outdoor service access, industrial working areas, event operations, landscaping protection, emergency routes, utility maintenance, and other applications where vehicles or equipment need to cross sensitive or unstable surfaces.
The main panel specification used for this product page is designed to provide substantial ground coverage while remaining considerably easier to handle than large steel road plates or heavy timber mats.
The 2440 × 1200 mm panel provides approximately 2.93 m² of nominal surface area. This format is large enough to protect a meaningful section of ground while still allowing panels to be transported, positioned, connected, removed, and reused as part of a modular access system.
The stated load capacity of approximately 80 tonnes should always be considered together with actual site conditions. Ground bearing strength, vehicle weight, axle loading, tyre pressure, wheel contact area, traffic frequency, turning movement, panel support, and installation method can all affect performance.
Extremely soft, water-saturated, or unsupported ground may require additional preparation before the mats are installed.
Heavy Equipment Access Mats are manufactured from durable composite polyethylene engineering plastic designed for repeated outdoor use.
The material combines several practical characteristics required for temporary equipment access and ground protection applications:
Unlike conventional steel road plates, composite polyethylene panels do not rust during normal outdoor exposure. Unlike untreated timber mats, they do not rot, splinter, or absorb large amounts of moisture.
These characteristics are particularly useful for panels that may be repeatedly installed, loaded, removed, cleaned, transported, stored, and used again at another location.
For general information about the base material, read more about polyethylene and its material properties.
One of the most visible features of Heavy Equipment Access Mats is the raised anti-slip surface pattern.
The panel shown uses repeated directional traction bars across the working surface. These raised sections provide greater interaction with vehicle tyres and footwear than a completely smooth plastic panel.
The textured surface can be particularly useful in environments affected by:
The traction pattern does not remove the need for correct vehicle operation, but it provides a more suitable temporary access surface than a completely smooth engineering plastic sheet.
The actual traction performance depends on tyre condition, vehicle movement, contamination, weather, surface slope, and other operating factors.
The panel includes integrated hand holes positioned within the main mat structure. These openings provide convenient gripping points during loading, unloading, positioning, route adjustment, and removal.
For a panel weighing approximately 41.7 kg, integrated handling points are important because the mat may need to be moved repeatedly during temporary projects.
The hand holes can help during:
Actual handling methods should always be selected according to panel dimensions, individual panel weight, working conditions, available labour, and site safety requirements.
Heavy Equipment Access Mats create a physical barrier between vehicles or equipment and the original ground surface.
Repeated traffic can quickly damage:
By placing a durable composite polyethylene panel between the traffic and the ground, direct tyre contact with the original surface can be reduced.
This can help limit:
The effectiveness of the system depends on the original ground condition, traffic type, vehicle movement, installation layout, panel support, and duration of use.
Mud and wet soil can become difficult to cross after repeated vehicle movement. Tyres may sink into the surface, create deep ruts, or further reduce the stability of the access route.

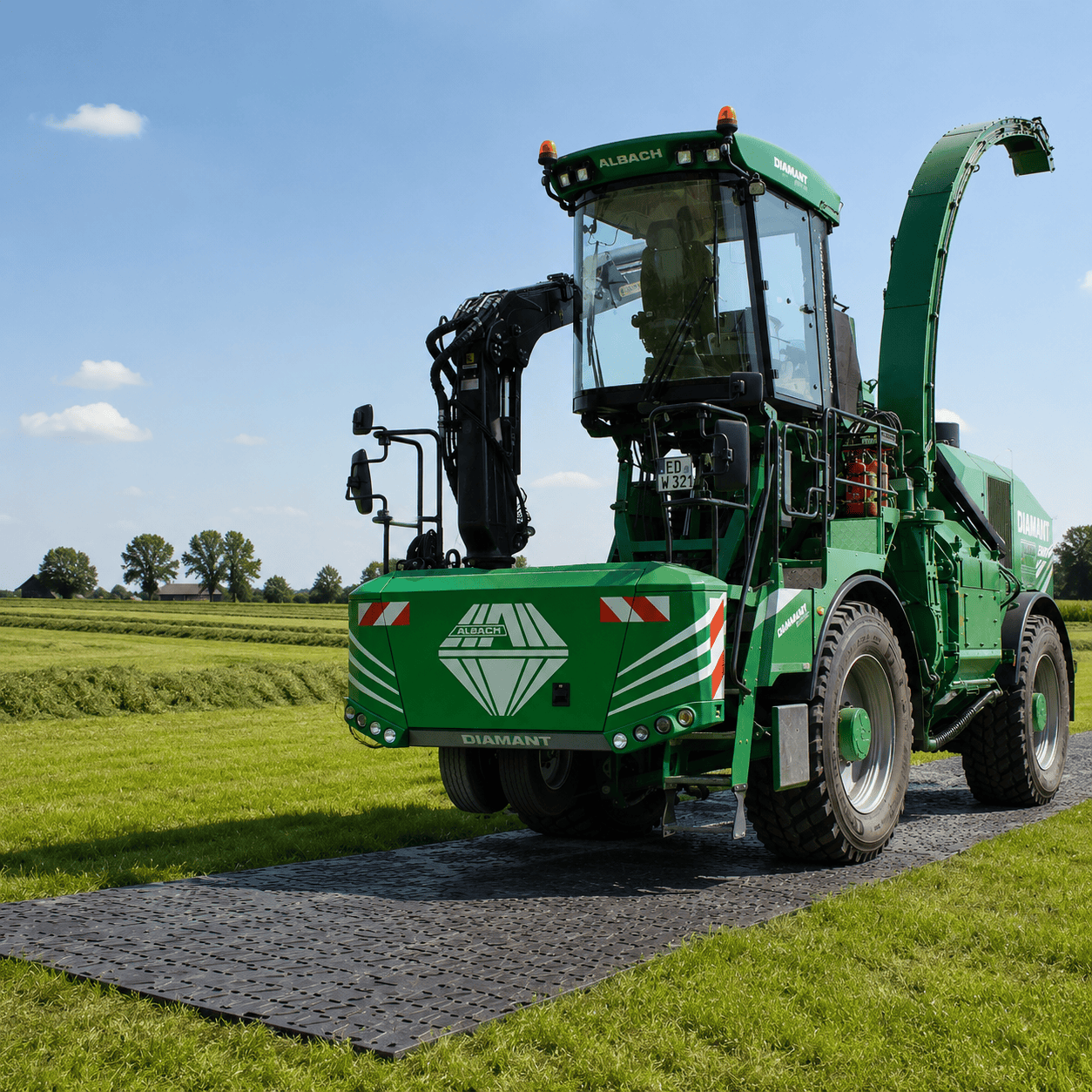

Heavy Equipment Access Mats provide a temporary working surface between the vehicle and the underlying ground.
The panels can be used for access across:
The mat surface separates the vehicle tyre from direct contact with the original terrain and helps distribute traffic over a broader area.
Very weak ground may still require levelling, drainage, aggregate, geotextile, or another supporting layer before installation.
Heavy Equipment Access Mats can be used in a wide range of temporary access and surface protection applications.
Typical uses include:
The same type of mat can also be used to create larger protected areas by positioning and connecting multiple panels according to the required route or working layout.
For another temporary ground protection option, view our HDPE Access Mats for event access, vehicle routes, and outdoor surface protection.
The product is intended for both personnel access and equipment movement across difficult ground conditions.
Depending on the selected panel size, thickness, ground support, and installation layout, the mats may be used with:
The main 2440 × 1200 × 12.7 mm specification has a stated load capacity of approximately 80 tonnes under suitable conditions.
This figure should not be treated as a universal guarantee for every vehicle, equipment type, ground condition, or operating environment.
The stated load capacity of Heavy Equipment Access Mats depends on more than the composite plastic panel alone.
Important factors include:
A distributed vehicle load on stable ground creates different stresses from a concentrated wheel load on saturated or unsupported soil.
For this reason, load capacity should always be evaluated as part of the complete temporary access system.
Vehicles with narrow tyres, high tyre pressure, concentrated axle loading, frequent turning, or repeated braking may create different operating conditions from vehicles using wider contact areas and straight-line movement.
This product family can be supplied in several panel sizes and thicknesses for different temporary access requirements.
| Model | Typical Size | Thickness | Approx. Weight | Stated Load Capacity |
|---|---|---|---|---|
| XQ-01 | 1220 × 610 mm | 12.7 mm | 10.4 kg | 45 tonnes |
| XQ-02 | 2440 × 610 mm | 12.7 mm | 20.8 kg | 60 tonnes |
| XQ-03 | 2440 × 915 mm | 12.7 mm | 31.2 kg | 70 tonnes |
| XQ-04 | 2440 × 1200 mm | 12.7 mm | 41.7 kg | 80 tonnes |
| XQ-05 | 2900 × 1100 mm | 12.7 mm | 44.7 kg | 90 tonnes |
| XQ-06 | 2000 × 1000 mm | 10 mm | 22.6 kg | 40 tonnes |
| XQ-07 | 3000 × 1500 mm | 15 mm | 73.3 kg | 100 tonnes |
| XQ-08 | 3000 × 1500 mm | 20 mm | 95.8 kg | 120 tonnes |
The 2440 × 1200 × 12.7 mm model is particularly suitable for this product page because it provides a practical balance between ground coverage, panel weight, handling, and stated load performance.
Smaller panels may be easier to handle and transport, while larger panels can cover more ground with fewer individual units.
The product shown uses a one-piece panel construction without the layered structure normally associated with timber boards or assembled metal surfaces.
This design provides a continuous working area and helps simplify routine cleaning and maintenance.
The white panel shown also makes surface contamination easy to identify during inspection. Other colors may be available depending on product configuration and production requirements.
The one-piece construction is suitable for applications where the panels need to be repeatedly moved between different access locations.
Heavy Equipment Access Mats provide an alternative to conventional steel plates and timber ground protection systems in suitable temporary applications.
Compared with steel, composite polyethylene panels do not rust and can be substantially lighter depending on the selected panel dimensions and construction.
Compared with timber, polyethylene does not rot, splinter, or absorb moisture in the same way.
These characteristics can make the mats useful for repeated temporary access projects where transportation, cleaning, storage, handling, and reuse are important.
The most suitable material should always be selected according to the actual load, environment, operating requirements, and project conditions.
Composite polyethylene material has very low water absorption compared with many conventional timber products.
This characteristic makes the panels suitable for temporary outdoor access where rain, wet grass, mud, and changing weather conditions may be present.
The material does not require conventional corrosion treatment during normal use, although panels should still be inspected and cleaned before storage.
Mud, stones, or debris trapped on the surface should be removed because heavy contamination can affect traction and installation quality.
One of the main practical advantages of Heavy Equipment Access Mats is their reusable construction.
After a route or protected area is no longer required, the panels can be:
Before reuse, the panel body, hand holes, edges, and traction pattern should be checked for visible damage.
Correct handling and storage can help maintain the practical service life of the mats.
Panels should be stacked on stable support and protected from uncontrolled sharp impacts during handling and transportation.
The correct Heavy Equipment Access Mats should be selected according to actual project requirements rather than using panel load capacity as the only selection factor.
Important selection factors include:
A smaller mat may be easier to carry and reposition, while a larger panel can cover more ground with fewer individual units.
The largest or thickest mat is not automatically the best solution for every application. Transport, site access, handling, installation speed, and actual ground support should all be considered.
Before installing Heavy Equipment Access Mats, the intended access route should be checked carefully.
Deep holes, unsupported voids, severe level differences, standing water, sharp objects, and unstable ground sections should be addressed before installation.
Panels should be positioned to provide consistent support along the main traffic route.
Turning areas, braking zones, concentrated loads, and frequently used sections may require additional planning because these conditions can create different forces from straight-line traffic.
The installation layout should also consider route width, expected vehicle direction, panel connections, ground drainage, and removal requirements.
Heavy Equipment Access Mats provide a practical solution for temporary vehicle routes, mobile equipment access, and ground protection across mud, grass, sand, soft soil, wet terrain, and other demanding surfaces.
The main product specification measures approximately 2440 × 1200 × 12.7 mm, weighs around 41.7 kg, and has a stated load capacity of up to approximately 80 tonnes under suitable ground and installation conditions.
With composite polyethylene construction, a raised traction pattern, integrated hand holes, reusable design, and multiple size options, these mats are suitable for industrial access, utility work, outdoor operations, event service routes, landscaping protection, temporary vehicle routes, and heavy equipment movement.
The final size, panel layout, load requirement, ground preparation, and installation method should always be selected according to the actual application and operating conditions.
