CNC Machined UHMWPE Wear Strip is a customized low-friction engineering plastic component manufactured from ultra-high-molecular-weight polyethylene for conveyor, guide, support and sliding applications.
The material combines excellent abrasion resistance, high impact strength, self-lubricating performance, low water absorption and resistance to many industrial chemicals. It can help reduce metal-to-metal contact, equipment noise, sliding resistance and maintenance frequency.

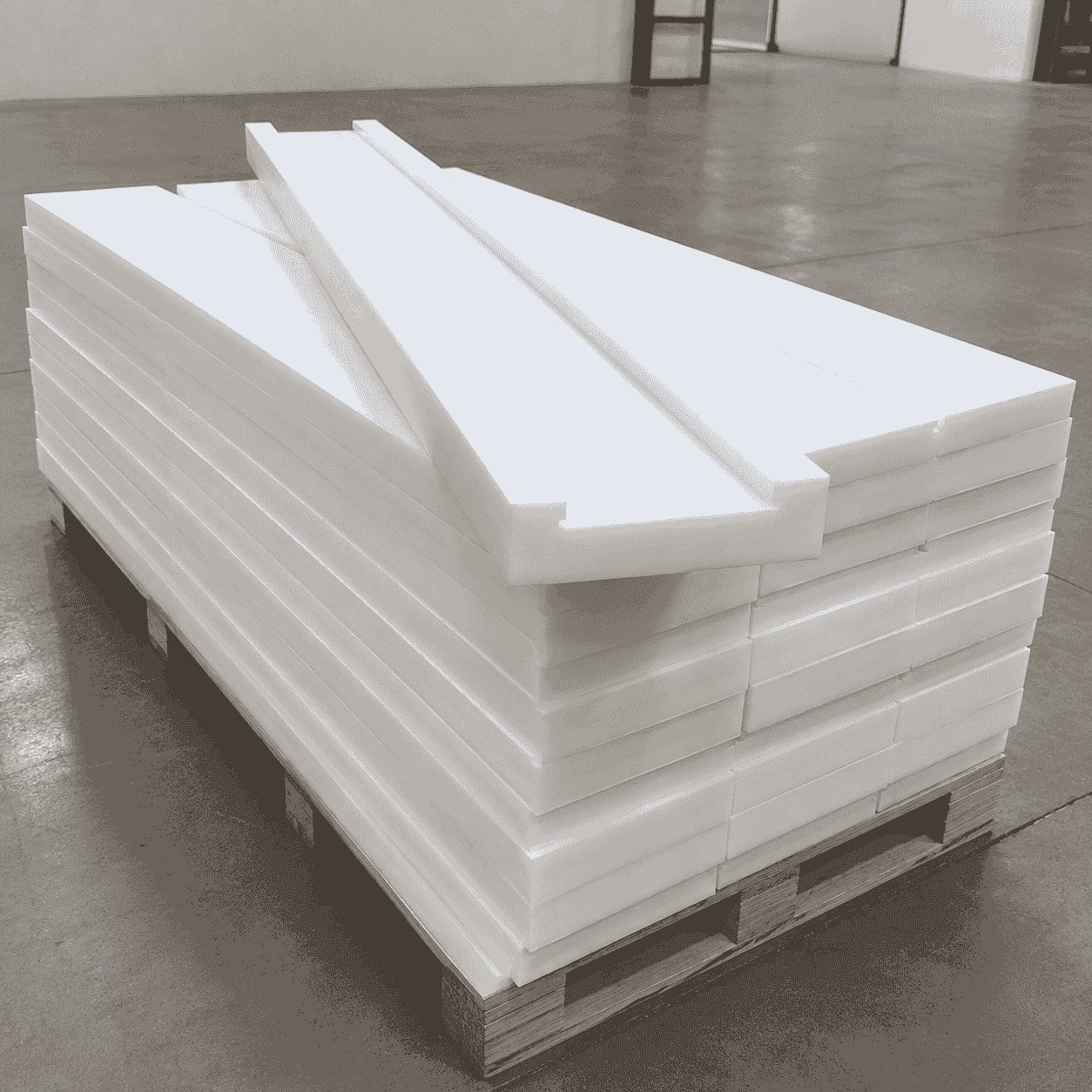

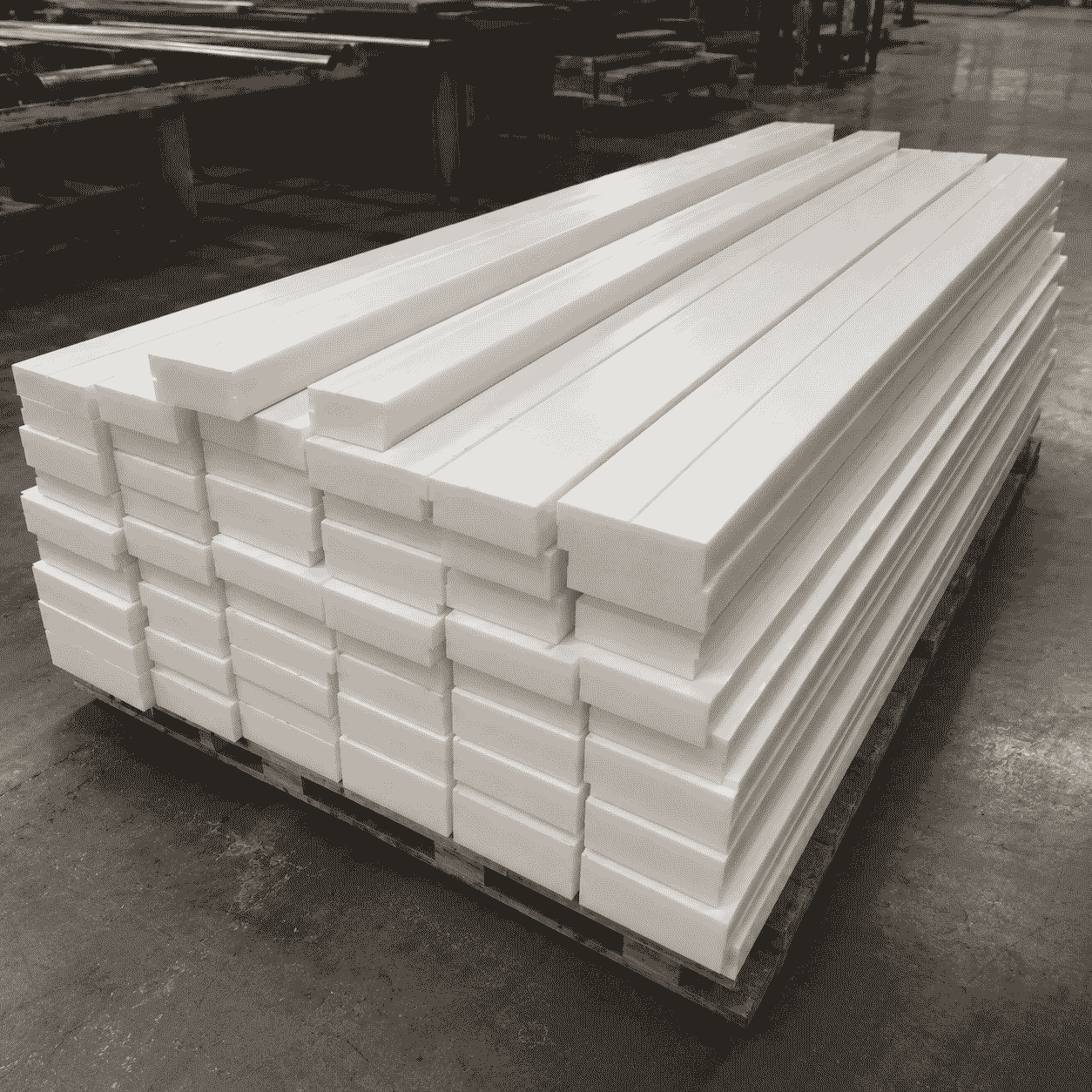

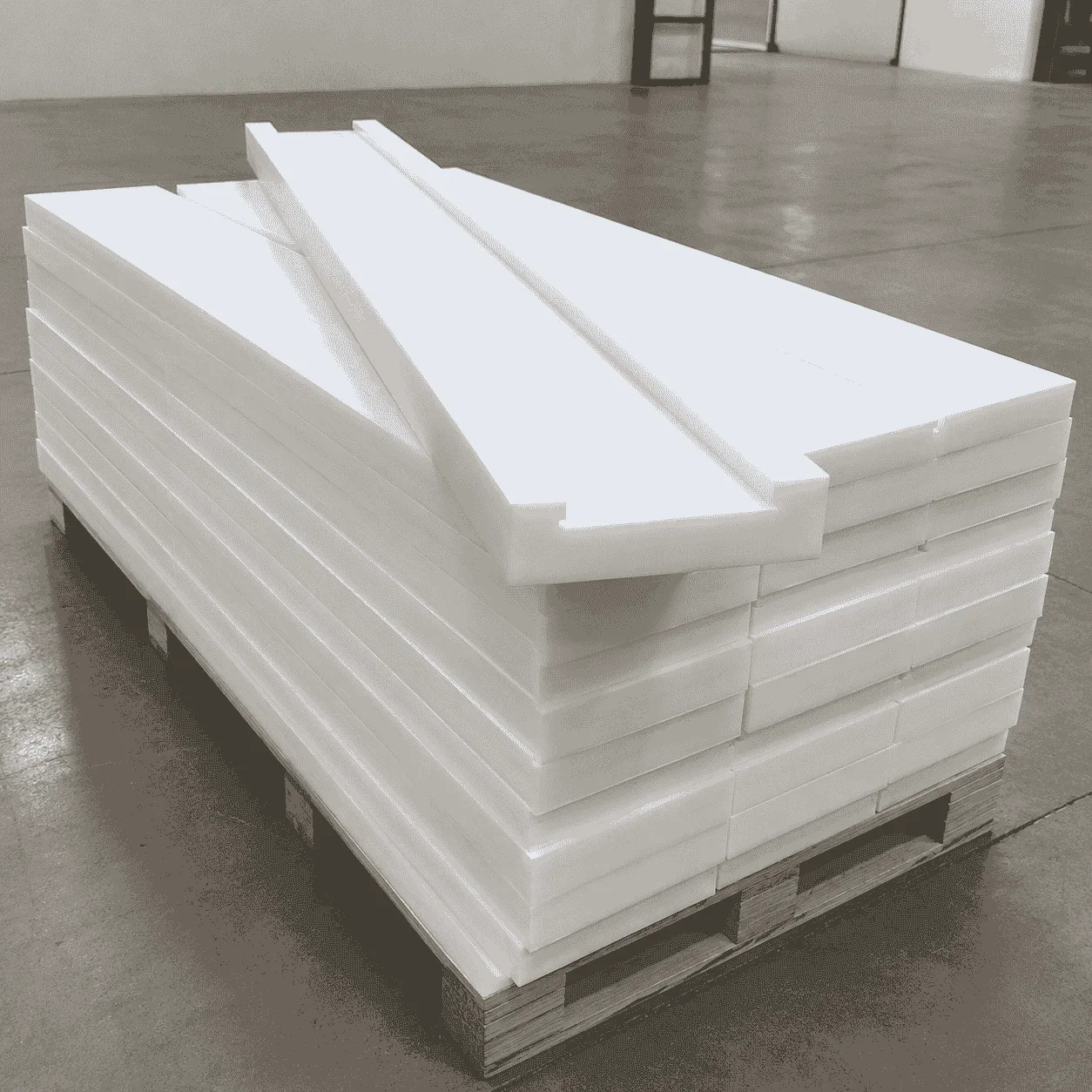

Straight strips, guide profiles, stepped rails, grooved strips and special-shaped components can be CNC-machined according to customer drawings. Custom lengths, widths, thicknesses, mounting holes, countersinks and installation slots are available.
CNC Machined UHMWPE Wear Strip is a customized engineering plastic component produced from ultra-high-molecular-weight polyethylene. It is designed for industrial applications involving continuous sliding, repeated friction, abrasive contact, impact and material movement.
The UHMWPE material provides excellent wear resistance, high impact strength, a low-friction working surface, self-lubricating performance and very low water absorption. It is commonly used to replace metal guide surfaces, reduce direct contact between moving parts and protect the supporting equipment structure from wear.
The wear strip can be supplied as a straight rectangular strip, stepped guide rail, grooved profile, curved guide, chain-support rail, conveyor wear strip or finished special-shaped component. Length, width, thickness, hole position, groove structure, mounting slot and outside profile can be manufactured according to customer drawings.
General information about the base material is available in the
Wikipedia explanation of ultra-high-molecular-weight polyethylene.
Additional information about friction, lubrication and wear is available in the
Wikipedia explanation of tribology.
Information about computer-controlled machining is available in the
Wikipedia explanation of numerical control.
A CNC Machined UHMWPE Wear Strip is a replaceable plastic guide or sliding component installed between moving products, conveyor chains, belts, machine frames or metal supporting structures.
UHMWPE contains extremely long molecular chains that contribute to toughness, impact resistance and resistance to repeated abrasive contact. Its smooth surface helps reduce sliding resistance and allows many components to operate without continuous oil or grease lubrication.

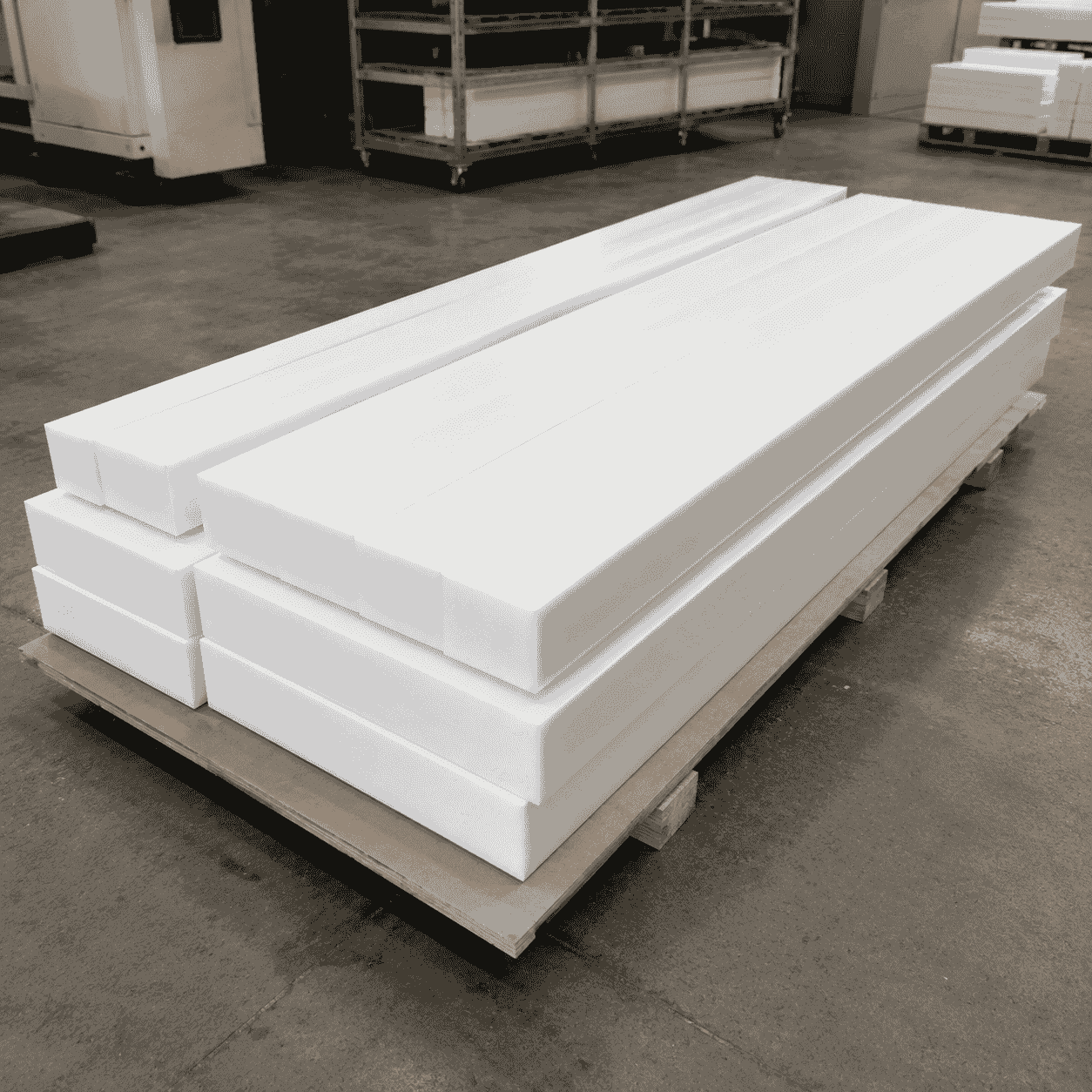

The wear strip is normally produced by cutting a molded UHMWPE sheet or thick plate into a machining blank. The blank is then planed, milled, drilled, grooved or profiled using CNC equipment until it meets the required dimensions and installation structure.
Compared with a simple cut strip, a CNC-machined wear strip can include accurate hole patterns, stepped surfaces, curved profiles, mounting grooves, recessed fastener positions and equipment-specific guide structures.
CNC Machined UHMWPE Wear Strip is suitable for parts exposed to repeated rubbing, sliding and abrasive contact. It can be used with conveyor chains, belts, bottles, containers, cartons, packages, metal components and bulk materials.
The actual service life depends on the selected UHMWPE grade, mating-material hardness, contact pressure, sliding speed, operating temperature, installation condition and maintenance frequency.
The smooth UHMWPE working surface helps reduce resistance between moving components and the supporting guide. Lower friction can support smoother product movement and help reduce dragging, scratching, sticking and energy loss.
This characteristic makes the material suitable for conveyor wear strips, chain-support rails, sliding blocks, guide rails and equipment positioning components.
Many UHMWPE wear strips can operate without continuous oil or grease lubrication. This can simplify equipment maintenance and reduce the possibility of lubricant contamination around conveyed products.
Whether additional lubrication is required depends on load, speed, operating temperature, mating material and equipment design.
The UHMWPE structure provides high toughness and helps the strip withstand repeated impact, vibration and mechanical shock under suitable operating conditions.
This makes the material useful in product-transfer areas, conveyor entry points, chain-return systems and machinery components exposed to intermittent loading.
UHMWPE absorbs very little moisture compared with many conventional engineering plastics. It is suitable for humid production areas, washing environments and equipment exposed to occasional water contact.
The material does not normally swell significantly because of routine moisture exposure.
CNC Machined UHMWPE Wear Strip does not rust and resists many commonly encountered acids, alkalis, salts and industrial chemicals.
Chemical compatibility should be evaluated separately when the component will contact strong oxidizing agents, specialized solvents, concentrated chemicals or elevated-temperature process media.
Installing UHMWPE between chains, products and metal equipment structures can help reduce direct metal contact, operating vibration and machinery noise.
The degree of noise reduction depends on equipment speed, strip thickness, supporting structure and installation quality.
The wear strip functions as a replaceable working surface. When it reaches its maintenance limit, the strip can be removed and replaced without changing the entire metal frame or conveyor structure.
This can reduce equipment-repair time and protect higher-value machinery components.
UHMWPE can be saw-cut, planed, drilled, turned, milled, grooved and CNC-machined. The material can be processed into straight strips, curved rails, stepped guides, chain profiles and complex special-shaped components.
CNC Machined UHMWPE Wear Strip is suitable for industrial equipment requiring wear protection, low friction, impact resistance or a replaceable sliding surface.
Additional UHMWPE sheets, guide rails, wear strips and custom-machined engineering plastic products are available through our
UHMWPE sheet and engineering plastic product center.
| Product Name | Custom CNC Machined UHMWPE Wear Strip |
|---|---|
| Focus Keyword | CNC Machined UHMWPE Wear Strip |
| Base Material | Ultra-high-molecular-weight polyethylene |
| Common Material Designation | PE-UHMW, PE1000 or UHMWPE |
| Standard Colors | Natural white, black, green, blue, yellow, red or project-specified colors |
| Common Finished Thickness | 5–100 mm |
| Common Finished Width | 20–300 mm |
| Common Length Range | 500–4000 mm |
| Long-Strip Option | Up to approximately 6000 mm for selected widths, thicknesses and profiles |
| Heavy-Duty Thickness | More than 100 mm for selected guide blocks and support components after feasibility review |
| Profile Options | Rectangular, stepped, grooved, curved, U-shaped, T-shaped and custom profiles |
| Surface Options | As-molded, smooth, planed, lightly textured or CNC-finished |
| Available Grades | Standard, virgin, enhanced wear-resistant, UV-stabilized, antistatic and conductive grades |
| Machining Services | Cutting, planing, drilling, turning, milling, grooving, slotting and CNC profiling |
| Supply Form | Machining blanks, straight strips, guide profiles, wear rails and finished components |
The dimensions listed above are common manufacturing ranges rather than guaranteed combinations. Maximum length, width, thickness and profile complexity cannot always be produced together in one component.
Final specifications should be confirmed according to the selected UHMWPE grade, sheet or plate dimensions, machining allowance, required tolerances, profile structure and transportation conditions.

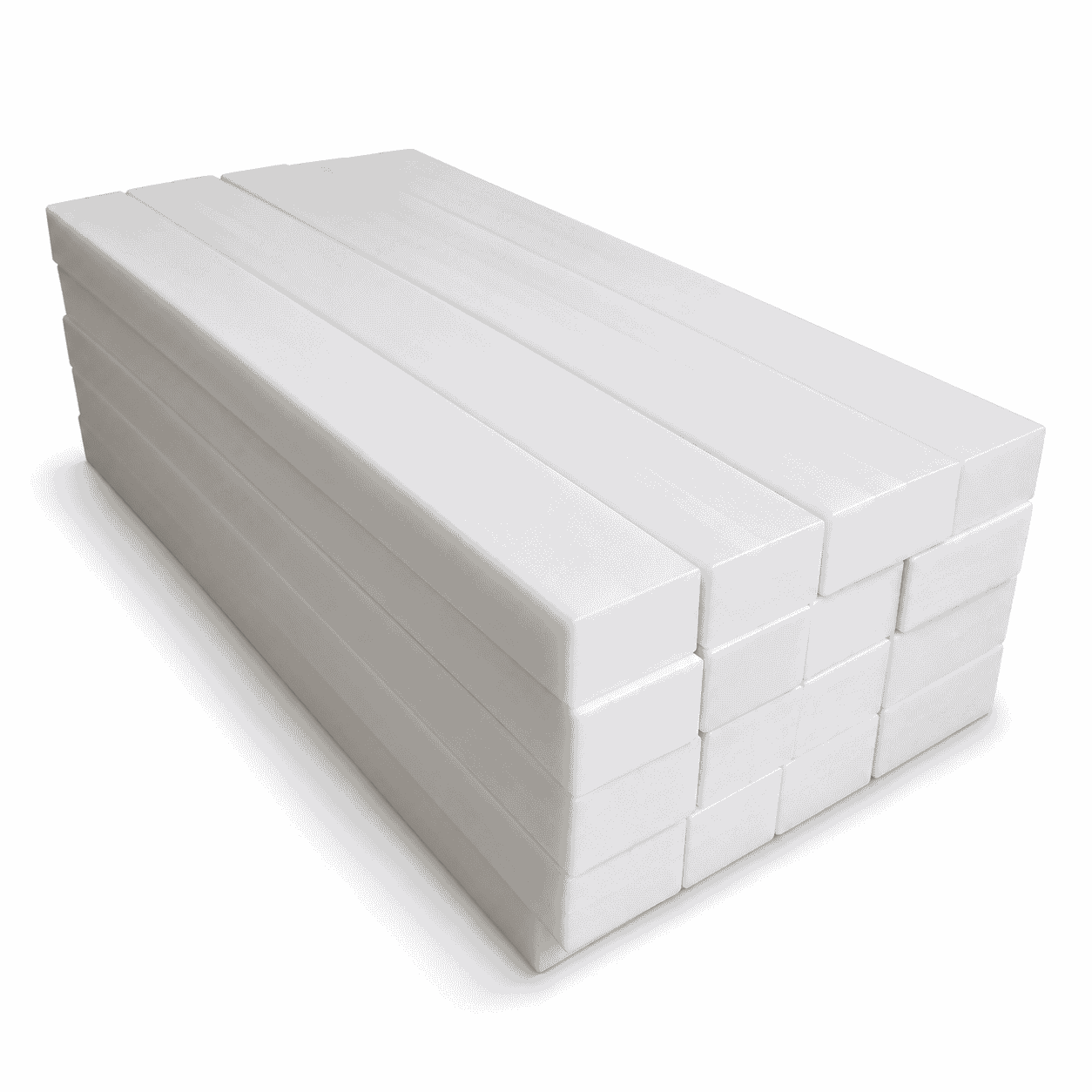

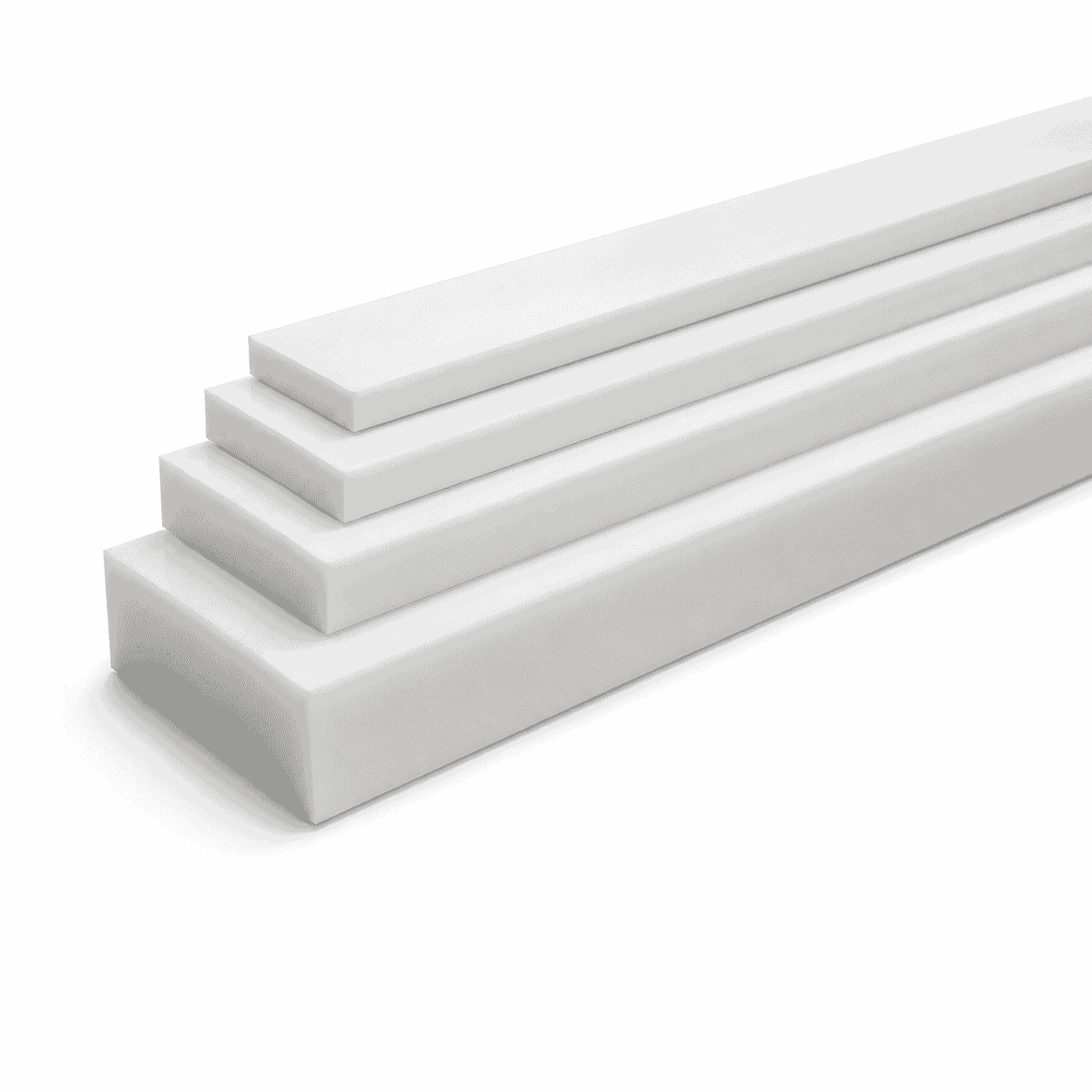

Rectangular strips are used as simple sliding surfaces, support rails, conveyor wear plates and replaceable protective components.
Stepped profiles can position conveyor chains, belts, bottles or equipment components while providing a controlled sliding surface.
Machined grooves can guide roller chains, conveyor chains, cables, belts or moving mechanical parts.
Groove width, depth, radius and centre position can be produced according to customer drawings.
U-shaped and T-shaped profiles can be manufactured for equipment frames, chain guides, edge protection and special installation structures.
Curved guides can be CNC-machined for conveyor bends, bottle-transfer systems and automated production equipment.
The minimum curve radius and finished profile depend on strip width, thickness, machining direction and equipment design.
Standard UHMWPE is suitable for general conveyor wear strips, chain guides, sliding rails and low-friction machinery components.
A controlled virgin-material formulation can be selected when consistent appearance, material traceability or project-specific documentation is required.
An enhanced wear formulation can be evaluated for high-frequency sliding, abrasive materials and equipment requiring a longer replacement interval.
A UV-stabilized formulation can be specified for outdoor conveyors and sunlight-exposed machinery. Material color alone does not confirm UV resistance.
Antistatic material can be evaluated where electrostatic accumulation must be controlled. The required surface-resistance or volume-resistance range should be stated before production.
Conductive UHMWPE is designed for lower electrical resistance and should be used with an appropriate grounding and installation system.
UHMWPE wear strips may be used in food-processing and packaging equipment when a suitable documented formulation is selected.
Color alone does not demonstrate food-contact compliance. The resin, pigment, additives and intended contact conditions must be reviewed as a complete material system.
CNC Machined UHMWPE Wear Strip can be produced from customer drawings, physical samples or equipment measurements.
Available processing structures include:
UHMWPE expands and contracts more than most metals when temperature changes. Finished dimensions can vary when the operating temperature differs significantly from the inspection temperature.
Long and narrow strips may require suitable straightness allowances, supporting fixtures and installation points. Very tight tolerances may not be practical over the full length of a large UHMWPE component.
Thick or deeply machined parts may require rough machining, stress release and precision finishing. Removing large amounts of material in several stages can help reduce cutting heat and dimensional variation.
Critical dimensions, reference surfaces, mounting holes and tolerance requirements should be clearly marked on the drawing.
CNC Machined UHMWPE Wear Strip can be installed using countersunk bolts, recessed fasteners, mechanical clamps, backing rails, metal inserts or equipment-specific mounting structures.
The supporting surface should be clean, reasonably straight and capable of supporting the strip evenly. Unsupported sections can increase bending and stress around mounting holes.
UHMWPE expands and contracts more than steel or aluminium when temperature changes. Long strips should include appropriate thermal-expansion clearance.
Elongated holes, floating fasteners or sliding fixing structures may be considered for long components exposed to significant temperature variation.
Fasteners should not be excessively tightened because concentrated pressure can deform the UHMWPE around the mounting position.
Quality inspection can be completed according to customer drawings and technical requirements. Typical inspection items include:
To prepare an accurate quotation for CNC Machined UHMWPE Wear Strip, please provide:
The final CNC Machined UHMWPE Wear Strip material, profile, dimensions, tolerances and machining process should be confirmed according to customer drawings, equipment conditions and production-feasibility review before manufacturing.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
