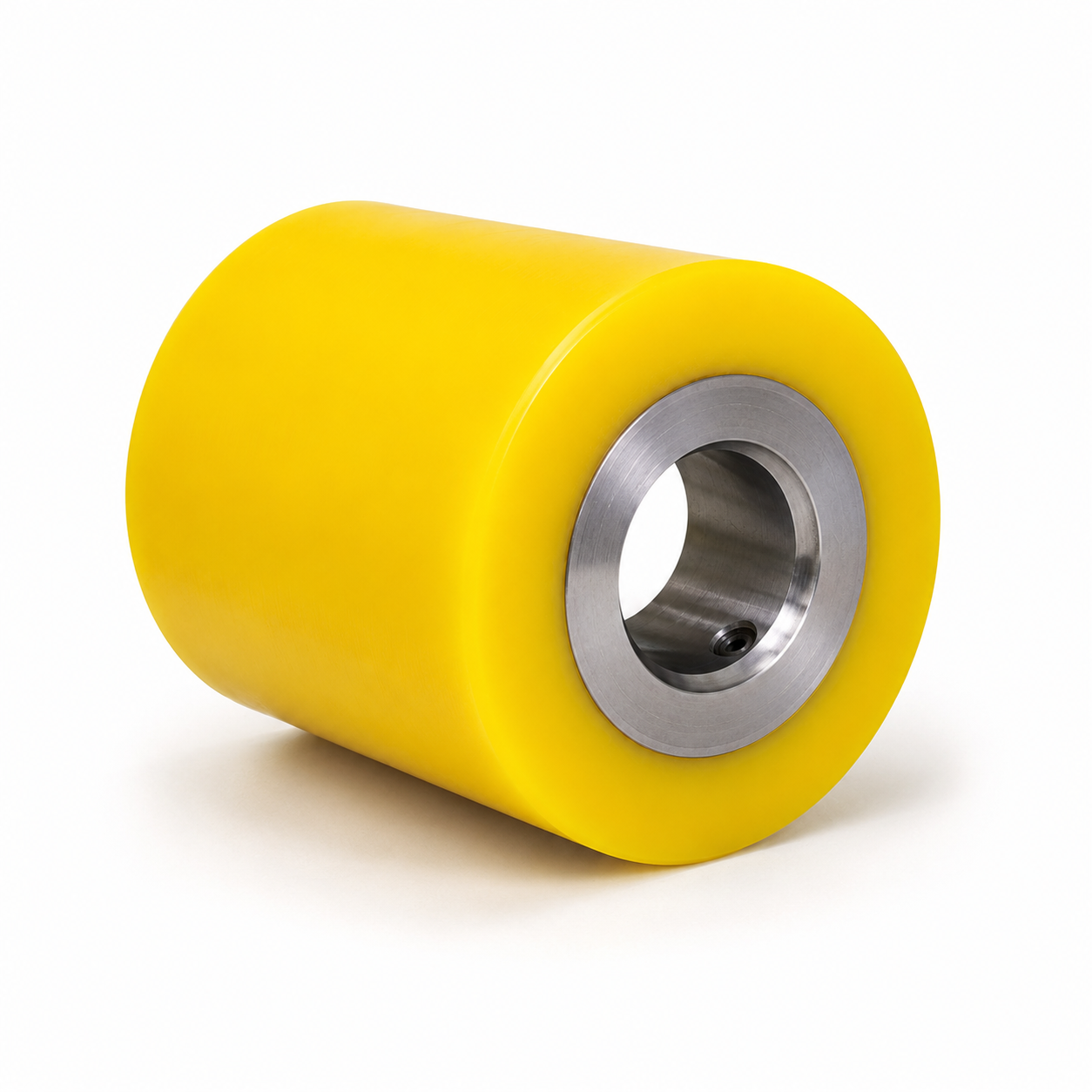

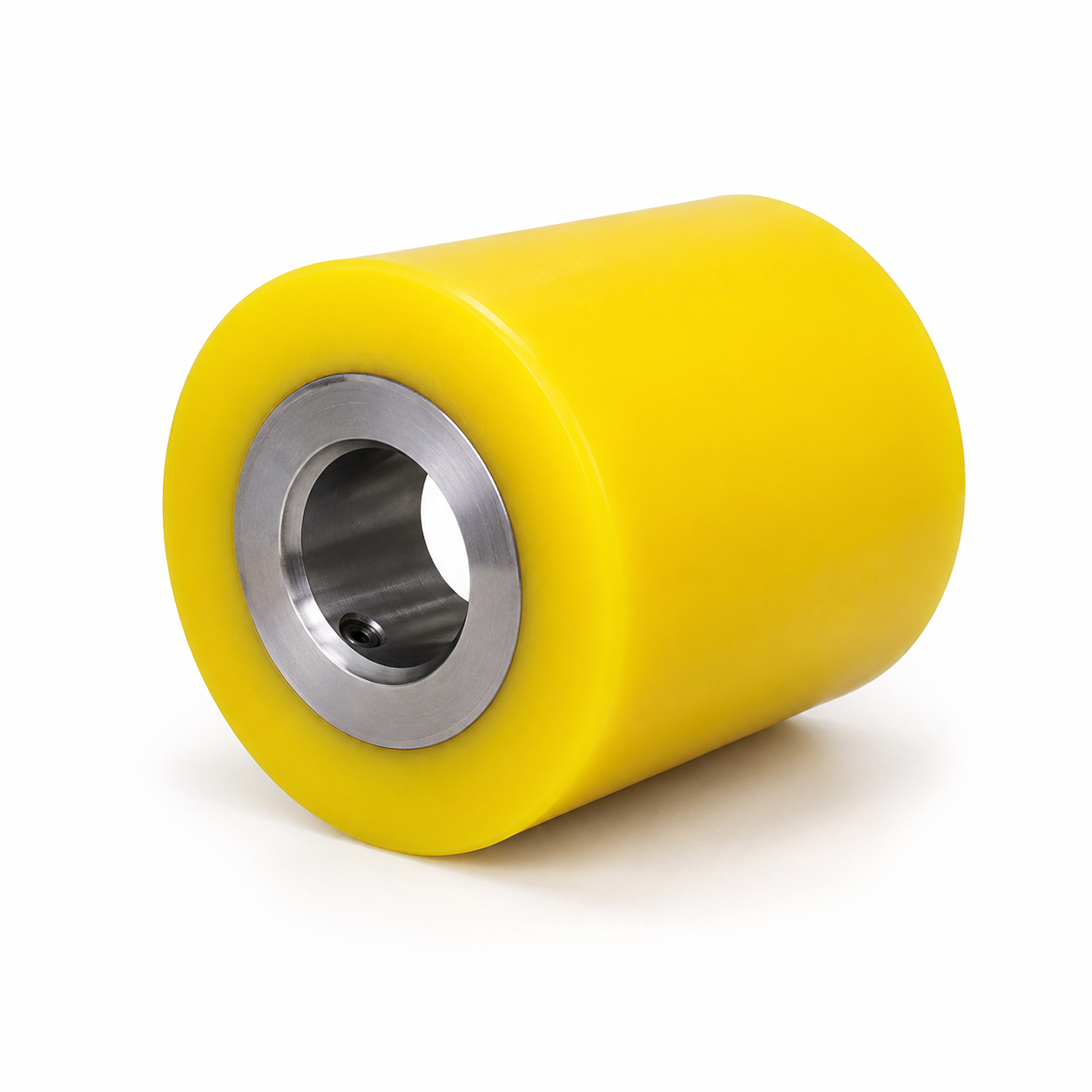

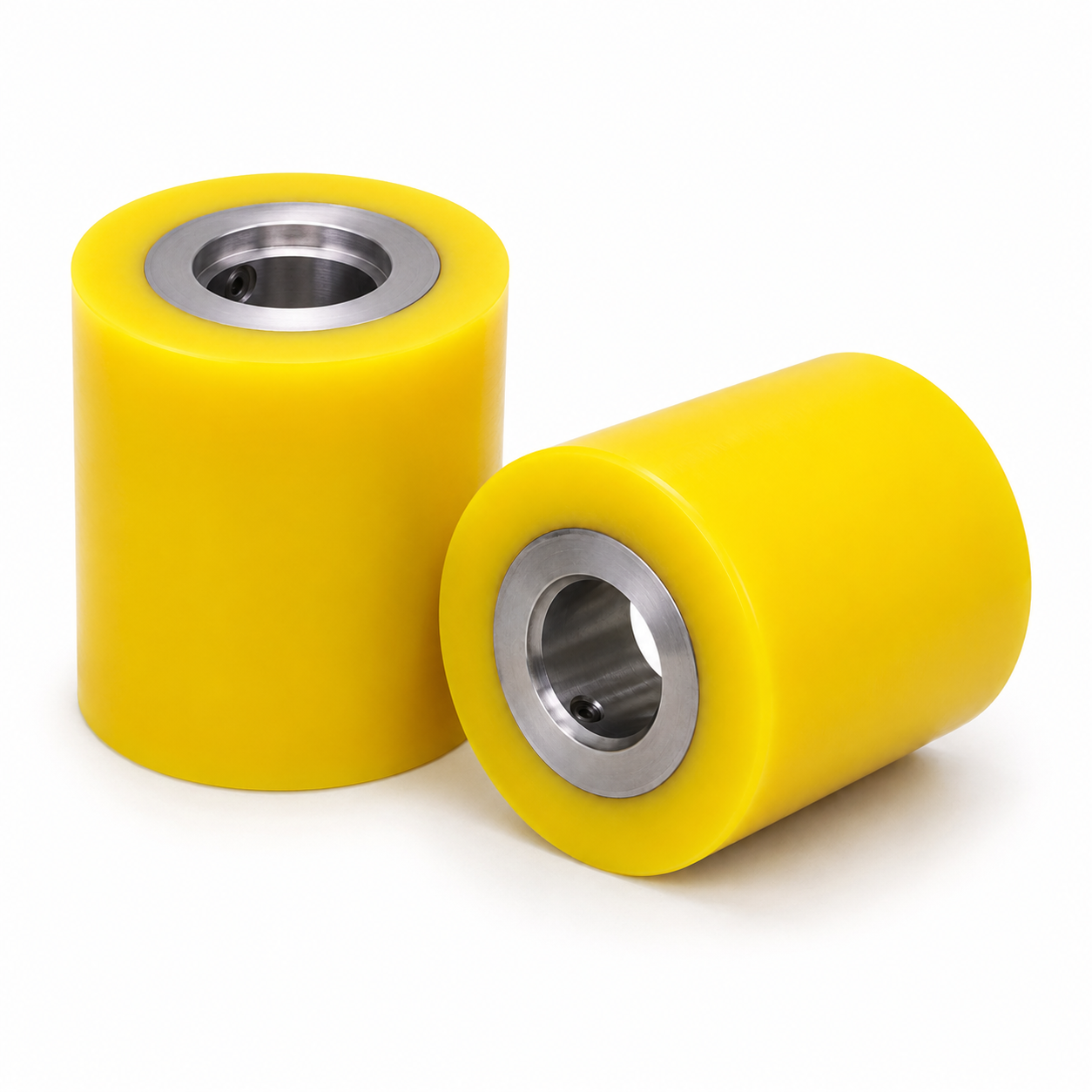

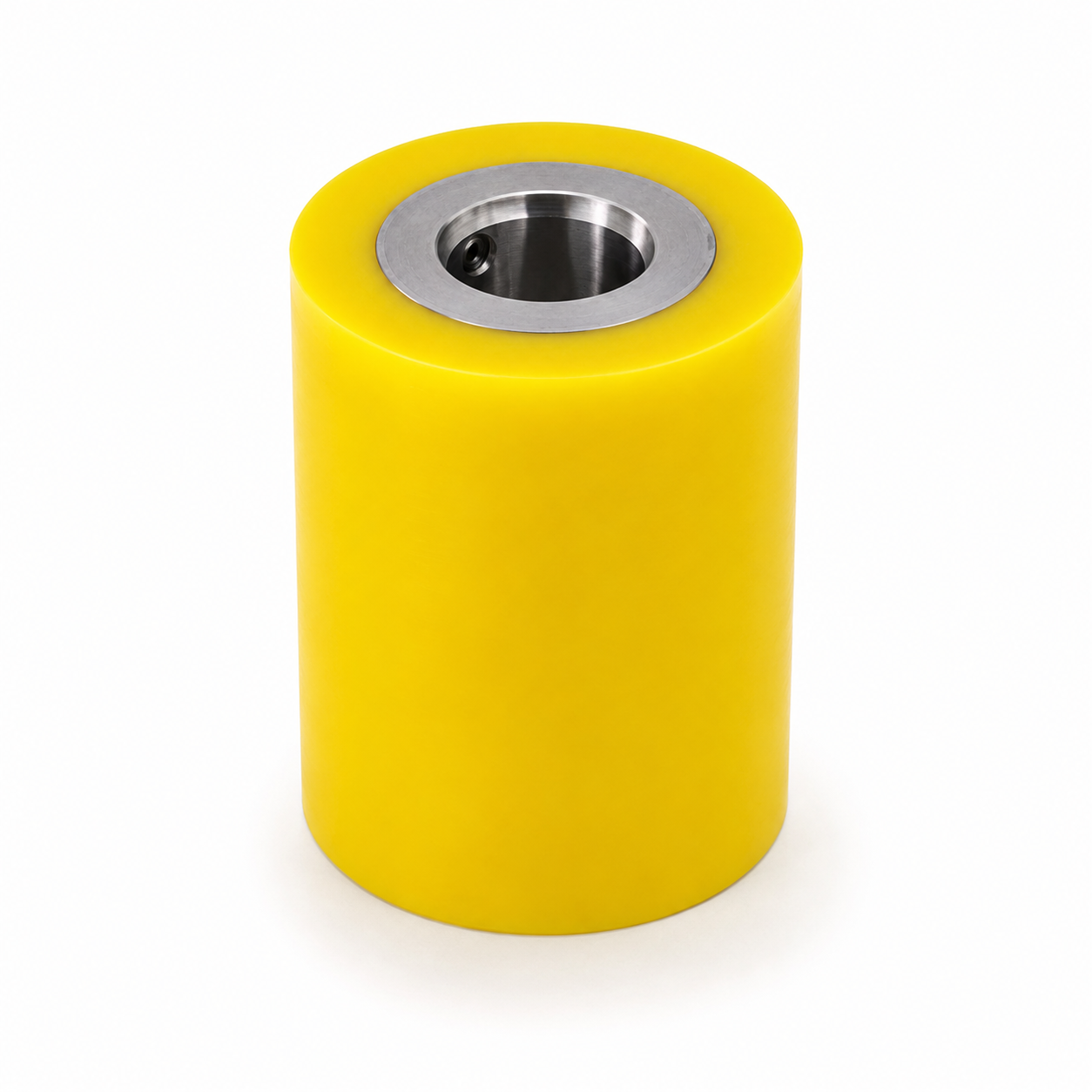

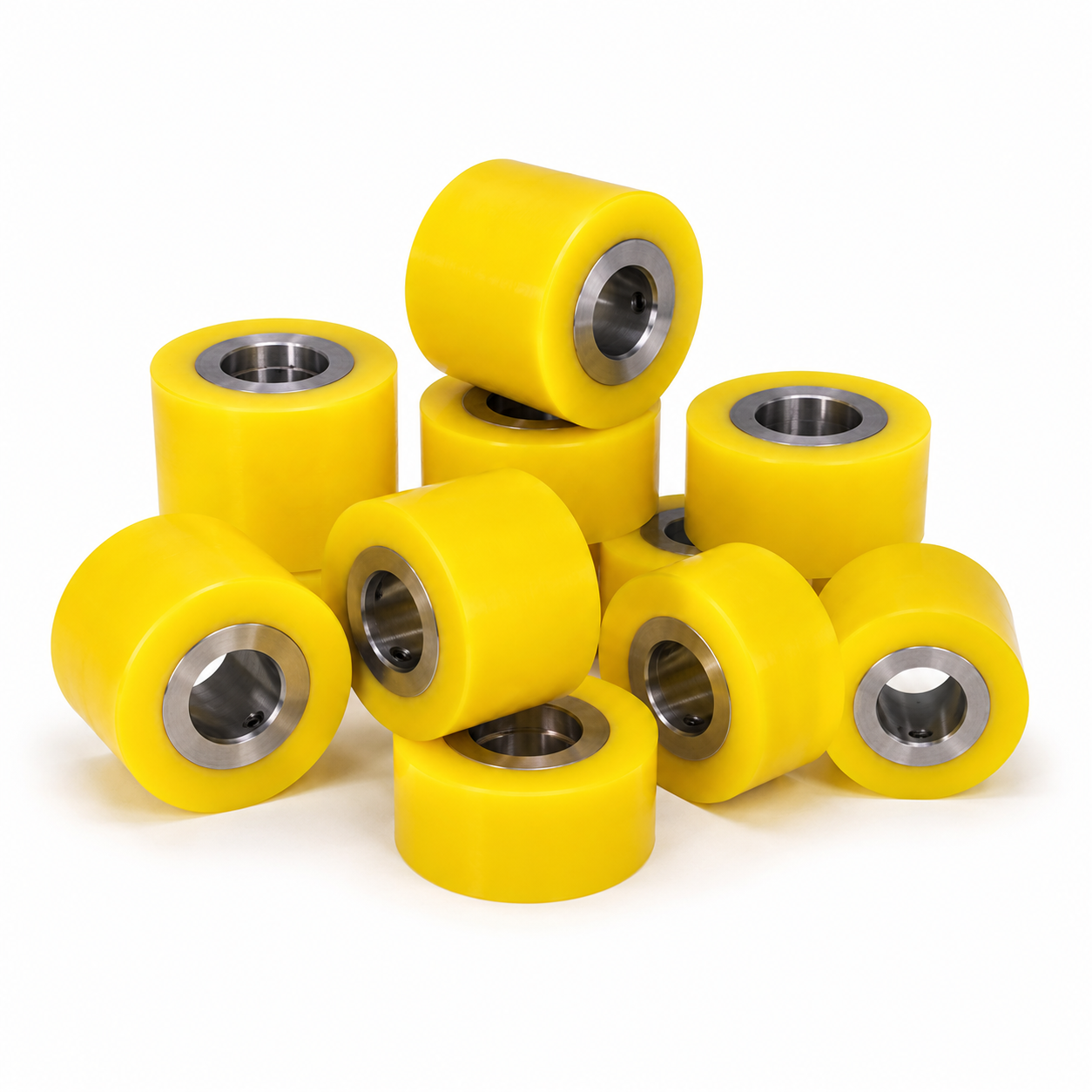

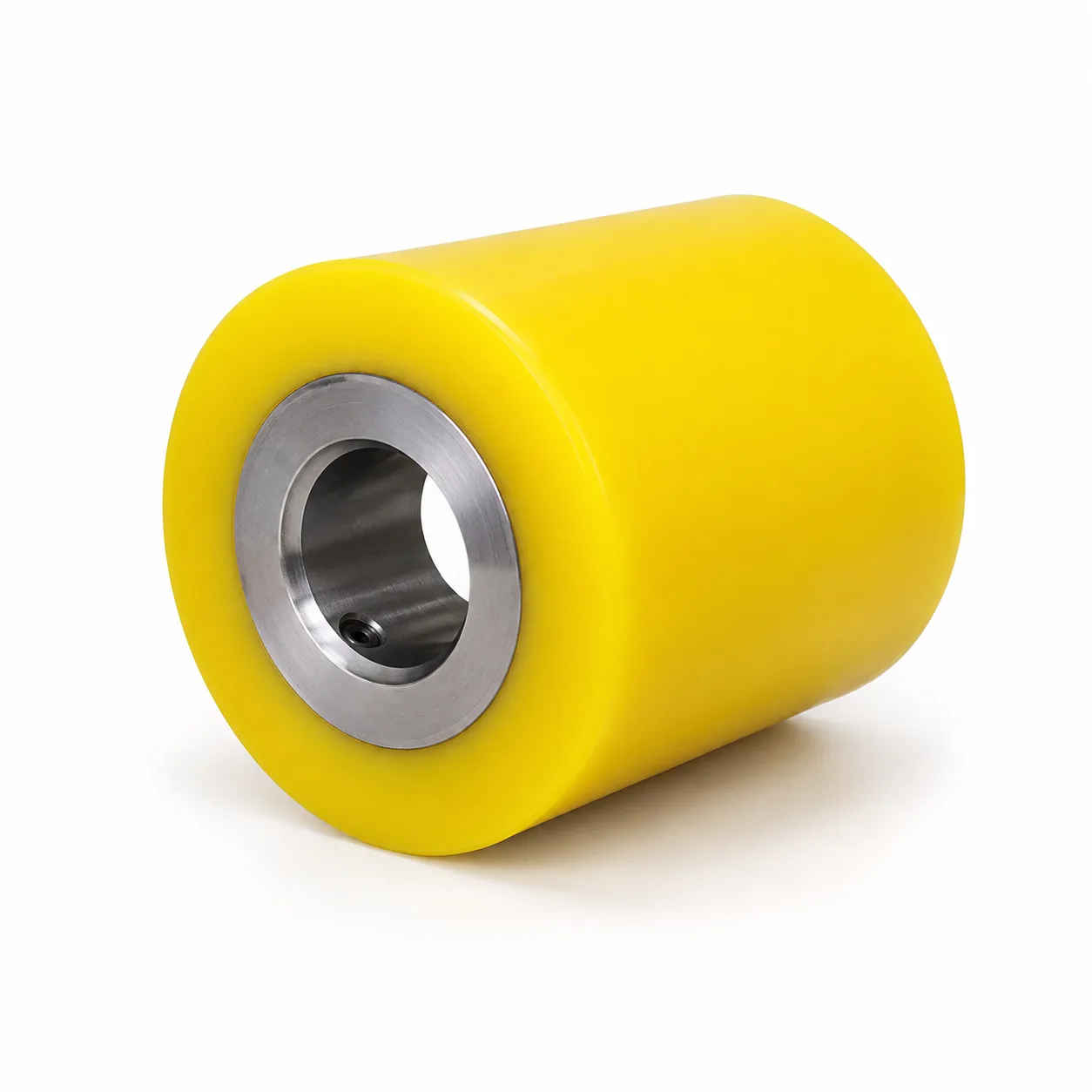

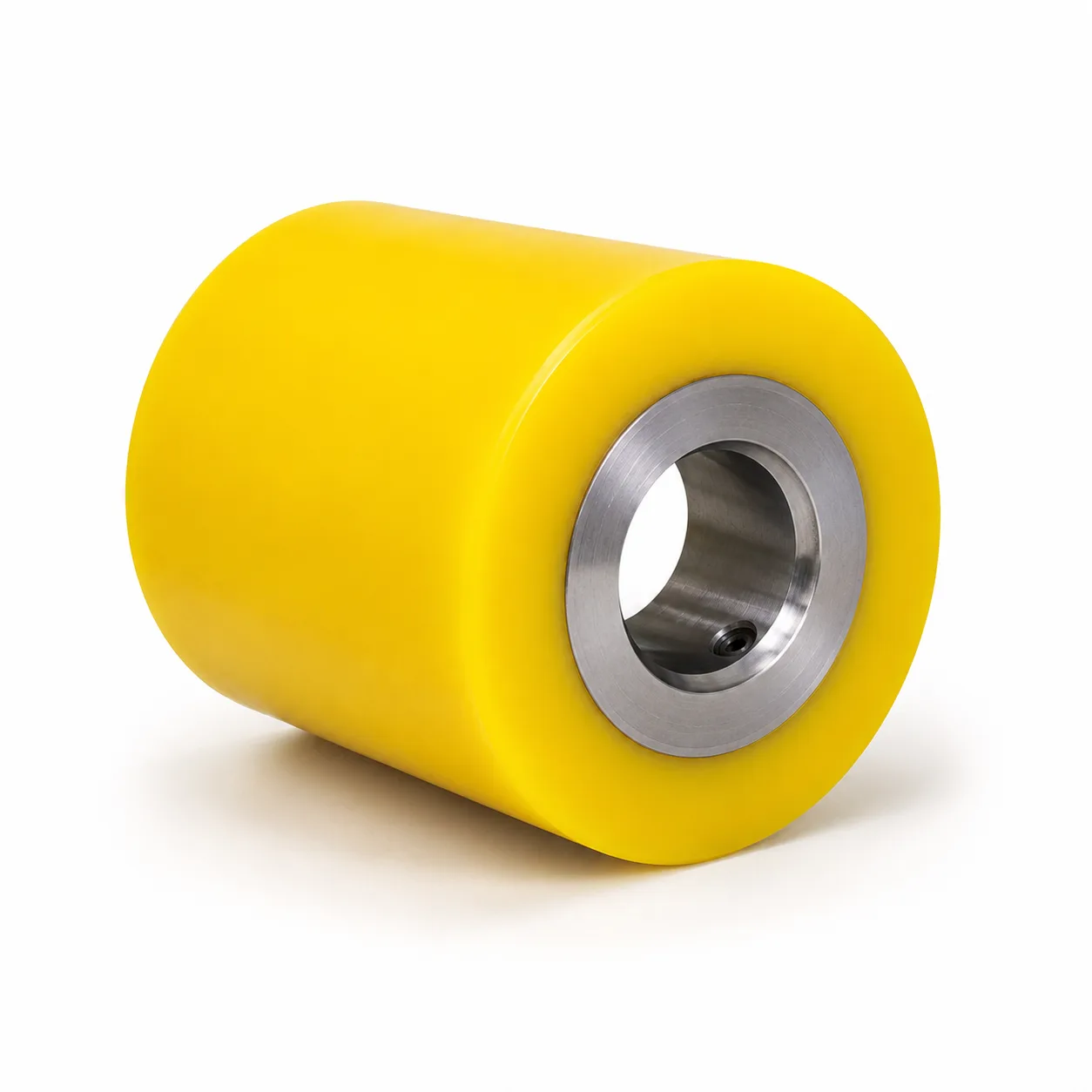

Custom Polyurethane Coated Roller with Metal Core and Bearing

Custom Polyurethane Coated Roller combines an elastic polyurethane outer layer with a precision-machined metal core, bearing seat or installed bearing. The polyurethane coating provides controlled friction, cushioning and surface protection, while the internal metal structure supports the roller under continuous rotational loads.

The roller can be manufactured according to customer drawings, samples or equipment installation requirements. Its outside diameter, coating thickness, roller width, center bore, bearing configuration, hardness, surface finish and dimensional tolerance can all be adjusted for the intended operating conditions.

Custom Polyurethane Coated Roller Structure

The outer working surface is coated with polyurethane elastomer. Compared with direct metal-to-metal contact, the elastic coating helps absorb impact, reduce operating noise and minimize scratches or pressure marks on conveyed materials.

The internal core may be produced from carbon steel, stainless steel or aluminum alloy according to the required load, corrosion resistance and equipment weight. Available center structures include plain bores, stepped bores, keyed bores, threaded holes, bearing seats, installed bearings and shaft-mounted designs.

After coating, the roller surface can be machined or ground to the required outside diameter, width, concentricity and surface condition. Grooves, crowns, chamfers, flanges and other functional structures can also be added when required.

Advantages of Custom Polyurethane Coated Roller

• Wear-resistant working surface: Suitable for repeated rolling, guiding, pressing and material-contact operations.
• Controlled friction: Provides better grip than a smooth metal roller and helps reduce unwanted slipping.
• Impact cushioning: The elastic coating absorbs part of the contact force during equipment operation.
• Reduced noise and vibration: Helps avoid the harsh contact noise commonly produced by rigid metal components.
• Workpiece protection: Reduces scratches, indentation and direct metal contact on sensitive products.
• Multiple hardness options: Coating hardness can be selected according to load, grip, deformation and wear requirements.
• Custom core configuration: Metal cores, bearings, bores and installation structures can be produced to match existing equipment.

Industrial Applications

Custom Polyurethane Coated Roller products are commonly used as conveyor rollers, drive rollers, guide rollers, pressure rollers, support rollers, pinch rollers and positioning wheels. Typical equipment includes conveyor systems, packaging machinery, printing machinery, coating and laminating lines, woodworking equipment, steel processing machinery and automated production lines.

For additional application information, visit our
Conveyor Systems
and
Industrial Machinery
pages.

Custom Manufacturing Information

Before production, the roller diameter, working width, coating thickness, shaft or bore size, bearing model, operating load, rotational speed, temperature, contact medium and required surface condition should be confirmed. These parameters directly affect material selection, coating hardness and the connection between the polyurethane layer and metal core.

Our
CNC Plastic Machining
service supports machining from drawings or physical samples. Both individual replacement rollers and batch production orders can be arranged, with key dimensions, bearing seats, surface quality and batch consistency inspected before delivery.

Polyurethane is a broad group of polymers that can be formulated into materials with different structures and applications. Basic material information is available from
Wikipedia’s Polyurethane overview.
For information about rolling bearing structures, refer to
Wikipedia’s Rolling-Element Bearing overview.

Ordering Requirements

Please provide a technical drawing, sample or clear dimensional information when requesting a quotation. Important details include the outside diameter, roller width, center bore or shaft size, bearing model, coating thickness, polyurethane hardness, operating speed, load, temperature and quantity.

The coating formulation must be selected according to the actual working environment. For applications involving high temperatures, oils, solvents, acids, alkalis or prolonged outdoor exposure, the operating conditions should be confirmed before material selection.
