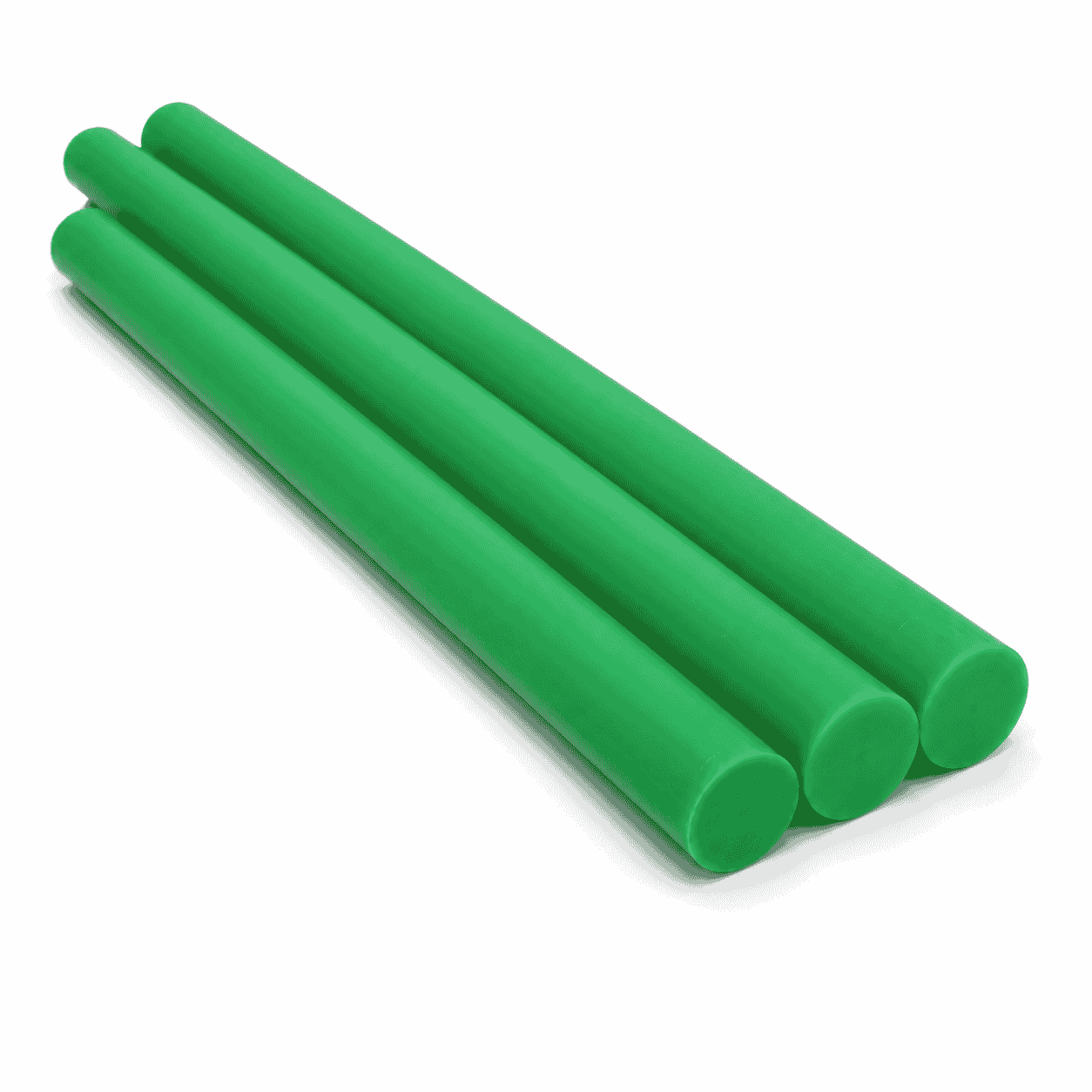

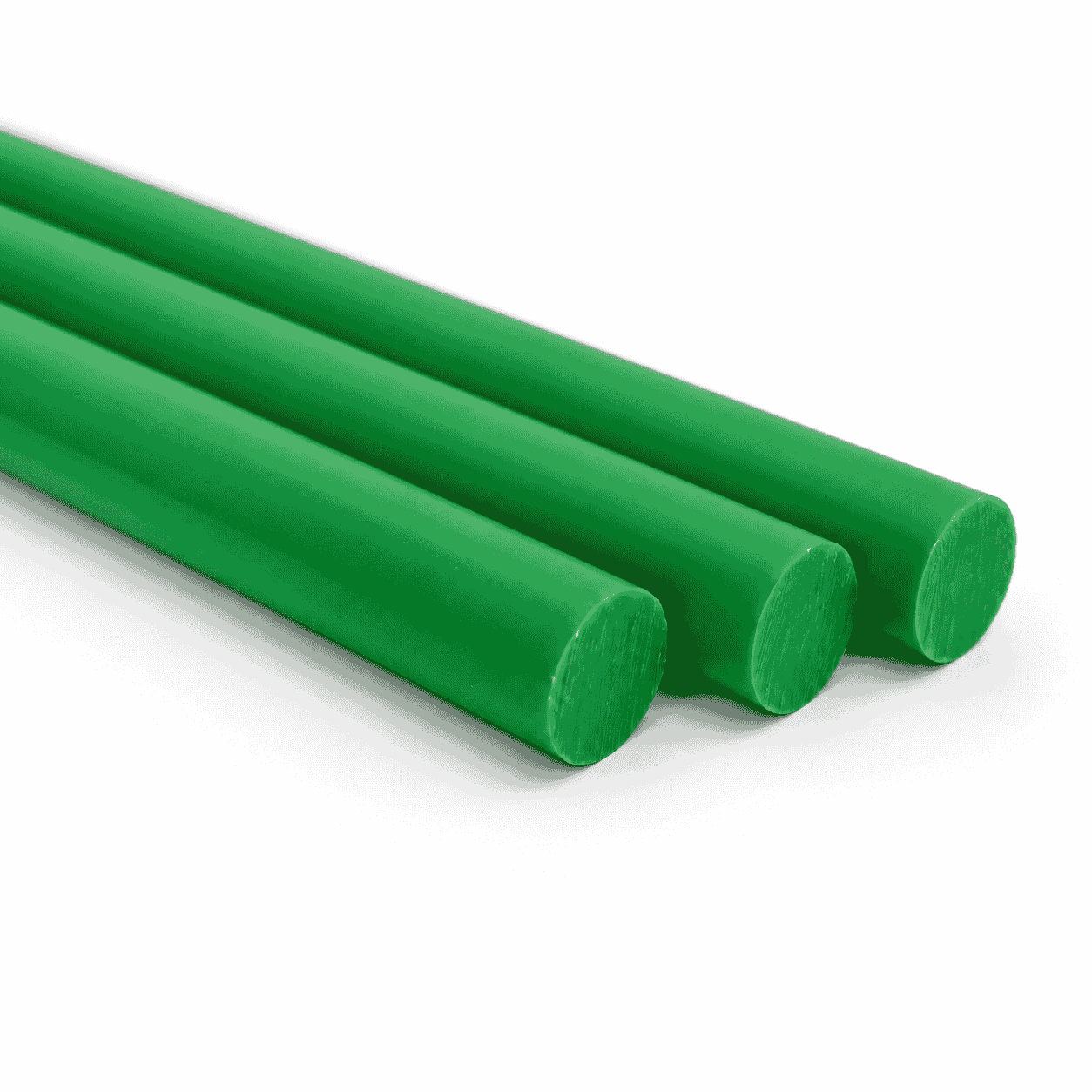

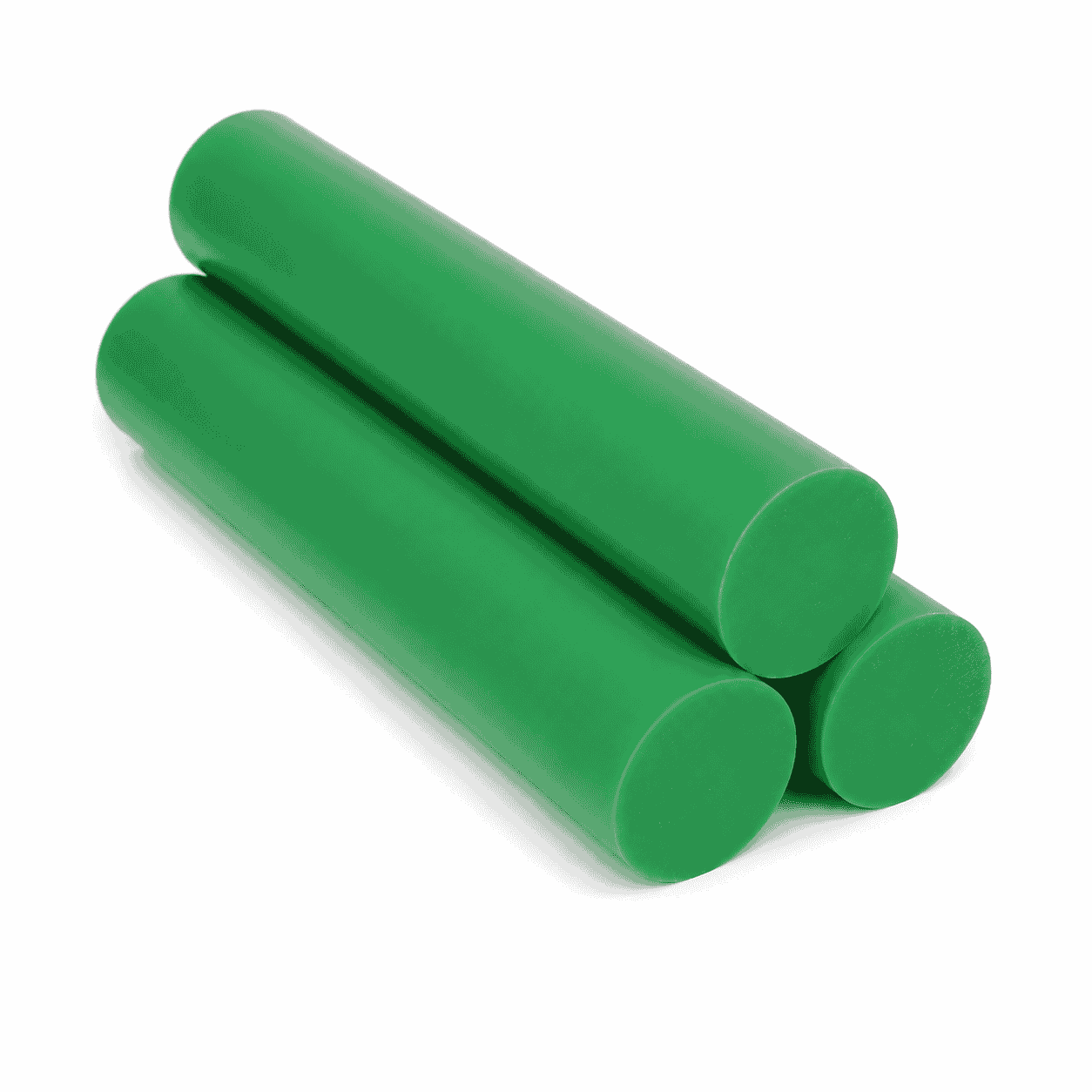

Green PE Rod

Green PE Rod for Industrial Machined Components

Green PE Rod is a green polyethylene round bar used as machining stock for industrial components requiring low moisture absorption, chemical resistance, impact resistance and corrosion-free operation. Depending on the required rigidity, wear resistance, friction performance and service conditions, the rod may be manufactured from HDPE, UHMWPE or another specified polyethylene grade.

The green color is normally produced by adding a suitable colorant to the polyethylene material. It can be used for visual identification, production-line classification or equipment color coding. Green color alone does not identify the exact PE grade and does not automatically indicate food-contact, antistatic, conductive, UV-resistant or flame-retardant performance. These properties must be confirmed through grade-specific technical documentation.

For additional polyethylene materials and related rod products, visit our Polyethylene PE Rod page. Finished components can also be manufactured through our CNC Plastic Machining service.

Polyethylene is a thermoplastic polymer family that includes multiple grades with different densities, molecular weights and performance characteristics. General material information is available from Wikipedia’s Polyethylene explanation.

Main Features of Green PE Rod

• Low moisture absorption
• Good resistance to many acids, alkalis and industrial chemicals
• Good impact resistance for many industrial applications
• Relatively low-friction surface for sliding and guiding components
• Does not rust in wet or humid operating environments
• Lightweight compared with metal machining stock
• Can help reduce operating noise in suitable applications
• Suitable for CNC turning, milling, drilling and boring
• Available in multiple reference diameters
• Can be cut or machined according to drawings and samples
• Green appearance supports visual identification and color coding
• Material grade can be selected according to operating requirements

Typical Applications of Green PE Rod

Green PE Rod can be machined into conveying, packaging, automation and general machinery components, including:

• Bushings and bearing sleeves
• Guide rollers and support rollers
• Sliding blocks and guide blocks
• Wear pads and support pads
• Spacer sleeves and distance rings
• Conveyor guide components
• Chain guides and guide-rail components
• Star wheels and product-transfer parts
• Packaging machinery change parts
• Low-load wheels and pulleys
• Automation equipment supports and positioning parts
• Custom CNC-machined polyethylene components

The appropriate polyethylene grade should be selected according to mechanical load, sliding speed, operating temperature, chemical exposure, mating material, dimensional tolerance and expected service life.

UHMWPE may be preferred where wear resistance, impact resistance and low-friction performance are important. HDPE may be selected where greater rigidity, structural support and conventional machining characteristics are required.

Reference Sizes of Green PE Rod

The following dimensions are based on the product options displayed in the supplied reference image. They are intended for product presentation and preliminary size selection rather than guaranteed inventory.

Size notice: The dimensions above are reference product options taken from the supplied image. The displayed diameter range is Ø20–Ø150 mm, but the image does not show every intermediate diameter within this range. Diameters such as Ø120 mm and Ø140 mm should not be treated as standard displayed options unless separately confirmed.

Actual stock, diameter, length, material grade, color, straightness, machining allowance, dimensional tolerance, minimum order quantity and delivery time should be confirmed before production. Other diameters and cut lengths can be evaluated according to actual requirements.

CNC Machining of Green PE Rod

Green PE Rod can be processed by CNC turning, milling, drilling, boring, cutting, grooving, tapping and chamfering. Our CNC Plastic Machining service supports sample production and batch manufacturing according to customer drawings, physical samples and equipment requirements.

Sharp cutting tools, suitable feed rates and controlled cutting temperatures are recommended when machining polyethylene. Excessive cutting heat or clamping pressure may cause burr formation, local deformation or dimensional variation.

Long rods and thin-wall components should be adequately supported during machining. For precision components, machining allowance, installation clearance, wall thickness and support structure should be determined according to the selected PE grade and actual working conditions.

Material Selection Notes

• Green PE rod may be manufactured from HDPE, UHMWPE or another PE grade.
• Green color alone cannot identify the base polymer or molecular weight.
• Green color does not automatically indicate food-contact compliance.
• Green color does not automatically indicate conductive or antistatic performance.
• Outdoor use requires confirmation of UV stabilization.
• UHMWPE and HDPE have different rigidity, wear resistance and machining behavior.
• Actual performance depends on load, speed, temperature and mating material.
• Critical applications should use grade-specific technical data and test reports.

Green PE Rod is suitable for customers requiring machinable polyethylene stock with low moisture absorption, chemical resistance, impact resistance and clear color identification. The PE grade, diameter, length, tolerance and finished component structure should be selected according to the actual operating conditions.
