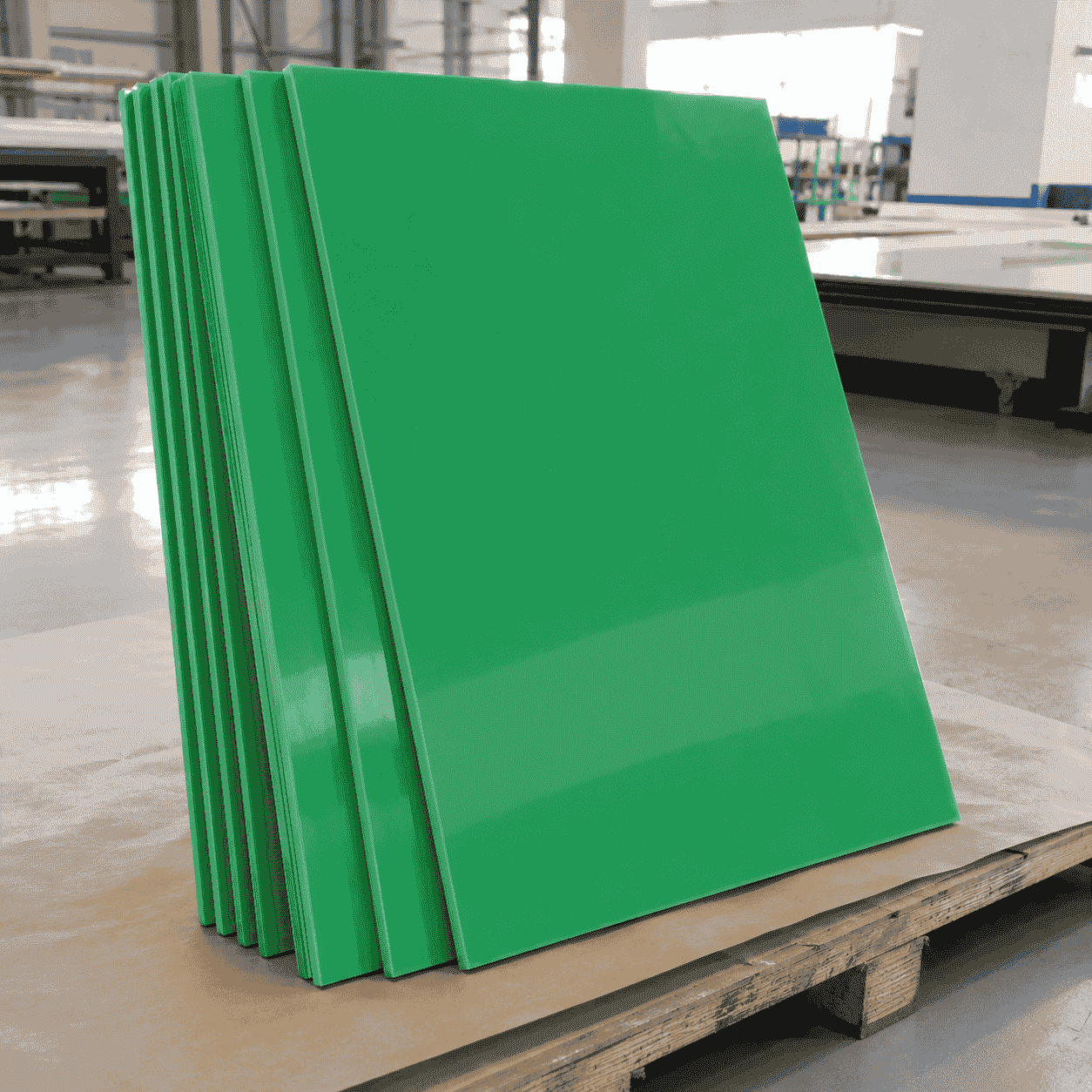

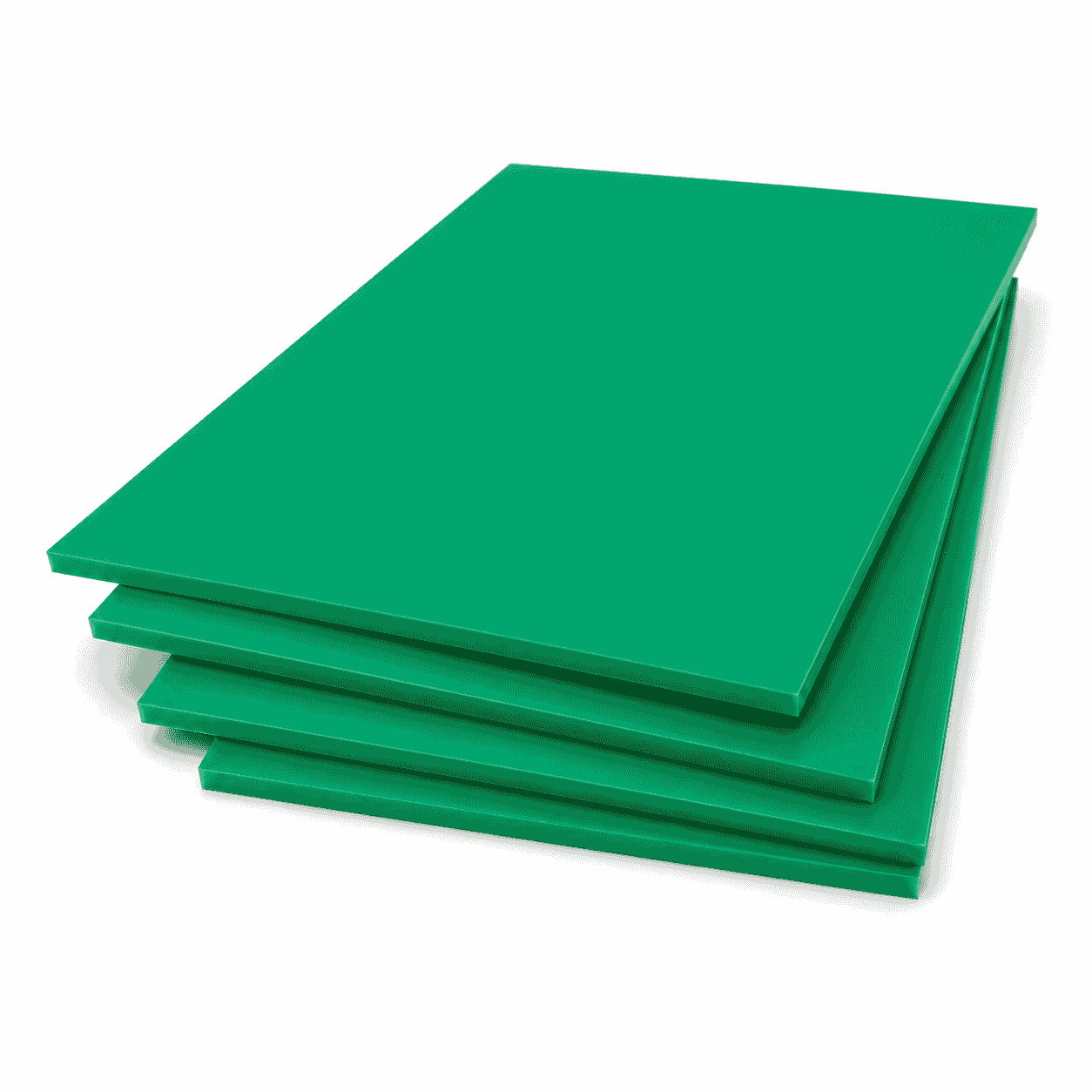

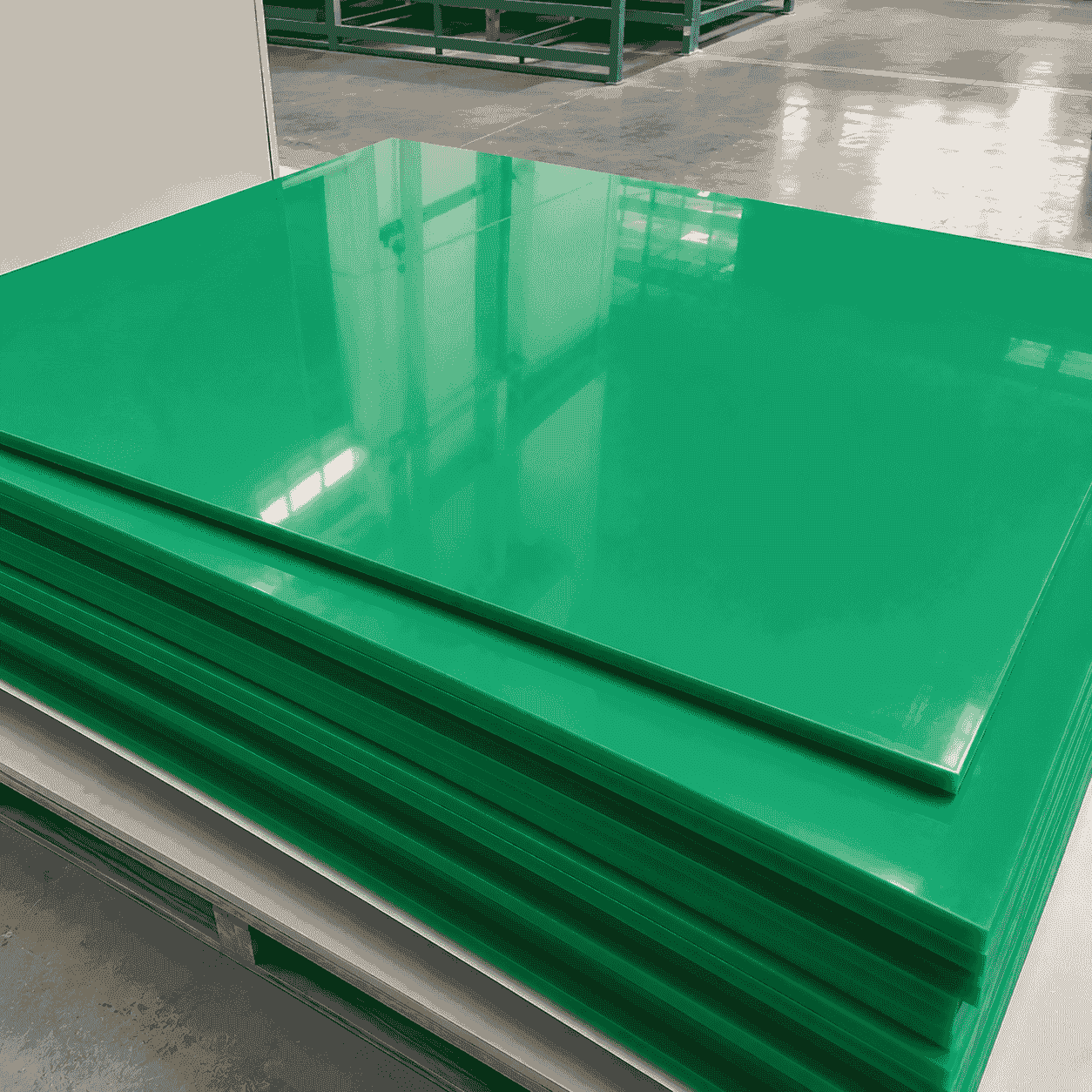

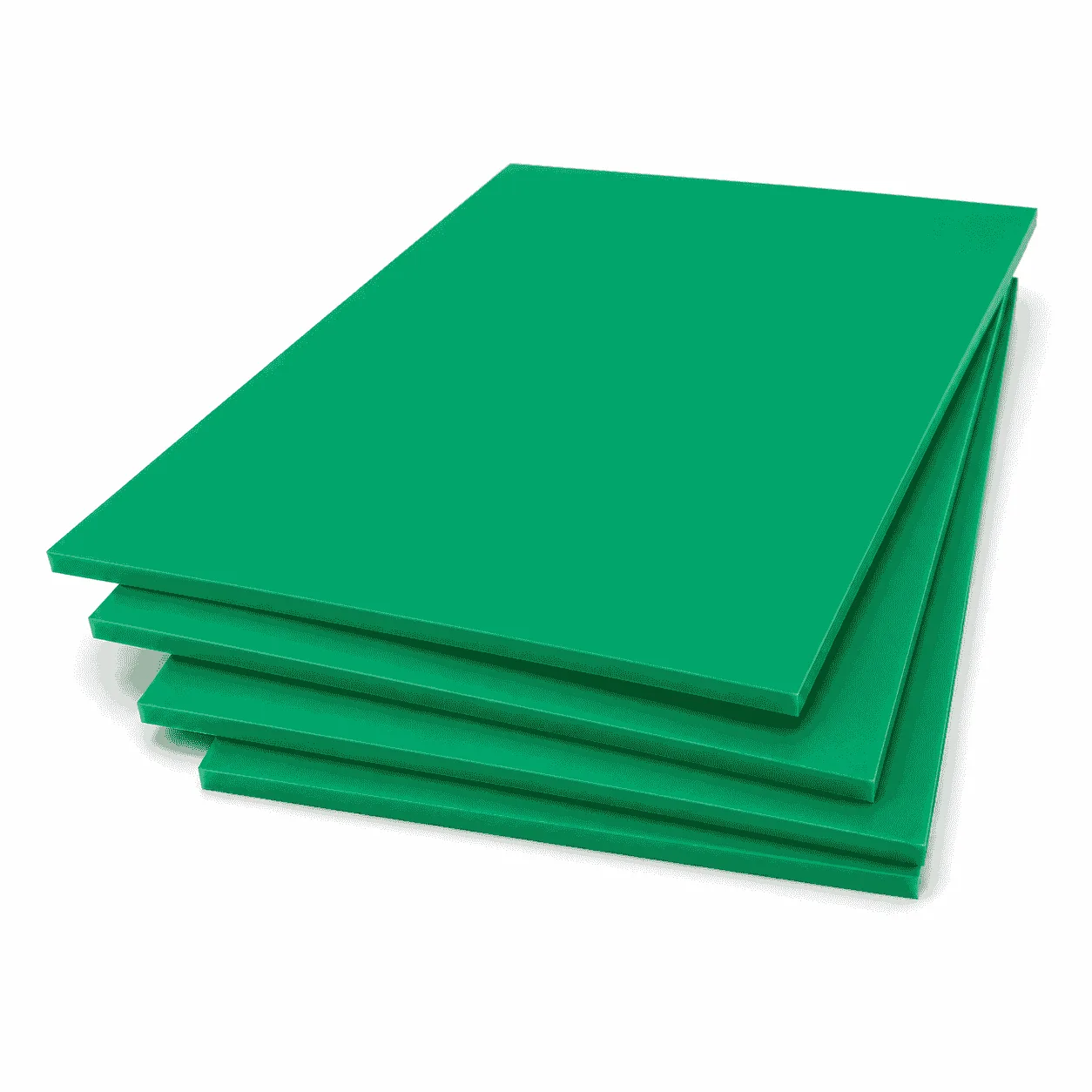

Green PP Sheet is a green polypropylene plastic sheet used for equipment panels, tank parts, partition boards, protective covers and custom-machined plastic components. It offers light weight, good chemical resistance, low moisture absorption and practical fabrication performance. The main reference full-sheet size shown in the image is 1000 × 2000 mm, with a reference thickness range of 3–60 mm. Common green thickness options shown include 3, 4, 5, 6, 8, 10, 15 and 20 mm, and multiple cut-to-size panels can also be supplied as reference options.
Green PP Sheet is a green polypropylene plastic sheet widely used for industrial fabrication, equipment panels, tank components, partition boards, protective covers and custom-machined plastic parts. Polypropylene is a lightweight thermoplastic material known for its good chemical resistance, low moisture absorption, corrosion resistance and practical processing performance. Compared with many traditional materials, Green PP Sheet offers a useful combination of light weight, easy fabrication and cost-effectiveness for a wide range of industrial applications.
The green colour provides a clear visual distinction from standard white, grey or natural polypropylene sheets. In actual use, Green PP Sheet may be selected for equipment colour identification, workshop management, assembly classification or customer preference. However, the colour itself does not determine special material properties. A green polypropylene sheet should not automatically be described as food grade, flame retardant, anti-static or conductive unless the corresponding resin grade and technical documentation are confirmed separately.
Green PP Sheet is suitable for industrial environments where corrosion resistance, lightweight construction and practical fabrication are required. It can be used as a full sheet, cut-to-size panel or machined finished part.
The exact performance of the finished material depends on the polypropylene grade, pigment formulation, additives, thickness, production method and operating conditions. Chemical compatibility should still be evaluated according to the actual chemical medium, temperature, concentration, exposure time and mechanical load.
According to the supplied image, the main reference full-sheet size for Green PP Sheet is:
The image shows a reference thickness range of approximately 3–60 mm for this size. Reference thicknesses include:
Among the colour-specific options shown in the image, the green version is displayed with the following commonly selected reference thicknesses:
This means the green colour is commonly shown in these thickness options, while thicker sizes may depend on production conditions, colour formulation and order quantity. Final availability should therefore be confirmed before production.

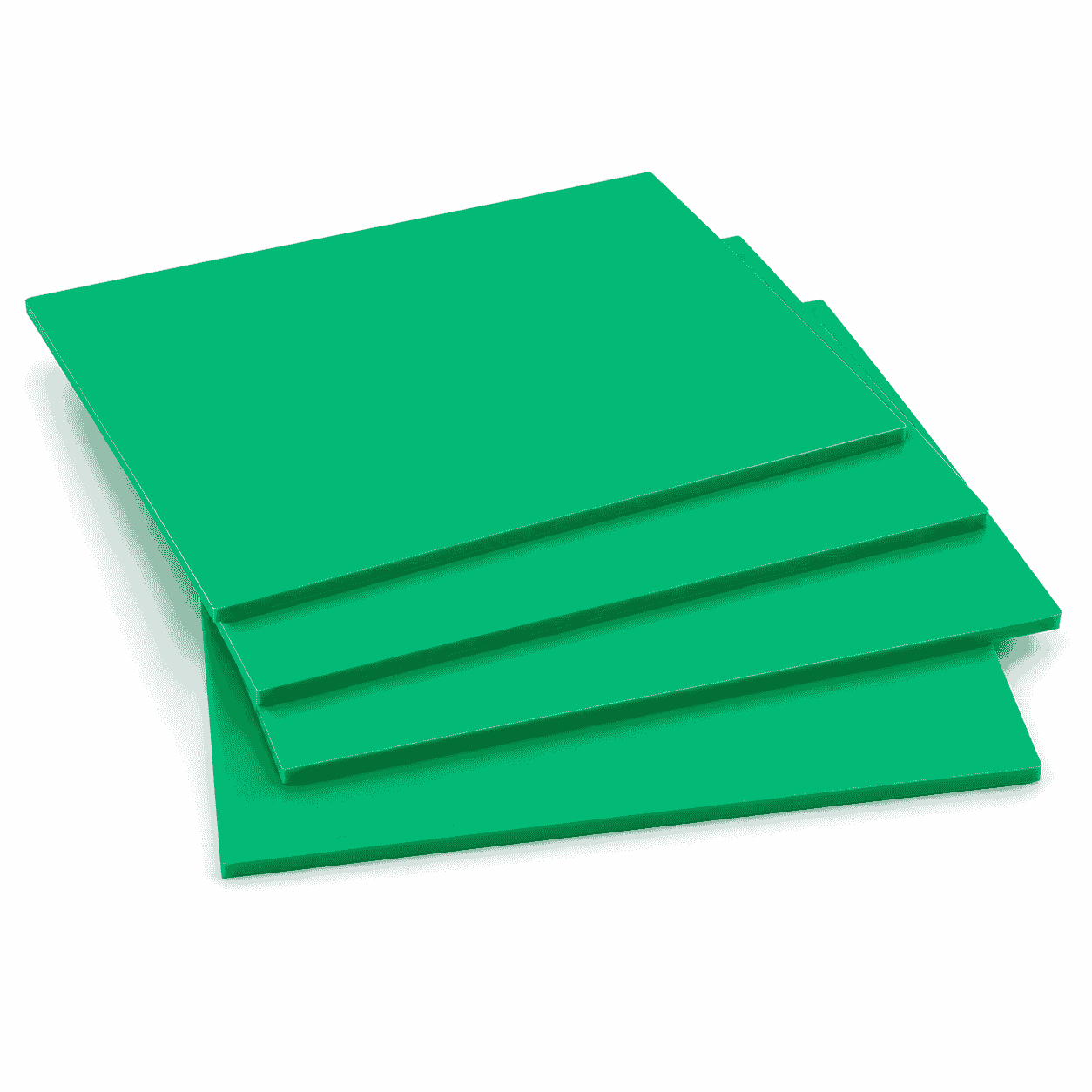

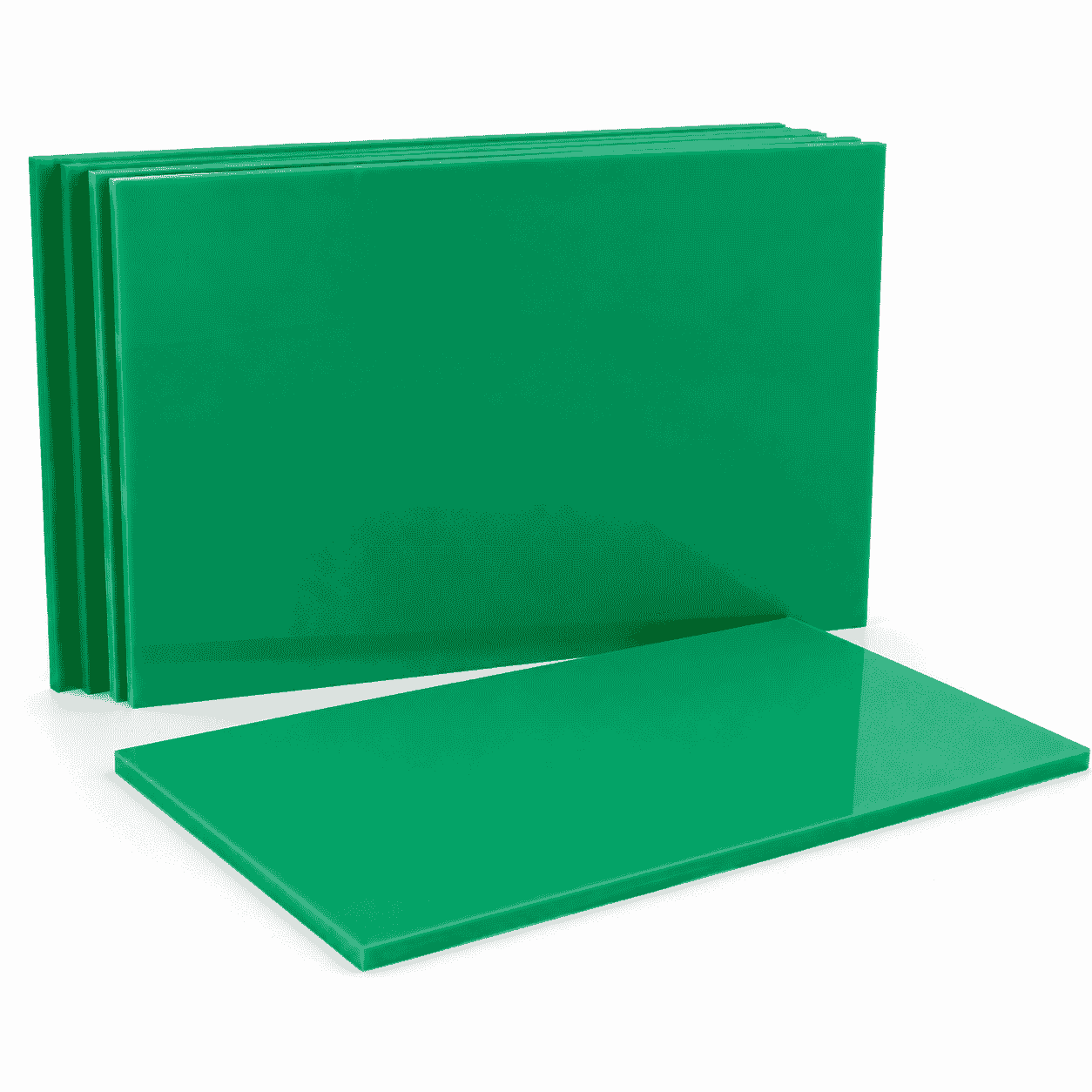

In addition to full-sheet supply, the image also shows several smaller reference cut sizes for Green PP Sheet. These include:
The image also includes a custom-size indication, which suggests that special sizes may be produced according to actual requirements. These cut sizes should be treated as reference options rather than fixed stock standards for every order. Final dimensions, tolerances, quantity and machining requirements should be confirmed according to the project.
Green PP Sheet can be used in general industrial fabrication, chemical processing equipment, water-treatment systems, laboratory equipment, machine panels and protective structures. Typical applications include:
The green colour may also be useful for visual classification in workshops or factories where different colours are used to distinguish material type, production section or installation position.
Green PP Sheet can be processed by sawing, cutting, drilling, milling, routing, grooving, chamfering and CNC machining. It can also be welded into tanks, covers, housings, liners and fabricated structural parts using suitable polypropylene welding techniques.
When selecting thickness, customers should consider the span, support structure, fixing method, working temperature, mechanical load and machining design. Thinner sheets are generally suitable for liners, light-duty covers and partitions, while thicker sheets are more suitable for support boards, equipment panels, machined parts and structures requiring greater rigidity.
For machined parts, drawings should clearly indicate the overall dimensions, thickness, holes, grooves, tolerances and installation structure. Because polypropylene has a lower stiffness than metal and can expand with temperature, suitable design allowance should be considered in both fabrication and installation.
The colour of Green PP Sheet may vary slightly depending on pigment, production batch, thickness and lighting conditions. If colour consistency is important, a physical colour sample or confirmed production standard should be approved before batch production.
Special performance requirements such as food contact, flame retardancy, anti-static behaviour, conductivity or UV resistance require corresponding modified polypropylene grades and cannot be confirmed by colour alone.
For standard polypropylene sheet materials and related processing options, you may also visit our internal page:
Polypropylene PP Sheet.
For general material information, please refer to the Wikipedia explanation of
Polypropylene.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
