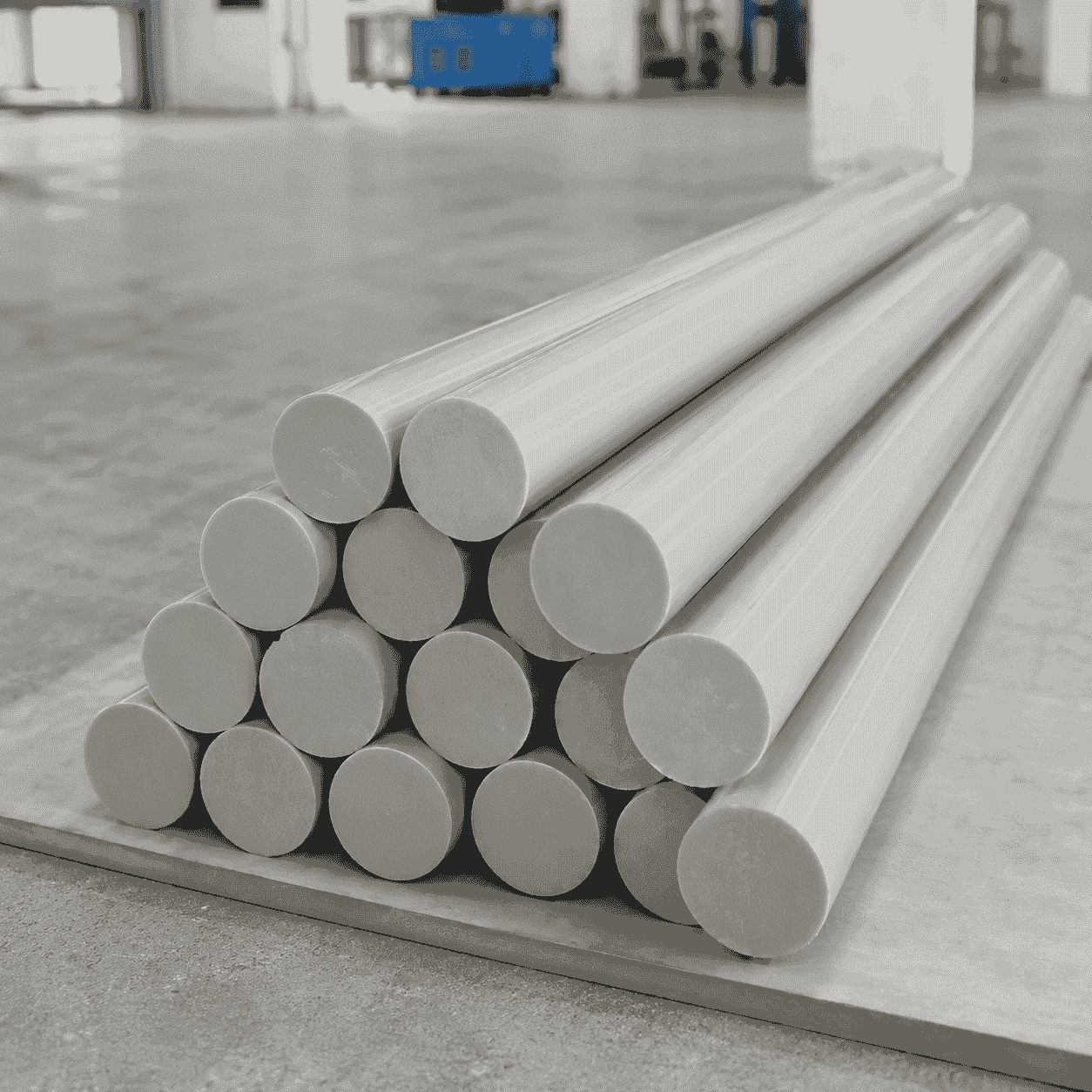

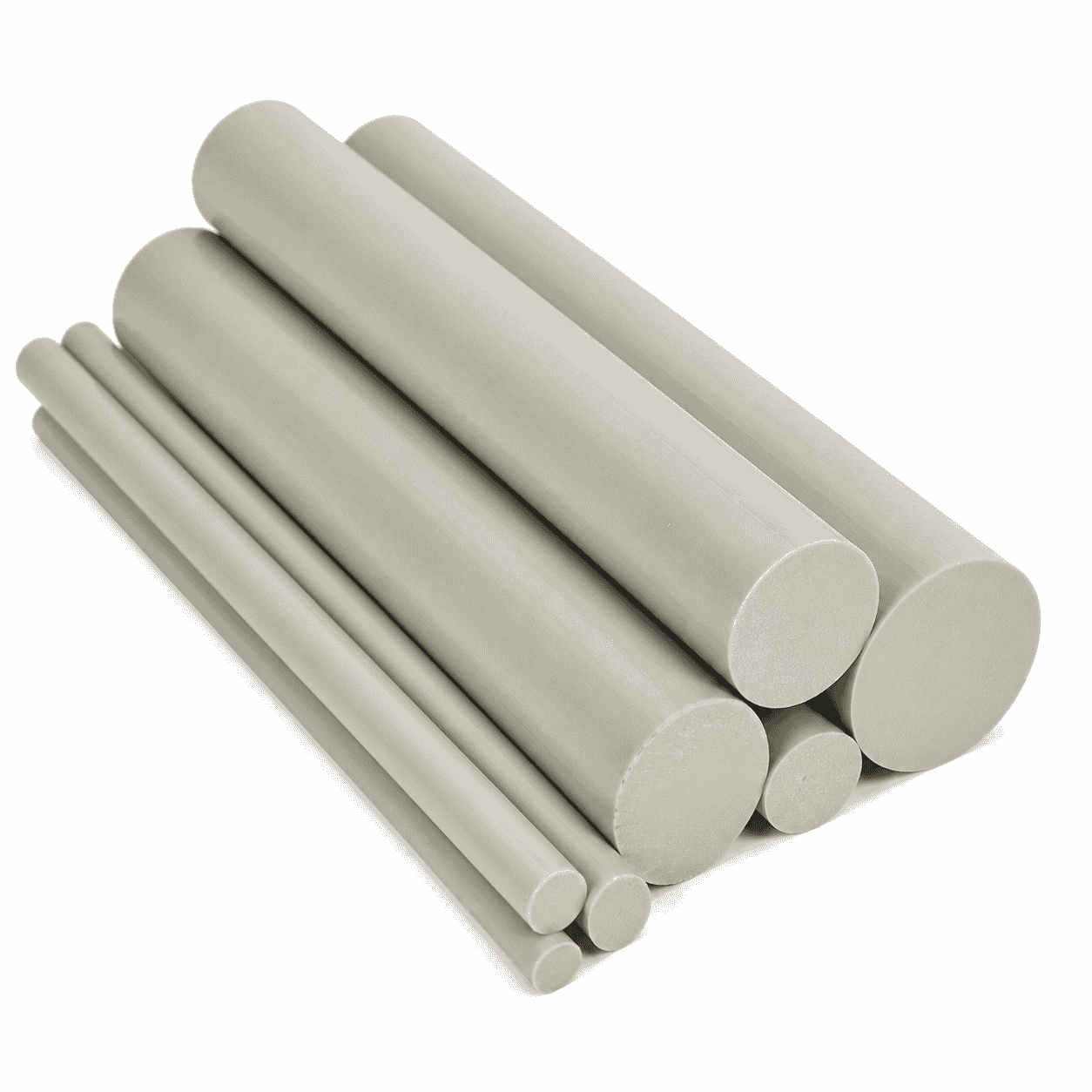

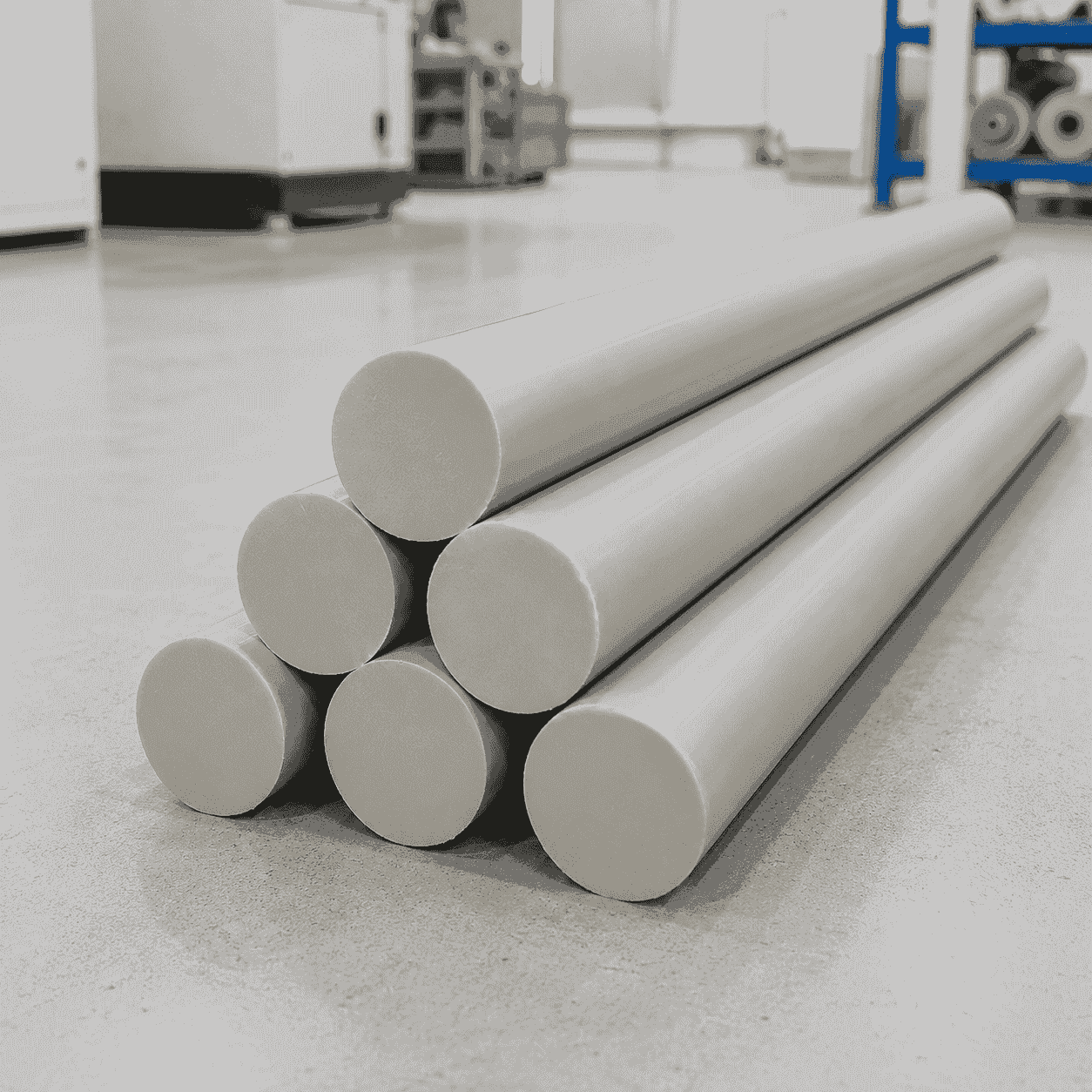

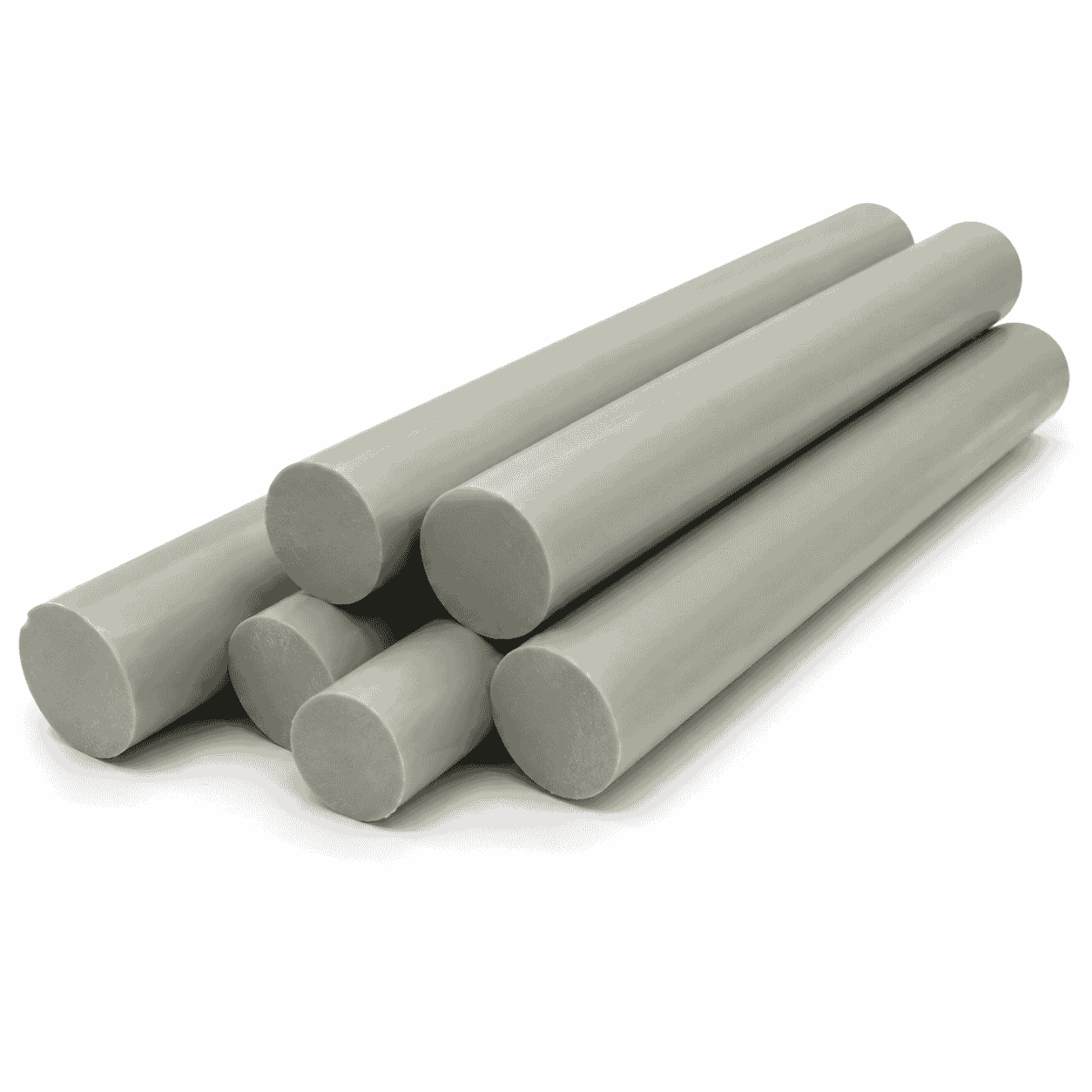

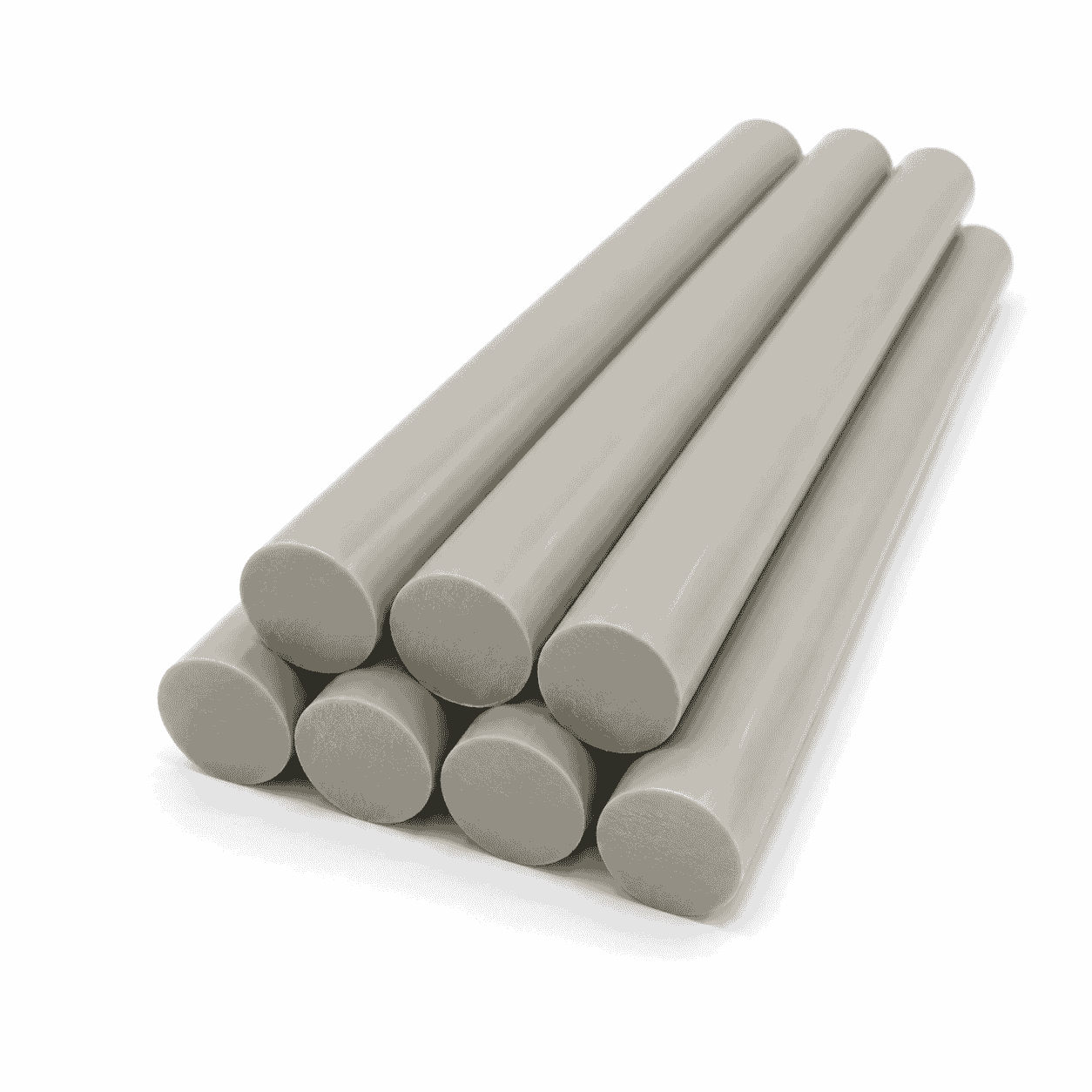

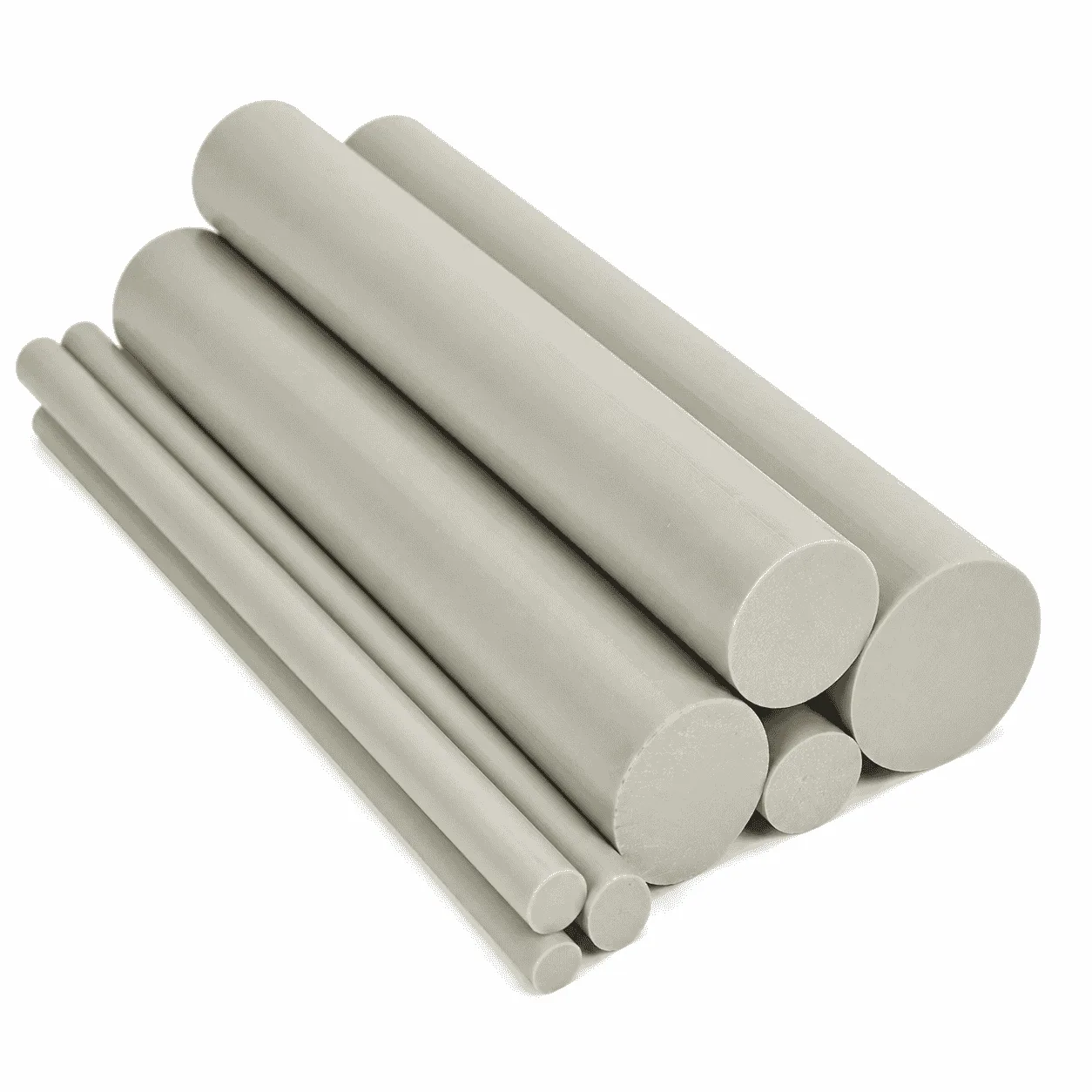

Grey PP Rod is a grey polypropylene round bar used for machining bushings, sleeves, spacers, rollers, flanges and other industrial plastic parts. It offers light weight, good chemical resistance, low moisture absorption and practical machining performance. Based on the supplied image, the reference diameter range is approximately Ø15–Ø350 mm, and the common reference length shown is 1 meter. Custom cut lengths and machined parts can be arranged according to drawings and application requirements.
Grey PP Rod is a solid grey polypropylene round bar used as machining stock for industrial plastic parts. It combines the lightweight structure, low moisture absorption, good chemical resistance and practical machining performance of polypropylene with a neutral grey appearance that is widely used in industrial equipment, water-treatment systems, chemical processing applications and general machinery components.
Grey PP Rod is commonly used for turning, drilling, boring, milling and CNC machining. It can be processed into bushings, sleeves, spacers, rollers, washers, flanges, guide parts, insulating parts and many other custom plastic components. Compared with many metal materials, polypropylene does not rust and is suitable for many humid or mildly corrosive environments.
The grey appearance is often preferred for industrial equipment because it gives the material a clean, stable and easy-to-match look. However, colour alone does not indicate special properties. A grey polypropylene rod should not automatically be described as food grade, flame retardant, anti-static, conductive or UV resistant unless the corresponding material grade and technical documentation are confirmed separately.
The actual performance of Grey PP Rod depends on the polypropylene grade, manufacturing process, diameter, working temperature and service environment. Chemical compatibility and dimensional stability should still be evaluated according to the actual medium, concentration, load and operating conditions.
Based on the supplied image, the reference diameter range shown for Grey PP Rod is approximately Ø15 mm to Ø350 mm. The following diameter options are shown in the image as reference specifications:
Among the image examples, smaller and medium diameters such as Ø15–Ø100 mm are shown more frequently and can be treated as common reference sizes. Larger diameters such as Ø110 mm and above should be treated as reference production sizes that may depend on the manufacturing process, raw material availability, order quantity and machining requirements.
The supplied image mainly shows a common reference length of:
This means Grey PP Rod is commonly supplied in 1-meter lengths for stock or machining purposes. Cut lengths can usually be arranged according to customer requirements, part dimensions and machining allowance. Final rod length should be confirmed according to the drawing and finished-part structure.
The dimensions shown in the image should be treated as reference sizes rather than guaranteed stock specifications for every order. The image includes product listings marked as grey or light grey new-material PP rod, so the listed dimensions are appropriate as general production references for grey polypropylene rods.
Final availability depends on the required diameter, colour shade, material grade, length, quantity, tolerance and delivery schedule. Large diameters may require special production arrangements and longer lead times.
Grey PP Rod is suitable for machining various industrial plastic parts used in chemical equipment, water-treatment systems, environmental protection equipment, packaging machinery and general industrial assemblies. Typical machined components include:
Because polypropylene offers good resistance to many chemical media and does not rust, Grey PP Rod is often selected in applications where corrosion resistance, reduced weight and easy machining are important.
Grey PP Rod can be processed by turning, drilling, boring, milling, grooving and CNC machining. It is suitable for both prototype development and batch production of non-standard plastic parts. For finished components, drawings should clearly show the required diameter, length, tolerance, surface finish, holes, grooves and installation structure.
Polypropylene has lower stiffness than many metals and may show dimensional change under temperature variation. For precision parts, suitable machining allowance and cutting parameters should be considered. Larger-diameter rods may also require additional attention to machining stress and dimensional stability.
The exact shade of Grey PP Rod may vary slightly according to the pigment system, raw material batch, rod diameter and manufacturing process. If appearance consistency is important, it is advisable to confirm the colour with a sample before batch production.
Special requirements such as food-contact compliance, flame retardancy, anti-static behaviour, conductivity or UV resistance require corresponding modified polypropylene grades and cannot be confirmed by colour alone.
For related polypropylene rod materials, you may also visit our internal page:
Polypropylene PP Rod.
For general material information, please refer to the Wikipedia explanation of
Polypropylene.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
