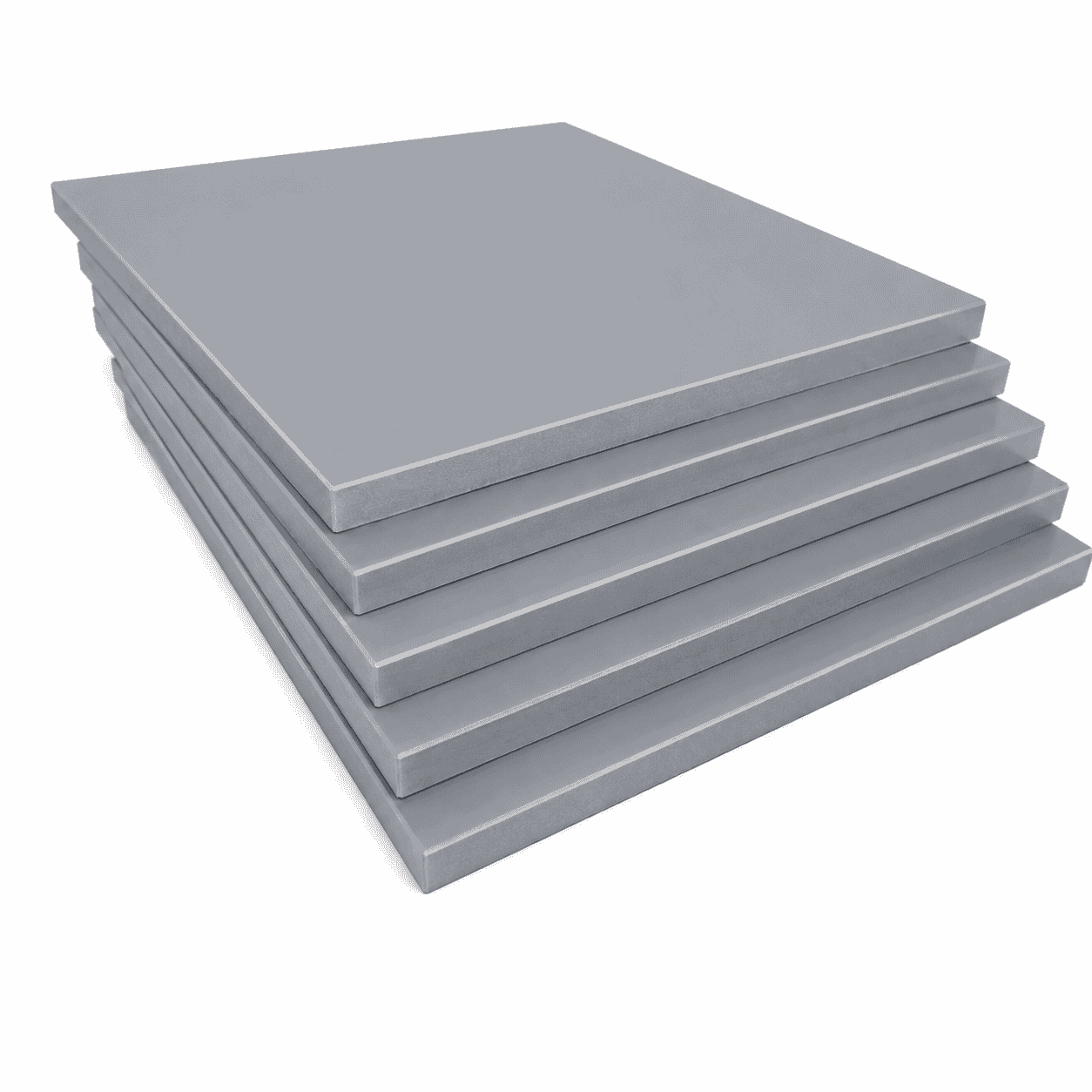

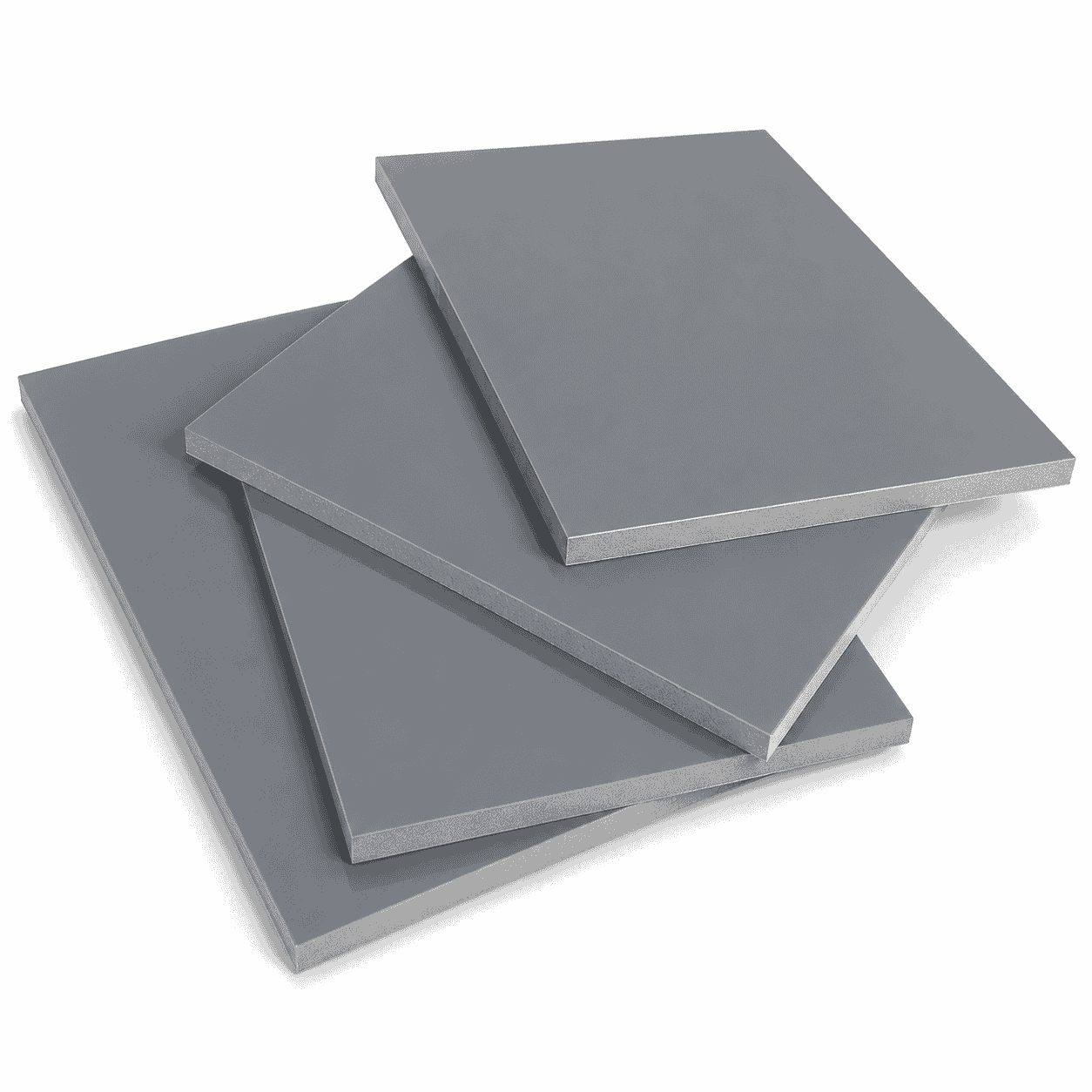

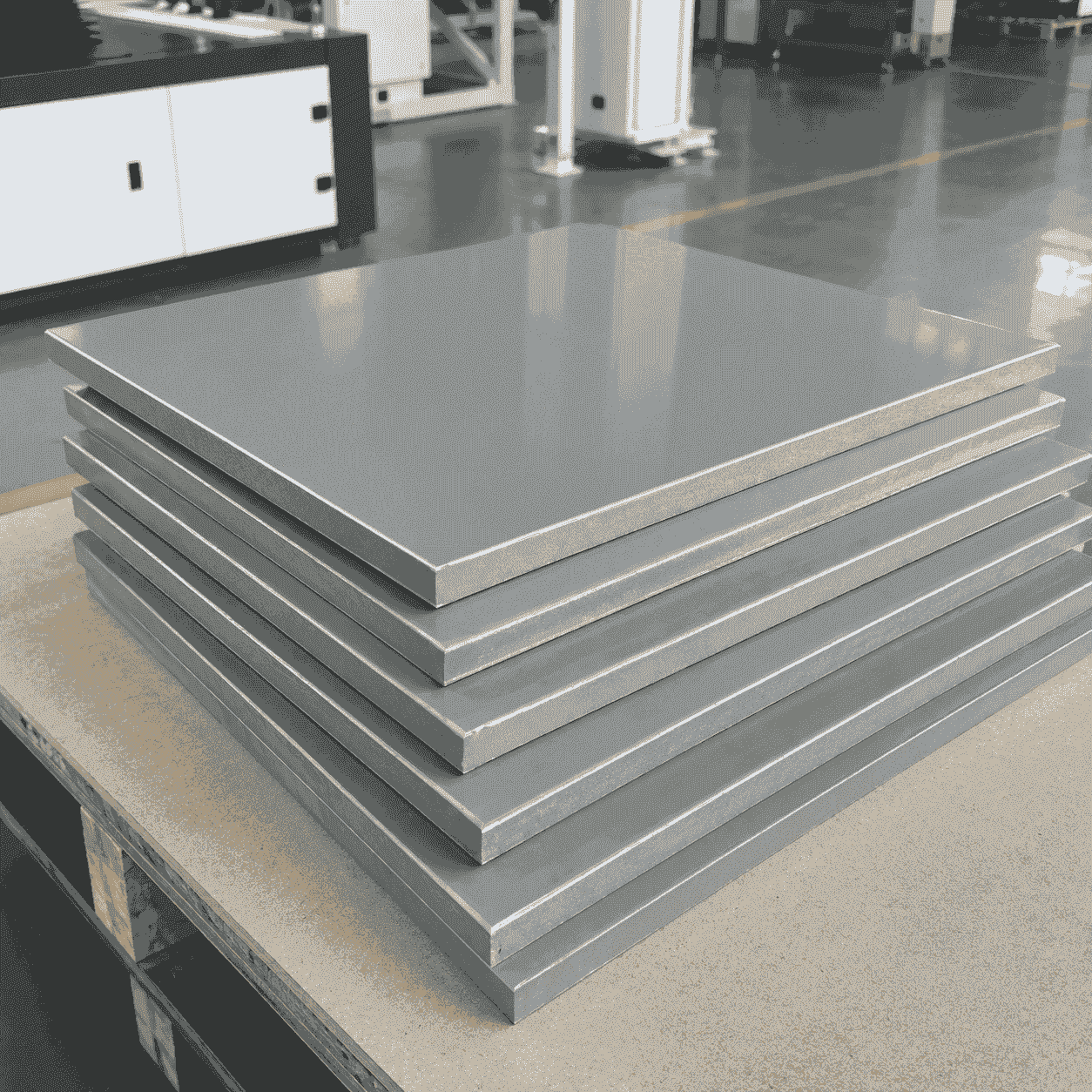

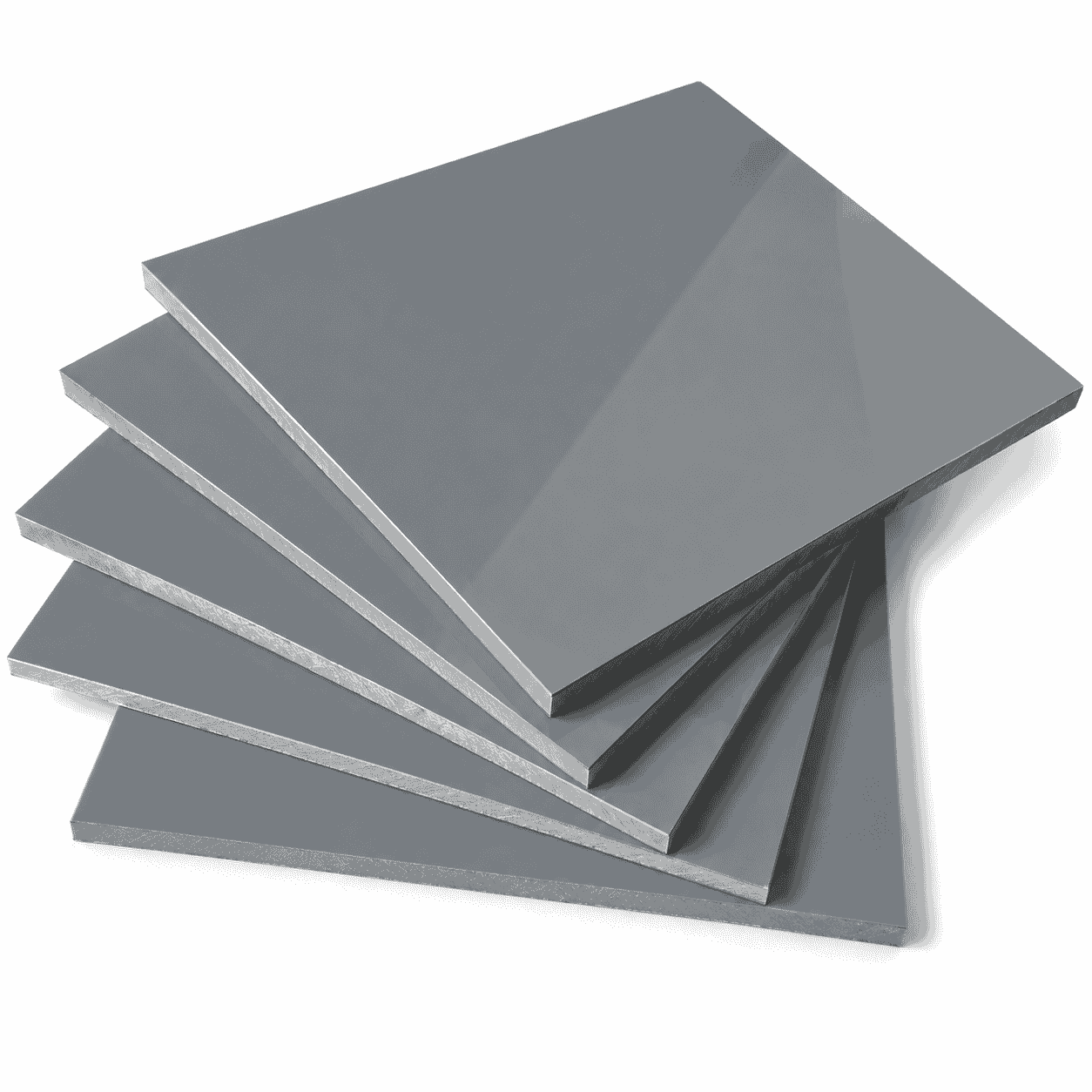

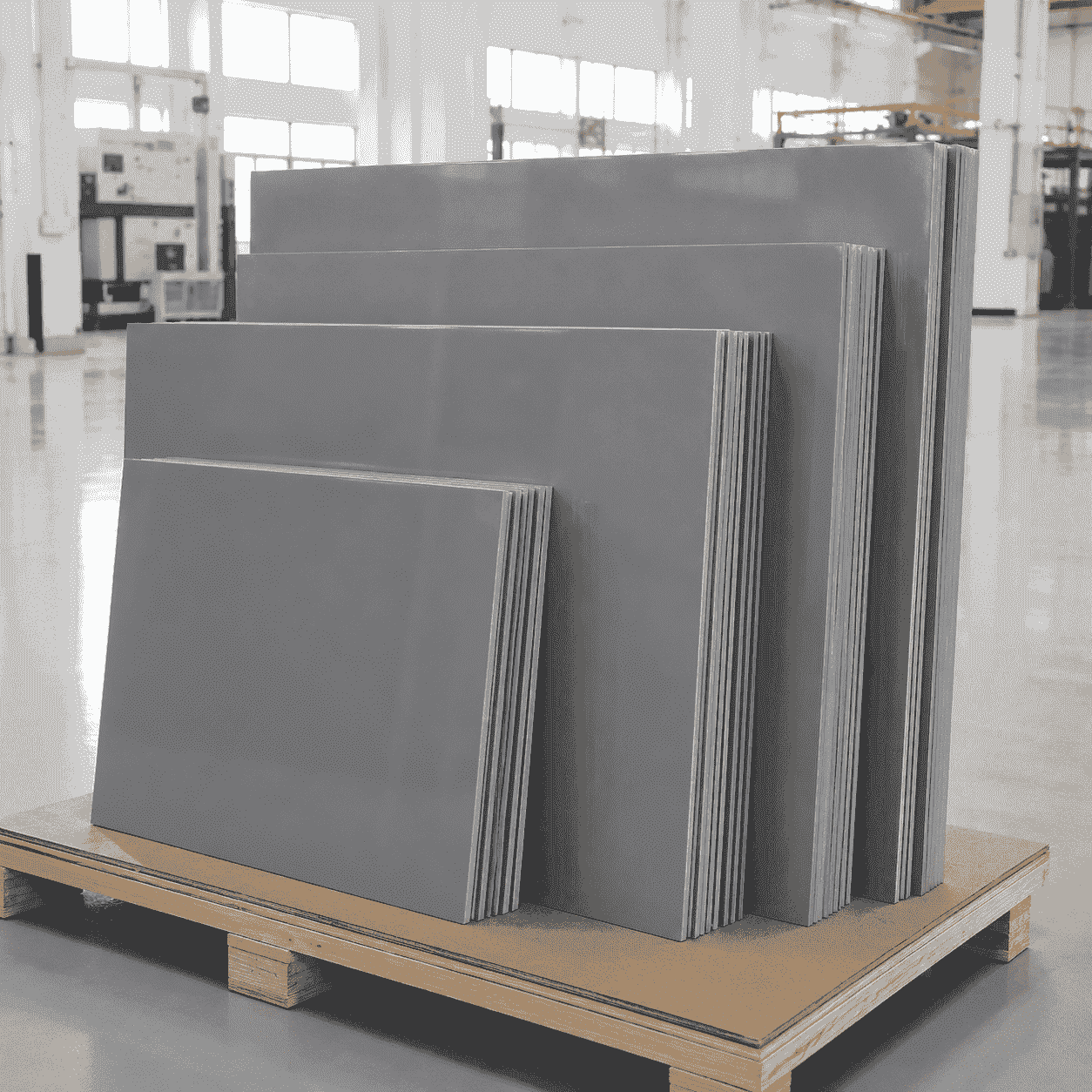

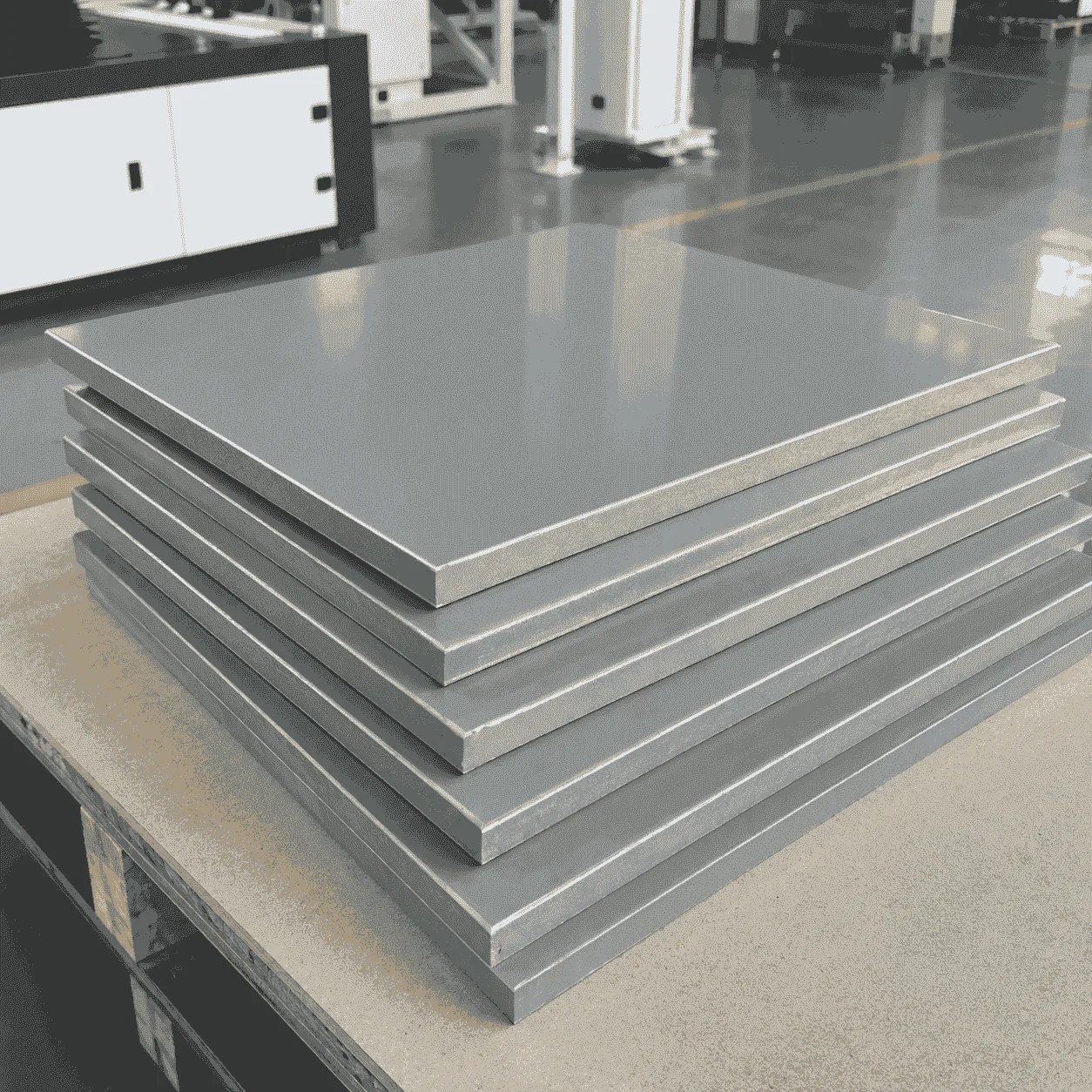

Grey PP Sheet is a grey polypropylene plastic sheet used for industrial equipment panels, tank parts, partition boards, protective covers and custom-machined plastic components. It offers light weight, good chemical resistance, low moisture absorption and practical fabrication performance. Reference full-sheet sizes include 1220 × 2440 mm and 1500 × 3000 mm, with reference thicknesses of 3, 4, 5, 6, 8, 10, 12 and 15 mm shown in the supplied image. Final size, colour shade and availability should be confirmed before production.
Grey PP Sheet is a grey polypropylene plastic sheet widely used for industrial fabrication, tank components, machine panels, partition boards, protective covers and custom-machined plastic parts. Polypropylene is a lightweight thermoplastic material known for its good chemical resistance, low moisture absorption, corrosion resistance and practical processing performance. The grey appearance gives the sheet a clean and stable industrial look, making it suitable for equipment manufacturing, workshop applications and chemical system fabrication.
Compared with many traditional materials, Grey PP Sheet provides a useful balance of light weight, corrosion resistance and fabrication convenience. It can be cut, drilled, milled, grooved, routed and CNC machined into different shapes according to drawings. It can also be welded into tanks, covers, housings, liners and assembled plastic structures by using suitable polypropylene welding methods.
The grey colour is often selected for equipment appearance consistency, workshop visual management or industrial colour matching. However, the colour itself does not define a special functional grade. A Grey PP Sheet should not automatically be described as food grade, flame retardant, anti-static, conductive or UV resistant unless the corresponding resin grade and technical documents are confirmed separately.
The final performance of Grey PP Sheet depends on the polypropylene grade, additives, pigment system, thickness, manufacturing process and operating environment. Chemical compatibility should still be evaluated according to the actual medium, concentration, working temperature, exposure time and mechanical load.
Based on the supplied image, the following full-sheet sizes can be used as reference specifications for Grey PP Sheet:
From the supplied image, the practical reference thickness range for Grey PP Sheet is approximately 3–15 mm. Common thicknesses shown include 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm and 15 mm.
Some options in the image are shown in a lighter or inactive state, and part of the listing is labeled as dark grey PP sheet. For this reason, the above dimensions should be treated as reference production sizes rather than guaranteed stock specifications for every grey PP sheet order. Final availability, colour shade, dimensional tolerance, order quantity and delivery time should be confirmed before production.
Grey PP Sheet is suitable for a wide range of industrial and fabrication applications where corrosion resistance, clean appearance and easy processing are required. Typical applications include:
Thinner sheets are usually selected for liners, covers and light-duty partitions, while thicker sheets are more suitable for support plates, equipment panels and machined plastic parts requiring greater rigidity. The final thickness should be selected according to span, support structure, fixing method, service temperature and mechanical load.
Grey PP Sheet can be processed by sawing, drilling, milling, routing, grooving, slotting, chamfering and CNC machining. It can also be welded into fabricated plastic products such as tanks, covers, housings, liners and guards. For custom-machined parts, customers should provide drawings that show the required dimensions, thickness, holes, slots, tolerances and installation details.
Because polypropylene has lower stiffness than metal and can expand with temperature changes, suitable structural support and installation allowance should be considered during design and fabrication. If the sheet is used in chemical-service environments, the suitability of polypropylene should be checked according to the actual process conditions.
The exact shade of Grey PP Sheet may vary slightly depending on pigment, raw material batch, thickness and lighting conditions. If colour consistency is important, a sample or agreed colour reference should be confirmed before batch production.
Special requirements such as food-contact compliance, flame retardancy, anti-static behaviour, conductivity or UV resistance require corresponding modified polypropylene grades and cannot be confirmed from the grey appearance alone.
For standard polypropylene sheet materials and related processing options, you may also visit our internal page:
Polypropylene PP Sheet.
For general material information, please refer to the Wikipedia explanation of
Polypropylene.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
