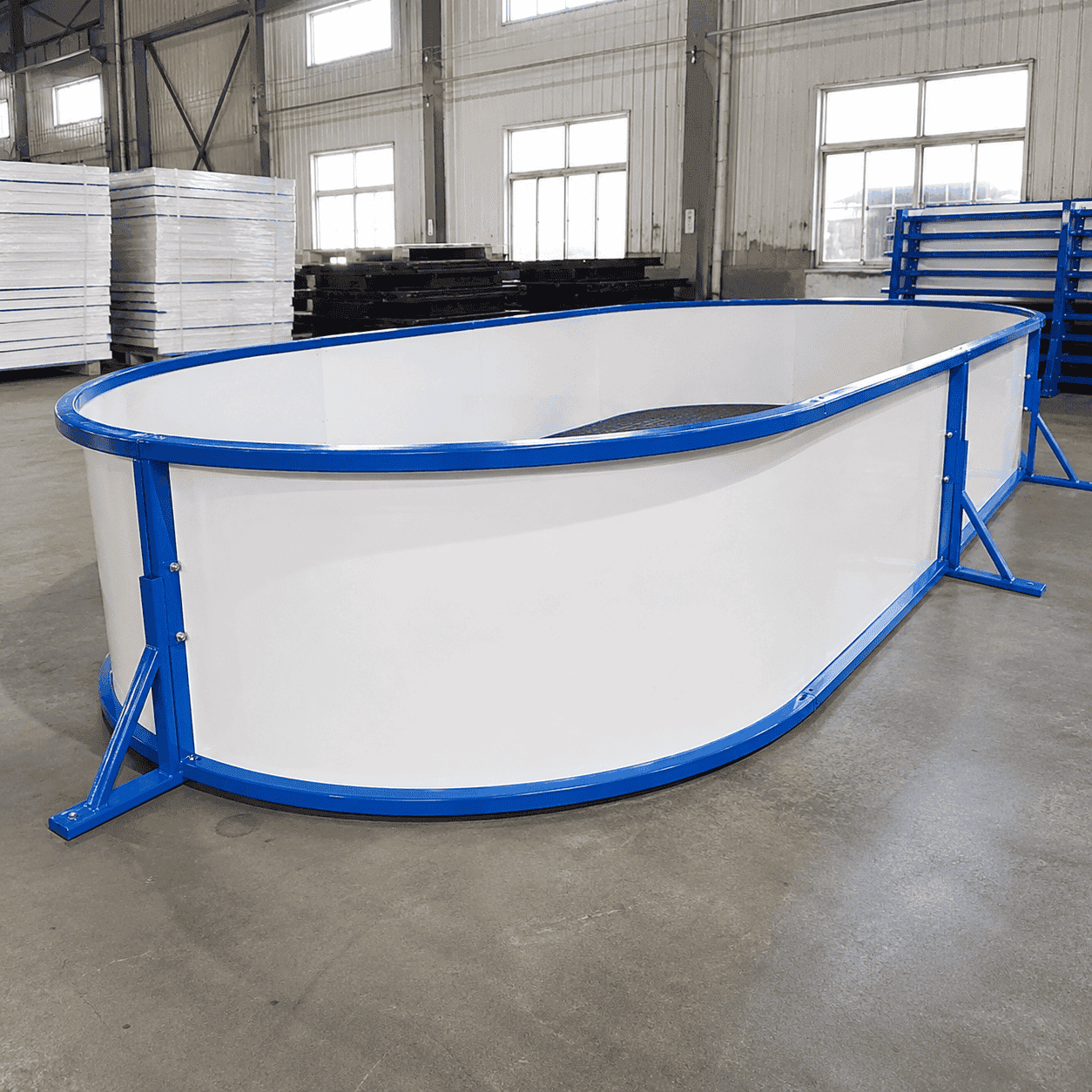

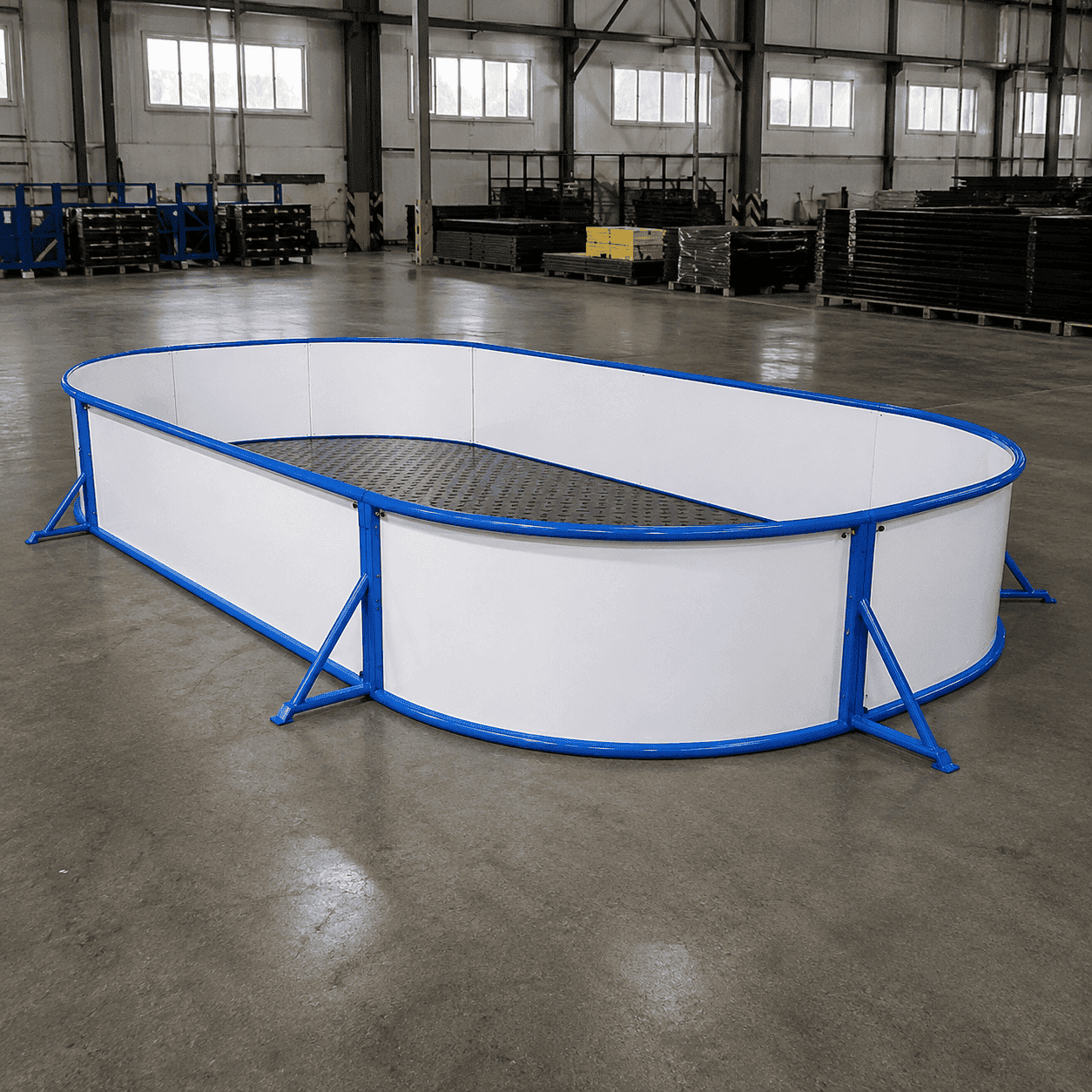

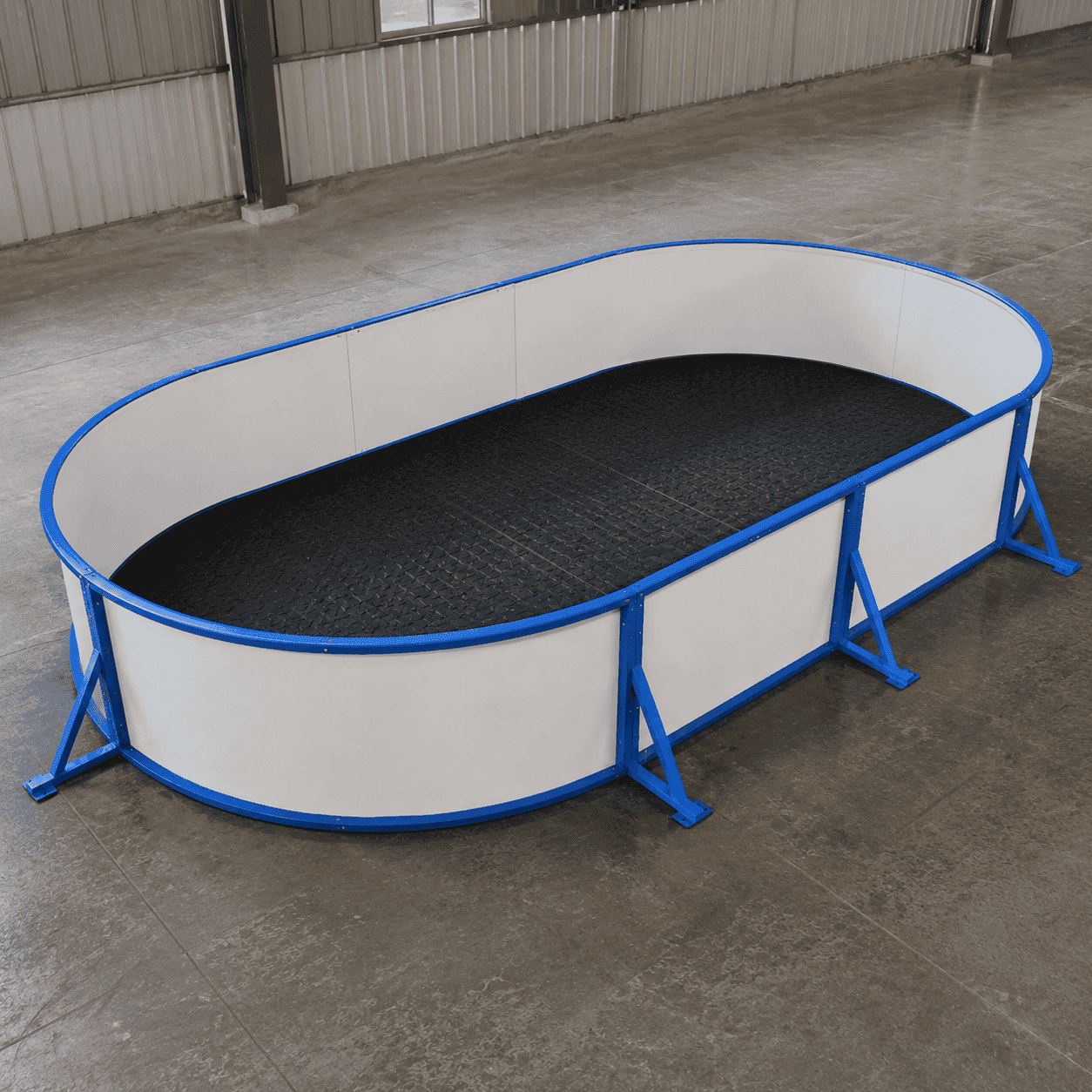

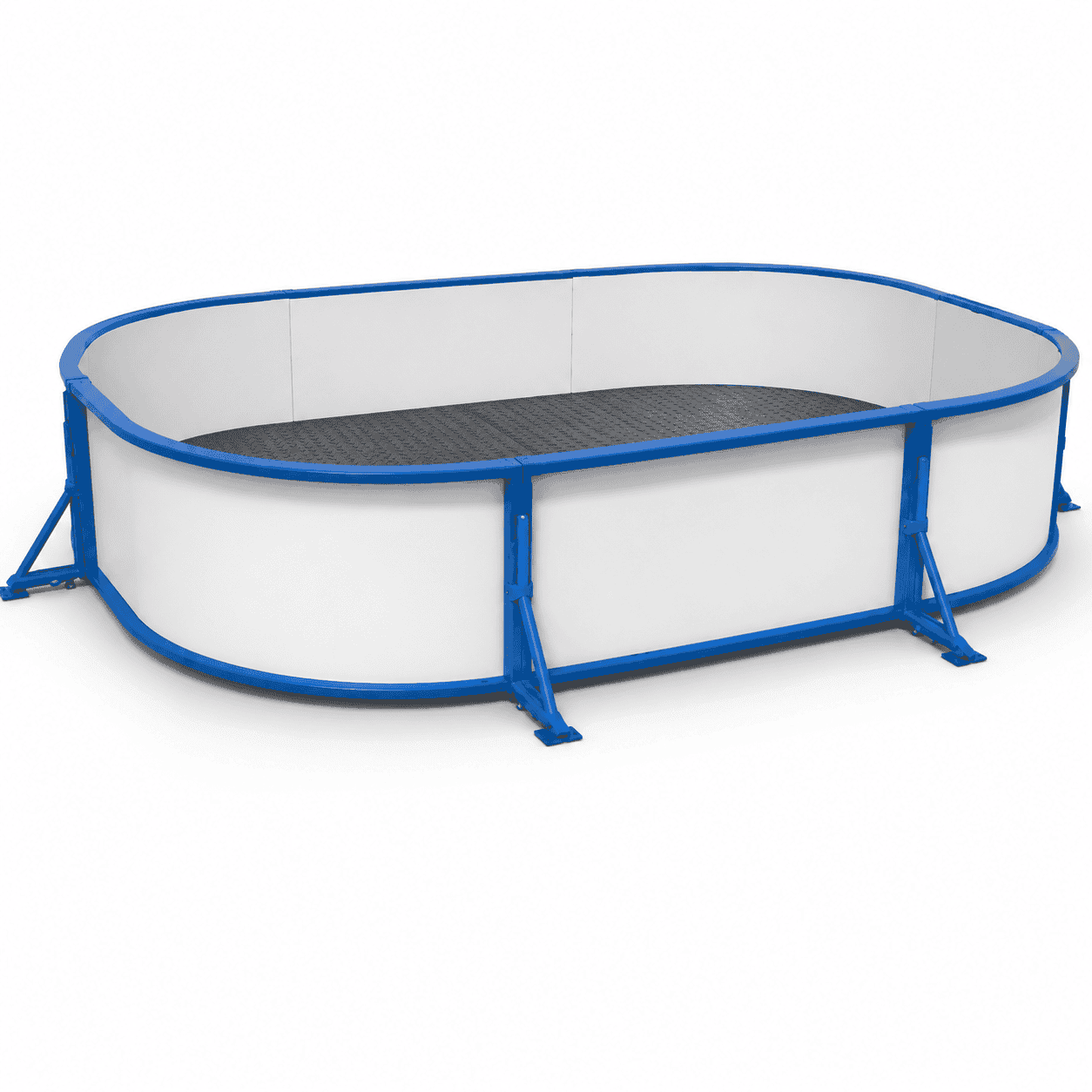

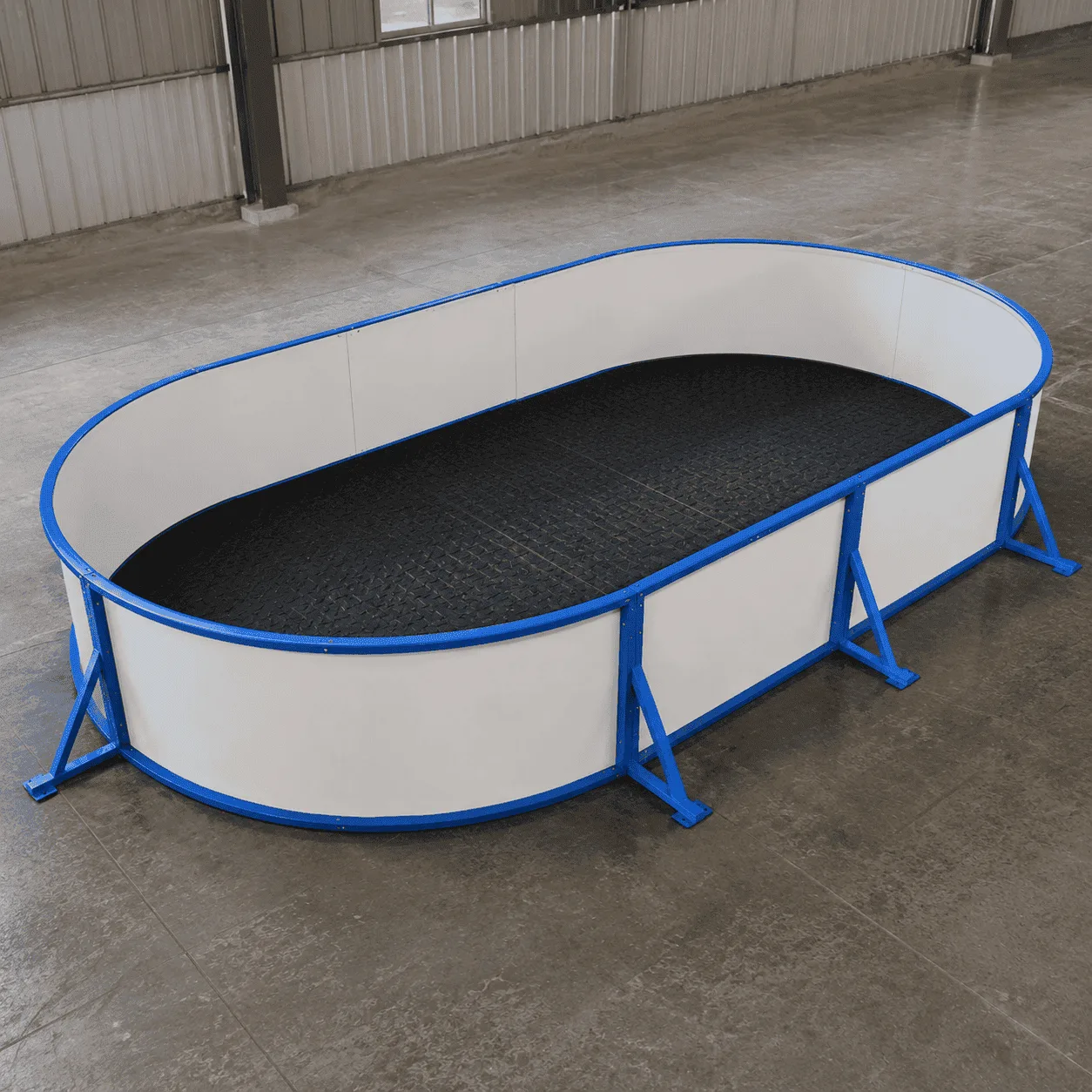

HDPE Hockey Rink Sliding Board is a modular perimeter-board system designed for ice hockey rinks, synthetic ice areas, skating schools, community rinks and multi-purpose sports facilities.
Smooth HDPE or UHMWPE facing panels are installed on galvanized steel or lightweight aluminum frames to create a continuous playing-side surface. Typical hockey-style board heights range from approximately 1000 to 1220 mm, common module lengths range from 1000 to 2400 mm, and plastic facing-panel thicknesses generally range from approximately 8 to 15 mm.
Straight sections, rounded corners, colored kick plates, top handrails, player gates, equipment entrances and optional transparent shielding can be arranged according to the rink layout. The system forms the rink boundary and is not a synthetic ice skating floor.
HDPE Hockey Rink Sliding Board is a modular perimeter-board system designed for ice hockey rinks, synthetic ice areas, skating schools, community skating facilities and multi-purpose sports venues.
The connected modules create a continuous boundary around the playing surface. They help keep hockey pucks and training equipment inside the rink while separating players from walkways, equipment zones and spectator areas.
The system combines smooth HDPE or UHMWPE facing panels with galvanized steel or lightweight aluminum supporting frames.
Straight modules, rounded corners, lower kick plates, top handrails, access gates and optional transparent shielding can be configured according to the rink dimensions.
The term “sliding board” in this product refers to the smooth plastic rink-facing board against which pucks can slide or rebound. It does not refer to a synthetic ice floor used for skating.
An ice hockey rink is normally surrounded by low walls known as boards or dasher boards. For a general explanation of rink boards, side boards, end boards and rounded corner boards, visit the Ice Hockey Rink overview on Wikipedia.
Additional information about the primary facing material is available from the High-Density Polyethylene overview on Wikipedia.
An HDPE Hockey Rink Sliding Board is the smooth plastic facing section installed on the inside of a framed hockey-rink barrier.
The white plastic panel provides the visible playing-side surface. A structural metal frame, external support and mechanical connectors hold the panel in its required position.
Several modules can be connected to create the side boards, end boards, corner sections and access areas of a complete rink.
The modular structure allows individual facing panels, kick plates, handrails, gates and frame sections to be inspected or replaced separately.
The system can be used around refrigerated ice, synthetic ice panels, inline hockey flooring and compatible dry hockey-training surfaces.
The skating surface and perimeter-board system should always be specified separately because they perform different functions.
The HDPE Hockey Rink Sliding Board can be manufactured in different dimensions according to the rink layout, intended activity and supporting-frame structure.
The values below are practical engineering reference ranges. Final specifications should be confirmed according to the approved project drawings.
| Product Name | HDPE Hockey Rink Sliding Board System |
| Facing Panel Material | HDPE or optional UHMWPE |
| Frame Material | Galvanized steel or aluminum alloy |
| Typical Hockey-Style Height | Approximately 1000–1220 mm |
| Low Training-Board Height | Approximately 500–800 mm |
| Common Module Length | Approximately 1000–2400 mm |
| Typical Module Length | Approximately 2000 mm |
| Facing Panel Thickness | Approximately 8–15 mm |
| Common HDPE Thicknesses | Approximately 10 or 12 mm |
| Heavy-Duty Panel Option | Approximately 15–20 mm, depending on frame support |
| Kick Plate Height | Approximately 150–250 mm |
| Kick Plate Thickness | Approximately 8–12 mm |
| Top Handrail Width | Approximately 50–100 mm |
| Player Gate Width | Approximately 800–1000 mm |
| Equipment Gate Width | Approximately 1200–1800 mm |
| Standard Facing Color | White |
| Optional Colors | Blue, yellow, red, black or project-specific colors |
| Corner Structure | Curved, segmented or angled modules |
| Connection Method | Bolts, locking pins, connecting plates or mechanical clamps |
| Installation Type | Permanent, semi-permanent, portable or removable |
| Suitable Environment | Indoor and properly prepared outdoor sports facilities |
The appropriate panel thickness depends on the module length, frame spacing, expected impact and required rigidity.
Longer modules reduce the number of connections around the rink. Shorter modules are generally easier to carry, transport, install and replace.
A thinner facing panel requires closer structural support. A thicker panel provides increased rigidity but also increases the weight and cost of each module.
The playing-side surface should remain smooth and continuous across the complete rink perimeter.
Projecting bolts, exposed metal edges and large height differences between adjacent modules should be avoided.
Fasteners can be countersunk into the plastic facing panel or installed from the rear side where the frame design permits.
Countersunk mounting holes help reduce exposed hardware. However, the countersink should not remove excessive material around the fixing position.
All cut edges should be deburred and rounded after machining.
Cracked panels, sharp damaged edges or loose mounting points should be repaired before the rink is returned to use.
HDPE provides a practical combination of impact resistance, rigidity, low water absorption and machining performance.
The material can be cut, drilled, countersunk, edge-rounded and installed on steel or aluminum frames.
Its smooth white surface creates a clean rink appearance and provides a suitable background for venue graphics or advertising panels.
HDPE is commonly selected for training rinks, recreational skating facilities, community rinks and multi-purpose sports areas.
The selected material grade should match the expected operating temperature, sunlight exposure and level of impact.
A UV-stabilized grade can be considered for installations exposed to prolonged outdoor sunlight.
UHMWPE can be selected for areas requiring increased abrasion resistance, impact performance and lower surface friction.
It is suitable for frequently contacted sections and areas exposed to repeated puck, skate or sports-equipment contact.
UHMWPE absorbs very little moisture and maintains useful toughness in cold environments.
The material can also be used for independently replaceable kick plates, wear strips and top handrails.
UHMWPE normally requires additional consideration for thermal movement, machining tolerances and fastener design.
The selection between HDPE and UHMWPE should consider expected use, required service life, panel thickness and project budget.
Galvanized steel frames provide strength and stability for permanent or frequently used rink-board systems.
The zinc-coated surface helps protect the steel against humidity and corrosion.
The frame can include vertical posts, horizontal rails, base plates, triangular supports and connecting brackets.
Profile dimensions and wall thickness should be selected according to the overall board height, module length and expected impact.
Fully welded frame sections can be used where increased rigidity and long-term installation are required.
Galvanized steel is generally suitable where structural stability is more important than minimum module weight.
Aluminum frames reduce the weight of individual modules and make repeated installation, dismantling and transportation easier.
This structure is suitable for temporary hockey areas, seasonal skating events, shopping centers and multi-purpose venues.
The aluminum frame must still provide sufficient support for the selected plastic-panel thickness and board height.
Reinforcement positions, corner joints, gate frames and external supports should be confirmed according to the approved design.
Aluminum is generally preferred where frequent movement and seasonal storage are important.
Galvanized steel is generally selected for permanent installations, intensive hockey use and projects requiring increased structural stability.
Aluminum is generally selected where reduced module weight and repeated handling are more important.
Important selection factors include:
A replaceable kick plate can be installed along the bottom section of the rink boards.
This area receives frequent contact from pucks, sticks, skate blades and cleaning equipment.
Yellow is commonly selected because it creates a visible transition between the white board and the ice or sports floor.
Blue, red, black and other colors can also be used according to the venue design.
Kick plates can be manufactured from HDPE or UHMWPE.
UHMWPE may be selected where increased wear resistance is required.
The top handrail covers and protects the upper edge of the plastic facing panel.
It also creates a finished appearance around the rink perimeter.
The handrail can be manufactured from HDPE, UHMWPE or another suitable impact-resistant plastic.
Contrasting colors can make the rink boundary easier to identify.
Connections between adjacent handrails should remain smooth, secure and correctly aligned.
Large gaps, raised joints and sharp projecting edges should be avoided.

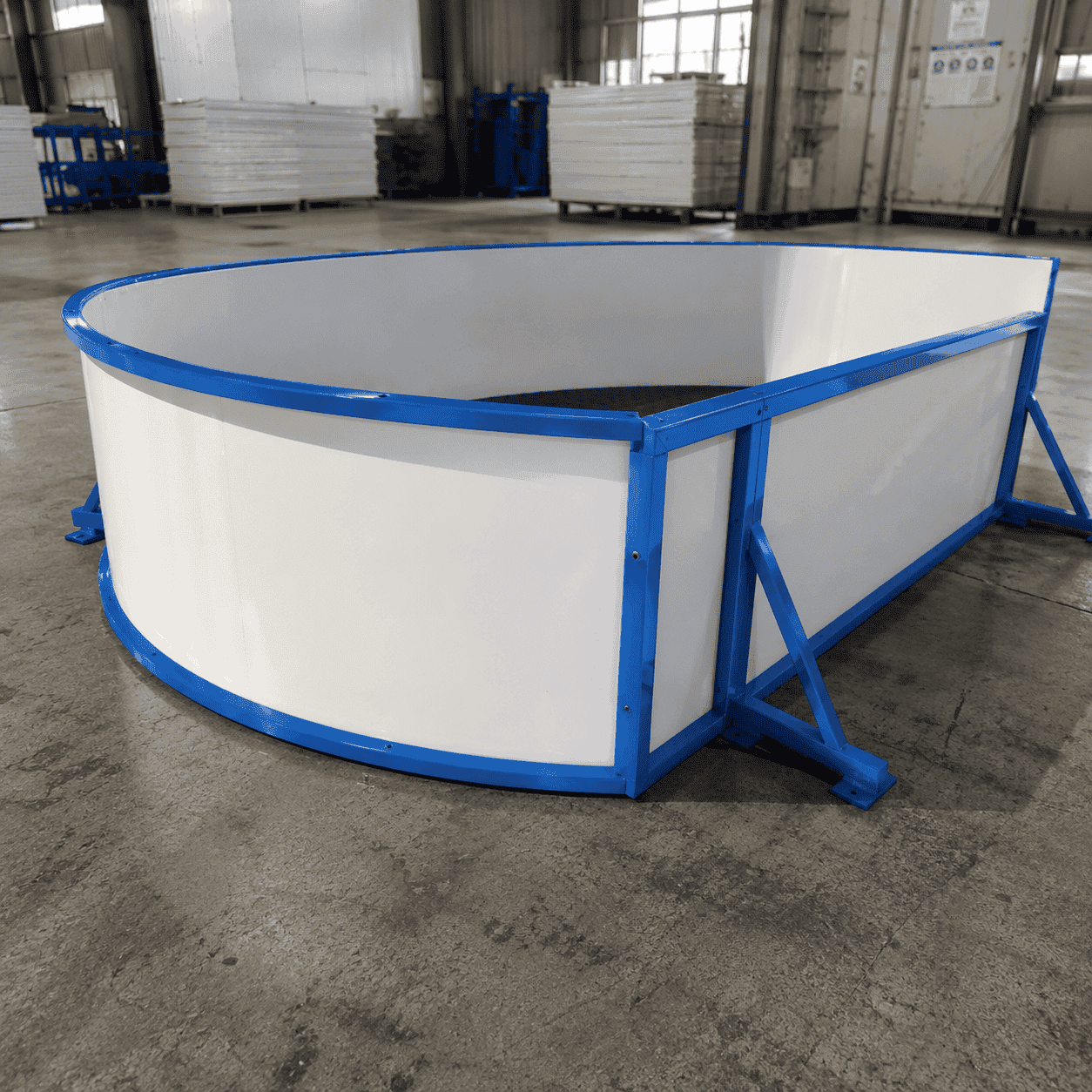

Curved corners provide a smooth transition between the side and end boards.
They help the puck continue moving instead of becoming trapped in a sharp internal corner.
The system can use purpose-built curved frames or several shorter segmented modules.
The required corner radius depends on the total rink dimensions and intended activity.
Each corner section should align accurately with the adjacent straight modules.
PE panels should not be forced into a radius that causes excessive stress, whitening or permanent deformation.
The HDPE Hockey Rink Sliding Board system can include gates for players, coaches, officials and maintenance staff.
A typical player gate may provide a clear opening of approximately 800–1000 mm.
Wider equipment gates may measure approximately 1200–1800 mm.
The final opening depends on the goals, cleaning equipment and accessories that need to enter the rink.
Gate hinges, latches and supporting hardware should remain outside the primary playing surface wherever possible.
Each gate should open smoothly, close securely and align with the surrounding plastic boards.
Acrylic or polycarbonate shielding can be installed above the rink boards where additional puck containment or spectator separation is required.
The shielding thickness, height and supporting-post arrangement should be selected according to puck speed and venue requirements.
Training areas may use a different shielding configuration from professional competition facilities.
The shielding, support posts, metal frames and plastic facing panels should be evaluated as one complete system.
Protective netting can be installed above selected sections, particularly behind hockey goals and shooting areas.
It provides additional containment for elevated pucks without using solid transparent panels across the complete height.
Mesh opening, net height, support-post spacing and tension components should be selected according to the application.
Protective netting is an additional component and does not replace the structural boards beneath it.
The modular system can be configured for residential hockey-training and recreational skating areas.
Possible installation locations include garages, large basements, private sports rooms and suitable backyard rink platforms.
Compact rink layouts may include:
These dimensions are project examples rather than official competition specifications.
The final layout should consider puck speed, gates, goal positions, surrounding clearance and protection for nearby property.
The board system is also suitable for community skating areas, sports clubs, schools, shopping centers and seasonal entertainment facilities.
Modular sections can be arranged according to the available floor space and expected number of users.
Commercial installations may include advertising graphics, access-control gates, transparent shielding and wider maintenance entrances.
The complete rink should maintain clear emergency exits and pedestrian routes.
The system can be installed around conventional refrigerated ice surfaces.
Supporting frames and floor anchors should be coordinated with the refrigeration structure before installation.
Before drilling into an existing rink floor, refrigeration pipes, electrical cables and drainage lines must be identified.
The barrier system is separate from the ice-making and refrigeration equipment.
The same perimeter-board system can be installed around compatible synthetic ice panels.
Synthetic ice is a solid polymer skating surface commonly constructed from interlocking panels.
For general background about polymer skating floors, visit the Synthetic Ice overview on Wikipedia.
The skating surface and rink boards should be specified separately.
Synthetic ice panels require a skating-grade material and accurate connections. The perimeter system requires impact-resistant facing panels and structural metal frames.
The modular barrier can also be used around compatible inline hockey and dry sports surfaces.
Inline hockey flooring should provide suitable wheel grip, flatness and impact performance.
The surrounding board system helps contain the puck and creates a clearly defined playing area.
For multi-sport facilities, board height, corner design and access-gate positions should be selected according to every intended activity.
A portable system uses removable connectors and external supporting feet.
The modules can be dismantled when the venue is required for another activity.
Rubber pads can be installed beneath the supporting feet to protect finished indoor flooring.
Outdoor or exposed modules may require additional ballast or anchors.
Frames, facing panels, corners and gates can be numbered according to their installation positions.
Numbered modules and labeled hardware can make future assembly more efficient.
A permanent system can be anchored to prepared concrete or another structural platform.
The floor, anchors, frames and plastic facing panels should be evaluated as one complete structure.
Anchor positions should be confirmed before drilling begins.
Refrigeration pipes, drainage lines, cables and other concealed services must be identified in advance.
The completed system should maintain a consistent height and smooth internal transition.
Loose fasteners, projecting components and unstable supports should be corrected before the rink is opened.
The plastic facing panels can be cleaned with water, a soft cloth and a suitable neutral cleaning product.
Strong solvents, sharp metal scrapers and aggressive abrasive tools should be avoided.
Routine inspection should cover:
Loose hardware should be tightened before continued use.
Cracked panels, unstable frames, damaged gates or broken shielding should be repaired or replaced.
Removable modules should be cleaned before they are stored.
Plastic facing panels should remain evenly supported and should not rest against sharp metal components.
Protective separators can be placed between visible panel surfaces to reduce scratching.
Long modules should be supported at several points during storage and transportation.
Small connecting components should be stored in labeled containers.
The HDPE or UHMWPE facing panels are cut and machined according to the approved frame drawings.
Plastic processing can include sheet cutting, drilling, countersinking, edge rounding and preparation of curved sections.
Steel or aluminum frames can be produced through profile cutting, welding, drilling, surface treatment and trial assembly.
Important inspection items include:
When selecting an HDPE Hockey Rink Sliding Board, consider the total rink dimensions, required board height and expected impact.
Facing-panel material, panel thickness, frame spacing, gate arrangement and installation frequency should also be considered.
HDPE provides a practical balance between impact resistance, rigidity, processing performance and project cost.
UHMWPE can be selected where increased abrasion resistance, impact performance and lower surface friction are required.
Permanent facilities may prefer galvanized steel frames for increased structural stability.
Temporary and seasonal facilities may prefer aluminum frames or removable steel structures for easier handling.
Learn more about our HDPE sheets, UHMWPE panels and engineering-plastic manufacturing capabilities on the Honsee engineering plastic manufacturer website.
The HDPE Hockey Rink Sliding Board provides a modular, impact-resistant and maintainable perimeter solution for ice hockey, synthetic ice, inline hockey and community skating facilities.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
Stay updated with our latest industry insights, company updates and featured articles.
Engineering plastics are increasingly used in industrial machinery, automated production lines, conveyor systems, packaging equipment, and food-processing machines. Materials such as nylon, UHMWPE, POM, and
Both are lightweight, corrosion-resistant, wear-resistant, and suitable for CNC machining. However, they perform very differently
Wear is a common cause of failure in conveyor systems, packaging machinery, automated equipment, mining
CNC machining is widely used to produce plastic prototypes, low-volume parts, replacement components, jigs, fixtures,
Both are lightweight, corrosion-resistant, wear-resistant, and suitable for CNC machining. However, they perform very differently
Wear is a common cause of failure in conveyor systems, packaging machinery, automated equipment, mining
CNC machining is widely used to produce plastic prototypes, low-volume parts, replacement components, jigs, fixtures,
Need UHMWPE sheets & custom plastic machined/OEM parts？Send specs & material needs, free quote within 24h.
