HDPE Ice Rink Dasher Board System is a modular perimeter barrier designed for ice hockey rinks, synthetic ice areas, skating schools, seasonal rinks and recreational sports venues. Smooth HDPE facing panels are combined with galvanized steel or lightweight aluminum supporting frames.
Typical overall board heights range from approximately 1000 to 1220 mm, common module lengths range from 1000 to 2400 mm, and HDPE facing-panel thicknesses generally range from approximately 8 to 15 mm.
Straight sections, curved corners, colored kick plates, top handrails, access gates, external supports and optional transparent shielding can be configured according to the rink layout. Individual components can be installed, dismantled, inspected and replaced separately.
HDPE Ice Rink Dasher Board System is a modular perimeter barrier designed for ice hockey rinks, synthetic ice areas, skating schools, seasonal ice rinks and recreational sports venues. The connected board modules create a continuous boundary around the skating surface, helping keep hockey pucks inside the activity area while separating players from walkways, equipment zones and spectator areas.
The complete system combines smooth HDPE facing panels with galvanized steel or lightweight aluminum supporting frames. Straight modules, curved corner sections, colored kick plates, top handrails, access gates, external supports and optional transparent protective shielding can be arranged according to the required rink layout.
The HDPE panel forms the main visible and impact-contact surface inside the rink. It offers practical impact resistance, useful rigidity, low water absorption and a smooth surface that is convenient to clean and inspect. Selected frequently used sections can also use UHMWPE panels when increased abrasion resistance is required.
An ice hockey rink is normally surrounded by low walls known as boards or dasher boards. For a general explanation of rink layouts, perimeter boards and rounded corners, visit the Ice Hockey Rink overview on Wikipedia. Additional material information is available from the High-Density Polyethylene overview on Wikipedia.
An HDPE Ice Rink Dasher Board System is assembled from individual barrier sections installed around refrigerated ice, synthetic ice panels or another compatible skating surface. Straight sections form the long sides and ends of the rink, while curved, segmented or angled modules create the corner transitions.

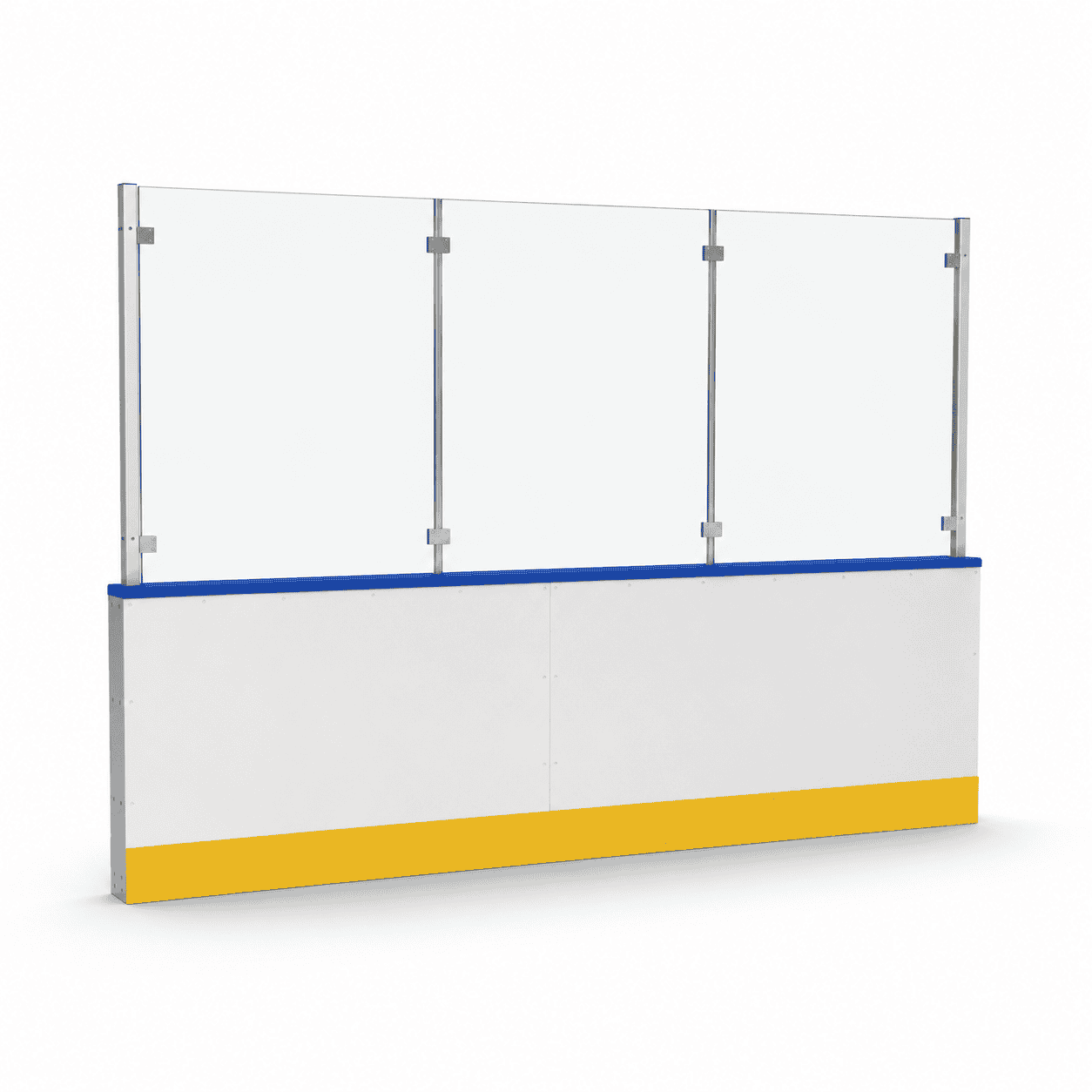

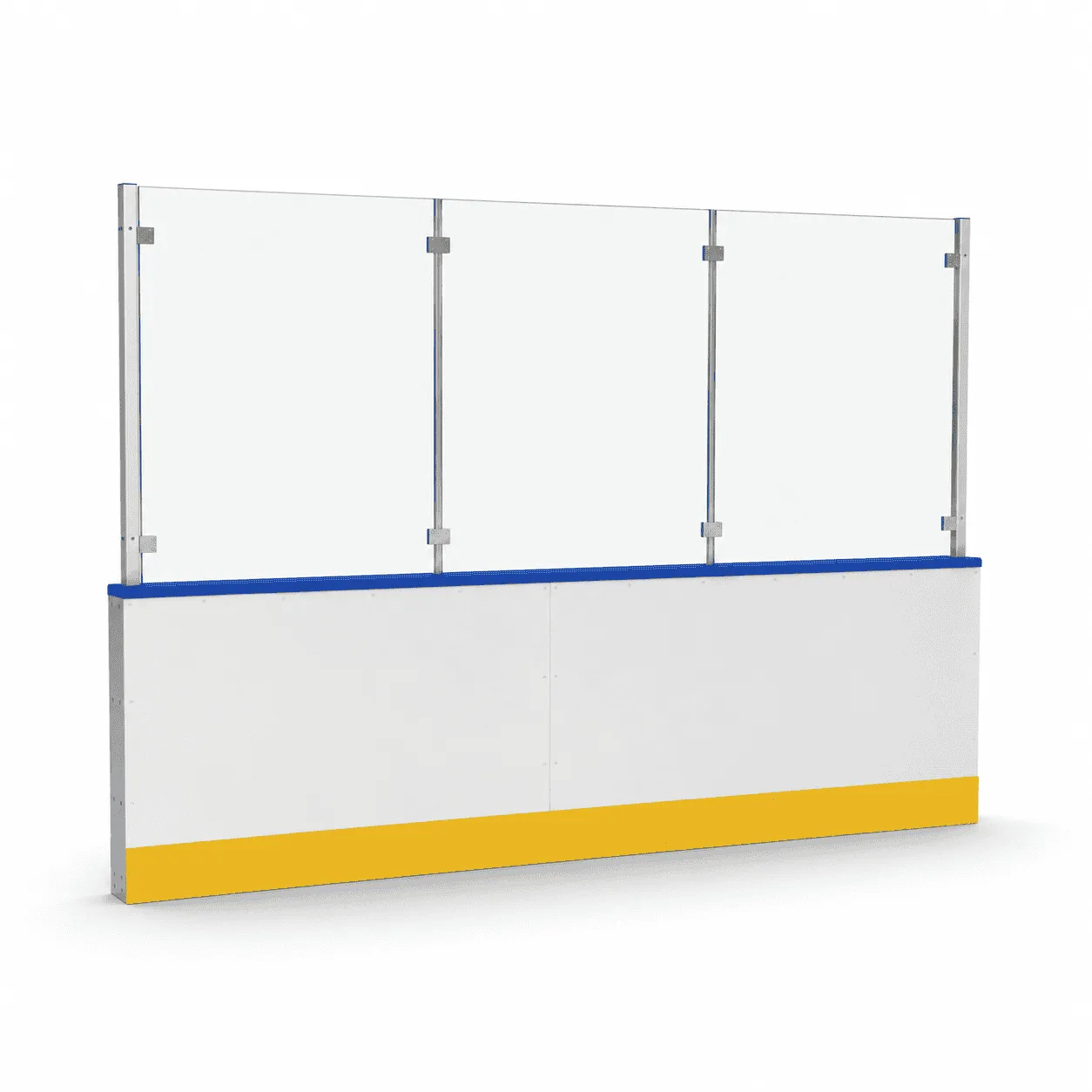

Each module normally includes an HDPE facing panel, a structural metal frame and removable connecting hardware. Adjacent sections can be joined with bolts, locking pins, connecting plates or mechanical clamps.
External triangular supports, wide base feet or fixed floor anchors help maintain the position and alignment of the system. Individual modules can be removed, repaired or replaced without dismantling every section of the rink perimeter.
A complete rink barrier system can include the following components:
The final component configuration should be selected according to the rink dimensions, intended activity, supporting floor, access requirements and installation frequency.
The HDPE Ice Rink Dasher Board System can be manufactured in different dimensions according to the approved rink layout. The specifications below are practical engineering reference ranges rather than fixed dimensions for every installation.
| Product Name | HDPE Ice Rink Dasher Board System |
| Facing Panel Material | HDPE or optional UHMWPE |
| Frame Material | Galvanized steel or aluminum alloy |
| Typical Overall Height | Approximately 1000–1220 mm |
| Common Module Length | Approximately 1000–2400 mm |
| Typical Long Module | Approximately 2000 mm |
| Facing Panel Thickness | Approximately 8–15 mm |
| Common HDPE Thicknesses | Approximately 10 or 12 mm |
| Kick Plate Height | Approximately 150–250 mm |
| Kick Plate Thickness | Approximately 8–12 mm |
| Top Handrail Width | Approximately 50–100 mm |
| Pedestrian Gate Width | Approximately 800–1000 mm |
| Equipment Gate Width | Approximately 1200–1800 mm |
| Standard Facing Color | White |
| Optional Colors | Yellow, blue, red, black or project-specific colors |
| Corner Structure | Curved, segmented or angled modules |
| Installation Type | Permanent, semi-permanent, portable or removable |
| Suitable Environment | Indoor and properly prepared outdoor skating venues |
The listed values are common project references. Final panel thickness, frame-profile dimensions, wall thickness, support structure and anchoring method should be confirmed according to the board height, expected impact, venue conditions and approved structural drawings.
Longer modules reduce the total number of connections, while shorter sections are generally easier to transport, carry, install and replace. Frequently relocated systems may use lightweight frames and removable external supports.
HDPE is commonly selected for the playing-side surface of rink boards because it combines impact resistance, practical rigidity and convenient machining performance.
The white facing panel creates a clean rink appearance and provides a smooth contact surface for hockey pucks. HDPE sheets can be cut, drilled, countersunk and edge-finished according to the supporting-frame drawing.
Fasteners should be positioned so that the rink-facing surface remains as smooth as possible. Countersunk fixing positions help reduce projecting hardware inside the playing area.
HDPE provides a practical balance between performance, panel weight and project cost for training, recreational and commercial skating facilities.
UHMWPE can be selected for sections that require increased abrasion resistance and low-friction performance. It is suitable for areas exposed to frequent puck, skate or equipment contact.
The material absorbs very little moisture and provides useful toughness. It can be used for lower wear strips, kick plates or complete facing sections according to the approved design.
The choice between HDPE and UHMWPE should consider expected use, impact level, required service life, panel thickness and project budget.
Galvanized steel frames provide strength and stability for permanent or frequently used rink installations. The zinc-coated surface helps protect the steel structure against moisture and corrosion.
The frame can include welded vertical posts, horizontal rails, connecting brackets, base plates and triangular supports. Profile dimensions and wall thickness should be selected according to the total module size and expected impact.
Galvanized steel is generally suitable for larger facilities where structural strength and long-term stability are more important than minimum module weight.
Aluminum frames reduce the weight of individual board modules and can make repeated installation, dismantling, transportation and storage more convenient.
This option is suitable for seasonal skating venues, temporary sports events, shopping centers and multi-purpose facilities where the complete rink boundary may need to be relocated.
The aluminum structure must still provide sufficient rigidity for the selected facing-panel dimensions. Reinforcement positions, connection brackets and external supports should be confirmed before production.
Galvanized steel is generally selected for permanent installations, intensive hockey use and projects requiring increased structural stability. Aluminum is generally selected where lower module weight and repeated handling are important.
Important selection factors include:

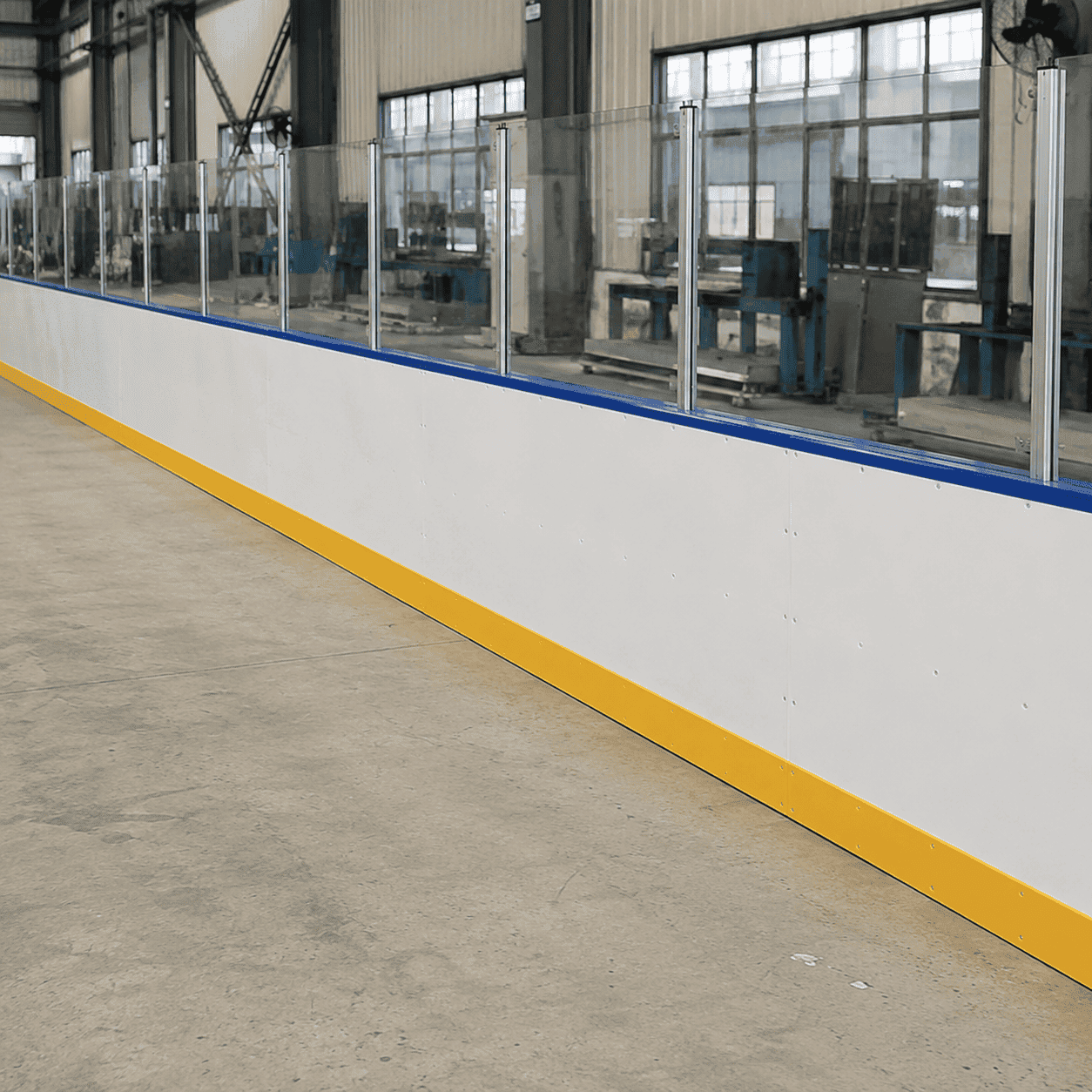

A colored kick plate can be installed along the lower section of the dasher board. Yellow is commonly selected because it creates a visible transition between the white board and the ice or skating surface.
Blue, red, black and other colors can also be selected according to the venue design. Kick plates are exposed to frequent puck and equipment contact and should normally be independently replaceable.
The kick-plate height and thickness should be selected according to the panel structure, metal frame and intended playing surface.
The top handrail covers and protects the upper edge of the facing panel. It also creates a finished appearance around the complete rink perimeter.
The handrail can be manufactured from HDPE, UHMWPE or another suitable impact-resistant material. Contrasting colors can make the rink boundary easier to identify.
Connections between adjacent handrail sections should remain secure and should not create large gaps or exposed sharp edges.

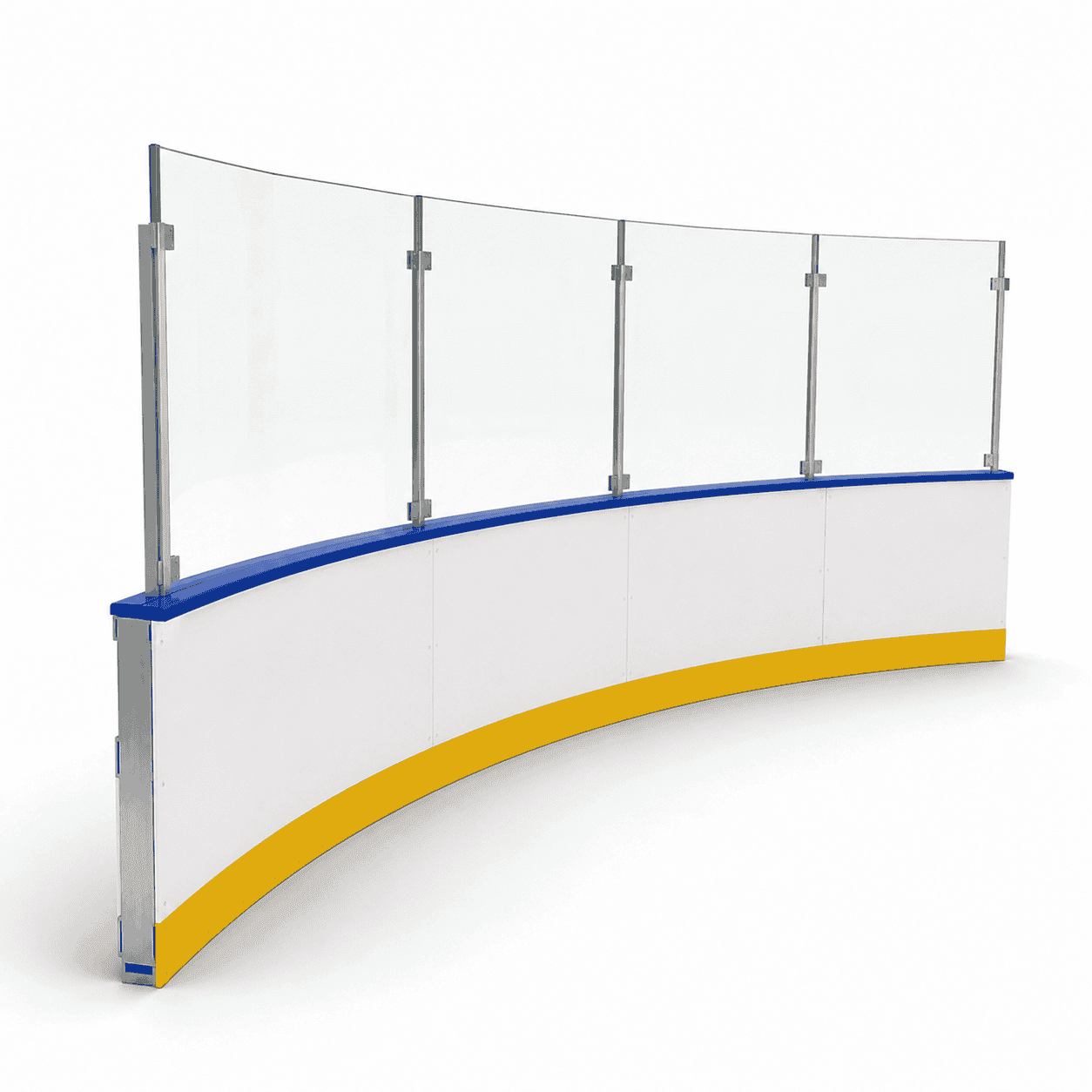

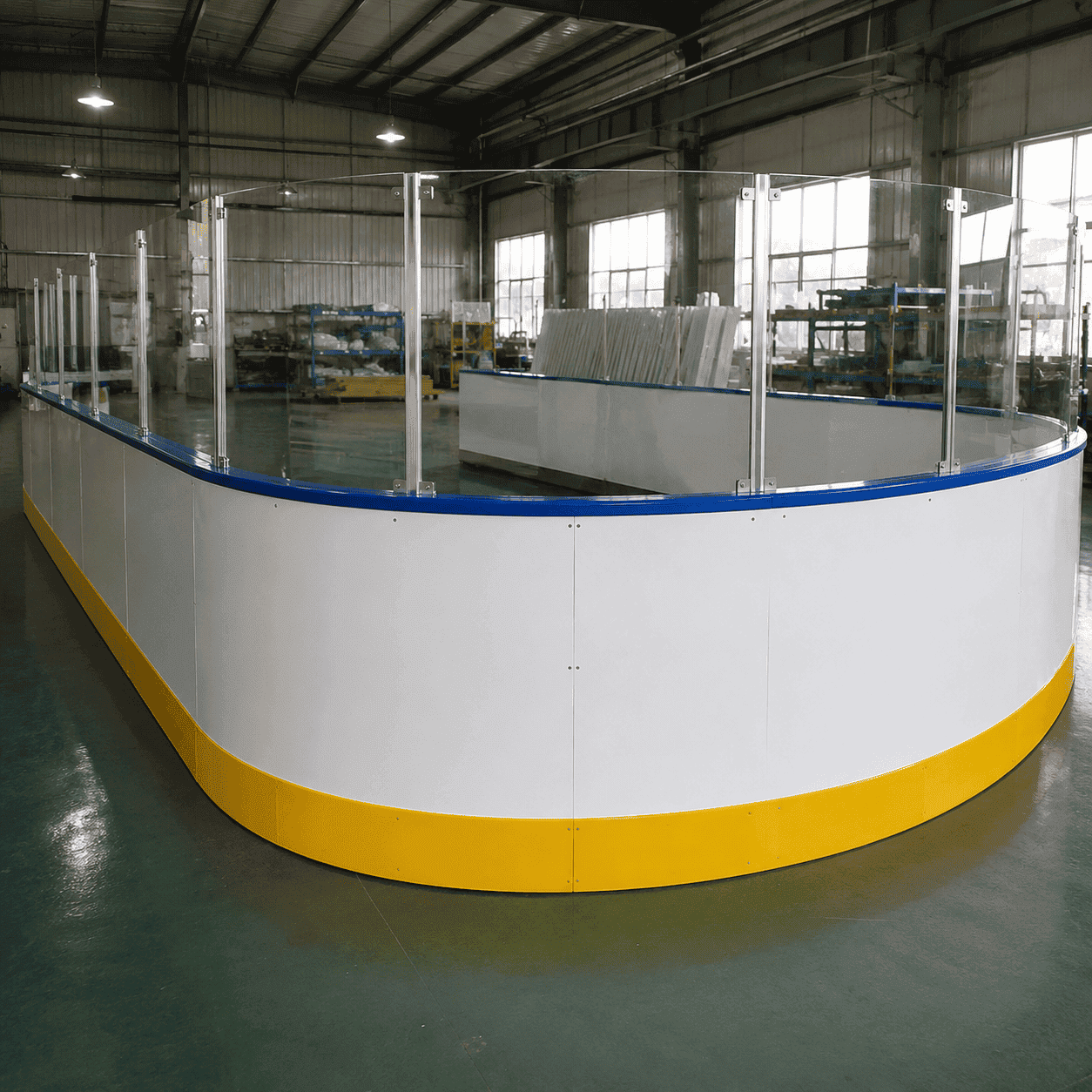

Curved corners create a smooth transition between the side and end sections of the rink. They help a puck continue moving around the perimeter instead of becoming trapped in a sharp ninety-degree corner.
The structure can use purpose-built curved frames or several shorter segmented modules. The appropriate corner radius depends on the total rink dimensions and intended activity.
Each corner section should align accurately with adjacent straight boards. Large gaps, projecting fasteners and sharp edges should be avoided on the playing side.
An HDPE Ice Rink Dasher Board System can include access gates for players, skaters, coaches, officials and maintenance personnel.
A typical pedestrian gate may provide a clear opening of approximately 800–1000 mm. Wider equipment entrances may measure approximately 1200–1800 mm depending on the rink accessories and maintenance equipment that must enter the playing area.
Gate hinges, latches and supporting frames should be aligned so that each gate opens smoothly and closes securely. Hardware should remain away from exposed playing-side surfaces wherever possible.

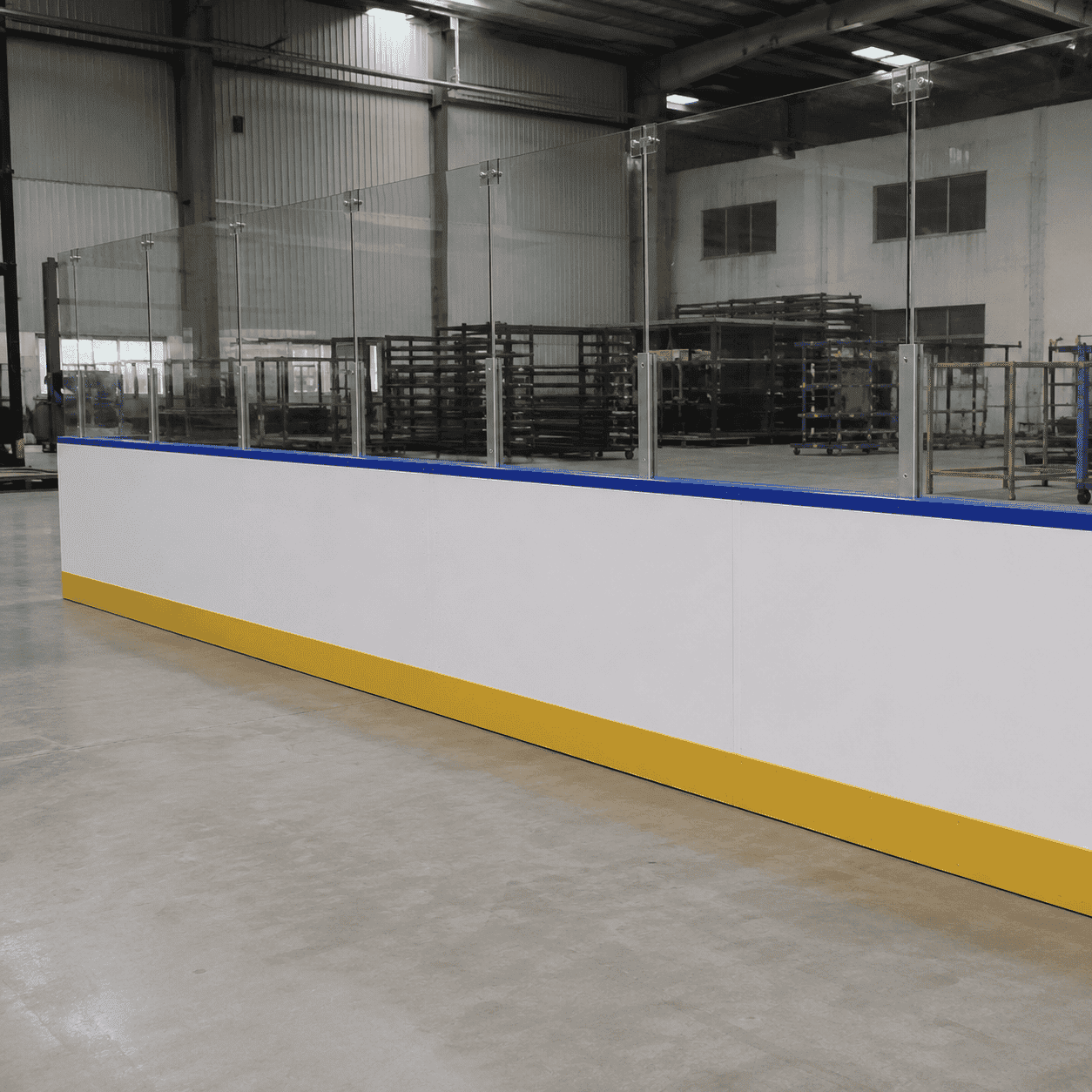

Acrylic or polycarbonate shielding can be installed above the dasher boards where additional puck containment or spectator separation is required.
The shielding thickness, height and supporting-post arrangement should be selected according to puck speed, intended activity and the position of surrounding users.
Professional hockey venues may require a different shielding structure from recreational skating areas. The final protective configuration should be confirmed according to venue and sporting requirements.
Protective netting can be installed above selected side or end sections, particularly behind hockey goals and shooting areas.
The netting provides additional containment for elevated pucks without requiring solid transparent panels across the complete height. Mesh size, supporting posts and installation height should be selected according to the application.
Protective netting is an additional component and does not replace the structural rink boards below it.
The modular rink-board system is suitable for:
The system can also be installed in properly prepared outdoor or seasonal skating venues.
Outdoor installation should consider wind, drainage, anchoring, sunlight exposure and temperature changes. UV-stabilized HDPE can be selected where prolonged sunlight exposure is expected.
Additional anchors, ballast or supporting braces may be required in exposed locations. Final outdoor structural requirements should be confirmed according to the installation site.
The HDPE Ice Rink Dasher Board System can be configured for compact training areas or larger recreational skating facilities. Example project layouts may include:
These dimensions are project examples rather than official competition specifications. The final layout should consider corner radius, access gates, skating speed, equipment entrances, surrounding clearance and emergency routes.
A portable rink system uses removable connectors and external supports so that the barrier can be dismantled when the venue is needed for another activity.
Rubber pads can be positioned beneath external supports to help protect finished indoor flooring. Outdoor modules may require additional ballast or anchoring.
Frames, panels, corner modules and gates can be numbered according to their installation positions. Connecting hardware can be stored in labeled containers to simplify future assembly.
A permanent dasher-board system can be anchored to a prepared concrete foundation or another structural rink platform.
Before drilling, refrigeration pipes, drainage lines, electrical cables and other concealed services should be identified. Anchor positions should be coordinated with the complete rink-floor structure.
The floor, anchors, supports and board frames should be evaluated as a complete system rather than selecting anchors only according to the plastic-panel dimensions.
The rink perimeter should first be measured and marked according to the approved layout. Straight sections, curved corners and access gates can then be positioned before final connection.
Adjacent modules should maintain a consistent height and smooth playing-side transition. Bolts, locking pins, connecting plates, external feet and floor anchors should be inspected during assembly.
After installation, the complete barrier should be checked for unstable sections, loose hardware, exposed sharp components, correct gate operation and corner alignment.
The HDPE facing panels can be cleaned using water, a soft cloth and a suitable neutral cleaning solution. Strong solvents, sharp metal scrapers and aggressive abrasive tools should be avoided.
Routine inspection should include:
Loose hardware should be tightened before continued use. Cracked panels, unstable frames, damaged gates or broken shielding should be repaired or replaced.
The HDPE panels are cut and machined according to the approved frame drawings. Processing can include cutting, drilling, countersinking, edge finishing and curved-panel machining.
Steel or aluminum frames can be produced through profile cutting, welding, drilling and surface treatment. Straight sections, curved corners and access gates can be trial-assembled before shipment.
Important inspection items include:
When selecting an HDPE Ice Rink Dasher Board System, consider the total rink dimensions, intended activity, required board height, facing-panel thickness, frame material, gate configuration, shielding requirements and installation frequency.
Permanent and frequently used hockey facilities may prefer galvanized steel frames for increased stability. Temporary and seasonal venues may prefer lightweight aluminum frames or removable galvanized structures.
Standard HDPE facing panels provide practical impact resistance and economical performance, while UHMWPE can be selected for areas requiring increased abrasion resistance.
Learn more about our HDPE panels, UHMWPE materials and engineering-plastic manufacturing capabilities on the Honsee engineering plastic manufacturer website.
The HDPE Ice Rink Dasher Board System provides a modular, durable and reusable perimeter solution for ice hockey, synthetic ice, skating instruction and recreational indoor or outdoor skating venues.
