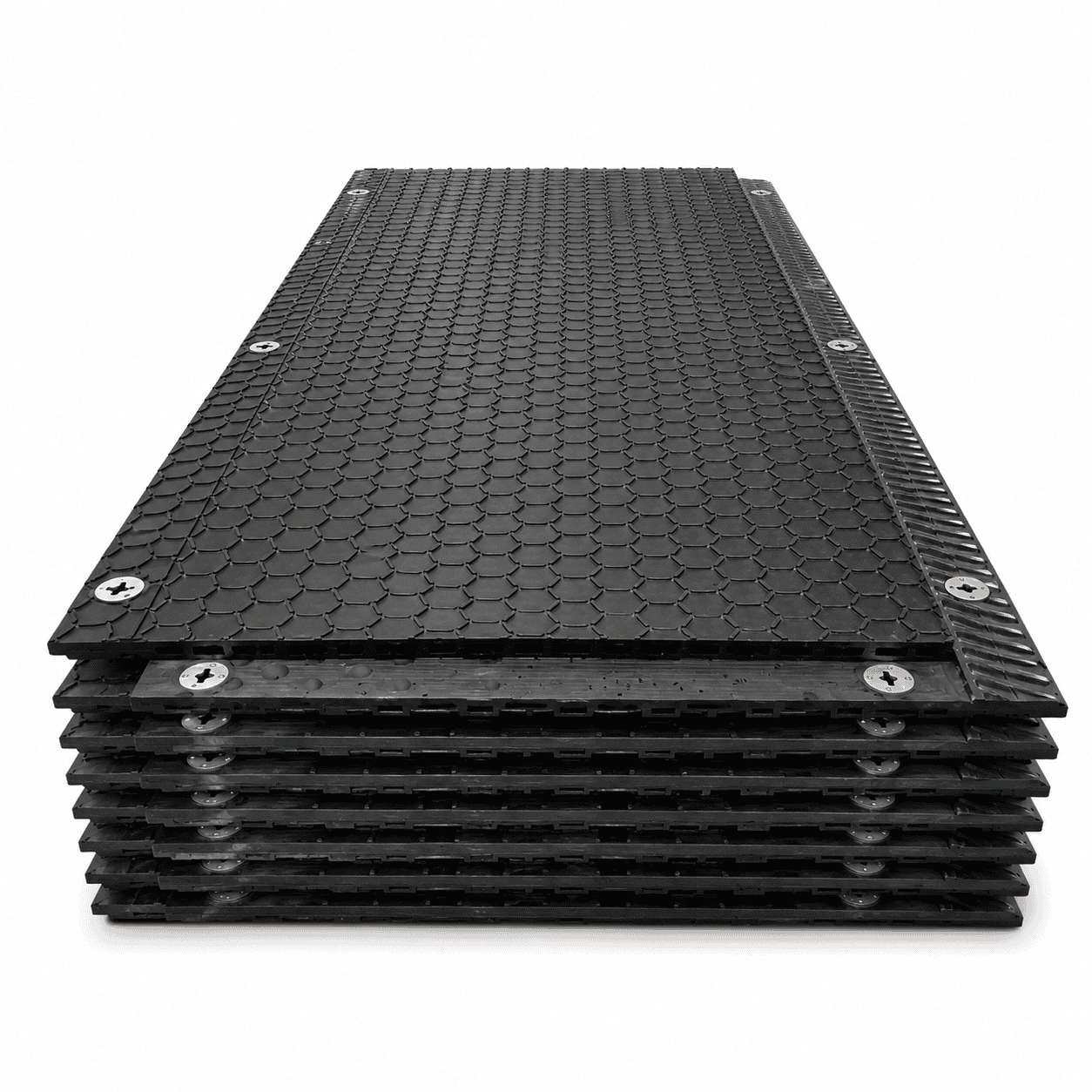

HDPE Oilfield Access Mats are heavy-duty temporary access panels designed for oil drilling operations, heavy vehicles, industrial equipment, pipeline work, and soft ground protection.
Available sizes range from approximately 4270 × 2180 × 88 mm to 5800 × 2180 × 100 mm, with individual panel weights from approximately 435 kg to 672 kg. Depending on the model, stated load capacities are approximately 120 or 140 tonnes under suitable ground and installation conditions.
The hollow-core HDPE-based structure, overlapping edges, locking connections, and raised anti-slip surface make these mats suitable for temporary roads, drilling access, heavy equipment routes, pipeline projects, and outdoor working platforms.
HDPE Oilfield Access Mats are heavy-duty temporary access panels designed for oilfield operations, drilling equipment, industrial vehicles, pipeline work, power projects, and other applications where machinery must travel or operate across soft, wet, muddy, or unstable ground.
The product uses a thermoplastic hollow composite structure rather than a conventional thin plastic sheet. This deeper structural design helps create a large temporary access surface while keeping the panel weight lower than an equivalent fully solid plastic plate of the same external dimensions.
The available panel sizes range from approximately 4270 × 2180 × 88 mm to 5800 × 2180 × 100 mm. Depending on the model, individual panel weights range from approximately 435 kg to 672 kg, with stated load capacities of approximately 120 tonnes or 140 tonnes under suitable ground, support, connection, and operating conditions.

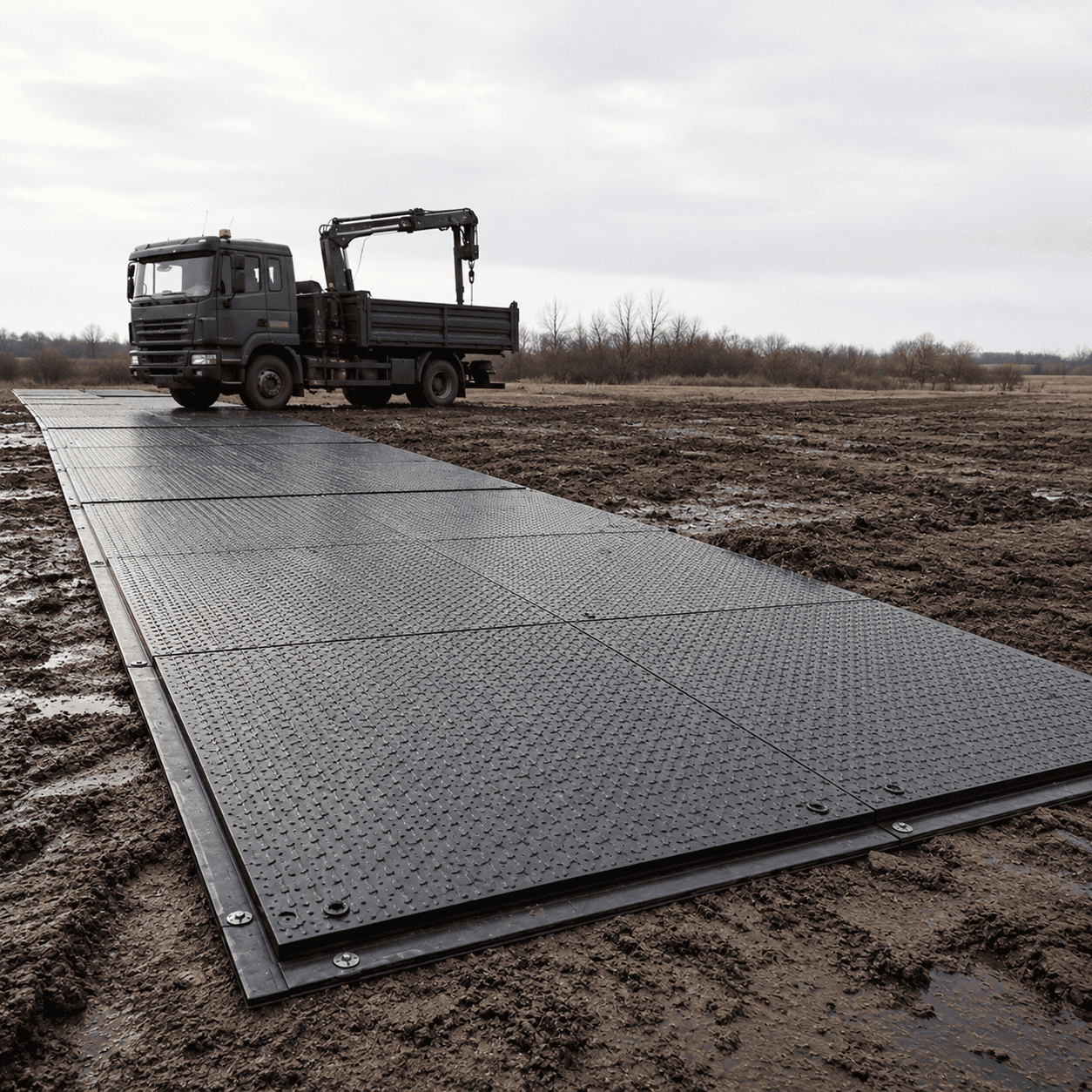

HDPE Oilfield Access Mats can be used to form temporary vehicle routes, drilling access roads, equipment platforms, operating compounds, pipeline access lanes, and heavy machinery working areas.
This heavy-duty product range includes four principal specifications. The dimensions shown below are based on the available product data:
| Model | Panel Size | Thickness | Approx. Weight | Stated Load Capacity |
|---|---|---|---|---|
| XA-01 | 5800 × 2180 mm | 88 mm | 590 kg | 120 tonnes |
| XA-02 | 4270 × 2180 mm | 88 mm | 435 kg | 120 tonnes |
| XA-03 | 5800 × 2180 mm | 100 mm | 672 kg | 140 tonnes |
| XA-04 | 4270 × 2180 mm | 100 mm | 488 kg | 140 tonnes |
The XA-01 model measures approximately 5800 × 2180 × 88 mm and weighs around 590 kg. It has a stated capacity of approximately 120 tonnes under suitable installation conditions.
The shorter XA-02 model uses the same 88 mm thickness but measures approximately 4270 × 2180 mm. Its lower approximate weight of 435 kg can make it more practical where route geometry, transport conditions, or lifting limitations favor a shorter panel.
For higher stated load requirements, the XA-03 and XA-04 models use an approximately 100 mm thick structural section. The largest XA-03 panel measures approximately 5800 × 2180 × 100 mm and weighs around 672 kg, while the XA-04 measures approximately 4270 × 2180 × 100 mm and weighs around 488 kg.

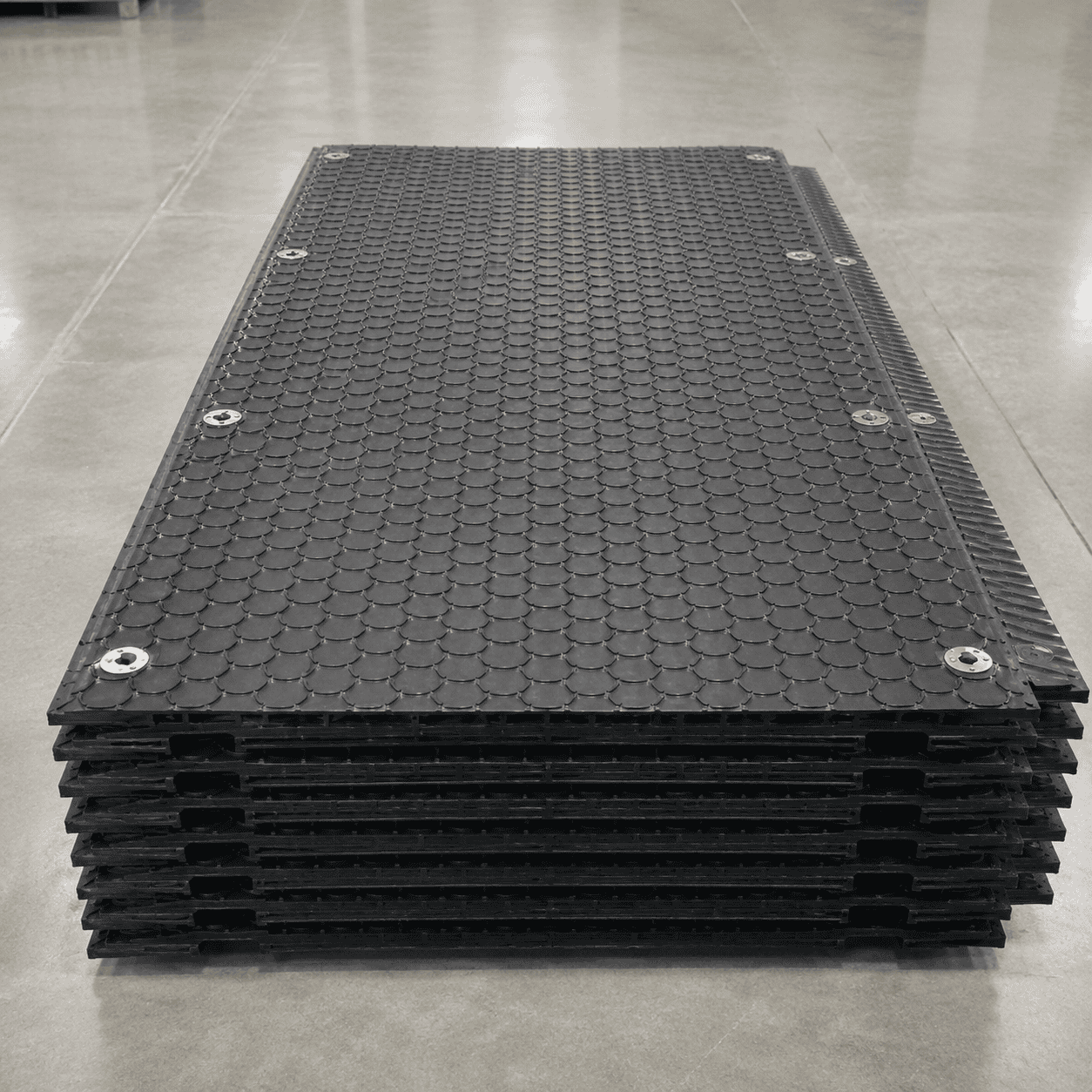

One of the defining features of HDPE Oilfield Access Mats is the engineered hollow-core construction.
A fully solid plastic plate with external dimensions approaching 5800 × 2180 × 100 mm would be extremely heavy. The hollow structural design provides a practical way to create a deeper panel section while controlling the overall product weight.
The internal structure is designed to contribute to:
The final strength of the panel depends on the complete design, including internal geometry, material formulation, wall thickness, edge structure, connection system, and manufacturing process.
This structural approach makes the product fundamentally different from lightweight ground protection sheets used mainly for small vehicles or pedestrian traffic.
HDPE Oilfield Access Mats are manufactured using an HDPE-based thermoplastic material system suitable for demanding outdoor access applications.
The material provides several practical characteristics:
Unlike untreated steel access plates, the plastic material does not rust during normal outdoor use. Unlike conventional timber mats, it does not absorb water in the same way, rot, or splinter after repeated exposure to wet environments.
These characteristics can be useful in oilfield and drilling operations where mud, water, changing weather, and repeated equipment movement are common.
For general information about the base material, read more about polyethylene and its material properties.

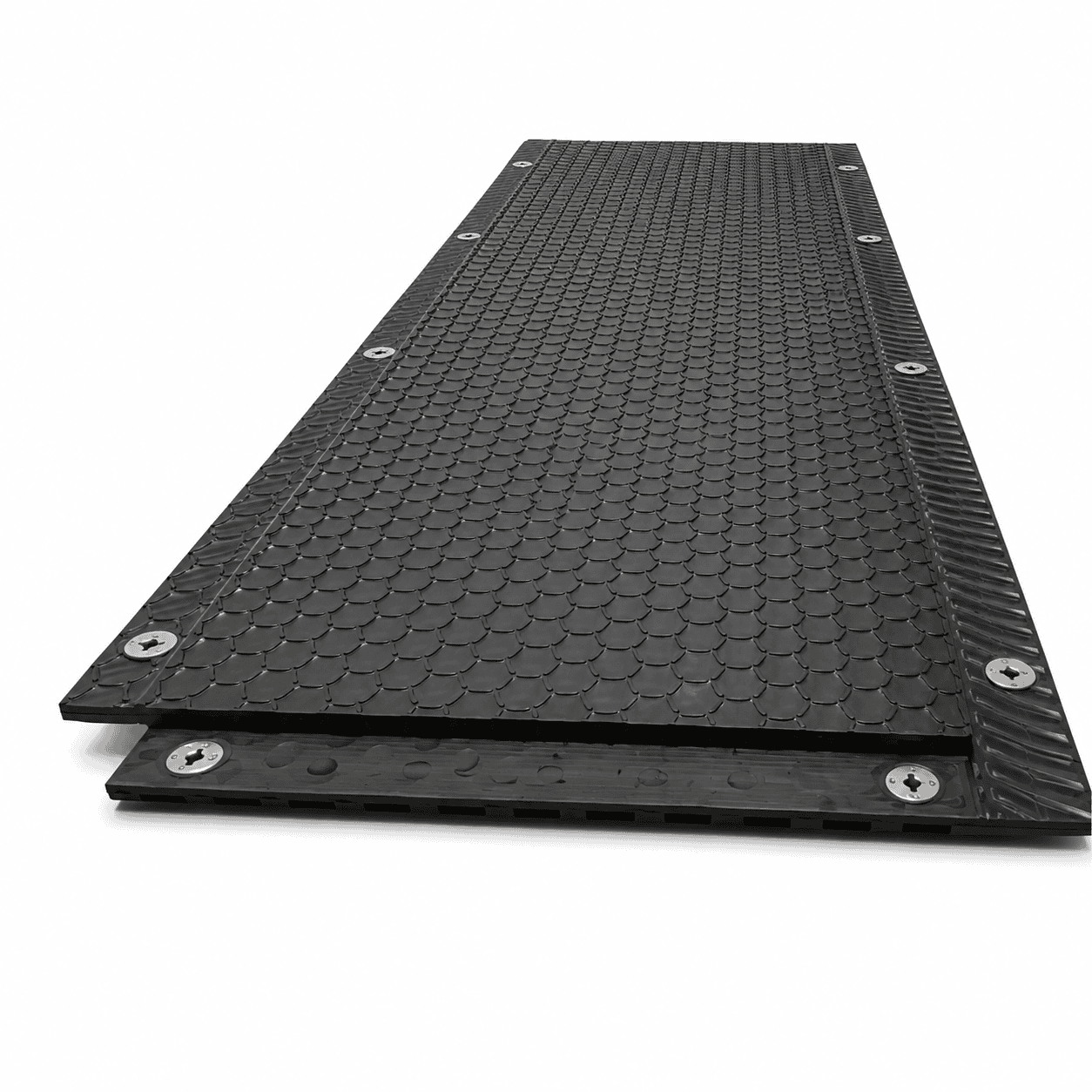

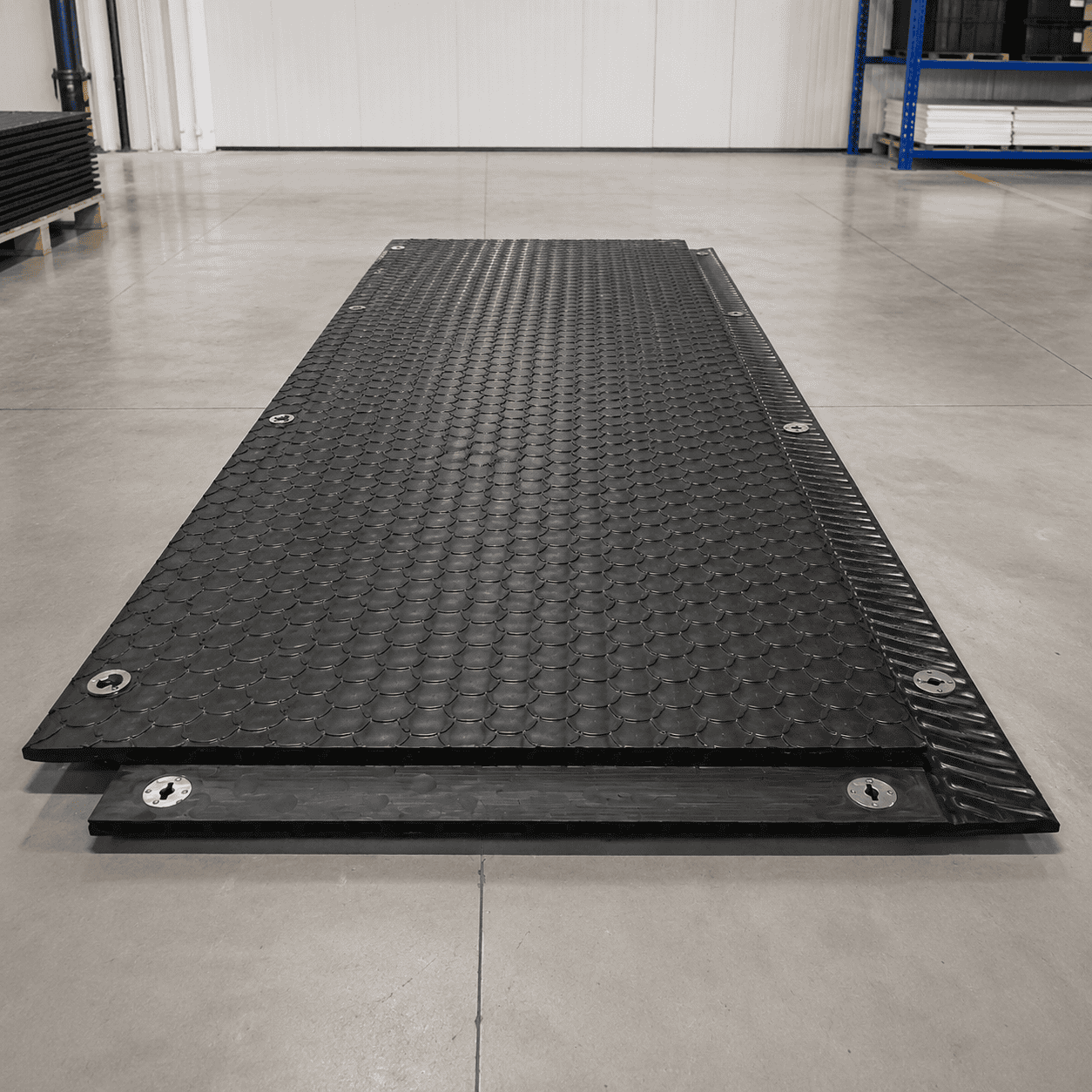

The overlapping edge structure is another important feature of HDPE Oilfield Access Mats.
Temporary access panels that simply meet edge to edge can leave exposed gaps between neighboring units. On muddy or waterlogged ground, soft soil and water may move upward through these gaps during repeated vehicle traffic.
An overlapping edge helps cover the connection area and creates a more continuous route surface.
This structure can help reduce:
The overlap direction should remain consistent during installation so that adjacent panels form a continuous access system.
HDPE Oilfield Access Mats can be linked together using a locking connection structure.
Multiple panels can be arranged to form:
The modular system allows the protected area to be expanded according to the project layout.
A narrow route can be created for straight-line vehicle movement, while multiple parallel rows can be connected to form a wider operating or equipment area.
The final panel arrangement should be selected according to vehicle width, turning requirements, traffic frequency, ground condition, equipment footprint, and operating requirements.

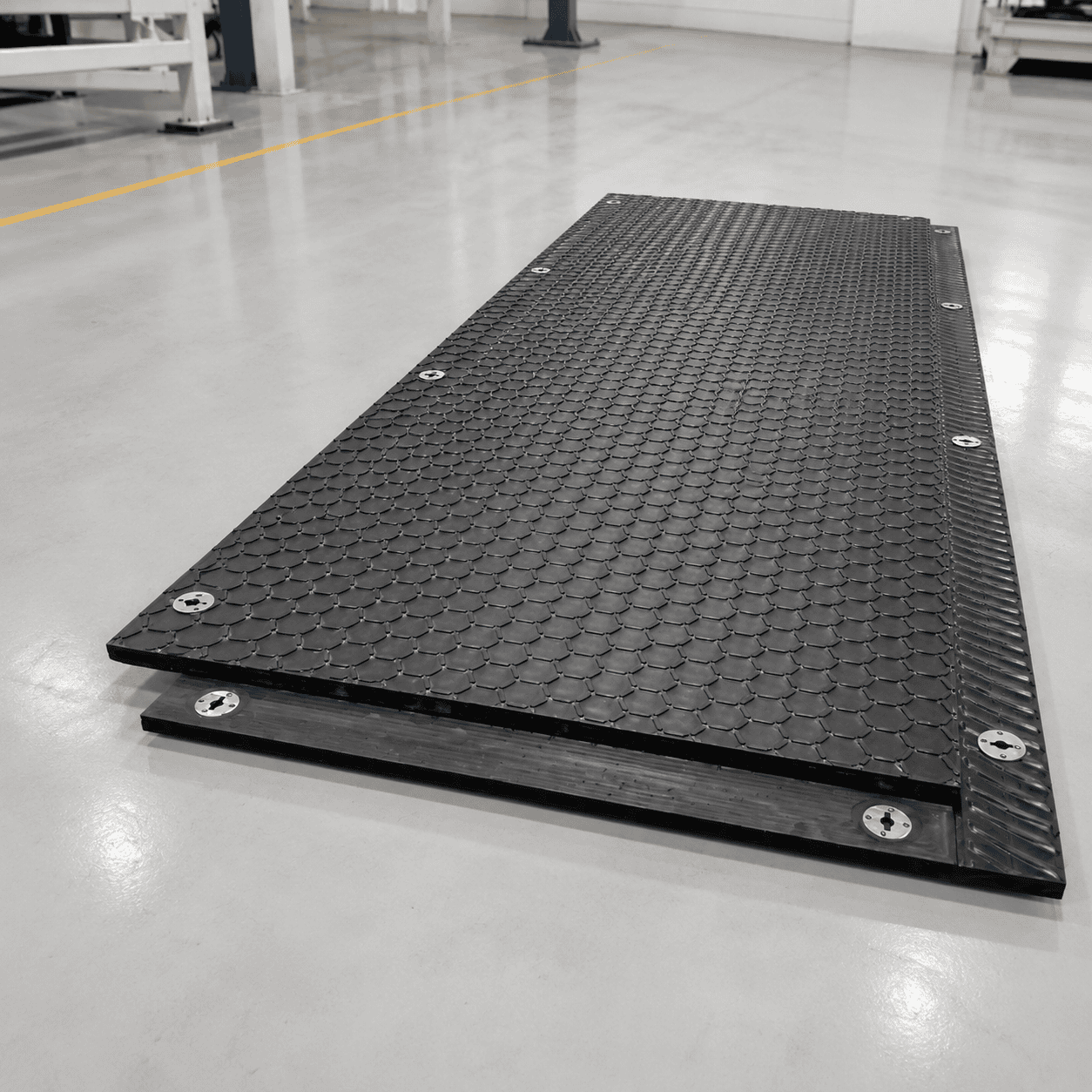

The surface of HDPE Oilfield Access Mats uses a raised geometric traction pattern.
The product shown features repeated honeycomb-style or hexagonal surface sections. These raised structures help increase interaction between tyres or tracks and the panel surface compared with a completely smooth plastic plate.
The textured surface can be useful in conditions affected by:
The traction profile does not eliminate the need for appropriate vehicle operation. Tyre condition, contamination, route slope, weather, braking, acceleration, and turning movement all influence actual traction performance.
The product series includes two principal stated load classes.
These models use an approximately 88 mm structural thickness and have a stated load capacity of approximately 120 tonnes under suitable conditions.
The 100 mm thick versions have a stated load capacity of approximately 140 tonnes.
The stated figures should not be treated as universal guarantees for every vehicle or ground condition.
Actual performance depends on factors including:
A large tracked vehicle operating on well-supported ground creates different load conditions from a concentrated wheel or outrigger load on saturated soil.
HDPE Oilfield Access Mats are designed for demanding temporary access and industrial surface protection applications.
Typical applications include:
The large panel dimensions are particularly useful when small lightweight ground mats do not provide enough coverage or structural depth for the intended equipment.
For another temporary ground protection solution, view our Heavy Equipment Access Mats for vehicle routes and outdoor equipment movement.
Oil drilling and related industrial operations often require large vehicles and equipment to reach locations where permanent roads may not be available.
Soft soil, mud, rain, and repeated traffic can quickly damage an unprotected route.
HDPE Oilfield Access Mats provide a temporary physical layer between heavy vehicles and the original ground.
The panels can be used for:
The modular nature of the system allows panels to be removed after the operation and transported to another project.
Soft or saturated ground can lose bearing strength rapidly under repeated heavy traffic.
HDPE Oilfield Access Mats help separate tyres or tracks from direct contact with the underlying surface.
The large panel dimensions spread vehicle interaction across a wider area than direct ground contact.
The system can be used over:
Extremely weak or deeply saturated ground may still require drainage, levelling, aggregate, geotextile, or another support layer before the mats are installed.
The locking connection system allows HDPE Oilfield Access Mats to be used for more than narrow access roads.
Multiple panels can form larger working surfaces for:
For concentrated equipment loads, outriggers, or small contact points, additional load assessment may be required.
A concentrated outrigger load can create much higher local pressure than a vehicle whose weight is distributed through multiple large tyres or tracks.
Wet environments are common in temporary industrial access applications.
The HDPE-based material does not absorb water like untreated wood and does not corrode like conventional steel.
This can reduce some of the maintenance problems associated with traditional access materials.
The panels should still be inspected after use. Mud, stones, oil, and other contaminants should be removed before long-term storage or reuse.
One of the main practical benefits of HDPE Oilfield Access Mats is their reusable design.
After the project or temporary route is no longer required, the panels can be:
Before reuse, the panel body, overlap edges, locking points, traction surface, and visible structural areas should be inspected.
Proper lifting, transport, and storage can help protect the panels from unnecessary edge damage or uncontrolled impacts.
Selecting the correct HDPE Oilfield Access Mats requires consideration of the complete operating environment.
Important selection factors include:
The 4270 mm long models have lower individual panel weights and may be more practical where handling space is limited.
The 5800 mm long models cover more route length with each panel but require greater transport and lifting capacity.
The largest or highest-rated model is therefore not automatically the best choice for every application.
Before installing HDPE Oilfield Access Mats, the proposed route should be inspected carefully.
Deep holes, severe level changes, unsupported voids, standing water, sharp objects, and extremely unstable ground sections should be addressed before installation.
The panels should be positioned so that the overlap direction remains consistent and the locking connections can function correctly.
Turning zones, braking areas, heavy traffic sections, and concentrated equipment loads may require additional planning.
HDPE Oilfield Access Mats provide a heavy-duty temporary access solution for oil drilling operations, industrial vehicles, pipeline work, equipment platforms, power projects, and heavy machinery routes.
Available sizes range from approximately 4270 × 2180 × 88 mm to 5800 × 2180 × 100 mm. Individual panel weights range from approximately 435 kg to 672 kg.
The available models have stated load capacities of approximately 120 tonnes or 140 tonnes under suitable ground, support, connection, and installation conditions.
With a hollow-core thermoplastic structure, HDPE-based material, overlapping edges, locking connections, raised traction patterns, and reusable design, these mats are suitable for demanding temporary access and industrial ground protection applications.
The final model, thickness, route layout, connection method, and ground preparation should always be selected according to the actual vehicle, equipment, ground conditions, and operating requirements.
