Anti-Slip HDPE Ground Protection Mats are durable reusable panels designed for temporary vehicle and equipment access over mud, grass, sand, gravel, and soft soil. Common sizes include 2000 × 1000 × 10 mm, 2440 × 1220 × 12.7 mm, and 3000 × 1500 × 15 mm. The raised traction surface, HDPE construction, and modular panel design make them suitable for temporary roads, parking areas, utility access, industrial routes, outdoor operations, and ground protection.
Anti-Slip HDPE Ground Protection Mats are durable temporary access panels designed to create stable routes for vehicles, equipment, and industrial traffic over mud, grass, sand, gravel, soft soil, and other challenging surfaces. Manufactured from high-density polyethylene, these reusable mats feature a raised traction surface that helps improve tire grip while protecting the underlying ground from repeated vehicle movement.
The heavy-duty panel design provides a practical combination of ground coverage, handling efficiency, durability, and repeated use. Individual mats can be positioned side by side or connected together to form temporary roads, equipment access routes, parking areas, maintenance paths, and larger working surfaces.
Compared with conventional steel road plates and timber boards, the HDPE structure does not rust and has low water absorption. After use, the mats can be removed, cleaned, inspected, stacked, transported, and installed again at another location.
Anti-Slip HDPE Ground Protection Mats are available in several practical dimensions for different vehicle types, route widths, handling requirements, and ground conditions. Common formats range from compact 2-meter panels to larger 3-meter access mats.
Typical reference specifications include:
| Panel Size | Thickness | Approx. Weight | Effective Area |
|---|---|---|---|
| 2000 × 1000 mm | 10 mm | 22.6 kg | 2.00 m² |
| 2400 × 1200 mm | 12.7 mm | 40 kg | 2.88 m² |
| 2440 × 1220 mm | 12.7 mm | 42 kg | 2.98 m² |
| 2900 × 1100 mm | 12.7 mm | 45 kg | Approximately 3.20 m² |
| 3000 × 1500 mm | 15 mm | 74 kg | 4.50 m² |
Common thickness options include approximately 10 mm, 12.7 mm, 15 mm, 18 mm, 20 mm, and 25 mm. The most suitable thickness should be selected according to vehicle type, axle load, tire contact pressure, ground bearing strength, traffic frequency, and installation conditions.

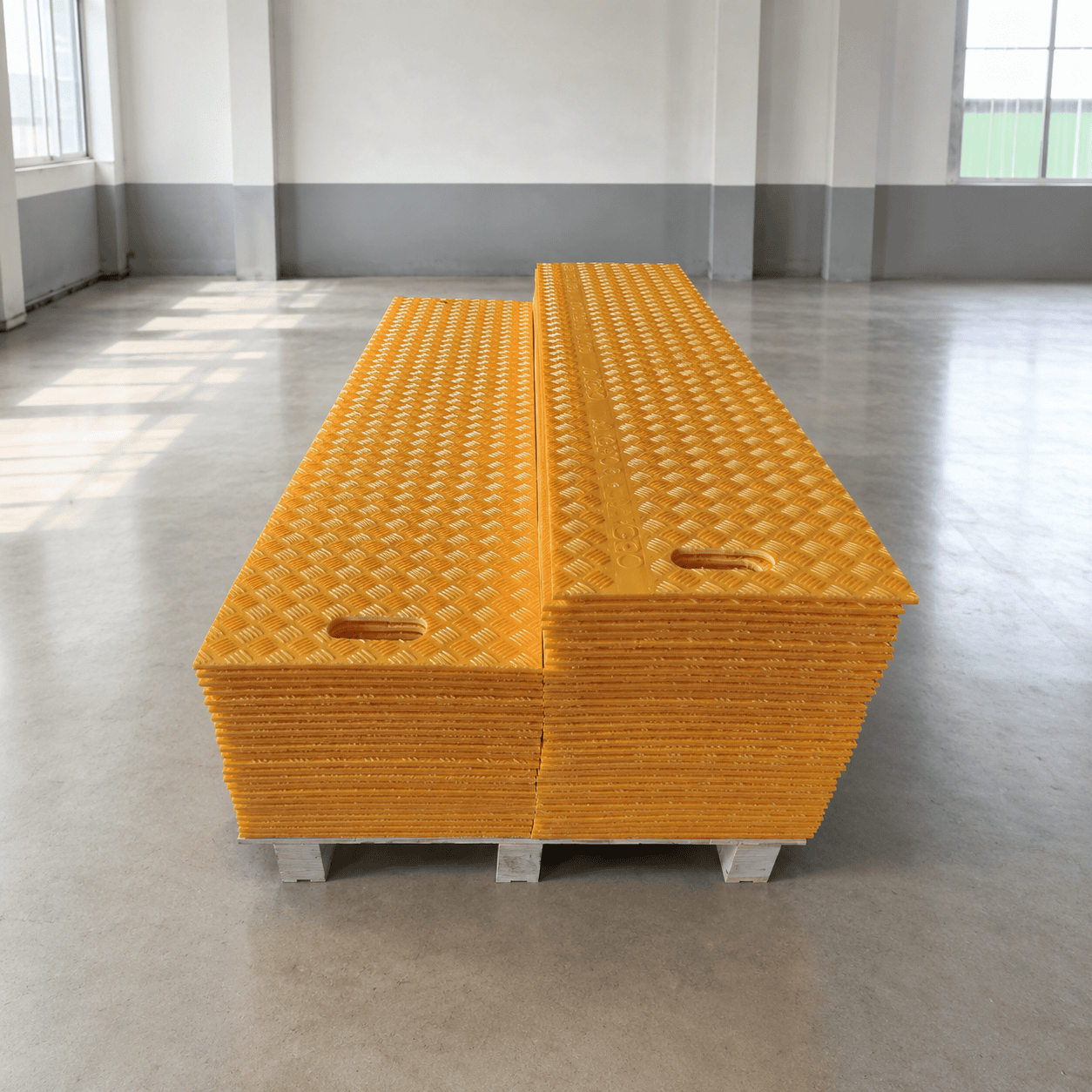

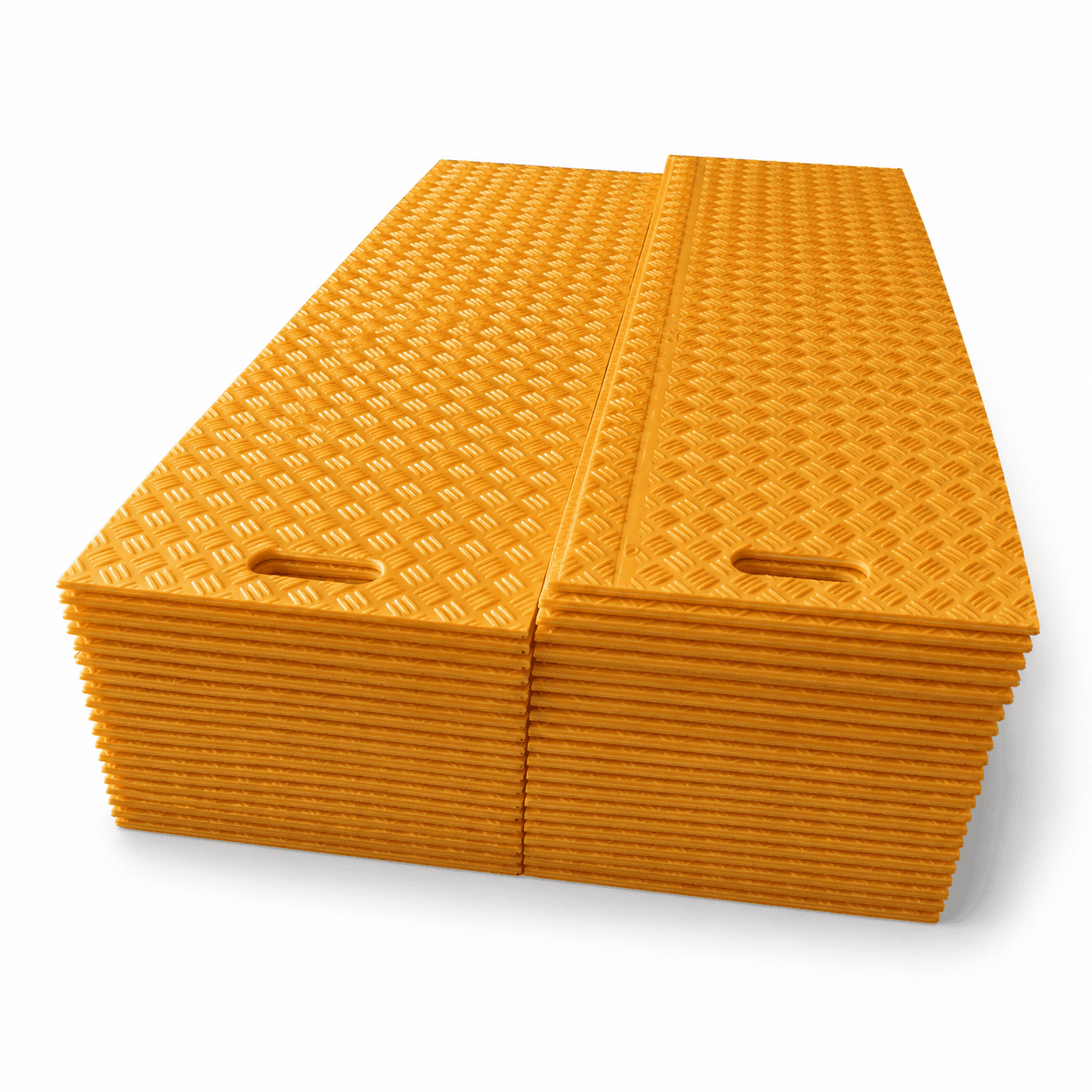

Black is commonly used for heavy-duty outdoor access applications. Other colors may also be selected when route identification, visual separation, or project-specific requirements need to be considered.
The raised traction surface is one of the main features of these ground protection mats. Compared with completely smooth plastic sheets, the textured tread provides additional contact between the panel surface and vehicle tires.
This makes the mats suitable for temporary access routes exposed to:
The heavy-duty tread surface helps vehicles follow a more defined travel route and provides improved traction in demanding outdoor environments.
Depending on the product configuration, the mats may use a traction pattern on one side or both sides. A double-sided design can provide tire traction on the upper surface while improving interaction between the lower surface and the supporting ground.
Correct installation remains important. Deep holes, large unsupported voids, sharp objects, trenches, unstable edges, and severe changes in ground level should be evaluated before regular vehicle traffic begins.
High-density polyethylene provides a practical combination of toughness, impact resistance, wear resistance, moisture resistance, corrosion resistance, and low water absorption.
These properties make Anti-Slip HDPE Ground Protection Mats suitable for temporary outdoor routes that may be repeatedly exposed to rain, mud, soil, grass, and changing weather conditions.
Unlike traditional steel access plates, HDPE does not rust. Compared with many timber access boards, the plastic material has low water absorption and does not absorb large quantities of moisture during wet outdoor use.
The panel surface can also be cleaned after a project, making inspection and repeated use more practical. When properly stored and handled, the mats can be moved between multiple temporary access projects.
For general information about the base polymer, you can read more about polyethylene material properties.
Different temporary access applications may require different surface structures. The tread design should be selected according to vehicle type, tire structure, pedestrian requirements, ground conditions, and operating environment.
Typical surface configurations may include:
Some products may combine different surface structures on the two sides. For example, the upper side may be designed for tire traction while the reverse side improves contact with the supporting surface.
The final tread configuration should be selected according to actual project requirements rather than appearance alone.
Anti-Slip HDPE Ground Protection Mats can be installed where temporary vehicle or equipment access is required without constructing a permanent roadway.
Typical applications include:
The modular structure allows the temporary route to be extended or widened as required. Additional panels can be installed to create longer roads, wider equipment areas, larger parking surfaces, or temporary working platforms.
Repeated vehicle movement over unprotected soft ground can quickly create deep ruts, muddy tracks, damaged grass, and increasingly difficult travel conditions.
Anti-Slip HDPE Ground Protection Mats help create a defined route for vehicles and equipment. The panels provide a continuous temporary surface and distribute vehicle contact across a wider area than direct tire contact with the ground.
Typical ground conditions include:
The mats are particularly useful where access is required for a limited period and permanent road construction would be unnecessary or impractical.
The actual level of ground protection depends on soil strength, moisture content, vehicle pressure, mat thickness, installation duration, and traffic frequency.
These mats can be used for different types of wheeled vehicles when the product specification and supporting ground conditions are appropriate.
Possible applications include:
Actual system performance should not be determined by total vehicle weight alone. Important factors include:
A panel installed over firm and evenly supported ground can perform differently from the same mat installed across deep mud, large holes, unsupported edges, trenches, or severe ground depressions.
For demanding heavy-vehicle applications, project conditions should be reviewed before the final panel size, thickness, route width, and connection method are selected.
Individual mats can be joined using suitable mechanical or engineered connection components. This helps maintain alignment between adjoining panels and creates a more continuous temporary surface.
The connected system can be arranged as:
Connector quantity and position should be selected according to traffic direction, vehicle turning, braking forces, mat dimensions, terrain, and expected traffic frequency.
For straight access routes, panels can be installed in a continuous line. For larger operating areas, additional rows can be connected to create a wider surface.
Temporary access is often required across lawns, parks, sports areas, landscaped surfaces, and other locations where permanent road construction is not suitable.
By creating a defined route, Anti-Slip HDPE Ground Protection Mats help keep traffic within a controlled access area and reduce unnecessary vehicle movement across surrounding surfaces.
The ground protection system can help:
Ground conditions should still be evaluated before installation. Extremely wet, deep, or unstable soil may require additional preparation, support, or project-specific evaluation.
One of the practical advantages of Anti-Slip HDPE Ground Protection Mats is their reusable panel structure.
After a temporary route is no longer needed, the mats can be:

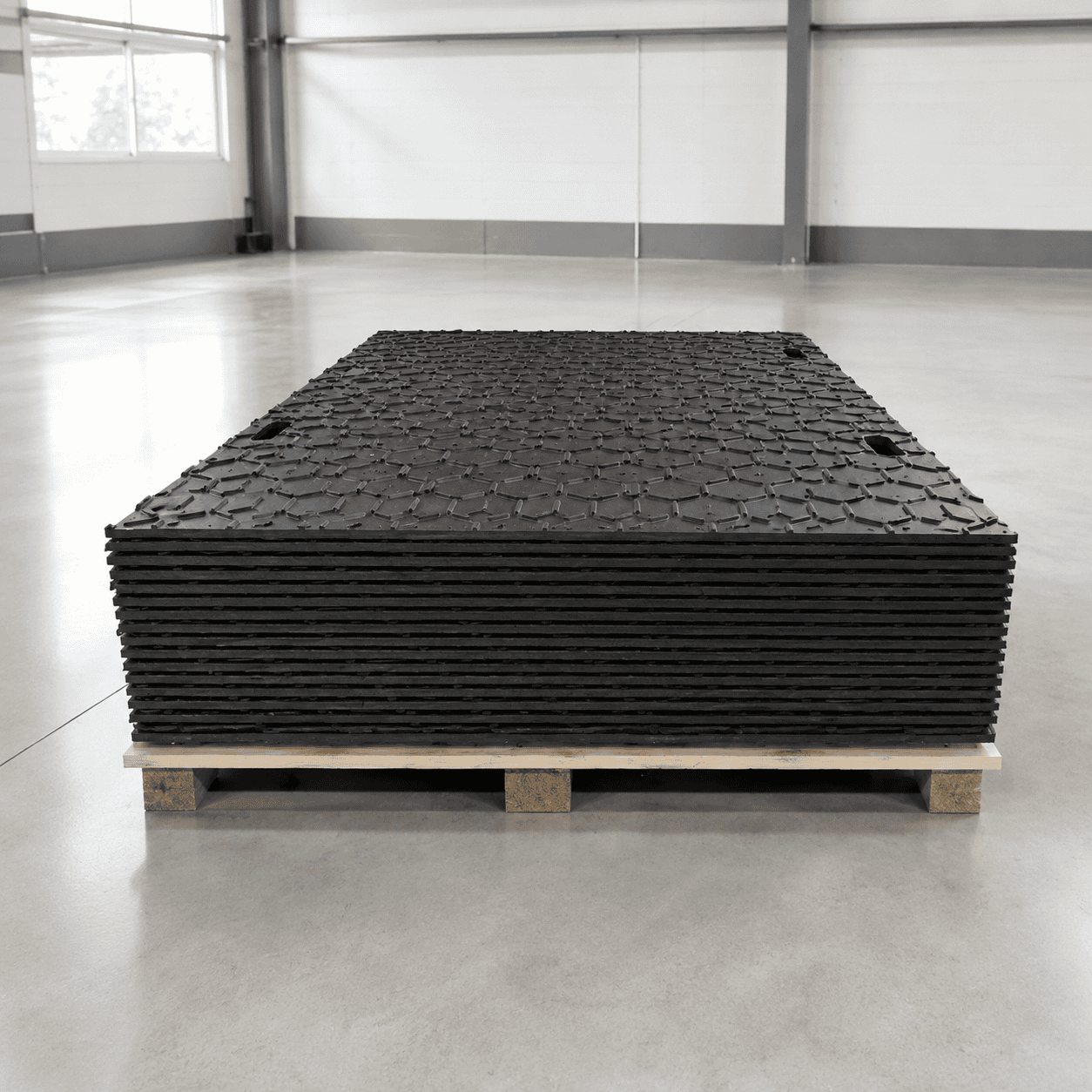

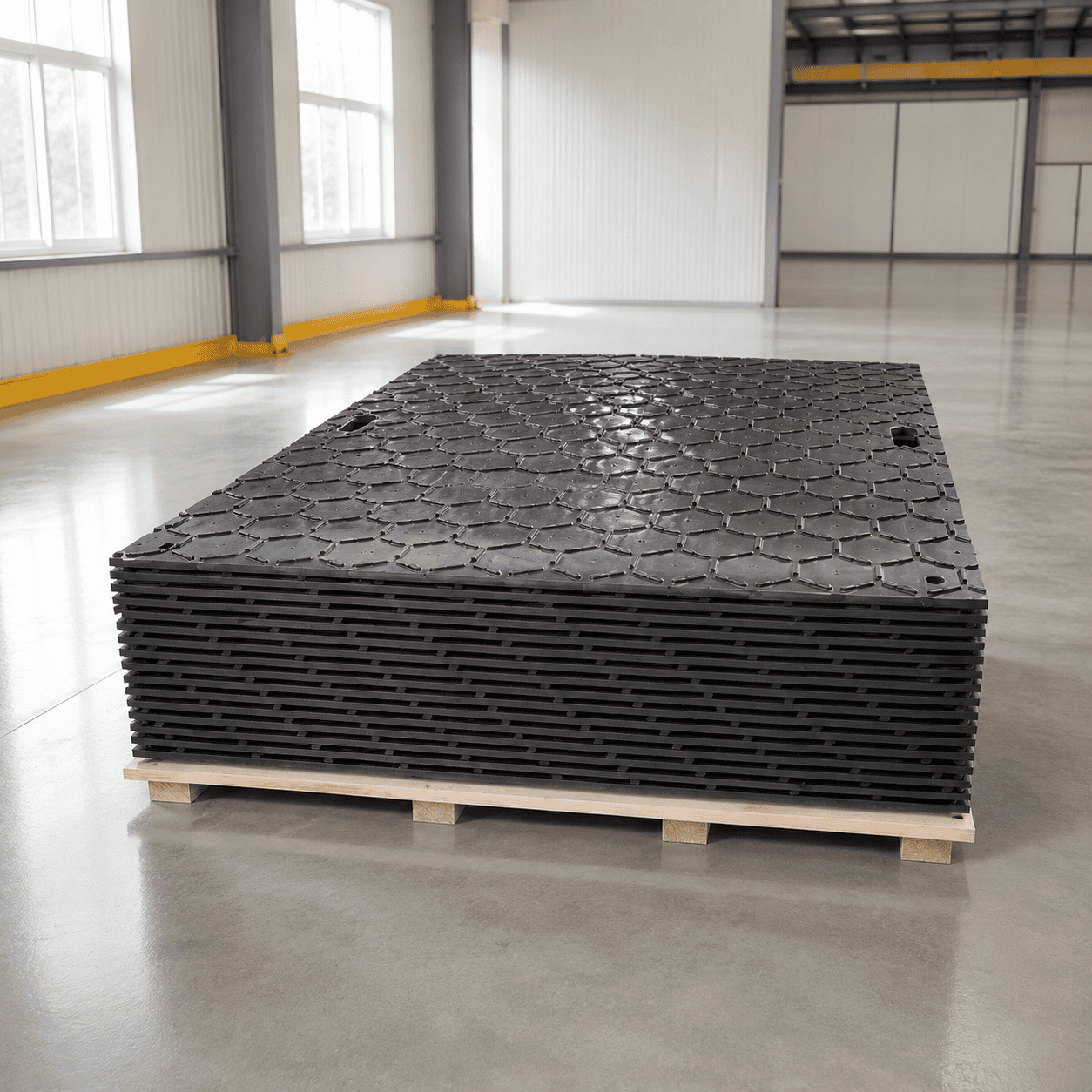

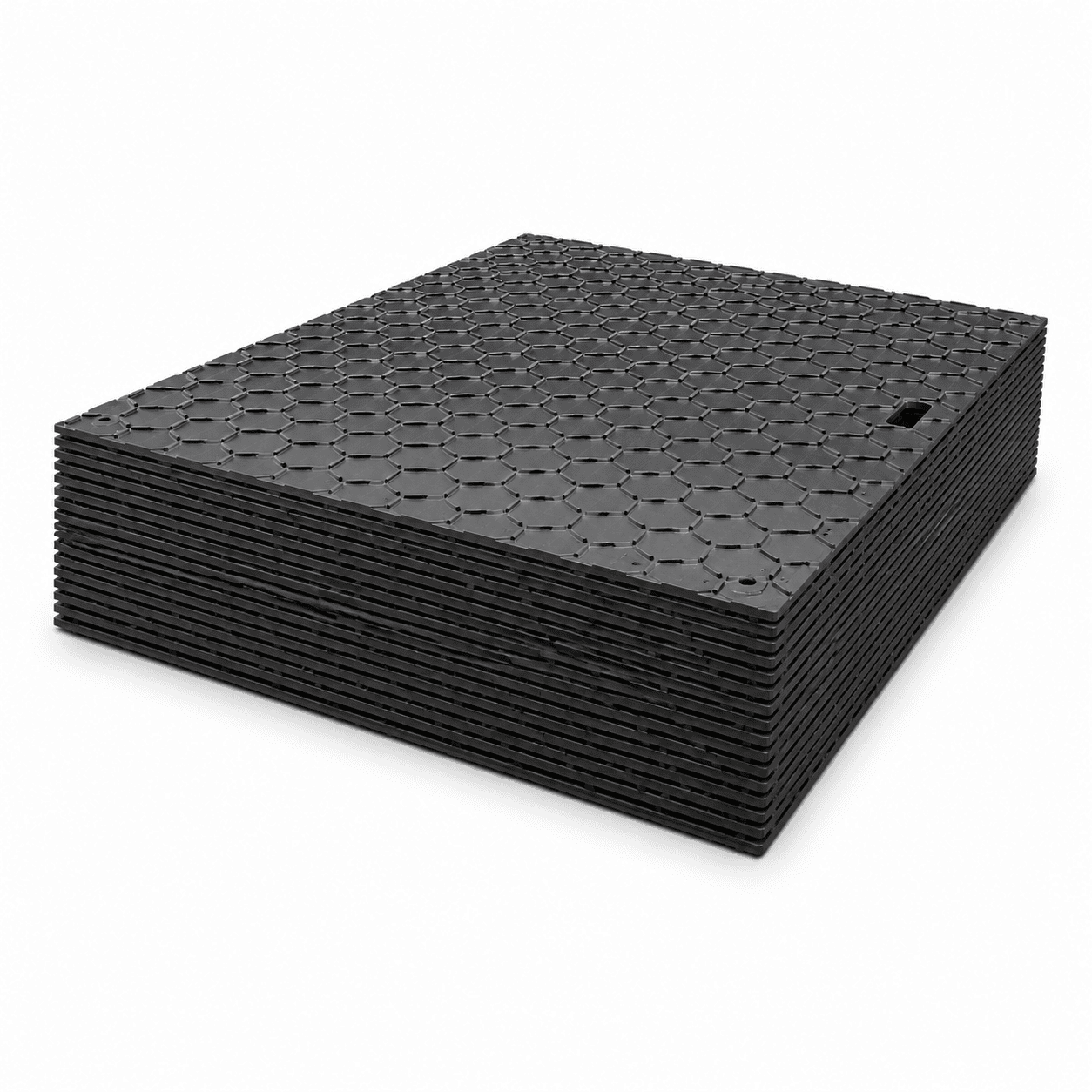

The flat rectangular panel format allows multiple mats to be stacked efficiently during factory storage, project preparation, and transportation.
The approximately 2000 × 1000 mm to 3000 × 1500 mm size range provides different options for balancing surface coverage, panel weight, transportation efficiency, and installation requirements.
The regular rectangular structure makes these panels suitable for organized stacked storage. Multiple mats can be prepared together for transportation to temporary access projects.
Smaller formats such as 2000 × 1000 mm provide easier handling, while common 2400 × 1200 mm and 2440 × 1220 mm panels offer greater coverage. Larger 3000 × 1500 mm mats can be selected when a wider surface area is required.
For thicker or heavier specifications, suitable lifting and handling methods should be selected according to the actual panel weight and working conditions.
Regular inspection helps maintain reliable performance during repeated use.
Before installation, check:
Damaged panels or connection components should be evaluated before they are used again for demanding vehicle access.
After muddy applications, cleaning the mat surface also makes inspection easier and can reduce unwanted soil transfer between different operating areas.
You can also view our complete range of ground protection mats for temporary roads, vehicle access, heavy equipment routes, grass protection, soft-ground access, and industrial applications.
Anti-Slip HDPE Ground Protection Mats provide a practical solution for temporary vehicle access, equipment routes, ground protection, parking areas, and outdoor operations. Their raised traction surface, durable polyethylene construction, reusable panel design, and modular installation system make them suitable for a wide variety of temporary access applications.
Typical sizes include 2000 × 1000 × 10 mm, 2400 × 1200 × 12.7 mm, 2440 × 1220 × 12.7 mm, 2900 × 1100 × 12.7 mm, and 3000 × 1500 × 15 mm. Final dimensions, thickness, tread pattern, and connection method should be selected according to the actual vehicle type, supporting ground, traffic frequency, and project operating requirements.
