Heavy Duty Grooved Polyethylene Crane Outrigger Pads are reusable UHMWPE or HDPE support panels featuring solid square structures, central circular grooved working areas and reinforced carrying handles. Practical reference sizes include 500 × 500 × 40–50 mm, 600 × 600 × 50–60 mm, 800 × 800 × 60–80 mm and 1000 × 1000 × 80–100 mm for mobile cranes, concrete pumps, boom trucks and other stabilizer-equipped machinery.
Heavy Duty Grooved Polyethylene Crane Outrigger Pads are solid engineering-plastic support panels designed for mobile crane outriggers, concrete pump stabilizers, boom truck support legs, truck-mounted cranes, aerial work platforms and other machinery equipped with hydraulic stabilizers.

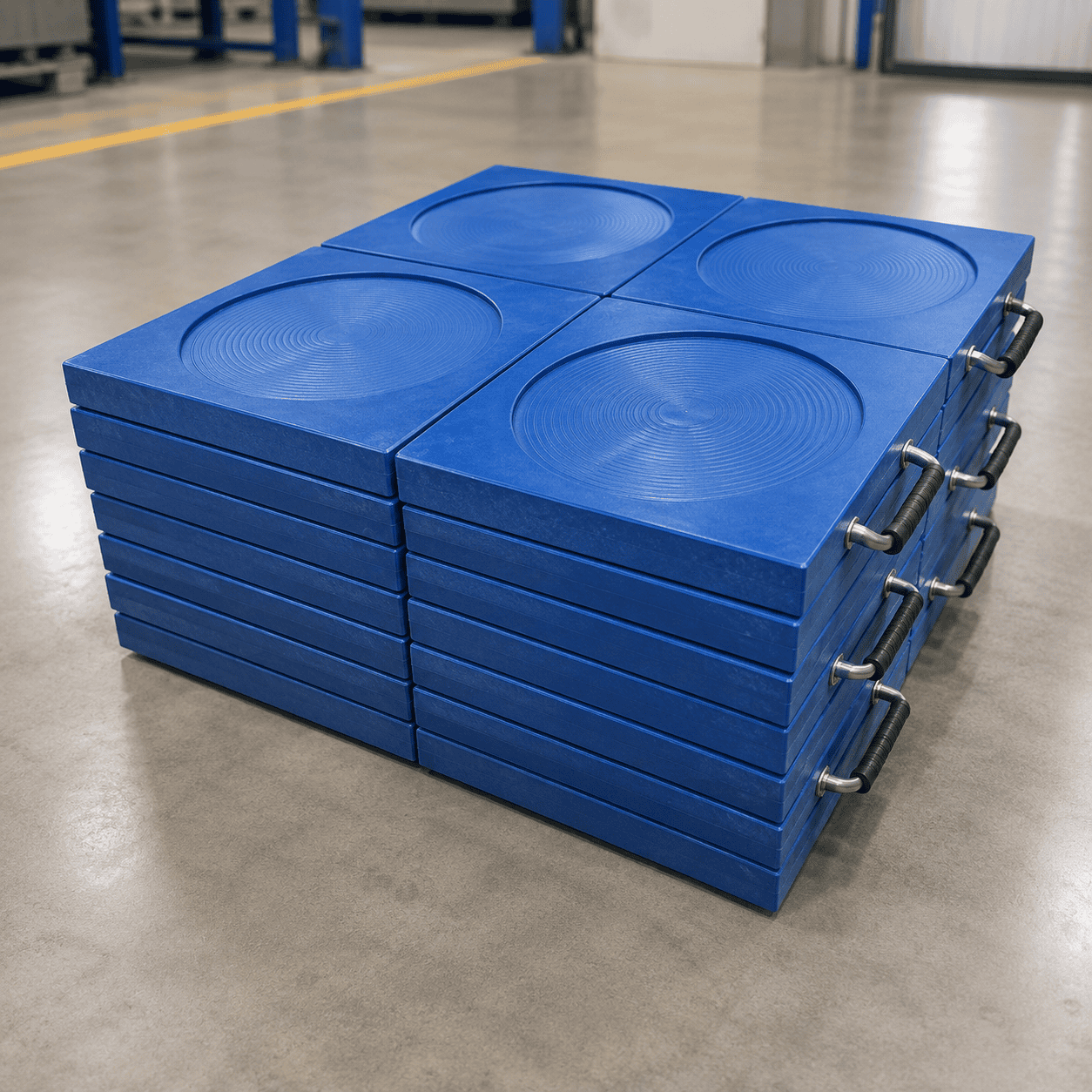

The product shown features a solid square panel structure, a central circular grooved working area and reinforced carrying handles positioned along the outside edges. Matching support pads can be stacked together as a complete equipment-support set for transportation, vehicle storage, warehouse organization and repeated machinery setup.
The circular working area contains concentric surface grooves that create a clearly identifiable contact zone for compatible round, square or near-round stabilizer feet. Compared with a completely smooth support panel, the grooved surface makes the intended equipment-contact area easier to identify during positioning.
This product series can be manufactured from UHMWPE or HDPE according to the required dimensions, thickness, stabilizer-foot size, handling frequency and operating conditions. Although both materials belong to the polyethylene family, their impact resistance, abrasion performance, stiffness and processing characteristics are different.
Unlike temporary roadway mats that are installed continuously to create a vehicle-access route, crane outrigger pads are placed directly beneath individual stabilizer feet. Their main function is to increase the geometric contact area between the original equipment foot and the supporting surface.
The precise dimensions of the products shown cannot be confirmed from the photograph alone. The following specifications are practical reference sizes for solid UHMWPE or HDPE crane support pads with central circular grooved working areas.
| Reference Pad Size | Reference Thickness | Reference Grooved Area | Typical Application |
|---|---|---|---|
| 400 × 400 mm | 40 mm | Ø180–220 mm | Compact stabilizers and service vehicles |
| 500 × 500 mm | 40–50 mm | Ø220–280 mm | Utility vehicles and compact crane support |
| 600 × 600 mm | 50–60 mm | Ø250–320 mm | Mobile cranes and boom trucks |
| 700 × 700 mm | 50–70 mm | Ø300–360 mm | Medium stabilizer-support applications |
| 800 × 800 mm | 60–80 mm | Ø320–400 mm | Concrete pumps and medium heavy equipment |
| 900 × 900 mm | 70–80 mm | Ø380–450 mm | Larger crane and pump-truck stabilizers |
| 1000 × 1000 mm | 80–100 mm | Ø400–500 mm | Large mobile-equipment support |
| 1200 × 1200 mm | 80–100 mm | Ø500–600 mm | Large cranes and heavy machinery |
The approximately 400 × 400 × 40 mm and 500 × 500 × 40–50 mm formats provide compact support options where vehicle-storage space and repeated manual positioning are important.
The approximately 600 × 600 × 50–60 mm format provides a practical balance between geometric support area, panel thickness, finished product weight and equipment-storage requirements.
Medium-size products such as approximately 700 × 700 × 50–70 mm and 800 × 800 × 60–80 mm provide broader support areas for mobile cranes, concrete pumps, boom trucks and utility equipment.
Larger panels such as approximately 900 × 900 × 70–80 mm, 1000 × 1000 × 80–100 mm and 1200 × 1200 × 80–100 mm require additional consideration for transportation, finished product weight, vehicle storage and mechanical handling.
The diameter of the grooved working area should be selected according to the actual width or diameter of the original stabilizer foot. Suitable clearance should be retained so that the stabilizer foot can be positioned without resting directly on the outside edge of the circular working area.
The dimensions above are reference product options rather than universal safe-working-load ratings. Final pad dimensions and thickness should be selected according to the maximum individual stabilizer reaction, original equipment-foot dimensions, required support area, polyethylene grade, panel stiffness and supporting surface condition.
| Specification | Typical Reference |
|---|---|
| Product type | Heavy-duty grooved crane outrigger support pad |
| Material options | UHMWPE or HDPE |
| Main shape | Square |
| Alternative shapes | Rectangular, round and clipped-corner formats |
| Working surface | Central circular grooved working area |
| Reference size range | Approximately 400 × 400 mm to 1200 × 1200 mm |
| Reference thickness | Approximately 40–100 mm |
| Reference groove diameter | Approximately Ø180–600 mm |
| Reference groove depth | Approximately 3–10 mm |
| Handling structure | Reinforced metal or flexible carrying handles |
| Storage structure | Stackable matching support-pad sets |
| Main applications | Mobile cranes, concrete pumps, boom trucks and heavy machinery |
Final dimensions, polyethylene grade, panel thickness, groove diameter, groove depth, outside shape and handle arrangement should always be matched to the actual equipment and operating requirements.
The defining structural feature of Heavy Duty Grooved Polyethylene Crane Outrigger Pads is the circular grooved working area formed in the center of the upper surface.
The central structure provides:
The circular grooved area should not be described as a universal mechanical locking device. The equipment foot must still be positioned correctly, and the complete support panel must remain properly supported by the surface underneath it.
The stabilizer foot should not rest only on the outside edge of the circular area. Its primary contact surface should remain within the intended central working zone.
The reference product includes several concentric circular grooves across the central working area.
These surface grooves provide:
Mud, oil, gravel, stones, metal fragments and other hard debris should be removed from the grooved working area before equipment load is applied.
The concentric pattern does not replace correct pad sizing, suitable panel thickness, stable supporting conditions or correct stabilizer-foot positioning.
The groove diameter should be considered together with the dimensions and shape of the original stabilizer foot.
Important measurements include:
For example, a round stabilizer foot measuring approximately Ø280 mm may use a grooved working area with an outside diameter of approximately Ø300–340 mm, subject to the actual equipment dimensions and approved product drawing.
A groove diameter that is too small may interfere with positioning, while an unnecessarily large circular working area can reduce the solid material remaining around the main support zone.
The circular structure can be manufactured as a shallow textured groove or as a more pronounced recessed working area.
Groove depth can affect:
A practical shallow groove may be approximately 3–10 mm deep, depending on the total panel thickness, stabilizer-foot structure and approved product design.
The deepest available groove is not automatically the best choice. The final structure should retain sufficient solid polyethylene material beneath and around the primary equipment-contact area.

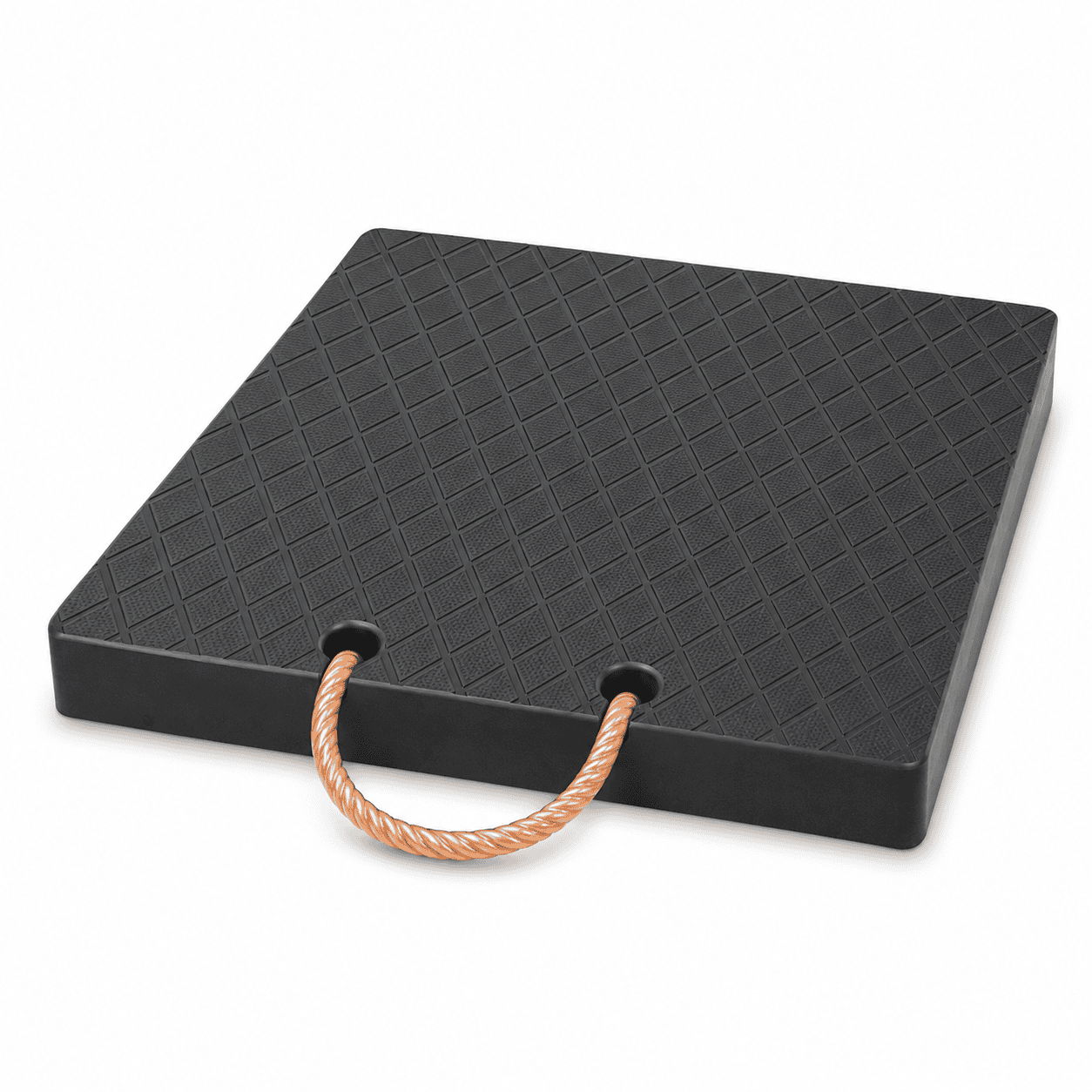

The square panel construction provides a practical geometric support area beneath round, square or rectangular stabilizer feet.
A solid square support panel can provide:
The original stabilizer foot should remain within the intended working area of the support panel. A foot positioned close to an unsupported outside edge creates a different loading condition from one positioned within the main central support area.
The support panel should not bridge a large unsupported void, deep depression, unstable edge or unsuitable opening.

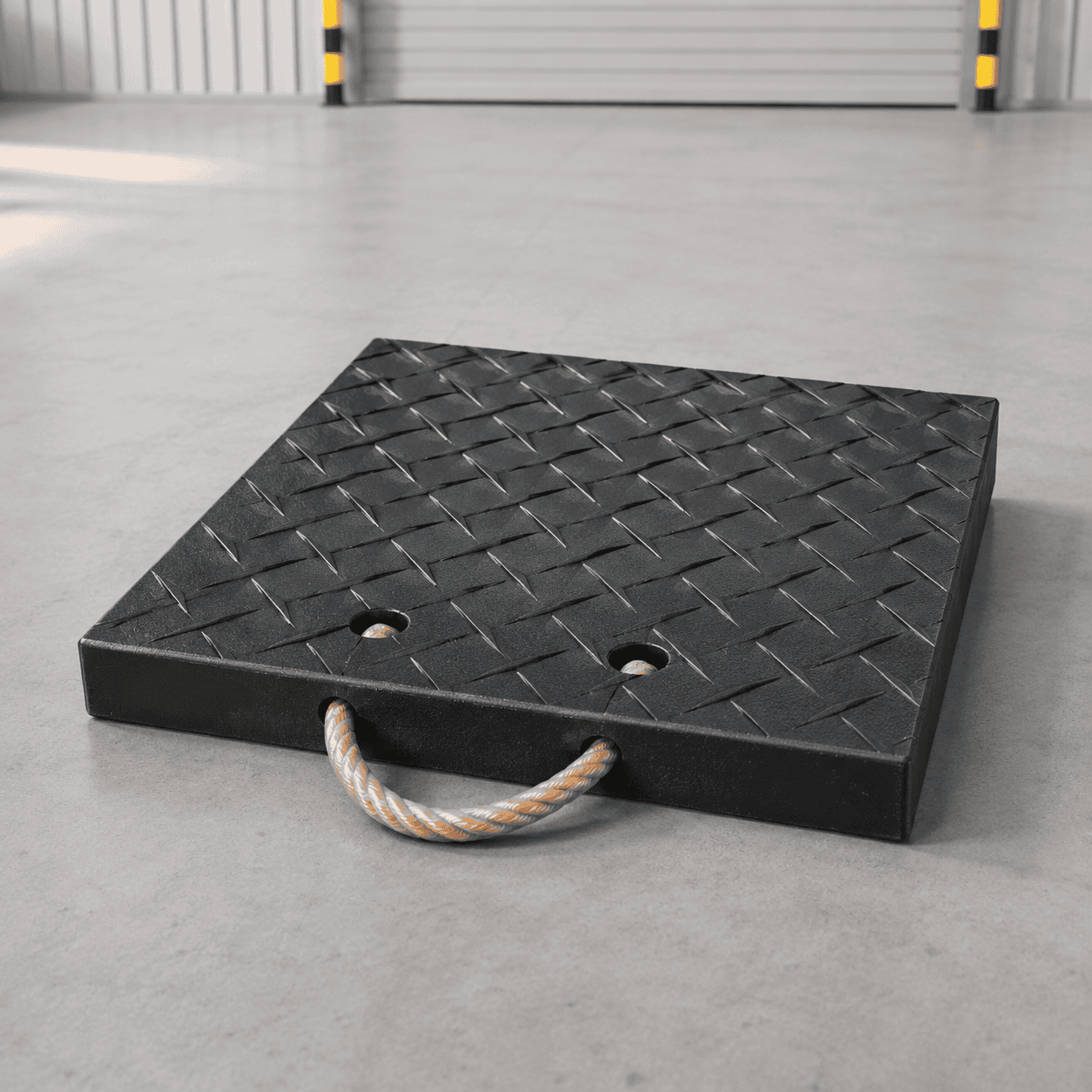

The reference product includes reinforced carrying handles installed along the outside edges.
The handles provide defined gripping points when the support pads need to be:
Before moving a support pad, inspect:
The carrying handles are intended for transportation and positioning. They should not be treated as structural components carrying the crane or stabilizer load.
Large solid support panels may require coordinated team handling or suitable mechanical equipment even when several carrying handles are installed.

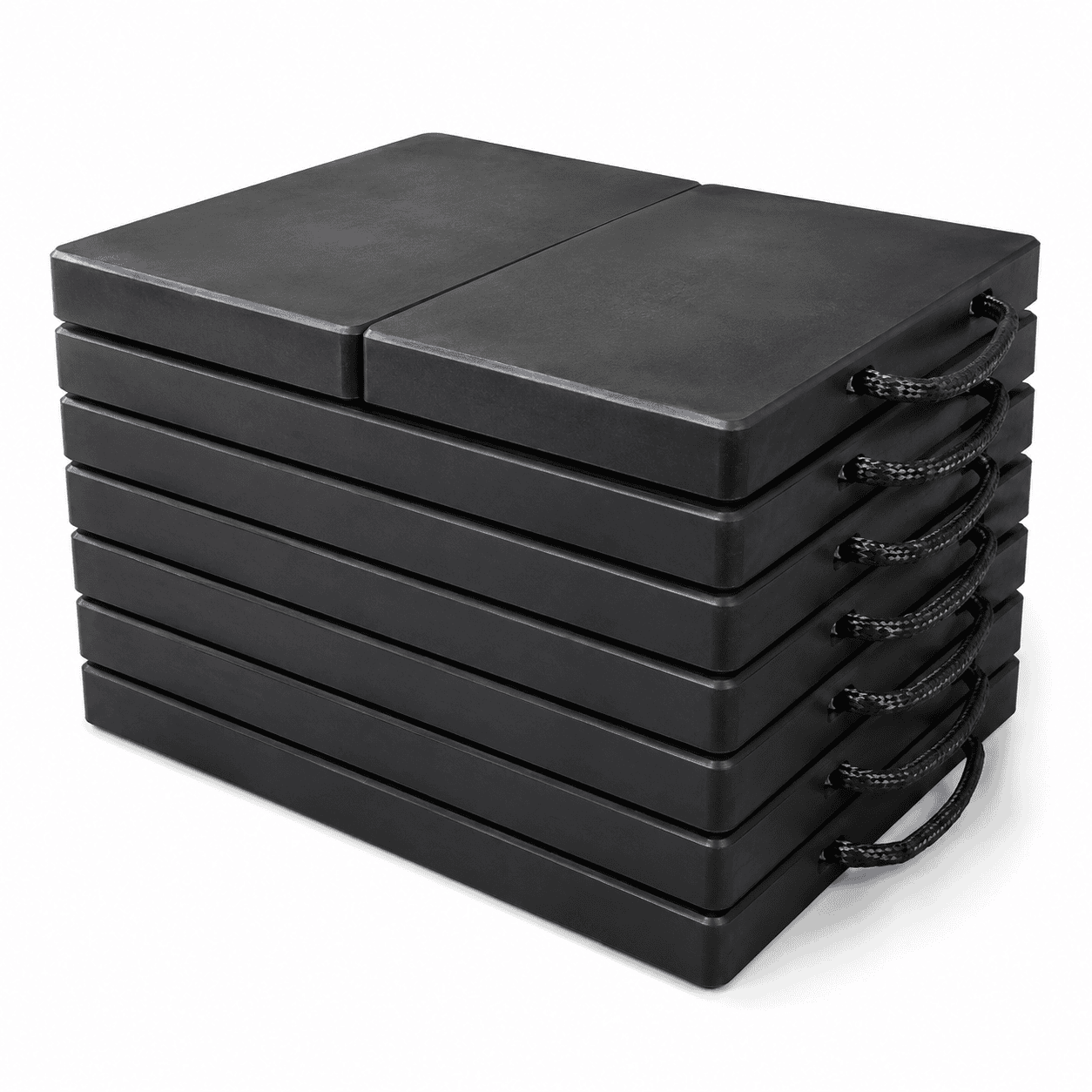

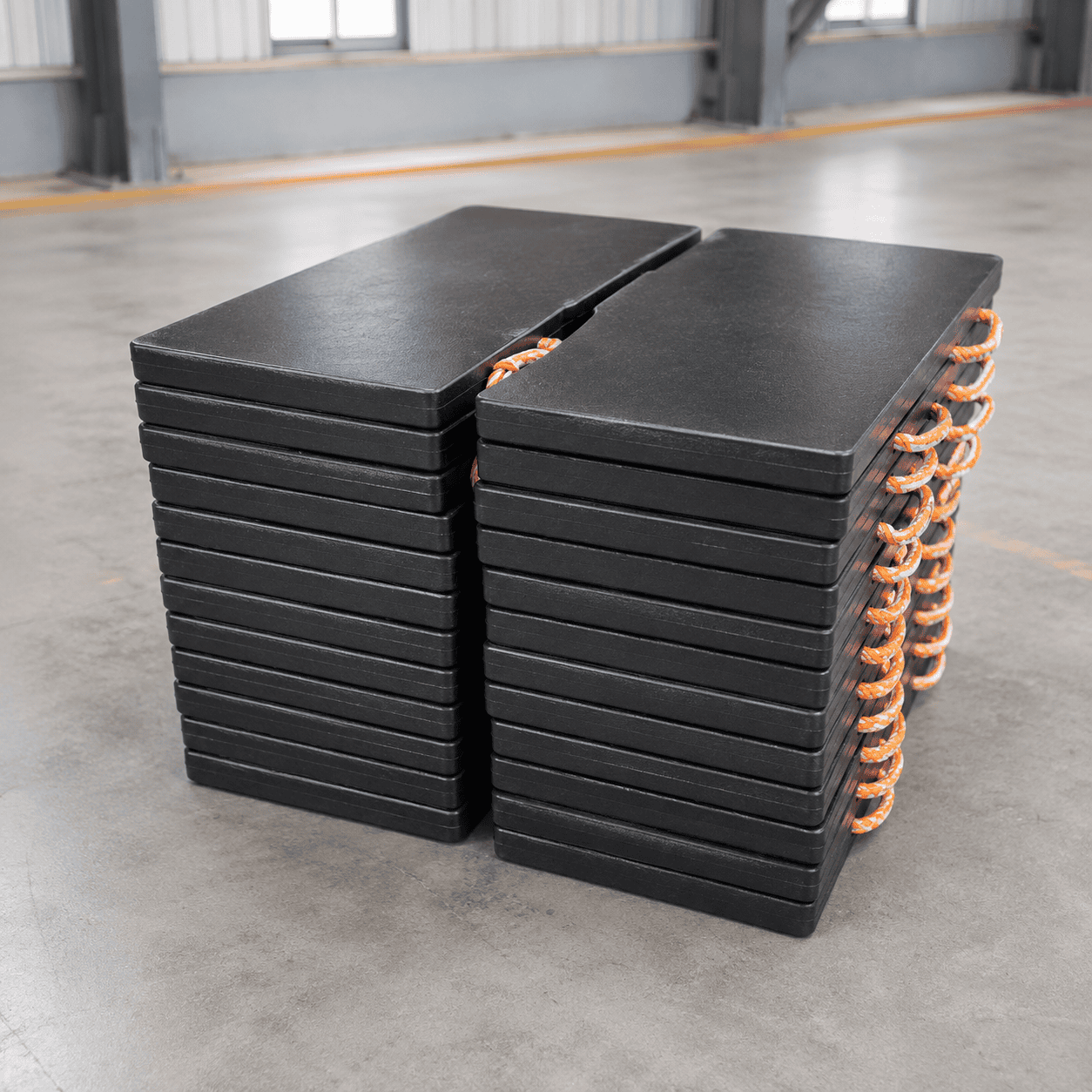

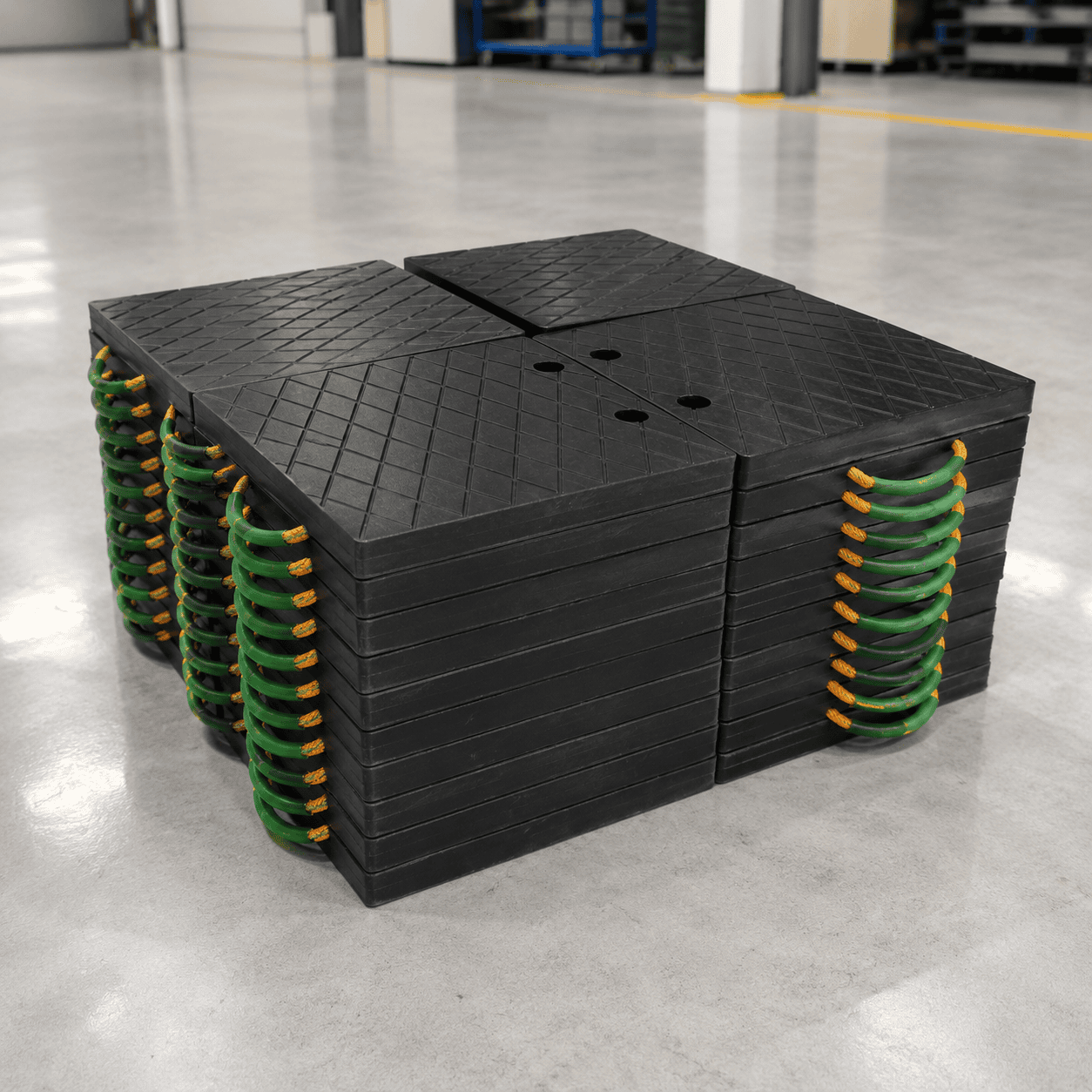

The reference image shows several matching support pads stacked together as a complete equipment-support set.
A stackable panel design can help with:
Multiple flat crane pads should not automatically be stacked beneath an operating stabilizer unless the complete support arrangement has been properly evaluated.
The storage surface should be reasonably level and capable of supporting the combined weight of the complete stack.
Stones, gravel and metal fragments should be removed before stacking to reduce concentrated contact points and unnecessary surface damage.
UHMWPE stands for ultra-high-molecular-weight polyethylene. It is a thermoplastic polyethylene containing extremely long molecular chains and is associated with high toughness, strong impact resistance, extremely low moisture absorption, low friction and strong abrasion resistance.
For a general material explanation, see the Wikipedia article about ultra-high-molecular-weight polyethylene.
Practical UHMWPE characteristics for reusable crane-support products include:
UHMWPE can be considered where repeated handling, impact exposure, outdoor operation and abrasion resistance are important.
HDPE stands for high-density polyethylene. It is a thermoplastic polymer known for its relatively high strength-to-density ratio and resistance to many solvents.
For a general material explanation, see the Wikipedia article about high-density polyethylene.
Practical HDPE characteristics for crane-pad applications include:
Material properties can vary according to the selected grade, manufacturing method, product dimensions, operating temperature and service conditions.
Chemical resistance should not be interpreted as universal resistance to every substance. Actual compatibility depends on the chemical, concentration, exposure temperature, contact time and selected polyethylene grade.
The correct material for Heavy Duty Grooved Polyethylene Crane Outrigger Pads should be selected according to the actual equipment and operating conditions rather than product appearance alone.
Important considerations include:
UHMWPE is generally considered where particularly high impact toughness and abrasion resistance are required. HDPE can provide a practical combination of strength, durability and finished-product weight for many general equipment-support applications.
A hydraulic stabilizer transfers a concentrated reaction through a relatively small original equipment foot.
Heavy Duty Grooved Polyethylene Crane Outrigger Pads create a larger geometric contact area beneath that foot while providing a clearly defined central working surface.
The performance of the complete support arrangement depends on:
A larger outside dimension provides a larger geometric footprint, but panel dimensions alone should not be treated as a universal safe-working-load rating.
The correct support pad should not be selected only according to total machine weight or maximum rated crane lifting capacity.
Individual outrigger reactions can change according to:
Important selection factors include:
Each stabilizer position should be evaluated independently because loads and supporting conditions can differ around the same machine.
Heavy Duty Grooved Polyethylene Crane Outrigger Pads can be used with many types of stabilizer-equipped machinery.
The correct panel dimensions, thickness, polyethylene grade, groove structure and handle arrangement should always be matched to the actual equipment-support point.
Correct positioning is essential when using a grooved crane support pad.
Before applying equipment load, confirm that:
The circular grooved working surface should remain free from excessive oil, mud, gravel and metal debris.
Reusable crane outrigger pads should be inspected before every demanding equipment setup.
Check:
A damaged support pad should be separated and evaluated before returning to crane or heavy-equipment service.
After operation, remove mud, sand, gravel, oil and other debris from the primary working surfaces.
Cleaning can help:
During storage:
You can also view our complete range of crane outrigger pads for mobile cranes, concrete pumps, boom trucks, hydraulic stabilizer systems and other heavy machinery applications.
Heavy Duty Grooved Polyethylene Crane Outrigger Pads provide a practical support solution for mobile cranes, truck-mounted cranes, concrete pumps, boom trucks and other stabilizer-equipped machinery.
The product combines solid polyethylene construction, a central circular grooved working area, concentric surface lines, reinforced carrying handles and a stackable square-panel structure.
Typical reference specifications include approximately 400 × 400 × 40 mm, 500 × 500 × 40–50 mm, 600 × 600 × 50–60 mm, 700 × 700 × 50–70 mm, 800 × 800 × 60–80 mm and 1000 × 1000 × 80–100 mm.
Final dimensions, thickness, UHMWPE or HDPE material grade, groove diameter, groove depth and handle configuration should always be selected according to the maximum individual stabilizer reaction, original equipment-foot dimensions, supporting surface condition and actual operating requirements.
