HDPE Mobile Access Mats are durable reusable panels designed to create temporary vehicle and equipment routes over mud, grass, sand, gravel, and soft ground. Common sizes include approximately 2400 × 1100 mm, 2400 × 1200 mm, and 2440 × 1220 mm, with typical portable mat thicknesses from 12 mm to 20 mm. Their raised traction surface, mobile design, and stackable structure make them suitable for temporary roads, maintenance access, equipment routes, utility operations, oil and energy projects, and outdoor applications.
HDPE Mobile Access Mats are durable reusable panels designed to create temporary routes for vehicles, equipment, and industrial traffic over mud, grass, sand, gravel, soft soil, wet ground, and other challenging surfaces. Manufactured from high-density polyethylene, these mobile mats provide a practical solution where temporary access is required but permanent road construction is unnecessary.
The panel structure combines ground protection, vehicle traction, portability, and repeated use. Individual mats can be installed as a continuous temporary roadway, arranged as parallel vehicle tracks, or connected side by side to create wider equipment access areas.
After a temporary route is no longer required, the mats can be removed, cleaned, inspected, stacked, transported, and installed again at another location. This mobile design makes them particularly suitable for projects where access routes frequently change.
HDPE Mobile Access Mats are available in different dimensions and thicknesses for light vehicle routes, general equipment access, and more demanding temporary roadway applications.
Typical mobile access mat specifications include:
| Panel Size | Typical Thickness | Application Type |
|---|---|---|
| 1200 × 1100 mm | 12–20 mm | Compact access areas and short temporary routes |
| 2400 × 1100 mm | 12–20 mm | General vehicle and equipment access |
| 2400 × 1200 mm | 12.7–20 mm | Temporary roads and mobile access routes |
| 2440 × 1220 mm | 12.7–20 mm | Common 8 × 4 ft temporary access format |
| 2900 × 1100 mm | 12–20 mm | Longer vehicle trackways |
| 3000 × 1500 mm | 30–60 mm | Heavy-duty equipment access areas |
| 4500 × 2000 mm | 30–100 mm | Large-format heavy access applications |
Common thickness options for portable single-panel mats include approximately 12 mm, 12.7 mm, 15 mm, 18 mm, and 20 mm. Larger heavy-duty systems may use thicker structural designs from approximately 30 mm to 100 mm, depending on the product structure and operating requirements.
A raised traction profile of approximately 7 mm may be used on selected surface designs. Final tread height should be selected according to vehicle type, tire structure, ground conditions, and required traction performance.
The most suitable dimensions and thickness should be selected according to vehicle axle load, tire pressure, ground bearing strength, traffic frequency, route layout, and installation conditions.
The main advantage of these mats is their ability to create a temporary access route without permanently changing the underlying surface.
HDPE Mobile Access Mats can be installed when access is required and removed after the operation is completed. This is useful for projects where vehicles and equipment must move between different areas or where access requirements change over time.
The mobile panel system can help create:
The route can be lengthened by adding additional panels or widened by installing multiple rows side by side.
High-density polyethylene provides a practical combination of toughness, impact resistance, wear resistance, moisture resistance, corrosion resistance, and low water absorption.
These material characteristics make HDPE Mobile Access Mats suitable for repeated outdoor installation where temporary routes may be exposed to:
Unlike steel road plates, HDPE does not rust. Compared with many traditional timber access boards, polyethylene has low water absorption and does not absorb large quantities of moisture during wet outdoor use.
The plastic surface can also be cleaned after operation, making repeated transportation and installation more practical.
For general information about the base polymer, you can read more about polyethylene material properties.
The upper surface features a raised tread pattern designed to improve contact between vehicle tires and the mat.
Compared with completely smooth plastic panels, the textured surface provides a more suitable route for temporary outdoor vehicle movement.
The traction surface can be particularly useful over:
Selected products may use a pronounced vehicle trackway pattern, while other versions may use a lower-profile surface for mixed vehicle and pedestrian access.
Depending on the product design, both sides may include surface structures. The upper surface provides tire traction while the reverse side helps improve interaction with the supporting ground.
Mobile access mats are designed to be positioned, connected, removed, and reused more conveniently than permanent road materials.
Common handling features may include:
Smaller and medium-sized mats can be positioned using appropriate manual or mechanical handling methods according to their actual weight.
Large-format or thick heavy-duty panels should be moved using suitable lifting equipment. Handling methods should always match actual product dimensions, weight, and workplace conditions.

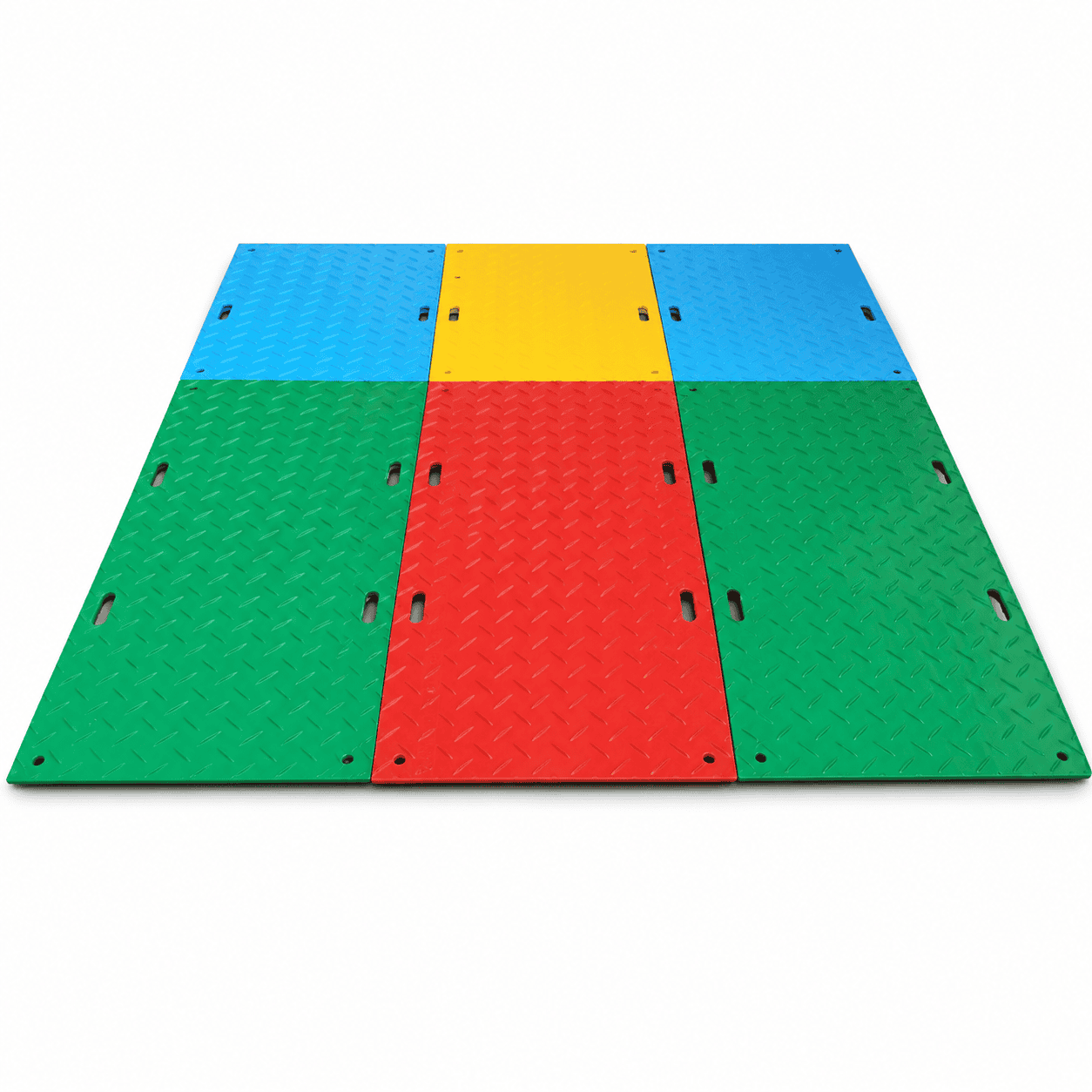

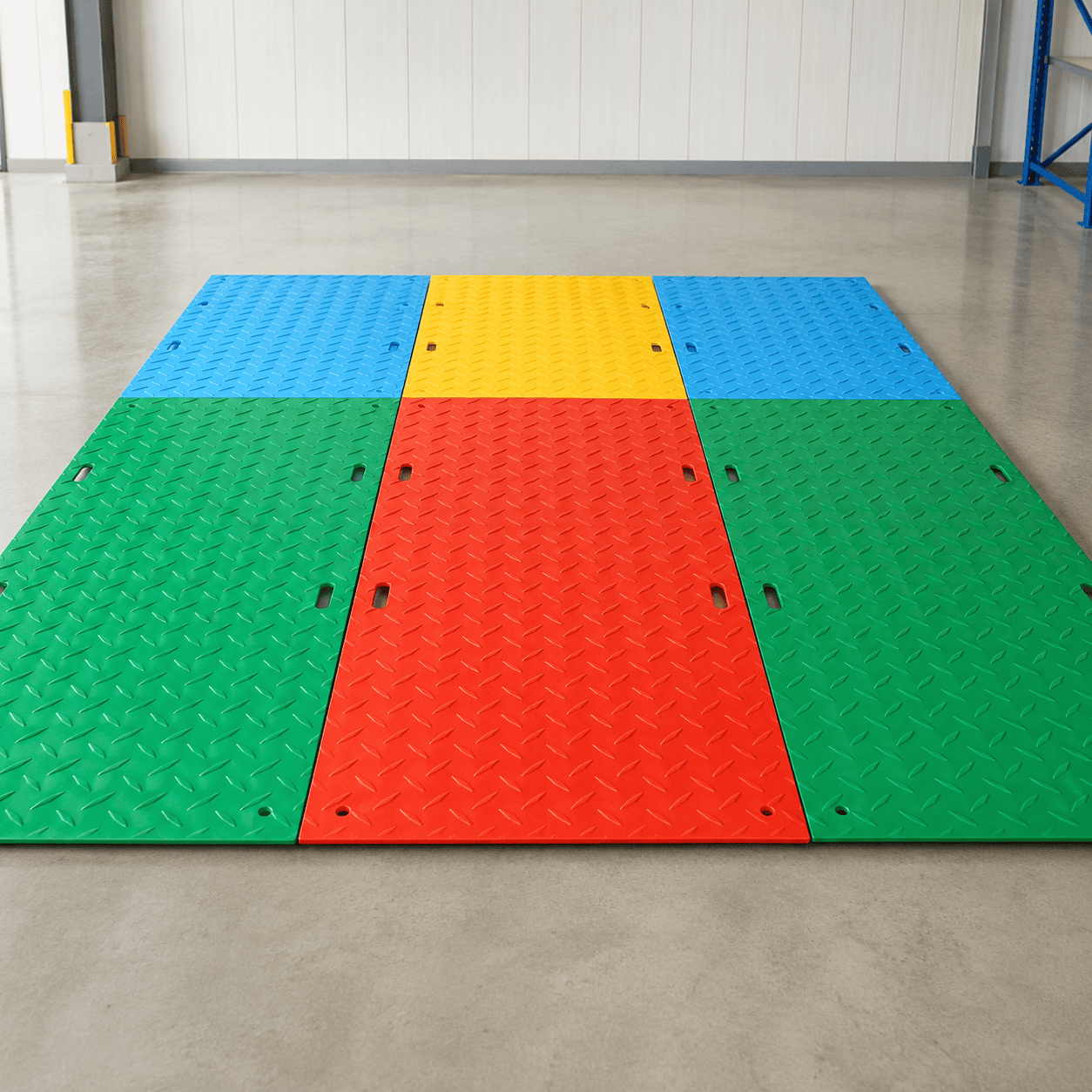

HDPE Mobile Access Mats can be installed in several configurations according to the vehicle route and project requirements.
Typical layouts include:
A full-width roadway provides a continuous temporary travel surface. Parallel wheel-track installation may be suitable for selected straight vehicle routes where reducing the total number of panels is important.
The correct installation method should be selected according to vehicle width, wheel position, route direction, turning movements, supporting ground, and project requirements.
Repeated vehicle movement over mud and soft soil can quickly create deep wheel ruts and increasingly difficult access conditions.
HDPE Mobile Access Mats help create a defined temporary route and reduce repeated direct tire contact with the underlying ground.
The panels spread vehicle contact over a larger area than the tires alone and help keep traffic within a controlled pathway.
Before installation, the route should be inspected for:
Extremely deep mud or very weak terrain may require additional preparation or a heavier temporary access system.
Temporary vehicle or equipment access is often required across lawns, landscaped areas, golf courses, parks, sports surfaces, and other locations where permanent road construction is unsuitable.
The mats create a defined travel route that helps keep vehicles within a controlled access area.
The temporary system can help:
The actual level of ground protection depends on soil moisture, grass condition, vehicle pressure, traffic frequency, installation duration, and mat layout.
HDPE Mobile Access Mats are suitable for many temporary vehicle and equipment access applications.
Typical applications include:
The same modular mat system can be adjusted according to different route lengths and widths.
These mobile mats can provide temporary access for different types of wheeled vehicles when the selected specification and supporting ground conditions are appropriate.
Possible applications include:
Actual performance should not be determined by total vehicle weight alone.
Important factors include:
A mat installed over firm and evenly supported ground can perform differently from the same product installed across deep mud, large depressions, unsupported edges, or extremely weak terrain.
For demanding equipment applications, the complete project conditions should be evaluated before final dimensions, thickness, route width, and installation layout are selected.
Individual panels can be joined using suitable mechanical or engineered connection components.
A connected temporary roadway can help:
Connector quantity and position should be selected according to mat size, traffic direction, turning movements, braking forces, route width, and ground conditions.
Connection components should be inspected together with the mats before repeated use.
A major advantage of HDPE Mobile Access Mats is their reusable structure.
After one route is no longer required, the panels can be:
This is particularly useful for businesses that frequently move temporary vehicle or equipment routes between different operating areas.

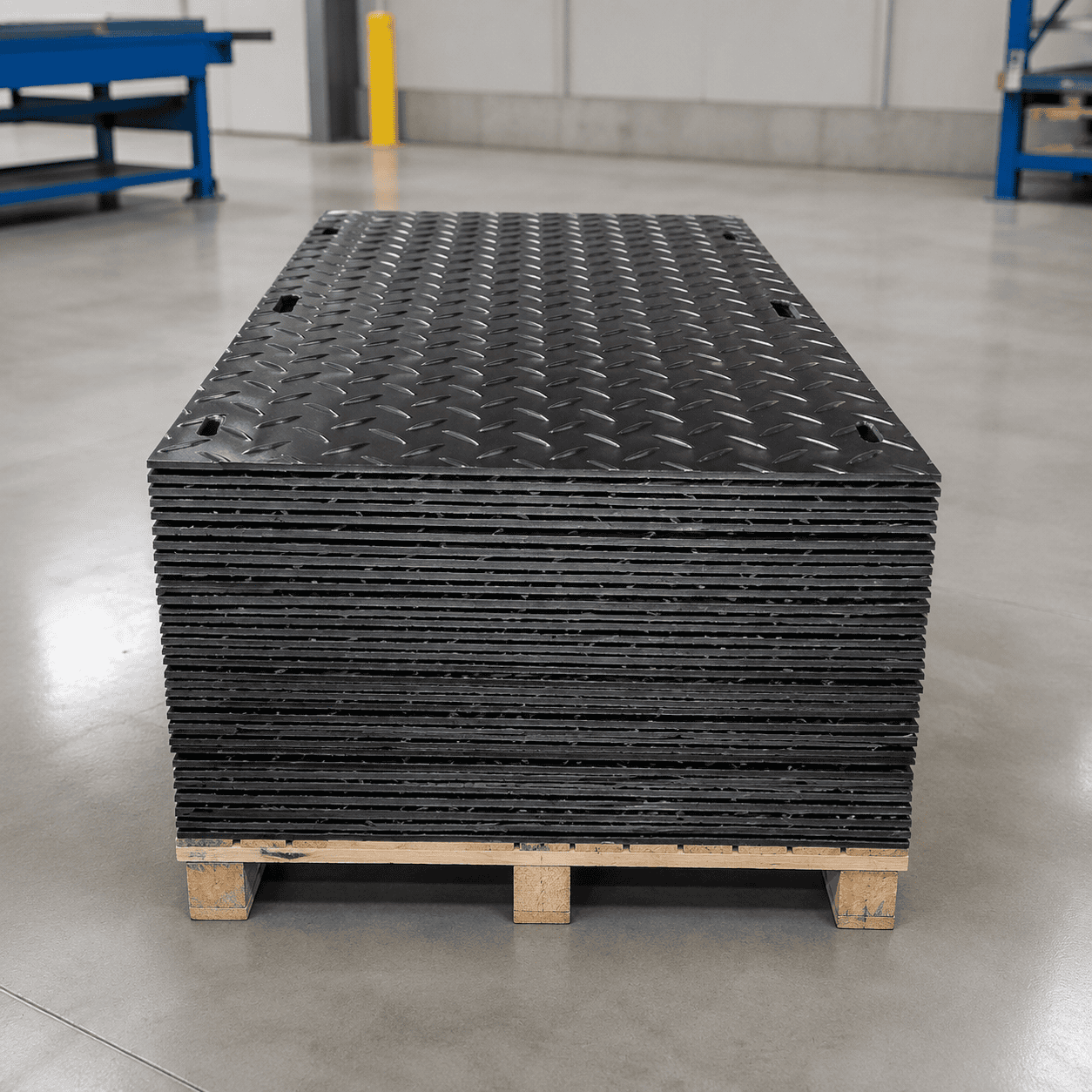

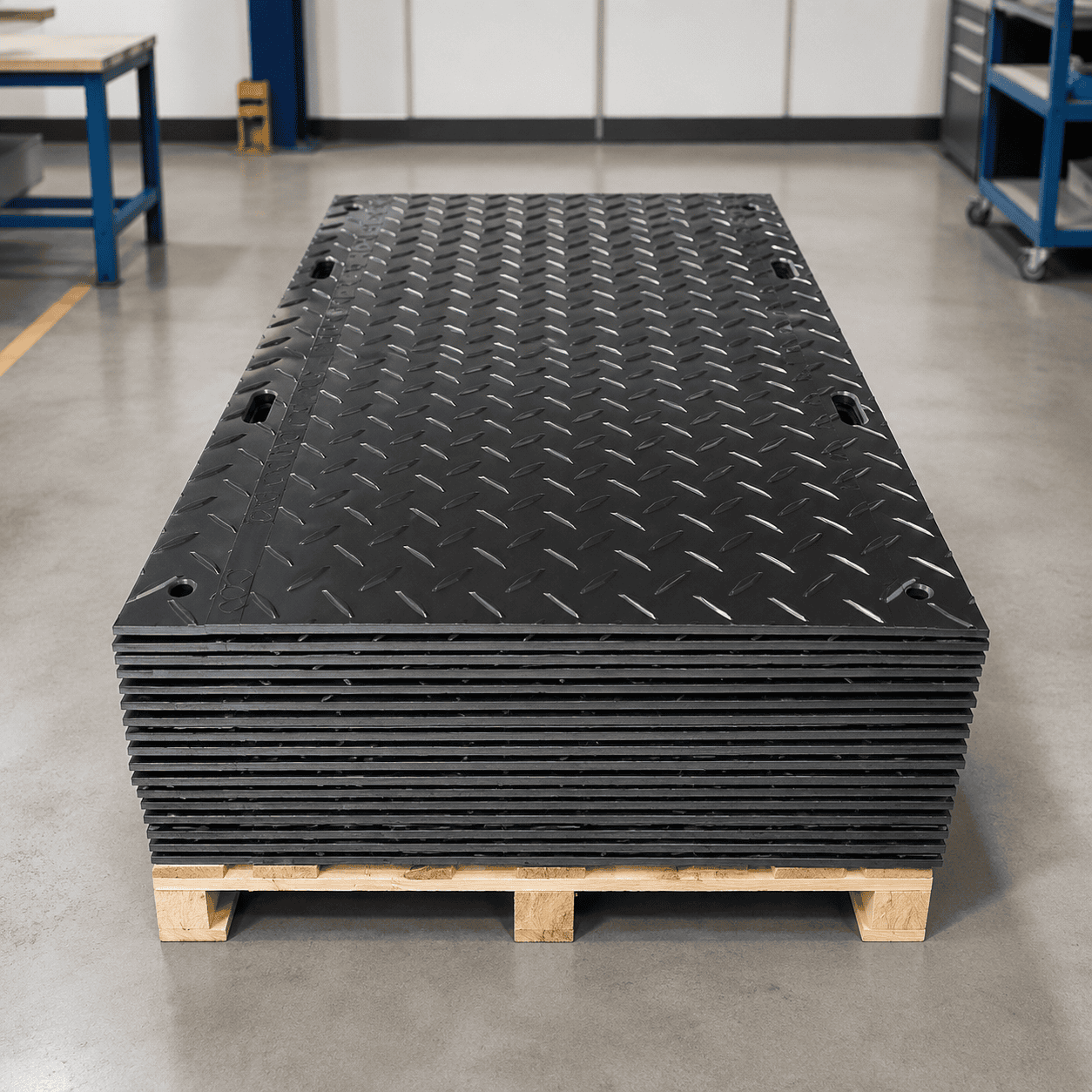

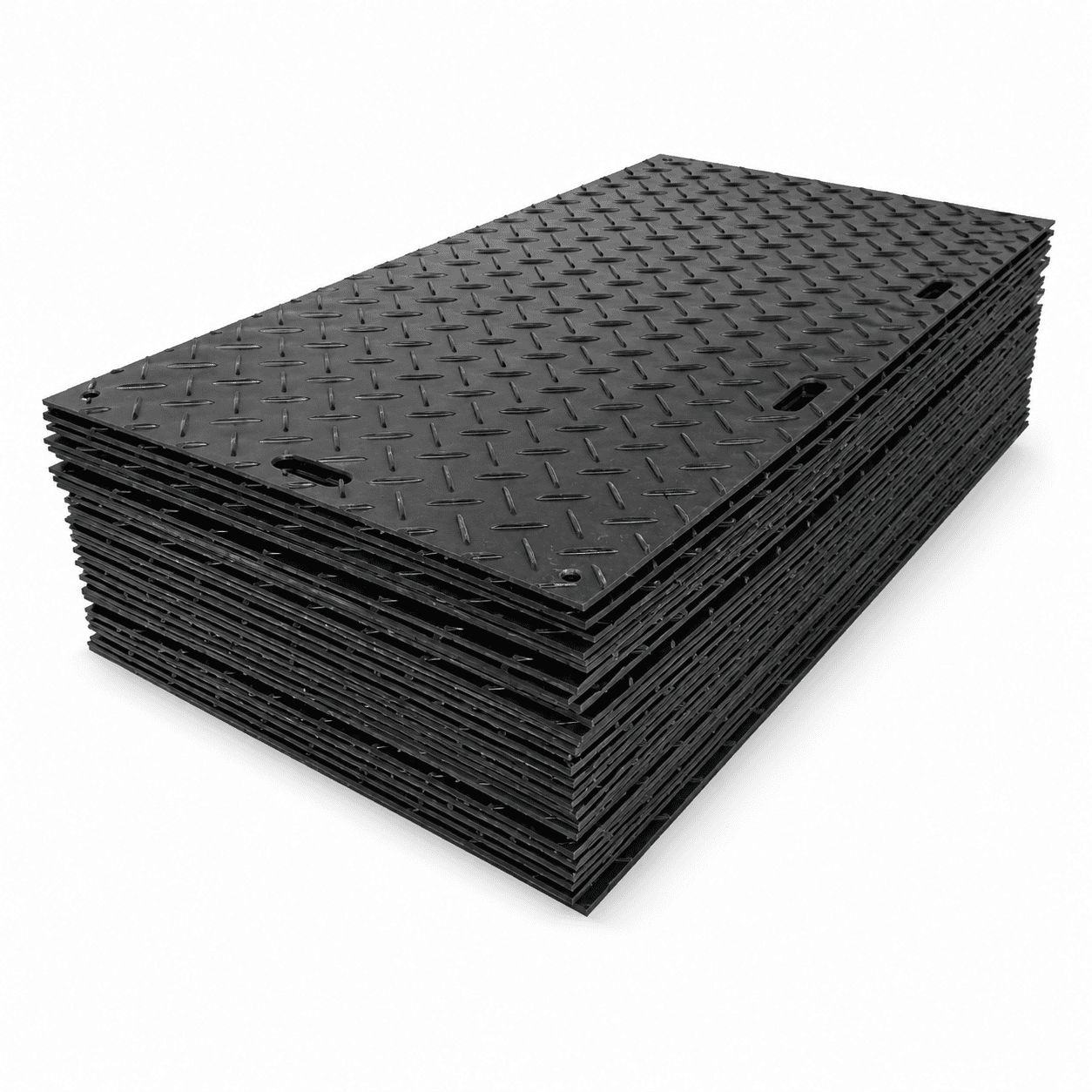

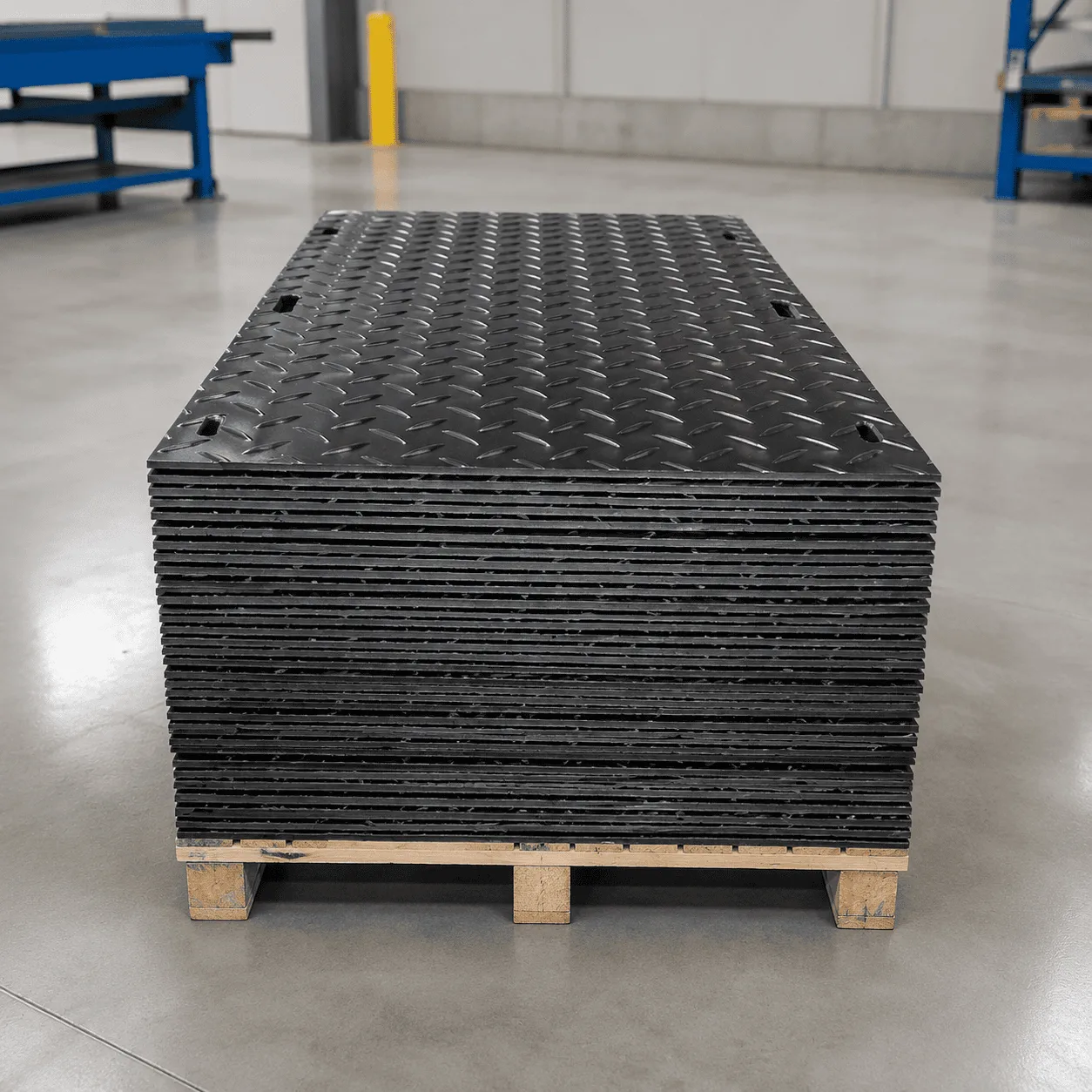

The regular panel shape allows organized stacking during factory storage, project preparation, and transportation.
Different projects require different mobile mat sizes.
Compact panels such as approximately 1200 × 1100 mm are suitable where handling flexibility and short access sections are important.
Common formats such as approximately 2400 × 1100 mm, 2400 × 1200 mm, and 2440 × 1220 mm provide a practical balance between ground coverage and transportation.
Longer formats such as approximately 2900 × 1100 mm can provide greater route coverage per panel.
Large heavy-duty options such as approximately 3000 × 1500 mm or 4500 × 2000 mm can be considered for wider equipment access applications where heavier structural designs are required.
Routine inspection helps maintain reliable performance when mats are relocated between projects.
Before installation, check:
Damaged panels or connectors should be evaluated before being returned to demanding vehicle service.
Cleaning after use in muddy conditions also makes inspection easier and can reduce unwanted soil transfer between different locations.
You can also view our complete range of ground protection mats for temporary roads, vehicle access, equipment routes, grass protection, soft-ground access, and industrial applications.
HDPE Mobile Access Mats provide a practical solution for temporary vehicle routes, equipment access, ground protection, maintenance pathways, parking surfaces, and outdoor operations. Their durable polyethylene construction, raised traction surface, mobile panel design, and reusable structure make them suitable for changing temporary access requirements.
Typical sizes include approximately 1200 × 1100 mm, 2400 × 1100 mm, 2400 × 1200 mm, 2440 × 1220 mm, and 2900 × 1100 mm, with common portable mat thicknesses from approximately 12 mm to 20 mm. Larger heavy-duty mat formats may use thicknesses from approximately 30 mm to 100 mm. Final dimensions, thickness, surface design, and installation layout should be selected according to vehicle type, supporting ground, traffic frequency, and actual project requirements.
