Oilfield Temporary Access Mats are large-format HDPE panels designed to create temporary roads and working surfaces for drilling operations, heavy equipment and industrial vehicles over mud, soft soil, clay and difficult terrain. Typical reference sizes include approximately 3000 × 2500 × 38 mm and 4500 × 2000 × 38 mm. Their raised traction surfaces, modular connection system and reusable polyethylene construction make them suitable for equipment routes, drilling support access, pipeline operations and temporary industrial platforms.
Oilfield Temporary Access Mats are heavy-duty ground protection panels designed to create temporary roads, equipment routes, working surfaces, and access platforms over mud, soft soil, clay, wet ground, sand, and other difficult terrain. Manufactured from durable HDPE or selected polyethylene composite materials, these reusable mats provide a practical access solution for drilling operations, oil and gas projects, heavy equipment movement, pipeline work, and remote industrial activities.
The large panel structure helps create a more continuous travel surface for excavators, service vehicles, support machinery, transport equipment, and other industrial traffic. Multiple mats can be positioned and connected to form temporary access roads, machinery approach routes, equipment operating areas, turning zones, and larger working platforms.
Unlike permanent road construction, the modular mat system can be installed when access is required and removed after the project or operating stage is completed. The panels can then be cleaned, inspected, stacked, transported, and used again at another location.
Oilfield Temporary Access Mats are commonly supplied in larger formats than lightweight portable ground protection panels. Large dimensions provide greater ground coverage and are suitable for temporary routes used by industrial vehicles and equipment.
Typical reference specifications include:
| Panel Size | Typical Thickness | Application Type |
|---|---|---|
| 3000 × 2500 mm | Approximately 38 mm | Temporary equipment roads and access surfaces |
| 4500 × 2000 mm | Approximately 38 mm | Long heavy-equipment access routes |
| 3000 × 1500 mm | Approximately 30–60 mm | Equipment approach areas and temporary roads |
| 2300 × 4300 mm | Approximately 80–110 mm | Selected heavy structural access systems |
The commonly selected size depends on the type of vehicle, available transport space, access route width, soil strength, required handling method, and project operating conditions.
Typical product characteristics may include:
Final dimensions, thickness, material structure, surface profile, and connection method should be selected according to actual project conditions rather than using one specification for every application.
The primary purpose of Oilfield Temporary Access Mats is to create temporary access in areas where permanent road construction may be difficult, expensive, or unnecessary.
Oilfield and drilling operations frequently require vehicles and equipment to move across terrain that changes according to weather, soil moisture, seasonal conditions, and repeated traffic.
Typical access problems may include:
By installing a defined mat roadway, vehicles and equipment can follow a controlled route instead of repeatedly traveling directly over exposed soft ground.
Heavy equipment movement can place concentrated pressure on weak terrain. Repeated operation over the same route may create deeper ruts and make access increasingly difficult.
Oilfield Temporary Access Mats help create a continuous surface for equipment movement and spread contact over a broader area than direct tire or track contact with the underlying ground.
Typical equipment applications may include:
Actual performance should always be evaluated according to the complete relationship between the equipment, mat system, and supporting terrain.
Total vehicle weight alone should not be treated as a universal load rating. Important factors include:
A mat placed over firm and evenly supported ground can perform differently from the same panel installed over deep mud, unsupported voids, trenches, severe depressions, or extremely weak terrain.

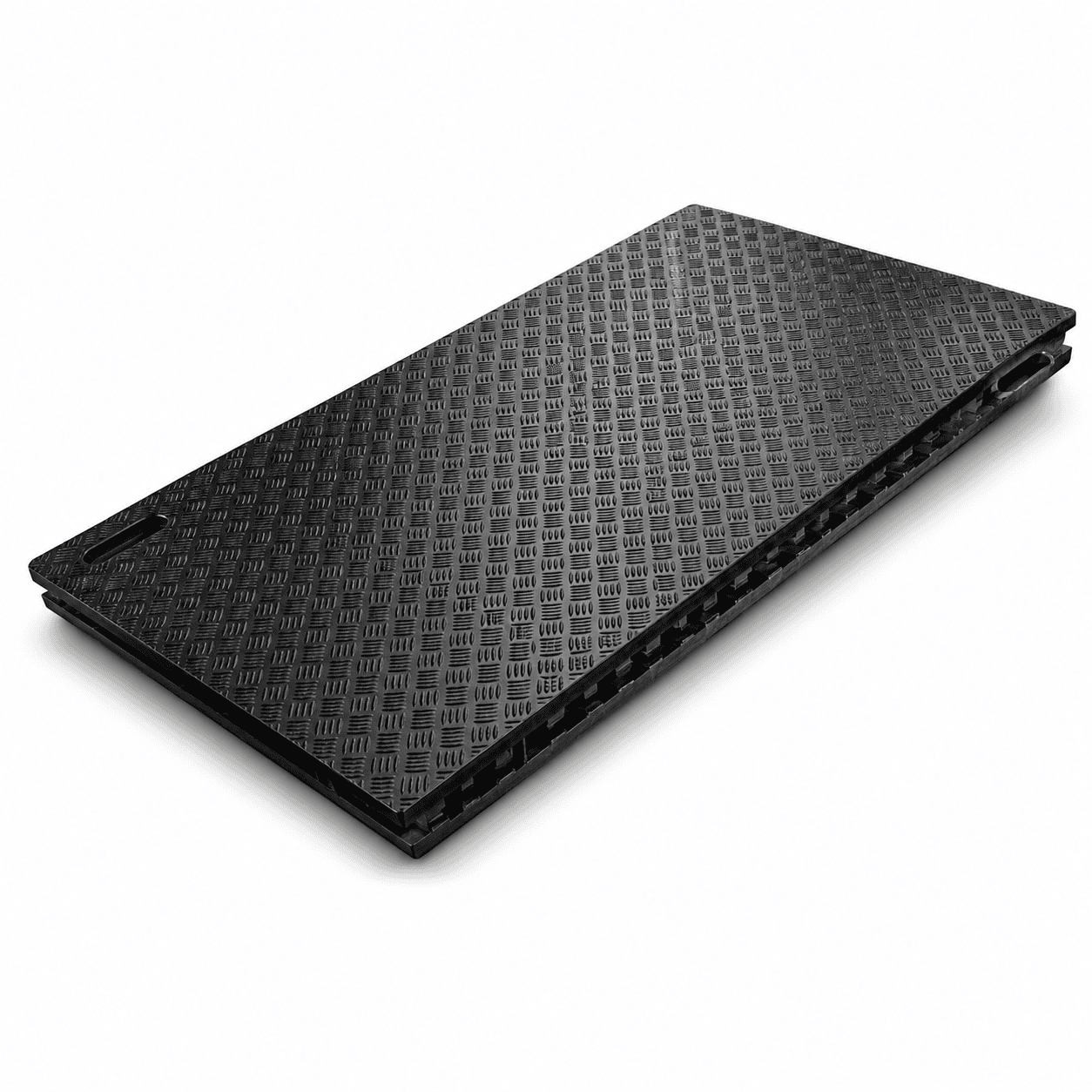

The upper surface features a raised tread pattern designed to provide additional contact with tires and equipment tracks.
Compared with a completely smooth plastic sheet, the textured surface provides a more practical temporary route for demanding outdoor access.
The traction surface can be useful when operating over:
Different surface structures may be selected according to expected traffic. Some systems use a more pronounced tread for heavy equipment, while other panels combine vehicle traction with mixed personnel access.
Correct installation remains essential. Large holes, sharp objects, unsupported panel edges, severe changes in ground level, and deep voids should be evaluated before repeated equipment movement begins.
Large panels can cover a greater surface area per installation unit and reduce the number of individual pieces required for long temporary routes.
The mats can be arranged to form:
The route can be extended by adding additional panels in the required direction. Extra rows can also be installed side by side to create a wider surface for equipment operation.
This modular approach allows the installation layout to change as the project develops.
High-density polyethylene provides a practical combination of toughness, impact resistance, moisture resistance, corrosion resistance, and low water absorption.
These characteristics make Oilfield Temporary Access Mats suitable for outdoor applications where the temporary roadway may be repeatedly exposed to rain, mud, soil, moisture, and changing operating conditions.
Unlike steel road plates, HDPE does not rust. Compared with many traditional timber access systems, polyethylene has low water absorption and can be cleaned more easily after muddy applications.
The material is also suitable for repeated use when the panels are properly handled, inspected, cleaned, and stored.
For general information about the base polymer, you can read more about polyethylene material properties.
Individual panels can be connected using suitable mechanical or engineered locking components. The connection system helps maintain alignment between neighboring mats and creates a more continuous temporary surface.
Typical connection advantages include:
Connection quantity and position should be selected according to mat dimensions, traffic direction, equipment turning, braking forces, ground conditions, and installation layout.
Mechanical connectors should be inspected together with the panels before each demanding application.
Oilfield Temporary Access Mats can be used in a wide range of demanding temporary access applications.
Typical uses include:

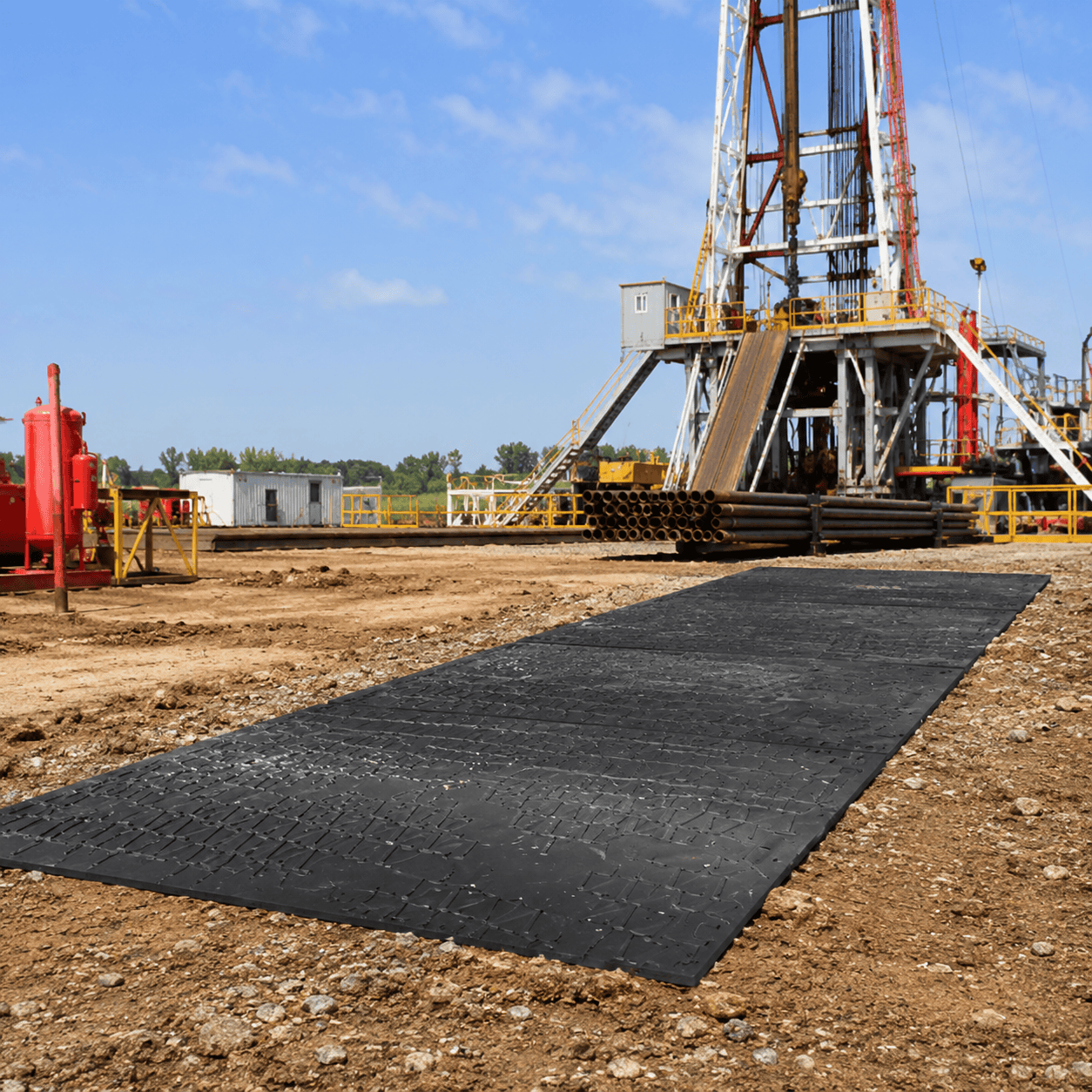

For drilling operations, the mats can create access routes between the main roadway and operating area. They can also form larger surfaces for equipment movement, temporary maintenance, and project support activities.
Mud and weak soil can quickly become more difficult after repeated vehicle movement. Tires and tracks may deepen existing depressions, increasing the possibility of unstable access conditions.
Oilfield Temporary Access Mats provide a defined route that reduces repeated direct contact between equipment and the exposed ground.
Before installation, the proposed route should be checked for:
Very deep mud or severely unstable ground may require additional preparation, reinforcement, or a different structural mat system.

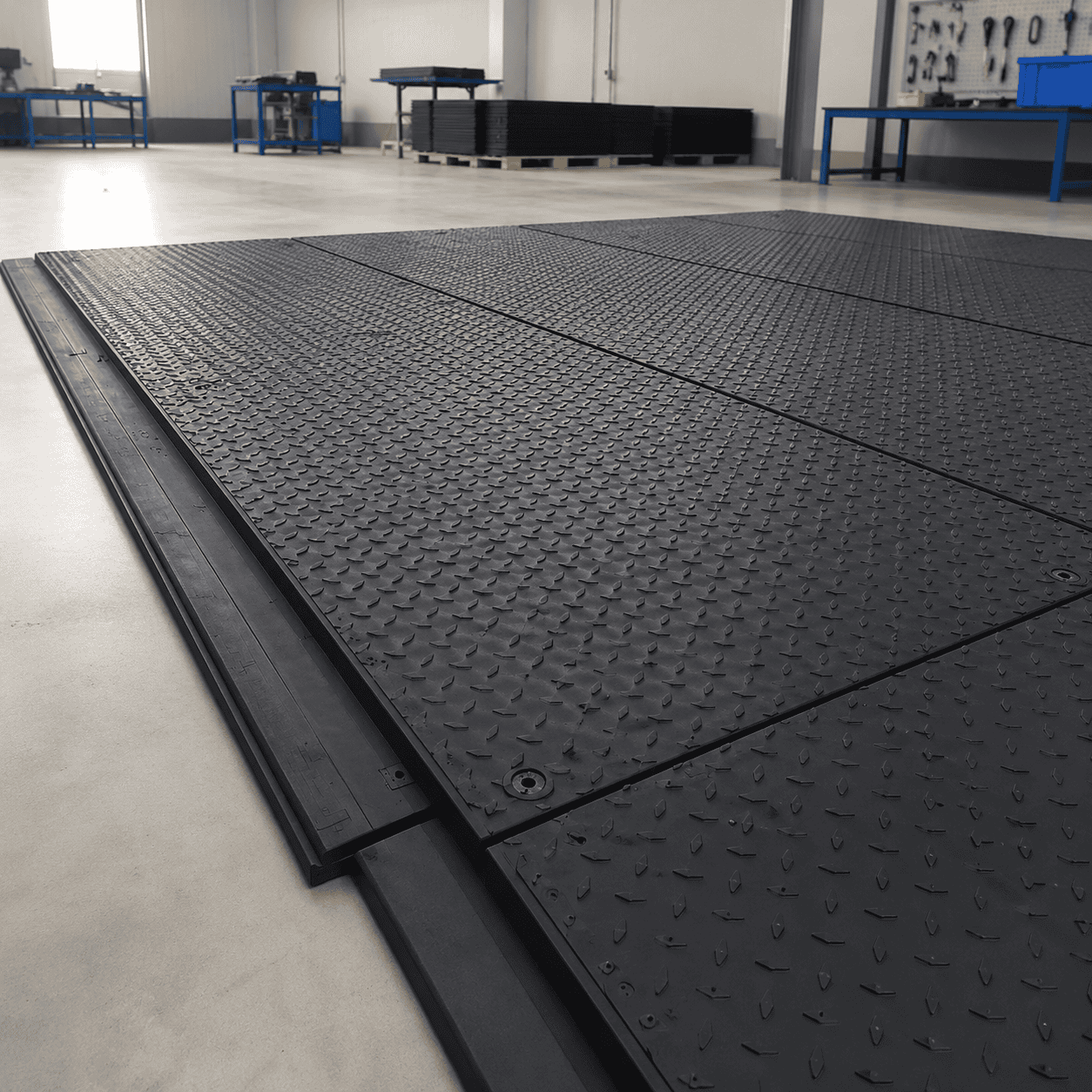

These mats are not limited to straight access roads. Multiple panels can also be connected to create larger temporary operating surfaces.
Typical platform configurations include:
The final layout can be adjusted by changing the number, orientation, and position of the panels.
A major advantage of Oilfield Temporary Access Mats is their reusable modular structure.
After a temporary route is no longer required, the panels can be:
This is useful for companies that regularly move vehicles, equipment, and access systems between different operating locations.

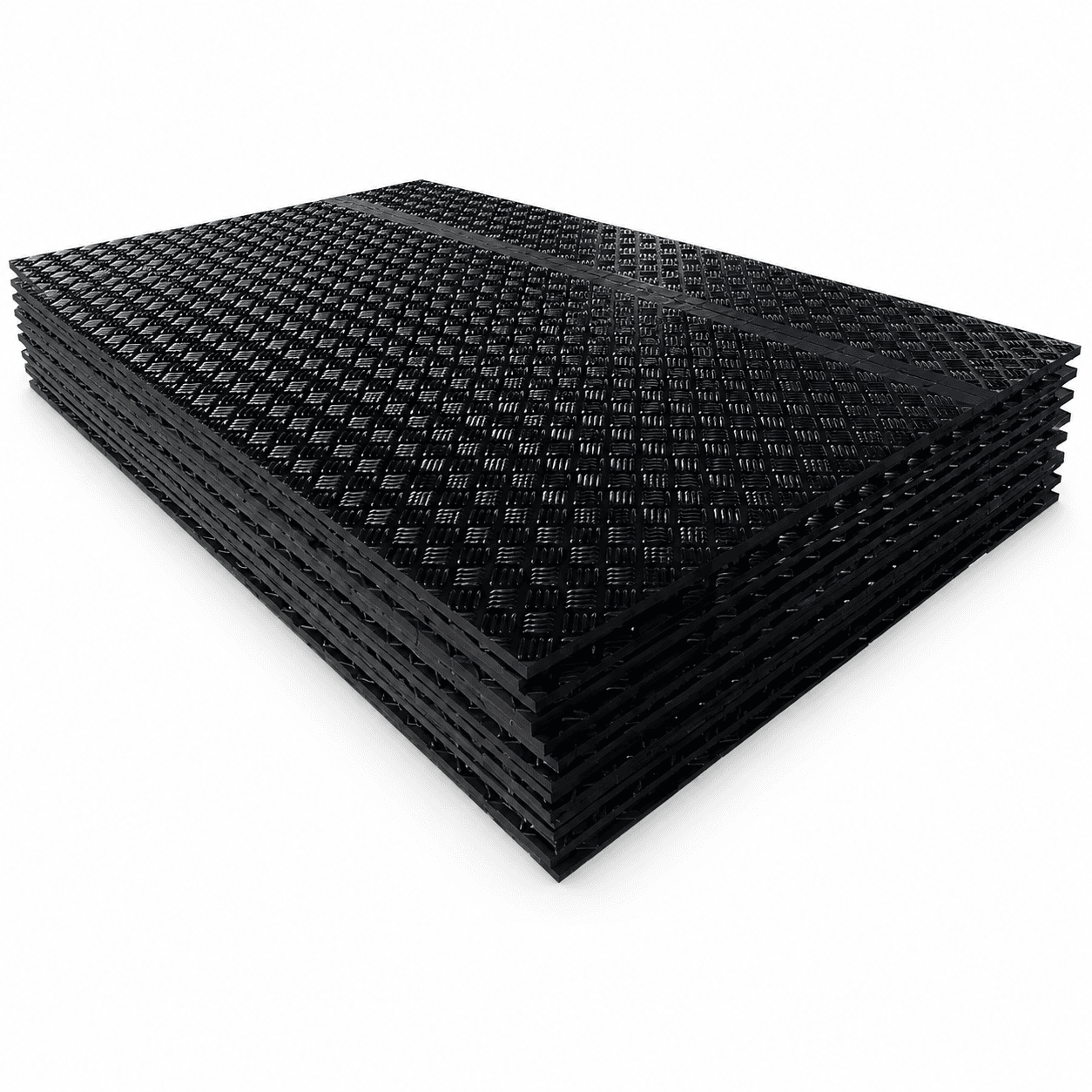

The large rectangular format also allows organized stacking during storage and transportation.
Handling methods should match the actual panel dimensions and weight.
Smaller access panels may be positioned using suitable manual or mechanical methods. Large-format or thick structural mats require appropriate lifting equipment.
Before movement, operators should check:
The mats should be stacked on stable support during storage and transportation.
Regular inspection helps identify damage before the mats are returned to demanding service.
Important inspection areas include:
Panels or connectors showing significant damage should be evaluated before reuse.
Cleaning after muddy operations also makes visual inspection easier and can reduce unwanted soil transfer between different project locations.
You can also view our complete range of ground protection mats for temporary roads, vehicle access, heavy equipment routes, soft-ground protection, and industrial applications.
Oilfield Temporary Access Mats provide a practical solution for temporary equipment roads, drilling support routes, muddy access areas, heavy machinery movement, and industrial working platforms. Their large panel dimensions, durable polyethylene construction, raised traction surfaces, modular connection system, and reusable design make them suitable for demanding temporary access requirements.
Typical reference sizes include approximately 3000 × 2500 × 38 mm and 4500 × 2000 × 38 mm. Larger structural systems may use dimensions around 2300 × 4300 mm with greater overall thickness. Final panel dimensions, material structure, thickness, surface design, connector system, and installation layout should always be selected according to actual vehicle type, ground conditions, axle or track pressure, traffic frequency, and project operating requirements.
