Heavy Duty Plastic Trackway Panels are solid one-piece plastic mats designed to create temporary vehicle routes and working areas across soft, muddy, uneven, and demanding outdoor surfaces.
The primary standard size is approximately 4500 × 2000 × 38 mm, with an additional reference size of 3000 × 2500 × 38 mm. Under suitable ground support, installation, and load distribution conditions, the system has a reference load of up to approximately 200 tonnes.
The panels feature a raised traction surface, very low moisture absorption, easy-clean construction, and reusable performance for heavy vehicles, equipment access, infrastructure, power transmission, renewable energy, oil and drilling operations, and temporary working areas.
Heavy Duty Plastic Trackway Panels are large-format one-piece panels designed to create temporary access routes and stable working surfaces for heavy vehicles, equipment, machinery, and transport operations. Manufactured from durable heavy-duty plastic material, these panels can be installed across soft ground, muddy areas, uneven terrain, temporary access routes, and demanding outdoor environments.
The primary standard size is approximately 4500 mm long, 2000 mm wide, and 38 mm thick. Another available reference size is approximately 3000 × 2500 × 38 mm. These large panel dimensions provide broad surface coverage and help reduce the total number of individual mats required when building temporary vehicle routes or equipment working areas.
The solid one-piece panel construction provides a firm surface for temporary traffic while retaining enough flexibility to follow moderate ground contours. This allows the panels to be used on ground that is not completely flat, provided that severe holes, sharp objects, unsupported voids, and major surface steps are properly prepared before installation.
Under suitable supporting ground, correct installation, appropriate load distribution, and suitable operating conditions, the reference system can be used for loads of up to approximately 200 tonnes. Actual performance depends on vehicle type, axle load, tire or track contact area, ground bearing strength, traffic frequency, turning forces, panel support, and installation quality.
The following specifications are based on the heavy-duty plastic trackway panel described:
The 4500 × 2000 × 38 mm model provides approximately 9 square metres of gross panel area before allowing for installation arrangements and any connection overlap.
The alternative 3000 × 2500 × 38 mm format provides a wider panel configuration for temporary access layouts where a different route width or installation arrangement is required.
Panel thickness can also be selected according to the required operating load, vehicle type, ground condition, traffic frequency, and expected duration of use. Thickness alone should not be treated as the only factor affecting load performance.
These Heavy Duty Plastic Trackway Panels use a solid one-piece structure designed to provide a firm temporary driving and working surface.
A solid panel construction provides several practical advantages:
The material is rigid enough to help distribute vehicle loads across a wider area while still being capable of following moderate ground contours. This can be useful where the supporting surface contains gradual undulations rather than being completely flat.
The panels should not be expected to bridge severe unsupported holes without appropriate engineering assessment. Large voids, deep holes, sharp objects, and severe ground changes should be corrected before installation.
The standard 4500 × 2000 × 38 mm panel is designed for large temporary access routes and heavy vehicle applications.
The 4.5-metre length helps reduce the number of transverse joints along a temporary road. The 2-metre width provides substantial surface coverage for controlled vehicle access routes.
Several panels can be installed in sequence to form longer temporary roads. Where additional width is required, panels may be arranged according to the selected route layout and installation requirements.
The 38 mm reference thickness creates a significantly heavier-duty panel structure than lightweight pedestrian access sheets or thin surface protection mats.
The appropriate route arrangement should be selected according to:
An alternative reference panel size of approximately 3000 × 2500 × 38 mm is also available for different temporary access layouts.
This configuration provides a wider 2.5-metre panel surface while using a shorter 3-metre length. It may be suitable where route width, handling arrangements, transportation planning, or installation layout differ from those of the standard 4500 × 2000 mm model.
The correct dimensions should be selected according to the actual vehicle, working area, temporary road width, ground condition, and route design.
Before ordering, exact dimensions, thickness, edge structure, surface pattern, and related specifications should be confirmed for the selected product configuration.
Under suitable operating conditions, the referenced heavy-duty trackway system can be used for loads of up to approximately 200 tonnes.
This figure should not be interpreted as a universal load rating for every ground condition or vehicle type. Actual performance is influenced by:
A heavy vehicle moving slowly in a straight line across stable and well-supported ground creates different forces from the same vehicle turning sharply on extremely soft soil.
For demanding heavy-load applications, the actual site conditions, supporting surface, vehicle details, and installation arrangement should be reviewed before the temporary access system is selected.
The panels feature a raised traction surface designed to improve contact between vehicle tires and the temporary roadway.
The textured structure is particularly useful when temporary access routes are installed across:
Compared with a completely smooth plastic panel, the raised surface provides a more defined contact area for vehicle tires.
Actual traction can still be affected by accumulated mud, snow, ice, oil, severe slopes, tire condition, and vehicle speed. The panel surface should therefore be inspected and cleaned when necessary.
Under suitable supporting ground, installation, and load distribution conditions, the referenced system can be used for loads of up to approximately 200 tonnes.
The large standard panel dimensions provide broad ground coverage and can reduce the number of individual mats required for long temporary access routes.
The solid panel structure creates a firm temporary working and driving surface for vehicles, equipment, and machinery.
The panels combine rigidity with sufficient flexibility to follow moderate surface undulations when properly supported.
The plastic construction absorbs very little moisture and does not experience the same moulding, rotting, or water-related deterioration problems associated with many temporary timber boards.
Mud and surface debris can be removed after use, allowing the panels to be inspected, stored, transported, and installed again depending on their condition.
Unlike plywood, heavy-duty plastic panels do not splinter in the same way and are less affected by repeated wet and dry conditions.
Heavy Duty Plastic Trackway Panels have very low moisture absorption, making them suitable for repeated use in wet and outdoor environments.
Unlike temporary timber boards, the plastic material does not absorb large quantities of water. This helps reduce common problems such as:
This makes the panels suitable for applications involving rain, wet ground, mud, outdoor storage, and repeated installation.
The mats should still be cleaned and inspected after demanding use to maintain good installation and storage practices.
Temporary plywood boards can provide short-term surface coverage, but repeated outdoor exposure may cause them to warp, split, absorb moisture, splinter, or degrade.
Heavy-duty plastic panels provide a reusable alternative for operations that require temporary access on a repeated basis.
The total value of a reusable ground protection system depends on:
When the panels are correctly used and maintained, repeated installation can help reduce the need to continually replace short-life temporary surface materials.

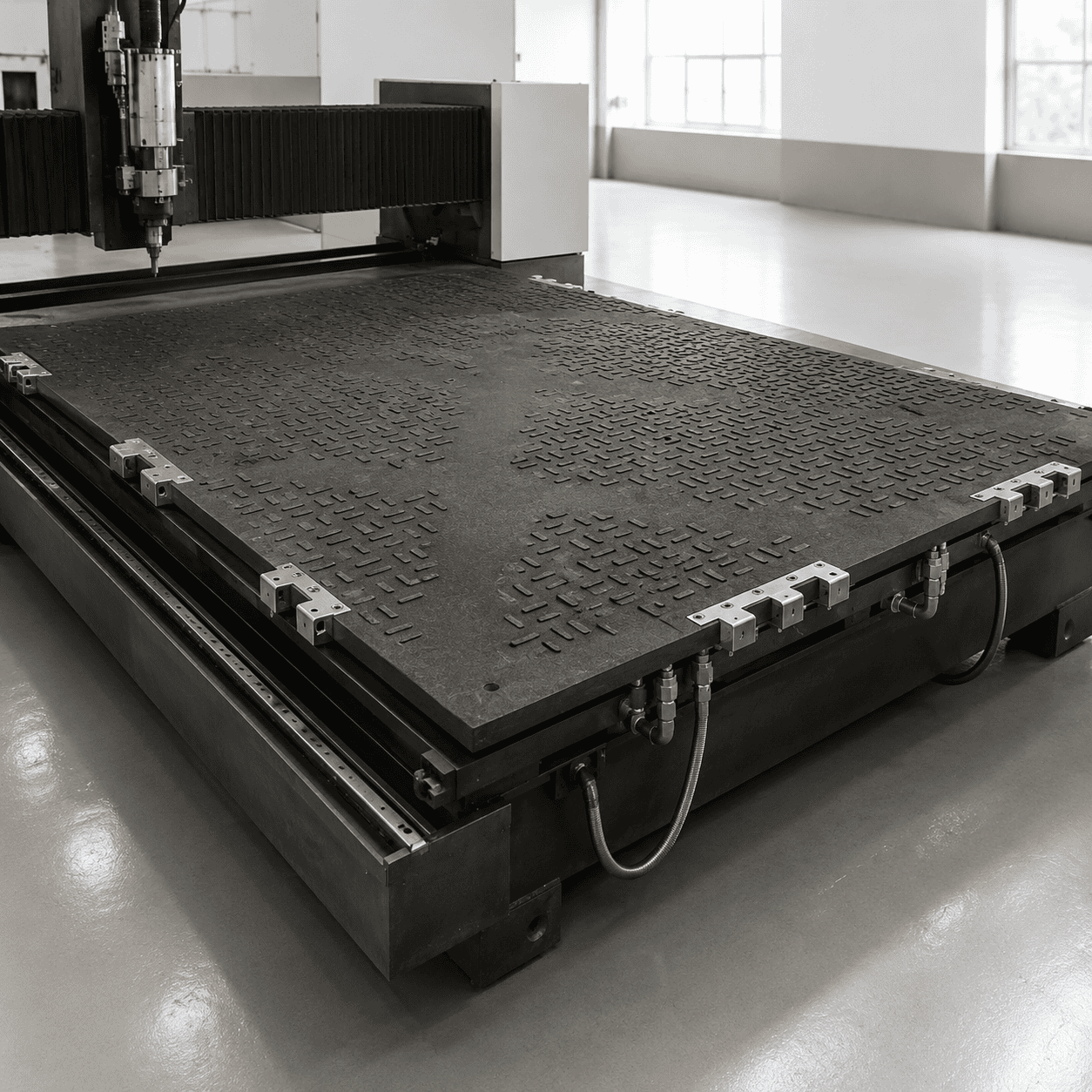

The plastic panel surface can be marked or engraved for identification purposes, depending on the selected product specification.
Identification may be useful for:
The exact marking method should be confirmed according to the panel material, surface pattern, required information, and intended service environment.
The panels can be used to form temporary routes for trucks, transport vehicles, machinery, and other heavy equipment.
Temporary road systems may be used for equipment movement, maintenance operations, and material transportation in remote outdoor locations.
Plastic trackway panels can provide temporary vehicle and equipment access in infrastructure and power transmission environments.
Because the product uses non-metallic plastic material, it does not have the same electrical conductivity characteristics as steel road plates. However, electrical suitability should always be confirmed against the exact material specification and applicable safety requirements.
The panels can be used to create temporary routes for vehicles, installation equipment, service operations, and maintenance activities in renewable energy locations.
Large-format temporary access panels can support vehicle and equipment movement where permanent roads are unnecessary or not yet available.
The panels can follow moderate ground contours while providing a defined temporary travel surface when correctly supported.
Multiple panels can be arranged to create temporary working areas for vehicles and equipment in addition to linear access routes.
The performance of Heavy Duty Plastic Trackway Panels depends heavily on the ground beneath the panels.
Before installation:
Large sharp objects can create concentrated pressure points beneath the panel. Severe unsupported areas can also reduce effective load distribution.
Better support across the full panel surface generally improves route stability and overall product performance.
Position the first panel according to the planned direction of vehicle travel.
Install the next panel in the correct alignment according to the selected temporary road layout.
Continue adding panels until the required access length has been reached. Where additional width or a temporary working area is needed, arrange additional panels according to the required layout.
Before allowing vehicle traffic onto the route, inspect:
The route should also be inspected during use, especially after repeated heavy traffic, severe weather, or significant changes in supporting ground conditions.
The reference load of up to approximately 200 tonnes should not be interpreted as a guaranteed universal capacity for every installation.
Important operating factors include:
Heavy straight-line travel across stable ground creates different loading conditions from sharp turning or braking on very soft ground.
For demanding applications, actual vehicle information and site conditions should be evaluated before selecting the panel specification and installation arrangement.
Large-format 4500 × 2000 × 38 mm panels require suitable equipment and handling procedures during transportation, unloading, installation, removal, and storage.
After use, excessive mud and debris should be removed when necessary. Each panel should be inspected before reuse.
Inspection should include:

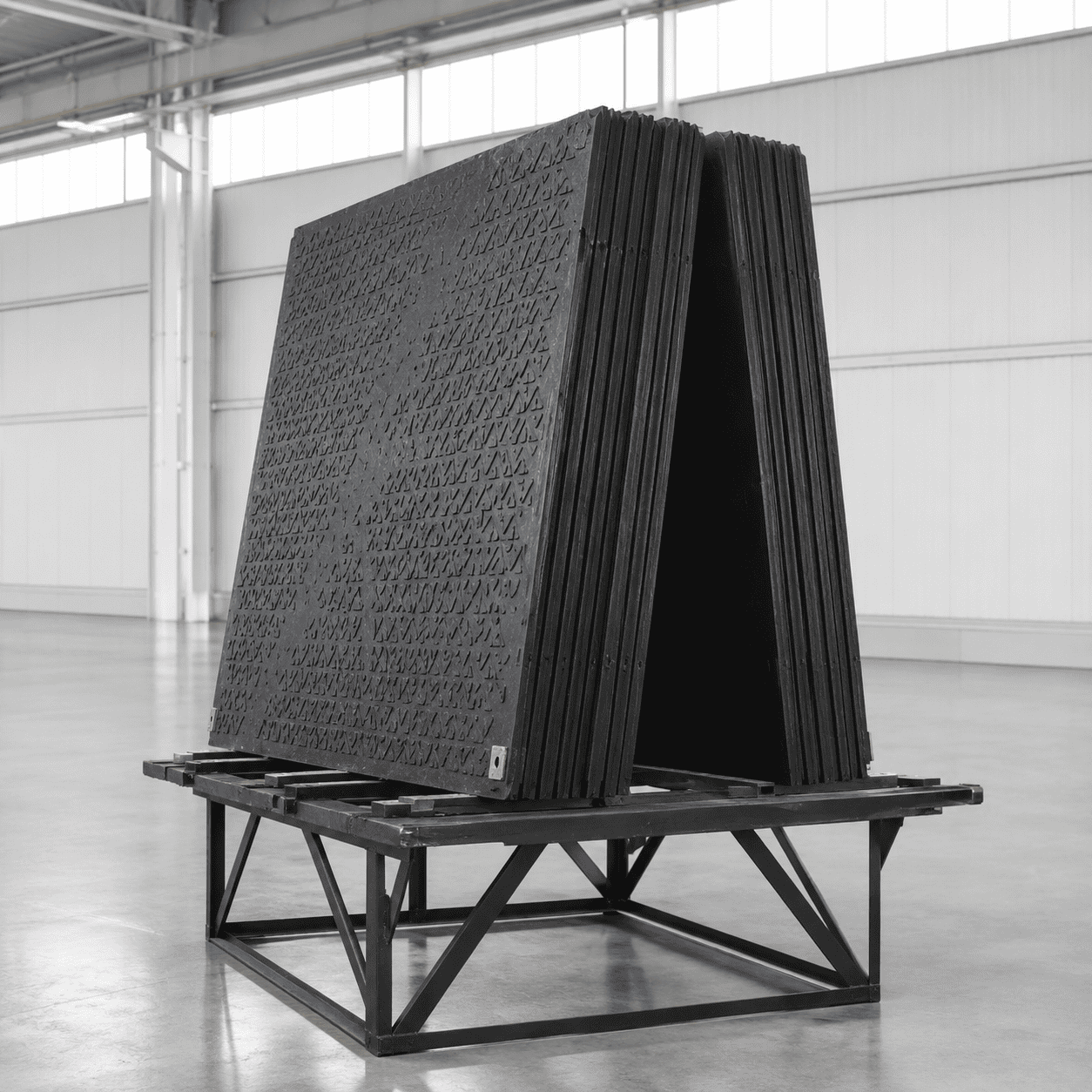

During storage, the panels should be placed on a stable supporting surface and stacked in an organized manner according to suitable handling requirements.
Heavy Duty Plastic Trackway Panels combine large 4500 × 2000 × 38 mm standard dimensions, an alternative 3000 × 2500 × 38 mm format, solid one-piece construction, raised traction surfaces, low moisture absorption, easy cleaning, and reusable outdoor performance.
Compared with temporary plywood boards, the plastic panels do not splinter or absorb water in the same way. Compared with conventional steel road plates, the non-metallic construction does not rust.
The panels can create temporary access routes and working areas for heavy vehicles, machinery, transport equipment, utility maintenance, oil and drilling operations, power transmission access, renewable energy locations, and other demanding outdoor applications.
Explore our ground protection and industrial plastic solutions for other temporary access products and engineering plastic materials.
For general information about recognized material and performance testing methods, refer to ASTM International.
With suitable ground preparation, correct panel selection, proper installation, regular inspection, and appropriate handling, these mats provide a durable and reusable solution for heavy-duty temporary access.
