UHMWPE Crane Stabilizer Pads are reusable heavy-duty support panels featuring solid square construction, clipped corners and reinforced carrying handles. Practical reference sizes include 500 × 500 × 40–60 mm, 600 × 600 × 50–70 mm, 800 × 800 × 60–80 mm and 1000 × 1000 × 80–100 mm for mobile cranes, concrete pumps, boom trucks and hydraulic stabilizer systems.
UHMWPE Crane Stabilizer Pads are heavy-duty engineering-plastic support panels designed for mobile crane outriggers, concrete pump stabilizers, boom truck support legs, truck-mounted cranes, aerial work platforms and other machinery equipped with hydraulic support systems.

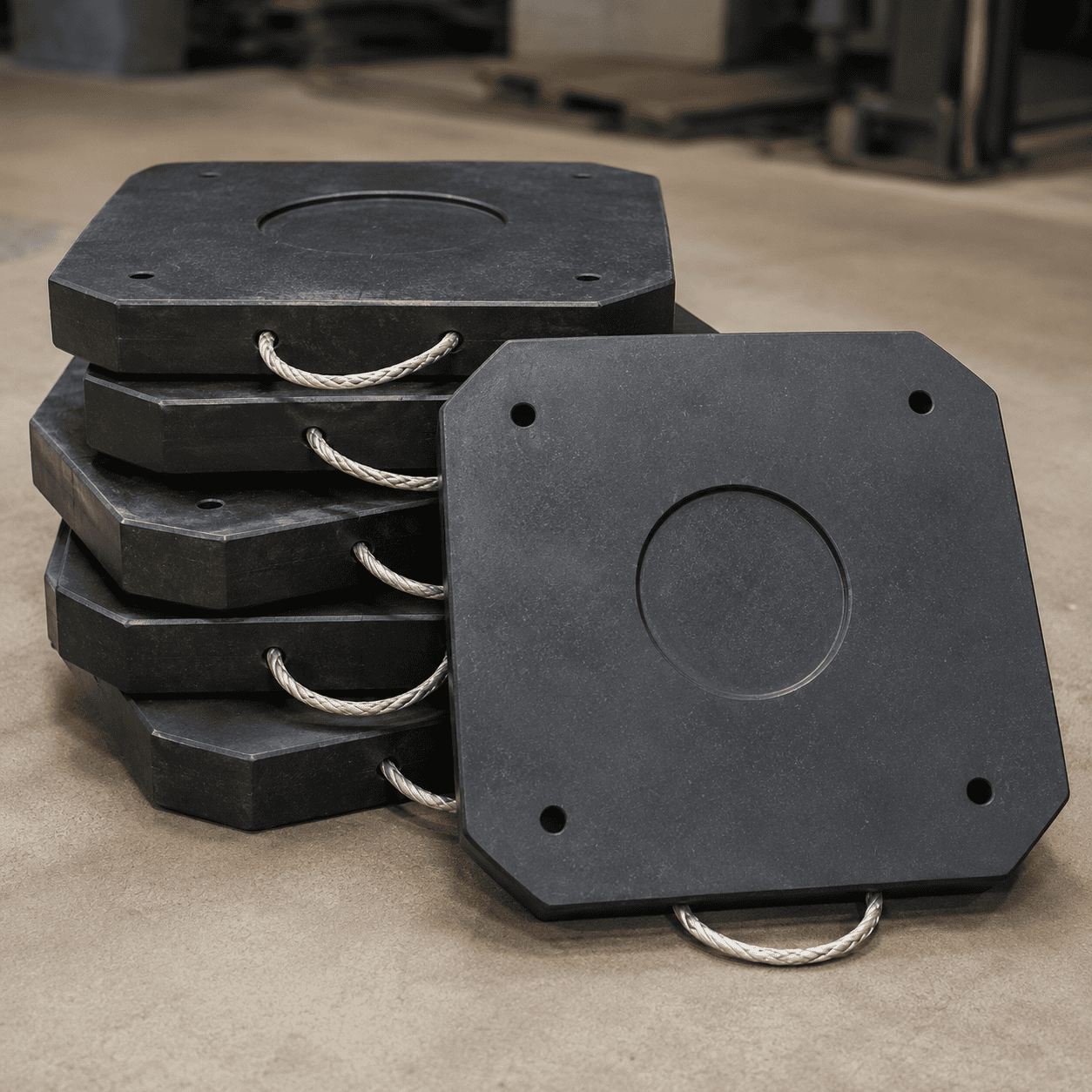

The product shown features a thick solid square panel, clipped outside corners, a broad working surface and a reinforced carrying handle installed along one edge. The crane stabilizer foot is positioned within the main support area so that the equipment reaction can be transferred through a larger geometric footprint.
This product can be manufactured from recycled or reprocessed ultra-high-molecular-weight polyethylene. Properly controlled recycled UHMWPE can provide a practical material option for selected crane and heavy-equipment applications where raw-material sorting, moulding conditions, dimensions and finished-product performance are carefully inspected.
Unlike temporary access mats that are installed continuously to create a vehicle route, UHMWPE Crane Stabilizer Pads are positioned individually beneath hydraulic support feet. Their main purpose is to increase the contact area between the original equipment foot and the supporting surface.
The exact dimensions of the support pad shown cannot be confirmed from the photograph alone. The following specifications are practical reference options for solid recycled UHMWPE crane stabilizer pads.
| Reference Pad Size | Reference Thickness | Typical Application |
|---|---|---|
| 400 × 400 mm | 40–50 mm | Compact hydraulic stabilizers and smaller service vehicles |
| 500 × 500 mm | 40–60 mm | Utility vehicles and compact lifting equipment |
| 600 × 600 mm | 50–70 mm | Mobile cranes, boom trucks and maintenance vehicles |
| 700 × 700 mm | 50–80 mm | Medium crane stabilizer applications |
| 800 × 800 mm | 60–80 mm | Concrete pump trucks and medium heavy machinery |
| 900 × 900 mm | 60–100 mm | Larger cranes and pumping equipment |
| 1000 × 1000 mm | 80–100 mm | Large mobile cranes and heavy-equipment stabilizers |
| 1200 × 1200 mm | 80–120 mm | Large-format equipment-support applications |
| 1500 × 1500 mm | 100–150 mm | Special heavy-equipment support arrangements |
Compact specifications such as approximately 400 × 400 × 40–50 mm and 500 × 500 × 40–60 mm can be considered where equipment-storage space and repeated positioning are important.
The approximately 600 × 600 × 50–70 mm format provides a practical balance between geometric support area, panel thickness, finished product weight and vehicle-storage requirements.
Medium specifications such as approximately 700 × 700 × 50–80 mm and 800 × 800 × 60–80 mm provide broader support footprints for mobile cranes, concrete pumps, boom trucks and utility vehicles.
Larger support panels such as approximately 900 × 900 × 60–100 mm, 1000 × 1000 × 80–100 mm and 1200 × 1200 × 80–120 mm require additional consideration for transportation, storage, finished weight and mechanical handling.
Large-format solid pads measuring approximately 1500 × 1500 × 100–150 mm can have substantial finished weights. Suitable lifting and positioning equipment may therefore be required.
These dimensions are reference product options rather than universal safe-working-load ratings. Final dimensions and thickness must be selected according to the maximum individual stabilizer reaction, original equipment-foot dimensions, required effective support area, UHMWPE batch properties and supporting surface conditions.
| Specification | Typical Reference |
|---|---|
| Product type | Crane and heavy-equipment stabilizer support pad |
| Primary material | Recycled or reprocessed UHMWPE |
| Main shape | Square with clipped corners |
| Alternative shapes | Square, rectangular, round or octagonal |
| Reference size range | Approximately 400 × 400 mm to 1500 × 1500 mm |
| Reference thickness | Approximately 40–150 mm |
| Working surface | Smooth, lightly textured, grooved or recessed |
| Handle options | Metal handle, rope handle or machined hand hole |
| Common appearance | Black or dark mixed-material appearance |
| Main applications | Cranes, concrete pumps, boom trucks and heavy machinery |
Final panel dimensions, thickness, material composition, outside shape, working surface and handle configuration should always be matched to the approved product drawing and actual equipment-support requirement.

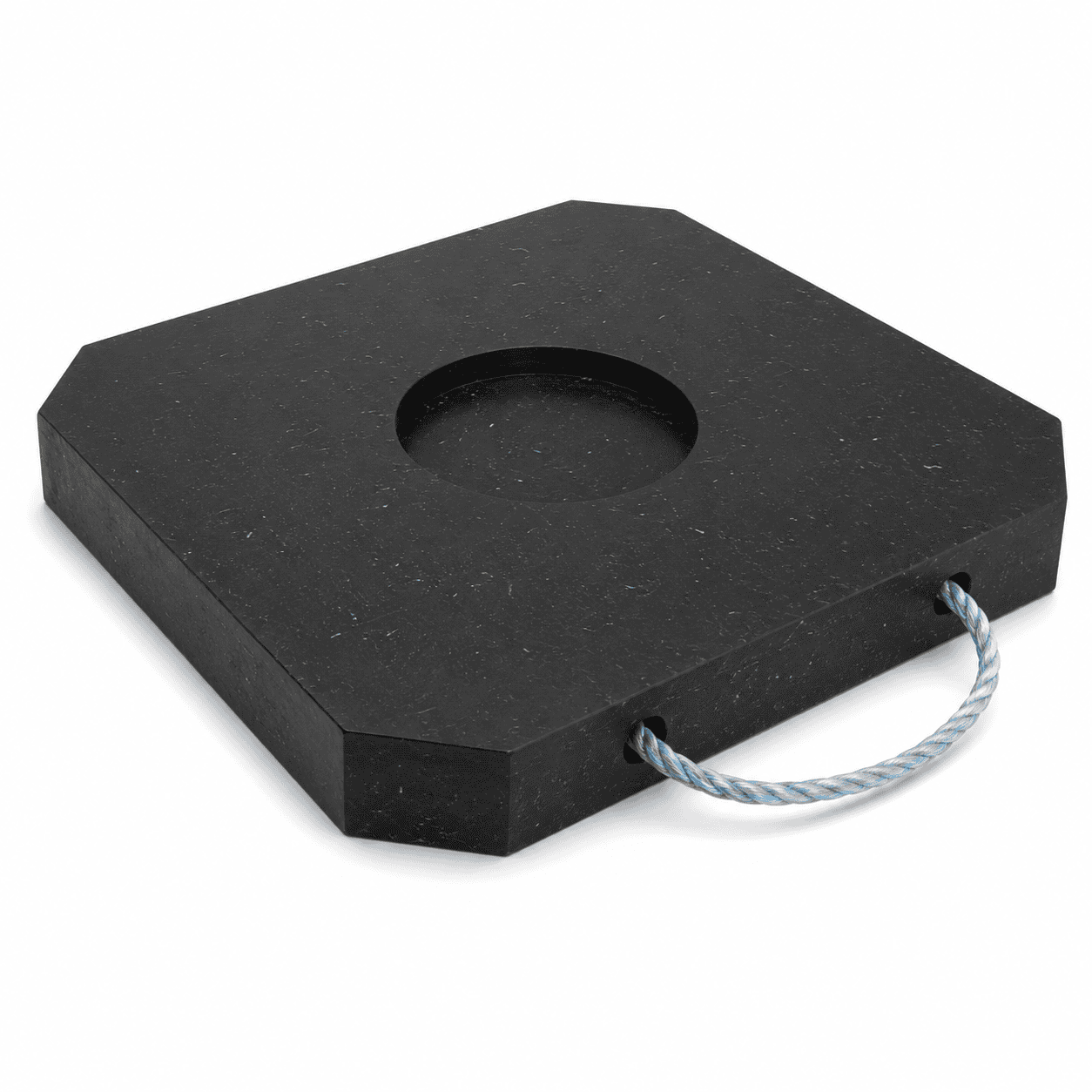

The reference product uses a square support panel with clipped or chamfered corners.
This structure can provide:
The crane stabilizer foot should remain within the intended working area and should not be positioned close to an unsupported outside edge.
The support panel should not bridge a deep opening, large unsupported void, unstable edge or unsuitable supporting surface.

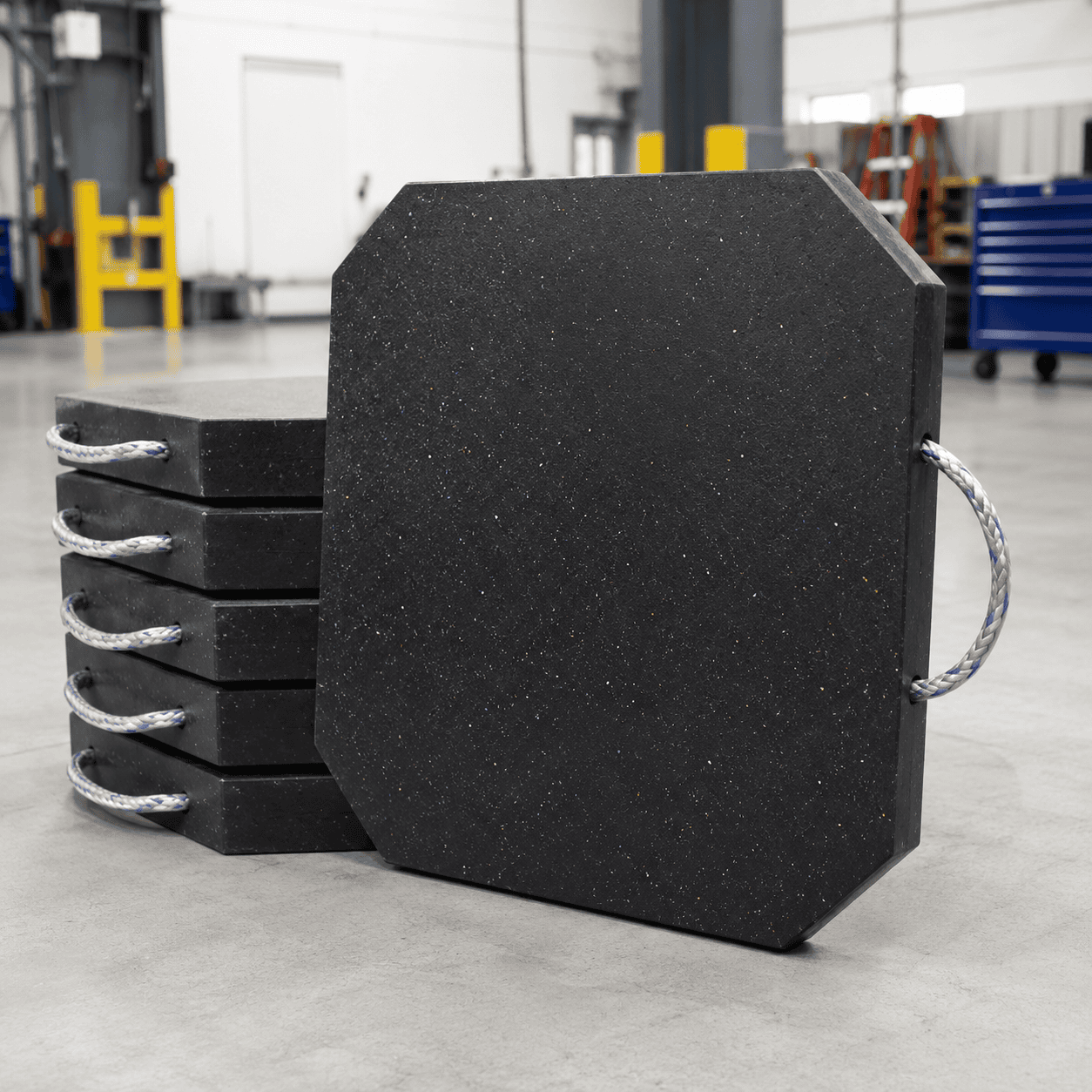

The product shown includes a reinforced carrying handle installed near one outside edge.
The handle provides a defined gripping point when the stabilizer pad needs to be:
Before moving the pad, inspect:
The carrying handle is intended for transportation and positioning. It should not be treated as a structural component carrying the crane or stabilizer reaction.
Large solid pads may require coordinated team handling or suitable mechanical equipment even when carrying handles are installed.
Recycled UHMWPE is manufactured by reprocessing suitable polyethylene material into a new industrial product. Its finished properties can be influenced by the source of the feedstock, sorting quality, contamination level, additives, previous processing history and moulding conditions.
For a general explanation of the base polymer, see the Wikipedia article about ultra-high-molecular-weight polyethylene.
For a general explanation of converting used plastic into new products, see the Wikipedia article about plastic recycling.
Potential characteristics of properly processed recycled UHMWPE support pads include:
Performance should not automatically be assumed to equal that of a virgin UHMWPE product. Recycled material properties should be verified through material control, batch inspection, dimensional checking and appropriate mechanical testing.
| Comparison Item | Virgin UHMWPE | Recycled UHMWPE |
|---|---|---|
| Raw material | New and controlled UHMWPE resin | Reprocessed polyethylene feedstock |
| Color consistency | Generally more consistent | May vary between material batches |
| Property consistency | Generally easier to control | Requires stronger batch inspection |
| Surface appearance | Usually more uniform | May show color or texture variation |
| Typical application | Applications requiring closely controlled material properties | Selected general industrial support applications |
| Final approval | According to resin grade and technical data | According to batch properties and test results |
The final material option should be selected according to the crane stabilizer reaction, operating frequency, environmental exposure, required working life and equipment manufacturer requirements.
UHMWPE Crane Stabilizer Pads are repeatedly transported, positioned, loaded, recovered and stacked.
During regular operation, the support panels may experience:
The recycled UHMWPE formulation and manufacturing process should provide suitable impact and wear performance for the intended crane-support application.
Pads showing visible cracks, severe permanent deformation, deep cuts, damaged handle areas or excessive surface wear should be separated and evaluated before reuse.
UHMWPE Crane Stabilizer Pads may be used outdoors and exposed to rain, wet ground, mud, washing water and humid storage conditions.
Polyethylene absorbs significantly less moisture than conventional wooden support boards and does not rust like an unprotected steel support plate.
The stabilizer pads should still be cleaned and inspected after wet, muddy or contaminated operation.
Solid polyethylene support pads do not experience the same rusting process as unprotected steel support plates.
This can reduce maintenance related to:
Any metal handles or fasteners should still be inspected for corrosion, bending, looseness and mechanical damage.
Different working surfaces can be produced according to the crane stabilizer-foot structure and operating requirements.
Available surface options may include:
A textured surface can make the intended upper working face easier to identify and provide additional surface texture beneath the crane stabilizer foot.
Surface texture should not be treated as a replacement for correct panel sizing, sufficient thickness, suitable supporting conditions or proper equipment-foot positioning.

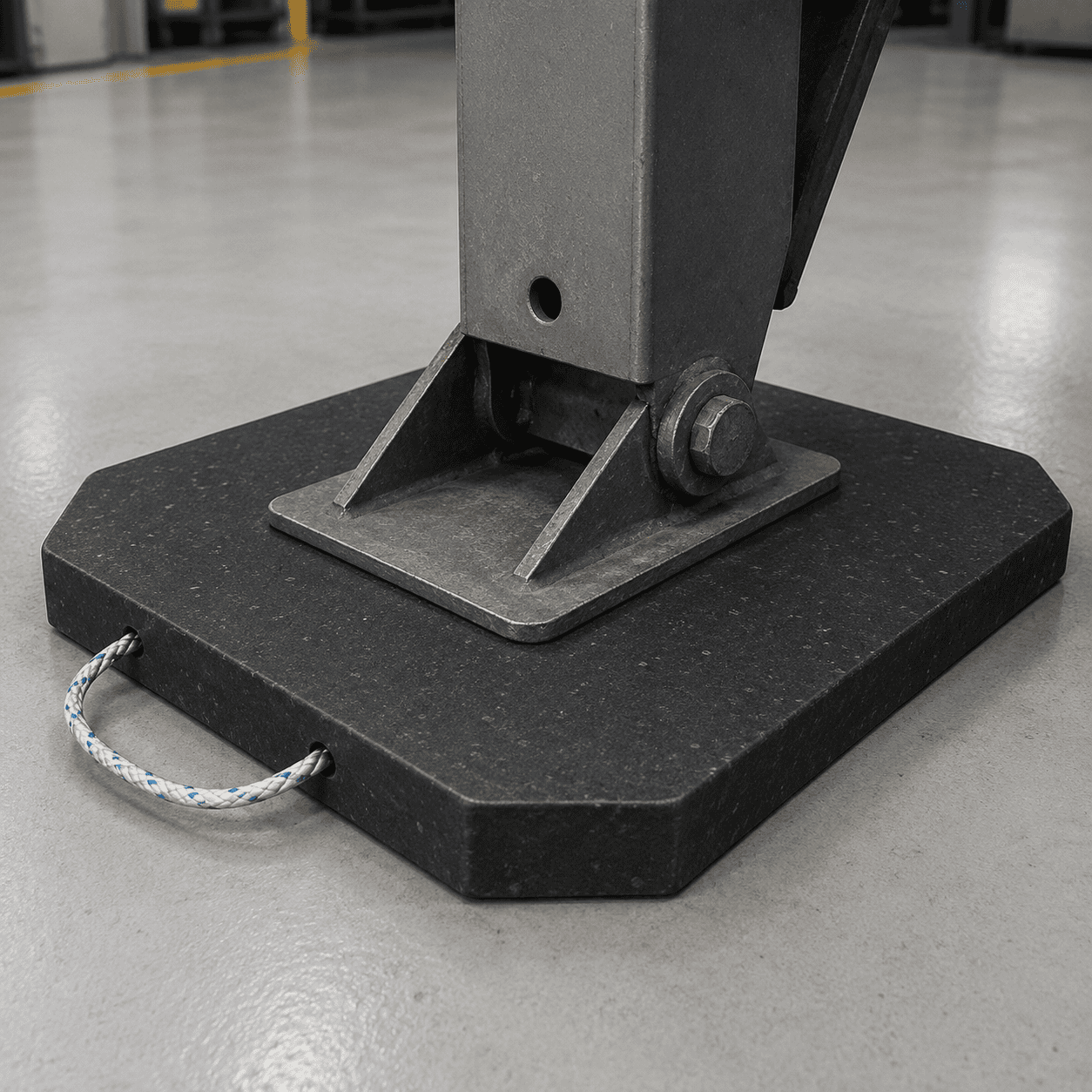

A hydraulic crane stabilizer transfers a concentrated reaction through a relatively small original equipment foot.
UHMWPE Crane Stabilizer Pads provide a larger geometric contact area beneath that foot.
The performance of the complete support arrangement depends on:
A larger outside dimension provides a larger geometric footprint, but panel dimensions alone should not be treated as a universal safe-working-load rating.
The correct stabilizer pad should not be selected only according to the total machine weight or maximum crane lifting capacity.
Individual stabilizer reactions can change according to:
Important selection information includes:
Each crane stabilizer position should be evaluated independently because reactions and supporting conditions can differ around the same machine.
Two crane stabilizer pads with identical outside dimensions can respond differently when their thicknesses or material properties are different.
For example, a 600 × 600 mm support pad may be produced as:
An 800 × 800 mm support pad may be produced as:
A 1000 × 1000 mm support pad may be produced as:
Panel thickness can affect:
The final thickness should be selected according to the actual stabilizer reaction, original equipment-foot dimensions, required support area, UHMWPE material properties and duration of loading.
UHMWPE Crane Stabilizer Pads can be considered for selected stabilizer-equipped machinery and industrial support applications.
The final dimensions, thickness, recycled material batch and support arrangement should always be matched to the actual equipment-support point.
Before applying equipment load, confirm that:
The working surface should remain free from excessive oil, mud, gravel, metal fragments and other hard debris.
Reusable crane stabilizer pads should be inspected before every demanding equipment setup.
Check:
A damaged support pad should be separated and evaluated before returning to crane or heavy-equipment service.
After operation, remove mud, sand, gravel, oil and other contaminants from the working surfaces.
During storage:
Explore more UHMWPE engineering plastic products for crane support, heavy-equipment stabilization, ground protection and industrial applications.
UHMWPE Crane Stabilizer Pads provide a practical support option for mobile cranes, concrete pumps, boom trucks and other stabilizer-equipped machinery.
The product combines solid recycled UHMWPE construction, clipped corners, a broad square support footprint and a reinforced carrying handle.
Typical reference specifications include approximately 400 × 400 × 40–50 mm, 500 × 500 × 40–60 mm, 600 × 600 × 50–70 mm, 800 × 800 × 60–80 mm, 1000 × 1000 × 80–100 mm and 1200 × 1200 × 80–120 mm.
Final dimensions, thickness, UHMWPE material batch, handle design and permitted load should always be confirmed according to the maximum individual stabilizer reaction, equipment-foot geometry, supporting surface condition and actual operating requirements.
