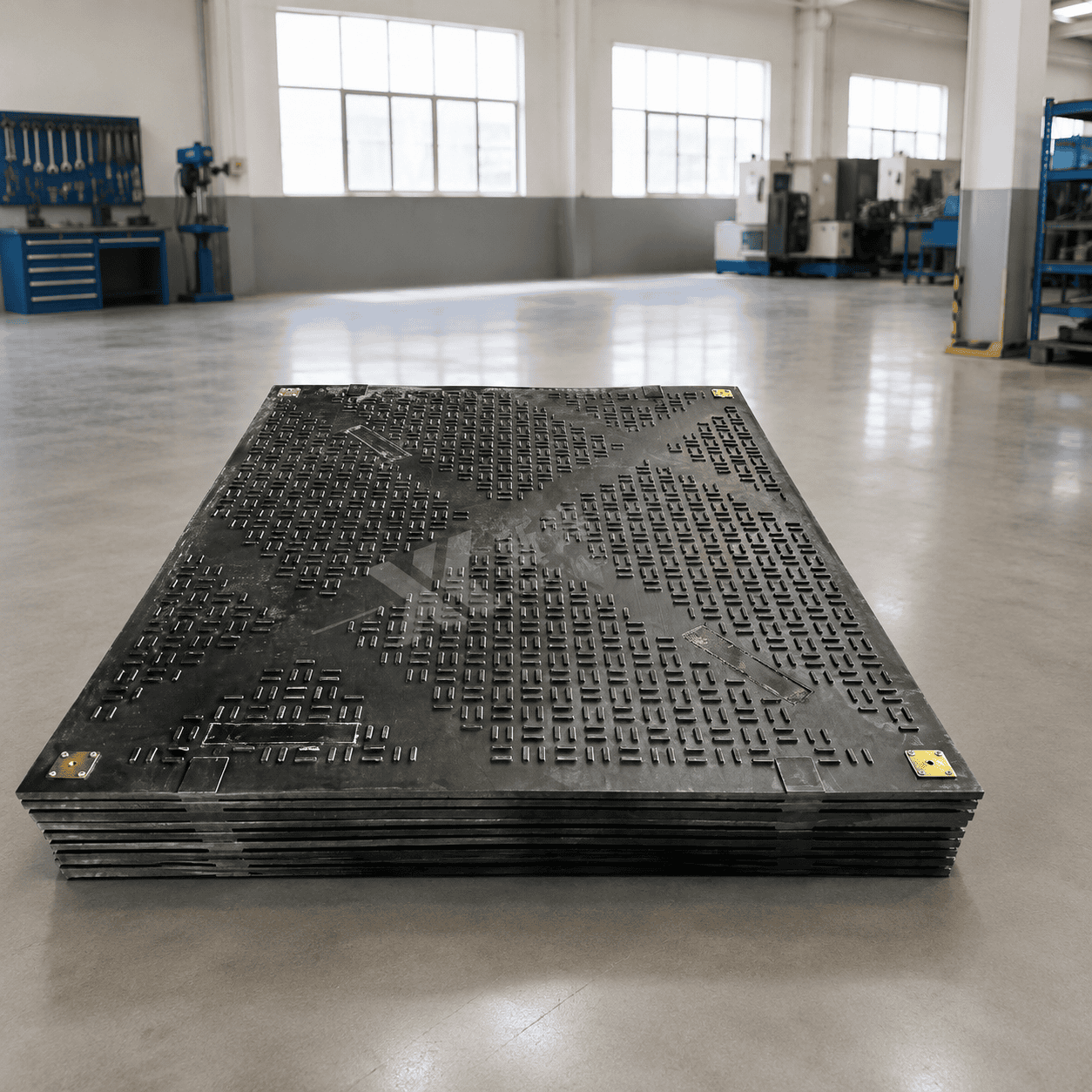

Safety Grip HDPE Rig Mats are durable temporary access panels designed for oilfields, drilling operations, pipeline projects, and heavy vehicle routes over mud, grass, sand, and soft ground. A typical mat measures approximately 2440 × 1220 × 12.7 mm and weighs around 40 kg. The raised anti-slip traction surface, HDPE construction, and modular connection system help create reusable temporary roads and equipment access routes.
Safety Grip HDPE Rig Mats are durable temporary access panels designed to create stable vehicle and equipment routes over mud, soft soil, grass, sand, gravel, and other challenging ground conditions. Manufactured from high-density polyethylene, these reusable mats feature a raised traction surface that helps improve tire grip while protecting the underlying ground from repeated vehicle movement.
They are particularly suitable for oilfields, drilling support areas, pipeline maintenance routes, energy projects, utility operations, temporary industrial roads, and equipment access areas. Individual panels can be connected together to form a continuous temporary roadway or larger operating surface.
Compared with traditional steel plates and timber boards, HDPE access mats do not rust and have low water absorption. Their relatively manageable single-panel format also makes transportation, installation, removal, cleaning, stacking, and reuse more practical for projects that frequently move temporary access routes between different locations.
A common reference size for Safety Grip HDPE Rig Mats is approximately 2440 × 1220 mm (8 × 4 ft). A typical standard thickness is approximately 12.7 mm, providing a practical balance between surface coverage, strength, transportation efficiency, and handling.
Typical reference specifications include:
Different project requirements may use different mat dimensions, thicknesses, surface patterns, and connector arrangements. The final specification should be selected according to vehicle type, axle pressure, tire contact area, ground strength, traffic frequency, and installation conditions.

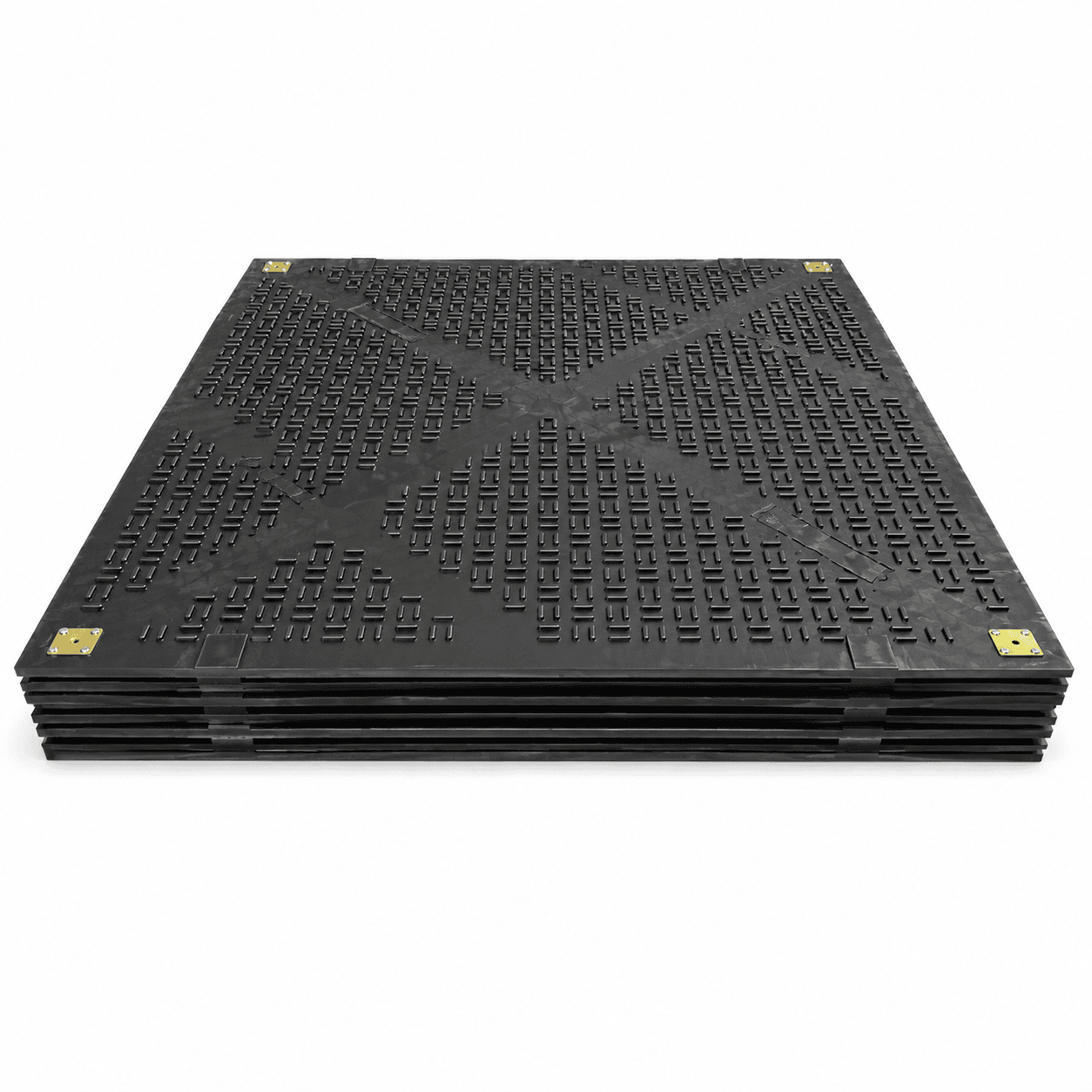

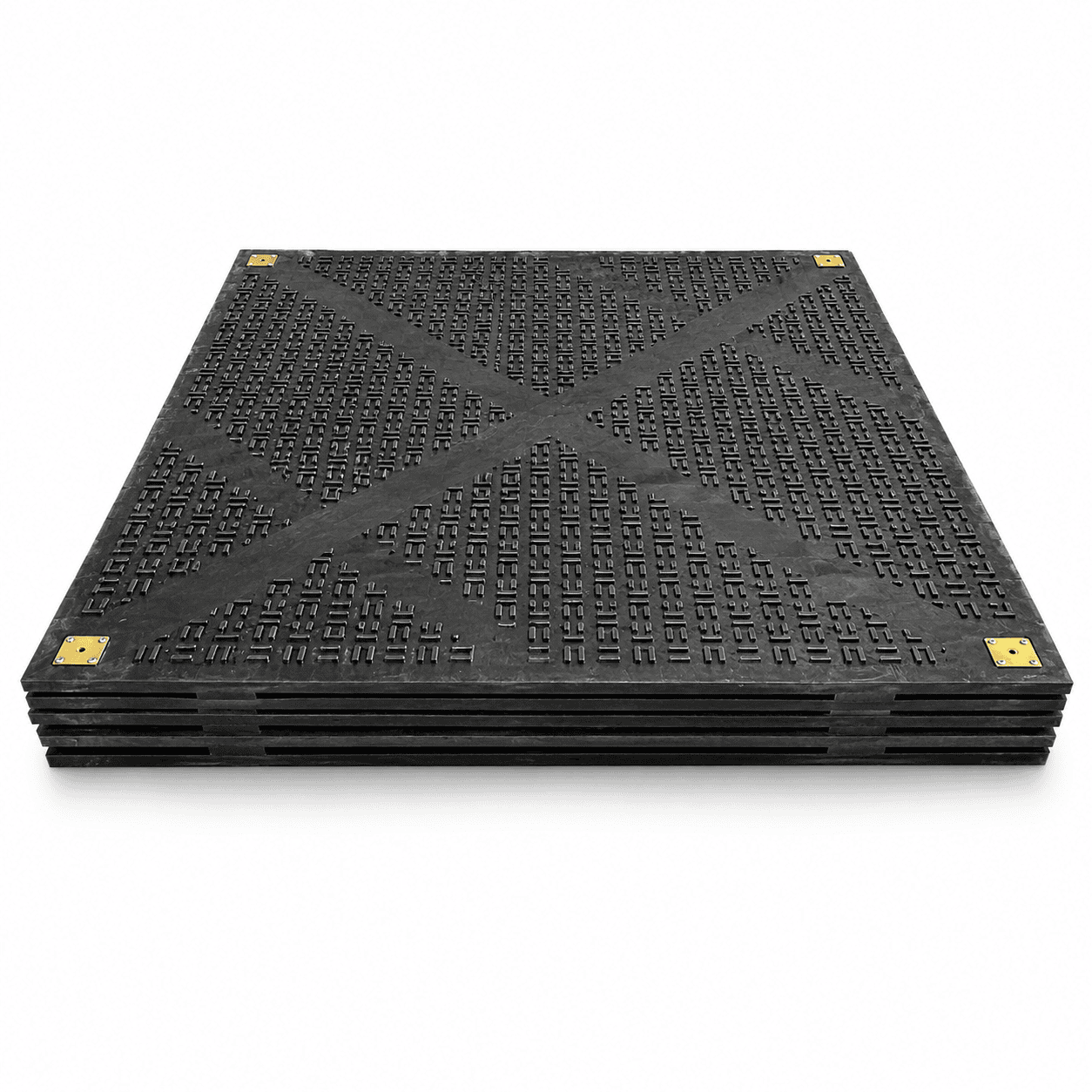

The most important feature of these mats is the raised anti-slip tread pattern. The upper surface is designed to increase contact with vehicle tires and provide better traction than a completely smooth plastic sheet.
This is particularly useful when temporary access is required over:
The traction pattern helps vehicles maintain a more consistent travel path, especially where wet weather or soft ground can make normal access difficult. Depending on the product structure, the lower surface may also feature a patterned design that helps improve contact with the supporting ground.
Correct ground preparation remains important. Large holes, deep trenches, sharp objects, severe level changes, and unsupported mat edges should be treated before repeated equipment traffic begins.
High-density polyethylene provides a useful combination of toughness, impact resistance, moisture resistance, corrosion resistance, and low water absorption. These characteristics make Safety Grip HDPE Rig Mats suitable for repeated outdoor installation in wet, muddy, and exposed environments.
Unlike steel access plates, HDPE does not rust after repeated exposure to rain and wet ground. Compared with many traditional timber access boards, it does not absorb large quantities of water and can be easier to clean after use.
The material also provides limited flexibility that allows the panel to follow minor ground contours when it is correctly supported. This can help create a more continuous temporary travel surface over terrain that is not completely flat.
For general information about the base polymer, you can read this external resource about polyethylene material information.

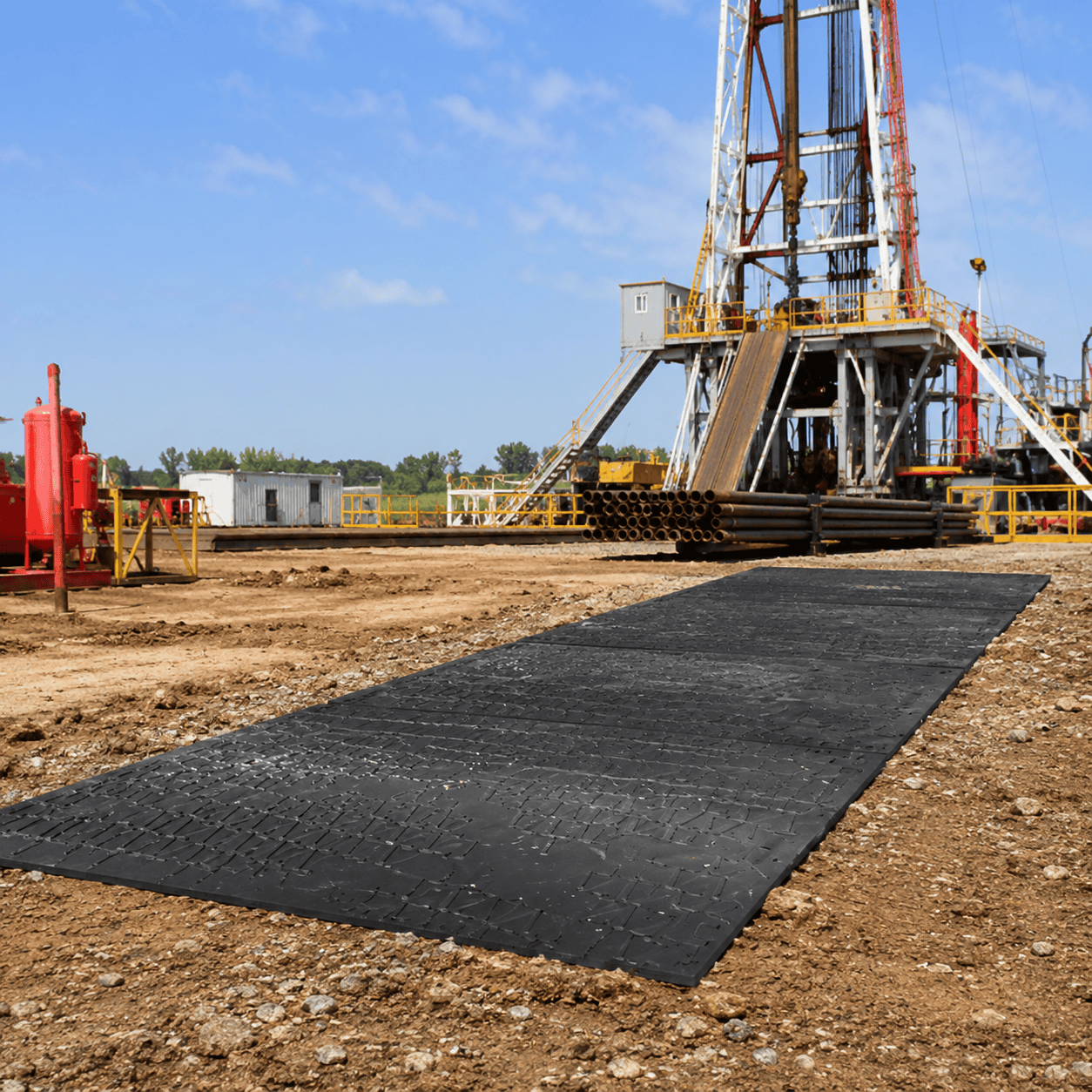

Safety Grip HDPE Rig Mats are well suited to oil and gas operations where vehicles and equipment need temporary access across unstable or sensitive terrain.
Typical applications include:
For drilling operations, the mats can provide defined routes for support vehicles and service equipment. For pipeline projects, multiple mats can be connected to form temporary access paths along areas where permanent road construction may be unnecessary.
Individual panels can be joined together using suitable mechanical connectors. This allows the mats to form a continuous temporary roadway and helps reduce unwanted gaps or separation between adjacent panels.
The modular installation system allows the route to be adapted according to actual project requirements. Common layouts include:
As project requirements change, additional mats can be connected to extend the length or width of the temporary access area.
You can also view our complete range of ground protection mats for temporary roads, heavy equipment access, grass protection, and industrial applications.
The connected mat system can be used to create temporary routes for service trucks, maintenance vehicles, transport equipment, utility vehicles, and other industrial traffic when the mat specification and supporting ground conditions are appropriate.
For heavier vehicles and equipment, actual performance must be evaluated according to the complete installation system rather than total vehicle weight alone. Important factors include:
A mat installed on firm and evenly supported ground may perform very differently from the same mat placed across deep mud, unsupported edges, holes, or severe ground depressions.
For this reason, heavy vehicle applications should be reviewed before the final product specification and installation layout are selected.
Repeated vehicle movement can quickly create deep ruts and surface damage on grass, mud, wet soil, and other soft areas. Tires can repeatedly follow the same route, causing the ground condition to become increasingly difficult.
Safety Grip HDPE Rig Mats create a defined temporary route and help spread traffic over a wider surface area. This can reduce direct contact between tires and the underlying ground while helping vehicles follow a more controlled access path.
This makes the mats useful not only for oilfields and drilling operations but also for utility projects, infrastructure maintenance, landscaping, outdoor operations, and temporary industrial access.
After a temporary route is no longer required, the panels can be disconnected, cleaned, inspected, stacked, transported, and installed again at another location.

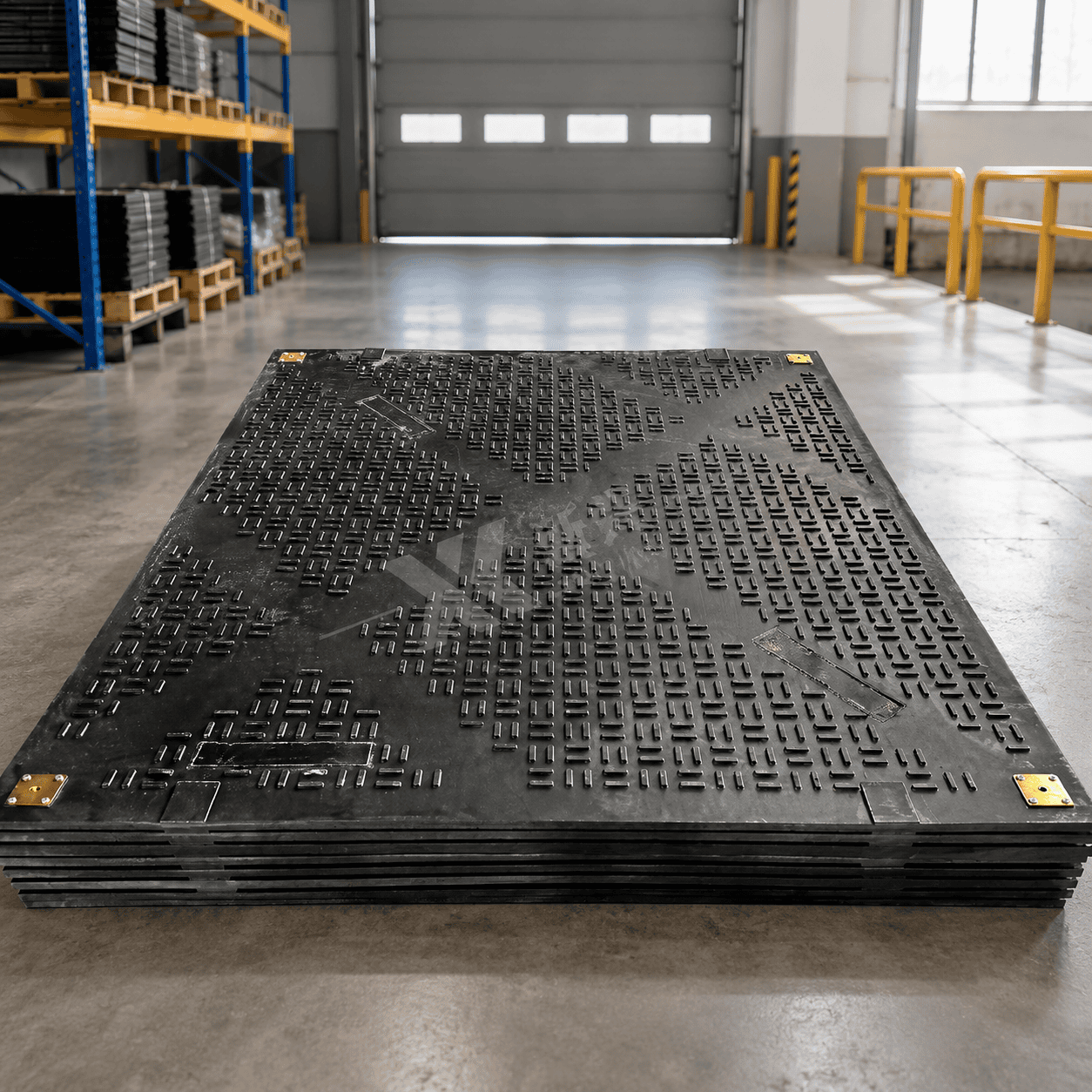

The approximately 8 × 4 ft panel format provides a practical balance between surface coverage and transportation. The consistent rectangular shape also allows efficient stacking during storage and transport.
Routine inspections should include:
Damaged mats or connection components should be reviewed before they are installed again in demanding vehicle access applications.
The performance of any temporary access system depends on the relationship between the mat, the vehicle, and the supporting ground.
Important conditions include soil strength, moisture level, axle load, tire pressure, traffic direction, repeated turning, braking forces, and installation quality. The same product can perform differently on firm soil compared with deep mud or unsupported terrain.
For this reason, a single universal vehicle tonnage should not be treated as a guaranteed performance value for every installation. The actual project conditions should be evaluated before the final mat thickness, quantity, route width, and connection method are confirmed.
Safety Grip HDPE Rig Mats provide a practical solution for creating temporary vehicle and equipment routes across challenging terrain. Their raised traction pattern, durable HDPE construction, modular connection system, and reusable design make them suitable for oilfields, drilling support operations, pipeline projects, utility maintenance, and industrial access applications.
A typical panel size is approximately 2440 × 1220 × 12.7 mm with a reference weight of around 40 kg. Final product specifications and installation layouts should always be selected according to actual vehicle types, ground conditions, expected traffic frequency, and project operating requirements.
