Stadium Turf Protection Mats are modular recyclable PP flooring panels designed to protect natural grass, artificial turf, and sensitive surfaces during concerts, festivals, sporting events, exhibitions, and other temporary activities.
Each panel measures approximately 1220 × 1220 × 42 mm, weighs around 23 kg, and provides an effective usable area of 1120 × 1120 mm or approximately 1.25 m².
The interlocking edge design creates a connected temporary flooring system, while the stated load performance exceeds 30 tons under suitable installation and ground conditions. Available colors include Black, Blue, Green, Yellow, Red, Orange, and White.

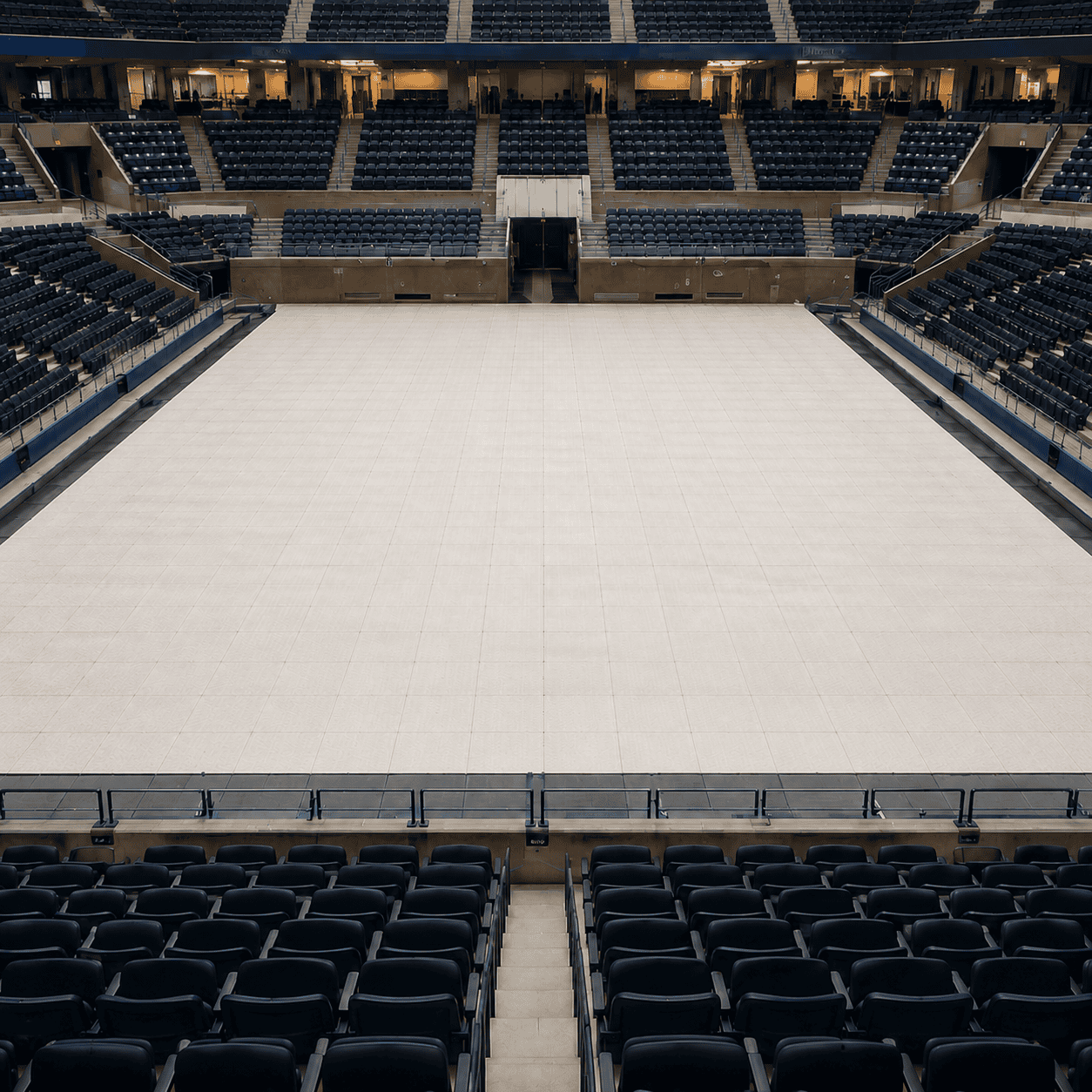

Stadium Turf Protection Mats are modular temporary flooring panels designed to protect natural grass, artificial turf, sports surfaces, and other sensitive ground during concerts, festivals, exhibitions, sporting events, outdoor shows, and temporary venue activities.
Large events can place significant pressure on the original surface. Heavy pedestrian traffic, temporary equipment, service vehicles, staging materials, seating systems, and repeated movement can damage grass or leave uneven surfaces. These modular mats create a protective layer between the event activity and the ground underneath.

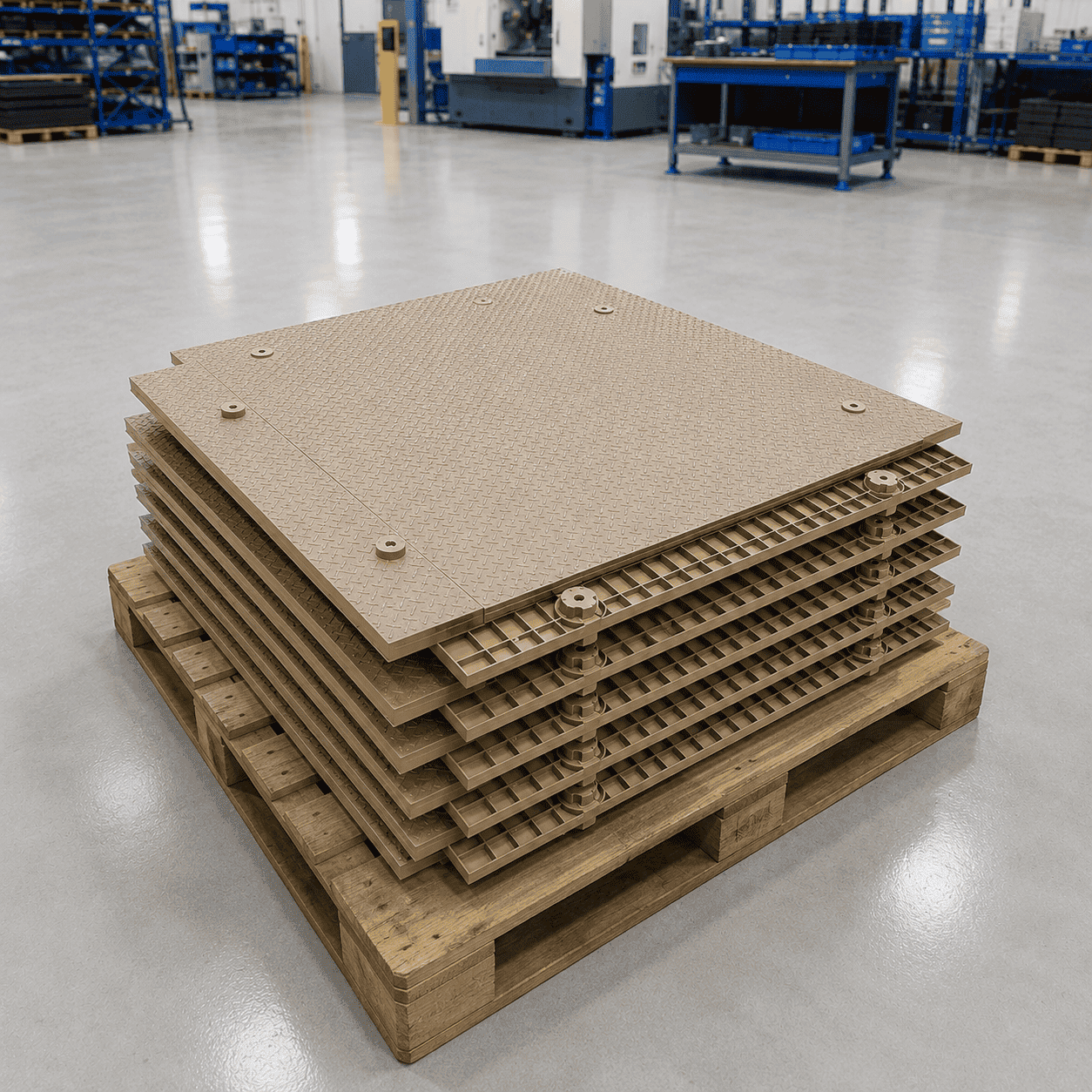

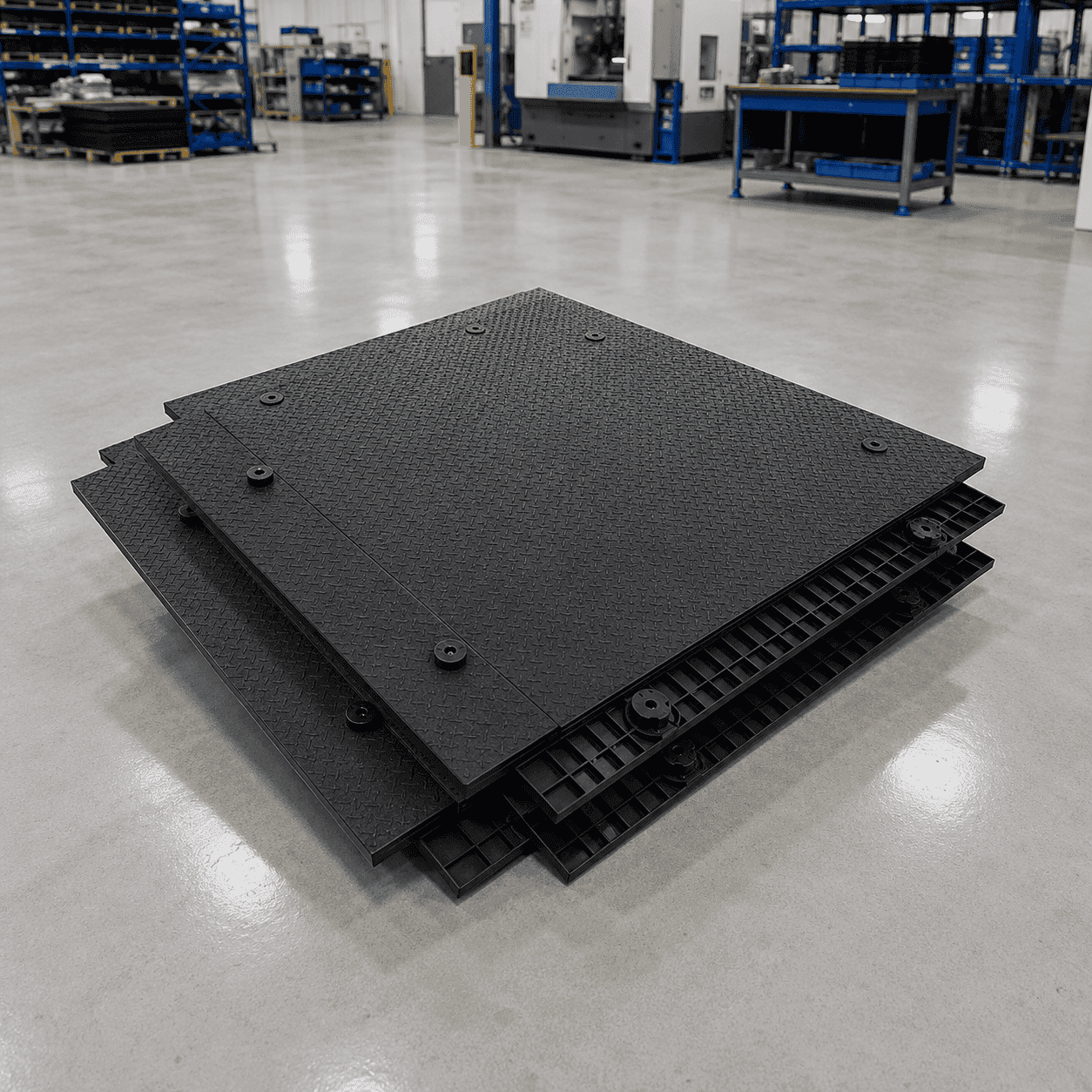

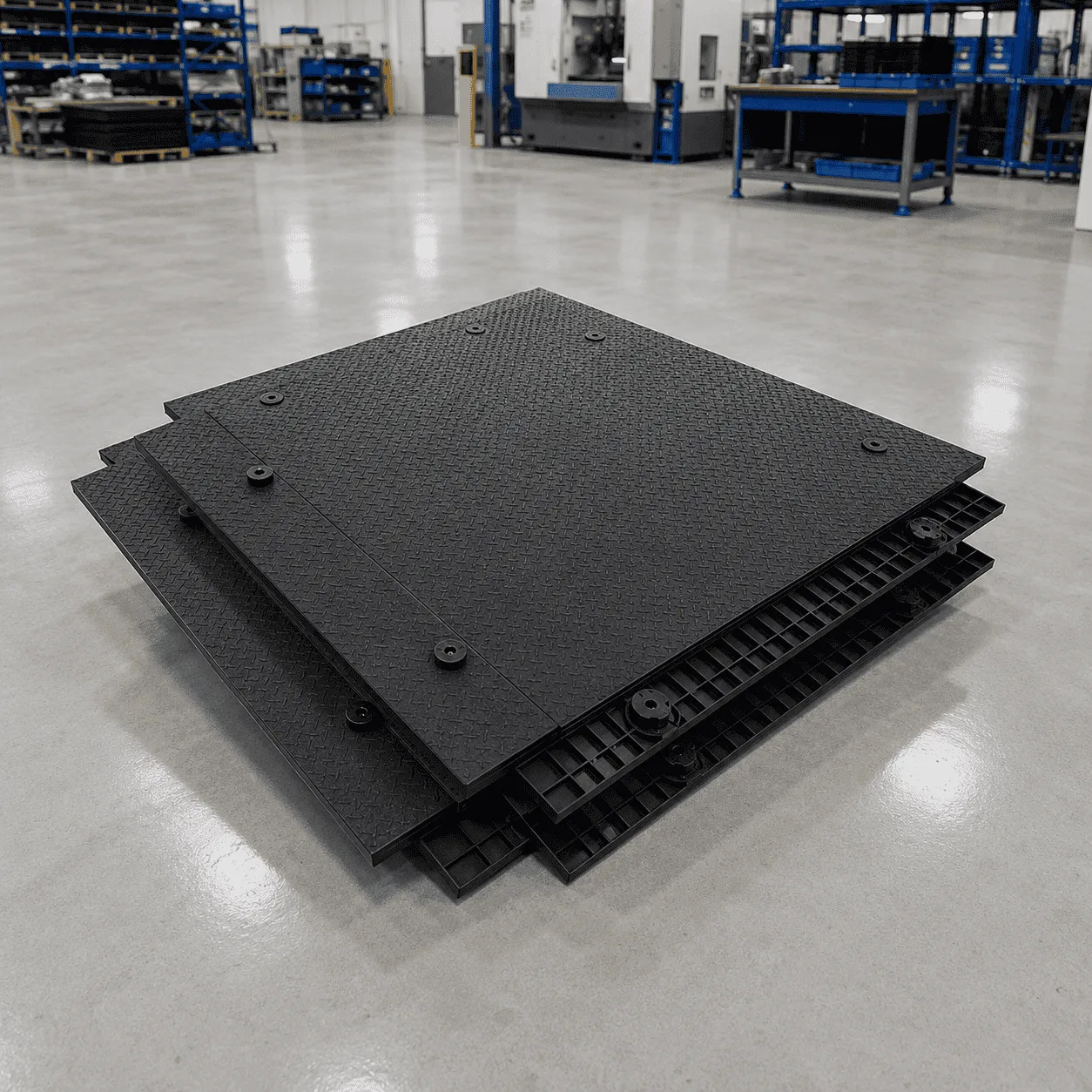

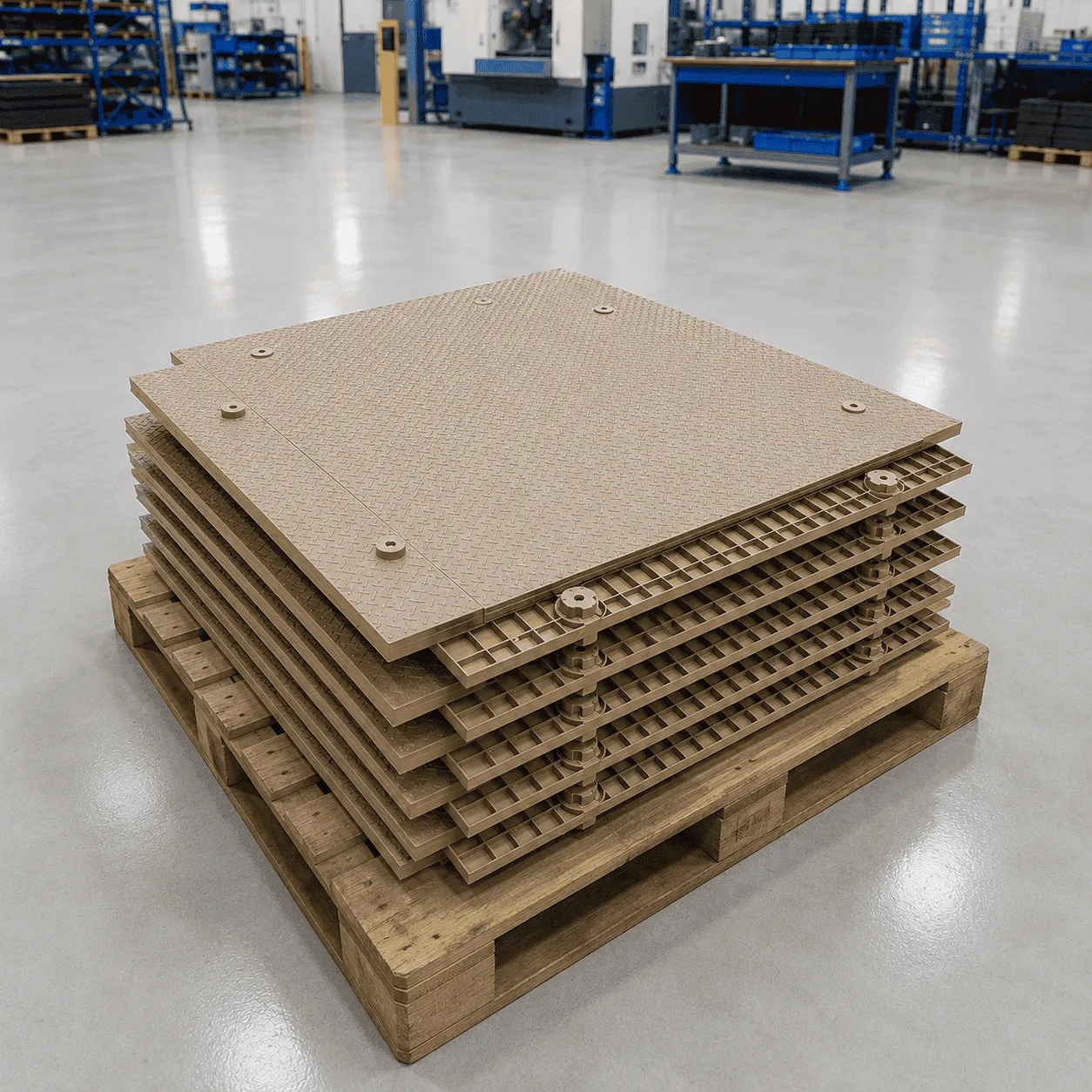

The product shown is manufactured from recyclable polypropylene material and uses an interlocking edge and lock system. Each panel measures approximately 1220 × 1220 × 42 mm and weighs around 23 kg. The effective usable area is approximately 1120 × 1120 mm, providing about 1.25 m² of usable coverage per panel.
With a modular design, Stadium Turf Protection Mats can be connected to create temporary walkways, large event floors, equipment access areas, exhibition surfaces, and protective flooring systems of different sizes.
The dimensions and specifications of this type of event ground protection mat are important because they directly affect installation speed, transport, coverage, and performance.
The overall 1220 × 1220 mm dimensions include the complete panel structure and connection areas. After allowing for the interlocking edges, the effective usable surface is approximately 1120 × 1120 mm, equal to about 1.25 m² per panel.
The 42 mm thickness provides a rigid three-dimensional structure that separates the event surface from the ground underneath. The panel is designed to combine structural strength with practical handling and repeated installation.
One of the most important features of Stadium Turf Protection Mats is the interlocking edge design. Individual panels can be connected to neighboring mats to create a larger and more continuous temporary flooring surface.
The connection system helps reduce unwanted movement between adjacent panels. This is particularly important for busy event environments where large numbers of people, equipment carts, temporary furniture, and operational equipment may move across the floor.
Instead of using one extremely large flooring panel, the modular system allows the installation area to be expanded according to the actual venue layout. This makes it possible to create:
When the event is complete, the panels can be disconnected, cleaned, transported, stored, and reused for another project.
Stadium Turf Protection Mats are especially useful when an event venue needs to remain operational without permanently altering the original surface.
Natural grass can be damaged by concentrated foot traffic, temporary equipment, repeated walking routes, and heavy event activity. Artificial turf and other sports surfaces can also be affected by dirt, direct equipment contact, concentrated loading, and repeated movement.
Installing temporary protection panels creates a physical barrier between event activities and the original surface. This can help reduce direct wear, surface contamination, localized pressure, and damage caused by repeated traffic.
Typical applications include:
The product specification shown indicates a loading capacity of more than 30 tons. This makes the system suitable for demanding temporary flooring applications where the connected panels may need to support equipment and operational traffic.
However, the actual load performance of Stadium Turf Protection Mats depends on the complete installation system rather than the plastic panel alone.
Important factors include:
For this reason, the stated 30+ ton capacity should be considered together with suitable installation and ground conditions. A concentrated load on unstable ground produces different results from a distributed load on a properly prepared and supported surface.
These Stadium Turf Protection Mats are manufactured from recyclable polypropylene material. PP is widely used in industrial and outdoor plastic products because it provides a useful balance of strength, impact resistance, chemical resistance, and practical weight.
The plastic construction does not rust like steel and does not absorb water or rot like untreated timber. This makes the panels suitable for repeated indoor and outdoor use.
The approximately 23 kg unit weight also makes each module easier to handle than extremely heavy steel road plates or solid timber protection systems. Depending on the installation method and site requirements, two-person handling can make positioning and alignment efficient and practical.
For general information about the material, visit this external resource about polypropylene and its properties.

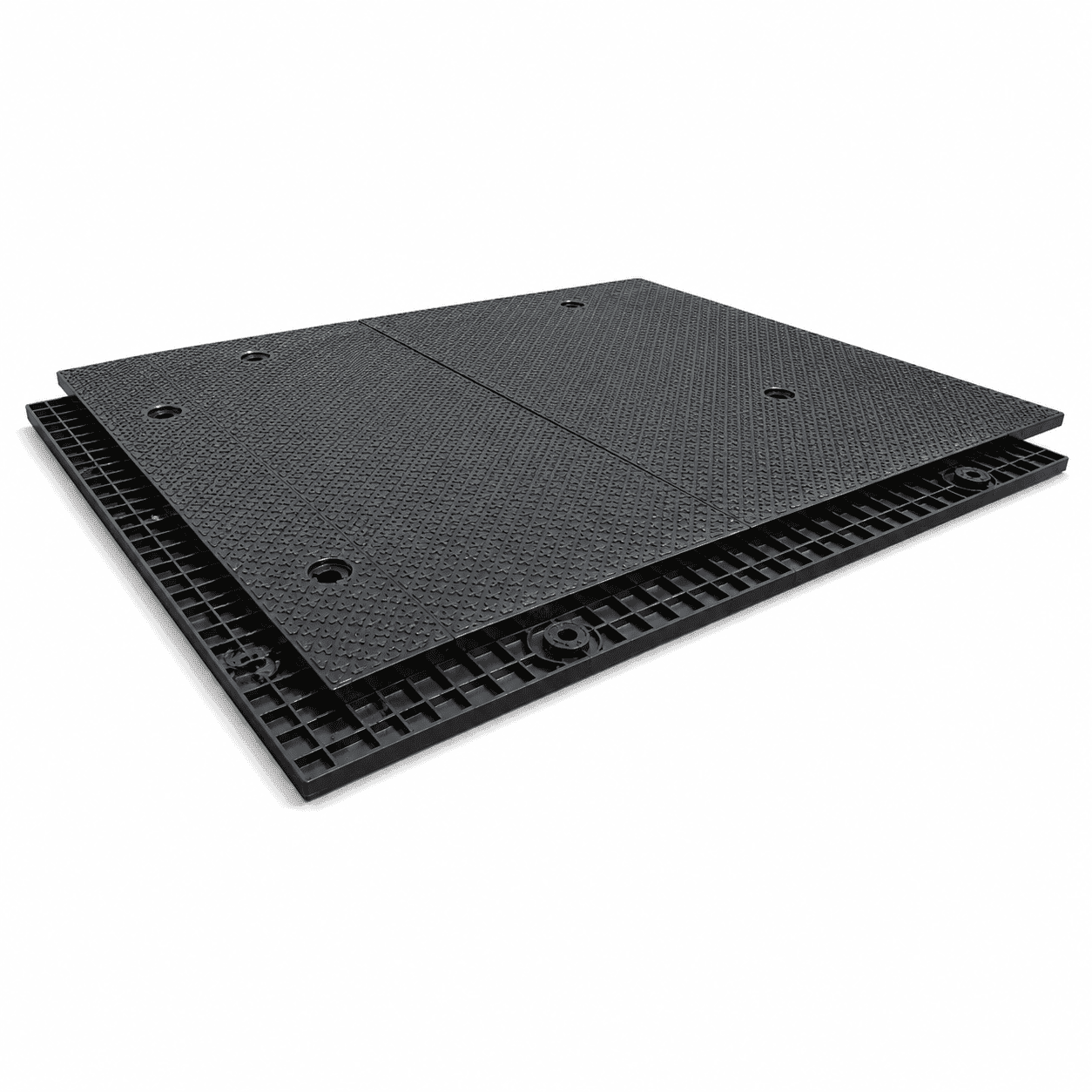

The panel structure shown includes an engineered underside and modular surface design. Compared with a completely solid flat sheet placed directly on the ground, this type of structured panel can provide separation between the temporary event surface and the turf underneath.
For grass and stadium applications, correct installation time and site management are important. Natural grass remains a living surface, so event duration, weather, temperature, drainage, light exposure, and installation period should all be considered.
The mats are designed to provide temporary protection rather than permanent coverage. For long-duration events, venue operators should evaluate the condition of the turf before, during, and after installation.
Concerts, exhibitions, sports events, and festivals can bring thousands of people into the same area. Repeated foot traffic can quickly damage grass and create muddy or uneven conditions, especially after rain.
Stadium Turf Protection Mats create a more consistent temporary walking surface for visitors, staff, and event operations. By covering the underlying ground, the panels help separate footwear and equipment from the turf surface.
This is particularly useful for:
The product is available in several color options, including:
Different colors can be selected according to venue design, event type, route identification, safety management, or visual requirements.
Green panels may be suitable for grass and sports venues where a lower visual contrast is preferred. Black provides a practical industrial appearance, while brighter colors can be used for specific route areas, zones, or event layouts.

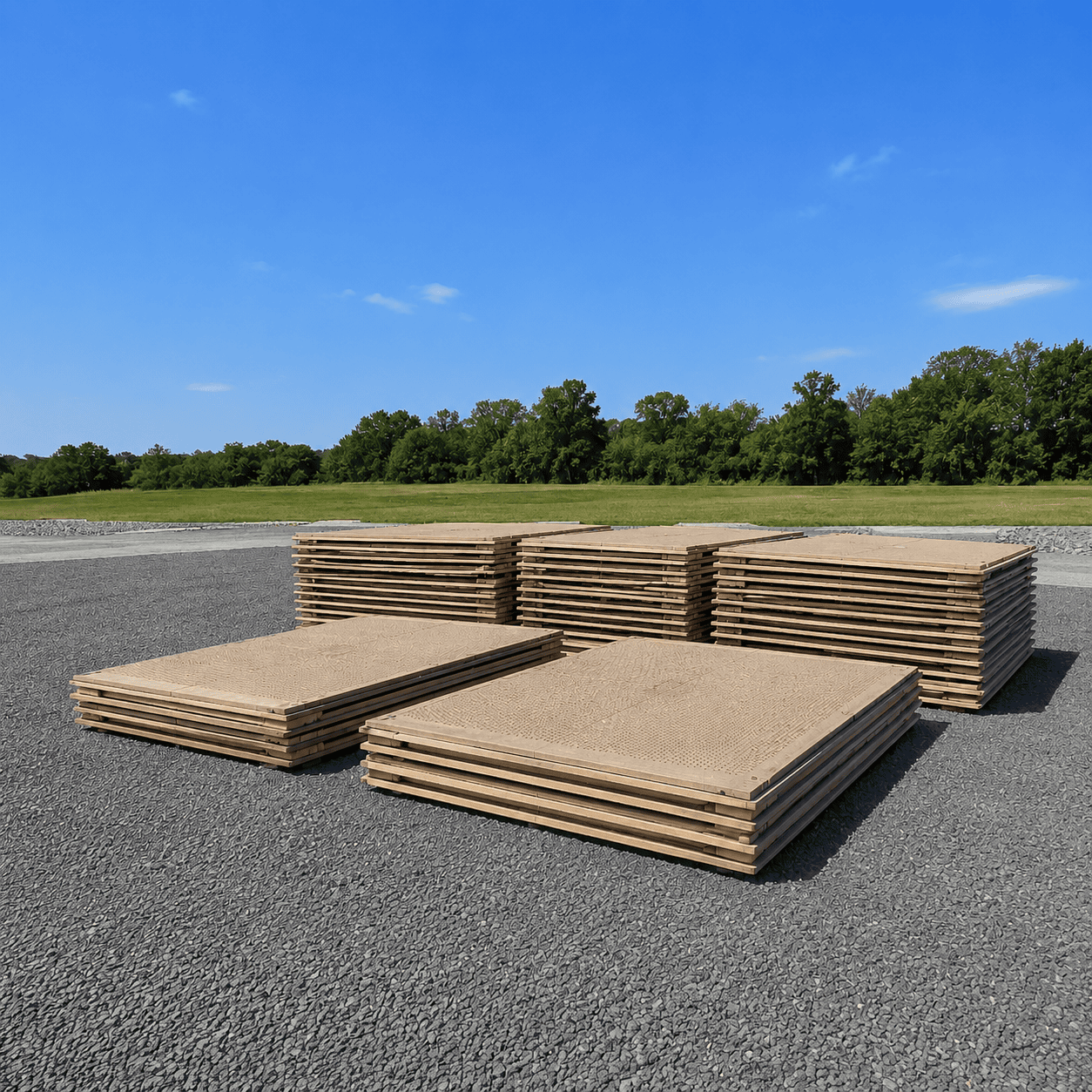

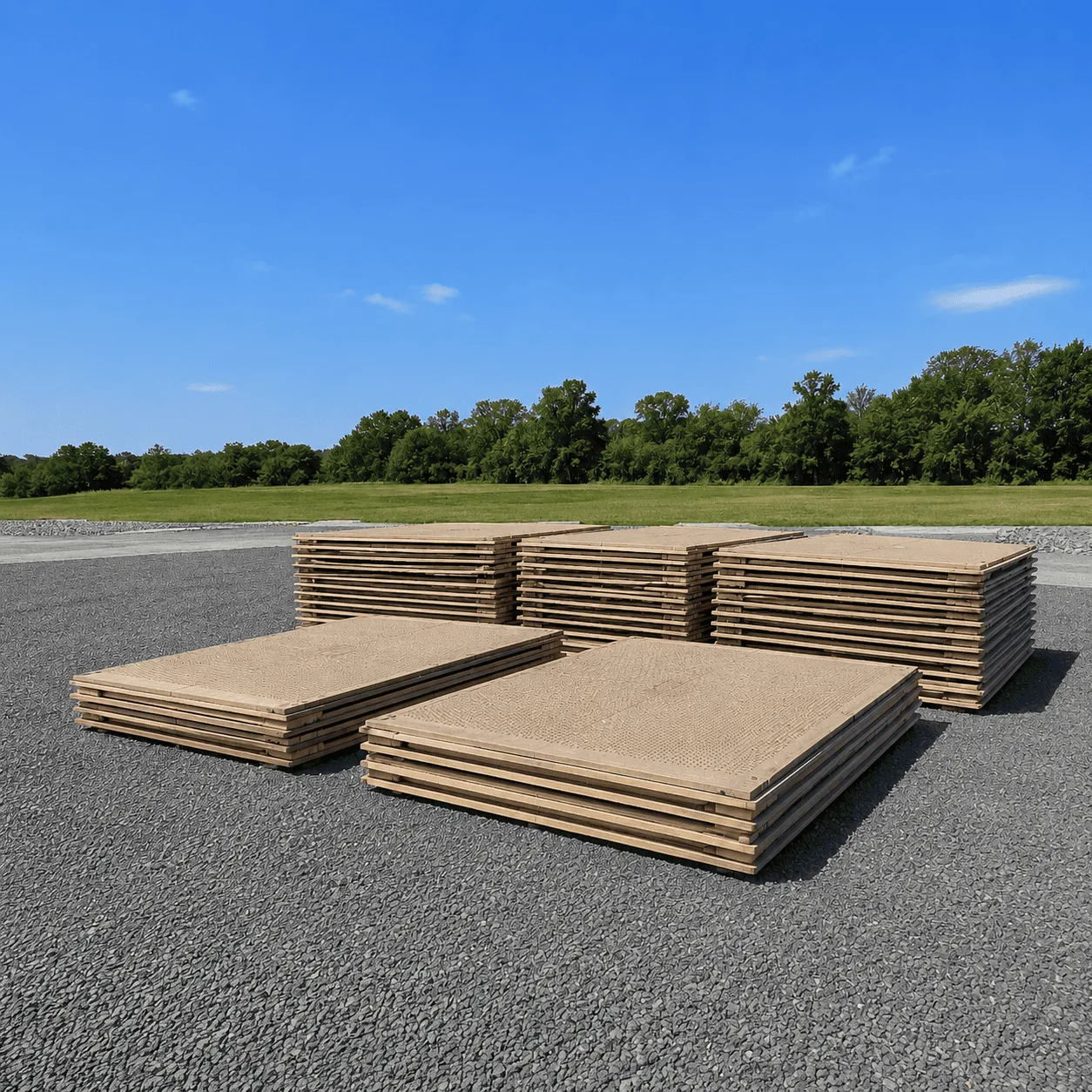

One of the main advantages of Stadium Turf Protection Mats is their reusable modular construction. A temporary event floor can be installed for a specific activity and removed after the event.
The panels can then be:
This makes modular event flooring suitable for rental companies, stadium operators, event organizers, exhibition contractors, and businesses that regularly need temporary surface protection.
Explore more engineering plastic and ground protection solutions for temporary access, event flooring, and outdoor surface protection applications.
Each mat provides approximately 1.25 m² of effective usable area. This figure can be used as an initial reference when estimating the number of panels required.
For example, a theoretical 1,000 m² area would require approximately 800 panels based on nominal effective coverage:
1,000 m² ÷ 1.25 m² = approximately 800 mats
Actual quantities may vary because of venue shape, irregular boundaries, access routes, panel orientation, installation gaps, obstacles, and spare panel requirements.
For accurate planning, the final quantity should be calculated according to the actual site drawing and required protected area.
Before installing Stadium Turf Protection Mats, the original surface should be inspected. Large holes, sharp objects, severe level differences, standing water, and unstable areas should be addressed before installation.
The panels should be aligned so that the interlocking edges and locks connect correctly. A consistent installation direction helps create a more continuous temporary floor.
For stadium turf, installation time should also be considered. Long-term coverage may affect natural grass, especially under high temperature or limited ventilation conditions. Temporary flooring should therefore be managed according to the actual venue, weather, event duration, and turf maintenance requirements.
Stadium Turf Protection Mats provide a practical temporary flooring solution for stadiums, concerts, festivals, exhibitions, sports events, and other high-traffic activities.
Each panel measures approximately 1220 × 1220 × 42 mm, weighs around 23 kg, and provides an effective usable area of approximately 1120 × 1120 mm or 1.25 m².
With recyclable polypropylene construction, interlocking edges, multiple color options, reusable installation, and a stated load rating of more than 30 tons under suitable conditions, these mats are designed for demanding temporary event flooring and turf protection applications.
The final panel quantity and installation method should always be selected according to the actual venue area, ground conditions, event duration, expected traffic, and load requirements.
