Chemical Resistant Outrigger Pads are durable UHMWPE support panels featuring red square structures, multiple rope carrying handles and a stackable reusable design. Typical reference sizes include 500 × 500 × 40–50 mm, 600 × 600 × 40–60 mm, 760 × 760 × 50–60 mm and 800 × 800 × 50–80 mm. The pads are suitable for cranes, concrete pumps, boom trucks and industrial equipment operating in wet or chemically demanding environments.
Chemical Resistant Outrigger Pads are heavy-duty UHMWPE support panels designed to increase the effective contact area beneath crane outriggers, concrete pump stabilizers, boom truck support legs, aerial work equipment, utility vehicles, mobile machinery, and other outrigger-equipped equipment.
The product shown features a high-visibility red square structure, multiple rope carrying handles, rounded outside corners, and a stackable design. Multiple matching pads can be transported and stored together as a complete equipment support set.
The main product characteristic is the use of UHMWPE for repeated industrial environments where moisture, dirt, wear, impact, oils, and exposure to many chemical substances may be present. The material provides a practical alternative to steel and timber support products in applications where low water absorption, corrosion-resistant plastic construction, repeated handling, and easy cleaning are important.
Unlike temporary road mats, which are installed continuously to create vehicle access routes, outrigger pads are positioned directly beneath individual stabilizer feet. Their main purpose is to provide a larger equipment support area between the original outrigger foot and the underlying surface.
The exact dimensions of the red pads shown cannot be confirmed from the product image alone. The following dimensions are practical reference sizes for this type of square UHMWPE outrigger support product.
| Reference Size | Practical Thickness | Typical Application |
|---|---|---|
| 450 × 450 mm | 30–40 mm | Compact stabilizers and lighter equipment |
| 500 × 500 mm | 40–50 mm | Portable crane and vehicle support |
| 600 × 600 mm | 40–60 mm | General crane and machinery outriggers |
| 760 × 760 mm | 50–60 mm | Medium-size lifting equipment |
| 800 × 800 mm | 50–80 mm | Heavy equipment stabilizer support |
| 900 × 900 mm | 60–80 mm | Larger crane and pump truck applications |
| 1000 × 1000 mm | 60–100 mm | Large equipment support requirements |
| 1200 × 1200 mm | 80–100 mm | Large-format heavy equipment support |
The approximately 500 × 500 × 40–50 mm format provides a practical balance between support area, equipment storage, portability, and repeated handling.
The approximately 600 × 600 × 40–60 mm range is a practical reference for many general crane, concrete pump, service vehicle, and mobile machinery applications.
Medium and larger reference formats such as 760 × 760 × 50–60 mm, 800 × 800 × 50–80 mm, and 900 × 900 × 60–80 mm provide progressively larger geometric support areas.
Large-format products such as approximately 1000 × 1000 × 60–100 mm and 1200 × 1200 × 80–100 mm require additional consideration for finished weight, transportation, storage, handling methods, pad stiffness, and the complete equipment support condition.
Final dimensions should always be selected according to the maximum individual outrigger reaction, original support foot dimensions, required support area, supporting surface, material structure, pad thickness, and actual operating configuration.
| Specification | Typical Reference |
|---|---|
| Product type | Chemical-resistant crane and equipment outrigger support pad |
| Primary material | UHMWPE |
| Main shape | Square |
| Reference color | Red |
| Other practical colors | Black, yellow, blue, green and application-specific colors |
| Surface options | Smooth, textured, central circular area or carved pattern |
| Handle options | Rope handles, rubber grip sleeves or integrated hand holes |
| Storage structure | Stackable matching pad sets |
| Main applications | Cranes, concrete pumps, boom trucks and outrigger-equipped machinery |
Final color, dimensions, thickness, surface structure, handle arrangement, edge design, and equipment application should be selected according to the actual project requirements.
The reference product uses a bright red UHMWPE structure.
A high-visibility pad color can help with:
Color should not be treated as an indication of load capacity.
The final product specification should be determined by dimensions, thickness, material structure, equipment reaction, and supporting conditions.
One of the most visible characteristics of the product shown is the large number of rope carrying handles positioned around the pad edges.
Multiple gripping positions can be useful when pads need to be:
Depending on the final product size, different handle arrangements may be used.
Practical options can include:
Before moving a pad, inspect:
The handles are intended for moving and positioning the support pad. They should not be treated as structural components carrying the equipment load.

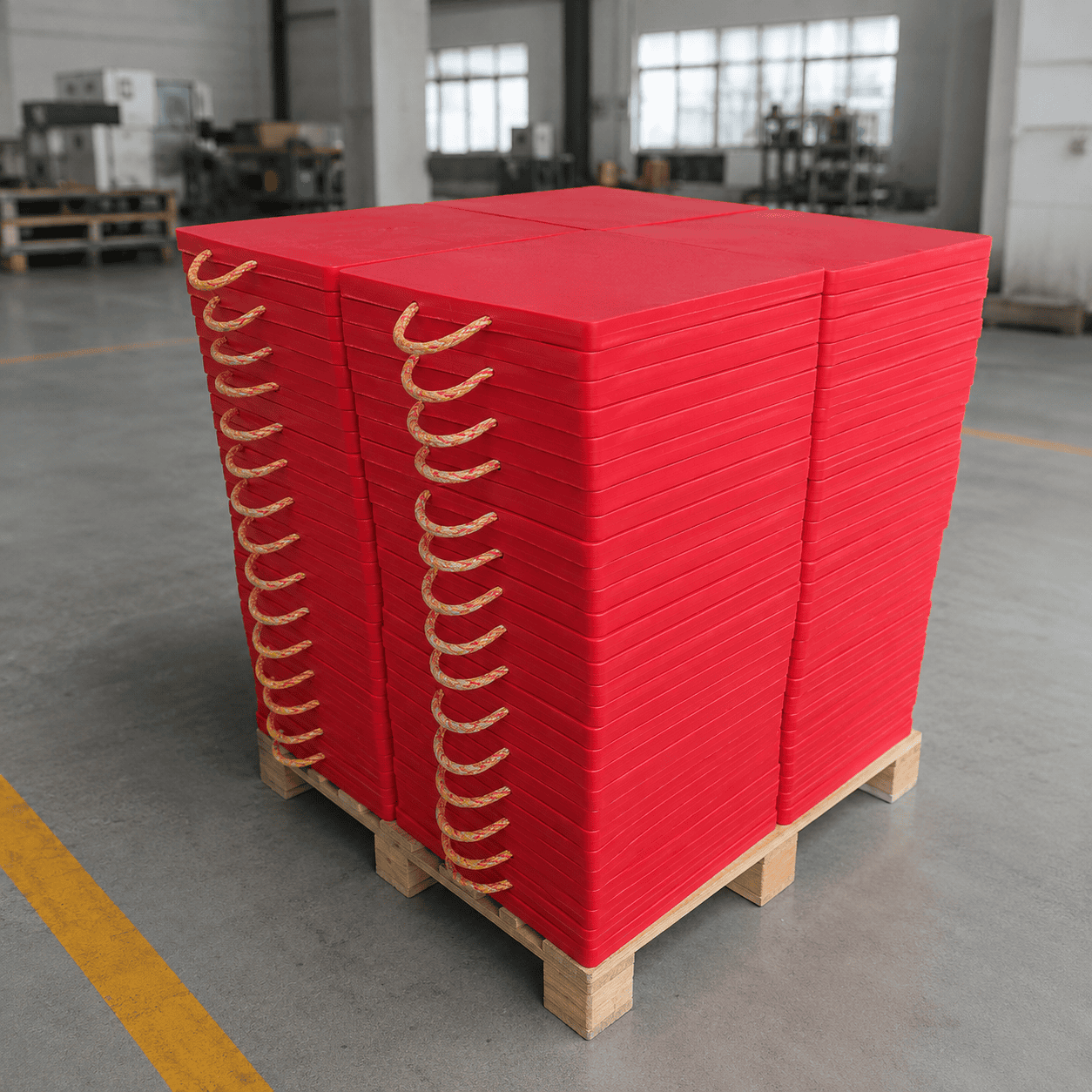

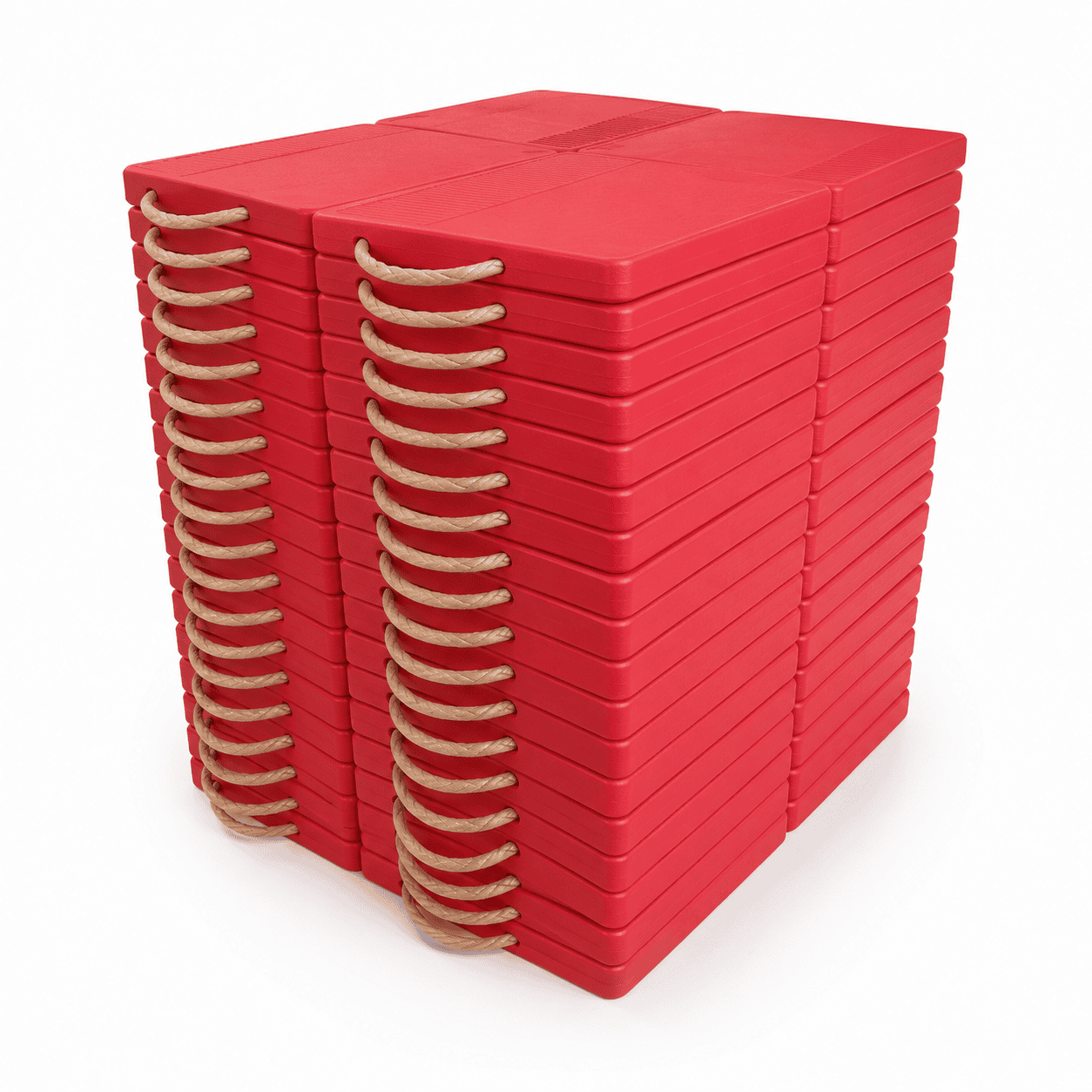

The reference image shows a large group of matching red pads stored in one vertical stack.
This type of arrangement is practical for equipment fleets that require several outrigger pads during each setup.
Stackable pad sets can help with:
The storage surface should be reasonably level and appropriate for the total weight of the stacked products.
Large-format pads and large complete sets may require suitable mechanical handling methods.
The primary material used for Chemical Resistant Outrigger Pads is ultra-high-molecular-weight polyethylene, commonly abbreviated as UHMWPE.
UHMWPE is a thermoplastic polyethylene material with extremely long molecular chains. The material is widely associated with toughness, impact resistance, abrasion resistance, low moisture absorption, and resistance to many chemical environments.
For a general material explanation, see the Wikipedia article about ultra-high-molecular-weight polyethylene.
UHMWPE can resist many acids, alkalis, and corrosive chemicals, making it practical for selected industrial environments.
However, chemical resistance should never be treated as universal resistance to every chemical substance.
Important factors include:
Particular care should be taken when the product may contact strong oxidizing chemicals or other aggressive substances.
For demanding chemical environments, compatibility should be checked against the actual chemical, concentration, temperature, and exposure conditions before use.
Outrigger pads can be used in industrial environments where support products may come into contact with:
A plastic support pad does not rust like an unprotected steel plate.
Low water absorption is also useful for products that are repeatedly exposed to rain, wet ground, washing, and outdoor storage conditions.
The actual suitability of UHMWPE for a specific chemical environment should always be evaluated using the real exposure conditions.
Repeated exposure to moisture is common in crane, pump truck, utility vehicle, and industrial machinery applications.
The low moisture absorption of UHMWPE can be practical for pads used around:
Low water absorption does not eliminate the need for regular cleaning and inspection.
Mud, oil, gravel, and other debris should still be removed before the next demanding equipment setup.
Outrigger pads are repeatedly moved, positioned, loaded, recovered, transported, and stacked.
During regular service, a pad may experience:
UHMWPE is practical for this type of reusable industrial product because the material is commonly selected for applications requiring toughness and wear resistance.
The pad should still be inspected for visible damage before demanding use.

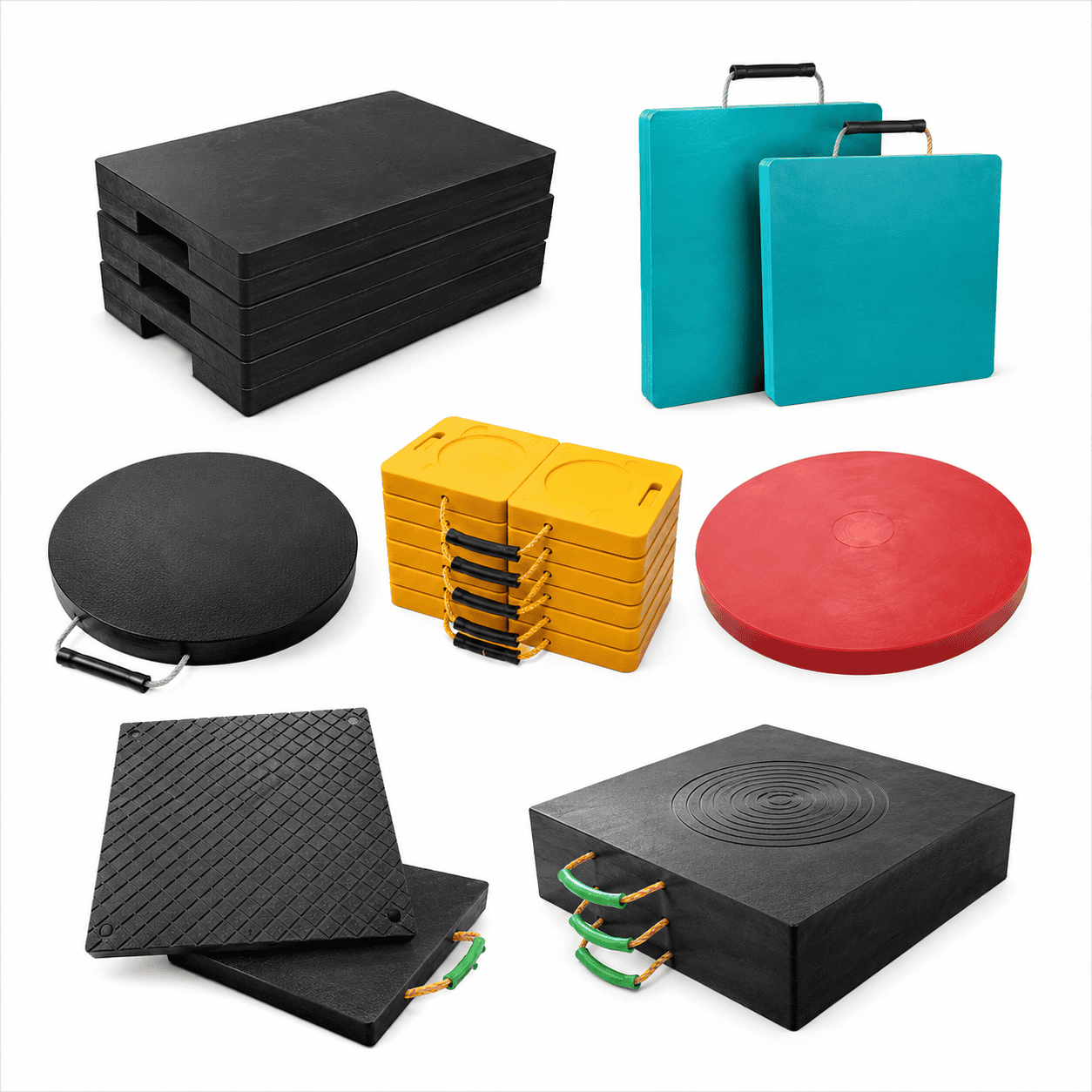

The wider Chemical Resistant Outrigger Pads product family can use different working surface structures.
Practical surface options can include:
The correct surface structure should be selected according to the original equipment foot, pad size, working environment, handling requirements, and intended application.
This product page is focused on the red stackable UHMWPE support pads shown in the reference image.
A smooth or lightly textured working surface provides a simple equipment support face.
This structure can be practical where:
The correct surface should always be matched to the complete equipment support arrangement.

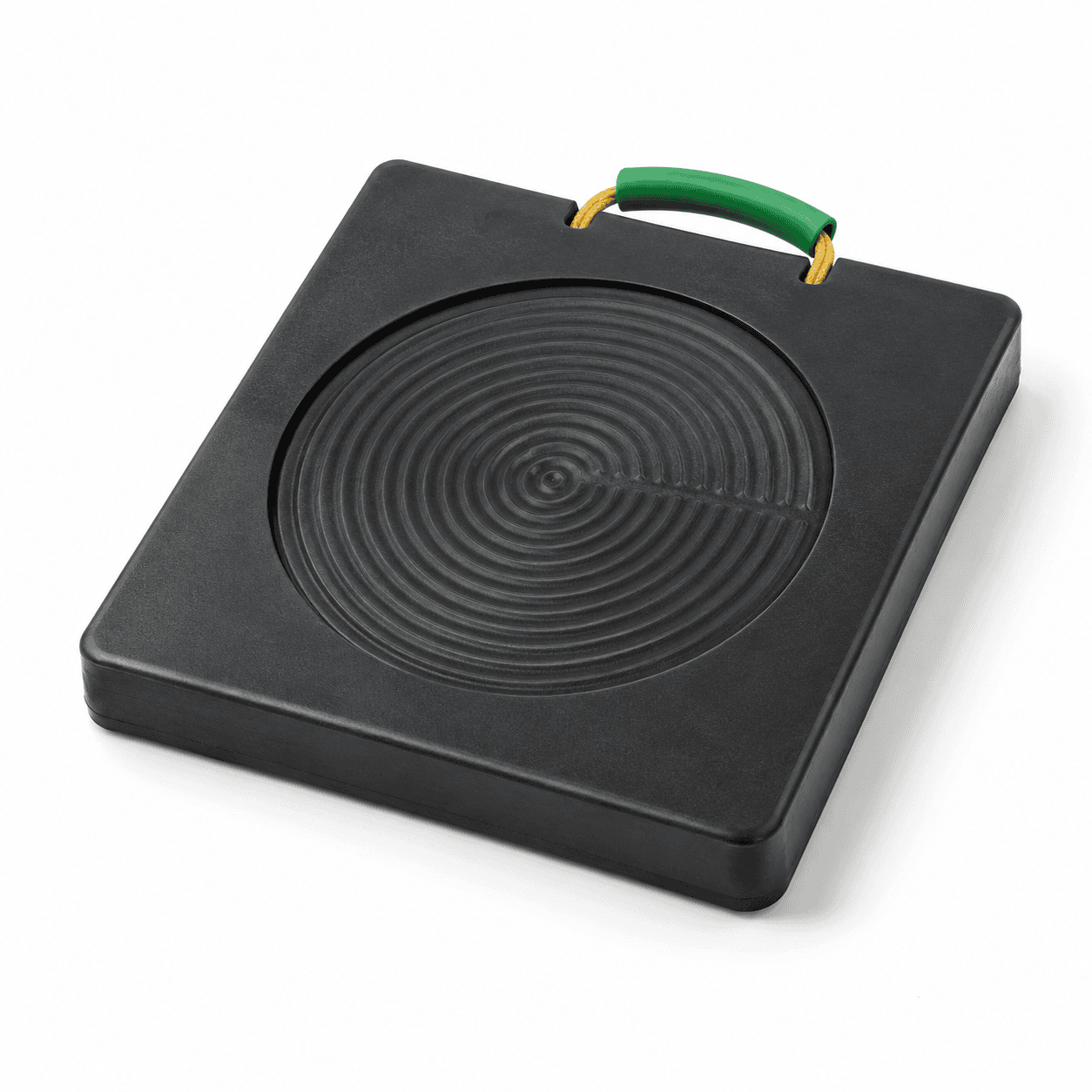

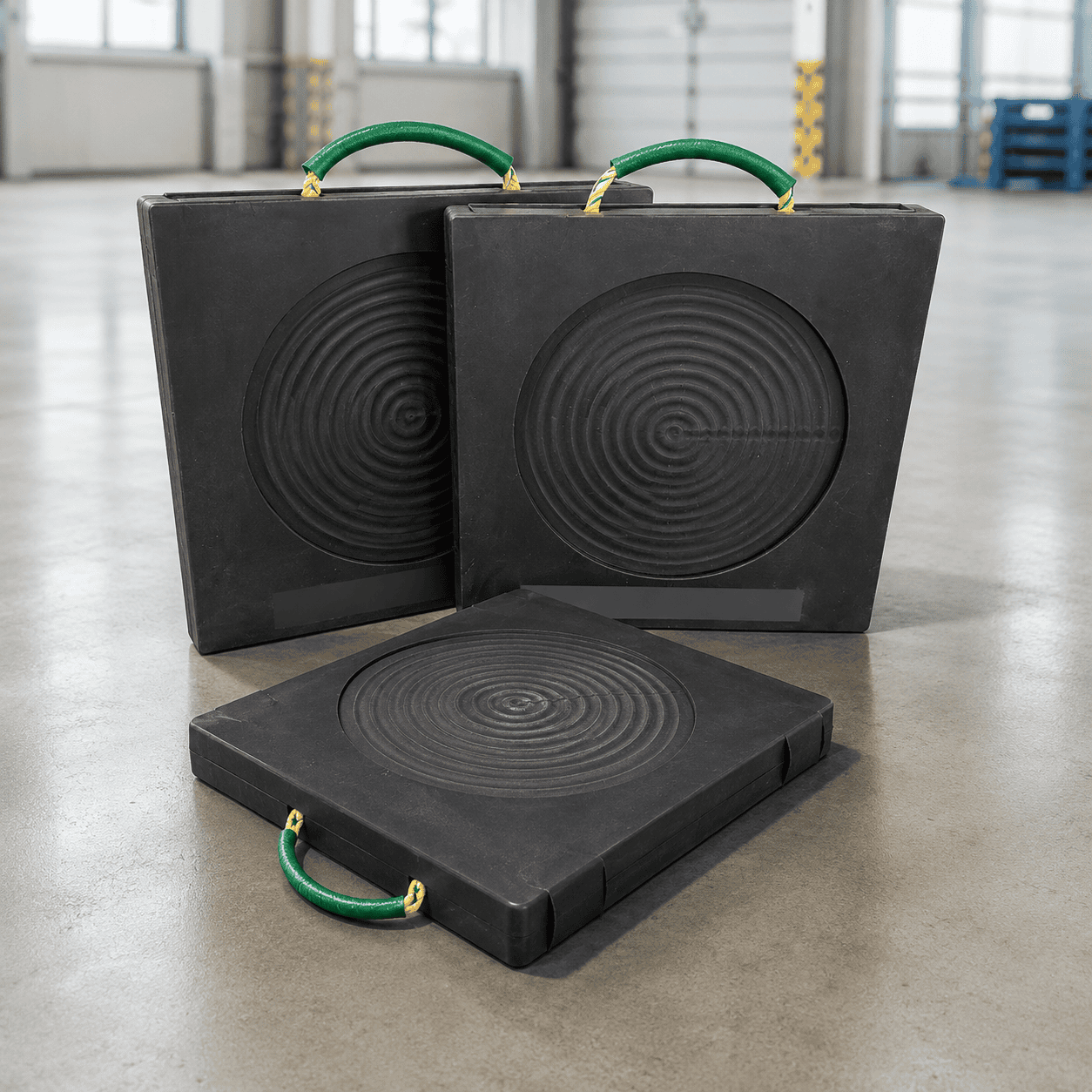

Selected pad designs can include a circular area near the center of the upper working surface.
This structure can provide:
The circle diameter and depth should match the actual stabilizer foot and product design.
A carved or raised diamond pattern can create a more pronounced industrial working surface.
This option can provide:
Surface pattern alone does not determine the safe capacity of an outrigger pad.
Dimensions, thickness, material structure, equipment reaction, load position, and supporting ground must also be considered.
An outrigger or stabilizer transfers a concentrated reaction through a relatively small original equipment foot.
Chemical Resistant Outrigger Pads provide a larger geometric support area beneath the equipment foot.
The effectiveness of the complete support arrangement depends on:
A larger pad can provide a larger geometric footprint, but outside dimensions alone should not be treated as a universal safe working load.
The correct outrigger pad should not be selected only according to the total vehicle weight or rated lifting capacity of a crane.
Different outriggers on the same machine may experience different reactions according to:
Important product-selection factors include:
A larger outside dimension does not automatically make every pad suitable for every piece of equipment.
Two pads with identical length and width can behave differently when their thicknesses are different.
For example, a 600 × 600 mm pad may be supplied in several reference thicknesses:
A larger 800 × 800 mm product may use:
Thickness selection should consider:
A thinner pad may be easier to handle, while a thicker product provides a different structural response.
Chemical Resistant Outrigger Pads can be used with many types of equipment that rely on outriggers or stabilizers.
Typical applications include:
The correct pad specification should always be selected according to the actual equipment and operating conditions.
Concrete pumps use stabilizers to create a wider support base during operation.
Important considerations include:
Each stabilizer position should be evaluated separately because the reaction and supporting surface may not be identical around the same machine.
Mobile cranes use outriggers during lifting operations.
Individual support reactions can change according to:
The required pad should therefore be selected according to the actual support reaction and surface rather than the total crane weight alone.
Boom trucks and utility vehicles frequently move between multiple operating locations.
Stackable UHMWPE support pads with carrying handles can be practical for:
The product dimensions and handling arrangement should match the actual equipment and fleet storage requirements.
Selected industrial sites may expose support equipment to moisture, cleaning fluids, oils, and chemical contamination.
Possible applications can include:
Material compatibility should be checked when exposure involves aggressive chemicals, high concentrations, elevated temperatures, or long contact times.
Compacted soil can vary according to moisture, previous excavation, fill material, and compaction quality.
Before equipment setup, inspect for:
The complete effective area of the pad should receive suitable support underneath.
A larger support panel cannot automatically make unsuitable ground safe.
Prepared gravel surfaces are common around industrial and mobile equipment.
Before placing the pad, check:
Large hard objects beneath the pad can create concentrated support points and should be removed before equipment loading.
Hard surfaces should also be inspected before equipment setup.
Possible concerns include:
The visible upper surface does not always show the complete condition beneath the equipment support point.
Correct equipment-foot positioning is important when using Chemical Resistant Outrigger Pads.
Before loading, check that:
The complete arrangement should be evaluated as a support system rather than considering only the visible outside dimensions of the pad.
A major advantage of Chemical Resistant Outrigger Pads is their reusable construction.
After equipment operation, the pads can be:
The square shape and multiple carrying handles make complete pad sets easier to organize.
Reusable support pads should be inspected before demanding applications.
Check:
A damaged or chemically affected pad should be evaluated before returning to heavy equipment support service.
Mud, sand, oil, gravel, and other residues can remain on support pads after use.
Cleaning can help:
The cleaning method should be appropriate for the contamination and UHMWPE material.
The regular square structure allows matching pads to be organized into complete equipment support sets.
During storage:
Handling procedures should always match the actual dimensions and finished product weight.
You can also view our complete range of crane outrigger pads for mobile cranes, concrete pumps, boom trucks, lifting equipment, stabilizer systems, cribbing support, and related heavy machinery applications.
Chemical Resistant Outrigger Pads provide a practical equipment support solution for cranes, concrete pumps, boom trucks, mobile machinery, industrial vehicles, and other outrigger-equipped equipment operating in demanding environments.
Their red UHMWPE construction, multiple rope carrying handles, stackable square structure, low water absorption, wear resistance, and resistance to many chemical environments make the pads suitable for repeated industrial use.
Typical reference specifications include approximately 450 × 450 × 30–40 mm, 500 × 500 × 40–50 mm, 600 × 600 × 40–60 mm, 760 × 760 × 50–60 mm, 800 × 800 × 50–80 mm, and 900 × 900 × 60–80 mm.
Larger reference formats can include approximately 1000 × 1000 × 60–100 mm and 1200 × 1200 × 80–100 mm where the complete equipment, handling, structural, and ground-support requirements are properly evaluated.
Final dimensions, thickness, material grade, chemical compatibility, effective support area, handle configuration, surface structure, and equipment setup should always be selected according to the actual application and operating environment.
