Crane Stabilizer Pads are durable UHMWPE support panels designed to distribute outrigger and stabilizer forces over a larger ground area. Typical square sizes include 450 × 450 × 25 mm, 600 × 600 × 40 mm and 760 × 760 × 60 mm. The circular recessed positioning area, integrated metal carrying handle and reusable construction make the pads suitable for mobile cranes, concrete pumps, boom trucks and other stabilizer-equipped machinery.
Crane Stabilizer Pads are heavy-duty UHMWPE support panels designed to create a larger effective contact area beneath crane outriggers, equipment stabilizers, concrete pump support legs, boom trucks, utility vehicles, and other outrigger-equipped machinery. The pads help distribute concentrated stabilizer reactions across a broader supporting surface when the correct dimensions, thickness, material structure, and setup method are selected.

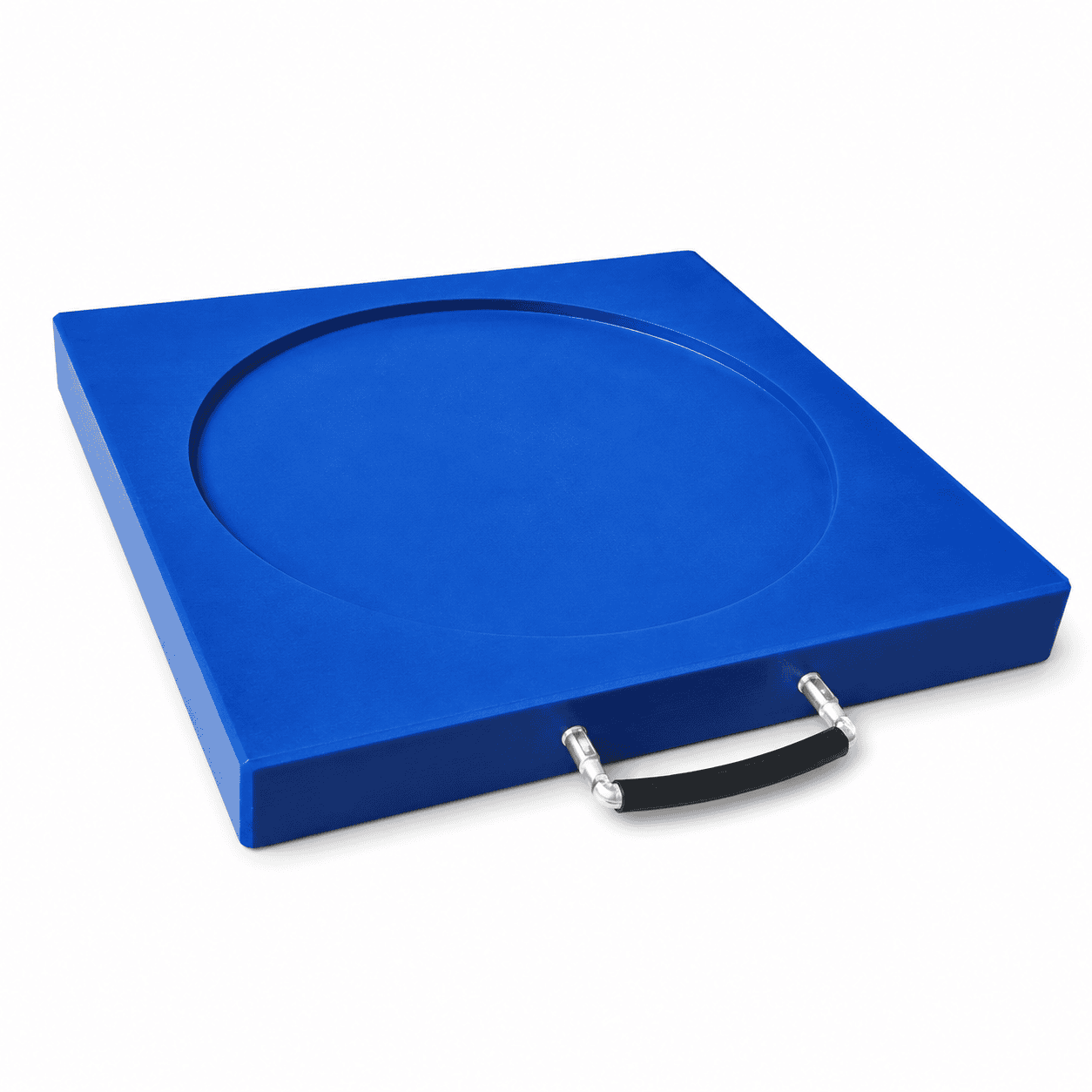

The product shown features a solid square blue panel, a large circular recessed positioning area, rounded outer edges, and an integrated metal carrying handle. The circular center provides a clearly defined working zone for the stabilizer foot, while the square outer shape creates a practical support footprint beneath the equipment.
Unlike temporary road mats, which are installed continuously to create vehicle access routes, stabilizer pads are positioned directly beneath individual outriggers or support legs. Their primary purpose is to increase the effective bearing area between the machine and the supporting surface.
Crane Stabilizer Pads can be supplied in different square dimensions and thicknesses according to the maximum stabilizer reaction, original equipment foot dimensions, supporting ground condition, required bearing area, handling requirements, and equipment configuration.
Typical square reference specifications include:
| Reference Size | Thickness | Approx. Weight | Typical Application |
|---|---|---|---|
| 450 × 450 mm | 25 mm | Approximately 5 kg | Small stabilizers and lighter equipment |
| 600 × 600 mm | 40 mm | Approximately 14–15 kg | General crane and vehicle stabilizer support |
| 760 × 760 mm | 60 mm | Approximately 33–35 kg | Larger stabilizer reactions and wider support areas |
Other practical square formats may also be selected according to actual equipment requirements. Typical project sizes can include approximately 500 × 500 mm, 700 × 700 mm, 800 × 800 mm, 900 × 900 mm, and 1000 × 1000 mm, with suitable thickness selected for the complete support condition.
Common thickness options may include approximately 25 mm, 30 mm, 40 mm, 50 mm, 60 mm, and 75 mm.
Actual product weight can vary according to exact dimensions, UHMWPE density, circular recessed area, edge structure, carrying handle, machining details, and final product design.
The same stabilizer pad product family can also include round formats for applications where a circular support shape is preferred.
Typical round reference dimensions include:
| Reference Size | Thickness | Approx. Weight |
|---|---|---|
| 760 mm diameter | 25 mm | Approximately 11–12 kg |
| 900 mm diameter | 40 mm | Approximately 24–26 kg |
| 1200 mm diameter | 60 mm | Approximately 64–68 kg |
This product page is primarily focused on the square blue stabilizer pad shown in the reference image. Round sizes are included as related product-family options.
| Specification | Typical Reference |
|---|---|
| Product type | Crane and machinery stabilizer support pad |
| Primary material | UHMWPE |
| Main shape | Square |
| Reference color | Blue |
| Other practical colors | Black, red, yellow and project-specific colors |
| Upper structure | Circular recessed stabilizer positioning area |
| Handling feature | Integrated metal carrying handle |
| Main applications | Cranes, concrete pumps, boom trucks and stabilizer-equipped machinery |
Final dimensions, thickness, material grade, recessed area diameter, handle configuration, and support structure should always be selected according to the actual equipment and operating conditions.
A crane or other outrigger-equipped machine transfers concentrated force through a relatively small original stabilizer foot.
When the equipment reaction is applied directly to the supporting surface, the pressure can become concentrated within a small area.
Crane Stabilizer Pads increase the effective contact area between the stabilizer system and the ground.
The basic relationship is:
Ground Pressure = Stabilizer Reaction Force ÷ Effective Support Area
Increasing the effective support area can reduce the pressure transferred to the supporting surface, provided that the pad has sufficient strength and stiffness and receives appropriate support beneath its working area.
The support system should therefore consider the complete relationship between:
The correct pad size should not be selected only according to the total machine weight or rated crane capacity.
Different stabilizers can experience different reactions depending on the machine configuration.
Important selection factors include:
A practical starting relationship is:
Maximum Stabilizer Reaction ÷ Allowable Ground Bearing Pressure = Required Minimum Support Area
After the required area is established, the pad material, thickness, stiffness, structure, and operating conditions should also be considered.
For additional professional reference, see this external resource about outrigger pad sizing guidance.
A large outside dimension does not automatically mean that the complete geometric area will always distribute the load equally.
Actual load spreading is affected by:
A pad that is too flexible for the application may not transfer the stabilizer reaction across the complete intended area.
For this reason, selecting a larger outside dimension without considering thickness, material, and structural rigidity may not provide the expected support performance.
The most visible structural feature of this product is the large circular recessed area in the center of the upper surface.
This section provides a clearly defined positioning zone for the crane foot or equipment stabilizer.
The circular recessed area can help:
The diameter and depth of the recessed structure should be selected according to the actual stabilizer foot dimensions and complete pad design.
The equipment foot should normally be positioned within the intended working area rather than near an unsupported outside edge.
Stabilizer position can affect how the pad transfers the applied force.
A support foot positioned close to the intended center of a suitable pad can use the surrounding support area differently from a foot positioned near the edge.
Before equipment loading, check that:
The circular center area shown on this product provides a clear reference during repeated equipment setup.
The primary material used for these Crane Stabilizer Pads is ultra-high-molecular-weight polyethylene.
UHMWPE provides a useful combination of:
These characteristics make the pads suitable for repeated transportation, equipment setup, removal, cleaning, inspection, and storage.
Unlike steel support plates, UHMWPE does not rust.
Compared with traditional timber supports, manufactured plastic pads have low water absorption and do not depend on natural wood grain, knots, or changing moisture content.
Equipment support pads are repeatedly moved between vehicle storage areas and stabilizer positions.
During regular use, they can experience:
The wear-resistant characteristics of UHMWPE make the material suitable for repeated equipment support applications when the pad is correctly selected and inspected.
The pad surface should still be checked regularly for deep gouges, cracks, severe deformation, damaged edges, and other visible changes.

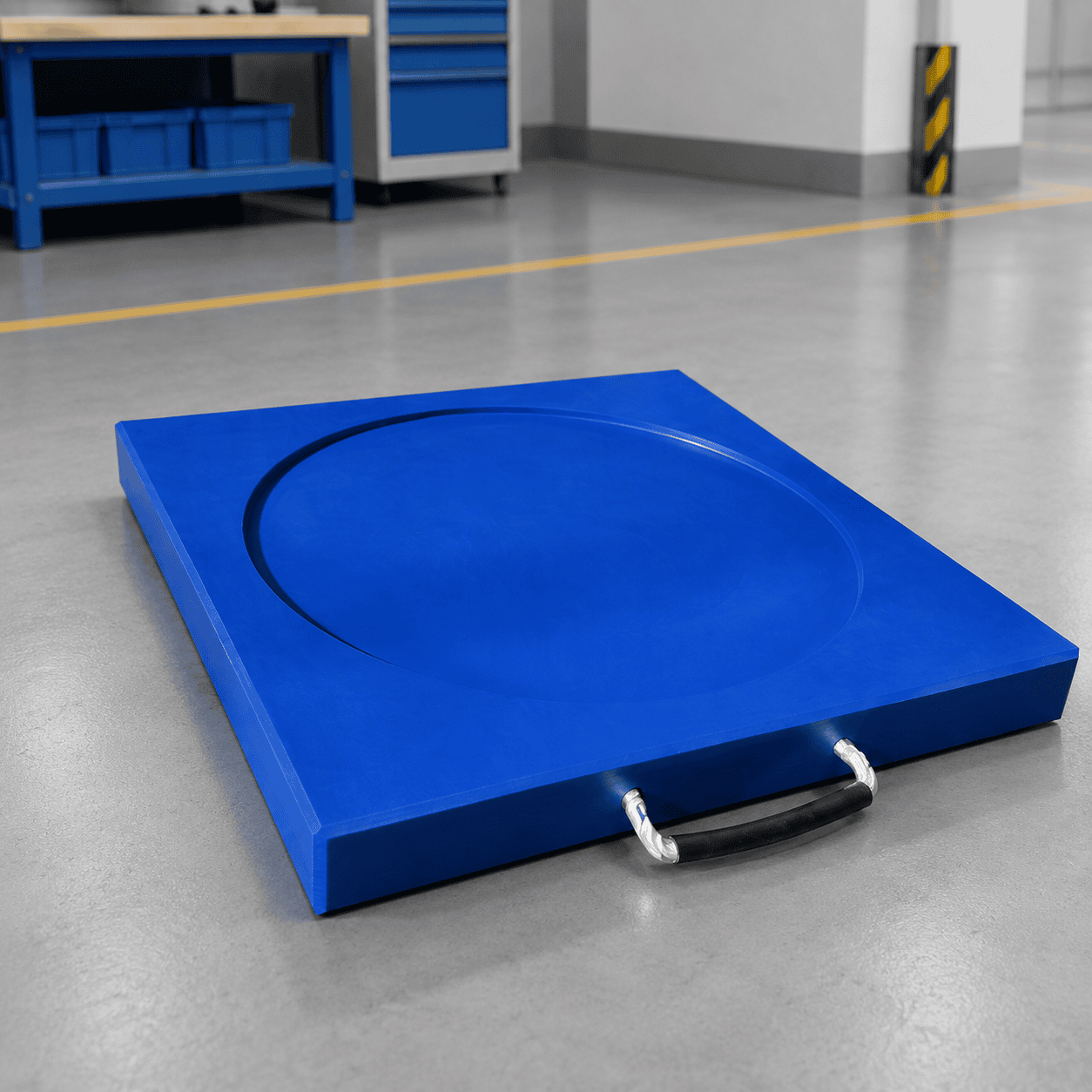

The blue pad shown includes a metal carrying handle positioned along one edge.
This provides a defined handling point when the pad needs to be:
The handle design can make repeated positioning more convenient than trying to lift a completely flat support panel directly from the ground.
Before lifting, inspect:
Handling methods should always match the actual pad dimensions and weight.
The square shape creates a practical combination of support area, stacking efficiency, transportation, and storage.
Compared with an irregular shape, square panels can be:
Smaller square pads are easier to handle but provide less effective area.
Larger pads provide a broader footprint but require more consideration for component weight, transportation, handling, and storage.
Crane Stabilizer Pads can be used with a wide range of machinery that relies on outriggers or stabilizers during operation.
Typical applications include:
The correct pad specification should always be matched to the individual equipment and operating conditions.
Mobile cranes use outriggers to create a wider operating base during lifting operations.
The reaction transferred through individual stabilizers can change according to:
When selecting Crane Stabilizer Pads for a mobile crane, consider:
The same crane may require different consideration when operating on concrete, asphalt, gravel, firm soil, or softer ground.
Concrete pump trucks also rely on stabilizers to create a larger operating base.
The forces acting through individual supports can change according to boom position and working configuration.
Important selection factors include:
The support pad should be positioned and monitored according to the equipment setup requirements.
Boom trucks and utility vehicles often use stabilizers during lifting, maintenance, aerial work, and material handling operations.
Typical equipment includes:
The required pad size should be based on the actual stabilizer reaction and supporting surface rather than the vehicle category alone.
Compacted soil can vary significantly according to moisture, previous excavation, fill material, and compaction quality.
Before equipment setup, inspect for:
The complete effective area of the stabilizer pad should have suitable support beneath it.
A larger pad cannot make an unsuitable underlying surface automatically safe.
Prepared gravel surfaces are common around industrial equipment and temporary operating areas.
Before placing the support pad, check:
Large objects beneath the pad can create concentrated contact areas and should be removed before equipment loading.
Asphalt may appear firm but can behave differently according to temperature, thickness, underlying structure, and existing damage.
Consider:
A correctly selected stabilizer pad increases the support area, but the underlying pavement still needs to be suitable for the intended equipment load.
Concrete surfaces can also require ground assessment.
Before setup, inspect for:
The condition beneath the visible surface can be as important as the top surface itself.
The reference pad uses a bright blue color.
Color options can be useful for:

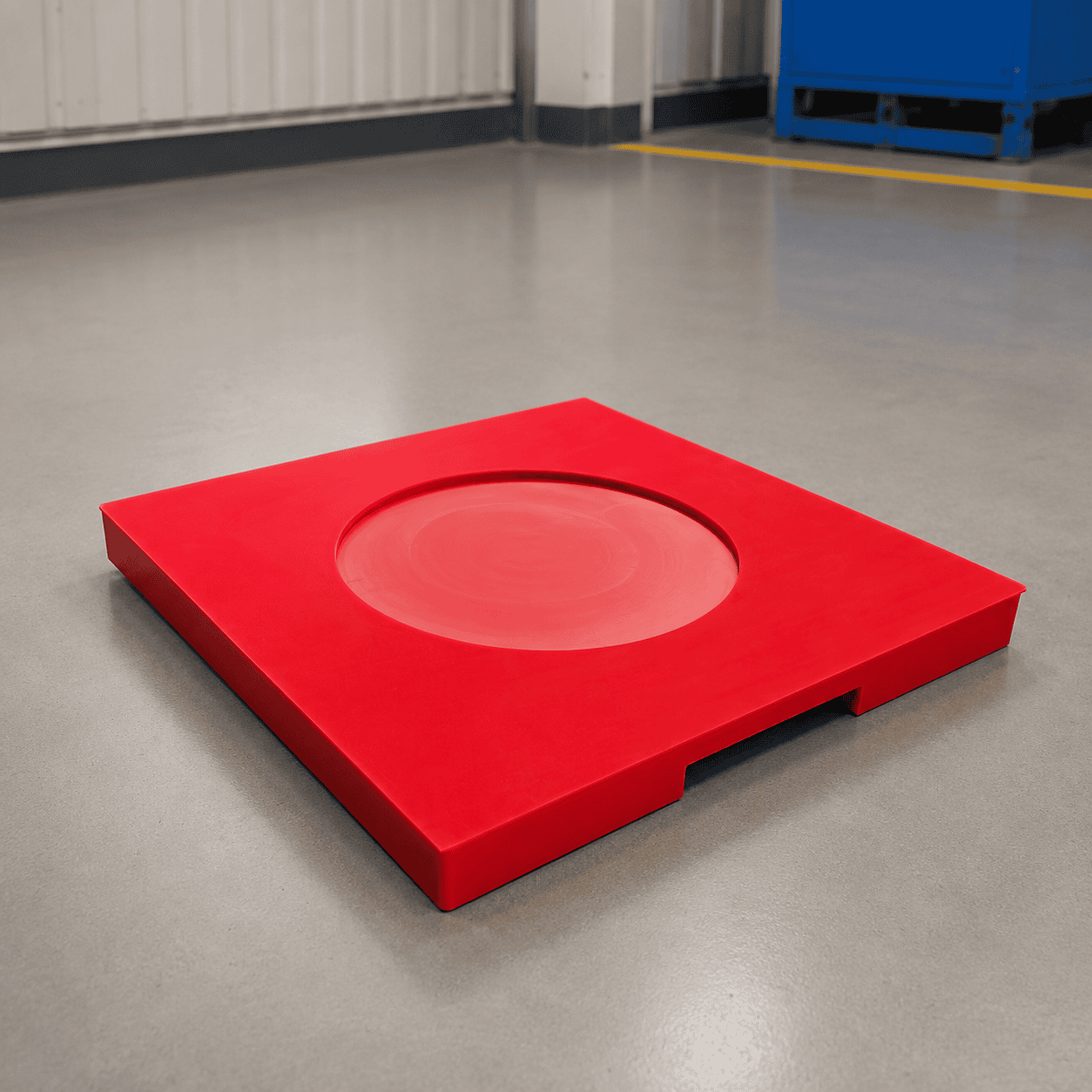

Other practical colors may include:
Color should not be treated as an indication of load capacity.
Different equipment applications may require different product shapes.
Square pads are practical for:
Round pads can be considered for:
The correct shape should be selected according to the required area, equipment geometry, handling method, and operating conditions.
A major advantage of Crane Stabilizer Pads is their reusable construction.
After equipment operation is completed, the pads can be:
The consistent manufactured structure makes complete pad sets easier to organize during transportation and storage.
Reusable stabilizer support pads should be inspected before demanding applications.
Check:
A damaged pad should be evaluated before it returns to heavy equipment support service.
The supporting ground should also be inspected every time equipment is repositioned.
Mud, gravel, sand, concrete residue, and other debris may remain on the pad after outdoor operation.
Cleaning can help:
Large debris trapped beneath a pad should be removed before equipment loading because it can create concentrated contact areas.

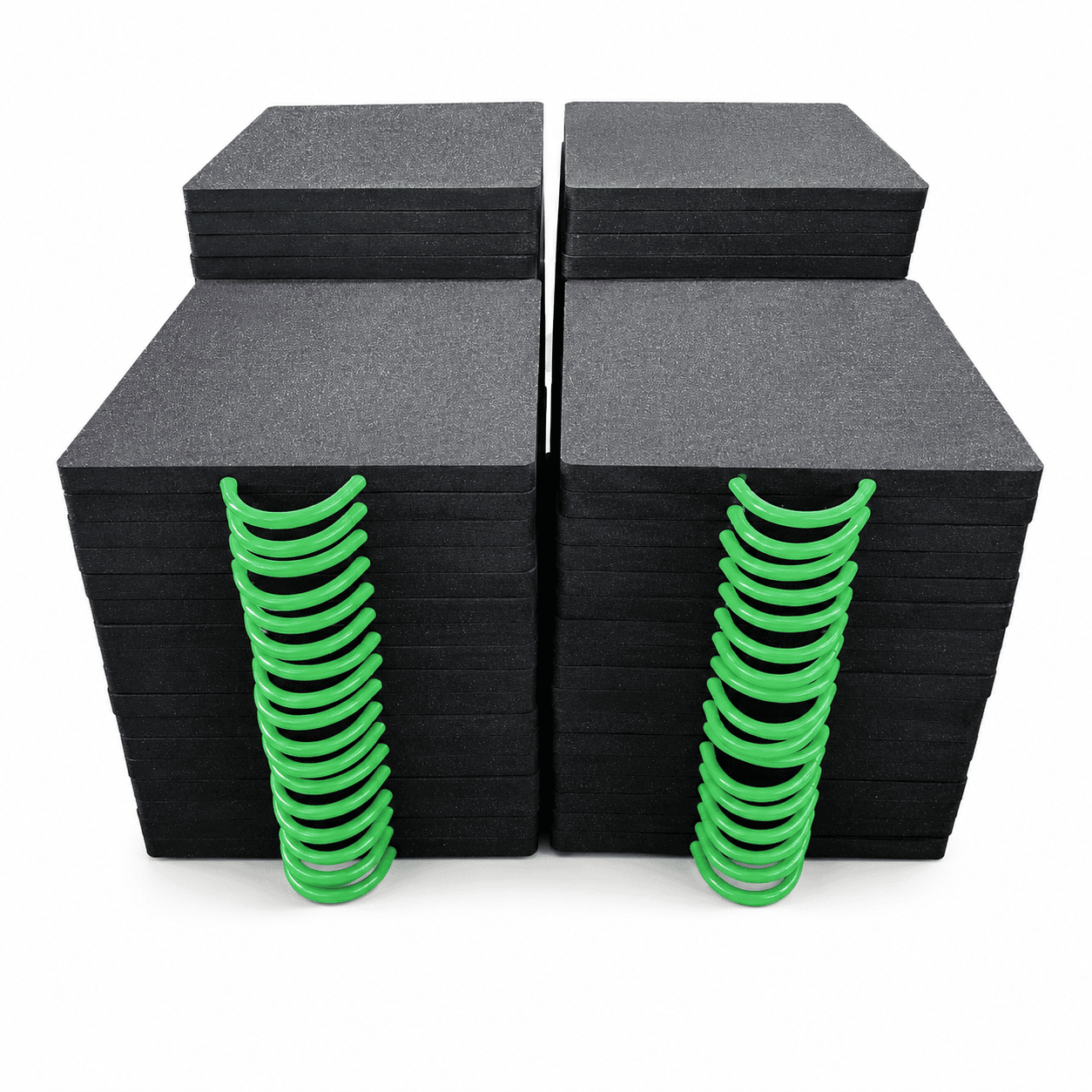

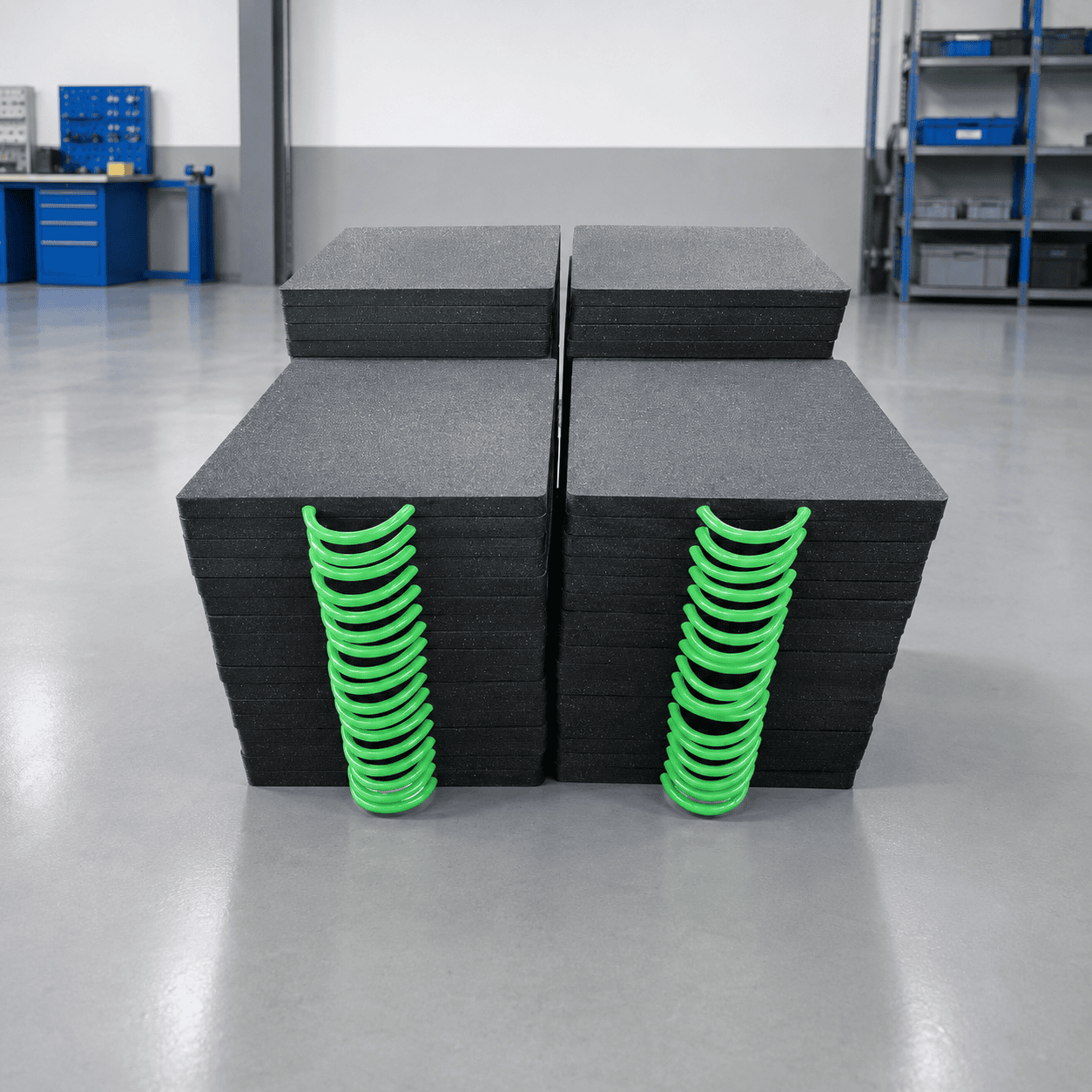

The square structure allows multiple pads to be stacked when they are not in use.
During storage:
Handling methods should always match the actual product dimensions and weight.
You can also view our complete range of crane outrigger pads for mobile cranes, concrete pumps, boom trucks, lifting equipment, stabilizer systems, cribbing support, and related heavy machinery applications.
Crane Stabilizer Pads provide a practical support solution for mobile cranes, truck-mounted cranes, concrete pump trucks, boom trucks, utility vehicles, and other stabilizer-equipped machinery. Their durable UHMWPE construction, square support structure, circular recessed positioning area, integrated metal carrying handle, multiple size options, and reusable design make them suitable for a wide range of equipment support applications.
Typical square reference specifications include approximately 450 × 450 × 25 mm, 600 × 600 × 40 mm, and 760 × 760 × 60 mm. Related round formats include approximately 760 mm diameter × 25 mm, 900 mm diameter × 40 mm, and 1200 mm diameter × 60 mm.
Final dimensions, thickness, material grade, effective support area, recessed center structure, handle configuration, and product design should always be selected according to the maximum stabilizer reaction, allowable ground pressure, original support foot dimensions, supporting surface, and actual operating requirements.
