Boom Truck Outrigger Pads are durable UHMWPE or HDPE support panels featuring square structures, rounded corners, nylon carrying handles and multiple working-surface options. Reference sizes range from 300 × 300 × 30 mm to 1000 × 1000 × 80 mm, with recessed, smooth and X-groove designs available for boom trucks, truck-mounted cranes, concrete pumps and other stabilizer-equipped machinery.
Boom Truck Outrigger Pads are heavy-duty UHMWPE or HDPE support panels designed to increase the effective contact area beneath boom truck outriggers, truck-mounted crane stabilizers, concrete pump support legs, aerial equipment, utility vehicles, trailers, mobile machinery, and other outrigger-equipped equipment.
The product shown combines a solid square support structure, rounded outside corners, practical nylon carrying handles, and several different working-surface options. Available surface designs can include a recessed center area, a smooth working surface, and an X-groove pattern.
This range is especially suitable for boom trucks and other mobile equipment that need reusable support pads during repeated setup, relocation, recovery, transportation, and storage.
Unlike temporary road mats, which are installed continuously to create vehicle access routes, outrigger pads are positioned directly beneath individual equipment feet. Their main purpose is to create a larger support interface between the original stabilizer foot and the supporting surface.
Boom Truck Outrigger Pads are available in a wide range of square dimensions and thicknesses. The reference product sheet supplied with this product includes sizes from approximately 300 × 300 × 30 mm to 1000 × 1000 × 80 mm.
The following table reproduces the main reference dimensions and reference load values shown in the supplied product information:
| Dimensions | Reference Load Capacity |
|---|---|
| 300 × 300 × 30 mm | 4,000 kg |
| 300 × 300 × 40 mm | 7,000 kg |
| 400 × 400 × 40 mm | 10,000 kg |
| 400 × 400 × 50 mm | 11,000 kg |
| 400 × 400 × 60 mm | 12,000 kg |
| 400 × 400 × 80 mm | 16,000 kg |
| 500 × 500 × 40 mm | 12,500 kg |
| 500 × 500 × 50 mm | 15,000 kg |
| 500 × 500 × 60 mm | 20,000 kg |
| 500 × 500 × 80 mm | 22,000 kg |
| 600 × 600 × 40 mm | 18,000 kg |
| 600 × 600 × 50 mm | 23,000 kg |
| 600 × 600 × 60 mm | 25,000 kg |
| 600 × 600 × 80 mm | 27,000 kg |
| 700 × 700 × 50 mm | 25,000 kg |
| 700 × 700 × 60 mm | 30,000 kg |
| 700 × 700 × 80 mm | 35,000 kg |
| 800 × 800 × 50 mm | 30,000 kg |
| 800 × 800 × 60 mm | 35,000 kg |
| 800 × 800 × 80 mm | 38,000 kg |
| 800 × 800 × 90 mm | 40,000 kg |
| 900 × 900 × 60 mm | 40,000 kg |
| 900 × 900 × 80 mm | 54,000 kg |
| 1000 × 1000 × 50 mm | 40,000 kg |
| 1000 × 1000 × 60 mm | 50,000 kg |
| 1000 × 1000 × 80 mm | 55,000 kg |
Important: The load values above are reference figures reproduced from the supplied product sheet. They should not be interpreted as universal safe working loads for every equipment setup, ground condition, material grade, stabilizer position, or operating configuration.
Final product selection should consider the maximum individual outrigger reaction, original stabilizer foot dimensions, required support area, ground condition, pad material, thickness, structural stiffness, load position, and actual equipment configuration.
Different pad sizes are suitable for different equipment categories and handling requirements.
Typical compact formats include:
These compact dimensions can be practical for smaller stabilizer feet, lighter mobile equipment, limited storage spaces, and applications where individual handling is important.
Typical medium-size formats include:
The approximately 500 × 500 mm and 600 × 600 mm series provide practical reference formats for boom trucks, utility vehicles, truck-mounted cranes, service equipment, and other frequently relocated machinery.
Typical larger formats include:
Larger pads provide a greater geometric support area but also require additional consideration for finished weight, transportation, vehicle storage, mechanical handling, material stiffness, and the complete equipment support arrangement.
| Specification | Typical Reference |
|---|---|
| Product type | Boom truck and mobile equipment outrigger support pad |
| Material options | UHMWPE or HDPE |
| Main shape | Square |
| Reference color | Black |

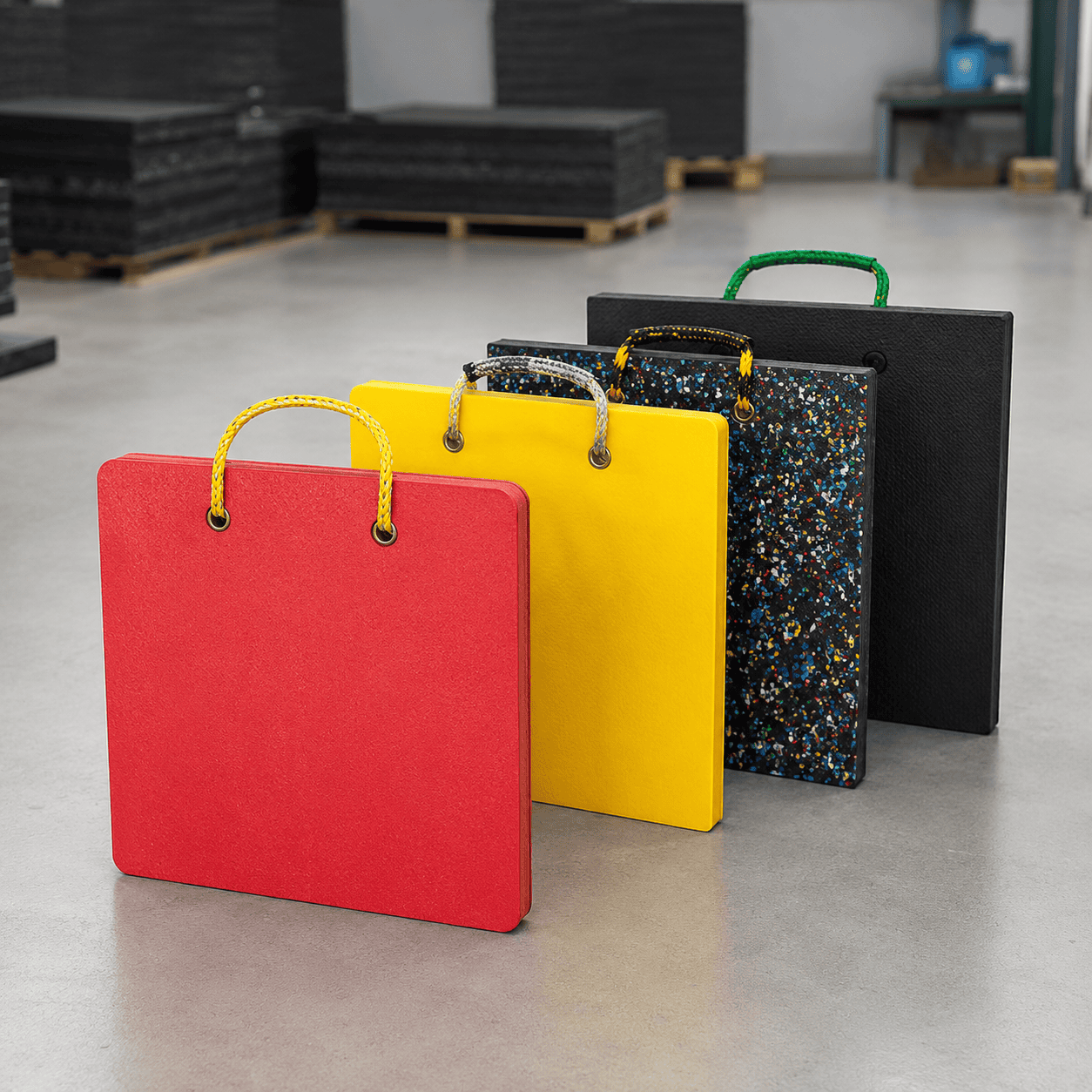

| Other practical colors | Yellow, red, blue, green and application-specific colors |
| Reference size range | 300 × 300 mm to 1000 × 1000 mm |
| Reference thickness range | 30–90 mm |
| Surface options | Recessed, smooth and X-groove |
| Corner structure | Rounded corners |
| Handling feature | Nylon carrying handles |
| Identification option | Dedicated marking or logo area |
| Main applications | Boom trucks, cranes, pump trucks and stabilizer-equipped machinery |
Final dimensions, thickness, material grade, surface pattern, handle configuration, corner structure, and equipment application should always be selected according to the actual operating requirements.
One of the most distinctive features of this Boom Truck Outrigger Pads range is the availability of several working-surface structures.

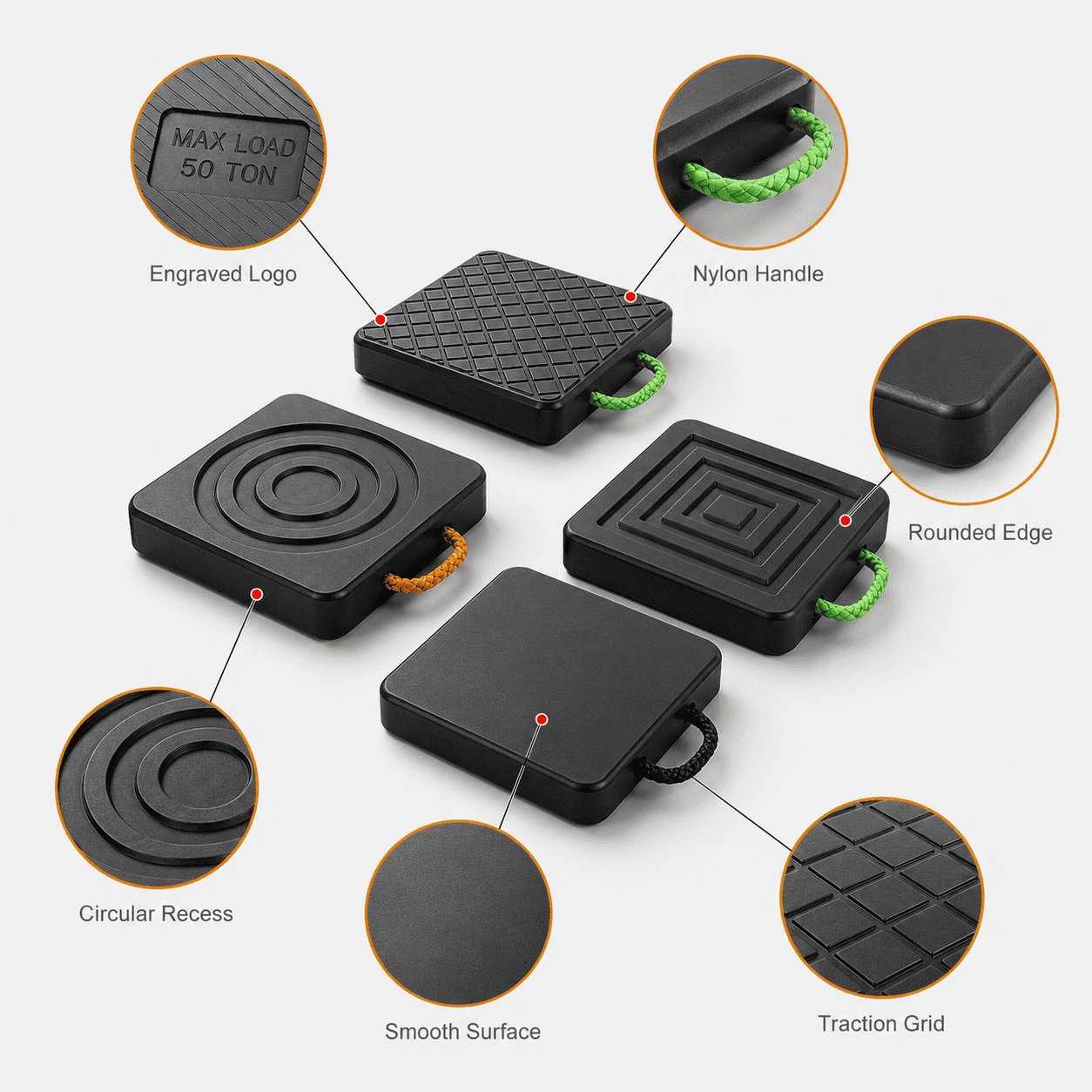

The reference product image shows three main options:
Different surface structures can be selected according to the stabilizer foot, working environment, cleaning requirements, positioning method, and equipment setup.

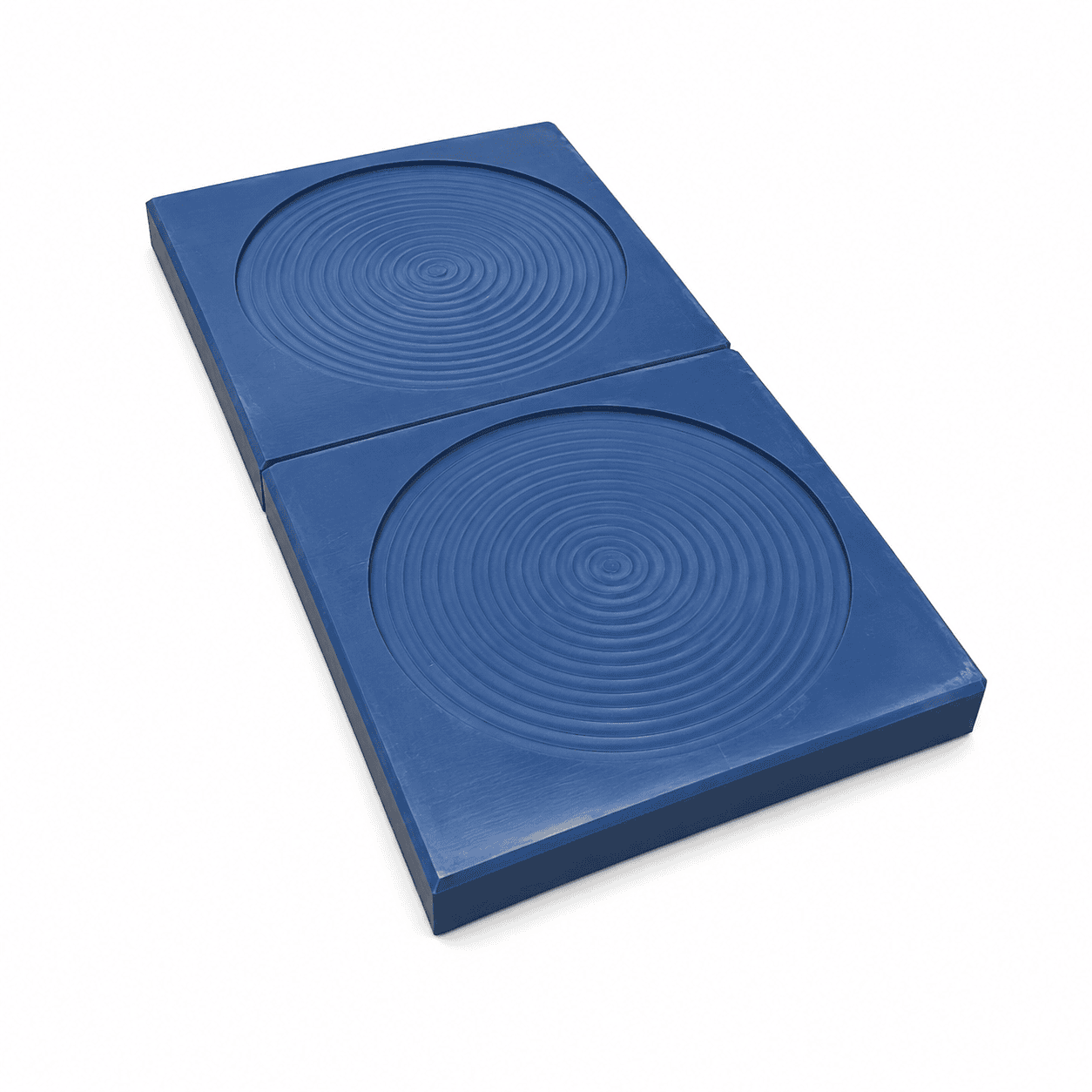

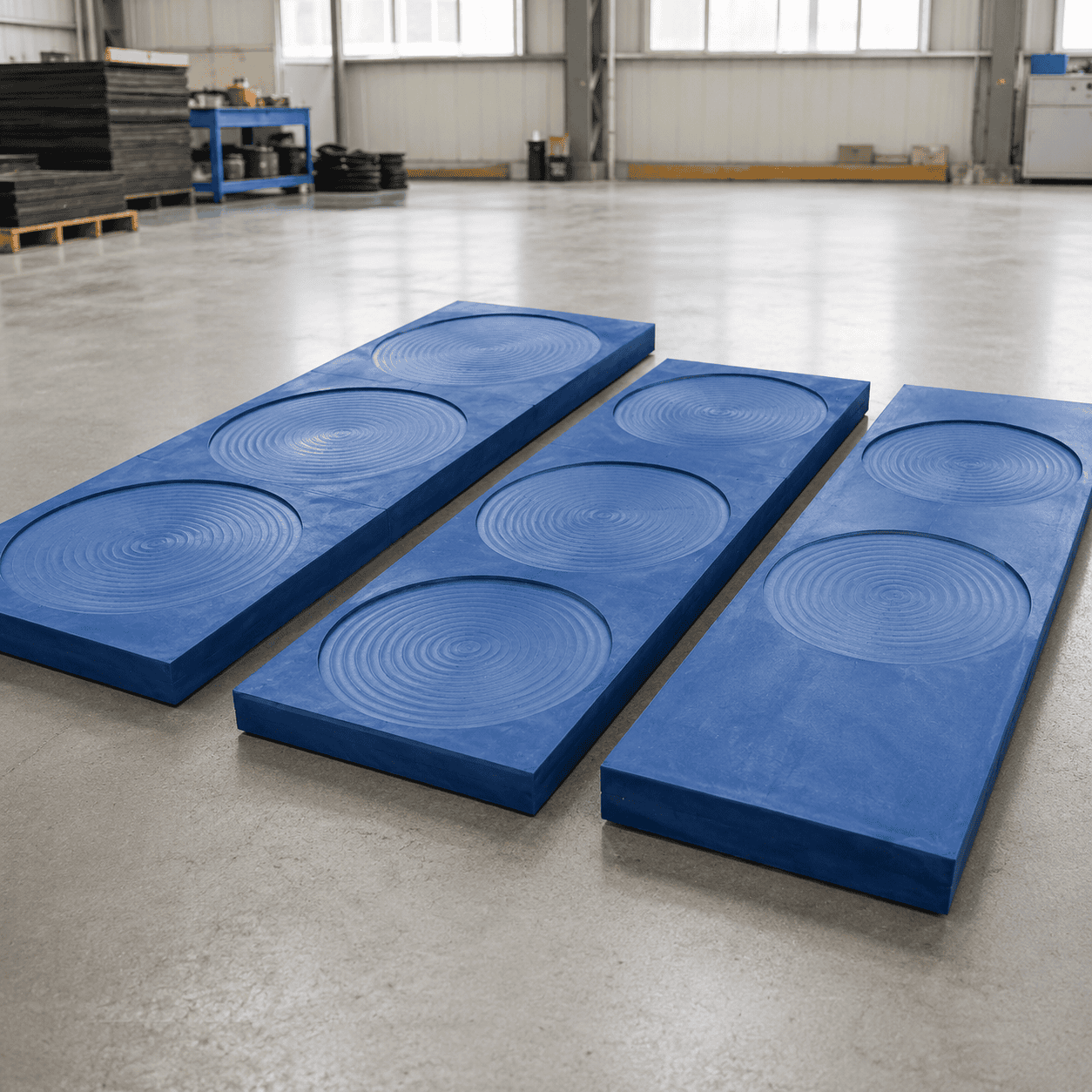

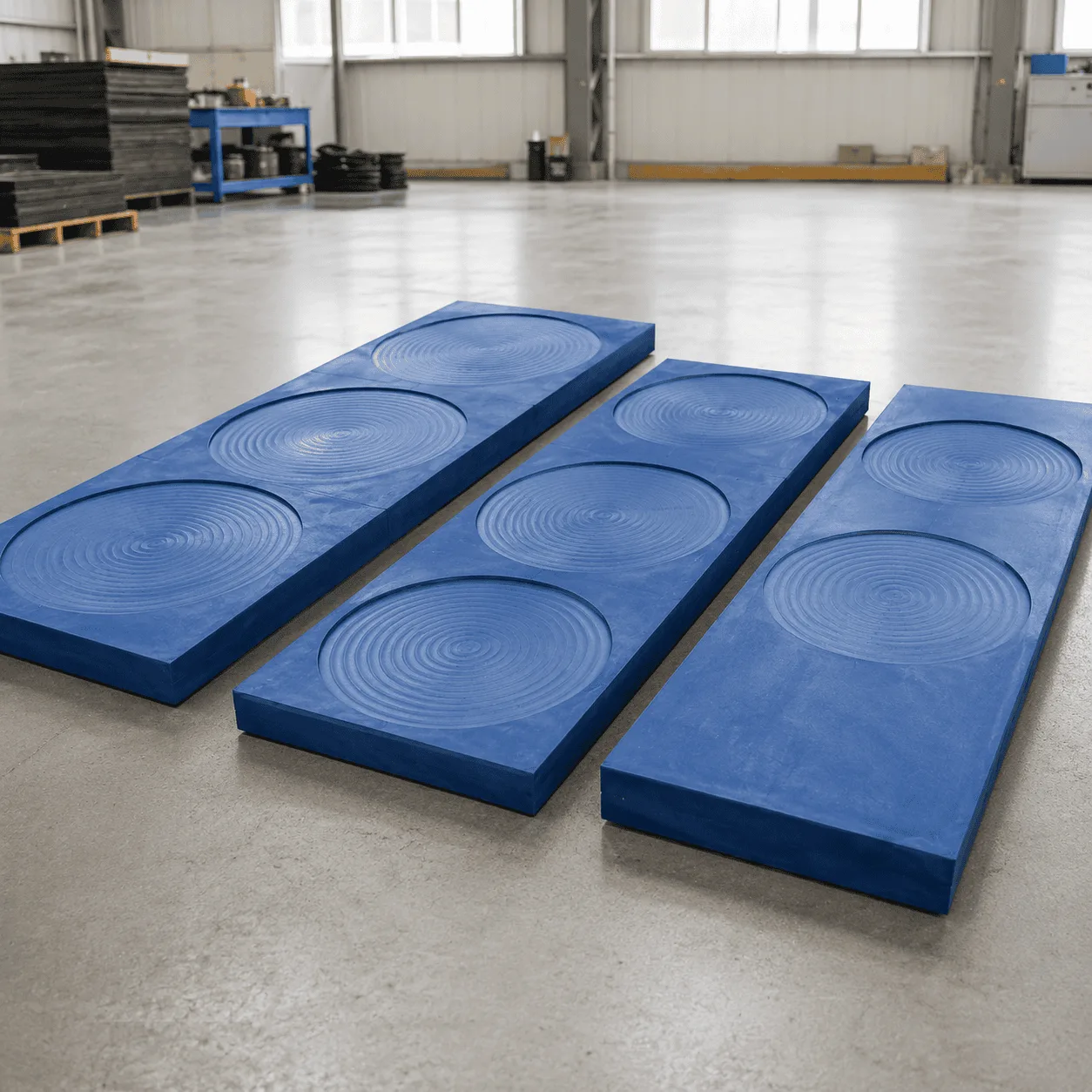

The recessed surface option includes a circular positioning area near the center of the pad.
This structure can provide:
The diameter and depth of the recessed section should match the actual stabilizer foot and complete pad structure.
The recess should not be assumed to fit every boom truck or crane foot without checking the actual dimensions.
The smooth surface provides a simple and clean upper working face.
This option can be practical where:
A smooth surface should still be kept free from mud, oil, stones, metal fragments, and other debris before demanding equipment use.
The X-groove version uses crossed diagonal grooves across the main working surface.
This design creates a more pronounced surface pattern than a completely smooth panel.
The X-groove structure can provide:
The groove pattern does not replace correct pad sizing, stable ground, suitable material thickness, correct stabilizer positioning, or regular inspection.
The product shown uses rounded outside corners instead of sharp 90-degree projecting edges.
Rounded corners can provide:
The final corner radius should maintain an appropriate balance between handling convenience and usable support area.
The reference product uses practical nylon carrying handles positioned along the pad edges.
These handles can help when the pads need to be:
Before moving a pad, inspect:
The handles are designed for pad handling and positioning. They should not be treated as components supporting the equipment load.
The reference product image also shows an area that can be used for product identification.
A defined marking area can be useful for:
The identification area should not reduce the main structural performance or interfere with the primary equipment support surface.
One primary material option for Boom Truck Outrigger Pads is ultra-high-molecular-weight polyethylene, commonly abbreviated as UHMWPE.
UHMWPE is a thermoplastic polyethylene material with extremely long molecular chains. The material is widely associated with toughness, impact resistance, low moisture absorption, low friction, and abrasion resistance.
For a general material explanation, see the Wikipedia article about ultra-high-molecular-weight polyethylene.
Practical UHMWPE characteristics for reusable equipment support pads include:
Chemical resistance should not be treated as universal resistance to every substance. Actual compatibility depends on the chemical, concentration, temperature, contact time, material grade, and operating environment.
High-density polyethylene, commonly abbreviated as HDPE, is another material option for selected support pad applications.
HDPE belongs to the polyethylene family and is widely associated with a relatively high strength-to-density ratio and resistance to many solvents.
For a general material explanation, see the Wikipedia article about high-density polyethylene.
Practical HDPE characteristics can include:
The final choice between UHMWPE and HDPE should consider the actual equipment reaction, impact conditions, wear requirements, environmental exposure, product dimensions, thickness, and operating requirements.
The correct material depends on the complete application.
| Selection Factor | UHMWPE | HDPE |
|---|---|---|
| Repeated impact | Often preferred for more demanding impact conditions | Suitable for many general support applications |
| Wear resistance | Commonly selected for demanding wear conditions | Practical for general industrial use |
| Moisture exposure | Low water absorption | Moisture-resistant |
| Industrial environments | Suitable for many demanding applications | Suitable for many general applications |
| Product selection | Based on actual operating requirements | Based on actual operating requirements |
The material name alone does not determine the complete performance of a support pad.
Dimensions, thickness, material grade, manufacturing process, equipment reaction, support-foot position, and underlying ground condition also need to be considered.
A boom truck stabilizer transfers a concentrated reaction through a relatively small original support foot.
Boom Truck Outrigger Pads create a larger geometric support interface beneath the stabilizer.
The effectiveness of the complete support arrangement depends on:
A larger outside dimension provides a larger geometric footprint, but it should not be treated as a universal safe-working-load guarantee.
The correct support pad should not be selected only according to total vehicle weight or rated lifting capacity.
Individual boom truck outriggers can experience different reactions according to:
Important selection factors include:
The reference load table on this page should therefore be used as product information rather than as a substitute for evaluating the actual equipment and support conditions.
The reference product sheet clearly shows that the same outside dimensions can be supplied in several thicknesses.
For example, the 500 × 500 mm series includes:
The 600 × 600 mm series includes:
The 800 × 800 mm series includes:
Two pads with the same length and width can have different structural behavior when their thicknesses are different.
Thickness selection should consider:
Boom Truck Outrigger Pads can be used with different types of stabilizer-equipped machinery.
Typical applications include:
The correct product specification should always be matched to the actual equipment and operating conditions.
Boom trucks frequently move between several operating locations and need stabilizer support during lifting or material-handling operations.
Practical product characteristics for this equipment can include:
Individual stabilizer reactions can change according to boom position, working radius, lifted load, and equipment configuration.
The required pad should therefore be selected according to the actual support point rather than total truck weight alone.
Truck-mounted cranes and knuckle boom cranes use stabilizers to create a wider operating base.
Important considerations include:
Different support positions around the same vehicle may experience different forces.
Concrete pump trucks also rely on stabilizers during operation.
Important product-selection factors include:
Each stabilizer location should be evaluated according to its actual equipment reaction and supporting surface.
The product range can also be used with selected aerial and utility equipment.
Typical machinery can include:
The multiple surface and handle options can be practical for fleet equipment that is transported and repositioned frequently.
Selected pad sizes can also be used as stabilizer support products beneath compatible trailers and mobile equipment.
Possible applications include:
The pad should always match the actual support load, equipment foot dimensions, and underlying surface.
Compacted soil can vary according to moisture, previous excavation, fill material, and compaction quality.
Before equipment setup, inspect for:
The intended working area of the pad should receive suitable support underneath.
A larger support pad cannot automatically make unsuitable ground safe.
Prepared gravel is common around mobile and industrial equipment.
Before placing the pad, check:
Large hard objects directly beneath the pad can create concentrated support points and should be removed before equipment loading.
Hard surfaces should also be evaluated before equipment setup.
Inspect for:
The visible upper surface does not always show the complete support condition below the equipment.
Correct equipment-foot positioning is important when using Boom Truck Outrigger Pads.
Before loading, check that:
For recessed surface products, the equipment foot should also match the intended center area and product structure.
A major advantage of Boom Truck Outrigger Pads is their reusable construction.
After equipment operation, the pads can be:
The square structure, rounded corners, and carrying handles make complete equipment sets easier to organize.
Reusable support pads should be inspected before demanding applications.
Check:
A damaged pad should be evaluated before returning to demanding equipment support service.
Mud, sand, gravel, oil, and other debris can remain on the pads after equipment operation.
Cleaning can help:
Large debris should be removed from all main support surfaces before equipment loading.

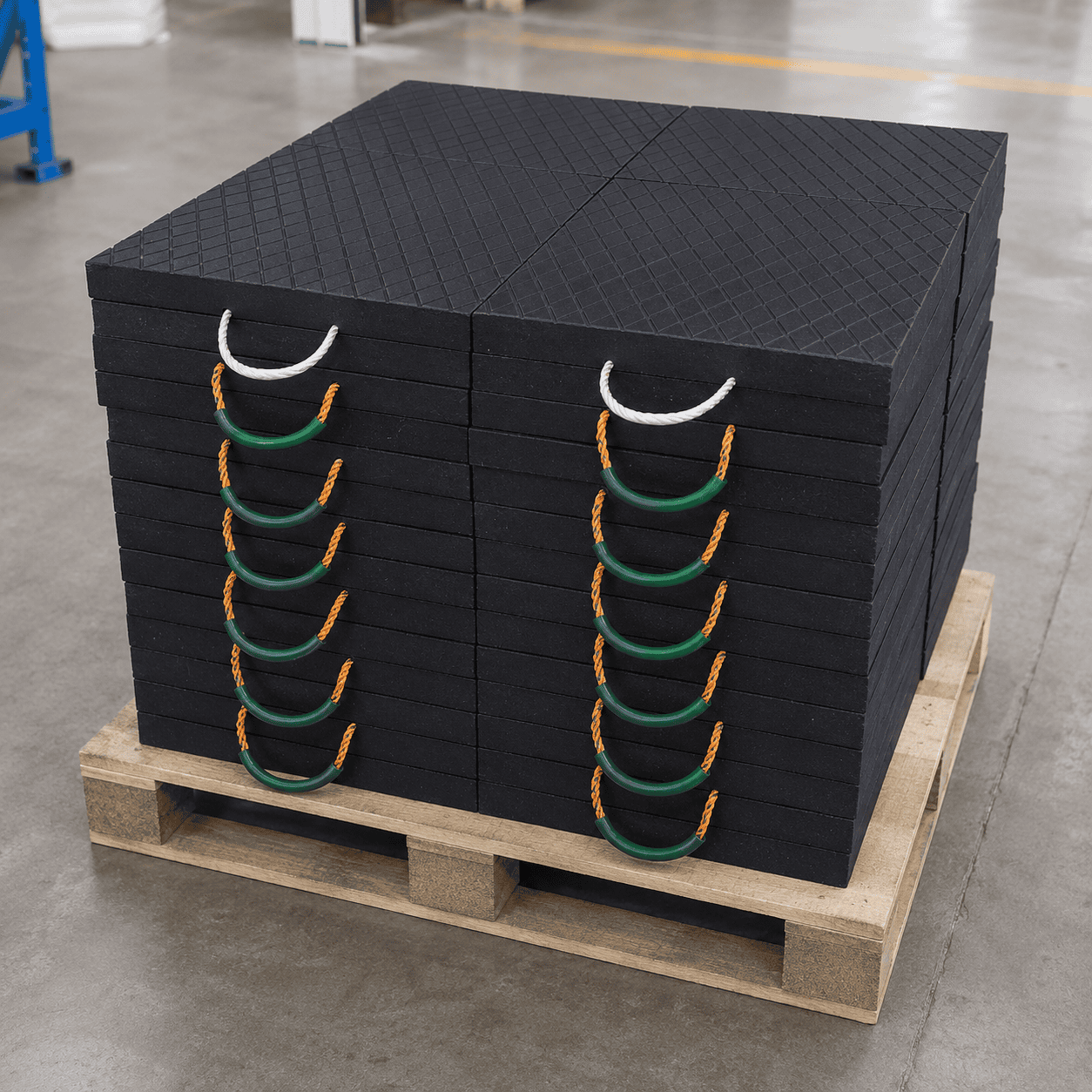

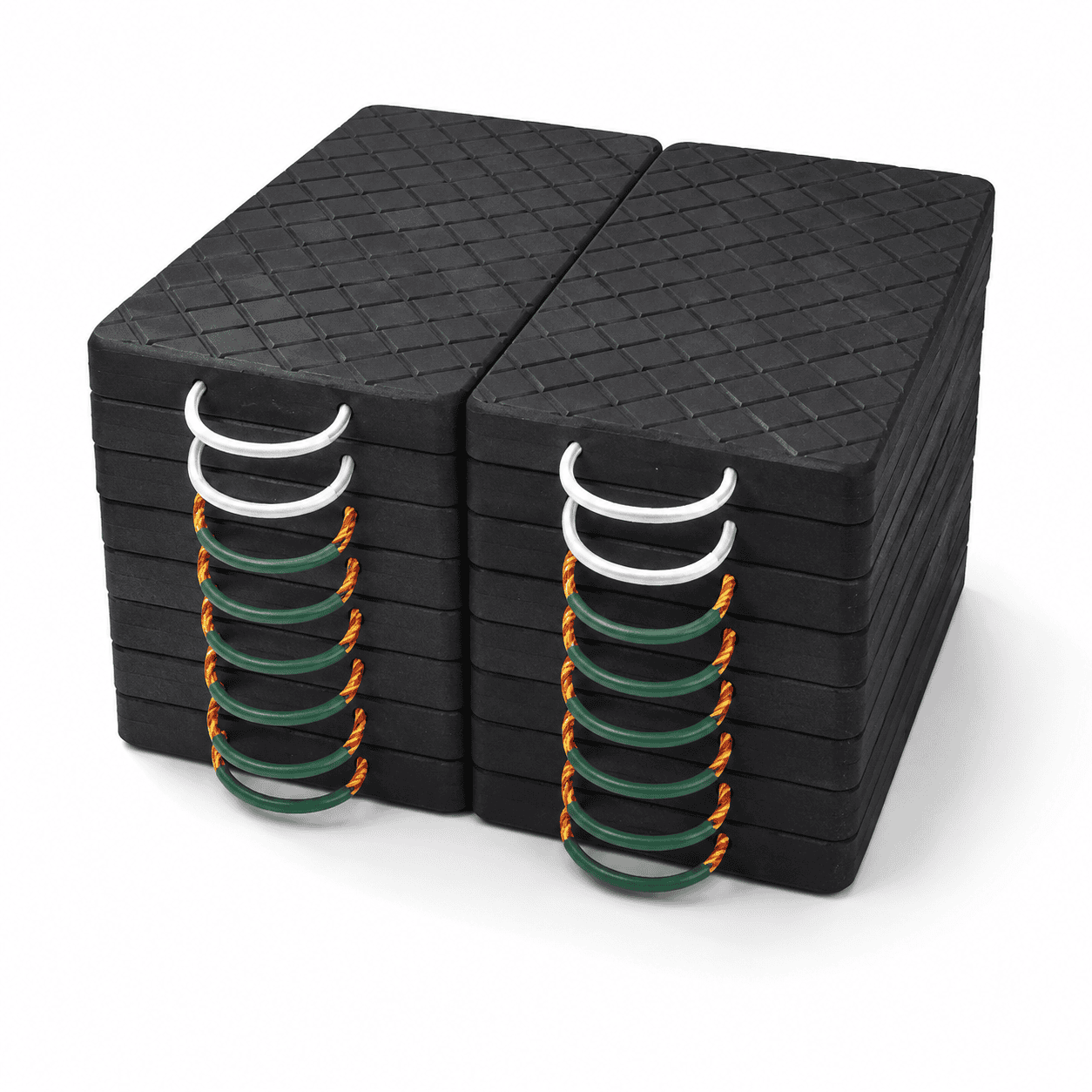

The regular square shape makes matching pads practical to organize as complete equipment sets.
During storage:
Handling methods should always match the actual dimensions and finished product weight.
You can also view our complete range of crane outrigger pads for mobile cranes, concrete pumps, boom trucks, lifting equipment, stabilizer systems, cribbing support, and related heavy machinery applications.
Boom Truck Outrigger Pads provide a practical equipment support solution for boom trucks, truck-mounted cranes, concrete pump trucks, utility vehicles, aerial equipment, and other stabilizer-equipped machinery.
The product range combines UHMWPE or HDPE construction, multiple square dimensions, different thickness options, recessed or grooved working surfaces, rounded corners, nylon carrying handles, and reusable equipment support performance.
Typical reference sizes include approximately 300 × 300 × 30–40 mm, 400 × 400 × 40–80 mm, 500 × 500 × 40–80 mm, 600 × 600 × 40–80 mm, 700 × 700 × 50–80 mm, 800 × 800 × 50–90 mm, 900 × 900 × 60–80 mm, and 1000 × 1000 × 50–80 mm.
The supplied product sheet also provides reference load figures from 4,000 kg to 55,000 kg across the listed size range. These values should be treated as reference product data rather than universal safe working loads for every application.
Final pad dimensions, thickness, material grade, surface structure, handle configuration, effective support area, and equipment setup should always be selected according to the actual stabilizer reaction, original equipment foot dimensions, supporting ground condition, and operating requirements.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
