Interlocking Cribbing Blocks are durable stackable UHMWPE support blocks designed for cranes, concrete pumps, outriggers, lifting equipment and industrial machinery. A practical reference size is approximately 650 × 150 × 150 mm with a unit weight of around 14–15 kg. The interlocking surface structure, rectangular design and integrated carrying handle make the blocks suitable for increasing support height, cross-stacked multi-layer arrangements and repeated equipment setup.
Interlocking Cribbing Blocks are heavy-duty stackable support blocks designed to provide additional height beneath outriggers, stabilizers, lifting equipment, industrial machinery, and other supported loads. Manufactured from durable UHMWPE material, the blocks feature shaped upper and lower surfaces that help adjoining layers fit together in an organized support arrangement.
The product shown uses a solid rectangular structure, bright yellow surface, raised interlocking features, and an integrated flexible carrying handle. Multiple blocks can be arranged in layers to increase support height according to the equipment, supporting surface, required setup geometry, and applicable operating procedure.
Compared with ordinary flat cribbing blocks, the interlocking structure is intended to provide more defined positioning between compatible layers. This can make multi-layer arrangements easier to organize when additional equipment support height is required.
An interlocking cribbing block is different from an outrigger pad. An outrigger pad is primarily used to increase the effective contact area between an equipment stabilizer and the supporting ground. Cribbing blocks are mainly used to increase support height or build a stacked support structure. Both product types may form part of the same equipment support arrangement when the selected system and operating conditions are appropriate.
A practical reference size for the product shown is approximately 650 × 150 × 150 mm. Depending on the exact interlocking surface, handle structure, and material formulation, the reference unit weight is approximately 14–15 kg per block.
| Specification | Typical Reference |
|---|---|
| Product type | Interlocking stackable cribbing block |
| Reference size | Approximately 650 × 150 × 150 mm |
| Reference weight | Approximately 14–15 kg per block |
| Material | UHMWPE |
| Common color | High-visibility yellow |
| Other practical color | Black |
| Surface structure | Raised and recessed interlocking pattern |
| Handling feature | Integrated flexible carrying handle |
| Installation | Single layer or multi-layer cross-stacked arrangement |
| Main use | Equipment support and temporary height adjustment |
The approximately 650 × 150 × 150 mm format provides a practical balance between block length, nominal layer height, handling, transportation, support arrangement, and organized storage.
Actual product weight may vary according to the exact block dimensions, UHMWPE grade, interlocking pattern, machined areas, carrying handle, and other structural features.

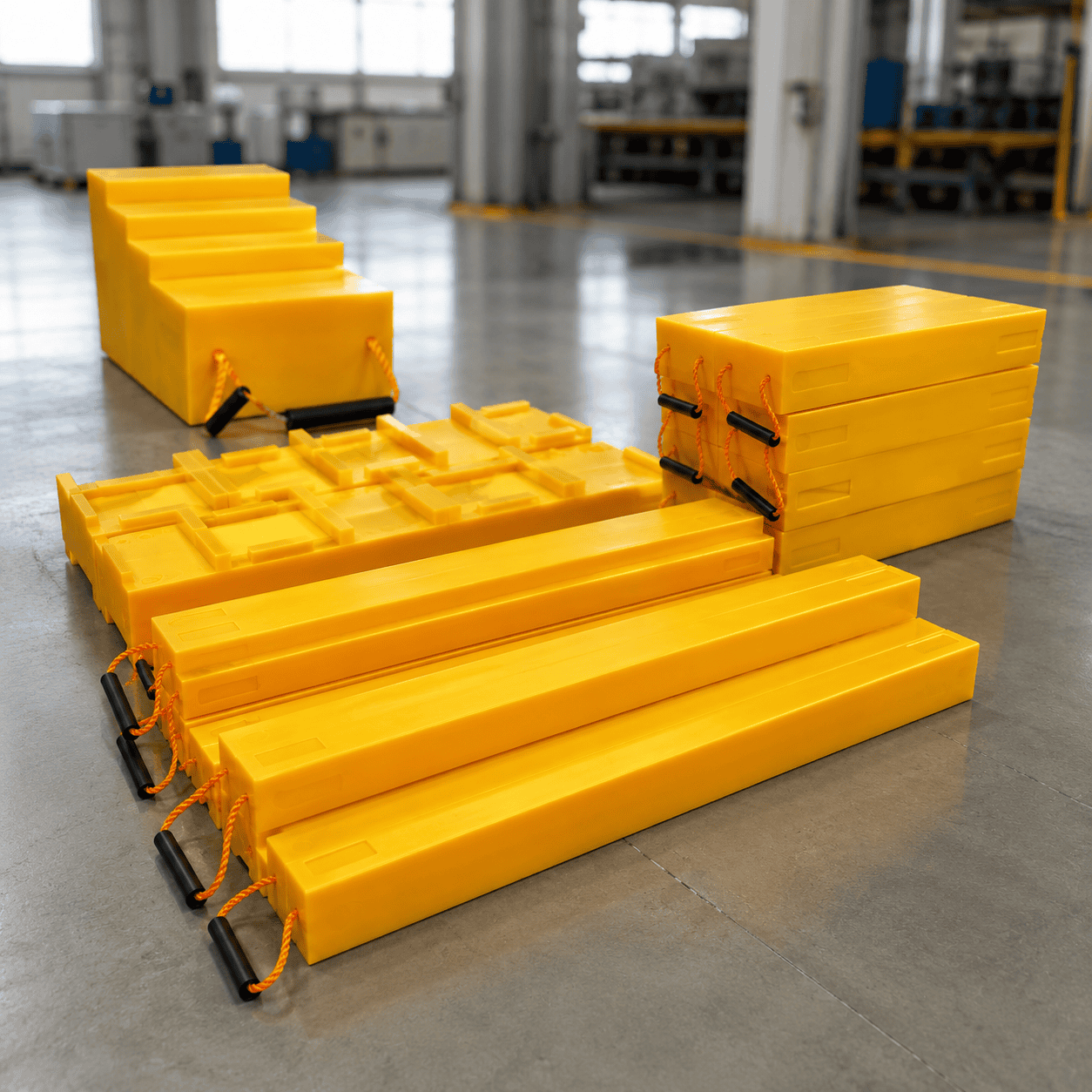

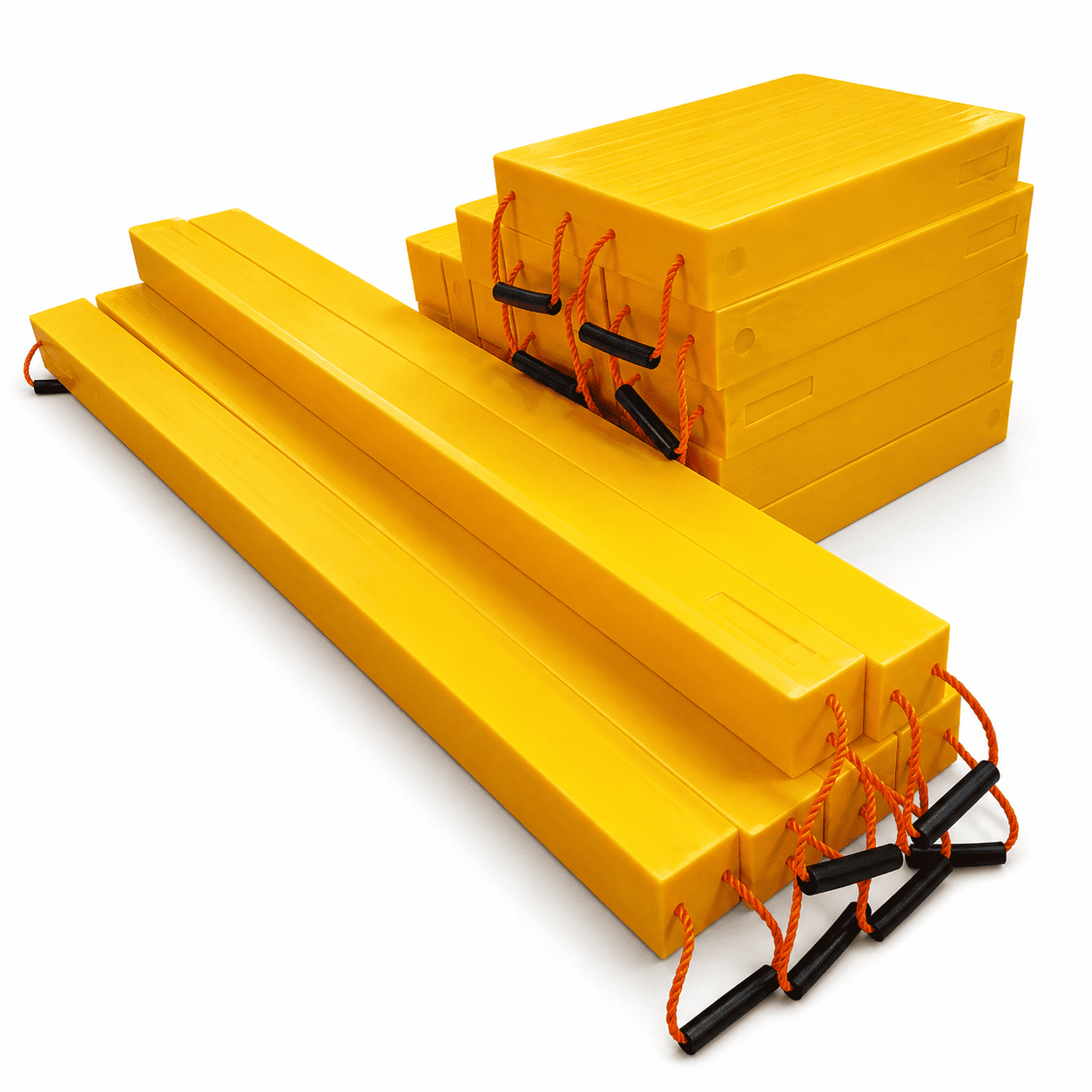

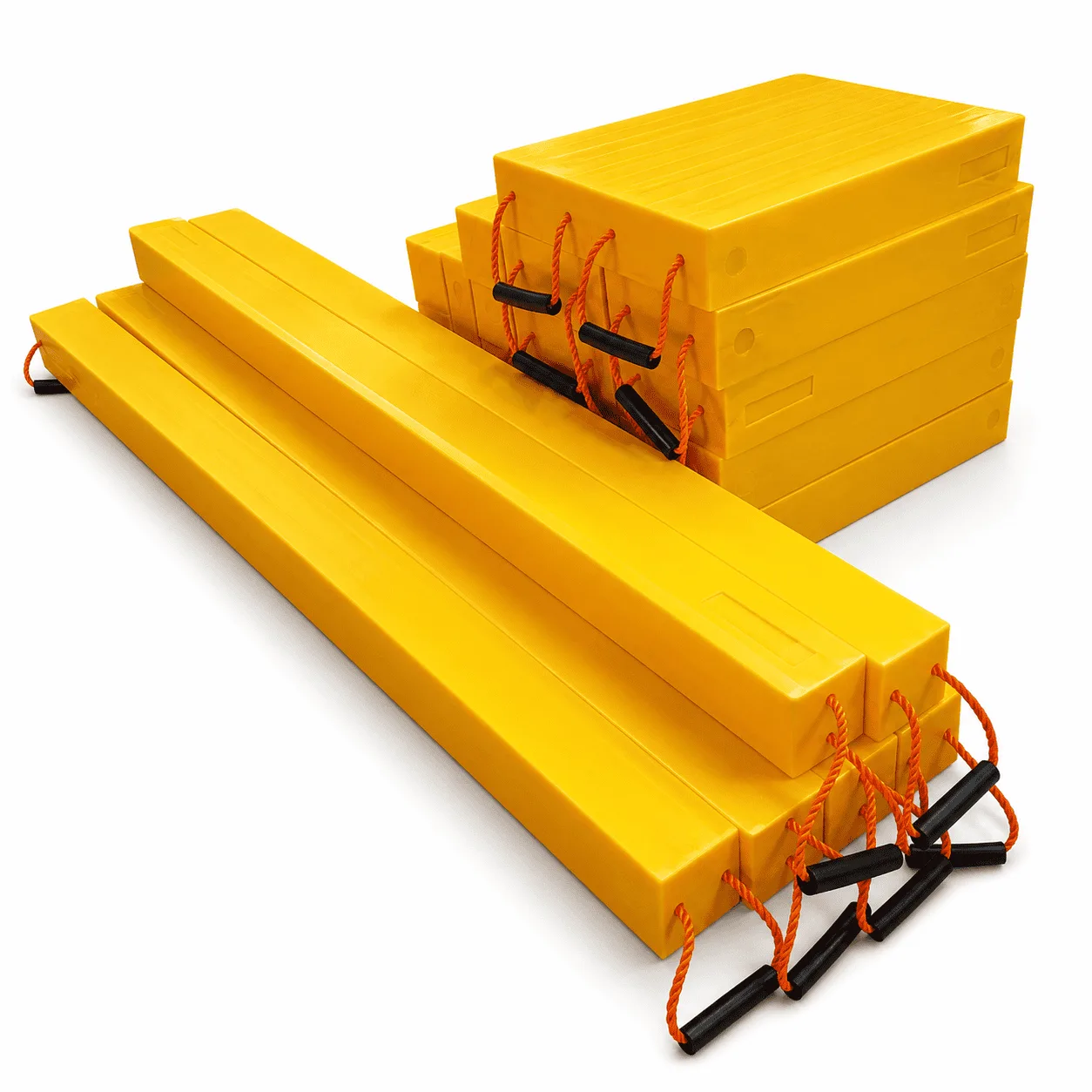

Interlocking Cribbing Blocks can be produced in different rectangular formats for different support arrangements.
Typical project reference sizes may include:
| Reference Size | Typical Application |
|---|---|
| 500 × 150 × 150 mm | Compact equipment support and limited storage areas |
| 600 × 150 × 150 mm | General outrigger and machinery support |
| 650 × 150 × 150 mm | Common multi-layer equipment support |
| 600 × 200 × 150 mm | Wider support arrangements |
| 650 × 200 × 150 mm | Larger equipment support layouts |
Final dimensions should be selected according to the complete equipment support system. A longer, wider, or thicker block does not automatically mean that it is suitable for every operating condition.
Important selection factors include:

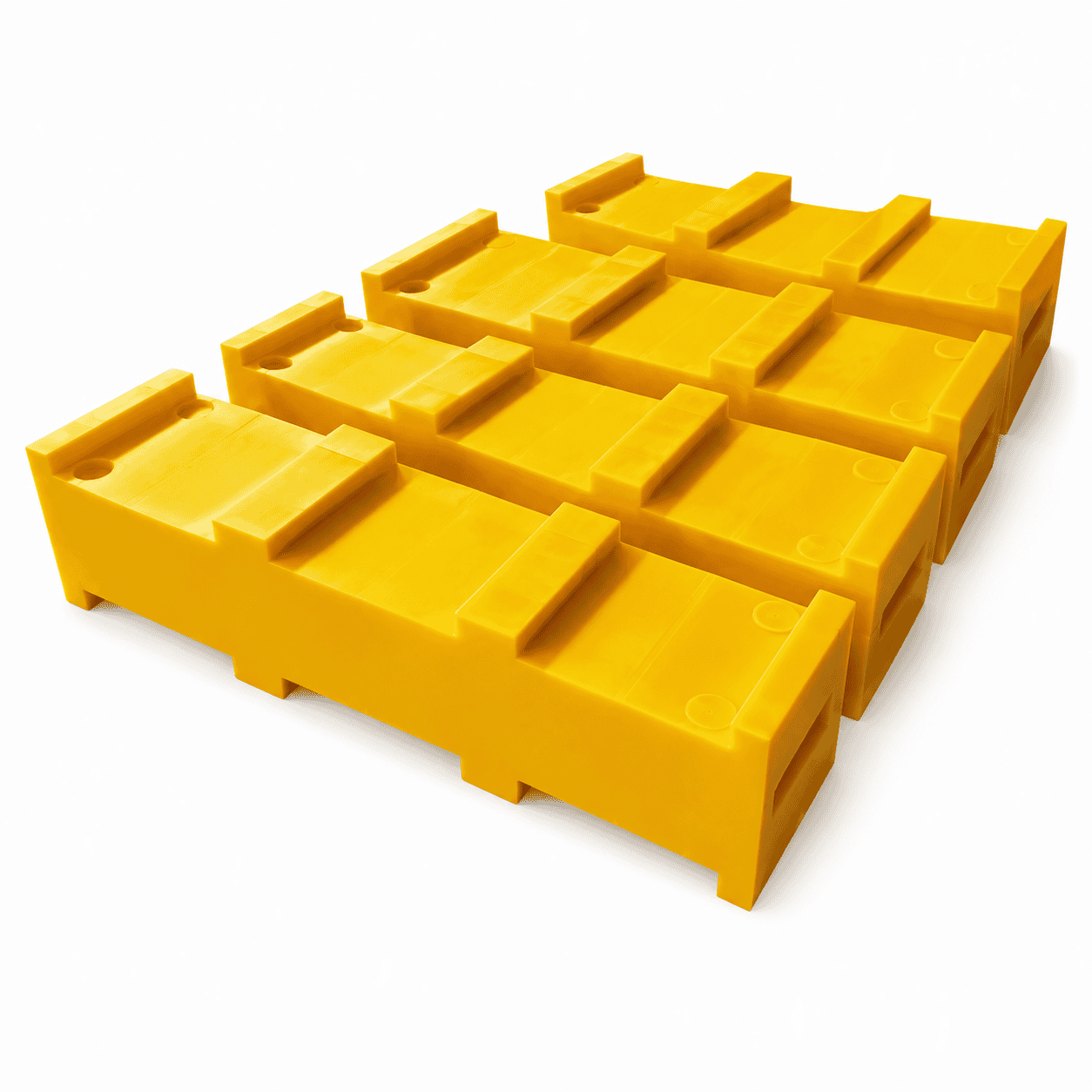

The most important feature of Interlocking Cribbing Blocks is the shaped contact surface.
Raised and recessed areas are designed so that compatible blocks can locate against one another when arranged in a support stack. Compared with two completely flat blocks, the shaped surfaces provide a more defined positioning relationship between layers.
The interlocking structure can help:
The interlocking pattern does not remove the need for correct equipment setup. The supporting ground, base layer, block contact, stack geometry, applied forces, and equipment requirements must still be evaluated.

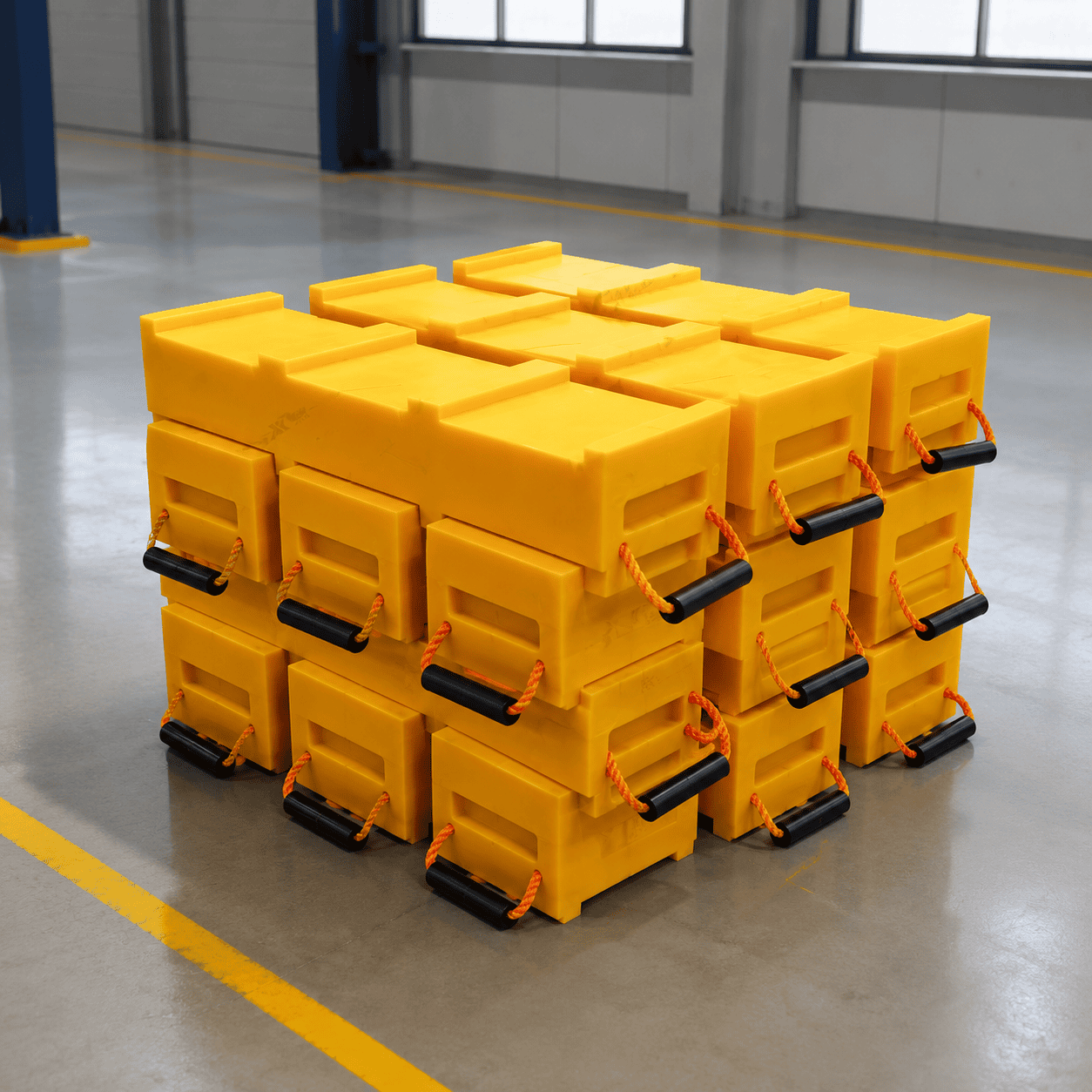

Rectangular cribbing blocks are often arranged with one layer positioned in one direction and the following layer placed across it.
This cross-stacked arrangement can provide:
For example, the first layer may be positioned horizontally while the next layer is placed at approximately 90 degrees. Additional compatible layers can then continue according to the intended support arrangement.
The actual number of layers should be determined according to the equipment, block system, applied loads, base area, support height, and operating requirements.
Similar engineered interlocking cribbing systems use cross-stacked layers to achieve additional height and require the main working surfaces to maintain suitable contact with adjoining components. For additional technical reference, see this resource on interlocking plastic cribbing block systems.
Correct contact between support surfaces is important when using Interlocking Cribbing Blocks.
Before equipment loading, check that:
Large stones, metal parts, timber fragments, or other debris trapped between blocks can create concentrated contact areas and should be removed before the support arrangement is loaded.
A block that is only partially supported may behave differently from the same product with appropriate contact beneath its working surface.
The primary material used for these Interlocking Cribbing Blocks is ultra-high-molecular-weight polyethylene.
UHMWPE provides a practical combination of:
These characteristics make the blocks suitable for repeated transportation, equipment setup, stacking, removal, cleaning, inspection, and storage.
Unlike steel support products, UHMWPE does not rust. Compared with traditional timber blocks, the plastic material has low water absorption and does not rely on natural wood grain, knots, or changing moisture content.
After use in mud, rain, sand, or other outdoor environments, the blocks can be cleaned before inspection and storage.
Timber has traditionally been used for temporary equipment support because it is widely available and can be cut into rectangular shapes.
However, natural timber characteristics may vary according to:
Interlocking Cribbing Blocks provide a manufactured plastic option where consistent dimensions, low water absorption, repeated use, organized stacking, and easier cleaning are important.
Practical characteristics include:
The final choice of support material and arrangement should still be based on the complete equipment setup and operating requirements.

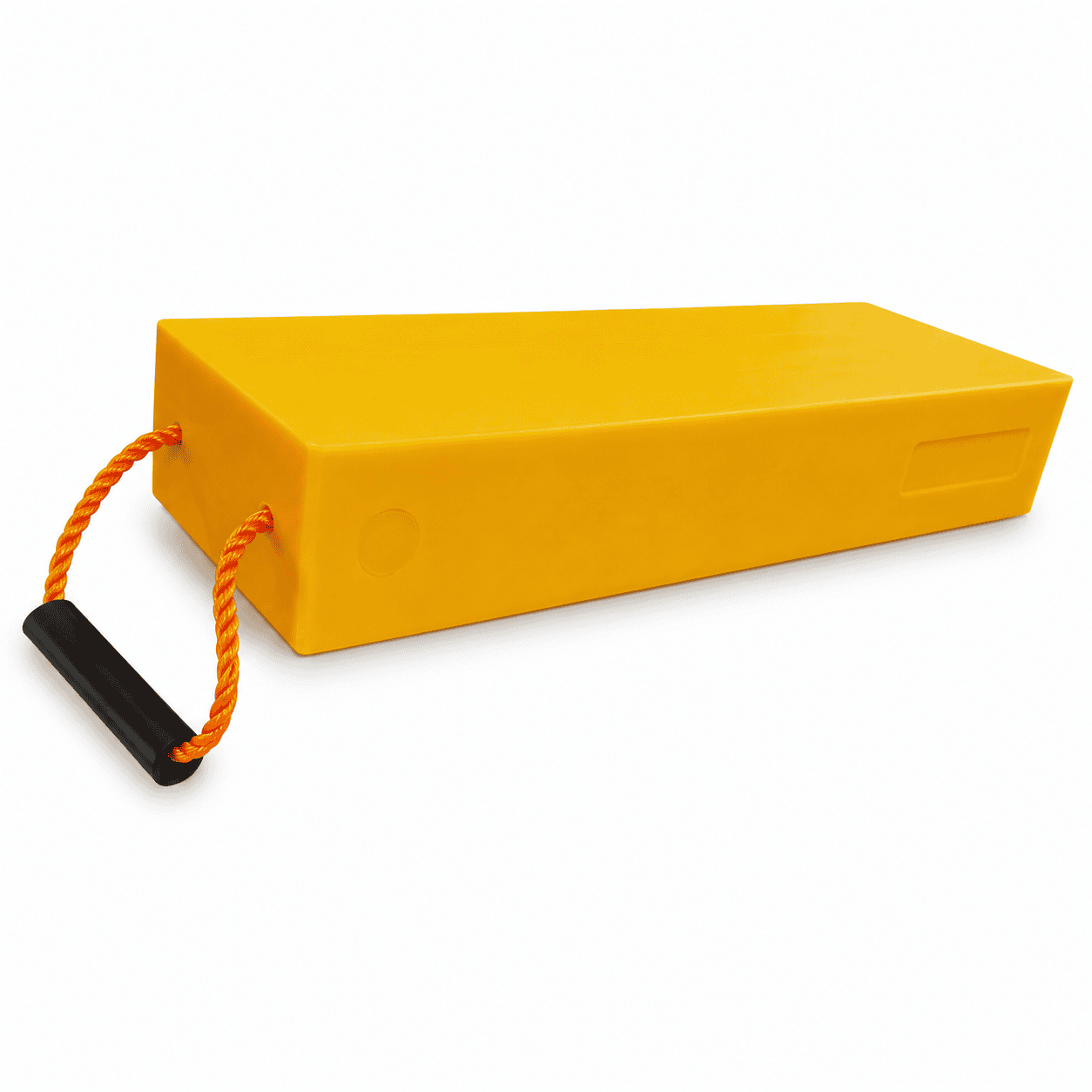

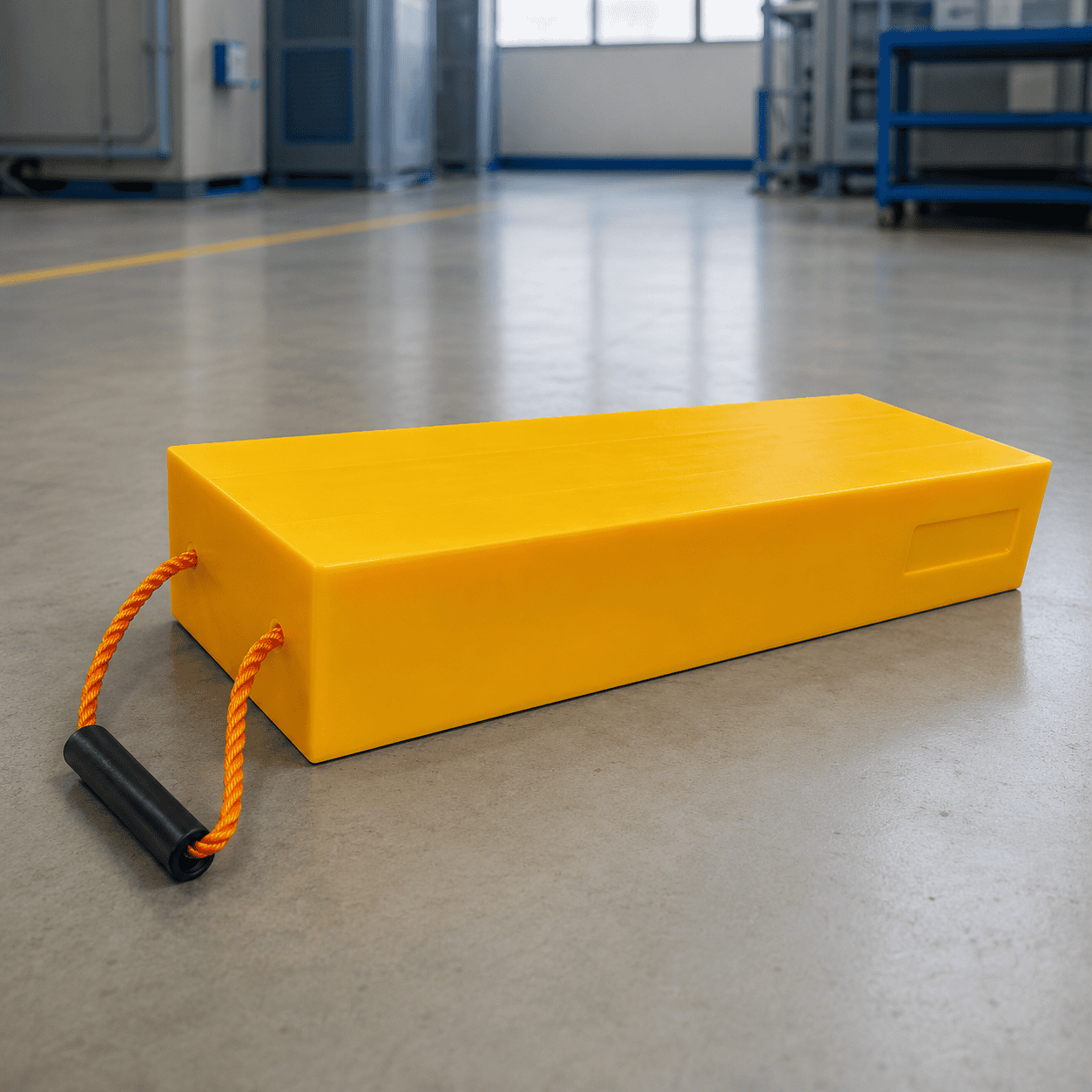

The product shown includes a flexible carrying handle with a separate black grip section.
This provides a defined handling position when a block needs to be:
A practical handle is useful because cribbing blocks are repeatedly moved during equipment setup and recovery.
Before lifting, check:
A damaged handle should be evaluated before it is used again as a carrying point.
The bright yellow color makes the block easier to identify around equipment, vehicles, storage areas, and temporary operating locations.
A high-visibility color can help with:
Black is another practical color for industrial support products.
Color should not be used as an indication of load capacity. Product performance depends on the material, dimensions, structure, setup, and operating conditions.
Interlocking Cribbing Blocks can be used in a range of temporary machinery support and equipment setup applications.
Typical applications include:
The complete arrangement should always be selected according to the actual equipment, applied forces, supporting surface, required height, base area, and operating procedure.
Concrete pump trucks may operate where the stabilizer system requires both a suitable ground support area and additional height.
Interlocking Cribbing Blocks can form part of an equipment support arrangement when extra height is required beneath compatible stabilizer systems.
Important considerations include:
The support arrangement should not be selected only according to the total weight of the vehicle.
Different stabilizer positions can experience different forces depending on boom direction, operating radius, equipment configuration, and working conditions.
Mobile cranes and other lifting equipment may also require additional support height beneath stabilizers or outriggers.
Possible applications include:
The required support arrangement depends on the equipment configuration, outrigger reaction, supporting ground, base pad area, required height, and operating procedure.
Some applications may use interlocking blocks above a suitable base outrigger pad. Other equipment may require a different engineered support system.
Cribbing blocks and outrigger pads have different primary functions.
An outrigger pad is mainly used to increase the effective contact area between the stabilizer and the supporting ground.
An interlocking cribbing block is mainly used to create additional support height or form a multi-layer support structure.
A complete support arrangement may include:
The exact structure depends on the selected support system and equipment requirements.
You can also view our complete range of crane outrigger pads for concrete pumps, mobile cranes, lifting equipment, stabilizer systems, and related machinery support applications.
One important purpose of Interlocking Cribbing Blocks is to increase equipment support height through a controlled multi-layer arrangement.
A reference block with a height of approximately 150 mm adds approximately 150 mm of nominal block height for each layer before the complete setup geometry is considered.
Additional layers increase the overall support height, but a taller stack also changes the geometry of the complete arrangement.
The setup should therefore consider:
A taller stack should not be created simply because additional blocks are available.
Cribbing blocks may be considered where additional support height is required because of equipment geometry or changes in the surrounding surface.
Uneven terrain should still be evaluated carefully before setup.
Inspect the area for:
The base layer should have suitable support beneath its effective working area.
Very weak or severely uneven ground may require site preparation, a larger base support system, or another equipment support solution.
Different equipment support arrangements may require different block surface configurations.
Possible options include:
A flatter lower surface may be useful in a compatible base or top position, while interlocking surfaces can help organize adjoining cribbing layers.
The final surface structure should match the complete support system.
A major advantage of Interlocking Cribbing Blocks is their reusable construction.
After equipment operation is completed, the blocks can be:
The consistent rectangular form makes the blocks suitable for organized storage.
Complete sets can also be grouped according to equipment, operating team, vehicle, or support application.
Reusable equipment support products should be inspected before demanding applications.
Check:
A damaged block should be evaluated before it is returned to equipment support service.
The supporting ground and complete cribbing arrangement should also be checked each time equipment is repositioned.
Mud, gravel, sand, and other debris can remain on cribbing blocks after outdoor operations.
Cleaning can help:
Before arranging the blocks for storage, remove large debris and inspect the main working surfaces and interlocking areas.
The rectangular design allows multiple blocks to be arranged efficiently during transportation and storage.
A reference 650 × 150 × 150 mm block weighs approximately 14–15 kg depending on its final structure, so handling procedures should consider the number of blocks being moved and actual workplace conditions.
During storage:
The bright yellow design also makes individual blocks easier to locate in mixed equipment storage areas.
Interlocking Cribbing Blocks provide a practical equipment support solution where additional height, organized multi-layer stacking, and repeated outdoor use are required. Their durable UHMWPE construction, shaped interlocking surfaces, rectangular structure, high-visibility yellow color, integrated carrying handle, and reusable design make them suitable for cranes, concrete pumps, outrigger systems, utility equipment, service vehicles, and industrial machinery.
A practical reference size is approximately 650 × 150 × 150 mm with a unit weight of around 14–15 kg depending on the exact surface and handle structure. Other rectangular sizes can be selected according to the equipment support arrangement, required height, working surface, handling requirements, storage space, and project conditions.
Final block dimensions, material grade, interlocking structure, number of layers, base support area, and installation arrangement should always be selected according to the actual equipment, applied forces, supporting ground, and operating requirements.
