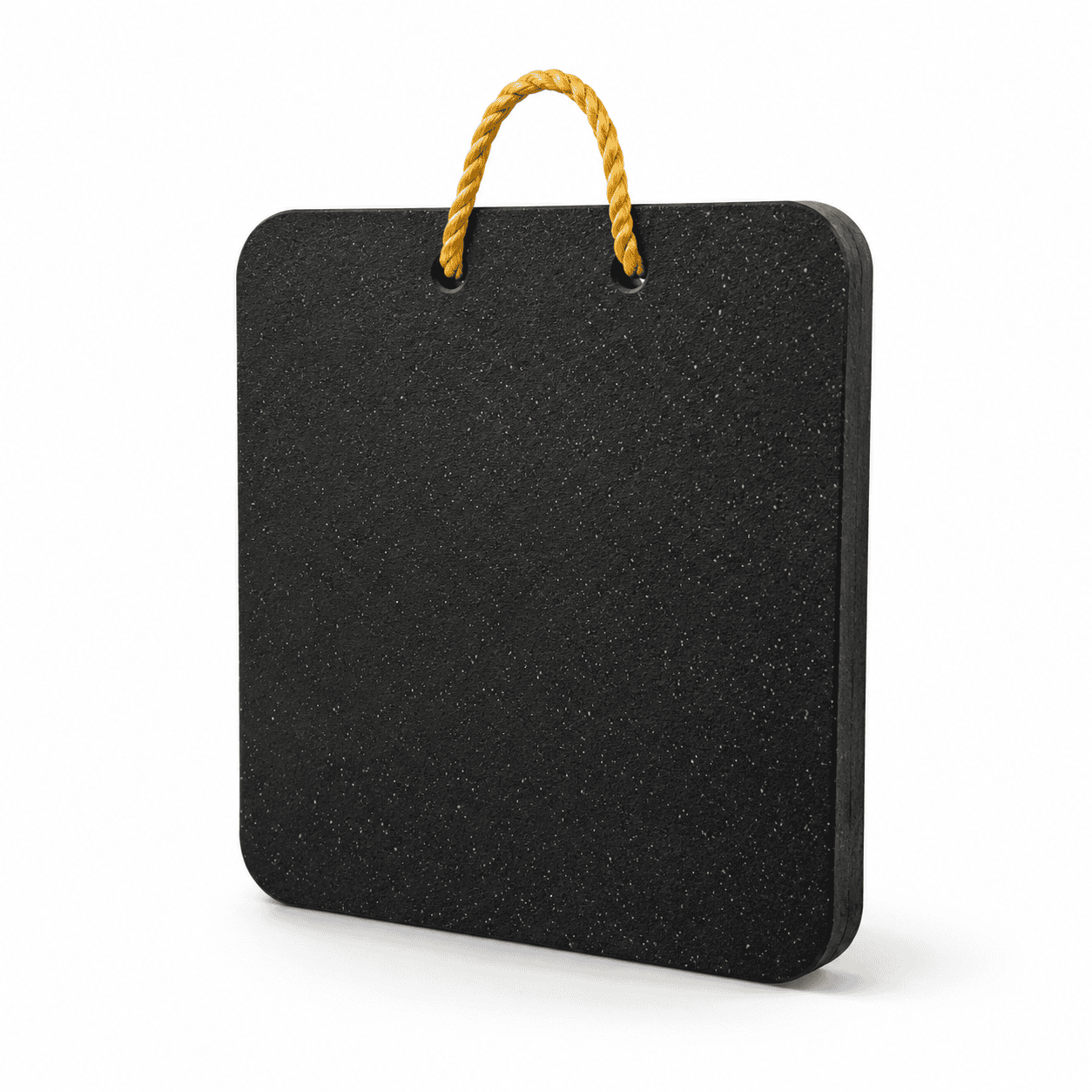

Portable Crane Outrigger Pads are durable UHMWPE support panels featuring compact square structures, rounded corners and integrated rope carrying handles. A practical reference size is approximately 500 × 500 × 40 mm with an estimated weight of around 9–10 kg. Other useful sizes include 400 × 400 × 40 mm, 600 × 600 × 40–60 mm and 800 × 800 × 50–60 mm for mobile cranes, pump trucks, boom trucks and other outrigger-equipped machinery.

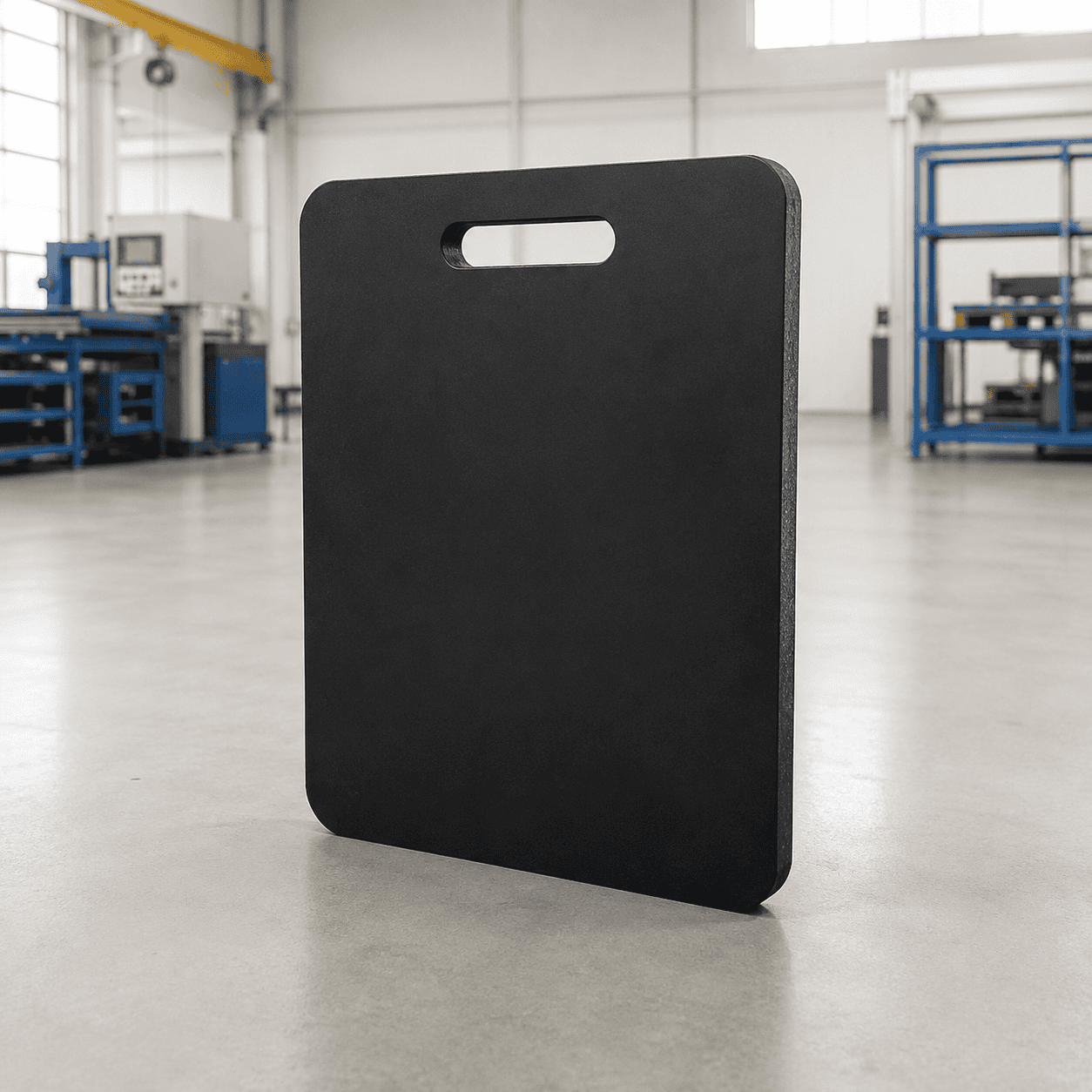

Portable Crane Outrigger Pads are heavy-duty UHMWPE support panels designed to increase the effective contact area beneath mobile crane outriggers, concrete pump stabilizers, boom truck support legs, utility vehicles, service equipment, and other outrigger-equipped machinery. The product shown combines a compact square structure, rounded corners, a lightly textured black working surface, and an integrated rope carrying handle.
The simple panel design makes the pad practical for repeated equipment setup. Unlike larger support panels that may require mechanical handling, compact pad sizes can be carried between vehicle storage areas and individual stabilizer positions using the integrated handle when the finished product weight and workplace conditions allow.
The rounded outside corners reduce sharp projecting edges, while the rope handle provides a defined gripping point for transportation, placement, recovery, and storage. The square panel shape also makes complete equipment sets easier to stack and organize.
Unlike temporary road mats, which are installed continuously to form vehicle access routes, these pads are positioned directly beneath individual outriggers or stabilizer feet. Their primary purpose is to create a larger support area between the equipment and the underlying surface.
Portable Crane Outrigger Pads can be supplied in different square dimensions and thicknesses. The correct specification should be selected according to the maximum individual outrigger reaction, original stabilizer foot dimensions, required support area, ground condition, pad stiffness, handling requirements, and equipment operating configuration.
A practical reference size for the compact product shown is approximately 500 × 500 × 40 mm. A solid UHMWPE panel of this size has an approximate reference weight of around 9–10 kg before allowing for minor machining, rounded corners, carrying holes, and dimensional tolerances.
Typical practical specifications include:
| Reference Size | Approx. Reference Weight | Typical Application |
|---|---|---|
| 400 × 400 × 40 mm | Approximately 6 kg | Compact stabilizers and lighter equipment |
| 450 × 450 × 40 mm | Approximately 7.5 kg | Portable equipment support applications |
| 500 × 500 × 40 mm | Approximately 9–10 kg | General portable outrigger support |
| 500 × 500 × 50 mm | Approximately 11–12 kg | Thicker compact support pad |
| 600 × 600 × 40 mm | Approximately 13–14 kg | General crane and vehicle stabilizers |
| 600 × 600 × 50 mm | Approximately 16–17 kg | Medium equipment support |
| 600 × 600 × 60 mm | Approximately 19–20 kg | Thicker equipment support applications |
| 800 × 800 × 50 mm | Approximately 29–30 kg | Larger support area requirements |
| 800 × 800 × 60 mm | Approximately 35–36 kg | Heavy equipment stabilizer support |
| 1000 × 1000 × 60 mm | Approximately 55–56 kg | Large equipment support applications |
The weights above are practical reference values for solid UHMWPE panels. Actual finished weight can vary according to material density, dimensional tolerance, rounded corners, handle holes, surface machining, edge finishing, and other product details.
For a genuinely portable product, the approximate 400 × 400 mm, 450 × 450 mm, 500 × 500 mm, and 600 × 600 mm formats are particularly practical because they provide a balance between support area, vehicle storage, individual handling, and repeated equipment setup.
The following dimensions provide practical reference combinations for different equipment requirements:
| Pad Size | Practical Thickness Options |
|---|---|
| 400 × 400 mm | 30 mm, 40 mm |
| 450 × 450 mm | 30 mm, 40 mm, 50 mm |
| 500 × 500 mm | 30 mm, 40 mm, 50 mm, 60 mm |
| 600 × 600 mm | 40 mm, 50 mm, 60 mm |
| 700 × 700 mm | 40 mm, 50 mm, 60 mm |
| 800 × 800 mm | 50 mm, 60 mm, 80 mm |
| 1000 × 1000 mm | 60 mm, 80 mm |
The final specification should not be selected from outside dimensions alone. A larger square pad provides more geometric area, but product suitability also depends on material structure, thickness, stiffness, individual outrigger force, supporting surface, and load position.
| Specification | Typical Reference |
|---|---|
| Product type | Portable crane and equipment outrigger support pad |
| Primary material | UHMWPE |
| Main shape | Square |
| Reference color | Black |
| Other practical colors | Yellow, red, blue and application-specific colors |
| Corner structure | Large rounded corners |
| Working surface | Fine textured or matte surface |
| Handling feature | Integrated flexible rope handle |
| Installation | One pad beneath each selected outrigger or stabilizer |
| Main applications | Cranes, pump trucks, boom trucks and stabilizer-equipped machinery |
Final dimensions, thickness, material grade, handle structure, surface finish, and edge design should always be selected according to the actual equipment and operating conditions.
The square structure of Portable Crane Outrigger Pads provides a practical combination of support area, storage efficiency, handling, and repeatable placement.
Square pads can be:
The square shape provides more usable corner area than a round pad with the same outside width, while a round pad may be preferred for different equipment geometries. The final shape should match the actual stabilizer, storage arrangement, required support area, and operating conditions.

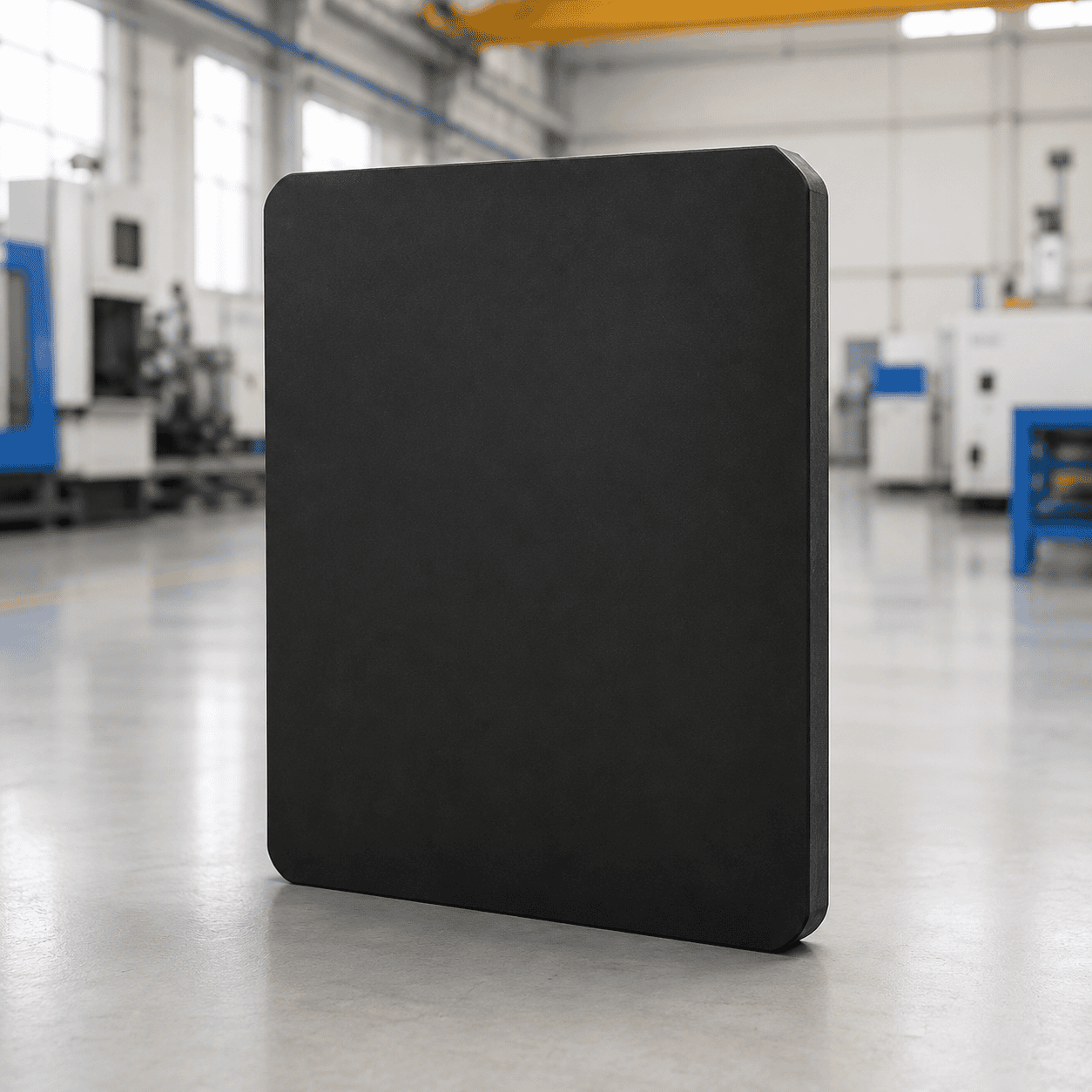

One of the most visible structural features of the pad shown is the large radius at each corner.
Rounded corners can provide several practical benefits during repeated equipment handling:
The radius should be selected according to the finished pad dimensions and required usable support area.
Removing excessive corner material can reduce geometric pad area, so the final design should maintain an appropriate balance between handling and support requirements.

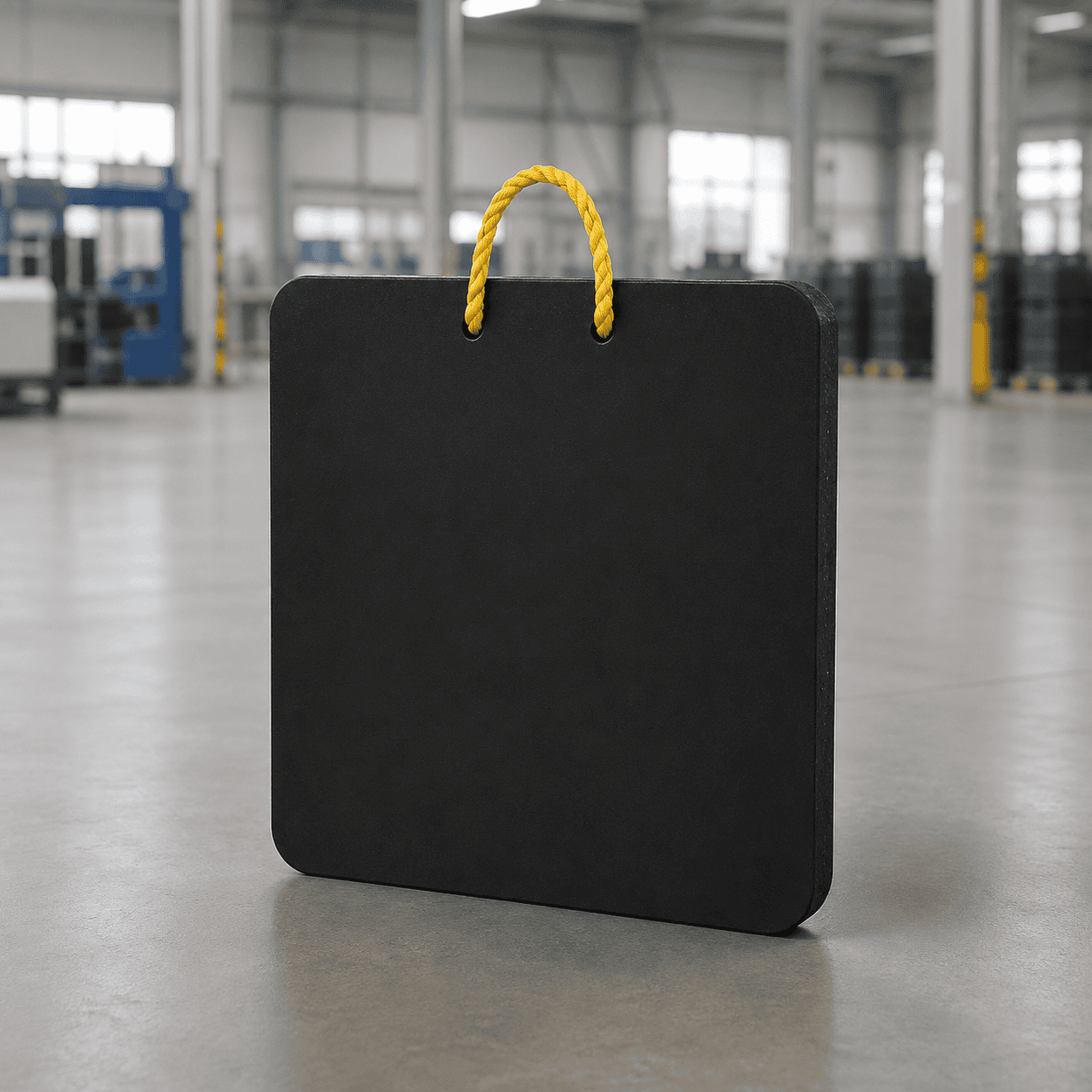

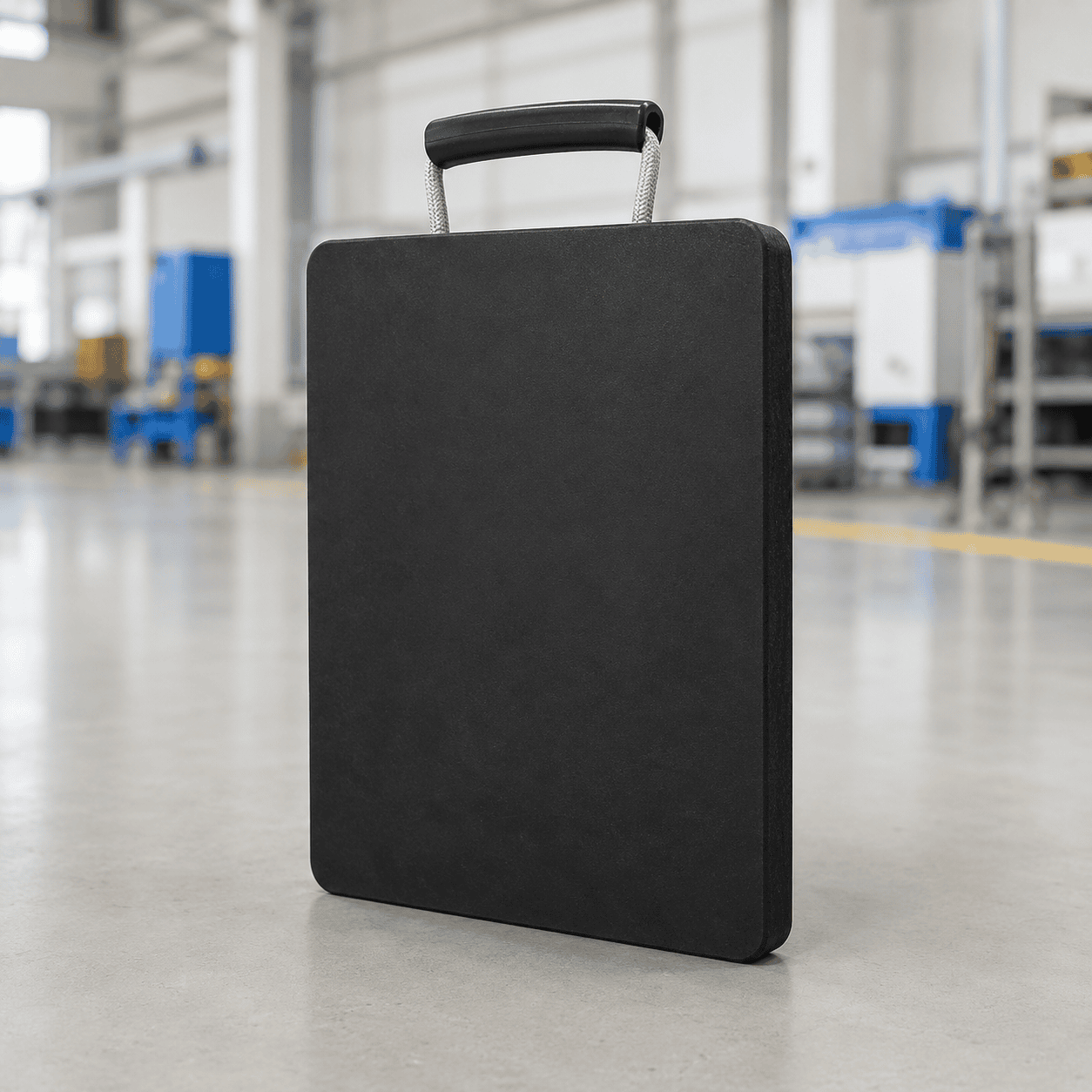

The defining feature of these Portable Crane Outrigger Pads is the flexible rope-style carrying handle installed near one edge of the panel.
The handle provides a defined gripping position when the pad needs to be:
Unlike a rigid external metal handle, the flexible rope can fold closer to the pad surface when not in use.
Before lifting a pad, inspect:
The carrying handle is intended for moving the pad and should not be treated as an equipment-supporting structural component.
Outrigger support products are normally transported with the equipment and moved repeatedly during setup and recovery.
A practical portable pad design can help during:
Portability depends on more than adding a handle.
The complete product should consider:
A compact 500 × 500 × 40 mm pad and a 1000 × 1000 × 60 mm pad require very different handling methods even if both products include carrying features.
The black pad shown uses a lightly textured or matte working surface rather than a highly polished plastic face.
This surface creates a practical industrial appearance and clearly identifies the main working area.
The fine surface structure can be useful for:
The surface texture does not replace correct pad sizing, suitable ground, correct equipment positioning, or regular inspection.
Large stones, metal parts, timber pieces, or other hard objects should not remain trapped beneath the pad because they can create concentrated support points.
An outrigger or stabilizer transfers a concentrated reaction through a relatively small original equipment foot.
Portable Crane Outrigger Pads increase the geometric contact area between the stabilizer system and the supporting surface.
The complete support performance depends on:
A larger support area can reduce concentrated pressure on the underlying surface when the selected pad has suitable strength and stiffness and receives appropriate support beneath its intended working area.
A larger outside dimension alone should not be treated as a universal capacity guarantee.
The correct pad should not be selected only according to the total vehicle weight or the rated lifting capacity of a crane.
Individual outriggers can experience different reactions depending on the actual operating configuration.
Important selection factors include:
A practical starting relationship is:
Maximum Outrigger Reaction ÷ Allowable Ground Bearing Pressure = Required Minimum Support Area
After determining the required area, the material, thickness, construction, stiffness, portability, and storage requirements should also be reviewed.
For additional professional reference, see this external resource about outrigger pad sizing guidance.
Two square pads with the same outside dimensions can behave differently if their thicknesses and material structures are different.
For example, the product family may include:
It may also include:
Thickness selection should consider:
A thinner pad may be easier to carry, while a thicker pad can provide a different structural response. The correct balance depends on the complete support application.
The main material used for Portable Crane Outrigger Pads is ultra-high-molecular-weight polyethylene.
Typical material characteristics include:
These characteristics make the material practical for support pads that are repeatedly transported, positioned, loaded, removed, cleaned, inspected, and stored.
Unlike steel support plates, UHMWPE does not rust.
Compared with conventional timber support products, manufactured plastic pads have low water absorption and do not depend on natural wood grain, knots, or changing moisture content.
Portable outrigger pads are frequently moved between equipment storage areas and operating positions.
During repeated use, they may experience:
The wear-resistant characteristics of UHMWPE make the material suitable for repeated equipment support applications when the product is correctly selected and regularly inspected.
The upper surface, lower face, rounded corners, rope handle, and handle attachment positions should still be checked before demanding equipment use.
Portable Crane Outrigger Pads can be used with many types of machinery that rely on outriggers or stabilizers during operation.
Typical applications include:
The correct pad dimensions and thickness should always be matched to the actual equipment and operating conditions.
Mobile cranes use outriggers to create a wider operating base during lifting operations.
The reaction acting through each individual outrigger can change according to:
When selecting support pads for a mobile crane, consider:
Compact pads with carrying handles can be practical for fleet operations where the equipment is repositioned frequently.
Concrete pump trucks also rely on stabilizers to create a wider operating base.
Portable Crane Outrigger Pads may be used beneath pump truck support legs when the selected size, thickness, material, and complete equipment setup are appropriate.
Important factors include:
Each support position should be evaluated according to its actual load and underlying surface.
Boom trucks and utility vehicles frequently use outriggers during lifting, aerial access, maintenance, and material handling operations.
Typical equipment includes:
Portable pads are particularly practical for equipment that moves between several operating locations during the same working period.
The required product specification should still be selected according to actual stabilizer reactions and support conditions rather than equipment category alone.
Compacted soil can vary according to moisture, previous excavation, fill material, and compaction quality.
Before equipment setup, inspect for:
The effective working area of the pad should receive suitable support underneath.
A larger support pad cannot automatically make unsuitable ground safe.
Prepared gravel surfaces are common around industrial equipment and temporary operating areas.
Before placing the pad, check:
Large stones or hard objects directly beneath the pad can create concentrated support points and should be removed before loading.
Asphalt performance can vary according to temperature, pavement thickness, underlying structure, and existing damage.
Consider:
A correctly selected support pad increases the effective area, but the underlying pavement still needs to be appropriate for the equipment operation.
Concrete surfaces should also be evaluated before equipment setup.
Inspect for:
The visible upper surface does not always reveal the complete support condition beneath the equipment.
Correct equipment-foot positioning is important when using Portable Crane Outrigger Pads.
Before loading, check that:
A support foot positioned near the center of a suitable pad can use the surrounding support area differently from a foot positioned close to the outer edge.
Many outrigger-equipped vehicles use four support positions.
A complete portable pad set can therefore include four matching square pads.
This arrangement can help with:
Each support position should still be evaluated separately because outrigger reactions and ground conditions may differ around the same machine.
The regular square shape makes the pads easy to arrange in stacked equipment sets.
Organized stacking can help with:
Storage surfaces should be reasonably level and suitable for the total stacked pad weight.
Larger pad formats may require different storage and mechanical handling methods.
A major advantage of Portable Crane Outrigger Pads is their reusable construction.
After equipment operation is completed, the pads can be:
The compact square structure and carrying handle make repeated equipment support and relocation easier to organize.
Reusable equipment support pads should be inspected before demanding applications.
Check:
A damaged pad should be evaluated before returning to heavy equipment support service.
The supporting surface should also be inspected each time the equipment is repositioned.
Mud, sand, gravel, oil, and other debris can remain on support pads after outdoor operations.
Cleaning can help:
Large debris on or beneath a support pad should be removed before equipment loading.
The square design, rounded corners, and integrated rope handle make the pads practical for organized transportation and storage.
During storage:
Handling procedures should always match the actual dimensions and finished weight of the pad.
You can also view our complete range of crane outrigger pads for mobile cranes, concrete pumps, boom trucks, lifting equipment, stabilizer systems, cribbing support, and related heavy machinery applications.
Portable Crane Outrigger Pads provide a practical ground-support solution for mobile cranes, truck-mounted cranes, concrete pump trucks, boom trucks, utility vehicles, and other outrigger-equipped machinery. Their durable UHMWPE construction, compact square structure, rounded corners, lightly textured surface, integrated rope carrying handle, and reusable design make them suitable for repeated equipment support applications.
A practical reference size for the compact product shown is approximately 500 × 500 × 40 mm with an estimated solid-panel weight of around 9–10 kg. Other useful reference formats include approximately 400 × 400 × 40 mm, 450 × 450 × 40 mm, 500 × 500 × 50 mm, 600 × 600 × 40–60 mm, and 800 × 800 × 50–60 mm.
Final pad dimensions, thickness, material grade, effective support area, handle configuration, edge structure, and operating arrangement should always be selected according to the maximum individual outrigger reaction, original stabilizer foot dimensions, supporting ground condition, handling requirements, and actual equipment configuration.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
