Pump Truck Stabilizer Pads are durable UHMWPE support panels featuring clipped corners and integrated carrying handles for concrete pump trucks, boom pumps, cranes and other stabilizer-equipped machinery. Reference sizes include 400 × 400 × 25 mm, 500 × 500 × 50 mm, 600 × 600 × 50 mm, 800 × 800 × 60 mm, 1000 × 1000 × 80 mm and 1200 × 1200 × 100 mm.
Pump Truck Stabilizer Pads are heavy-duty UHMWPE support panels designed for concrete pump truck stabilizers, boom pump support legs, mobile crane outriggers, truck-mounted lifting equipment and other machinery that relies on hydraulic stabilizers during operation.

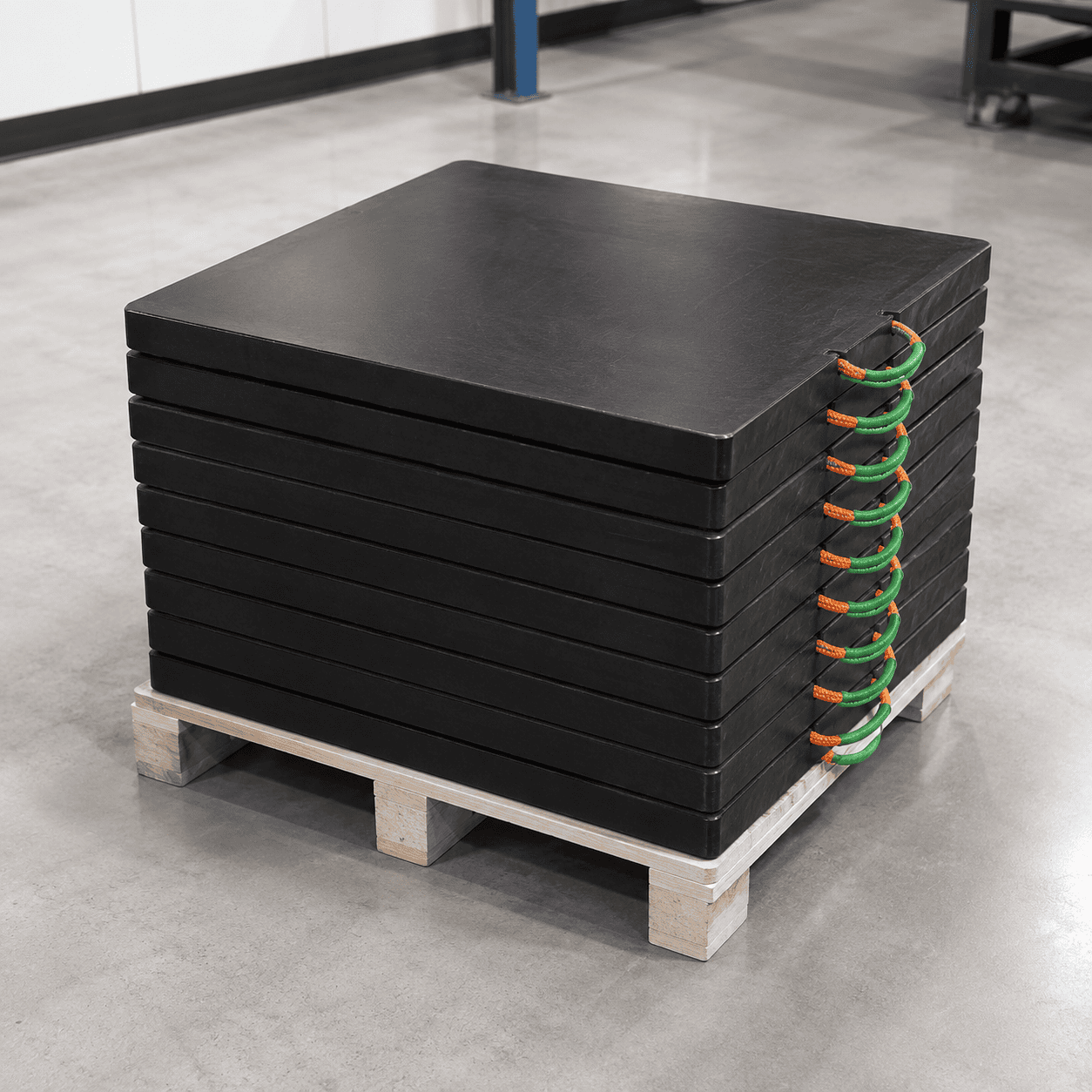

The product shown features a solid black UHMWPE body, a broad square working surface, clipped outside corners and an integrated flexible carrying handle. This structure provides a practical reusable support pad for repeated equipment setup, positioning, recovery, transportation and storage.
Unlike temporary roadway mats that are installed continuously to form vehicle access routes, these pads are placed directly beneath individual stabilizer feet. Their primary purpose is to increase the effective support area between the original equipment foot and the supporting surface.
The reference product range includes compact portable pads, medium-size general-purpose panels and larger heavy-duty support pads. Available reference sizes range from approximately 400 × 400 × 25 mm to 1200 × 1200 × 100 mm.
Pump Truck Stabilizer Pads can be supplied in several dimensions and thicknesses for different pump trucks, stabilizer feet and supporting conditions.
| Reference Size | Typical Application |
|---|---|
| 400 × 400 × 25 mm | Compact stabilizers and lighter mobile equipment |
| 500 × 500 × 50 mm | Portable pump truck and service vehicle support |
| 600 × 600 × 50 mm | General concrete pump stabilizer support |
| 800 × 800 × 60 mm | Medium heavy-equipment applications |
| 900 × 900 × 50 mm | Larger stabilizer support areas |
| 1000 × 1000 × 80 mm | Large boom pump and equipment support |
| 1200 × 1200 × 100 mm | Large-format heavy equipment applications |
| 400 × 1200 × 60 mm | Long rectangular support arrangements |
The approximately 400 × 400 × 25 mm format is the most compact option in the reference series. Its smaller dimensions make it easier to organize in equipment compartments where storage space is limited.
The approximately 500 × 500 × 50 mm and 600 × 600 × 50 mm formats provide a practical balance between support area, thickness, finished weight and repeated handling.
The approximately 800 × 800 × 60 mm and 900 × 900 × 50 mm panels provide a broader geometric footprint for larger pump truck stabilizers and mobile equipment.
Large-format options such as approximately 1000 × 1000 × 80 mm and 1200 × 1200 × 100 mm require suitable transportation, storage and handling arrangements because their finished weight is substantially greater than compact pads.
The approximately 400 × 1200 × 60 mm rectangular panel provides a different support geometry for selected machinery or support-leg arrangements where a standard square pad is not preferred.
Final dimensions should always be selected according to the maximum reaction at one stabilizer, original equipment-foot dimensions, required support area, pad thickness, UHMWPE material structure and supporting surface condition.
| Specification | Typical Reference |
|---|---|
| Product type | Pump truck and heavy equipment stabilizer support pad |
| Primary material | UHMWPE |
| Main shape | Square with clipped corners |
| Alternative shape | Long rectangular panel |
| Reference color | Black |
| Other practical colors | Yellow, red, blue and equipment-identification colors |
| Reference size range | 400 × 400 mm to 1200 × 1200 mm |
| Reference thickness range | 25–100 mm |
| Handling feature | Integrated flexible carrying handle |
| Main applications | Concrete pumps, boom pumps, cranes and stabilizer-equipped machinery |
Final dimensions, thickness, material grade, surface finish, handle configuration and edge design should be matched to the actual equipment and operating conditions.

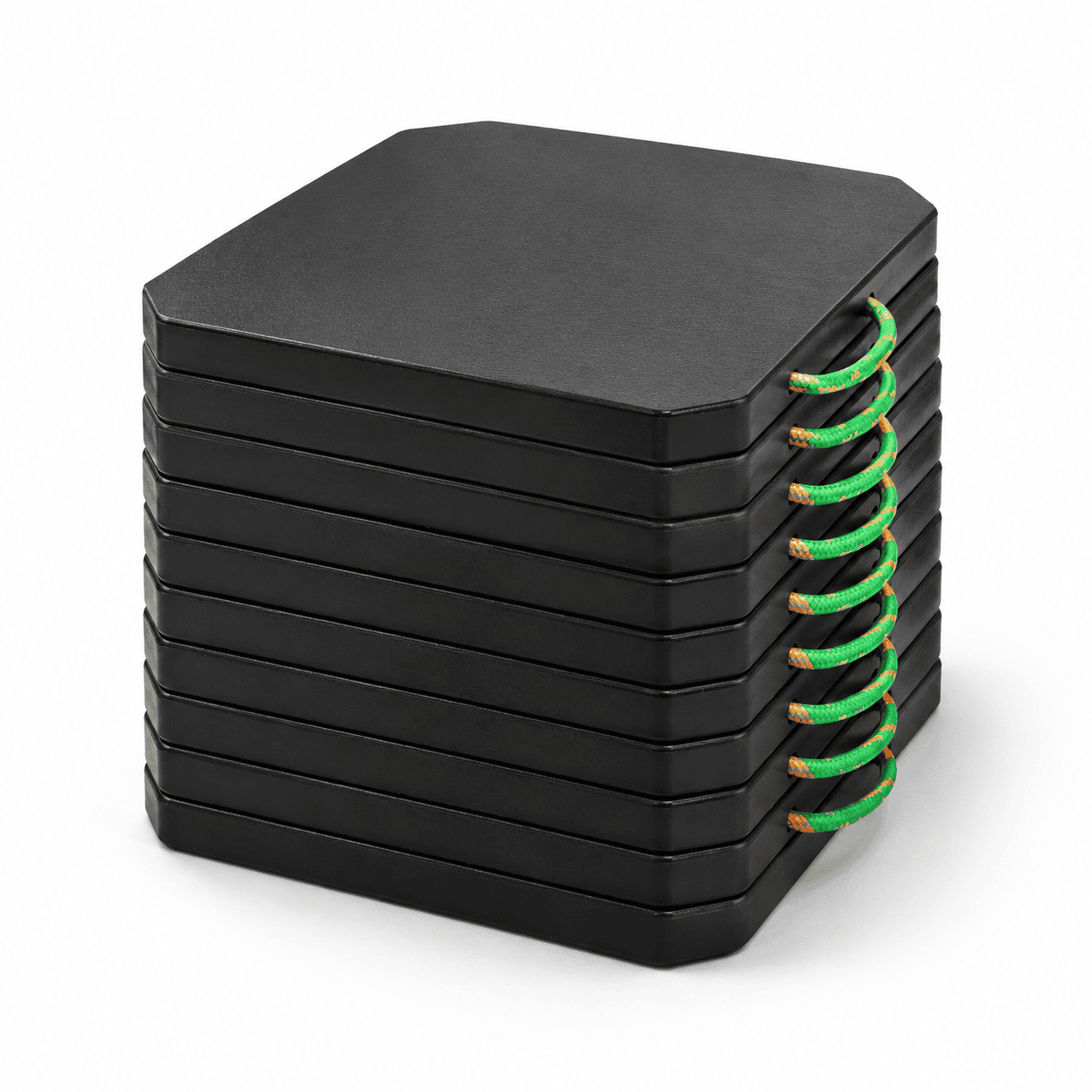

One of the most visible features of these Pump Truck Stabilizer Pads is the clipped-corner design.
Instead of retaining four projecting 90-degree square corners, a section is removed from each corner while a large central support area is maintained.
This structure provides several practical characteristics:
The amount removed from the corners should remain appropriate for the complete panel dimensions and required effective support area.
Excessive corner removal can reduce the geometric area of the pad. The final design should therefore balance handling convenience with equipment-support requirements.
Concrete pump trucks deploy hydraulic stabilizers to create a broader operating base before extending the delivery boom.
Stabilizer reactions can change according to:
For this reason, Pump Truck Stabilizer Pads should not be selected only according to the total weight of the vehicle.
Important selection factors include:
Each stabilizer position should be evaluated separately because the reaction and underlying ground may differ around the same pump truck.
A pump truck stabilizer transfers a concentrated reaction through its original support foot.
The support pad increases the geometric interface between that foot and the underlying surface.
The performance of the complete arrangement depends on:
A larger panel provides a larger geometric footprint, but outside dimensions alone should not be treated as a universal safe-working-load guarantee.
The complete specification must match the actual equipment and operating conditions.
The reference product series includes thicknesses from approximately 25 mm to 100 mm.
Two support pads with the same outside dimensions can respond differently when their thicknesses and material structures are different.
Thickness can affect:
A compact 400 × 400 × 25 mm panel has very different handling and structural characteristics from a 1200 × 1200 × 100 mm panel.
The correct thickness should be selected according to the individual stabilizer reaction, equipment-foot dimensions, supporting ground, material grade and required support area.
The approximately 400 × 400 × 25 mm pad is a compact reference option.
Its practical characteristics include:
This size should only be selected when the required support area and stabilizer reaction are appropriate for the panel structure.
The approximately 500 × 500 × 50 mm format combines a relatively compact square footprint with a thicker panel structure.
This format can be considered for:
Actual suitability depends on the equipment reaction and supporting surface.
The approximately 600 × 600 × 50 mm format provides a practical general-purpose size within this product family.
Possible applications include:
The product should still be matched to the actual support-leg reaction and ground condition.
The approximately 800 × 800 × 60 mm format provides a broader support area than compact product sizes.
This size can be considered when:
Handling procedures should consider the actual weight of the completed panel.
Larger reference specifications include:
Large-format panels require additional consideration for:
A larger panel should not automatically be selected solely because it has a greater outside area.
The complete product structure and equipment setup must still be appropriate for the actual operating conditions.
The product series also includes a long rectangular format measuring approximately 400 × 1200 × 60 mm.
This format creates a different support geometry from a standard square panel.
Possible uses include:
The orientation and equipment-foot position should match the complete support arrangement.

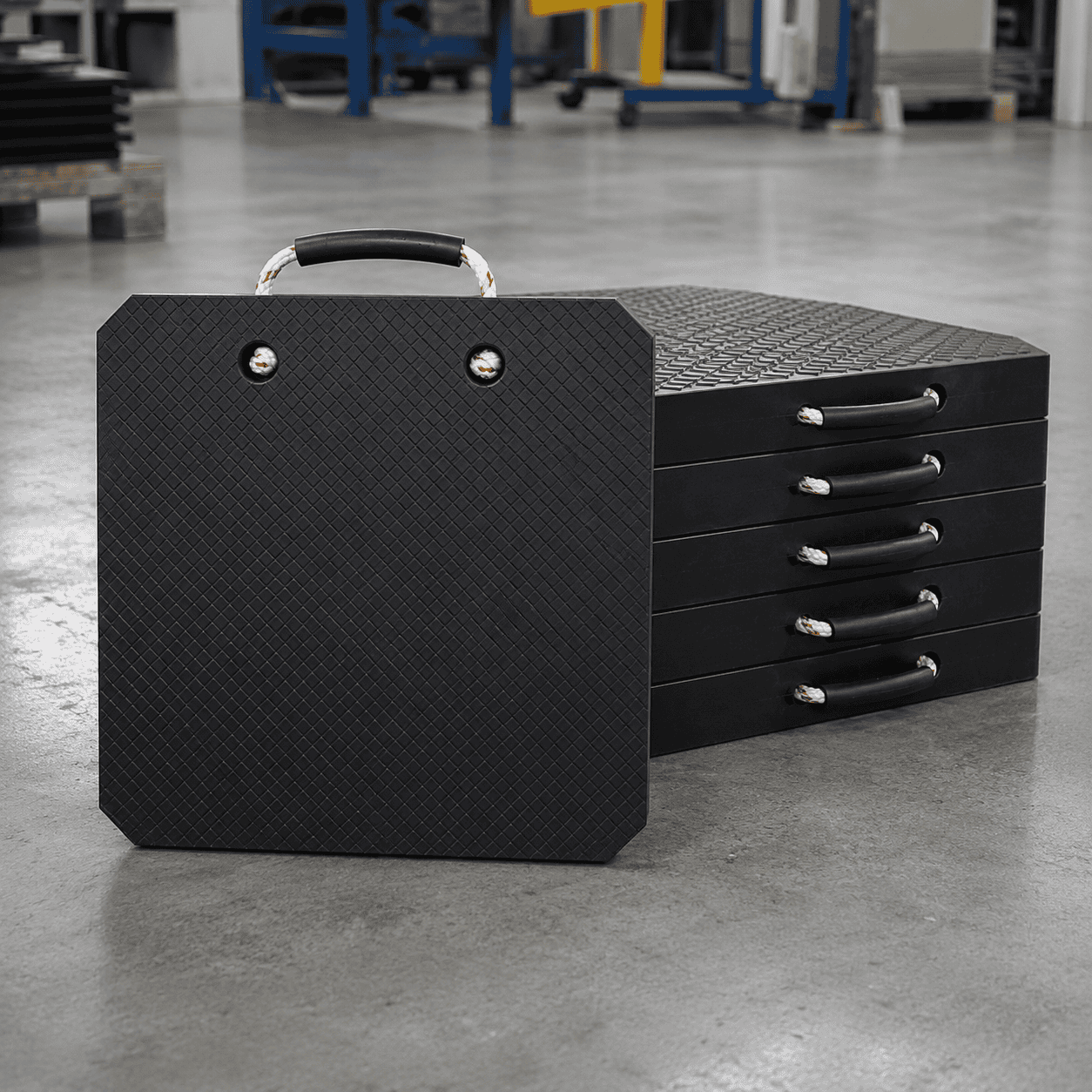

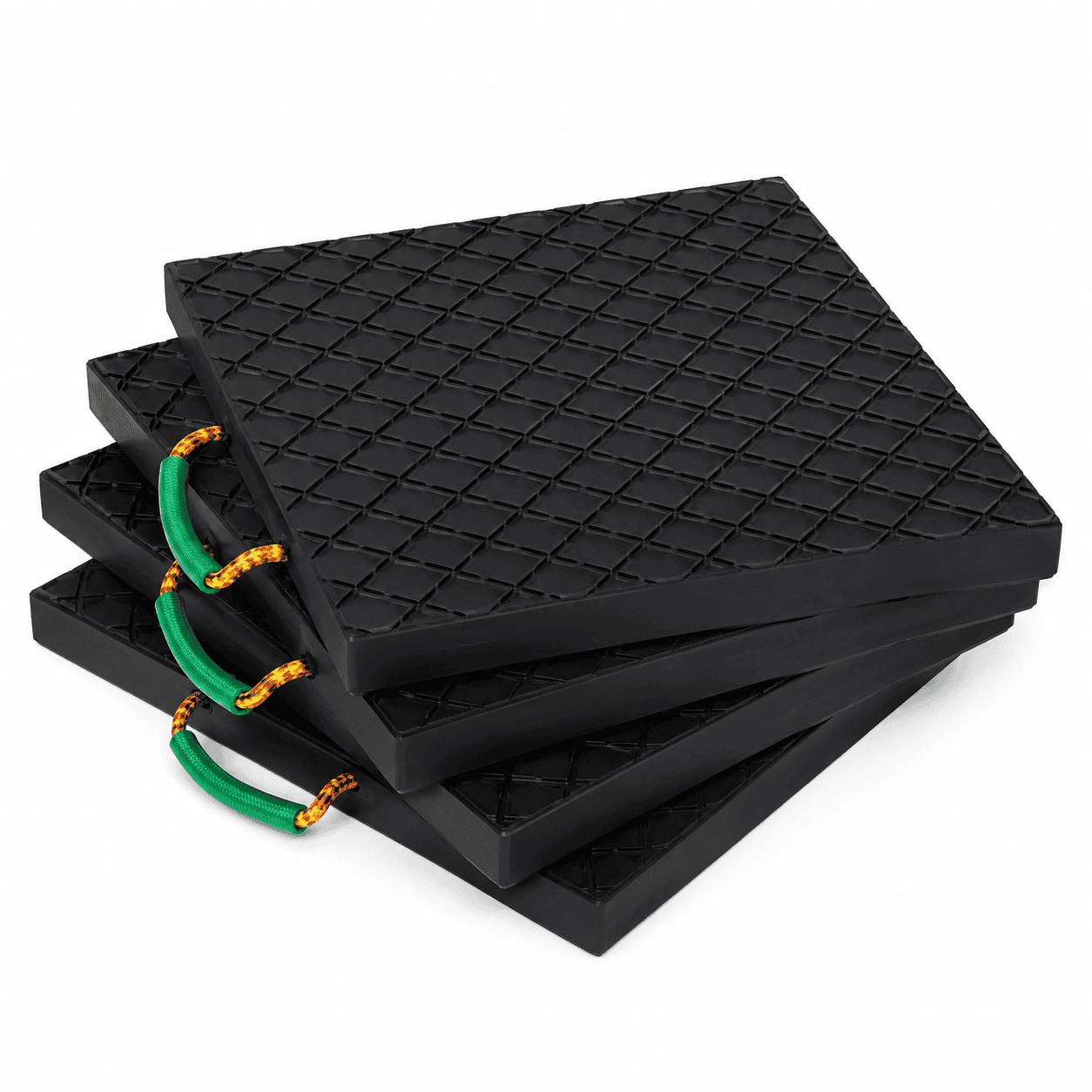

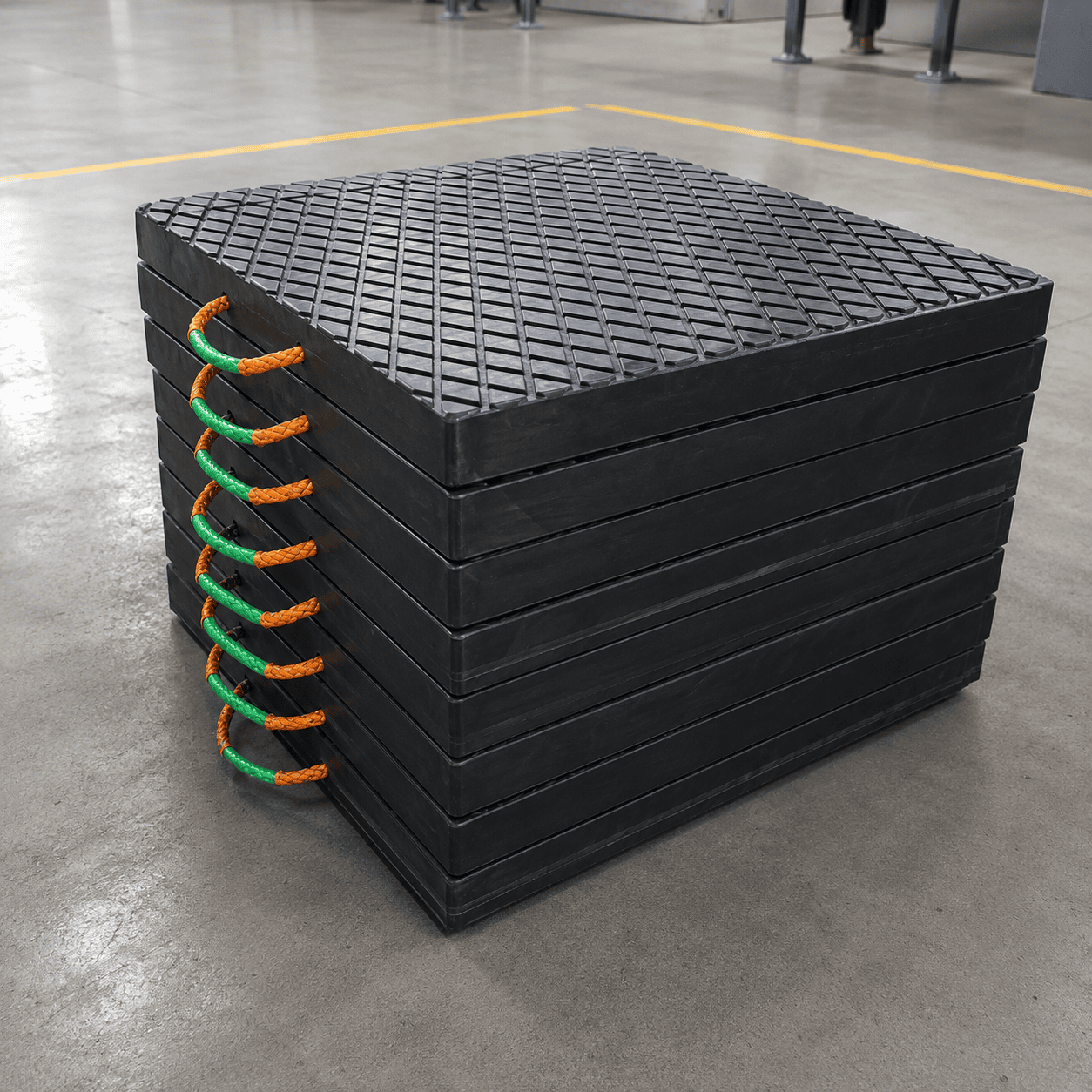

The product shown includes a flexible carrying handle installed near the upper edge.
The handle provides a defined gripping position when the pad needs to be:
Before handling the pad, inspect:
The handle is intended for transportation and positioning. It should not be treated as a structural component carrying the stabilizer load.
The primary material used for Pump Truck Stabilizer Pads is ultra-high-molecular-weight polyethylene, commonly abbreviated as UHMWPE.
UHMWPE is a thermoplastic polyethylene with extremely long molecular chains. The material is associated with high toughness, impact resistance, very low moisture absorption, low friction and strong abrasion resistance.
For a general material explanation, see the Wikipedia article about ultra-high-molecular-weight polyethylene.
Practical characteristics for reusable support pads include:
Chemical resistance should not be interpreted as universal resistance to every chemical, concentration or temperature.
Actual compatibility can depend on material grade, chemical substance, concentration, exposure temperature, contact time and mechanical stress.
Pump truck support pads are repeatedly transported, positioned, loaded, recovered and stored.
During normal service, they may experience:
The toughness and impact resistance of UHMWPE make the material practical for reusable equipment support products.
Regular inspection is still required before demanding applications.
Concrete pump trucks frequently operate outdoors.
Support pads may be exposed to:
The very low moisture absorption of UHMWPE is useful for reusable outdoor support components.
The pads should still be cleaned and inspected after wet or dirty operation.
Pump Truck Stabilizer Pads can be used with different types of stabilizer-equipped machinery.
Typical applications include:
The dimensions, thickness and support arrangement should always match the actual equipment.
Concrete pump trucks are the primary application for this product.
Before selecting a stabilizer pad, consider:
Different stabilizer positions around the same pump truck may experience different reactions and different supporting conditions.
The same UHMWPE support structure can also be used with selected cranes and truck-mounted lifting equipment.
Important factors include:
The pad should be selected according to the actual individual support point rather than total machine weight alone.
Compacted soil can vary according to moisture, fill material, previous excavation and compaction quality.
Before setup, inspect for:
The effective working area of the pad should receive suitable support underneath.
A larger support pad cannot automatically make unsuitable ground safe.
Prepared gravel surfaces are common around mobile and industrial equipment.
Before positioning the panel, check:
Large hard objects beneath the pad can create concentrated contact points and should be removed before equipment loading.
Hard surfaces should also be evaluated before hydraulic stabilizers are deployed.
Possible concerns include:
The visible upper surface does not always reveal the complete supporting condition beneath the equipment.
Correct equipment-foot positioning is important when using Pump Truck Stabilizer Pads.
Before loading, check that:
The complete arrangement should be evaluated as a support system rather than considering only the visible outside dimensions.
A major advantage of Pump Truck Stabilizer Pads is their reusable construction.
After equipment operation, the panels can be:
The clipped-corner structure and carrying handle make matching pad sets easier to organize.
Reusable support pads should be inspected before demanding applications.
Check:
A damaged pad should be evaluated before returning to demanding equipment-support service.
Mud, sand, gravel, oil and other debris can remain on the support panels after operation.
Cleaning can help:
Large debris should be removed from the primary support surfaces before stabilizer load is applied.
Different panel sizes require different handling methods.
During storage:
Handling procedures should always match the actual dimensions, thickness and finished product weight.
Large 1000 mm and 1200 mm panels may require team handling or suitable mechanical handling equipment.
You can also view our complete range of crane outrigger pads for concrete pumps, mobile cranes, boom trucks, hydraulic stabilizer systems, cribbing support and other heavy machinery applications.
Pump Truck Stabilizer Pads provide a practical support solution for concrete pump trucks, boom pumps, mobile cranes, boom trucks and other stabilizer-equipped machinery.
The product combines a solid UHMWPE structure, clipped corners, an integrated carrying handle and a wide range of practical dimensions.
Reference specifications include approximately 400 × 400 × 25 mm, 500 × 500 × 50 mm, 600 × 600 × 50 mm, 800 × 800 × 60 mm, 900 × 900 × 50 mm, 1000 × 1000 × 80 mm, 1200 × 1200 × 100 mm and 400 × 1200 × 60 mm.
Final dimensions, thickness, material grade, effective support area, handle structure and equipment arrangement should always be selected according to the individual stabilizer reaction, original support-foot dimensions, supporting surface condition and operating requirements.
