Stabilization Cribbing Blocks are durable UHMWPE support components designed for heavy equipment, vehicles, crane outriggers and industrial machinery requiring additional support height. A practical reference size is approximately 600 × 180 × 150 mm, with other rectangular formats available for different equipment arrangements. Raised positioning features, textured working surfaces, integrated rope handles and reusable construction make the blocks suitable for repeated stabilization and support applications.
Stabilization Cribbing Blocks are heavy-duty equipment support components designed to provide additional height and create organized temporary support arrangements beneath heavy machinery, crane outriggers, stabilizers, industrial equipment, service vehicles, and other supported loads. Manufactured from durable UHMWPE, these reusable rectangular blocks combine a substantial support structure, raised positioning features, textured working surfaces, and integrated carrying handles.

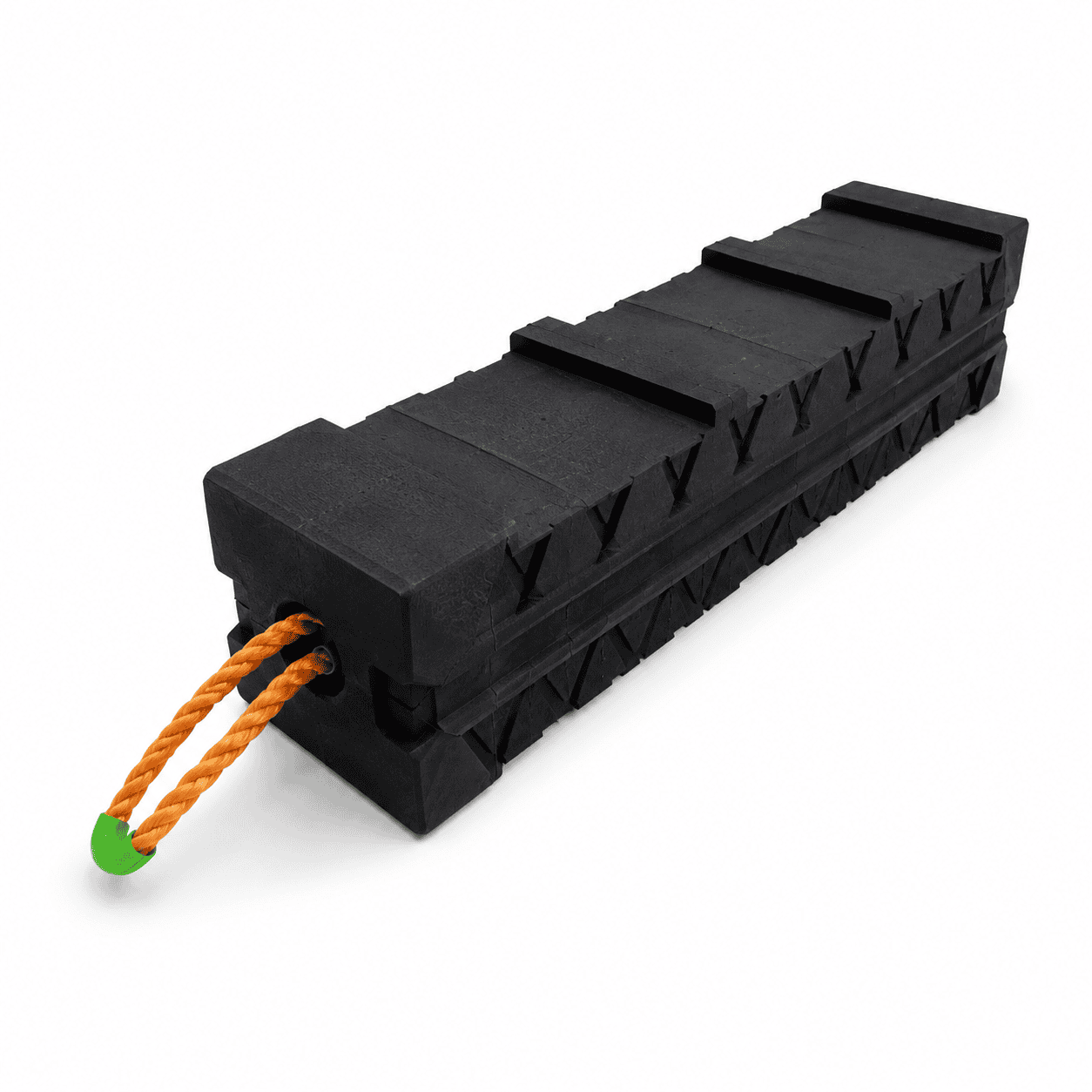

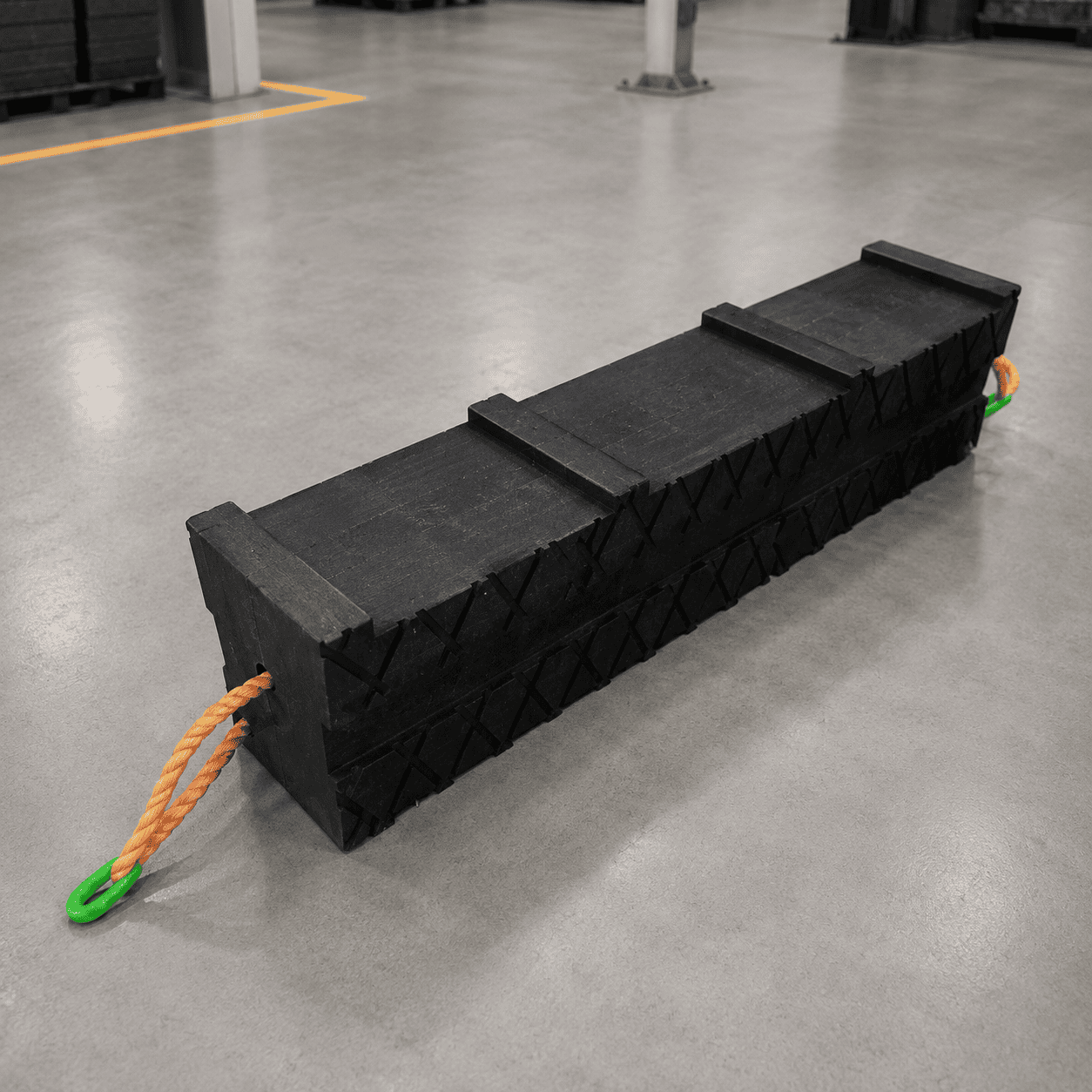

The product shown features a long black rectangular body with several raised transverse support sections across the upper surface. These structural features create defined positioning zones and allow compatible blocks to be arranged in organized support configurations.
The product also includes flexible rope-style handles that provide practical gripping points during transportation, equipment setup, repositioning, recovery, and storage.
Unlike a standard outrigger pad, which is primarily used to increase the effective contact area between an equipment stabilizer and the supporting ground, cribbing blocks are mainly used to provide additional vertical support height. Both types of support products may be used within the same complete equipment setup when the arrangement is appropriate.
A practical reference size for the product shown is approximately 600 × 180 × 150 mm. This long rectangular format provides a useful balance between support height, working surface area, storage, transportation, and repeated equipment handling.
| Specification | Typical Reference |
|---|---|
| Product type | Interlocking equipment stabilization block |
| Main reference size | Approximately 600 × 180 × 150 mm |
| Typical block height | Approximately 150 mm |
| Primary material | UHMWPE |
| Reference color | Black |
| Upper structure | Raised transverse positioning sections |
| Side structure | Textured industrial support surface |
| Handling feature | Flexible rope carrying handles |
| Main function | Equipment stabilization and additional support height |
Actual dimensions can vary according to the equipment support arrangement, required height, operating space, stabilizer dimensions, storage system, handling method, and project requirements.
Stabilization Cribbing Blocks can be supplied in several rectangular formats for different machinery and equipment support applications.
Typical reference sizes may include:
| Reference Size | Estimated Reference Weight | Typical Application |
|---|---|---|
| 500 × 150 × 150 mm | Approximately 9.5–10.5 kg | Compact stabilization and limited storage space |
| 600 × 150 × 150 mm | Approximately 11.5–12.5 kg | General equipment support applications |
| 600 × 180 × 150 mm | Approximately 13–15 kg | Long interlocking equipment support |
| 610 × 180 × 150 mm | Approximately 14–15.5 kg | Heavy machinery and outrigger support |
| 650 × 180 × 150 mm | Approximately 15–16.5 kg | Larger industrial stabilization arrangements |
The weights above are practical reference estimates. Final weight can vary according to exact material density, interlocking structures, recessed areas, handle openings, surface patterns, edge machining, and dimensional tolerances.
A longer or heavier block should not automatically be selected for every application. The correct block should match the required support height, equipment geometry, available working area, support surface, transportation method, and complete operating arrangement.
| Specification | Typical Reference |
|---|---|
| Product type | Equipment stabilization cribbing block |
| Primary material | UHMWPE |
| Structure | Long rectangular support block |
| Reference color | Black |

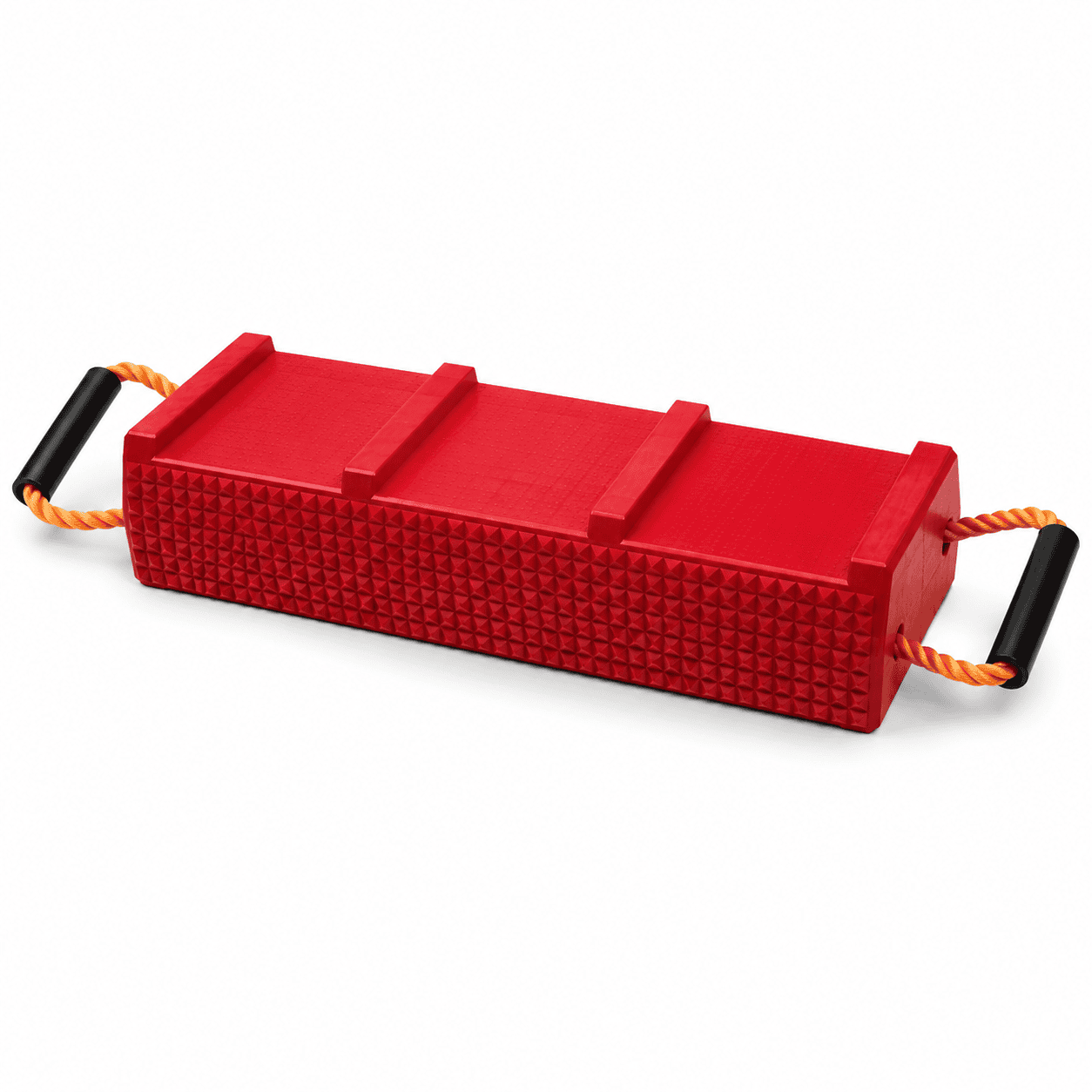

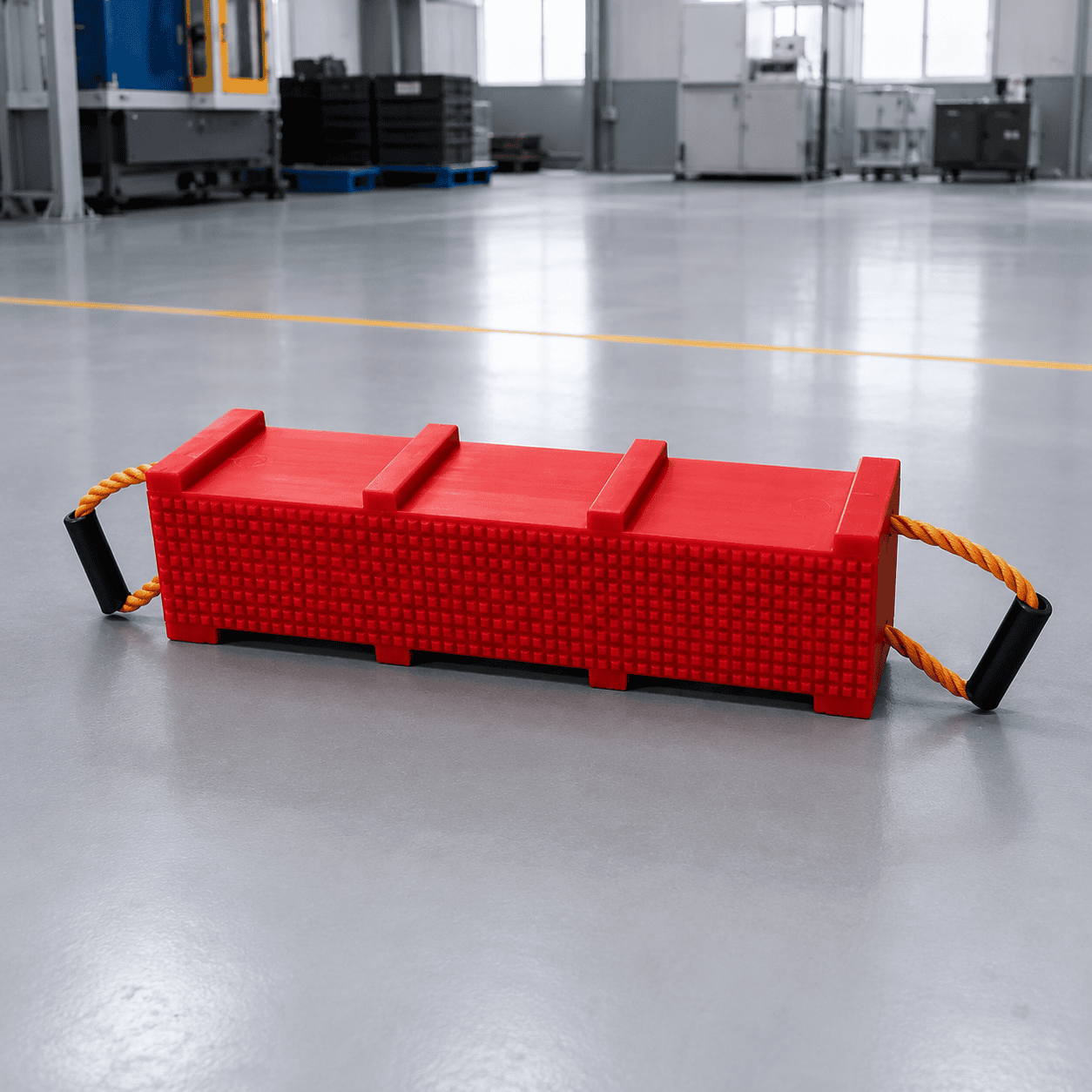

| Other practical colors | Red, yellow and application-specific colors |
| Typical support height | Approximately 150 mm per block layer |
| Surface structure | Textured and raised positioning features |
| Handling feature | Integrated flexible rope handles |
| Installation | Individual use or compatible multi-layer arrangement |
| Main applications | Heavy equipment, outriggers and machinery stabilization |
Final dimensions, material structure, surface pattern, positioning features, number of layers, and complete support arrangement should always be selected according to the actual equipment and operating conditions.
One of the most important features of Stabilization Cribbing Blocks is the shaped upper support structure.
Instead of using a completely flat featureless surface, the block shown includes several raised transverse sections. These features create defined positioning areas for compatible support components.
The structural design can help:
Interlocking or positioning structures do not replace correct equipment setup. The supporting surface, block condition, equipment reaction, total height, working-surface contact, and complete geometry must still be considered.
The upper surface includes several raised sections positioned across the width of the block.
These structural features can provide:
The exact interaction between adjoining blocks depends on the final product design.
Before loading, compatible support surfaces should be correctly positioned and checked for appropriate contact.
The long rectangular structure provides a practical geometry for equipment stabilization and support.
Compared with a small square block, the longer format can provide:
The block can also be oriented according to the available space and selected support arrangement.
The correct orientation should be determined before equipment loading.
The primary purpose of Stabilization Cribbing Blocks is to create an additional support position beneath equipment or machinery.
Typical uses include:
The block should not simply be placed beneath equipment without considering the complete support condition.
The arrangement should include evaluation of the applied force, contact area, support position, underlying surface, product condition, and surrounding operating environment.
A typical block height of approximately 150 mm provides a practical method of adding vertical support height.
Additional height may be required because of:
Adding support height changes more than the vertical dimension.
A higher arrangement also changes:
Additional blocks should not be added simply because more height is required. The complete arrangement should remain appropriate for the equipment and operating conditions.

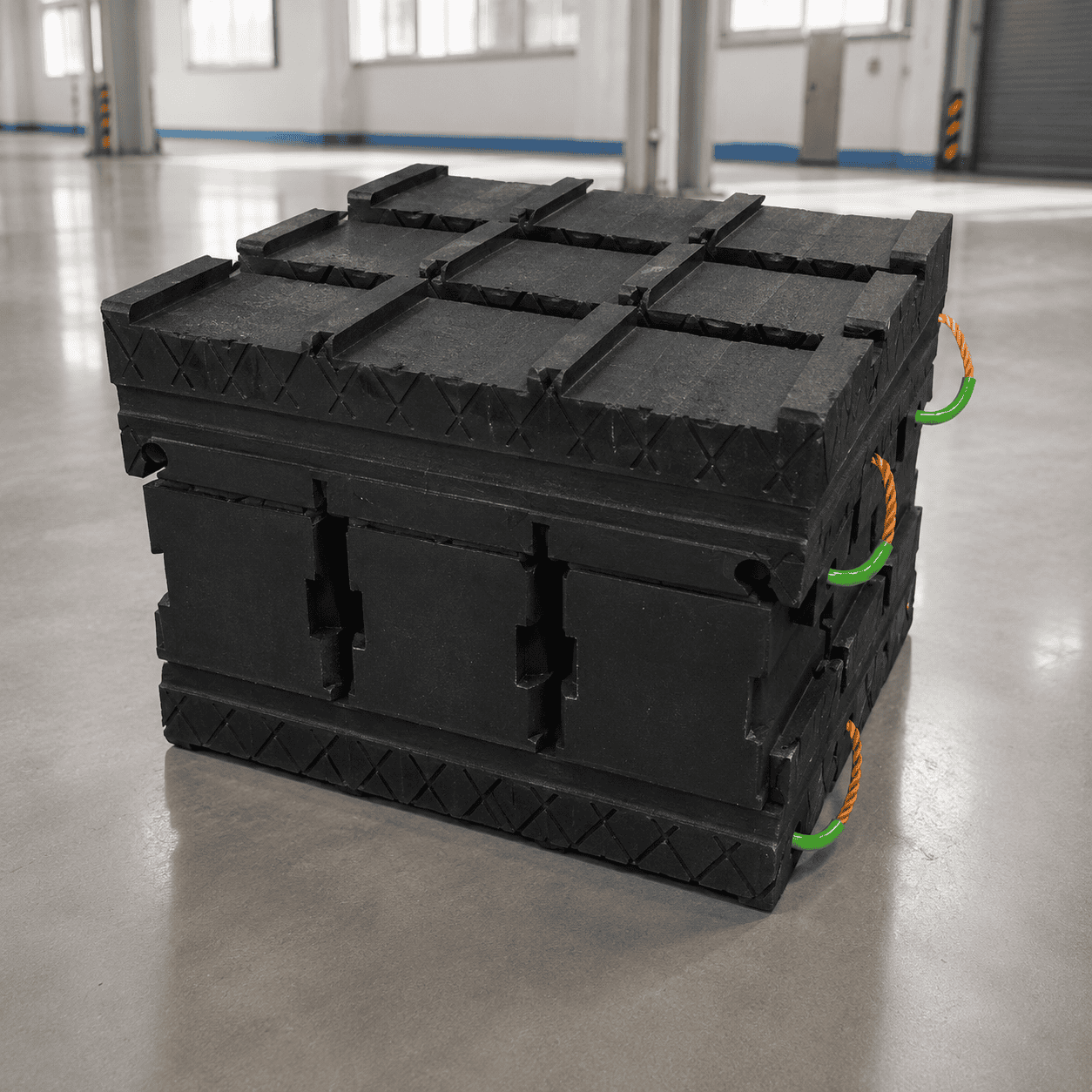

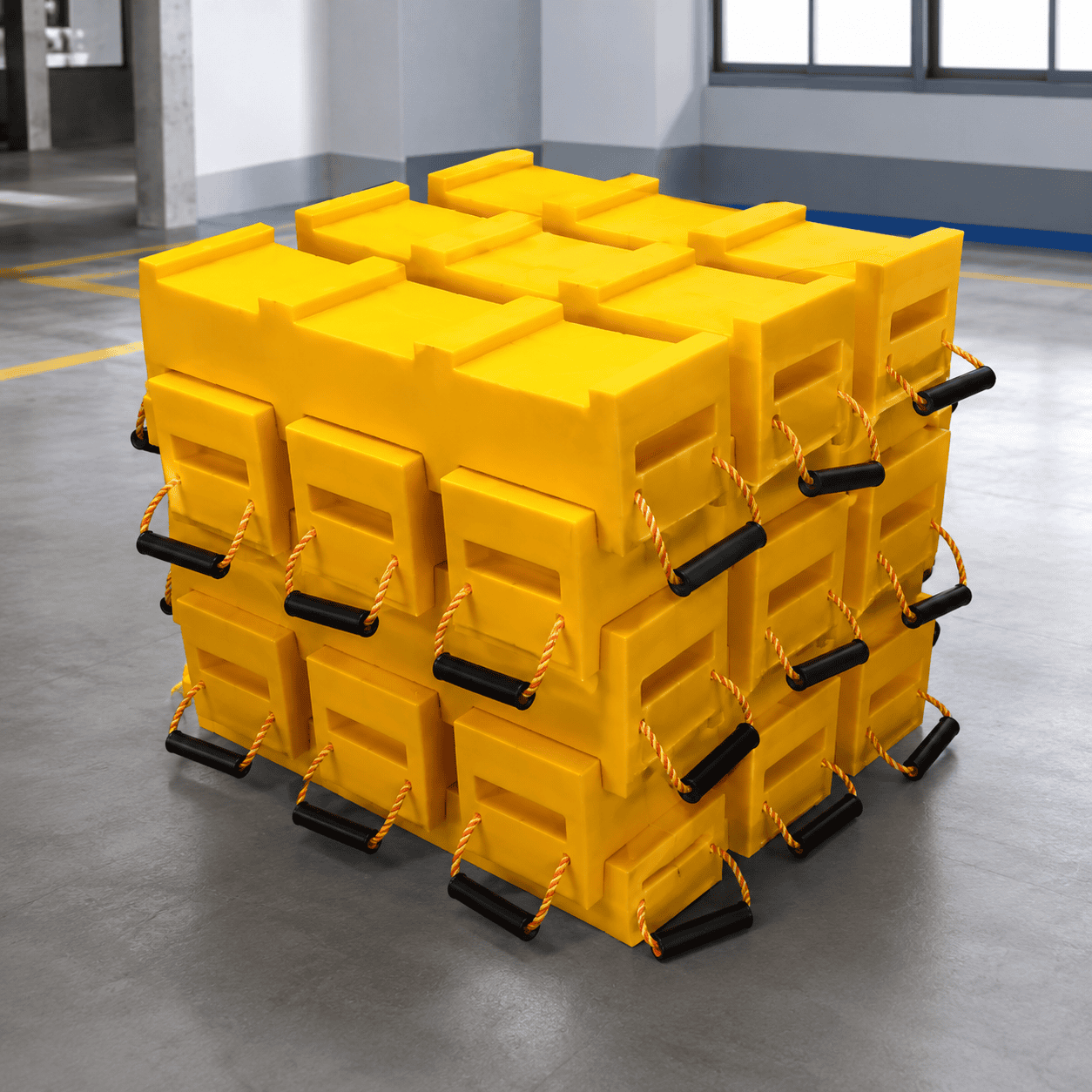

Compatible cribbing blocks may be arranged in multiple layers when the selected support system is designed for this type of use.
A multi-layer arrangement can provide:
Layer orientation should follow the intended product arrangement.
Where compatible systems use cross-stacking, one layer may be positioned in one direction while the following layer is placed across it.
For further information about engineered interlocking support arrangements, see this external resource on interlocking plastic cribbing systems.
Appropriate contact between the primary support surfaces is important when using Stabilization Cribbing Blocks.
Before equipment loading, check that:
Large stones, metal parts, timber fragments, or other hard objects between support surfaces can create concentrated contact areas.
These objects should be removed before the equipment load is applied.
The product shown also uses textured surface features rather than a completely polished plastic finish.
This creates a clearly defined industrial working surface.
The textured structure can be useful for:
The surface structure does not replace appropriate product selection, stable support, correct positioning, or inspection.
The primary material used for Stabilization Cribbing Blocks is ultra-high-molecular-weight polyethylene.
UHMWPE provides a practical combination of:
These material characteristics make the product suitable for support components that are repeatedly transported, positioned, removed, cleaned, inspected, and stored.
Unlike steel support products, UHMWPE does not rust.
Compared with conventional timber cribbing, manufactured plastic blocks do not depend on natural wood grain, knots, or changing moisture conditions.
Timber has traditionally been used for temporary equipment blocking because it is widely available and can be cut into different sections.
However, natural timber properties can vary according to:
Manufactured plastic cribbing provides another option where consistent dimensions, reusable construction, low water absorption, easier cleaning, and organized support arrangements are important.
Typical practical characteristics include:
The correct support material should still be selected according to the actual equipment and operating conditions.
The product shown includes flexible rope-style carrying handles.
These provide defined gripping positions when the block needs to be:
Before lifting, inspect:
The handle should be treated as a carrying feature and not as an equipment load-supporting component.
Stabilization Cribbing Blocks can be used in selected vehicle support and stabilization applications where a reusable block is required.
Possible uses include:
The exact setup should always be selected according to the vehicle, applied forces, support locations, ground conditions, and operating procedures.
A block should not be positioned beneath unstable equipment without an appropriate stabilization plan.
The blocks can also be used in selected industrial machinery support applications.
Typical uses may include:
The load should be positioned over the intended working area of the support component.
The complete arrangement should remain stable and appropriately supported.
Crane outriggers and other stabilizer-equipped machinery may require additional support height because of equipment geometry or differences in surface elevation.
Important considerations include:
A cribbing block and an outrigger pad perform different primary functions.
The pad mainly increases the ground-contact area, while the cribbing block mainly increases support height.
A complete support arrangement may include:
The exact combination depends on the selected equipment support system.
You can also view our complete range of crane outrigger pads for mobile cranes, concrete pumps, boom trucks, stabilizer systems, cribbing support, and related heavy machinery applications.
Additional equipment support height may be required where the surrounding surface is not at the same elevation as the intended equipment support point.
Before setup, inspect for:
A cribbing block cannot make an unsuitable supporting surface automatically safe.
Very weak or severely uneven surfaces may require additional preparation, a larger base support system, or another support solution.
The suitability of Stabilization Cribbing Blocks cannot be determined from one universal equipment tonnage number.
Important factors include:
A block with full support beneath its main working surface can behave differently from the same block positioned across a void or unstable edge.
A major advantage of Stabilization Cribbing Blocks is their reusable construction.
After equipment operation is completed, the blocks can be:
The consistent rectangular shape makes complete equipment support sets easier to organize during transportation and storage.
Reusable equipment support products should be inspected before demanding applications.
Check:
A damaged block should be evaluated before being returned to heavy equipment support service.
The complete support arrangement should also be inspected whenever the equipment is repositioned.
Mud, sand, gravel, oil, and other debris can remain on cribbing products after outdoor operations.
Cleaning can help:
Large debris between support surfaces should be removed before equipment loading.
The long rectangular structure makes the blocks suitable for organized vehicle and equipment storage.
During storage:
Handling procedures should always match the actual dimensions and weight of the finished product.
Stabilization Cribbing Blocks provide a practical support solution where heavy machinery, vehicles, crane outriggers, industrial equipment, and other supported loads require additional height or temporary stabilization. Their durable UHMWPE construction, long rectangular geometry, raised positioning features, textured working surfaces, integrated handles, and reusable design make them suitable for repeated equipment support applications.
A practical reference size for the product shown is approximately 600 × 180 × 150 mm. Other useful options can include approximately 500 × 150 × 150 mm, 600 × 150 × 150 mm, 610 × 180 × 150 mm, and 650 × 180 × 150 mm.
Final dimensions, material grade, interlocking structure, support height, number of components, working-surface contact, handle arrangement, and installation method should always be selected according to the actual equipment, applied forces, supporting surface, and operating requirements.
