UHMWPE Stabilizer Foot Pads are reusable heavy-equipment support panels featuring solid square or rectangular structures, circular recessed working areas, concentric surface grooves and reinforced carrying handles. Practical reference sizes include 500 × 500 × 40–50 mm, 600 × 600 × 50–60 mm, 600 × 800 × 50–80 mm and 800 × 800 × 60–80 mm for mobile cranes, concrete pumps, boom trucks and other stabilizer-equipped machinery.
UHMWPE Stabilizer Foot Pads are solid engineering-plastic support panels designed for mobile crane outriggers, concrete pump stabilizers, boom truck support legs, truck-mounted cranes, aerial work platforms and other machinery equipped with hydraulic support feet.

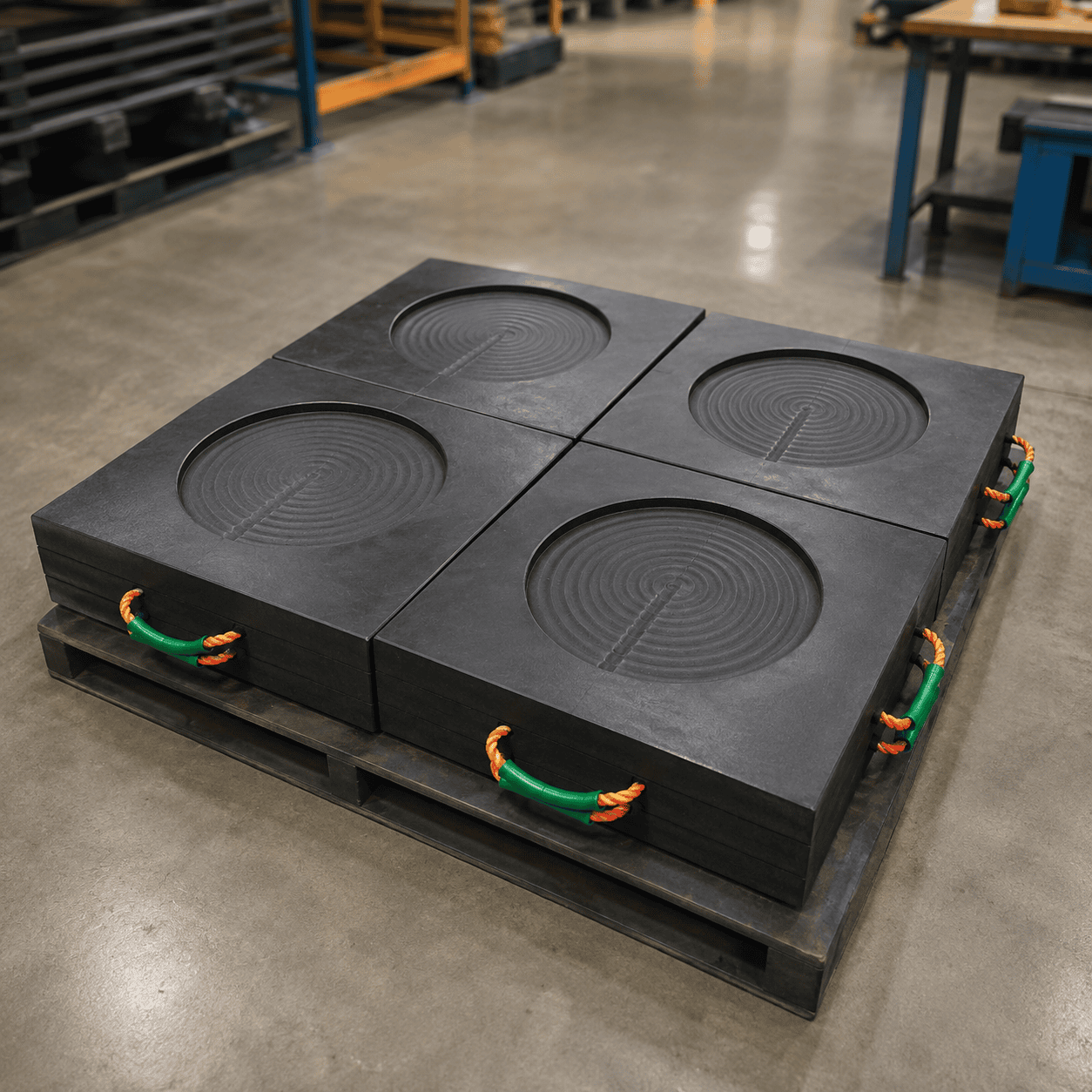

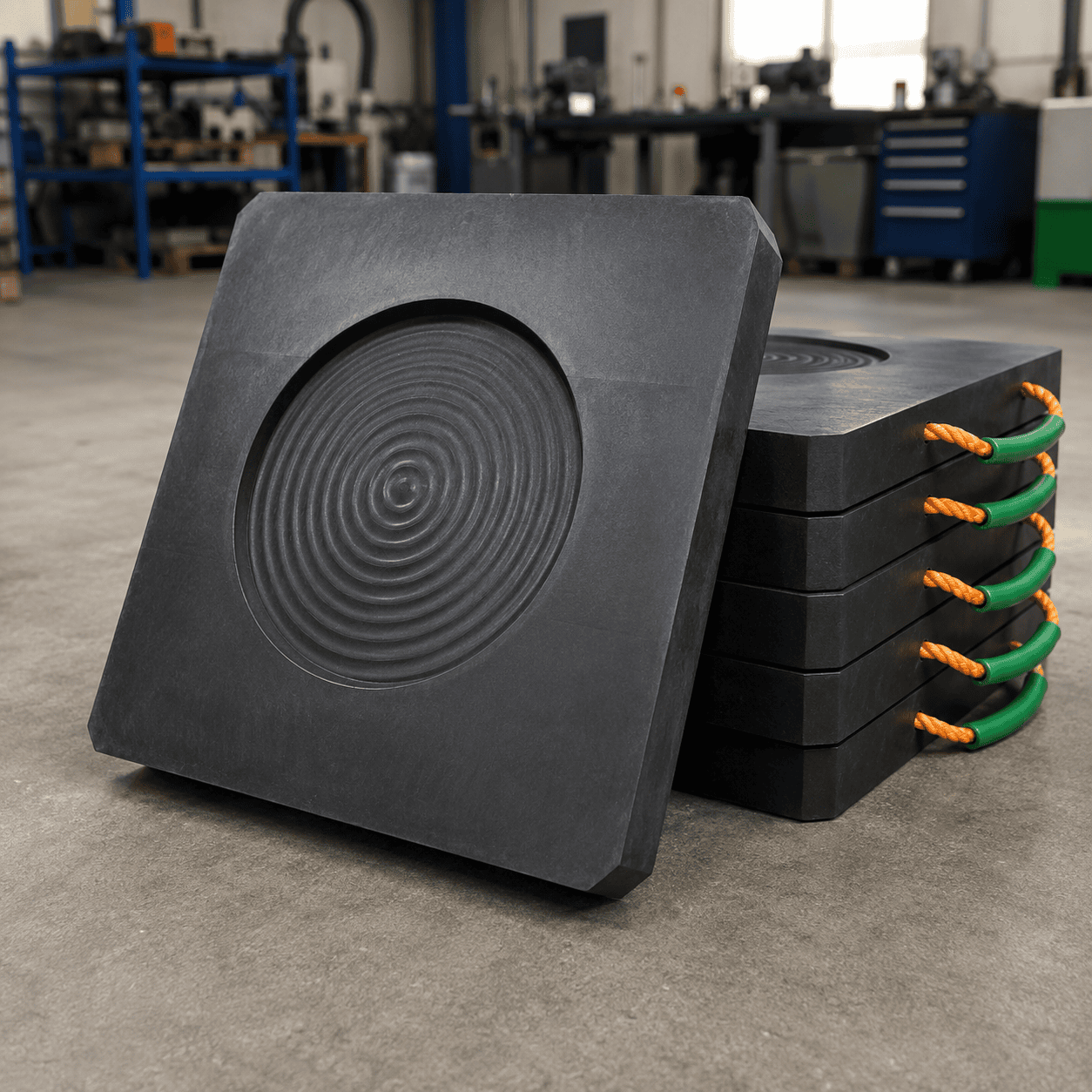

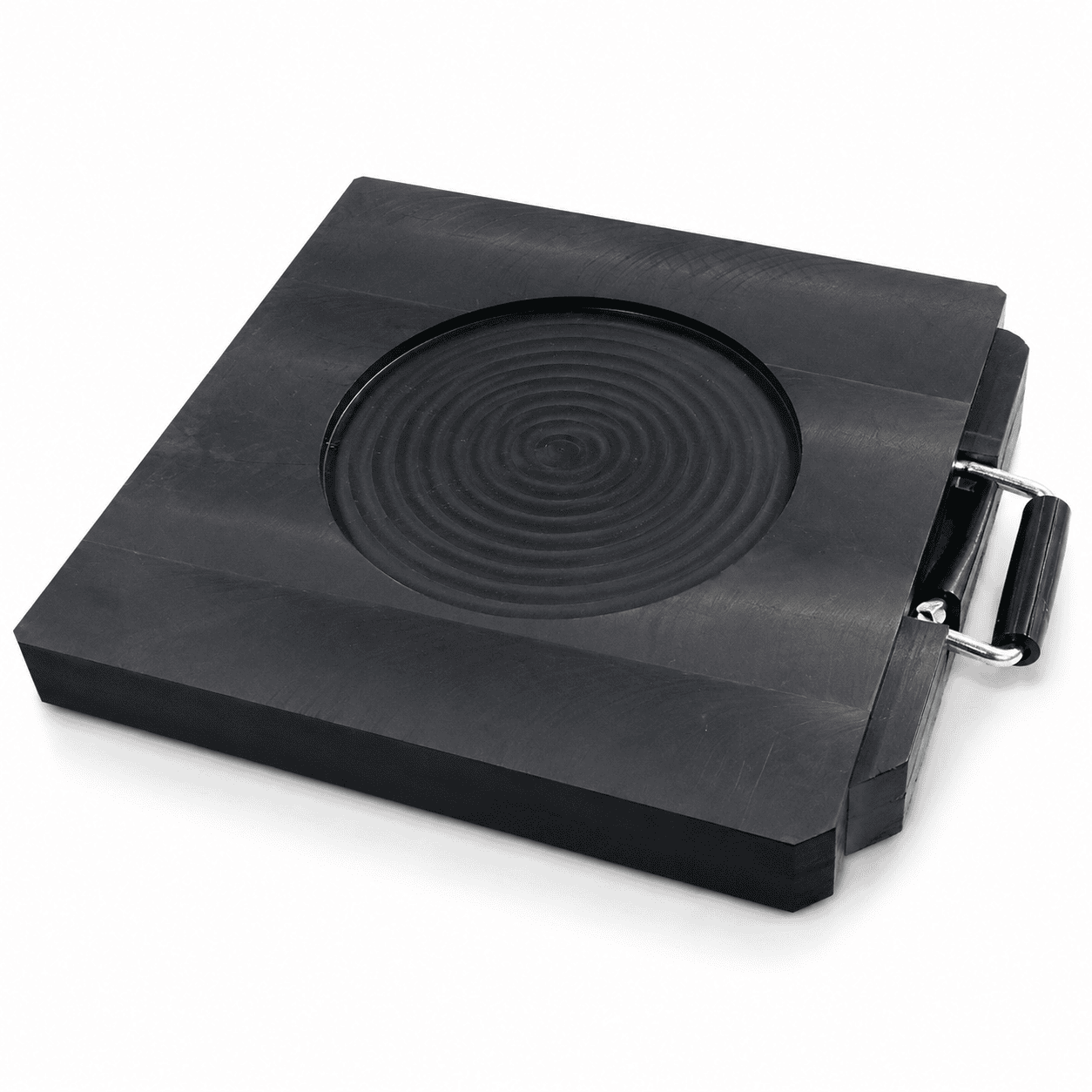

The product shown features a thick solid-panel structure, circular recessed working areas, concentric surface grooves and reinforced carrying handles positioned along the outside edges. Matching support pads can be stacked together for organized transportation, vehicle storage, warehouse management and repeated equipment setup.
The circular recessed area provides a clearly identifiable working zone for compatible round, square or near-round stabilizer feet. Compared with a completely flat plastic support panel, the recessed surface makes the intended equipment-contact area easier to locate during positioning.
Unlike temporary roadway mats that are installed continuously to form a vehicle-access route, stabilizer foot pads are positioned directly beneath individual hydraulic support feet. Their main function is to increase the geometric contact area between the original equipment foot and the supporting surface.
The source product information lists approximately 600 × 600 mm and 600 × 800 mm sizes. Based on the visible product structure, the following specifications are practical reference options for this type of solid UHMWPE stabilizer support pad.
| Reference Pad Size | Reference Thickness | Reference Circular Area | Typical Application |
|---|---|---|---|
| 400 × 400 mm | 40 mm | Ø180–220 mm | Compact stabilizers and smaller service vehicles |
| 500 × 500 mm | 40–50 mm | Ø220–280 mm | Utility vehicles and compact lifting equipment |
| 600 × 600 mm | 50–60 mm | Ø250–350 mm | Mobile cranes, boom trucks and pump equipment |
| 600 × 800 mm | 50–80 mm | Ø280–380 mm | Rectangular support requirements and larger stabilizer feet |
| 700 × 700 mm | 60–80 mm | Ø300–400 mm | Medium crane and heavy-equipment support |
| 800 × 800 mm | 60–80 mm | Ø350–450 mm | Concrete pumps and medium heavy machinery |
| 1000 × 1000 mm | 80–100 mm | Ø400–550 mm | Large mobile cranes and heavy stabilizer systems |
| 1200 × 1200 mm | 80–120 mm | Ø500–650 mm | Large-format heavy-equipment support |
The approximately 400 × 400 × 40 mm and 500 × 500 × 40–50 mm formats provide relatively compact options where equipment-storage space and repeated manual positioning are important.
The approximately 600 × 600 × 50–60 mm format provides a practical balance between support area, panel thickness, finished product weight and vehicle-storage requirements.
The approximately 600 × 800 × 50–80 mm rectangular format provides a larger working surface in one direction and may be used where the stabilizer-foot structure or storage arrangement requires a rectangular panel.
Larger products such as approximately 800 × 800 × 60–80 mm, 1000 × 1000 × 80–100 mm and 1200 × 1200 × 80–120 mm require additional consideration for transportation, finished product weight and handling methods.
Special thicknesses above 120 mm may be produced for specific applications, but they should not be listed as general safe-working specifications without confirming the maximum individual stabilizer reaction, product dimensions, UHMWPE grade and supporting conditions.
The dimensions above are reference product options rather than universal load-capacity ratings. Final dimensions and thickness should be selected according to the actual stabilizer reaction, original equipment-foot dimensions, required effective support area, panel stiffness and supporting surface condition.
| Specification | Typical Reference |
|---|---|
| Product type | Heavy-duty stabilizer foot and crane outrigger support pad |
| Primary material | UHMWPE |
| Main shapes | Square and rectangular |
| Alternative shapes | Round and clipped-corner formats |
| Working surface | Circular recessed area with concentric grooves |
| Common reference sizes | 600 × 600 mm and 600 × 800 mm |
| Practical thickness range | Approximately 40–100 mm for common applications |
| Special thickness range | Subject to equipment reaction and structural review |
| Reference circular diameter | Approximately Ø180–650 mm |
| Reference recess depth | Approximately 3–12 mm |
| Handling structure | Reinforced rope or metal carrying handles |
| Storage method | Stackable matching support-pad sets |
| Main applications | Mobile cranes, concrete pumps, boom trucks and heavy machinery |
Final pad dimensions, thickness, recess diameter, recess depth, outside shape and handle configuration should always be matched to the actual equipment and operating conditions.
The defining feature of UHMWPE Stabilizer Foot Pads is the circular recessed working area formed in the upper surface.
This structure provides:
The recessed area should not be described as a universal mechanical locking system. The equipment foot must still be positioned correctly, and the complete support panel must remain properly supported by the surface underneath it.
The stabilizer foot should not rest only on the outer edge of the circular recess. Its primary contact surface should remain inside the intended working zone.
The circular working area shown in the product image contains several concentric surface grooves.
These grooves provide:
Mud, oil, sand, stones, metal fragments and other hard debris should be removed from the grooved working area before the equipment load is applied.
The concentric grooves do not replace correct pad sizing, sufficient panel thickness, suitable supporting conditions or correct equipment-foot positioning.
The outside diameter of the circular area should be selected according to the actual dimensions and shape of the original stabilizer foot.
Important measurements include:
For example, a stabilizer foot measuring approximately Ø280 mm may use a circular working area of approximately Ø300–350 mm, subject to the actual equipment dimensions and approved product drawing.
A circular area that is too small may interfere with positioning, while an unnecessarily large recess can reduce the solid material remaining around the equipment-contact area.
The circular section can be produced as a shallow textured recess or as a more pronounced positioning structure.
Recess depth can affect:
A practical shallow recess may be approximately 3–12 mm deep, depending on the total panel thickness, stabilizer-foot structure and product design.
The deepest available recess is not automatically the best option. The structure should retain sufficient solid UHMWPE beneath and around the main equipment-contact area.
UHMWPE stands for ultra-high-molecular-weight polyethylene. It is a thermoplastic polyethylene containing extremely long molecular chains and is associated with high toughness, strong impact resistance, extremely low moisture absorption, low friction and good abrasion resistance.
For a general material explanation, see the Wikipedia article about ultra-high-molecular-weight polyethylene.
Practical UHMWPE characteristics for stabilizer support products include:
UHMWPE can be considered for support pads that require repeated transportation, positioning, outdoor use and contact with wet or abrasive surfaces.
Chemical resistance should not be interpreted as universal resistance to every substance. Actual compatibility depends on the chemical, concentration, exposure temperature, contact time and selected UHMWPE grade.
The reference product includes several reinforced carrying handles positioned around the outside edges.
The handles provide defined gripping points when the support pads need to be:
Before moving a support pad, inspect:
The carrying handles are intended for transportation and positioning. They should not be treated as structural components carrying the crane or stabilizer reaction.
Large solid panels may require coordinated team handling or suitable mechanical equipment even when several carrying handles are installed.

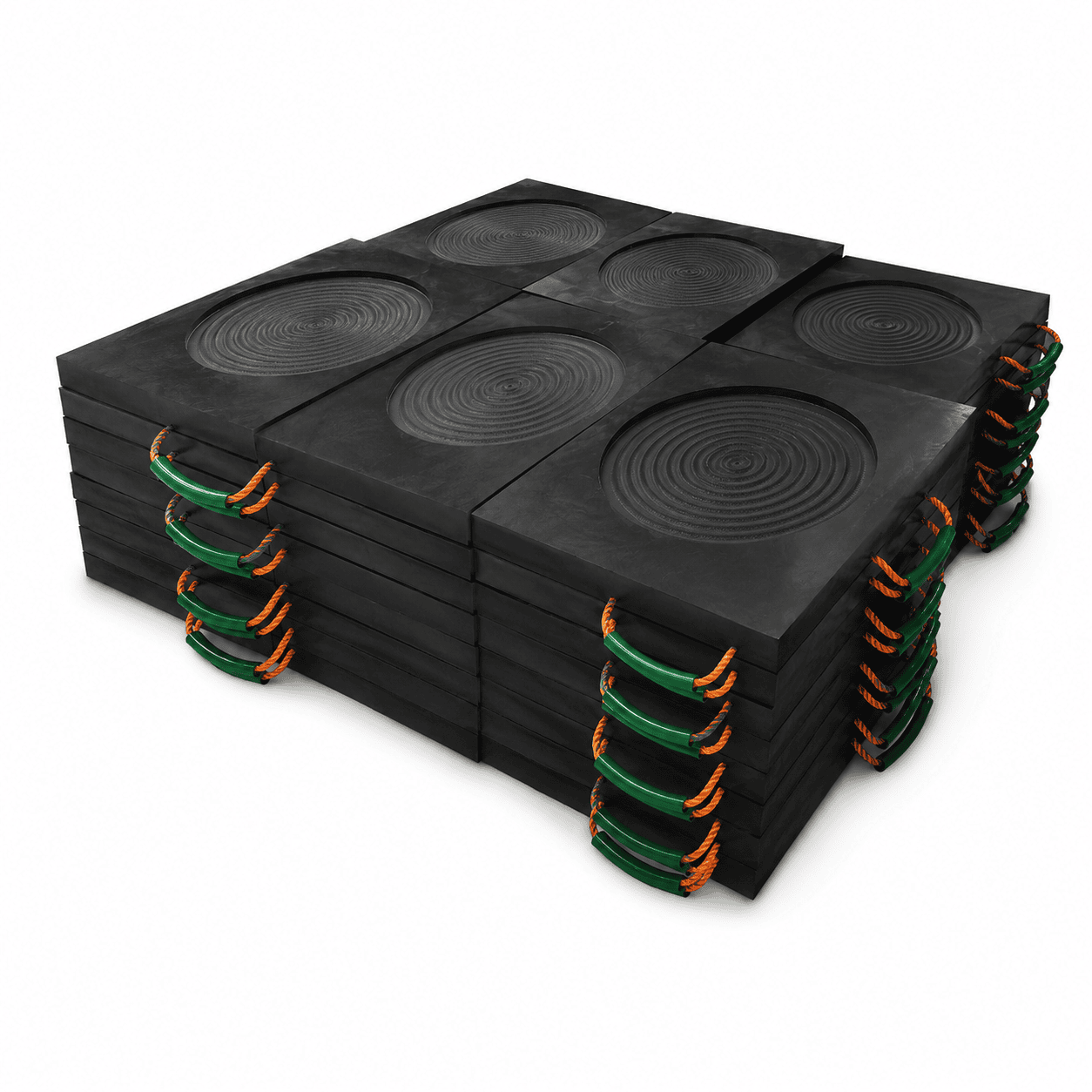

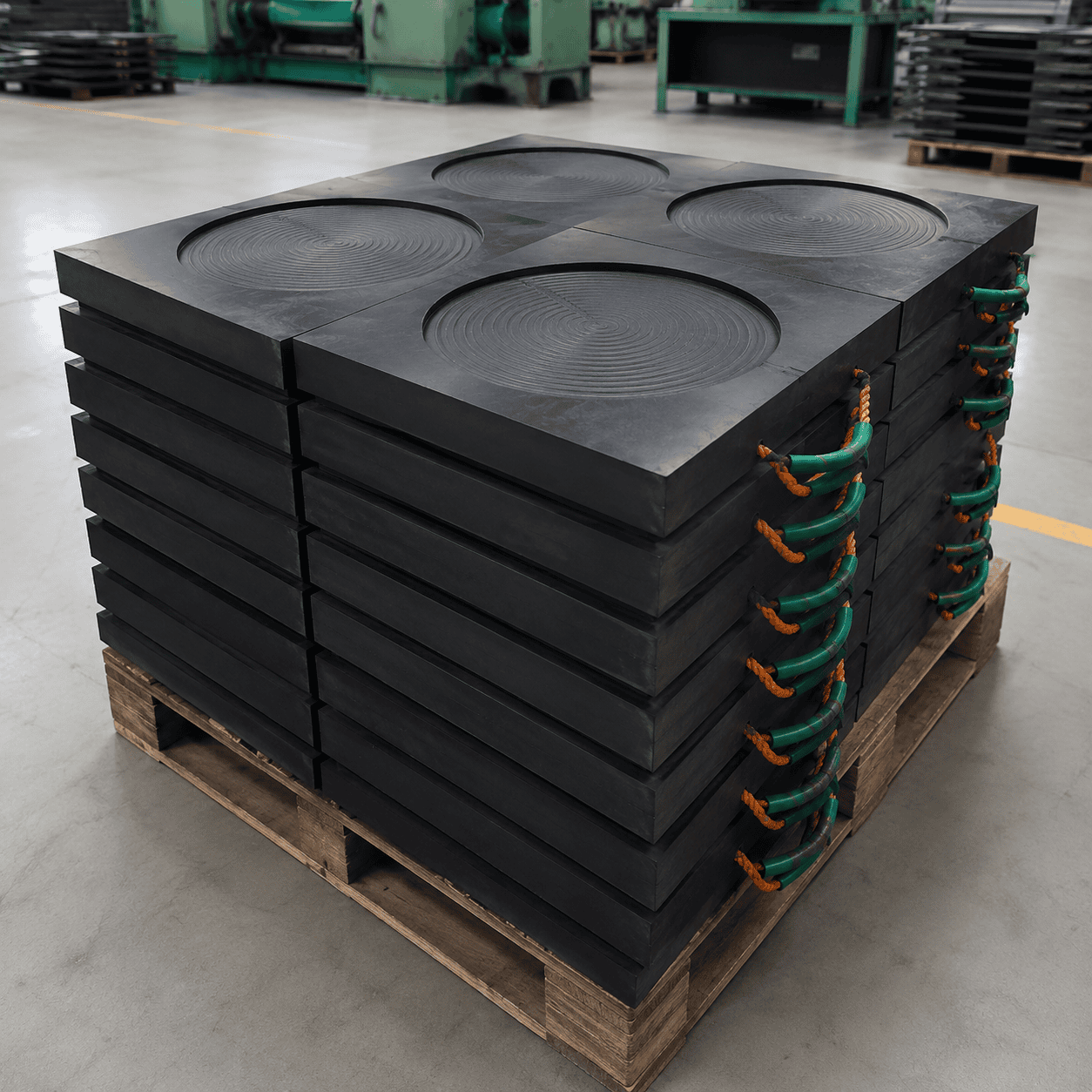

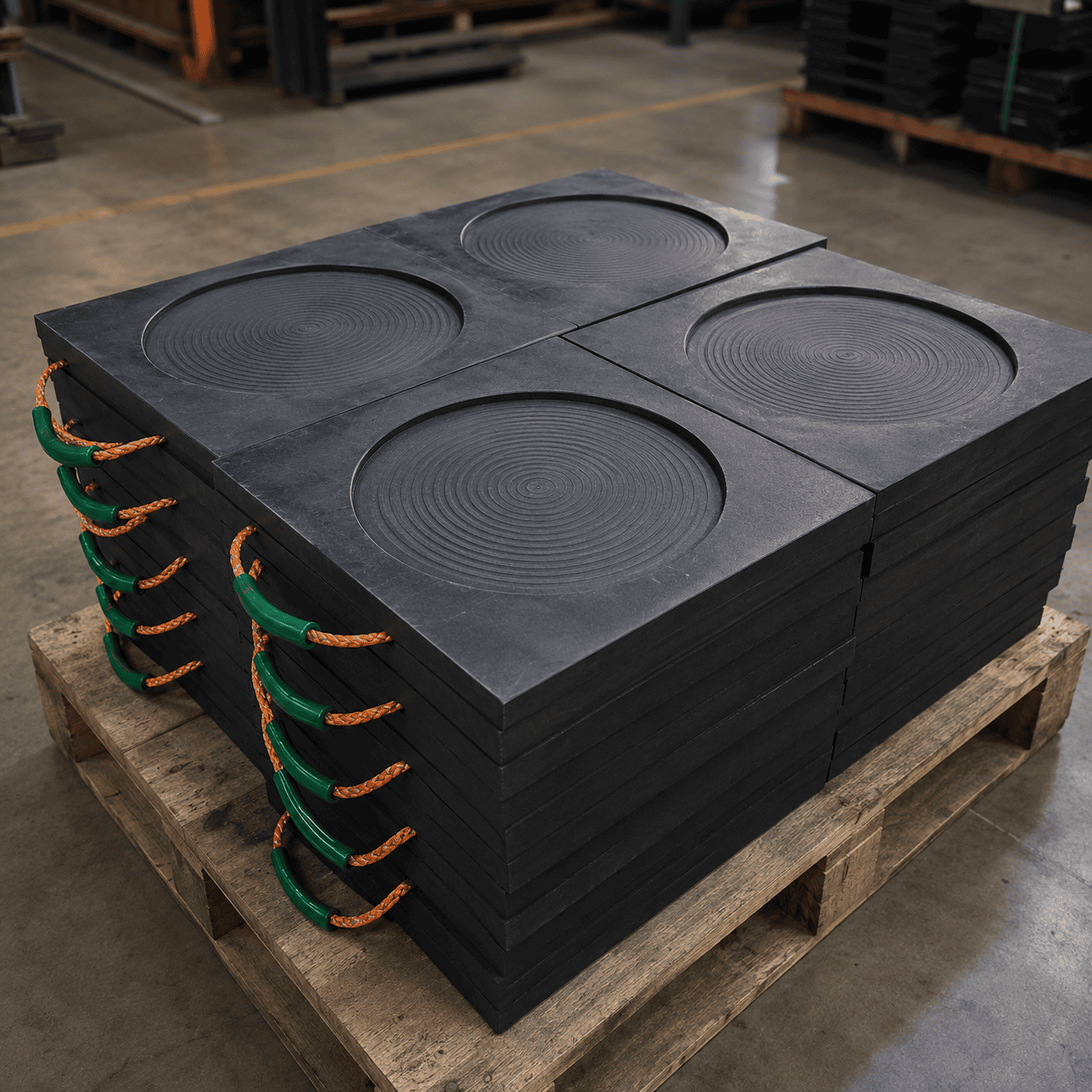

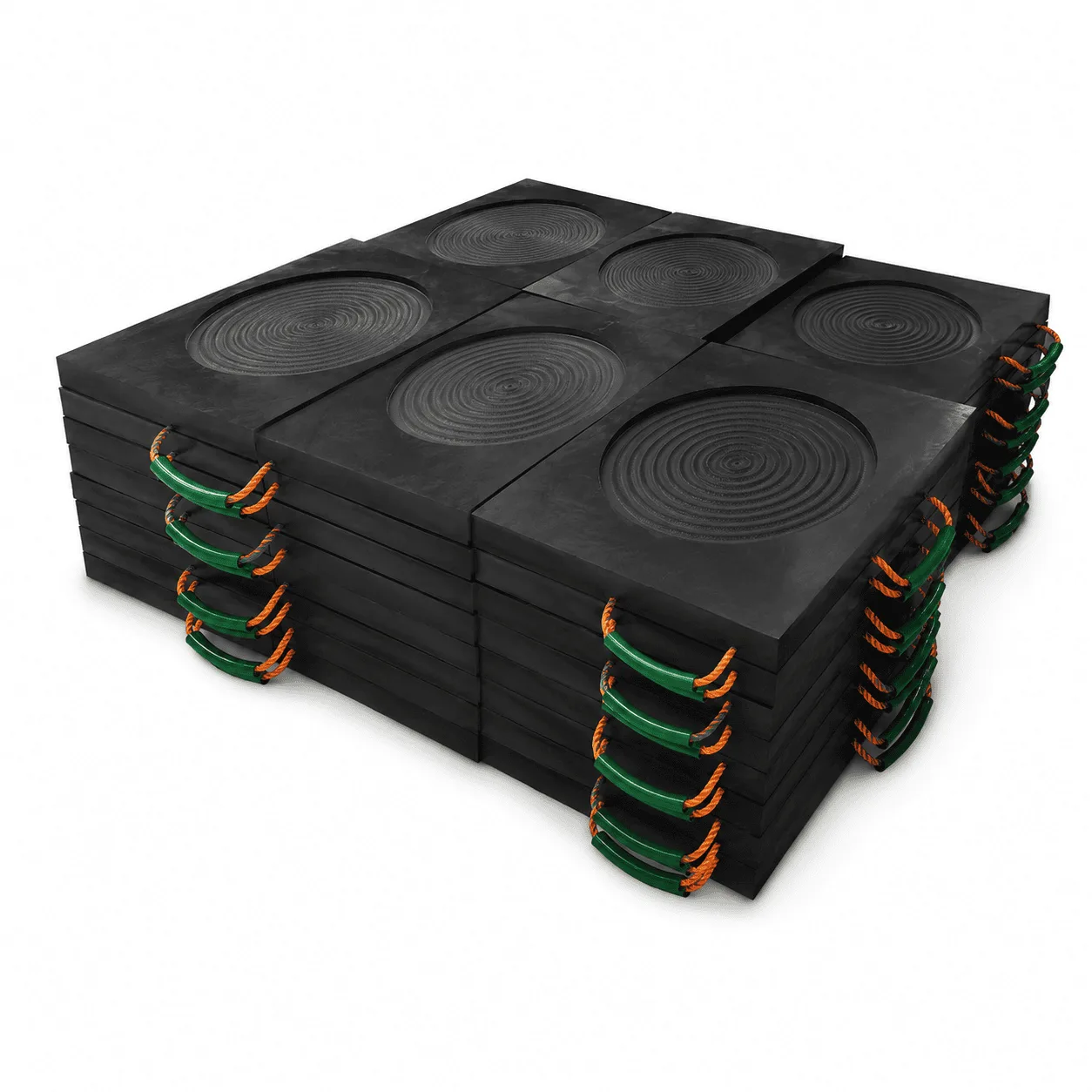

The reference image shows several matching support pads stacked together as a complete equipment-support set.
A stackable design can help with:
Multiple flat support pads should not automatically be stacked beneath an operating stabilizer unless the complete support arrangement has been properly evaluated.
The storage surface should be reasonably level and capable of supporting the combined weight of the complete stack.
A hydraulic stabilizer transfers a concentrated reaction through a relatively small original equipment foot.
UHMWPE Stabilizer Foot Pads create a larger geometric contact area beneath that foot while providing a clearly defined central positioning surface.
The performance of the complete support arrangement depends on:
A larger outside dimension provides a larger geometric footprint, but outside dimensions alone should not be treated as a universal safe-working-load rating.
The correct support pad should not be selected only according to total vehicle weight or maximum crane lifting capacity.
Individual stabilizer reactions can change according to:
Important product-selection factors include:
Each stabilizer position should be evaluated independently because reactions and supporting conditions can differ around the same machine.
UHMWPE Stabilizer Foot Pads can be used with many types of stabilizer-equipped machinery.
The correct dimensions, thickness, circular working-area structure and handle arrangement should always be matched to the actual equipment-support point.
Correct positioning is essential when using a recessed stabilizer support pad.
Before applying equipment load, confirm that:
The circular grooved surface should remain free from excessive oil, mud, gravel and metal debris.
Reusable stabilizer pads should be inspected before every demanding equipment setup.
Check:
After operation, remove mud, sand, gravel, oil and other debris from the primary working surfaces.
During storage:
You can also view our complete range of crane outrigger pads for mobile cranes, concrete pumps, boom trucks, hydraulic stabilizer systems and other heavy machinery applications.
UHMWPE Stabilizer Foot Pads provide a practical support solution for mobile cranes, truck-mounted cranes, concrete pumps, boom trucks and other stabilizer-equipped machinery.
The product combines solid UHMWPE construction, circular recessed working areas, concentric surface grooves, reinforced handles and a stackable panel structure.
Typical reference specifications include approximately 400 × 400 × 40 mm, 500 × 500 × 40–50 mm, 600 × 600 × 50–60 mm, 600 × 800 × 50–80 mm, 800 × 800 × 60–80 mm and 1000 × 1000 × 80–100 mm.
Final dimensions, thickness, UHMWPE grade, circular working-area diameter, recess depth and handle configuration should always be selected according to the maximum individual stabilizer reaction, original equipment-foot dimensions, supporting surface condition and actual operating requirements.
