Multi Handle Outrigger Pads are reusable UHMWPE support panels featuring high-visibility yellow square structures and multiple reinforced carrying handles. Practical reference sizes include 500 × 500 × 40–50 mm, 600 × 600 × 40–60 mm, 800 × 800 × 50–80 mm and 1000 × 1000 × 60–100 mm for mobile cranes, concrete pumps, boom trucks and other stabilizer-equipped machinery.
Multi Handle Outrigger Pads are heavy-duty UHMWPE support panels designed for mobile crane outriggers, concrete pump stabilizers, boom truck support legs, truck-mounted cranes, aerial work platforms and other machinery that uses hydraulic stabilizers during operation.
The product shown features a solid yellow square structure, smooth industrial working surfaces and multiple reinforced carrying handles positioned around the panel edges. Matching pads can be stacked and transported as a complete equipment support set.
The multiple-handle structure provides several gripping positions for moving, positioning and recovering larger support pads. This is particularly useful when the finished panel is too wide or heavy to be conveniently handled from one side.
Unlike temporary roadway mats, which are installed continuously to create vehicle access routes, outrigger pads are positioned directly beneath individual stabilizer feet. Their purpose is to increase the effective support area between the original equipment foot and the underlying surface.
The exact dimensions of the yellow pads shown cannot be confirmed from the product photograph alone. The following dimensions are practical reference sizes for this type of solid UHMWPE crane and heavy-equipment support pad.
| Reference Size | Reference Thickness | Typical Application |
|---|---|---|
| 400 × 400 mm | 30–40 mm | Compact stabilizers and smaller service equipment |
| 500 × 500 mm | 40–50 mm | Portable crane and utility vehicle support |
| 600 × 600 mm | 40–60 mm | General mobile crane and boom truck applications |
| 700 × 700 mm | 50–60 mm | Medium stabilizer support requirements |
| 800 × 800 mm | 50–80 mm | Concrete pumps and medium heavy equipment |
| 900 × 900 mm | 60–80 mm | Larger cranes and pump truck stabilizers |
| 1000 × 1000 mm | 60–100 mm | Large mobile equipment support |
| 1200 × 1200 mm | 80–100 mm | Large-format heavy-equipment applications |
The approximately 400 × 400 × 30–40 mm and 500 × 500 × 40–50 mm formats provide relatively compact support options where vehicle storage space and repeated handling are important.
The approximately 600 × 600 × 40–60 mm format provides a practical balance between geometric support area, panel thickness, finished weight and portability.
Medium products such as approximately 700 × 700 × 50–60 mm and 800 × 800 × 50–80 mm provide broader support areas for mobile cranes, concrete pumps and boom trucks.
Larger formats such as approximately 900 × 900 × 60–80 mm, 1000 × 1000 × 60–100 mm and 1200 × 1200 × 80–100 mm require additional consideration for transportation, storage, finished product weight and handling methods.
The sizes above are reference product options rather than universal safe-working-load ratings. Final dimensions and thickness should be selected according to the maximum reaction at one stabilizer, original equipment-foot dimensions, required support area, UHMWPE stiffness and supporting surface condition.
| Specification | Typical Reference |
|---|---|
| Product type | Multi-handle crane and heavy-equipment outrigger support pad |
| Primary material | UHMWPE |
| Main shape | Square |
| Alternative shapes | Rectangular, round and clipped-corner formats |
| Reference color | Yellow |
| Other practical colors | Black, red, blue, green and equipment-identification colors |
| Working surface | Smooth or lightly textured industrial surface |
| Reference thickness range | Approximately 30–100 mm |
| Handling feature | Multiple reinforced carrying handles |
| Storage structure | Stackable matching support-pad sets |
| Main applications | Mobile cranes, concrete pumps, boom trucks and heavy equipment |
Final dimensions, thickness, UHMWPE grade, surface structure, corner design and handle arrangement should always be selected according to the actual equipment and operating requirements.
The defining feature of Multi Handle Outrigger Pads is the use of several carrying handles around the panel edges.
Multiple gripping positions can make it easier to:
Handle structures can include reinforced flexible cable handles, nylon rope handles, coated carrying loops or application-specific lifting points.
Before moving a support pad, inspect:
The handles are designed for moving and positioning the support panel. They should not be treated as structural components carrying the crane or stabilizer load.
The presence of multiple handles does not mean every pad can safely be lifted manually. Large-format pads may require coordinated team handling or appropriate mechanical handling equipment.
The reference product uses a high-visibility yellow UHMWPE structure.
A clearly visible color can help with:
Color should not be treated as an indication of load capacity. The safe product specification depends on the material grade, dimensions, thickness, equipment reaction and complete support condition.
The product shown uses a solid square UHMWPE structure.
A square support panel provides:
The equipment foot should remain within the intended central working area of the pad. A stabilizer foot positioned close to an unsupported edge creates a different loading condition from one positioned within the main support area.

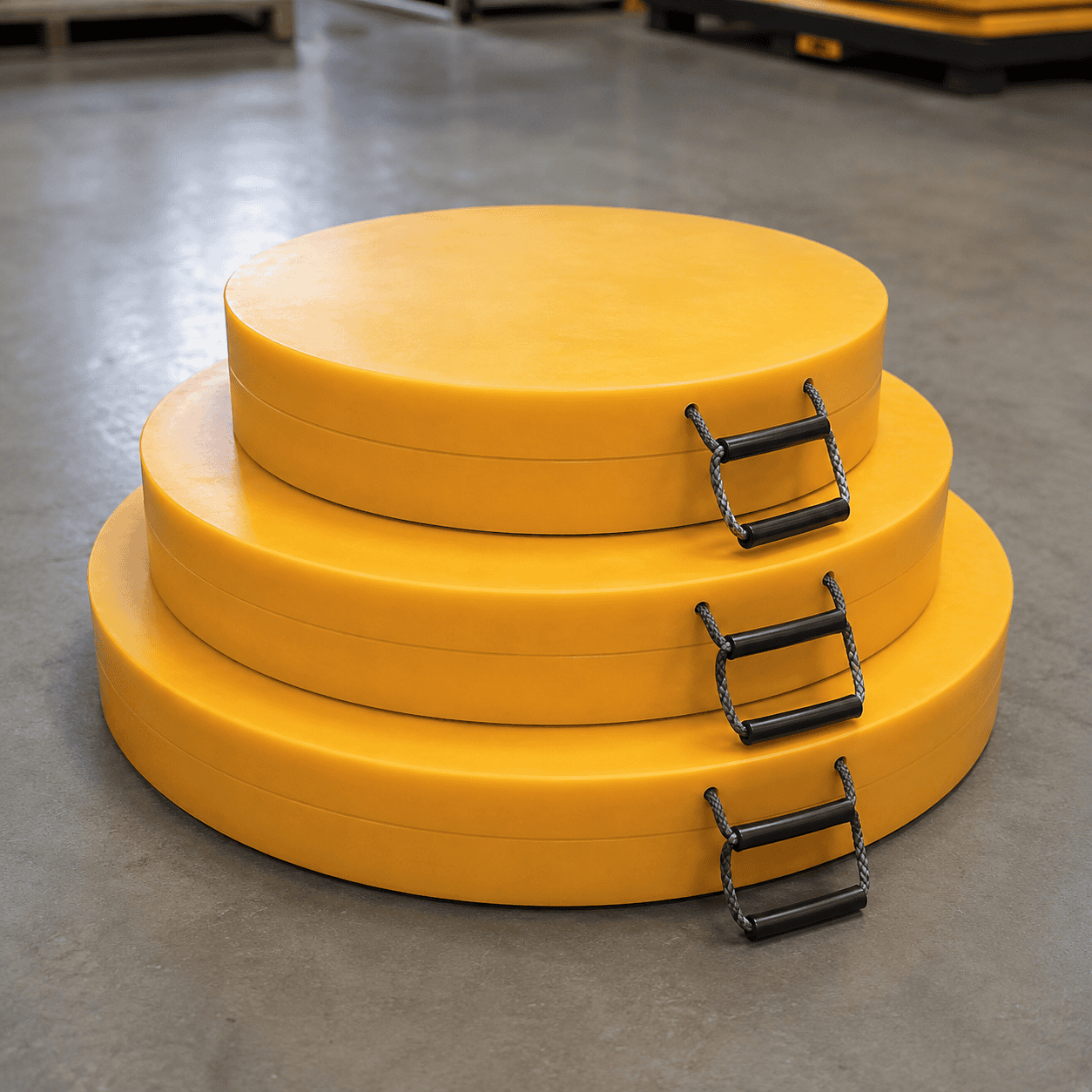

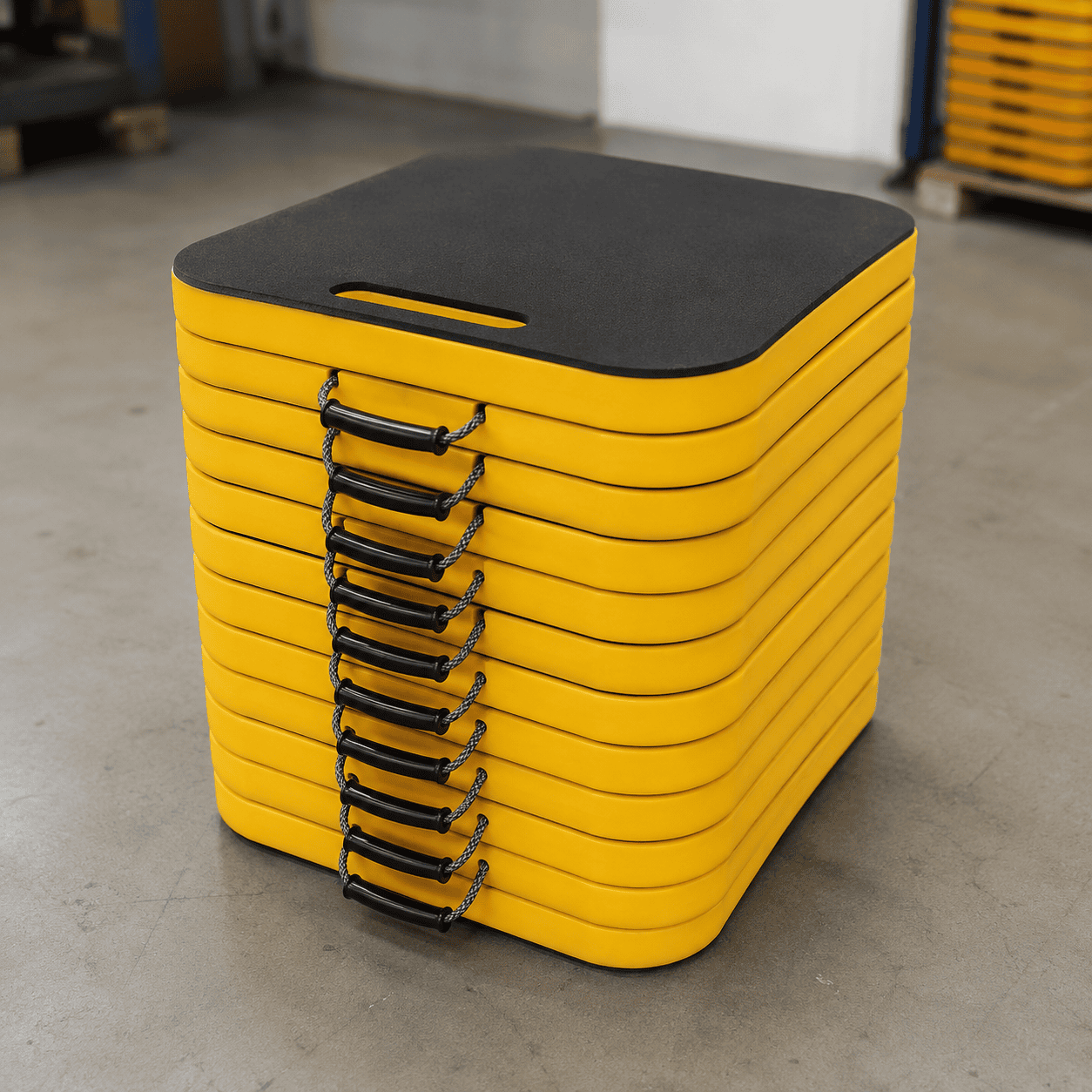

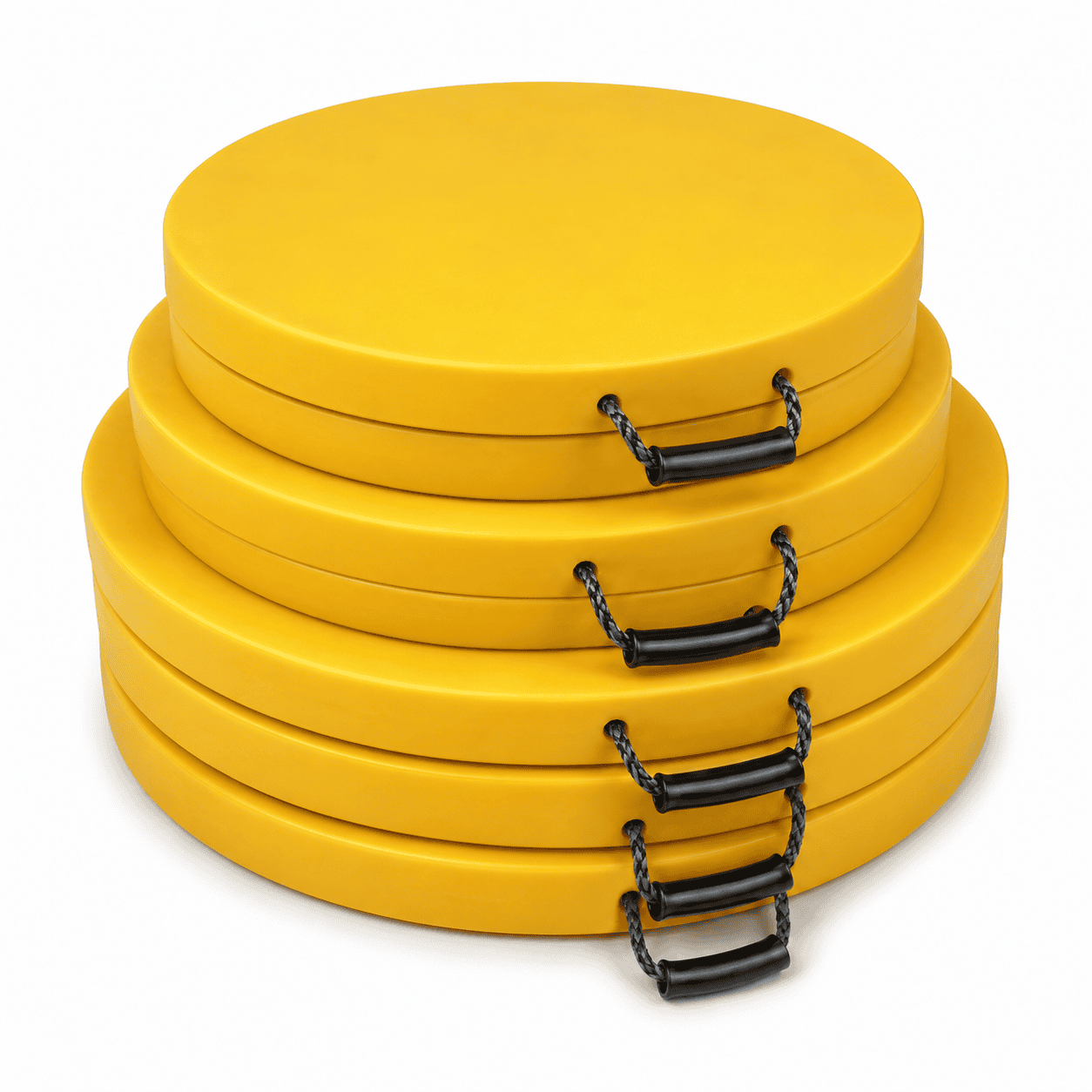

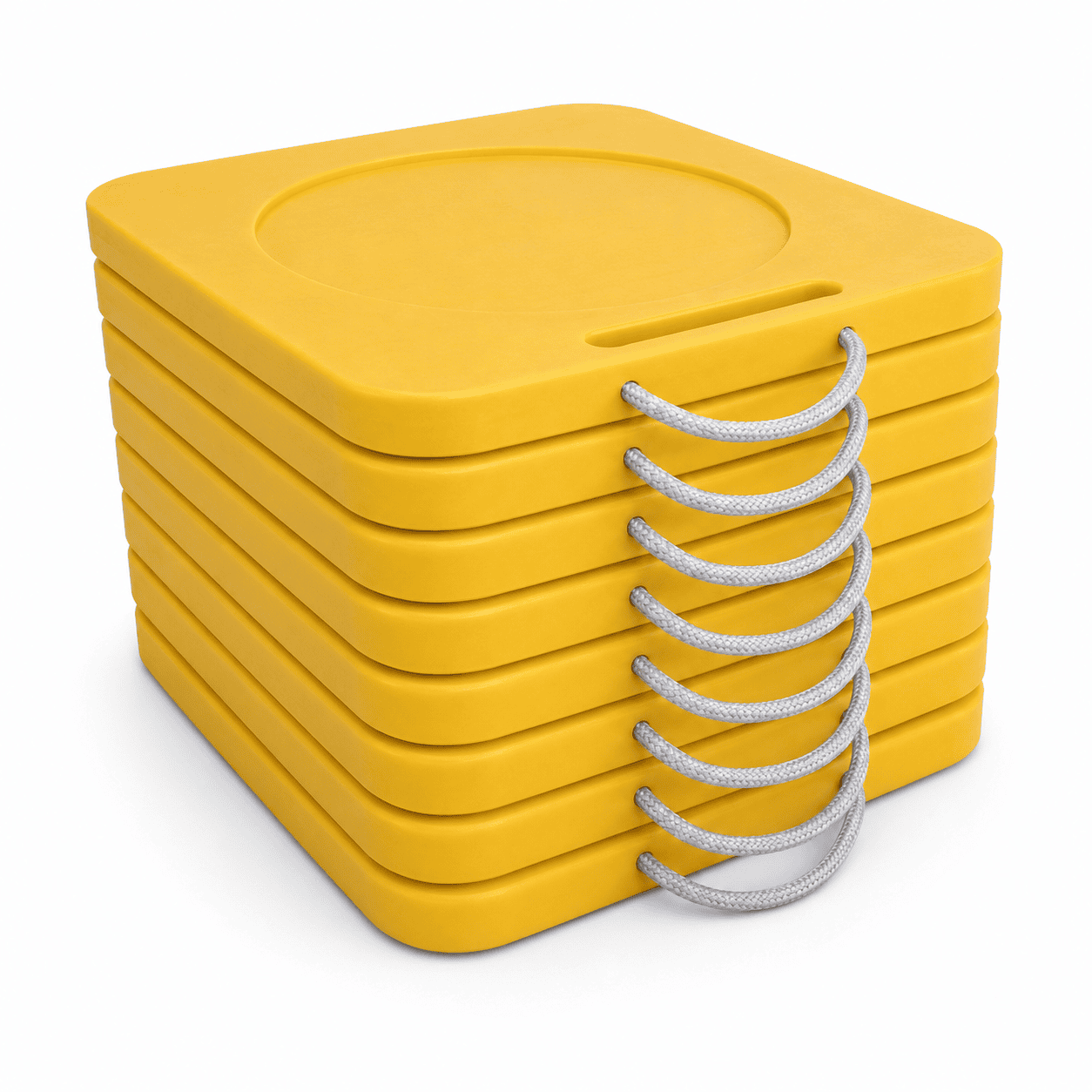

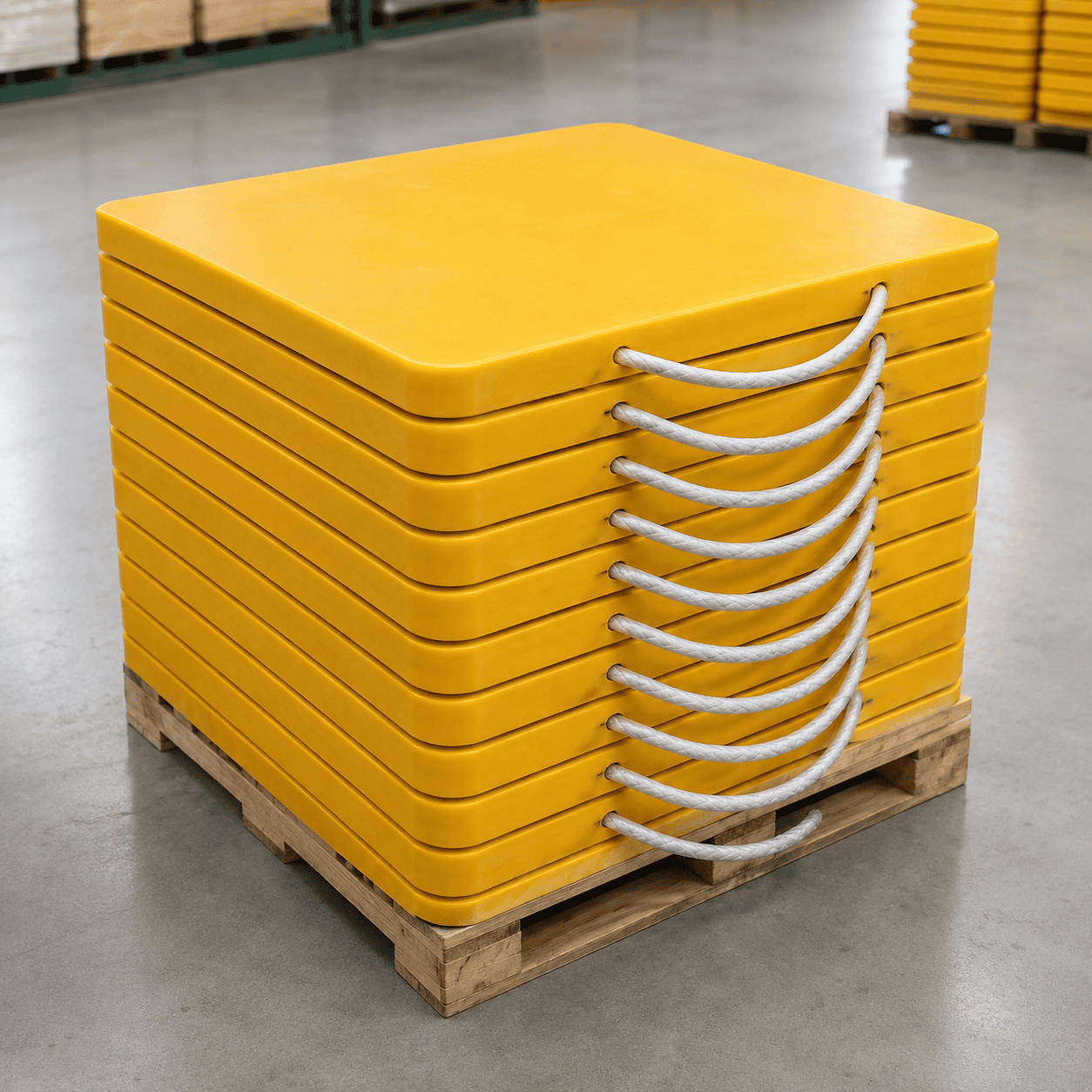

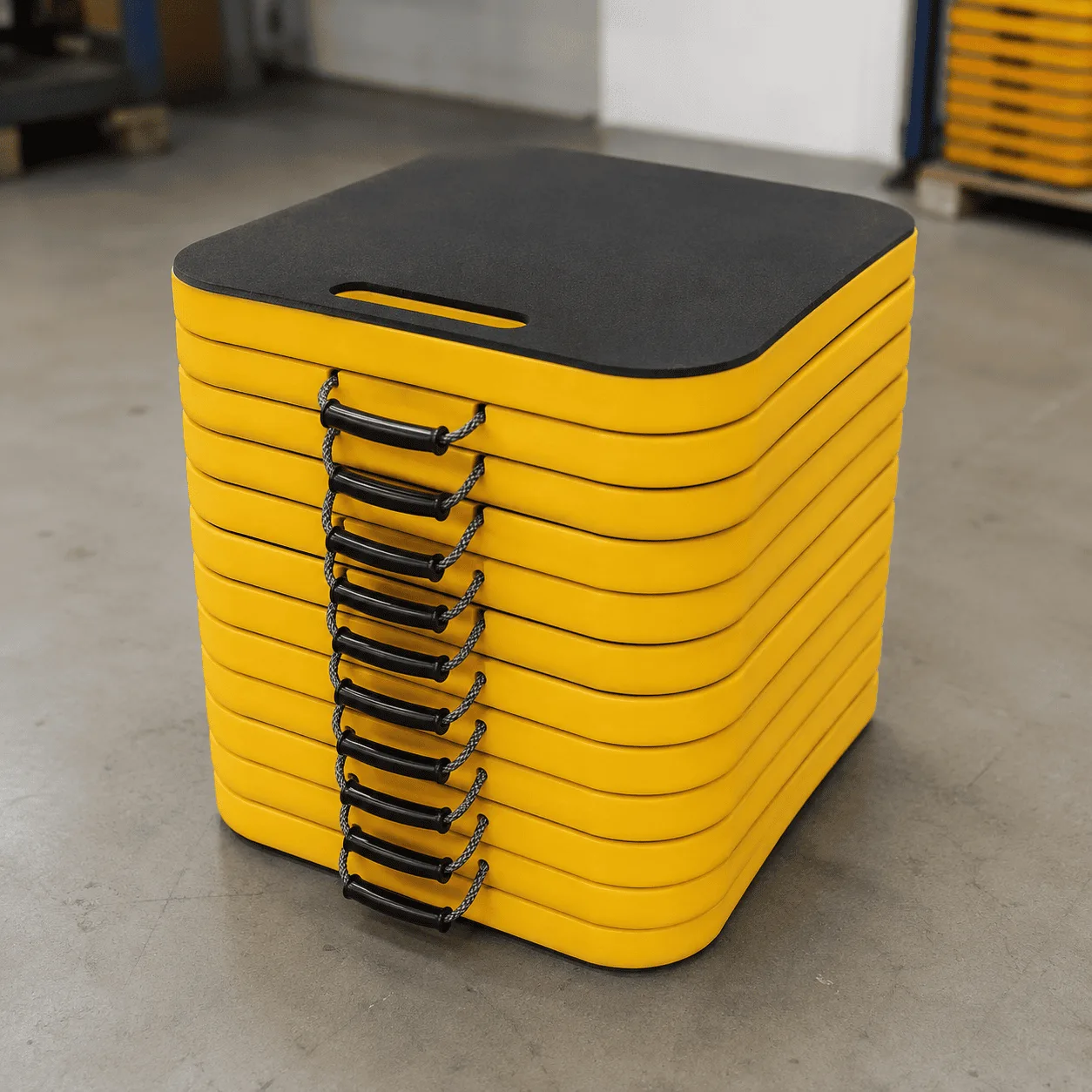

The product image shows multiple matching yellow support pads stacked together.
A stackable design can help with:
The storage surface should be reasonably level and suitable for the combined weight of the complete stack.
Hard objects, gravel and debris should be removed from the panels before stacking to prevent concentrated contact points and surface damage.
The primary material used for Multi Handle Outrigger Pads is ultra-high-molecular-weight polyethylene, commonly abbreviated as UHMWPE.
UHMWPE is a thermoplastic polyethylene with extremely long molecular chains. It is associated with high toughness, impact strength, extremely low moisture absorption, low friction and strong abrasion resistance.
For a general material explanation, see the Wikipedia article about ultra-high-molecular-weight polyethylene.
Practical UHMWPE characteristics for reusable outrigger support pads include:
Chemical resistance should not be treated as universal resistance to every substance. Actual compatibility depends on the chemical, concentration, exposure temperature, contact time and selected UHMWPE grade.
Crane and machinery support pads are repeatedly moved, positioned, loaded, recovered and transported.
During regular operation, the products may experience:
The toughness and impact resistance of UHMWPE make the material practical for reusable industrial support components.
Impact resistance does not eliminate the need for inspection. Products showing serious cracks, deep cuts, severe deformation or damaged handle attachment points should be evaluated before reuse.
Mobile cranes, boom trucks and concrete pumps frequently operate in outdoor environments.
The support pads may be exposed to:
The extremely low moisture absorption of UHMWPE is useful for reusable support components operating in wet and changing environments.
The products should still be cleaned, dried where practical and inspected after contaminated or wet operation.
A hydraulic stabilizer transfers a concentrated reaction through a relatively small original equipment foot.
Multi Handle Outrigger Pads provide a larger geometric contact area beneath that foot.
The effectiveness of the complete support arrangement depends on:
A larger outside dimension provides a larger geometric footprint, but size alone should not be treated as a universal safe-working-load guarantee.
The correct support pad should not be selected only according to the total weight or rated lifting capacity of the equipment.
Individual stabilizer reactions can vary according to:
Important selection factors include:
Each support position should be evaluated separately because loads and ground conditions can differ around the same machine.
Two pads with the same outside dimensions can behave differently when their thicknesses are different.
For example, a 600 × 600 mm product may be considered in several reference thicknesses:
An 800 × 800 mm product may be considered as:
Thickness can affect:
The final thickness should be selected according to the actual stabilizer reaction, support-foot dimensions, UHMWPE grade, required support area and ground condition.
Multi Handle Outrigger Pads can be used with many types of stabilizer-equipped machinery.
The correct product dimensions, thickness, material grade and handle arrangement should always be matched to the actual equipment support point.
Mobile crane outrigger reactions can vary according to boom direction, working radius, lifted load, crane geometry and outrigger extension.
Before selecting a support pad, consider:
The same crane may require different support considerations at different operating locations or configurations.
Concrete pumps and boom trucks also use hydraulic stabilizers to create a wider operating base.
Important selection factors include:
Each stabilizer position should be evaluated separately because reactions and supporting conditions can differ around the same equipment.
Correct positioning is important when using Multi Handle Outrigger Pads.
Before applying the equipment load, confirm that:
The upper working surface should remain free from excessive oil, mud, stones and metal debris.
Reusable support pads should be inspected before every demanding equipment setup.
Check:
After operation, remove mud, sand, oil, gravel and other debris from the primary working surfaces.
During storage:
You can also view our complete range of crane outrigger pads for mobile cranes, concrete pumps, boom trucks, hydraulic stabilizer systems, cribbing products and other heavy machinery applications.
Multi Handle Outrigger Pads provide a practical support solution for mobile cranes, truck-mounted cranes, boom trucks, concrete pumps and other stabilizer-equipped machinery.
The product combines a solid yellow UHMWPE structure, multiple reinforced carrying handles and a stackable square design.
Typical reference specifications include approximately 400 × 400 × 30–40 mm, 500 × 500 × 40–50 mm, 600 × 600 × 40–60 mm, 700 × 700 × 50–60 mm, 800 × 800 × 50–80 mm, 900 × 900 × 60–80 mm, 1000 × 1000 × 60–100 mm and 1200 × 1200 × 80–100 mm.
Final dimensions, thickness, UHMWPE grade, effective support area and handle configuration should always be selected according to the maximum individual stabilizer reaction, original equipment-foot dimensions, supporting surface condition and actual operating requirements.
