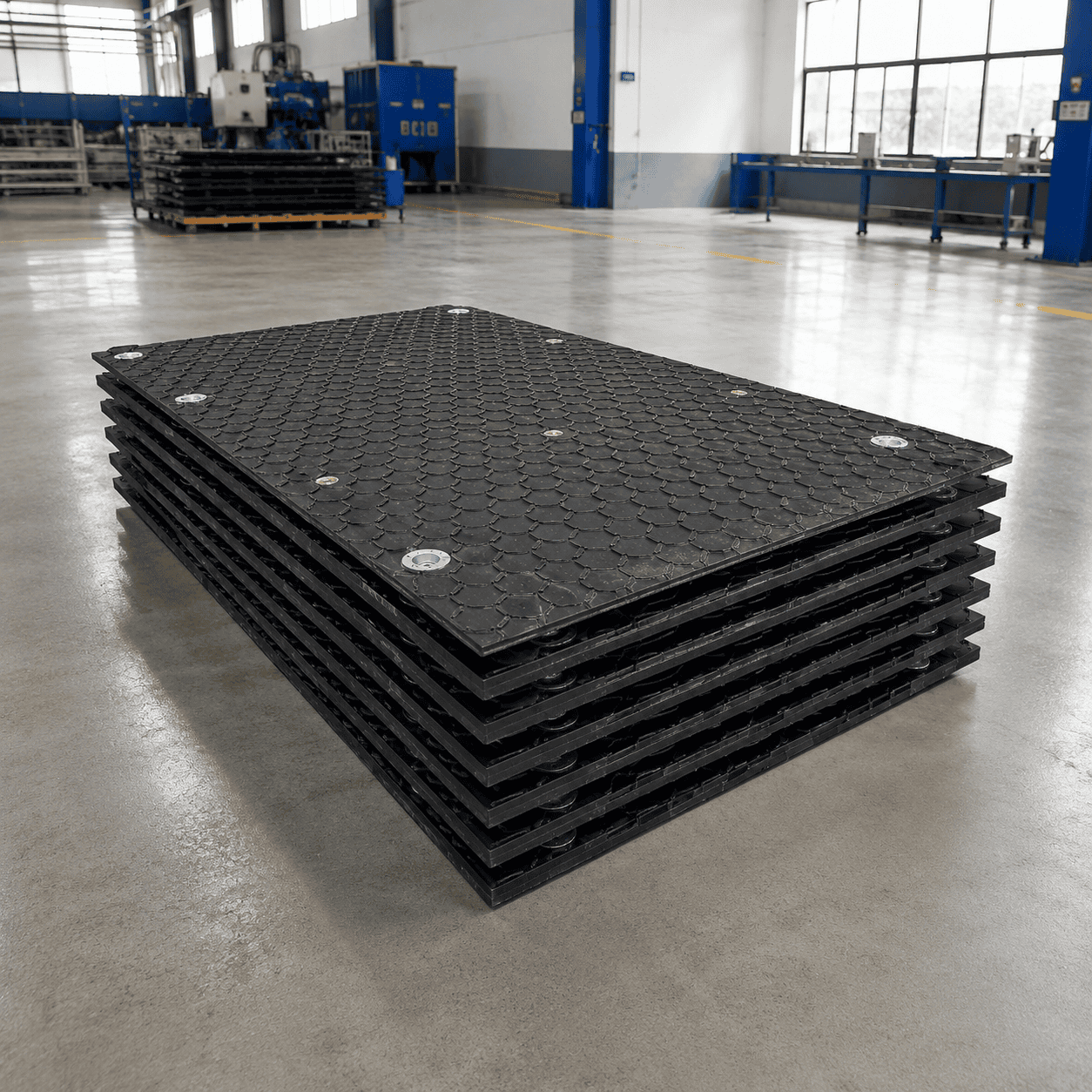

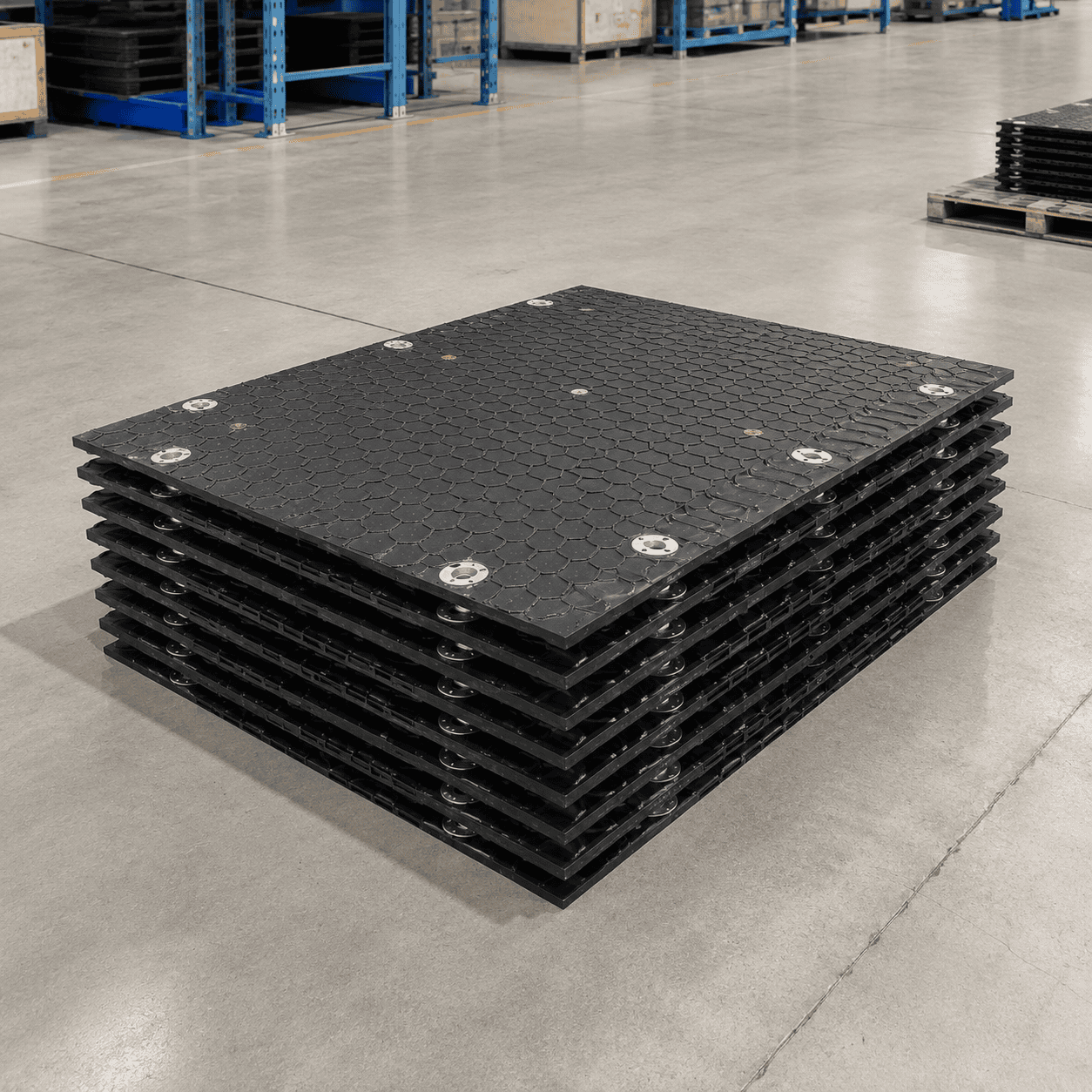

Hollow-Core HDPE Trackway Panels are large-format temporary access panels designed for heavy vehicles, equipment routes, working platforms, and soft ground protection.
Available sizes include 4270 × 2180 mm and 5800 × 2180 mm, with thickness options of 88 mm and 100 mm. Individual panel weights range from approximately 435 kg to 672 kg, with stated load capacities of 120 tonnes or 140 tonnes under suitable ground and installation conditions.
The hollow-core HDPE-based structure, overlapping edges, locking connections, and raised anti-slip surface make these panels suitable for heavy vehicle routes, power projects, oil and gas operations, pipeline access, equipment platforms, and demanding outdoor working areas.
Hollow-Core HDPE Trackway Panels are large-format temporary access panels designed for heavy vehicles, industrial equipment, mobile machinery, and demanding outdoor operations. Their thermoplastic hollow-core structure combines a substantial panel thickness with a lower weight than an equivalent fully solid plastic plate.
These panels are designed to create temporary routes, working platforms, equipment access areas, and protected surfaces across mud, soft soil, wet ground, gravel, uneven terrain, and other locations where repeated direct vehicle movement could damage the original surface or make access difficult.
The product range includes heavy-duty panels with thicknesses of approximately 88 mm and 100 mm. Available lengths include approximately 4270 mm and 5800 mm, while the standard width is approximately 2180 mm.
The highest-capacity versions shown in the product specification have a stated load rating of up to approximately 140 tonnes under suitable ground, support, connection, and installation conditions.
Hollow-Core HDPE Trackway Panels are particularly suitable for temporary access routes that require large panel dimensions, reliable surface traction, resistance to moisture, and a connection system capable of forming wider roads or large working areas.
This product series includes four main large-format specifications. The dimensions and performance data shown for the available models are:
| Model | Panel Size | Thickness | Approx. Weight | Stated Load Capacity |
|---|---|---|---|---|
| XA-01 | 5800 × 2180 mm | 88 mm | 590 kg | 120 tonnes |
| XA-02 | 4270 × 2180 mm | 88 mm | 435 kg | 120 tonnes |
| XA-03 | 5800 × 2180 mm | 100 mm | 672 kg | 140 tonnes |
| XA-04 | 4270 × 2180 mm | 100 mm | 488 kg | 140 tonnes |
The 5800 × 2180 × 100 mm XA-03 model is the largest high-capacity version in this range. It weighs approximately 672 kg per panel and has a stated capacity of up to 140 tonnes.
The shorter XA-04 model measures approximately 4270 × 2180 × 100 mm and weighs around 488 kg while retaining the same stated 140-ton capacity.
For applications where lower overall panel weight is preferred, the 88 mm thick XA-01 and XA-02 versions provide stated capacities of approximately 120 tonnes.
Actual performance depends on the complete installation system. Ground bearing capacity, vehicle type, axle loading, tyre or track contact area, traffic frequency, turning movements, panel support, joint alignment, and installation method can all affect the result.
The defining feature of Hollow-Core HDPE Trackway Panels is their engineered internal structure. Unlike ordinary thin ground protection sheets, these panels use a thick hollow-core construction to create a deeper structural section.
This design provides several practical benefits. The internal structure helps balance panel strength and overall weight while allowing the product to maintain large external dimensions.
A completely solid plastic panel measuring 5800 × 2180 × 100 mm would be extremely heavy. The hollow structural design therefore provides a practical way to manufacture a large temporary access panel while keeping transport and installation requirements more manageable.
The panel structure is intended to resist deformation during use while providing a broad surface for load distribution.
The exact internal design, wall thickness, reinforcement geometry, material formulation, and manufacturing process determine the final performance of each model.
Hollow-Core HDPE Trackway Panels are manufactured from an HDPE-based thermoplastic material system designed for demanding outdoor applications.
The material formulation may include high-density polyethylene together with selected modifiers intended to improve properties required for repeated exterior use.
Important characteristics of the material include:
Unlike steel access plates, the material does not rust during normal outdoor use. Unlike untreated timber, it does not rot, splinter, or absorb large amounts of water.
For general information about high-density polyethylene, read more about polyethylene and its material properties.

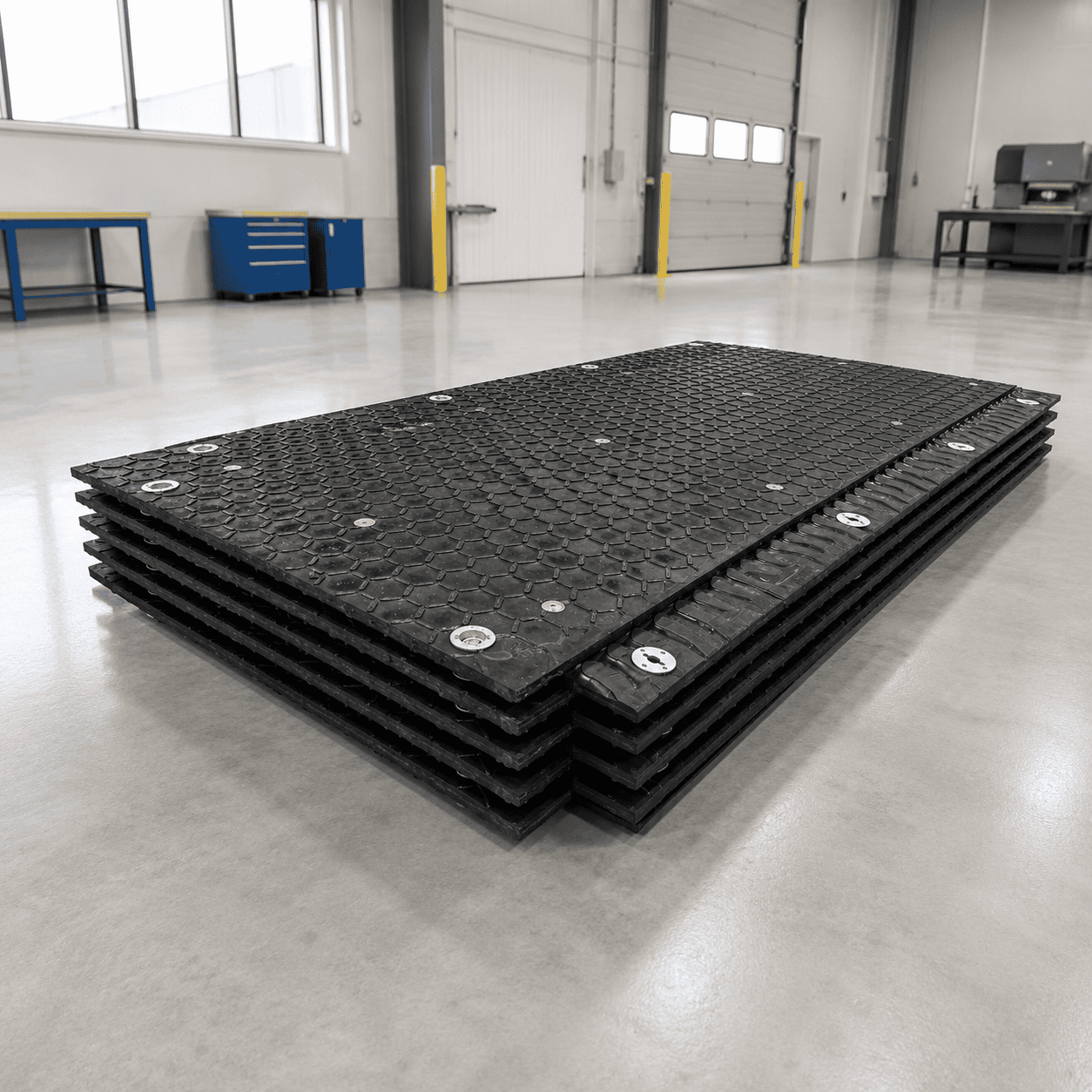

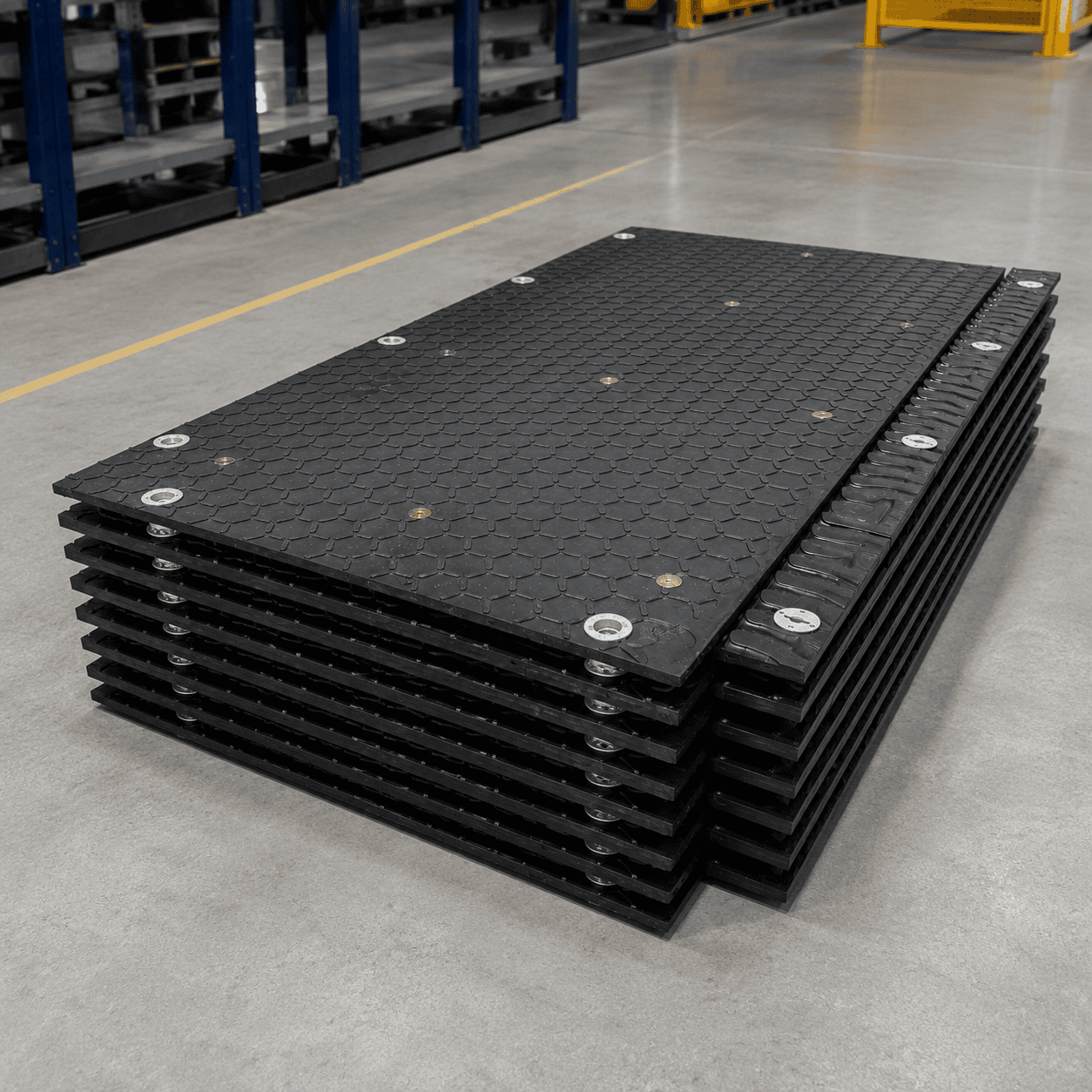

Another important feature of Hollow-Core HDPE Trackway Panels is the overlapping edge structure.
Ordinary temporary road panels that simply meet edge to edge may leave exposed gaps between neighboring mats. On wet or muddy ground, these openings can allow mud, water, and loose soil to move upward through the joints.
An overlapping edge helps cover the connection line between adjacent panels. This creates a more continuous temporary access surface and reduces direct exposure of the ground underneath the joint.
The overlap structure is especially useful for:
The panels should be installed in the correct direction so that the overlapping structure aligns continuously along the intended route.
The individual panels can be connected using a locking system designed to join multiple units together.
This allows Hollow-Core HDPE Trackway Panels to be arranged into different layouts, including:
The connection system is particularly useful when a large protected surface is required. Instead of relying on isolated individual panels, multiple mats can work together as a larger temporary access system.
The exact number and arrangement of connections should be selected according to vehicle movement, route width, turning areas, ground conditions, traffic frequency, and working requirements.

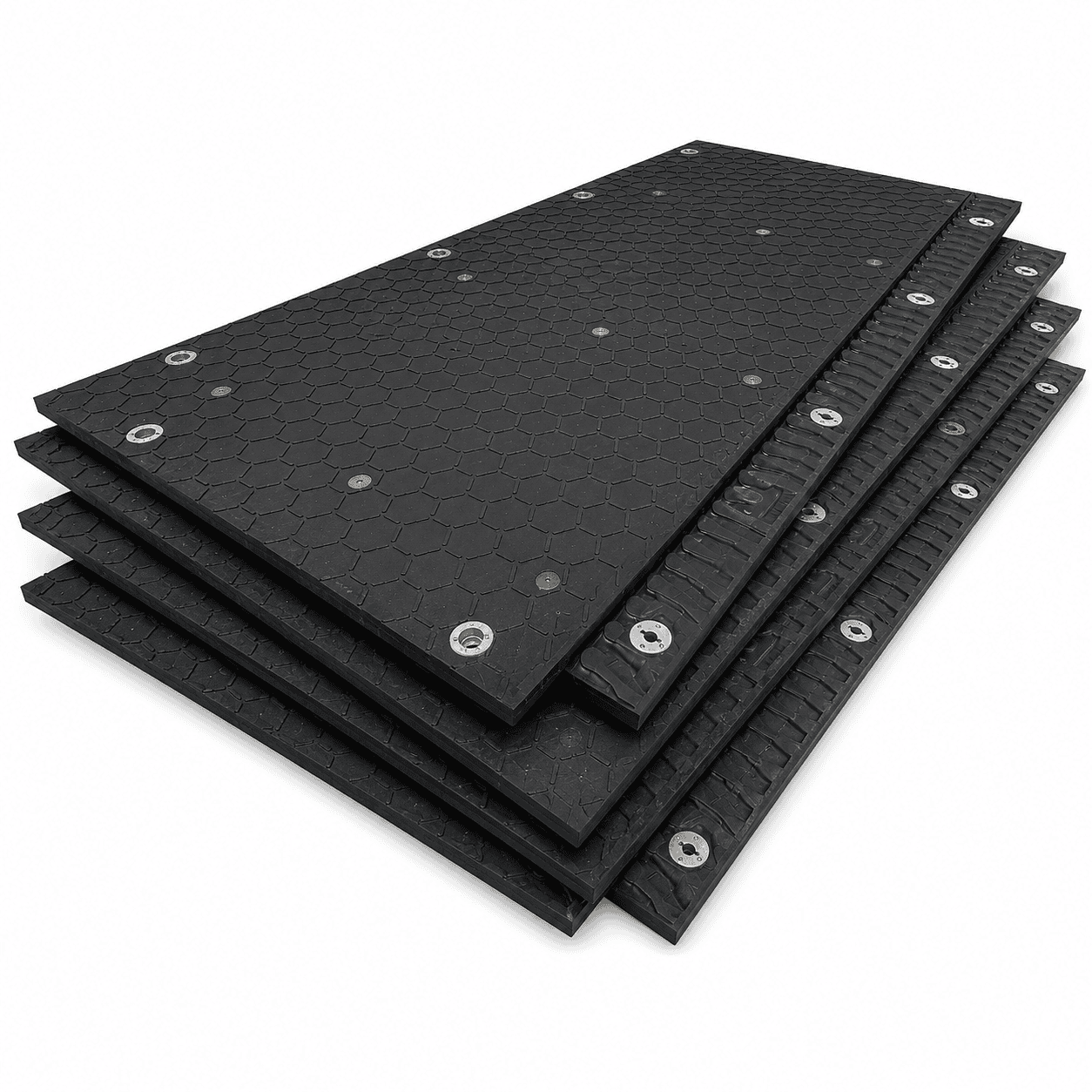

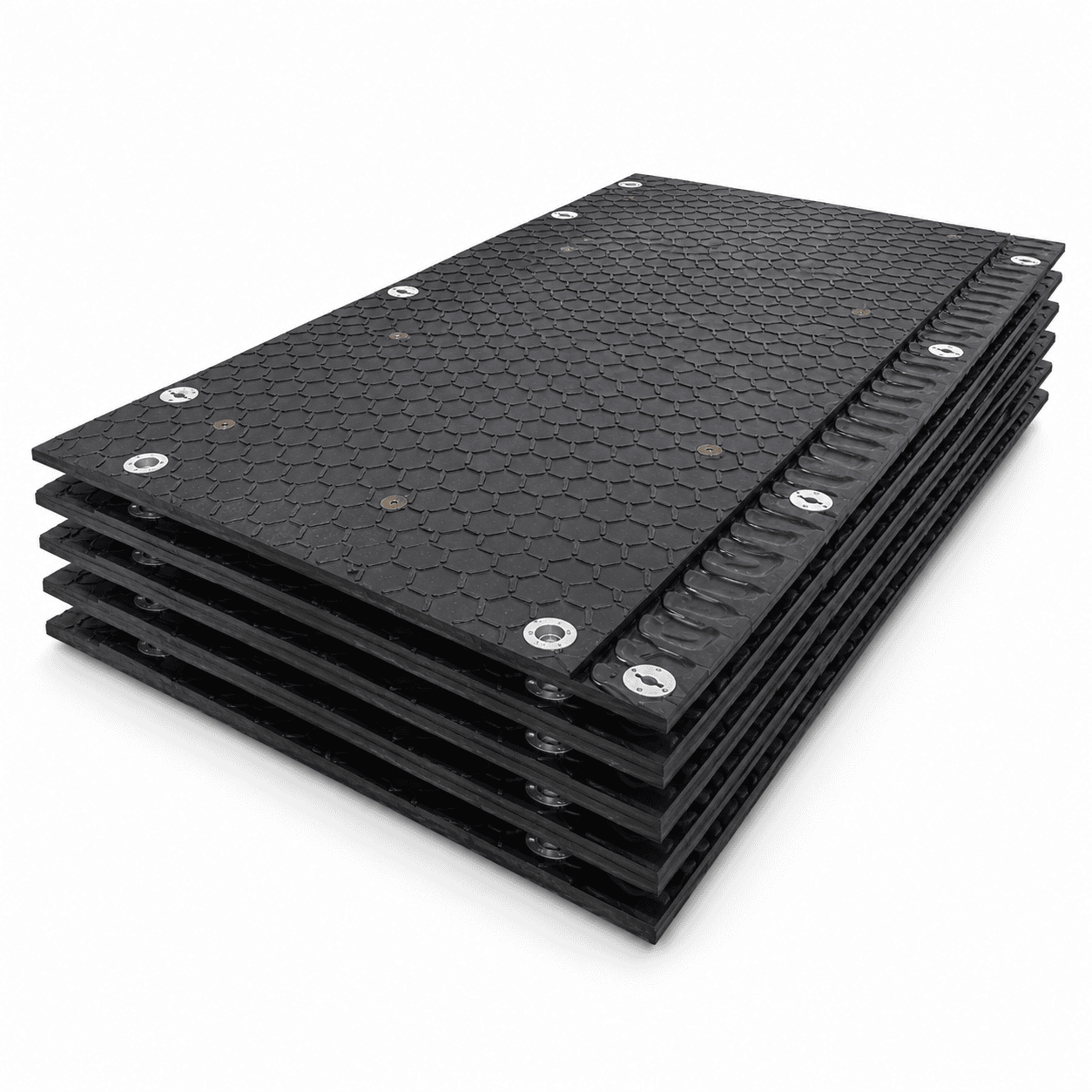

Hollow-Core HDPE Trackway Panels feature a raised surface pattern designed to improve traction between the panel and vehicle tyres or tracks.
The product shown uses repeated geometric or honeycomb-style raised sections across the working surface. These raised structures help increase surface contact and friction compared with a completely smooth plastic panel.
The traction pattern can be useful in environments affected by:
The detailed geometry can vary according to the required product specification. Different surface structures may be used to balance vehicle traction, wear performance, cleaning, and production requirements.
The product series includes both 120-ton and 140-ton stated load classes.
The 88 mm thick models are specified at approximately 120 tonnes:
The 100 mm thick models are specified at approximately 140 tonnes:
The stated figures should always be considered together with actual installation conditions.
A vehicle with a large contact area operating on properly supported ground creates a very different load condition from a concentrated wheel load on saturated or unsupported soil.
For this reason, maximum vehicle requirements should be evaluated together with:
Hollow-Core HDPE Trackway Panels can be used in a wide range of demanding temporary access and working surface applications.
Typical applications include:
The large panel dimensions are especially useful when lightweight ground mats are too small for the equipment size or required route width.
Explore more ground protection and engineering plastic solutions for temporary vehicle access, industrial transport, and outdoor working areas.
Soft ground can quickly become unstable after repeated vehicle movement. Heavy tyres or tracks may create deep ruts, while rain and water can further reduce the bearing capacity of the original surface.
Hollow-Core HDPE Trackway Panels provide a physical layer between the vehicle and the underlying ground.
The large surface area helps distribute contact over a wider section of the route, while the overlapping edges help reduce exposed gaps between neighboring panels.
This can be useful for temporary access over:
However, extremely weak or water-saturated ground may still require additional preparation. Drainage, levelling, aggregate, geotextile, or another support layer may be necessary depending on site conditions.
The connection system allows multiple Hollow-Core HDPE Trackway Panels to create more than a simple narrow access road.
Panels can also be arranged into wider temporary working surfaces for equipment operations.
Possible configurations include:
For concentrated heavy equipment loads, the complete support system should be evaluated before use. Outriggers, small contact points, and localized loads can produce substantially higher pressure than distributed vehicle traffic.
Hollow-Core HDPE Trackway Panels are designed for outdoor operating environments where temporary access materials may be exposed to moisture, rain, mud, sunlight, and temperature changes.
The HDPE-based material does not absorb water in the same way as timber and does not corrode like steel.
Material formulations may also include modifiers intended to improve UV resistance, thermal stability, and outdoor performance.
Actual service life depends on material formulation, UV exposure, temperature range, loading frequency, handling, storage, and maintenance.
One important advantage of Hollow-Core HDPE Trackway Panels is that they can be used as part of a reusable temporary access system.
After the route or working platform is no longer required, the panels can be:
Before reuse, each panel should be checked for visible damage to the overlap edges, locking points, surface traction pattern, internal structure, and main panel body.
The correct Hollow-Core HDPE Trackway Panels should be selected according to actual operating conditions rather than relying only on the largest available load figure.
Important selection factors include:
The 5800 mm models cover a longer section with each panel, but they also require greater lifting and transport capacity.
The 4270 mm versions provide the same width and comparable thickness options with lower individual panel weights.
Hollow-Core HDPE Trackway Panels provide a heavy-duty solution for temporary roads, equipment routes, working platforms, and ground protection across mud, soft soil, wet terrain, and other demanding surfaces.
Available models range from approximately 4270 × 2180 × 88 mm to 5800 × 2180 × 100 mm, with individual panel weights from approximately 435 kg to 672 kg.
The product range includes stated load capacities of approximately 120 tonnes and 140 tonnes under suitable ground and installation conditions.
With an HDPE-based thermoplastic composite structure, hollow-core design, overlapping edges, locking connections, raised anti-slip surface, and reusable construction, these panels are suitable for power projects, oil and gas operations, pipeline access, heavy vehicle routes, equipment platforms, industrial operations, and other demanding temporary access applications.
The final panel size, thickness, capacity class, route layout, and installation method should always be selected according to the actual vehicle, equipment, ground, and operating conditions.
