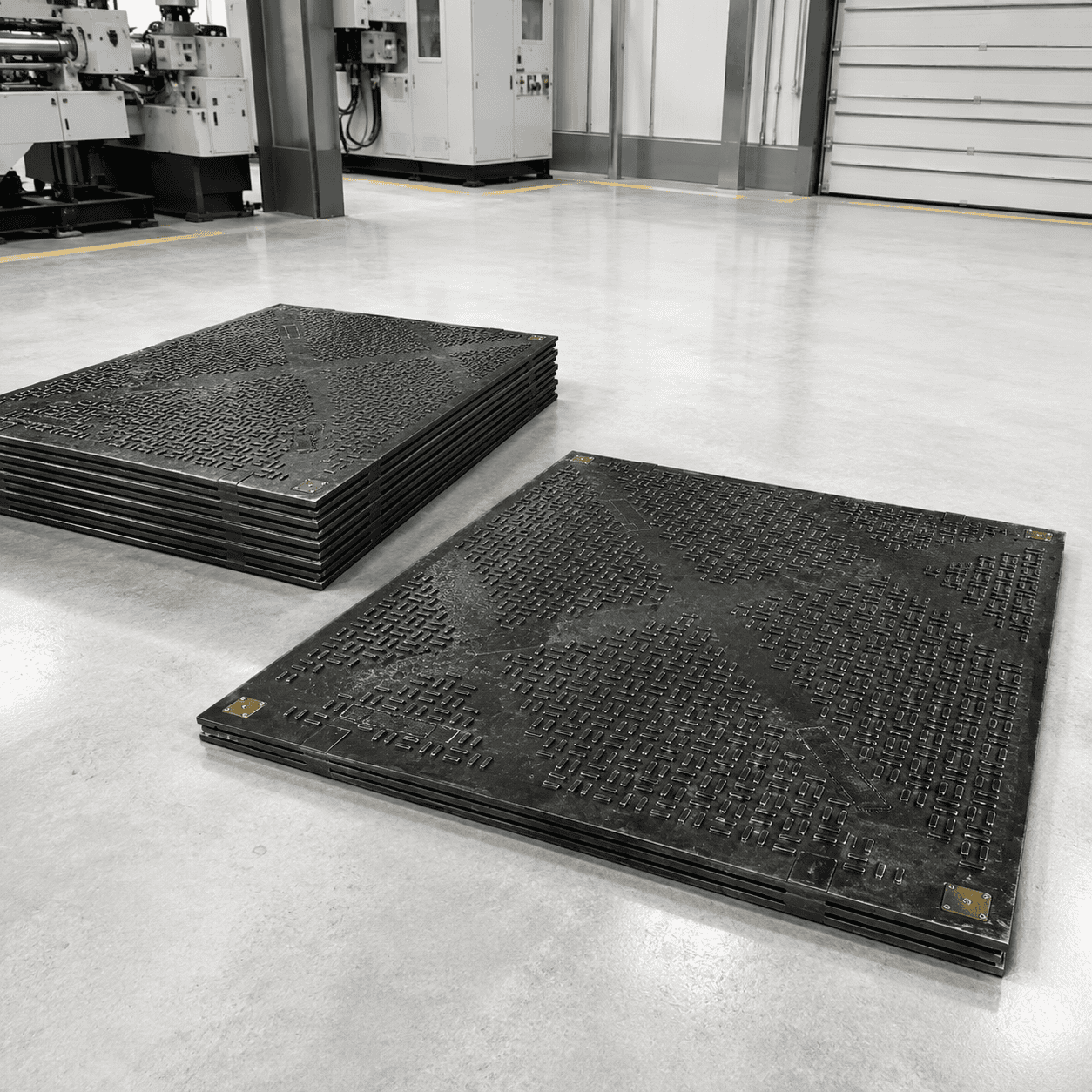

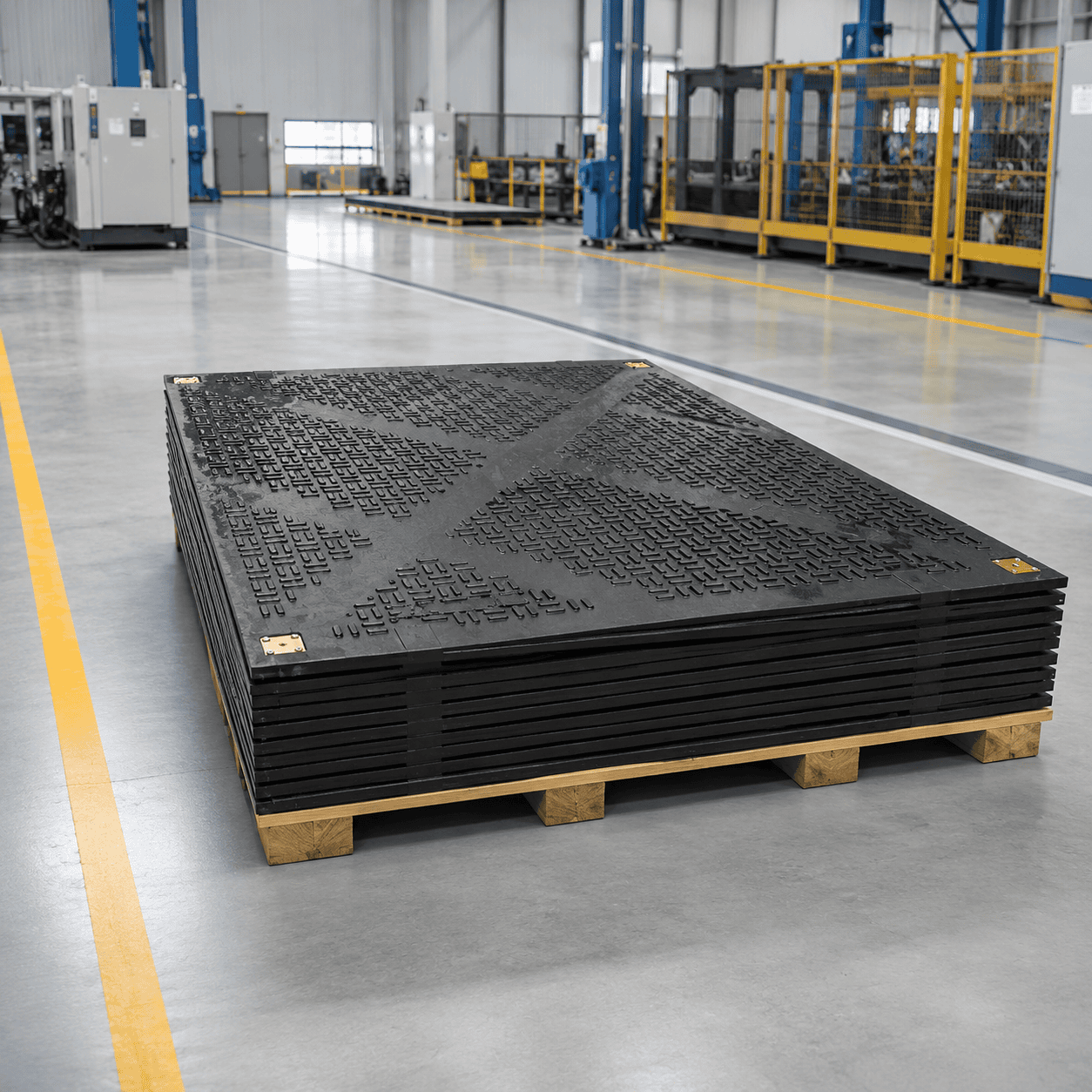

Large Format Polyethylene Access Panels are heavy-duty ground protection panels designed to create temporary routes for heavy vehicles and equipment across mud, soft soil, gravel, grass, and other unstable surfaces.
The main model measures approximately 4000 × 2000 × 38 mm, weighs around 312 kg, and has a stated load capacity of up to 150 tonnes under suitable ground and installation conditions.
The large one-piece structure, raised traction surface, durable polyethylene material, and heavy-duty bolted connection system make these panels suitable for industrial access routes, equipment movement, energy projects, infrastructure operations, and temporary outdoor working areas.
Large Format Polyethylene Access Panels are heavy-duty ground access panels designed to create temporary routes for heavy vehicles, transport equipment, industrial machinery, and mobile equipment across mud, soft soil, gravel, grass, and other surfaces that may be unsuitable for repeated direct traffic.
The main model featured on this product page measures approximately 4000 × 2000 × 38 mm. Each panel weighs around 312 kg and has a stated load capacity of up to approximately 150 tonnes under suitable ground and installation conditions.
The large one-piece panel format provides approximately 8 m² of nominal surface area. This allows substantial sections of an access route to be covered with fewer panels than smaller lightweight ground protection mats.
Large Format Polyethylene Access Panels are suitable for heavy vehicle routes, industrial access areas, equipment movement, energy projects, infrastructure operations, remote access routes, temporary transport lanes, and outdoor working areas where ground protection and load distribution are required.
The main specification used for this product page is the 4 m × 2 m heavy-duty version. Its typical dimensions and performance data are:
The stated load capacity should always be considered together with actual site conditions. Vehicle weight alone does not determine the final performance of the temporary access system.
Ground bearing strength, vehicle axle loading, wheel or track contact area, traffic frequency, turning movement, panel support, connection layout, and installation quality can all affect performance.
Very soft, saturated, or unstable ground may require additional preparation before the panels are installed.
In addition to the standard 4000 × 2000 × 38 mm version, this heavy-duty product range includes several other practical specifications.
| Model | Panel Size | Thickness | Approx. Weight | Stated Load Capacity |
|---|---|---|---|---|
| XD-01 | 3000 × 2500 mm | 38 mm | 292 kg | 150 tonnes |
| XD-02 | 4000 × 2000 mm | 38 mm | 312 kg | 150 tonnes |
| XD-03 | 4500 × 2000 mm | 38 mm | 351 kg | 160 tonnes |
| XD-04 | 6000 × 2000 mm | 40 mm | 490 kg | 170 tonnes |
| XD-05 | 3000 × 2500 mm | 25 mm | 195 kg | 120 tonnes |
These dimensions provide different options for route length, required roadway width, transport conditions, vehicle type, ground condition, and project layout.
The standard 4000 × 2000 × 38 mm version offers a practical balance between large surface coverage, heavy-duty construction, transport efficiency, and access performance.
Large Format Polyethylene Access Panels are manufactured from durable polyethylene material selected for demanding outdoor access applications.
Compared with conventional steel road plates, polyethylene panels do not rust during normal outdoor use and do not require conventional painting or anti-corrosion treatment.
Compared with timber road mats, they do not absorb large amounts of water, rot, or splinter after repeated exposure to wet conditions.
The material also provides useful impact resistance and low water absorption. These properties are important when panels are repeatedly installed, loaded, disconnected, lifted, transported, cleaned, and reused.
For general information about the material, read more about polyethylene and its properties.

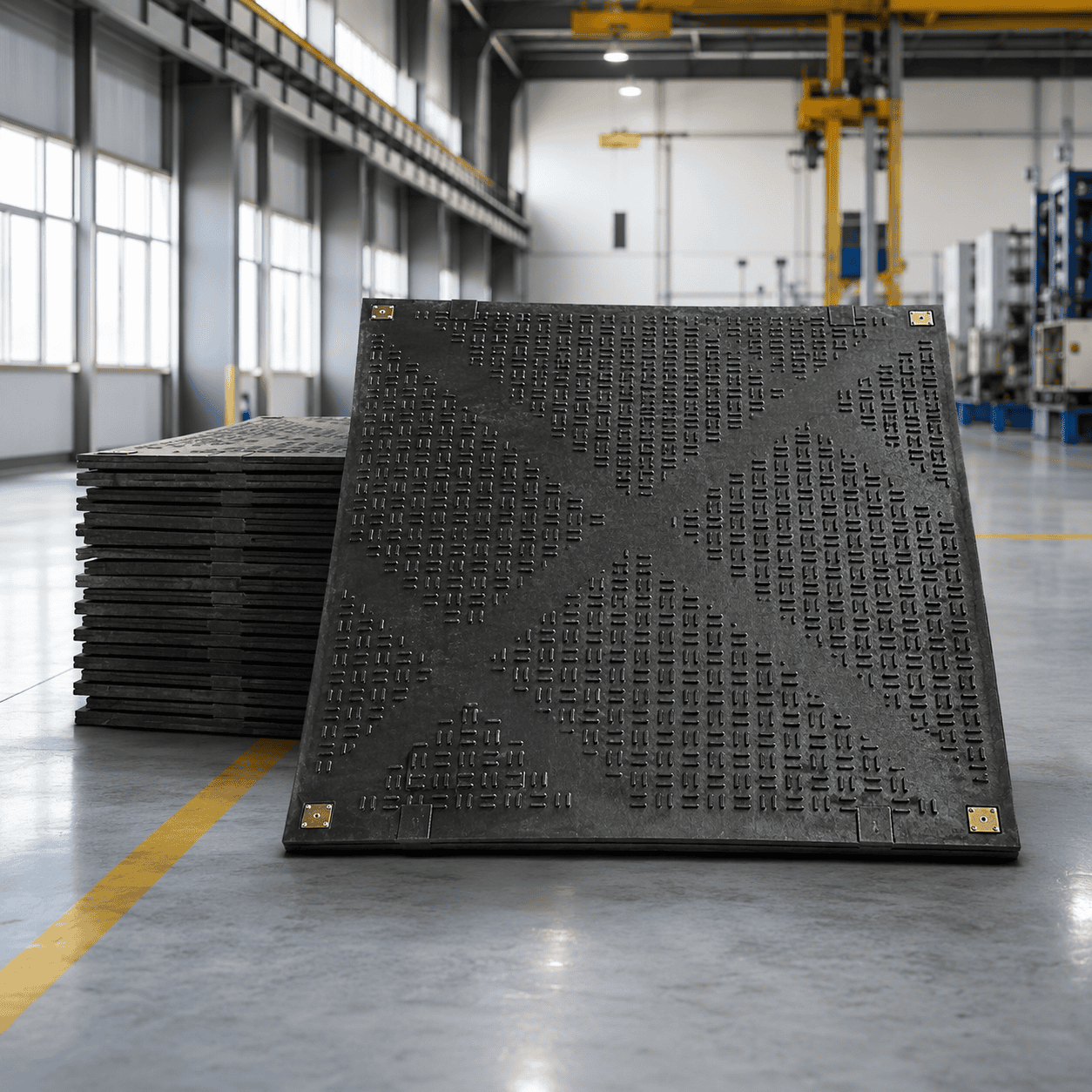

The solid one-piece structure of Large Format Polyethylene Access Panels provides a continuous working surface across each individual panel.
A 4000 × 2000 mm panel covers approximately 8 m² of nominal surface area. This can reduce the total number of panels required when creating long access routes or larger temporary working areas.
The large panel format is particularly useful for:
The panels are designed to provide sufficient rigidity for load distribution while retaining the toughness associated with heavy-duty polyethylene.
Correct ground preparation remains important. Large holes, unsupported voids, sharp objects, severe level changes, and extremely unstable sections should be addressed before installation.

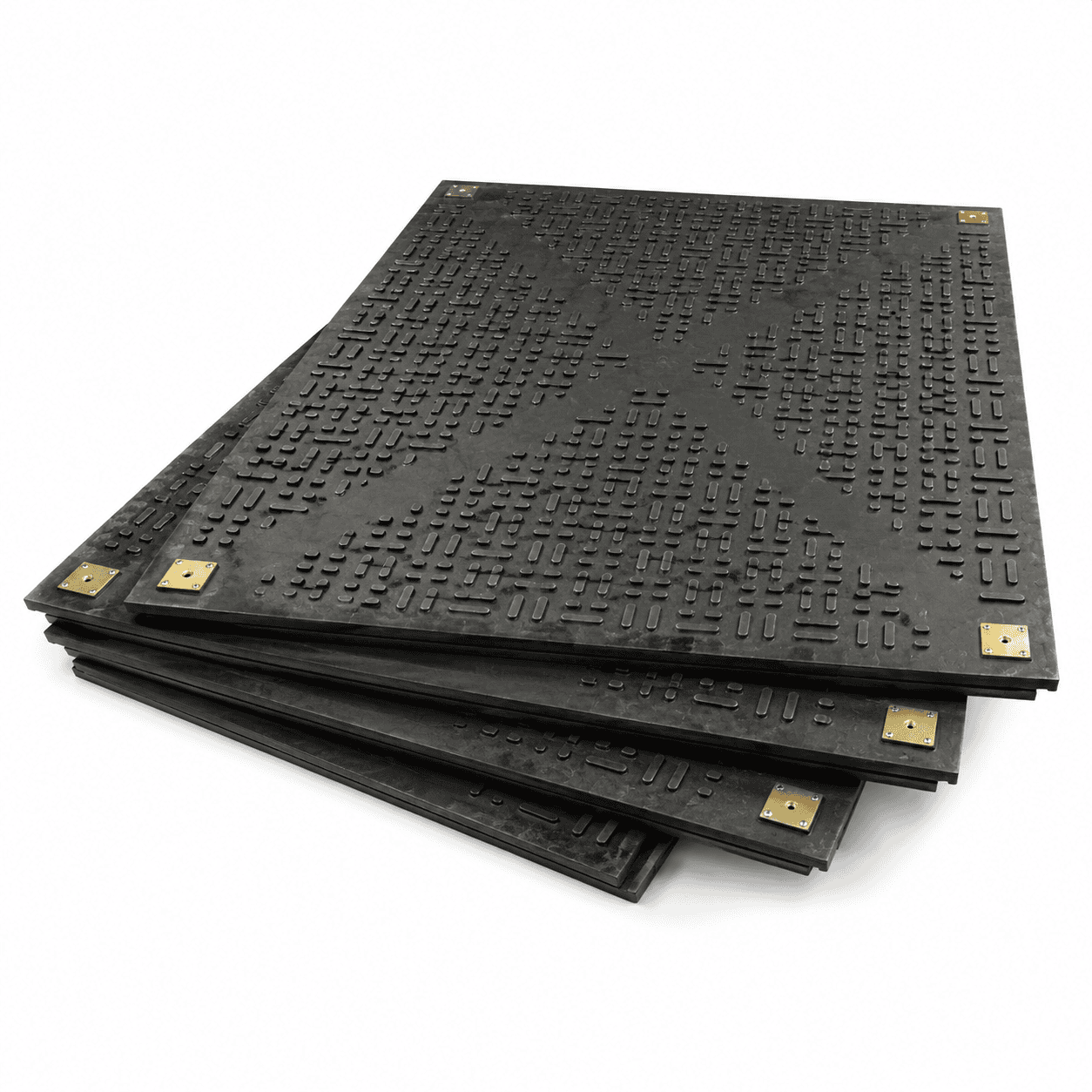

Large Format Polyethylene Access Panels feature a raised traction profile across the working surface.
The textured surface is designed to provide better contact between the panel and vehicle tyres or tracks than a completely smooth plastic board.
This can be particularly useful in environments affected by:
The exact surface profile may vary according to model and production design. Heavy-duty raised blocks, directional traction patterns, and other textured structures can be used according to the required application.

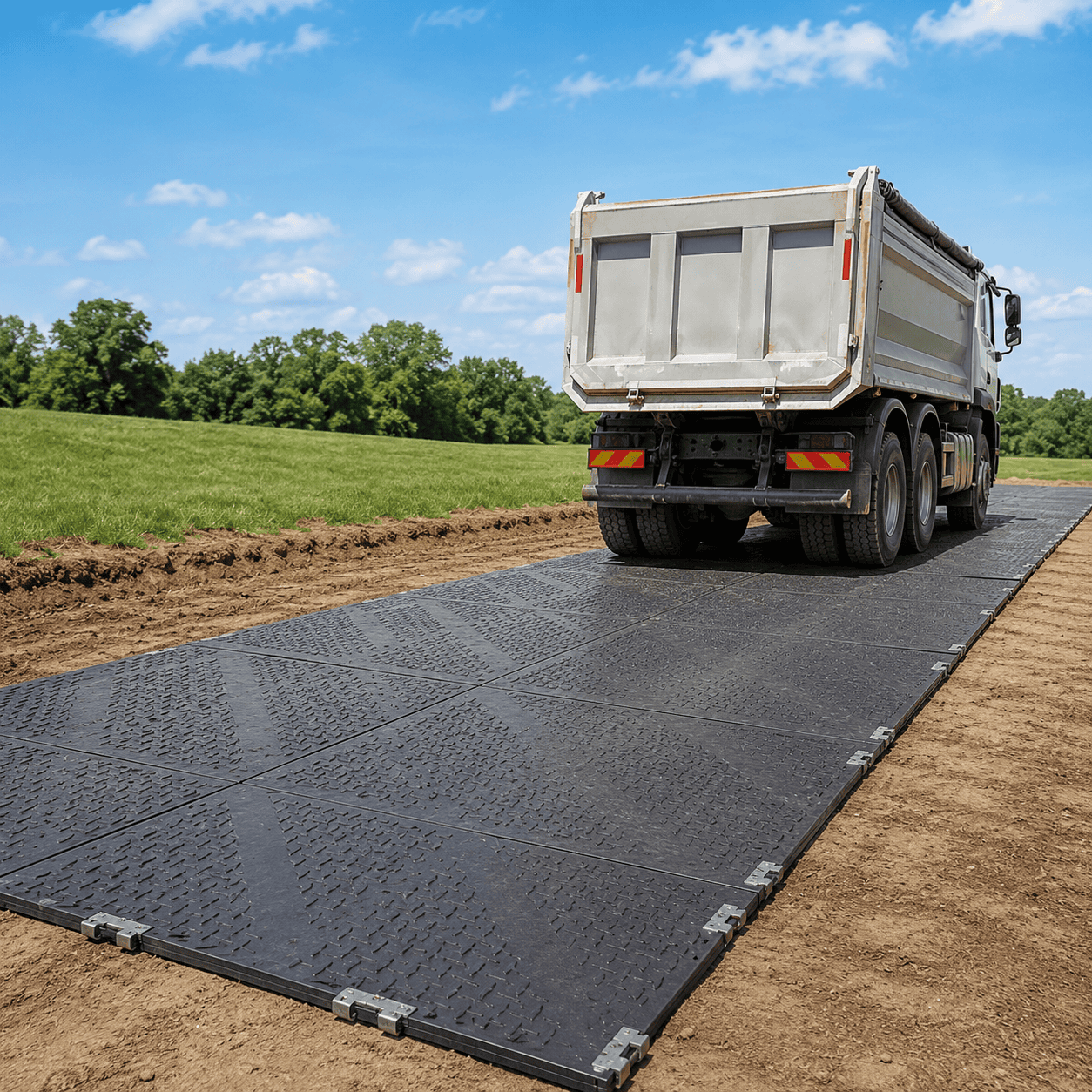

The individual panels can be joined into larger access routes using robust connection hardware. Product information for this series indicates the use of approximately 16 mm bolted connections.
The connection system allows multiple panels to form:
Connecting adjacent panels can help reduce unwanted movement and maintain a more continuous route during repeated vehicle traffic.
The required number and arrangement of connections should be selected according to route width, vehicle movement, turning frequency, traffic volume, and ground conditions.

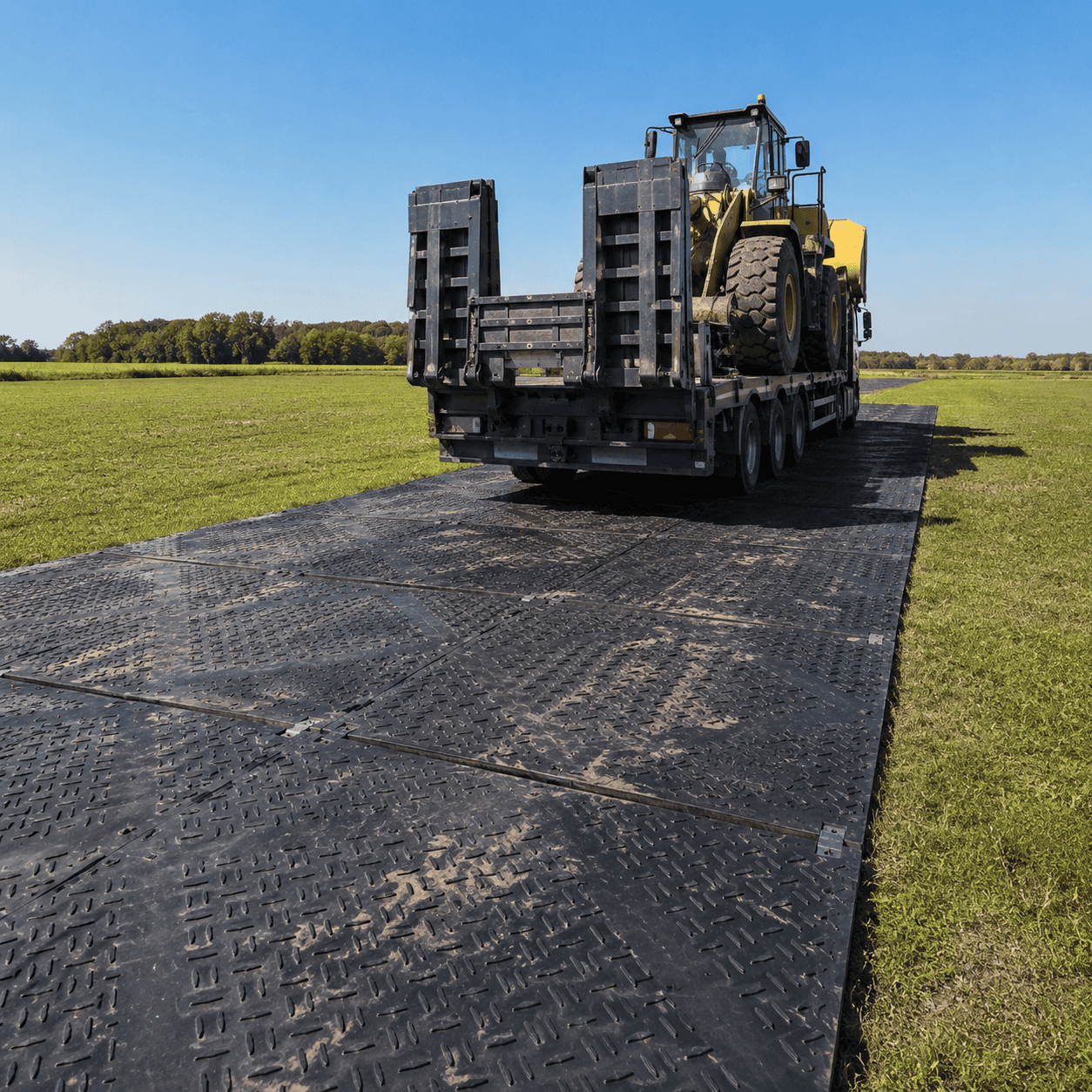

Large Format Polyethylene Access Panels can be used in a wide range of heavy-duty access and ground protection applications.
Typical uses include:
The large surface area makes these panels especially suitable for projects where conventional lightweight ground mats may be too small for the required route width or equipment size.
Explore more ground protection and engineering plastic solutions for temporary access, equipment movement, and outdoor surface protection.
Repeated vehicle movement across wet or soft ground can quickly create deep ruts and unstable access routes.
Large Format Polyethylene Access Panels create a physical layer between the vehicle and the original surface. The large panel area helps distribute contact over a broader section of ground.
This can help reduce concentrated pressure and direct damage to:
The panel system does not eliminate the need for appropriate ground preparation. Extremely weak or water-saturated ground may still require drainage, levelling, geotextile, aggregate, or another supporting layer.
The standard 4000 × 2000 × 38 mm model has a stated load capacity of approximately 150 tonnes under suitable conditions.
Larger versions in the same range have stated load ratings of approximately 160 tonnes and 170 tonnes.
The actual allowable operating load depends on the complete access system, including:
For this reason, the stated load capacity should be treated as a product specification under suitable conditions rather than a universal guarantee for every ground condition.
Polyethylene access panels can provide additional practical advantages in certain specialized environments.
The plastic material is electrically non-conductive compared with conventional metal road plates. This characteristic can be useful in certain energy, transmission, infrastructure, and outdoor equipment access applications.
The panels also have minimal conventional scrap metal value, which may be beneficial at remote or temporary project locations.
Site-specific safety requirements should always be evaluated according to the actual working environment and local operating standards.
One of the main practical benefits of Large Format Polyethylene Access Panels is their reusable design.
After an access route is no longer required, the panels can be:
This makes the system suitable for businesses that regularly require temporary heavy vehicle access at different project locations.
Before each new installation, panel edges, bolted connection areas, surface patterns, and the main panel body should be inspected for visible damage.
The standard Large Format Polyethylene Access Panels in 4000 × 2000 × 38 mm size are suitable for many demanding access applications, but the final model should be selected according to actual operating conditions.
Important selection factors include:
The 4000 × 2000 mm model provides approximately 8 m² of nominal surface area per panel.
The 6000 × 2000 × 40 mm model covers a longer section with each panel and has a stated load capacity of 170 tonnes, but its approximate weight of 490 kg creates different transport and lifting requirements.
For this reason, the largest panel is not automatically the best option for every application.
Before installing Large Format Polyethylene Access Panels, the intended route should be inspected carefully.
Deep holes, sharp protrusions, severe level changes, unsupported voids, and areas of standing water should be addressed before installation.
Panels should be positioned to provide suitable support across the main vehicle path. Connection hardware should be installed correctly where required.
Turning areas, braking zones, concentrated loads, and high-traffic sections may require additional planning because these conditions can create different forces from straight-line vehicle movement.
Large Format Polyethylene Access Panels provide a durable solution for creating temporary access routes and working surfaces across mud, soft soil, grass, gravel, and other demanding ground conditions.
The main XD-02 model measures approximately 4000 × 2000 × 38 mm, weighs around 312 kg, and has a stated load capacity of up to approximately 150 tonnes under suitable ground and installation conditions.
With large one-piece construction, durable polyethylene material, a raised traction surface, heavy-duty bolted connections, and reusable design, these panels are suitable for heavy vehicle routes, equipment movement, industrial access, energy projects, infrastructure operations, and temporary outdoor working areas.
The final panel size, installation layout, vehicle requirements, and ground preparation method should always be selected according to the actual application.
