Ice Rink Barrier System is a modular perimeter enclosure designed for ice hockey rinks, synthetic ice facilities, skating schools, seasonal ice rinks and recreational sports venues. The system combines smooth HDPE or UHMWPE facing panels with galvanized steel or lightweight aluminum supporting frames.
Typical overall barrier heights range from approximately 1000 to 1220 mm, common module lengths range from 1000 to 2400 mm, and polyethylene facing panels are generally available in thicknesses from approximately 8 to 15 mm.
Straight sections, curved corners, colored kick plates, top handrails, access gates, external supports and optional transparent shielding can be configured according to the rink layout. Individual modules can be installed, dismantled, repaired or replaced separately.
Ice Rink Barrier System is a modular perimeter enclosure designed for ice hockey rinks, synthetic ice facilities, skating schools, seasonal ice rinks and recreational sports venues. The connected barrier modules create a continuous boundary around the skating surface while helping contain hockey pucks and separate users from surrounding walkways, equipment areas and spectator zones.
The complete system can combine smooth HDPE or UHMWPE facing panels with galvanized steel or lightweight aluminum supporting frames. Straight modules, curved corner sections, colored kick plates, top handrails, access gates, external supports and optional transparent protective shielding can be arranged according to the rink dimensions.
The polyethylene panel forms the primary visible and impact-contact surface inside the rink. It provides low water absorption, practical impact resistance, corrosion resistance and a smooth finish that is convenient to clean and inspect.
An ice hockey rink is normally surrounded by low walls known as boards or dasher boards. For a general explanation of rink layouts, corner boards and perimeter structures, visit the Ice Hockey Rink overview on Wikipedia.
An Ice Rink Barrier System is assembled from individual barrier sections installed around refrigerated ice, synthetic ice panels or another compatible skating surface. Straight modules form the sides and ends of the rink, while curved, segmented or angled modules create the corner transitions.

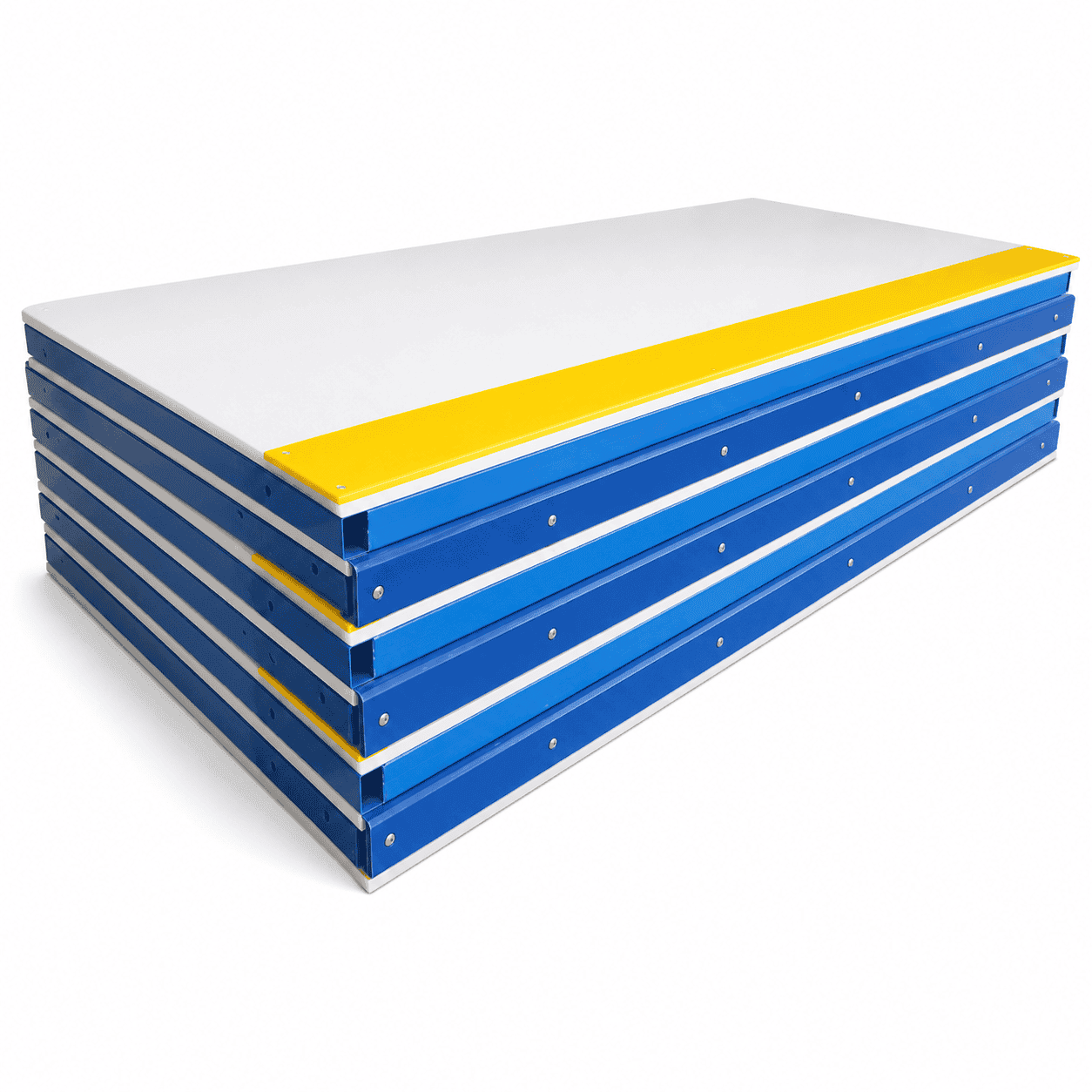

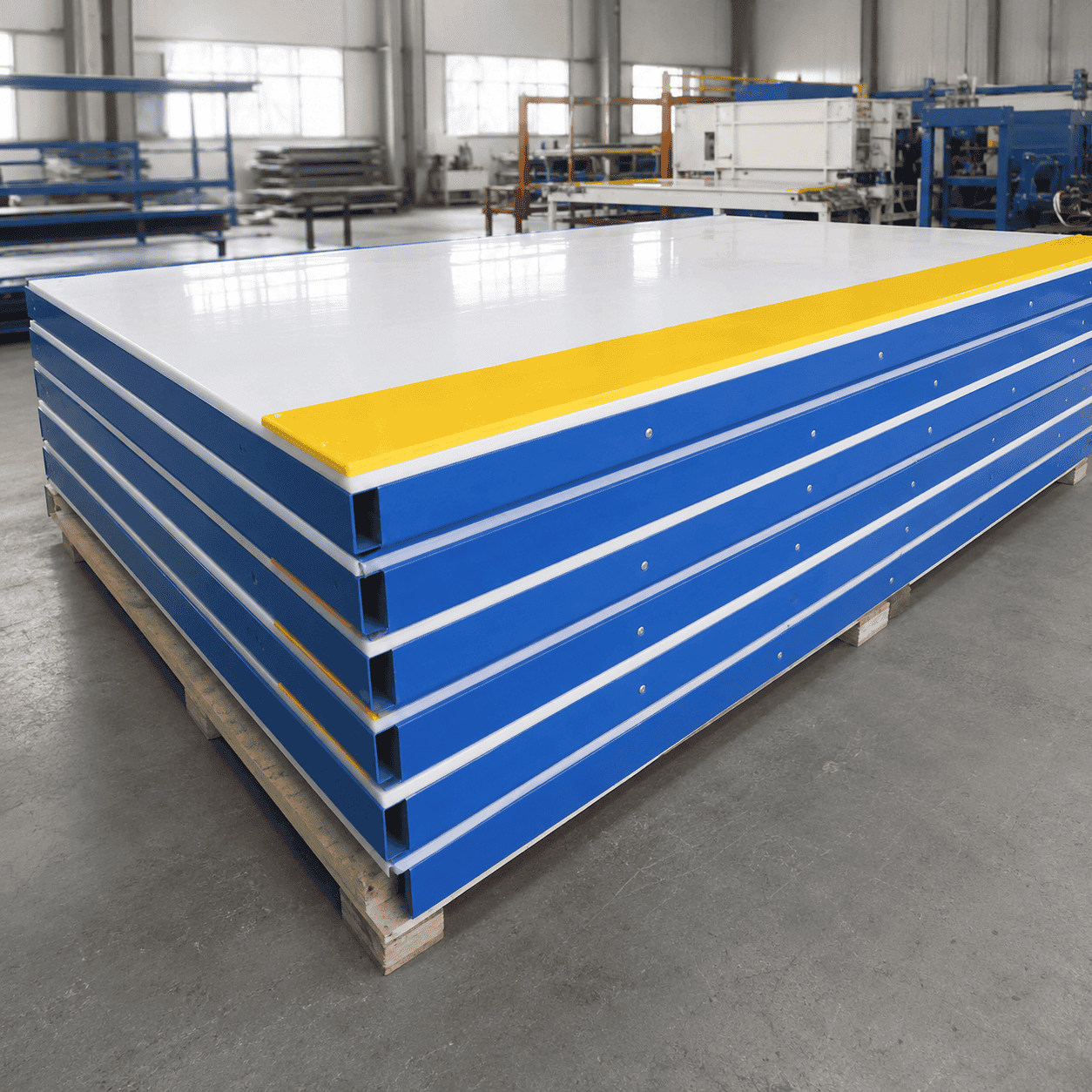

Each module normally includes a polyethylene facing panel and a structural metal frame. Adjacent modules can be connected with bolts, locking pins, connecting plates or mechanical clamps. External triangular supports, wide base feet or fixed floor anchors help maintain alignment and stability.
The modular structure allows individual sections to be removed, relocated, repaired or replaced separately. This makes the system suitable for permanent ice rinks, seasonal skating venues and temporary sports events.
A complete rink barrier can include:
The final component arrangement should be selected according to the rink dimensions, intended sport, supporting floor, access requirements and installation frequency.
The Ice Rink Barrier System can be manufactured in different dimensions according to the approved rink layout. The following specifications are practical engineering reference ranges rather than fixed dimensions for every project.
| Product Name | Modular HDPE Ice Rink Barrier System |
| Facing Panel Material | HDPE or UHMWPE |
| Frame Material | Galvanized steel or aluminum alloy |
| Typical Overall Height | Approximately 1000–1220 mm |
| Common Module Length | Approximately 1000–2400 mm |
| Typical Long Module | Approximately 2000 mm |
| Facing Panel Thickness | Approximately 8–15 mm |
| Common HDPE Options | Approximately 10 or 12 mm |
| Kick Plate Height | Approximately 150–250 mm |
| Kick Plate Thickness | Approximately 8–12 mm |
| Top Handrail Width | Approximately 50–100 mm |
| Pedestrian Gate Width | Approximately 800–1000 mm |
| Equipment Gate Width | Approximately 1200–1800 mm |
| Standard Facing Color | White |
| Optional Colors | Yellow, blue, red, black or project-specific colors |
| Corner Structure | Curved, segmented or angled modules |
| Installation Type | Permanent, semi-permanent, portable or removable |
| Suitable Environment | Indoor and properly prepared outdoor skating venues |
The listed dimensions are common project references. Final panel thickness, frame-profile dimensions, wall thickness, support structure and anchoring method should be confirmed according to the barrier height, expected impact and installation environment.
Longer modules reduce the total number of connections, while shorter sections are generally easier to transport, install and replace. Frequently relocated systems may use lightweight frames and removable external supports.
HDPE is commonly used for rink-facing panels because it provides good impact resistance, useful rigidity, low water absorption and reliable machining performance.
The smooth white surface creates a clean rink appearance and provides a consistent contact face for hockey pucks. HDPE can be cut, drilled, countersunk and machined according to the supporting-frame drawing.
Fasteners should be positioned so that the skating-side surface remains as smooth as possible. Countersunk fixing points help reduce projecting hardware inside the rink.
HDPE provides a practical balance between performance, panel weight and project cost for recreational, training and commercial skating facilities.
UHMWPE provides increased abrasion resistance, strong impact performance and a naturally low-friction surface. It can be selected for frequently used sections exposed to repeated puck, skate and equipment contact.
The material absorbs very little moisture and maintains useful toughness in cold conditions. These characteristics make it suitable for rink sections requiring improved wear resistance.
The selection between HDPE and UHMWPE should consider expected use, impact level, panel thickness, service-life requirements and project budget.
Galvanized steel frames provide strength and stability for permanent or frequently used barrier systems. The zinc-coated surface helps protect the steel structure against moisture and corrosion.
The frames can include welded vertical posts, horizontal rails, connecting brackets, base plates and triangular supports. Profile dimensions and wall thickness should be selected according to the approved structural drawing.
Galvanized steel is generally suitable for larger facilities where strength and long-term stability are more important than minimum module weight.
Aluminum frames reduce the weight of individual modules and can make repeated installation, dismantling, transportation and storage more convenient.
This option is suitable for seasonal ice rinks, temporary events, shopping centers and multi-purpose facilities where the complete barrier may need to be relocated.
The aluminum structure must still provide sufficient rigidity for the selected board height and facing-panel dimensions. Reinforcement positions and connections should be confirmed before production.
Galvanized steel is generally selected for permanent installations, frequent hockey use and applications requiring increased structural stability. Aluminum is generally selected where lower module weight and repeated handling are important.
Selection factors include:
Curved corners create a smooth transition between the side and end sections of the rink. They also help the puck continue moving instead of becoming trapped in a sharp ninety-degree corner.
The system can use purpose-built curved frames or several shorter segmented modules. The appropriate corner radius depends on the total rink dimensions and intended activity.
Each corner section should align accurately with the adjacent straight boards. Large gaps, projecting fasteners and sharp edges should be avoided on the skating side.
A colored kick plate can be installed along the lower part of the barrier. Yellow is commonly selected because it creates a visible transition between the white facing panel and the skating surface.
Blue, red, black and other colors can also be selected according to the venue design. Kick plates are exposed to frequent puck and equipment contact and should normally be independently replaceable.
The final height and thickness should be selected according to the facing panel, supporting frame and playing surface.
The top handrail covers and protects the upper edge of the barrier panel. It also provides a finished appearance around the complete rink.
The handrail can be manufactured from HDPE, UHMWPE or another suitable impact-resistant material. Contrasting colors can make the rink perimeter easier to identify.
Connections between adjacent handrail sections should remain secure and should not create large gaps or exposed sharp edges.
An Ice Rink Barrier System can include gates for skaters, players, coaches, officials and maintenance staff.
A typical pedestrian gate can provide a clear opening of approximately 800–1000 mm. Wider equipment entrances may measure approximately 1200–1800 mm, depending on the cleaning equipment and rink accessories that need to enter the area.
Gate hinges, latches and supporting frames should be aligned so that each gate opens smoothly and closes securely. Hardware should remain away from exposed skating-side surfaces wherever possible.
Acrylic or polycarbonate shielding can be installed above the barrier where additional puck containment or spectator separation is required.
The shielding thickness, height and supporting-post structure should be selected according to puck speed, rink activity and the distance between the rink and surrounding users.
Professional hockey venues may require a different shielding structure from recreational skating areas. The final configuration should be confirmed according to the intended application.
Protective netting can be installed above selected side or end sections, particularly behind hockey goals and shooting areas.
The netting system can improve containment of elevated pucks without adding solid panels across the complete height. Net material, mesh opening, supporting posts and installation height should be selected according to the venue.
Netting should not be treated as a replacement for structural rink boards. It forms an additional protective layer above the solid barrier.
The modular barrier system can be used in:
The system can also be installed in properly prepared outdoor or seasonal skating venues.
Outdoor installation should consider wind, drainage, anchoring, sunlight exposure and temperature changes. UV-stabilized polyethylene facing panels can be selected where prolonged sunlight exposure is expected.
Additional anchors, ballast or supporting braces may be required in exposed locations. Outdoor structural requirements should be evaluated according to the site conditions.
The Ice Rink Barrier System can be configured for compact practice areas or larger recreational rinks. Example project layouts may include:
These dimensions are layout examples rather than official competition specifications. The final rink should consider corner radius, gate positions, skating speed, equipment access, surrounding clearance and emergency routes.
A portable system uses removable connectors and external supports so that the barrier can be dismantled when the venue is needed for another activity.
Rubber pads can be placed beneath supporting feet to help protect finished indoor flooring. Outdoor modules may require additional ballast or anchoring.
Frames, panels and corner sections can be numbered according to their installation positions. Connecting hardware can be stored in labeled containers to simplify future assembly.
A permanent rink barrier can be anchored to a prepared concrete foundation or another structural platform.
Before drilling, refrigeration pipes, drainage lines, electrical cables and other concealed services should be identified. Anchor positions should be coordinated with the rink floor and frame structure.
The supporting floor, anchors and barrier frames should be evaluated as a complete system rather than selecting the anchors only according to panel dimensions.
The rink perimeter should first be measured and marked according to the approved layout. Straight modules, curved corners and access gates can then be positioned before final connection.
Adjacent sections should maintain a consistent height and smooth skating-side transition. Bolts, locking pins, connecting plates, support feet and floor anchors should be checked during assembly.
After installation, the complete barrier should be inspected for unstable sections, loose hardware, exposed sharp components, gate operation and corner alignment.
The polyethylene panels can be cleaned using water, a soft cloth and a suitable neutral cleaning solution. Strong solvents, sharp metal scrapers and aggressive abrasive tools should be avoided.
Routine inspection should include:
Loose hardware should be tightened before continued use. Cracked panels, unstable frames, damaged gates or broken shielding should be repaired or replaced.
The polyethylene panels are cut and machined according to the approved frame drawings. Processing can include cutting, drilling, countersinking, edge finishing and curved-panel machining.
Steel or aluminum frames can be produced through profile cutting, welding, drilling and surface treatment. Straight sections, curved corners and access gates can be trial-assembled before shipment.
Important inspection items include:
When selecting an Ice Rink Barrier System, consider the total rink dimensions, intended activity, required barrier height, facing material, frame material, gate configuration, shielding requirements and installation frequency.
Permanent and frequently used hockey facilities may prefer galvanized steel frames for increased stability. Temporary and seasonal venues may prefer lightweight aluminum frames or removable steel structures.
HDPE panels provide practical impact resistance and economical performance, while UHMWPE can be selected for areas requiring increased abrasion resistance.
Learn more about our HDPE panels, UHMWPE materials and engineering-plastic manufacturing capabilities on the Honsee engineering plastic manufacturer website.
The Ice Rink Barrier System provides a modular, durable and reusable rink-boundary solution for ice hockey, skating instruction, synthetic ice facilities and recreational indoor or outdoor skating venues.
