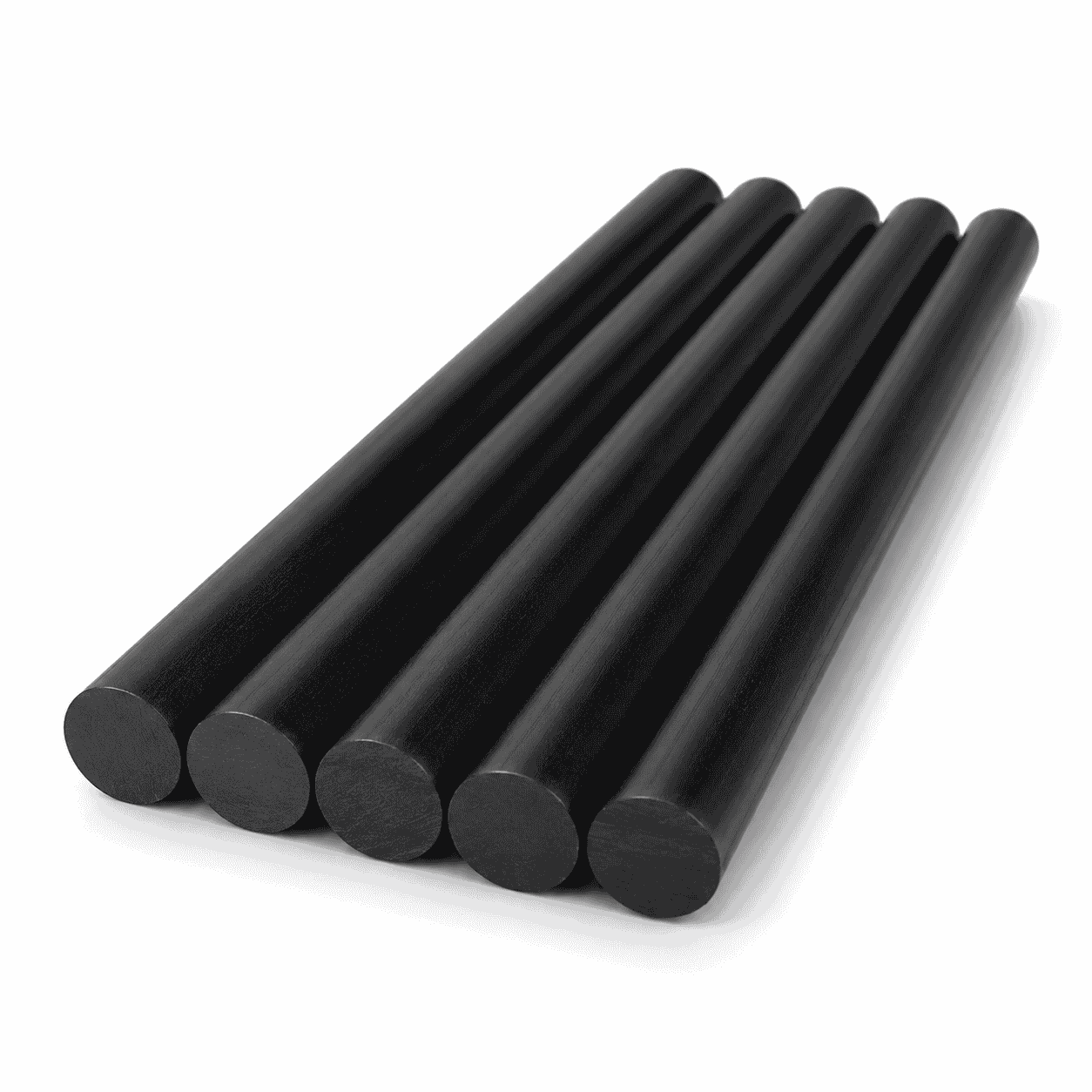

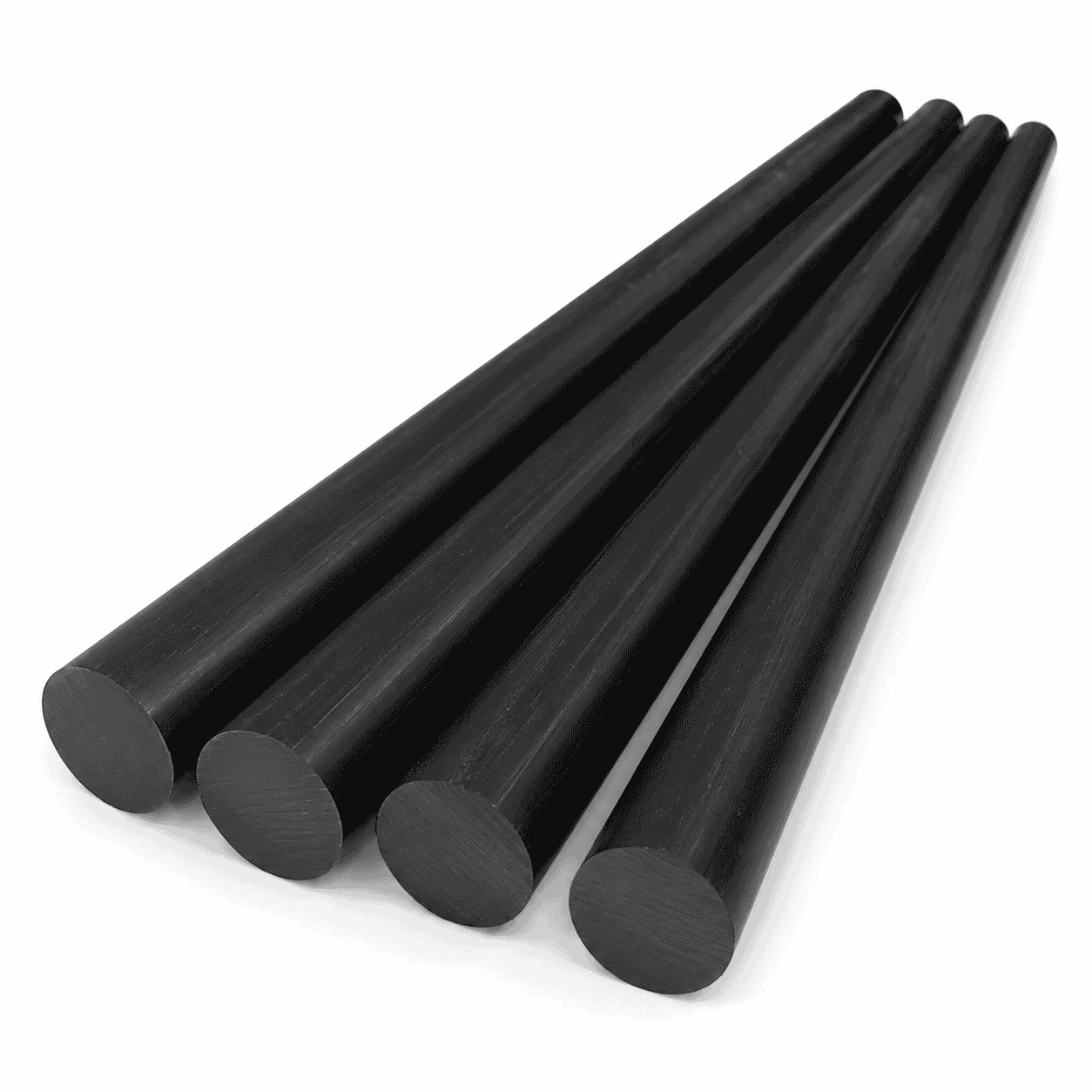

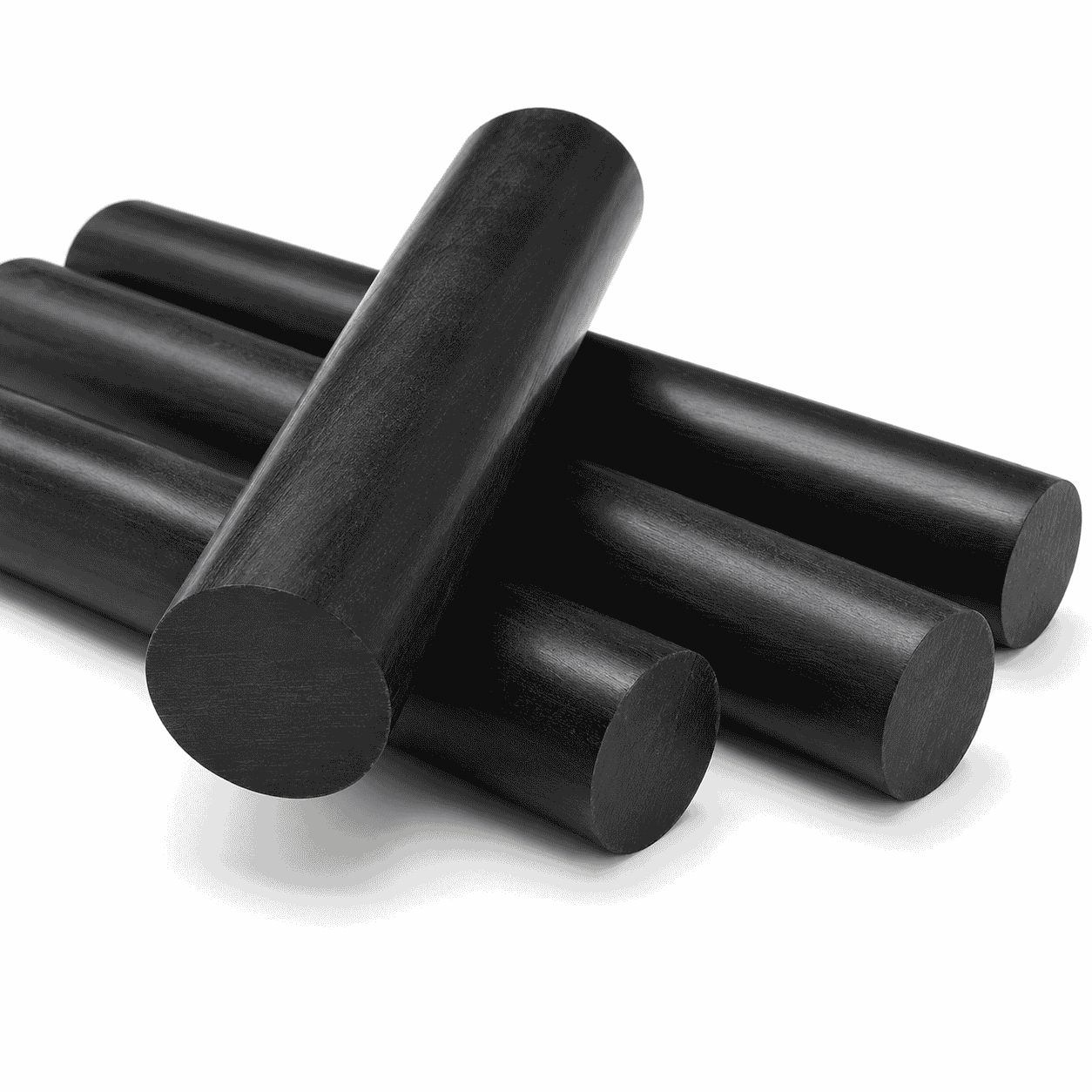

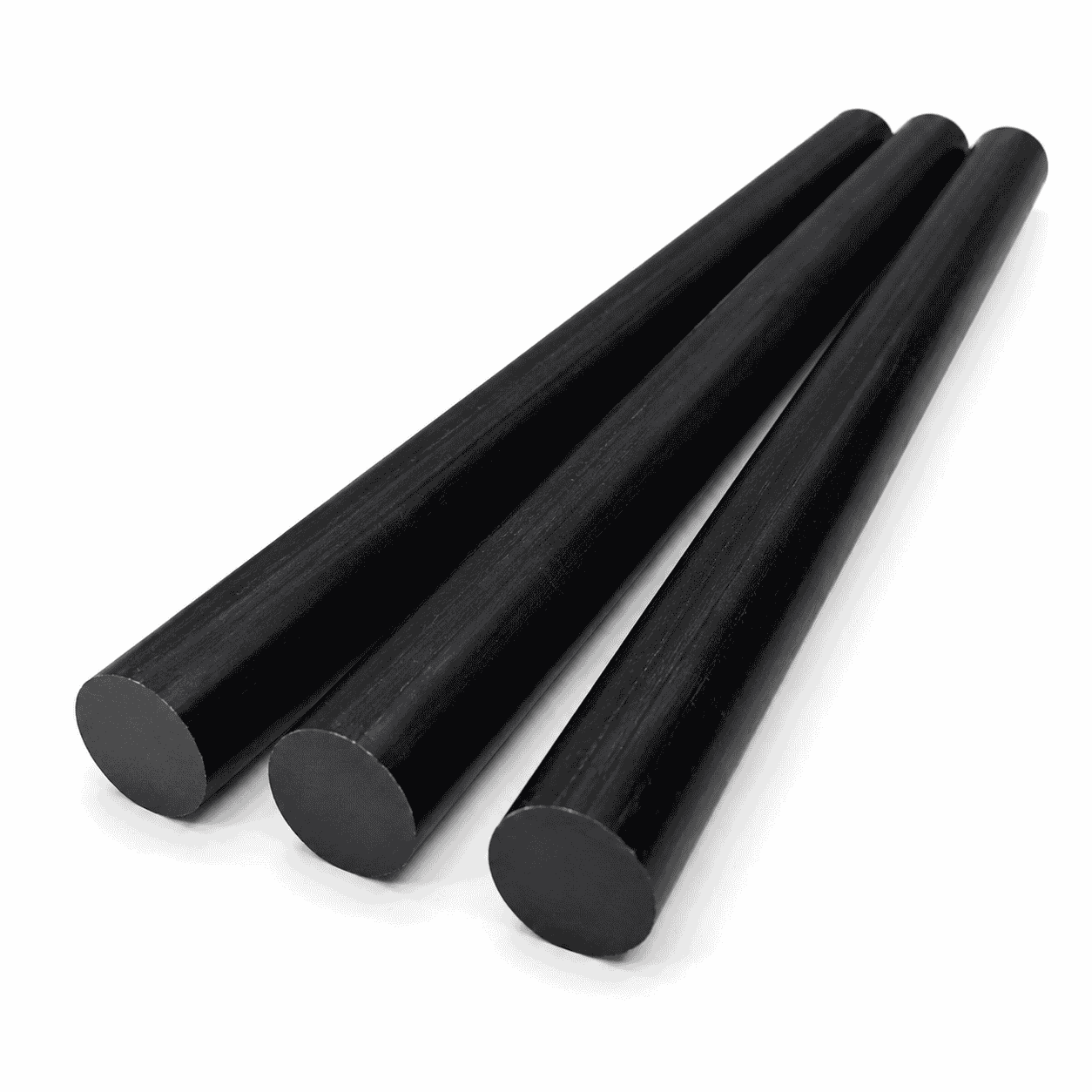

MoS2 Nylon Rod is a molybdenum disulfide filled nylon round bar designed for wear-resistant and low-friction industrial applications. It offers improved sliding performance, good mechanical strength and reliable machinability for bushings, gears, rollers, guide blocks and other moving parts. Reference sizes include available diameters from Φ20 to Φ200 mm, a standard length of 1000 mm, and larger or cut-to-length sizes upon request.
MoS2 Nylon Rod is a molybdenum disulfide filled nylon round bar developed for applications requiring improved wear resistance, lower friction and more stable sliding performance than standard unfilled nylon. By incorporating molybdenum disulfide (MoS2) into the nylon material, the rod becomes suitable for industrial parts exposed to repeated movement, friction and mechanical loading.
This material is commonly used for machined components such as bushings, bearings, wear pads, rollers, gears, guide parts and other moving mechanical elements. Compared with general nylon rod, MoS2 Nylon Rod can help reduce surface friction, improve dry-running behavior, lower stick-slip tendency and enhance wear performance in many sliding applications.
For more nylon rod grades and related engineering plastic materials, please visit our Polyamide PA and Nylon Rod page. For machining services of finished plastic parts, please visit our CNC Plastic Machining page. General material explanations are available from Wikipedia’s Nylon page and Wikipedia’s Molybdenum Disulfide page.
MoS2 Nylon Rod can be machined into many different industrial components, including:
This material is especially suitable for parts that need long service life, smooth operation and reduced maintenance in repeated sliding or rotating conditions.
The following dimensions are based on the reference sizes shown in the supplied image and can be used as reference specifications for product presentation:
| Item | Reference Specification |
|---|---|
| Product Type | MoS2 filled nylon rod / molybdenum disulfide nylon round bar |
| Available Diameters | Φ20–Φ200 mm |
| Common Diameters | Φ20, Φ25, Φ30, Φ40, Φ50, Φ60, Φ70, Φ80, Φ90, Φ100, Φ120, Φ150, Φ180 and Φ200 mm |
| Standard Length | 1000 mm |
| Custom Sizes | Larger diameters and cut-to-length sizes are available upon request |
Size notice: The dimensions above are reference sizes from the supplied image and are intended for product presentation. Actual production range, stock availability, machining allowance and tolerance should be confirmed before ordering. Other sizes and machined finished parts can also be produced according to drawings or samples.
MoS2 Nylon Rod is suitable for CNC turning, milling, drilling, boring, grooving, cutting and other machining operations. It can be processed into semi-finished or finished components according to customer drawings, samples and working conditions. Our CNC Plastic Machining service supports both sample making and batch production.
When machining nylon-based materials, moisture absorption, thermal expansion and working tolerance should be considered during design and processing. For high-precision applications, the final part dimensions and fit tolerance should be determined based on the real operating environment.
MoS2 Nylon Rod is a practical engineering plastic solution for customers who need a machinable nylon material with improved wear performance, lower friction and reliable service in sliding and rotating applications.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
