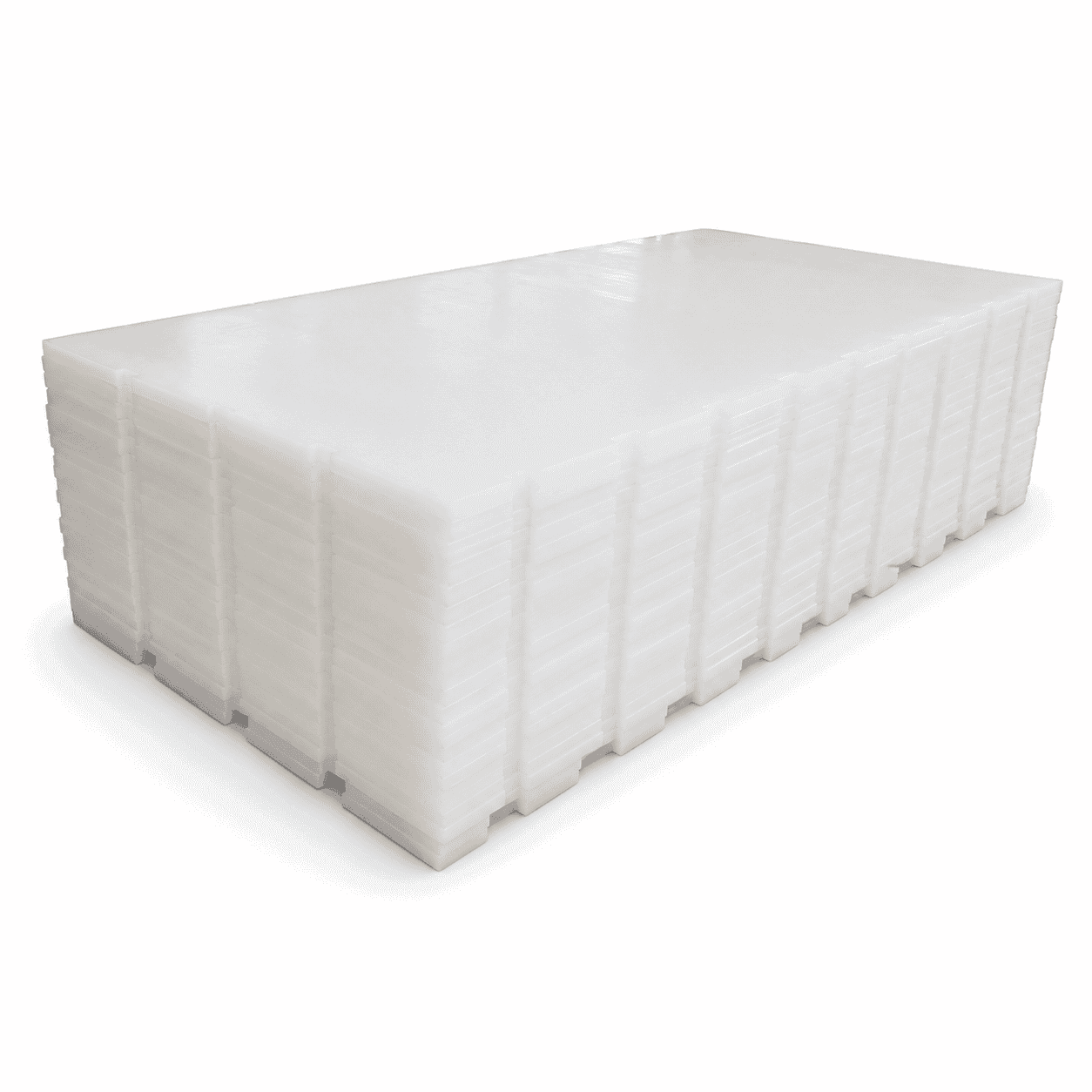

Polyethylene Interlocking Synthetic Ice Panel is a modular polymer flooring product designed for hockey training, skating instruction, recreational skating and seasonal entertainment facilities.
Common panel sizes include approximately 1000 × 1000 mm, 2000 × 1000 mm and 1220 × 2440 mm. Practical thickness options generally include approximately 10, 12, 15 and 20 mm, selected according to the panel dimensions, supporting-floor condition and expected skating frequency.
Precision-machined dovetail, puzzle or tongue-and-groove edges help align adjacent panels and reduce visible gaps or height differences. The panels should be installed on a clean, smooth, rigid and level supporting base.
Skating-grade UHMWPE or a specially formulated polyethylene material should be used rather than untreated general-purpose industrial sheet.
Polyethylene Interlocking Synthetic Ice Panel is a modular polymer flooring product designed to create a reusable skating surface for hockey training, skating instruction, recreational activities and seasonal entertainment facilities.
Each panel features a controlled skating surface and precision-machined connecting edges. Multiple panels can be joined to create compact training areas, private skating floors or larger recreational rinks.
The system does not require a continuously frozen layer of water or an underground refrigeration network. The panels are installed over a clean, rigid, smooth and level supporting base.
A professional Polyethylene Interlocking Synthetic Ice Panel should be manufactured from skating-grade UHMWPE or a specially formulated high-performance polyethylene material.
General-purpose industrial polyethylene sheet should not automatically be marketed as professional synthetic ice without appropriate material formulation, surface finishing, connection machining and skating-performance testing.
Synthetic ice is a solid polymer skating surface commonly assembled from interlocking panels and designed for use with normal metal-bladed ice skates. For a general explanation, visit the Synthetic Ice overview on Wikipedia.
Additional information about the primary material is available from the UHMWPE overview on Wikipedia.
A Polyethylene Interlocking Synthetic Ice Panel is a solid engineering-plastic floor section with a finished skating surface and accurately machined connection profiles.
The panels can use dovetail, puzzle, tongue-and-groove or another compatible interlocking structure.
Once assembled, the individual sections create a continuous skating surface for hockey practice, skating lessons and recreational activities.
The modular structure allows the skating area to be expanded, reduced, dismantled or relocated.
If one section becomes heavily worn or damaged, it can normally be removed and replaced without rebuilding the complete skating floor.
The polymer panels form the visible skating surface. They do not replace the structural floor or subfloor underneath the rink.
The Polyethylene Interlocking Synthetic Ice Panel can be manufactured in several practical dimensions and thicknesses.
Final specifications should be selected according to the total rink area, supporting-floor condition, transportation requirements and expected skating frequency.
| Product Name | Polyethylene Interlocking Synthetic Ice Panel |
| Primary Material | Skating-grade UHMWPE or formulated high-performance polyethylene |
| Square Panel Size | Approximately 1000 × 1000 mm |
| Rectangular Panel Size | Approximately 2000 × 1000 mm |
| Full Sheet Reference Size | Approximately 1220 × 2440 mm |
| Common Thickness Options | Approximately 10, 12, 15 and 20 mm |
| Connection Structure | Dovetail, puzzle, interlocking or tongue-and-groove edges |
| Standard Surface Color | White |
| Optional Marking Colors | Blue, red, yellow or rink-specific colors |
| Surface Finish | Controlled low-friction skating finish |
| Supporting Base | Prepared concrete, stable wood flooring or rigid structural platform |
| Main Applications | Hockey training, skating instruction and recreational skating |
| Installation Environment | Indoor and properly prepared outdoor locations |
The dimensions above are practical project references rather than fixed specifications for every installation.
Smaller square panels are generally easier to transport, carry and replace. Larger rectangular panels reduce the total number of joints but require additional handling space.
Thinner panels require an exceptionally flat and rigid supporting floor. Greater thickness can improve panel rigidity but also increases weight, material use and transportation requirements.
A professional synthetic ice panel requires more than a standard polyethylene sheet.
The selected material must provide a controlled response to metal skate blades. Resin grade, molecular weight, additives, molding conditions and surface finishing can all influence skating performance.
Skating-grade UHMWPE is commonly considered because it provides useful abrasion resistance, impact performance, low moisture absorption and naturally low friction.
Material type alone does not guarantee suitable skating performance. Surface flatness, machining accuracy, connection quality and supporting-floor condition must also be controlled.
A sample skating area should be tested before producing a complete commercial rink.
The visible surface of each Polyethylene Interlocking Synthetic Ice Panel should remain smooth, clean and dimensionally consistent.
The surface finish influences blade glide, turning response, stopping distance and the resistance experienced by the skater.
An excessively rough surface can increase friction. An unsuitable polished finish may also produce inconsistent blade response.
The finished surface should be inspected for deep scratches, raised areas, contamination and manufacturing defects.
Sand, exposed fasteners, sharp tools and metal fragments should be kept away from the skating floor.
The interlocking structure is one of the most important features of a modular synthetic ice floor.
Accurate CNC machining helps adjacent panels remain aligned while reducing gaps and noticeable height differences.
Dovetail connections use matching shaped profiles. Puzzle panels use interlocking perimeter forms, while tongue-and-groove designs use corresponding male and female edges.
The selected connection should provide reliable alignment without requiring excessive installation force.
Several panels should be trial-assembled before full production. Trial assembly verifies panel thickness, joint fit, seam width and surface alignment.
Dovetail profiles create a mechanical connection between adjacent sections and help maintain surface alignment.
The male and female profiles should fit consistently without excessive looseness.
A loose connection may allow movement or visible gaps. An excessively tight connection may make installation difficult and restrict normal dimensional movement.
Dovetail dimensions should be machined according to panel thickness, production tolerance and expected operating-temperature range.
Puzzle-style edges allow each panel to be installed in a clearly defined pattern.
This structure is suitable for portable, temporary and frequently relocated skating areas.
Narrow puzzle sections should retain enough material thickness to withstand repeated installation and dismantling.
The panels should be separated carefully. Sharp metal tools should not be forced into the connections because they may damage the machined edges.
A tongue-and-groove system uses corresponding male and female profiles along the panel edges.
The connection helps control horizontal alignment and reduces noticeable transitions between adjacent sections.
The profiles should be machined accurately and cleaned before installation.
Dirt, packaging material or polymer shavings trapped inside the groove can prevent complete engagement.
A smooth, rigid and level supporting base is essential for reliable installation and consistent skating performance.
Uneven ground may cause panel movement, raised joints and additional wear around the connection edges.
Suitable supporting surfaces can include:
The base should be inspected for cracks, loose material, standing water, sharp projections and obvious uneven areas.
Grass, soft soil, loose gravel and uneven asphalt should not be used without first installing a suitable structural subfloor.
No dirt, packaging material or loose particles should remain between the connection profiles.
Trapped debris can prevent full engagement and create a raised or unstable seam.
The completed floor should remain level and secure before skating begins.
Polyethylene expands and contracts as the surrounding temperature changes.
This dimensional movement becomes increasingly important on large skating surfaces and outdoor installations.
Suitable expansion clearance should be provided around walls, rink barriers, columns and other fixed structures.
The panels should not be tightly restricted in a way that prevents normal dimensional movement.
The required clearance depends on the total rink dimensions, material formulation, temperature range and interlocking design.
A Polyethylene Interlocking Synthetic Ice Panel system can create compact hockey-training areas or larger skating floors.
Common hockey exercises include:
Hockey goals, rebounders and suitable training obstacles can be positioned on the skating surface.
Equipment with exposed sharp metal edges should use protective pads to reduce the risk of scratching the panels.
The modular skating floor can support introductory skating lessons, balance exercises and basic figure-skating practice.
The floor layout can be arranged according to the available space and expected number of participants.
Suitable perimeter barriers should be installed where required to separate skaters from surrounding pedestrians and equipment.
The facility should provide controlled access, suitable supervision and sufficient clearance around the skating area.
The panel system can create a compact skating area in a suitable garage, private sports room or dedicated training building.
Example private layouts include approximately 4 × 3 m, 6 × 4 m and 10 × 6 m.
The location must provide a sufficiently rigid base and enough clearance for the intended skating and hockey exercises.
Goals, shooting targets and perimeter barriers should be positioned according to the available space.
The modular floor is suitable for locations where a conventional refrigerated rink is not practical.
Possible applications include:
The panels can form compact practice zones or larger recreational installations.
These dimensions are project examples rather than official competition specifications.
The final layout should consider user capacity, skating speed, turning space, access gates, perimeter protection and emergency routes.
Indoor installation reduces exposure to rain, leaves, sand and large temperature changes.
It also makes regular surface cleaning and joint inspection easier.
Indoor projects should consider lighting, ventilation, access control, perimeter barriers and emergency exits.
The supporting floor should remain dry, stable and level across the complete skating area.
A Polyethylene Interlocking Synthetic Ice Panel system can be installed outdoors when the supporting base, drainage and environmental conditions are properly prepared.
A UV-stabilized polyethylene formulation can be selected where prolonged sunlight exposure is expected.
The supporting platform should prevent water from collecting underneath the panels.
Outdoor surfaces require more frequent cleaning because sand, dust, leaves and other contaminants can increase wear and affect skating performance.
Expansion clearance and perimeter containment should be planned according to local temperatures and site conditions.
The skating surface should be swept or vacuumed regularly to remove dust, polymer shavings and loose particles.
A soft mop and suitable neutral cleaning solution can be used for deeper cleaning.
Sharp metal scrapers, aggressive solvents and highly abrasive tools should be avoided.
Oil, sand and sticky contamination should be removed before skating.
Panel joints should be inspected for trapped debris, movement, edge damage and uneven wear.
Metal skate blades should be inspected and sharpened when required.
Synthetic skating surfaces may create different blade-wear conditions from refrigerated ice.
Blade condition, skater weight, skating technique and surface cleanliness can influence skating performance.
Damaged or heavily burred blades should not be used because they may create unnecessary scratches.
One advantage of the modular structure is that an individual Polyethylene Interlocking Synthetic Ice Panel can be replaced separately.
A replacement section should use the same material formulation, thickness and connection profile as the surrounding floor.
Joint fit and surface height should be inspected after installation.
Depending on the remaining material thickness and panel structure, selected surfaces may be suitable for controlled professional resurfacing.
Suitability should be confirmed before any material is removed.

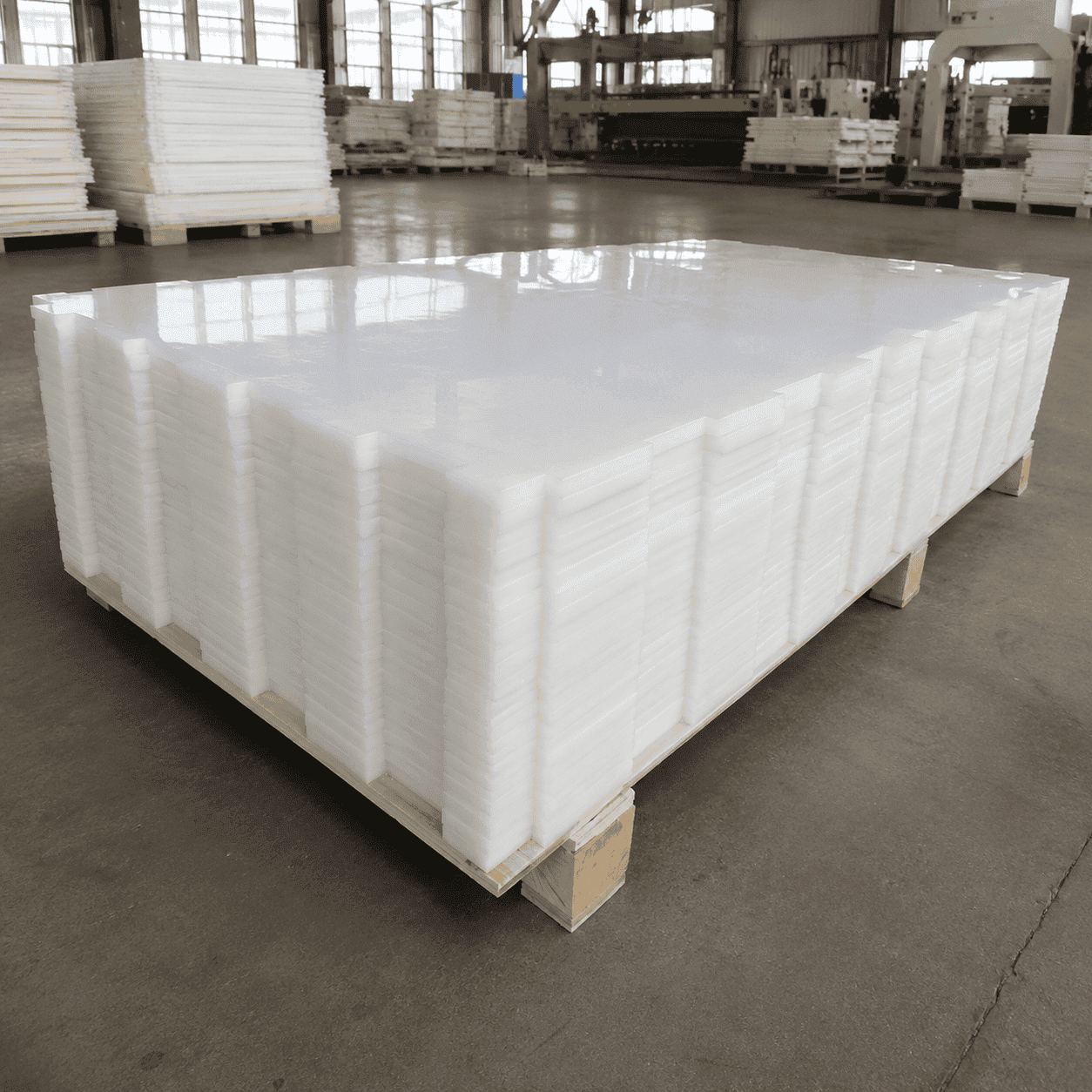

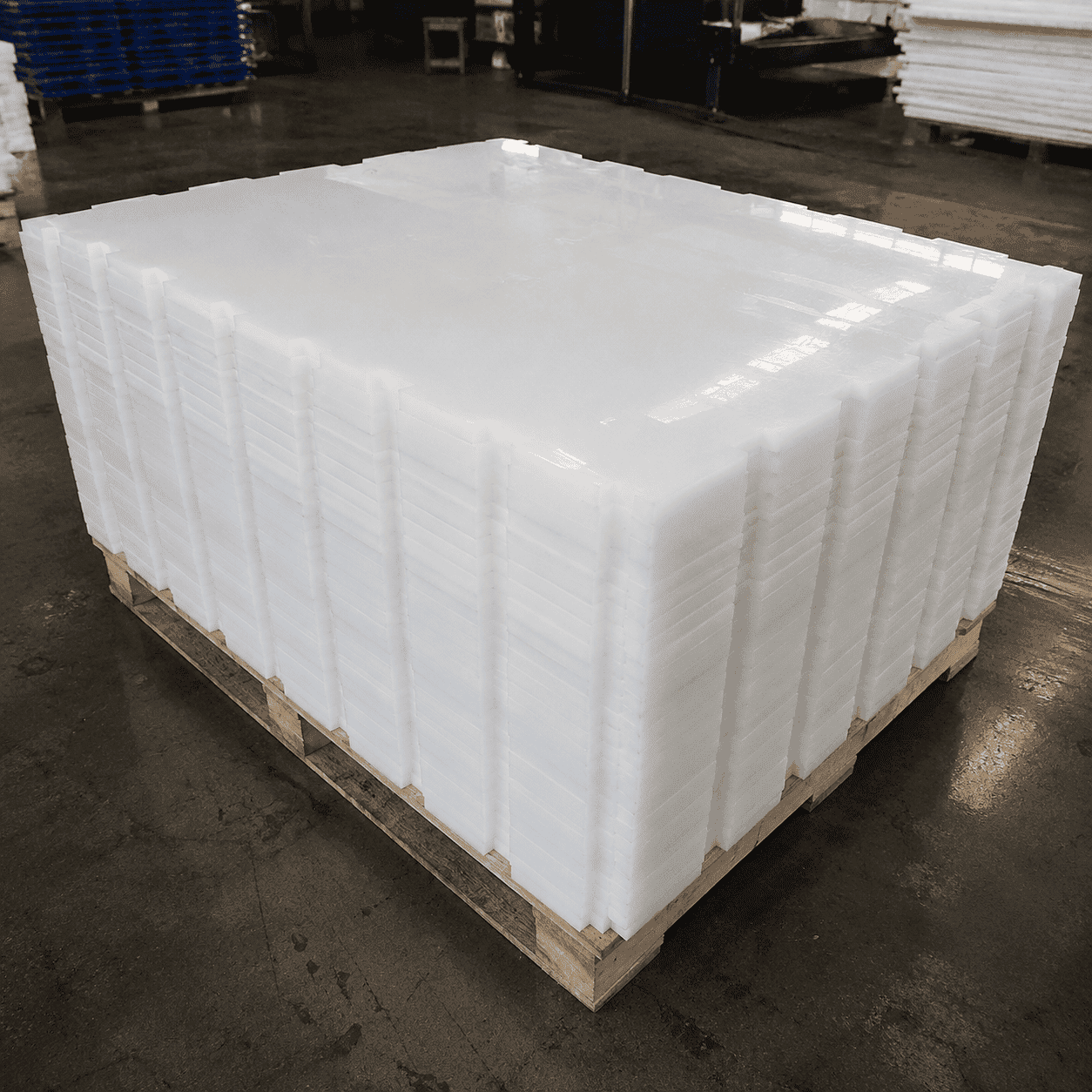

When the skating floor is dismantled, the panels should be cleaned and stored on a level supporting surface.
Uneven stacking or unsupported edges may cause bending or deformation.
The skating surfaces and machined connection profiles should be protected from scratches and impact.
Panels can be numbered according to their installation positions to simplify future assembly.
Protective separators can be positioned between finished surfaces during storage and transportation.
The Polyethylene Interlocking Synthetic Ice Panel can be produced through controlled compression molding, pressing or sheet-manufacturing processes.
The connection profiles are then machined according to the approved dovetail, puzzle or tongue-and-groove design.
Typical production operations include:
Important inspection items include:
Accurate dimensions and consistent thickness help reduce transitions between adjacent sections.
Protective packaging should support the panels evenly and protect every machined connection edge during shipment.
When selecting a Polyethylene Interlocking Synthetic Ice Panel, consider the total skating area, expected frequency of use, panel dimensions, material formulation and connection structure.
The installation environment and supporting-floor condition should also be evaluated.
Smaller panels are convenient for portable installations and individual replacement.
Larger panels reduce the number of seams but require more handling space and suitable lifting methods.
Thin panels require an exceptionally flat supporting base. Larger projects may require increased panel thickness or additional subfloor preparation.
A trial skating area should be evaluated with the intended skate type before producing the complete rink.
Learn more about our UHMWPE sheets, polyethylene panels and engineering-plastic manufacturing capabilities on the Honsee engineering plastic manufacturer website.
The Polyethylene Interlocking Synthetic Ice Panel provides a modular, reusable and wear-resistant skating surface for hockey training, skating instruction, recreational facilities and suitable indoor or outdoor rink projects.
