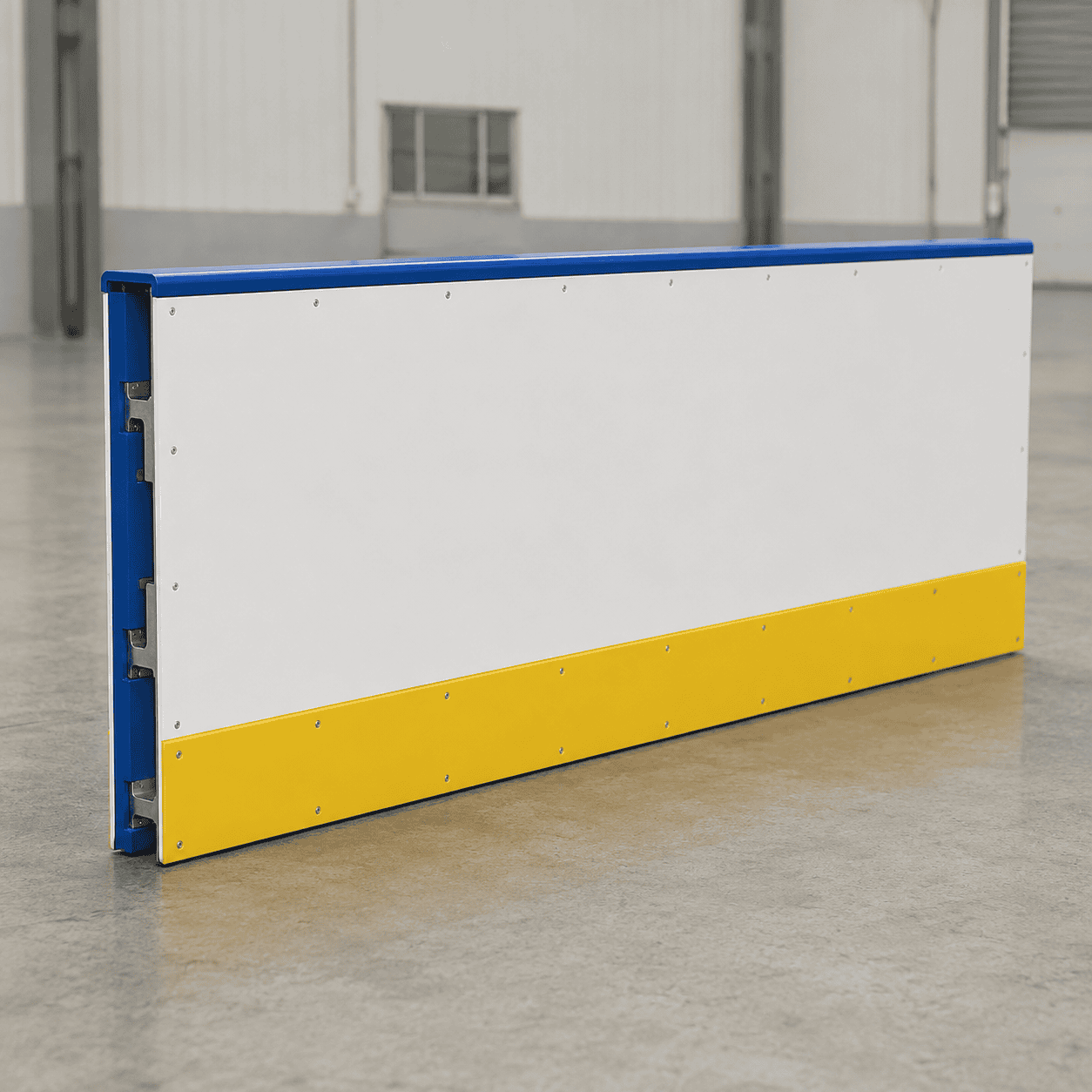

Removable Arena Dasher Board System is a modular perimeter barrier designed for sports exhibitions, temporary ice rinks, hockey training areas, synthetic ice facilities and seasonal skating venues. Straight sections, curved corner modules and access gates can be assembled before an event and dismantled for transportation or storage afterward.
The system can use smooth HDPE or UHMWPE facing panels with galvanized steel or lightweight aluminum supporting frames. Typical overall heights range from approximately 1000 to 1220 mm, common module lengths range from 1000 to 2400 mm, and polyethylene facing panels are generally available in thicknesses from approximately 8 to 15 mm.
Removable connectors, external supporting feet and optional transparent protective shielding make the system suitable for indoor sports shows, shopping centers, schools, hockey clubs and properly prepared outdoor venues.
Removable Arena Dasher Board System is a modular perimeter barrier designed for sports exhibitions, temporary ice rinks, synthetic ice facilities, hockey training zones and seasonal recreational skating venues. The complete structure combines smooth polyethylene facing panels with removable metal frames, straight sections, curved corner modules, access gates, top handrails, supporting feet and connecting hardware.
Unlike a permanently installed rink barrier, the complete system can be assembled before an event and dismantled after use. Individual modules can be transported, stored, replaced or rearranged according to the available arena dimensions and exhibition layout.
The skating-side facing panels are commonly manufactured from HDPE or UHMWPE engineering plastic. Galvanized steel or aluminum can be used for the supporting structure according to the required strength, module weight, installation frequency and transportation method.
An ice hockey rink is surrounded by low walls commonly known as boards or dasher boards. For general information about rink dimensions, rounded corners and perimeter-board construction, visit the Ice Hockey Rink overview on Wikipedia.
A Removable Arena Dasher Board System forms a continuous boundary around a temporary ice, synthetic ice or other compatible sports surface. Straight modules create the side and end sections, while curved, segmented or angled modules connect the corners.
Adjacent sections are normally joined using removable bolts, locking pins, connecting plates or mechanical clamps. Triangular braces, wide supporting feet or suitable floor anchors help maintain the alignment and stability of the barrier.
The removable structure is suitable for venues where a permanent rink wall is not practical. Common locations include sports shows, exhibition halls, shopping centers, schools, hockey clubs, hotels, seasonal entertainment venues and temporary public skating areas.
A complete removable arena barrier can include:
The final component arrangement should be selected according to the arena dimensions, intended sport, entrance position, supporting floor and required installation frequency.
The Removable Arena Dasher Board System can be produced in different dimensions according to the venue layout. The following values are common engineering reference ranges rather than fixed specifications for every project.
| Product Name | Removable Arena Dasher Board System |
| Facing Panel Material | HDPE or UHMWPE |
| Frame Material | Galvanized steel or aluminum |
| Typical Overall Height | Approximately 1000–1220 mm |
| Common Module Length | Approximately 1000–2400 mm |
| Facing Panel Thickness | Approximately 8–15 mm |
| Kick Plate Height | Approximately 150–250 mm |
| Kick Plate Thickness | Approximately 8–12 mm |
| Top Handrail Width | Approximately 50–100 mm |
| Single Access Gate Width | Approximately 800–1000 mm |
| Equipment Gate Width | Approximately 1200–1800 mm |
| Standard Facing Color | White |
| Optional Colors | Blue, yellow, red, black or event-specific colors |
| Corner Structure | Curved, segmented or angled modules |
| Installation Type | Removable, portable, seasonal or semi-permanent |
| Suitable Environment | Indoor and properly prepared outdoor venues |
The dimensions above should be confirmed according to the total arena size, expected impact level, user group, supporting-frame design and local venue requirements.
Compact exhibition rinks may use shorter and lighter modules for easier handling. Larger hockey or public-skating arenas may require stronger frames, additional supports and fixed anchoring positions.
HDPE provides good impact resistance, practical rigidity, low water absorption and reliable machining performance. It can be cut, drilled and countersunk according to the supporting-frame drawing.
The smooth white surface creates a clean arena appearance and provides space for removable advertising graphics or event branding. HDPE does not rust and is convenient to clean after an exhibition or skating season.
HDPE is commonly selected for recreational, temporary and commercial rink installations requiring a durable polyethylene facing panel.
UHMWPE provides enhanced abrasion resistance, strong impact performance and a naturally low-friction surface. It can be used for sections exposed to frequent puck, skate, equipment or sliding contact.
The material maintains useful toughness in cold conditions and absorbs very little moisture. It is suitable for frequently used arena sections and applications requiring improved wear performance.
Both HDPE and UHMWPE panels can be supplied with machined holes and countersunk fastener positions to help maintain a smooth skating-side surface.
Galvanized steel frames provide strength and stability for larger or frequently used arena systems. The zinc-coated surface helps protect the metal structure against moisture and corrosion.
Steel frames are suitable for exhibitions and seasonal venues that require a strong structure but still need to dismantle and store the complete system after use.
Frame-tube size, wall thickness, welding positions and supporting-foot design should be determined according to the overall barrier height, facing-panel dimensions and expected operating conditions.
Aluminum frames reduce the weight of individual modules and make repeated installation, dismantling and transportation more convenient.
This option is suitable for trade shows, commercial events and locations where the arena barrier is moved regularly. The aluminum structure must still provide adequate rigidity and stability for the selected panel dimensions.
The choice between aluminum and galvanized steel should consider module weight, transportation frequency, available labor, storage space and structural requirements.

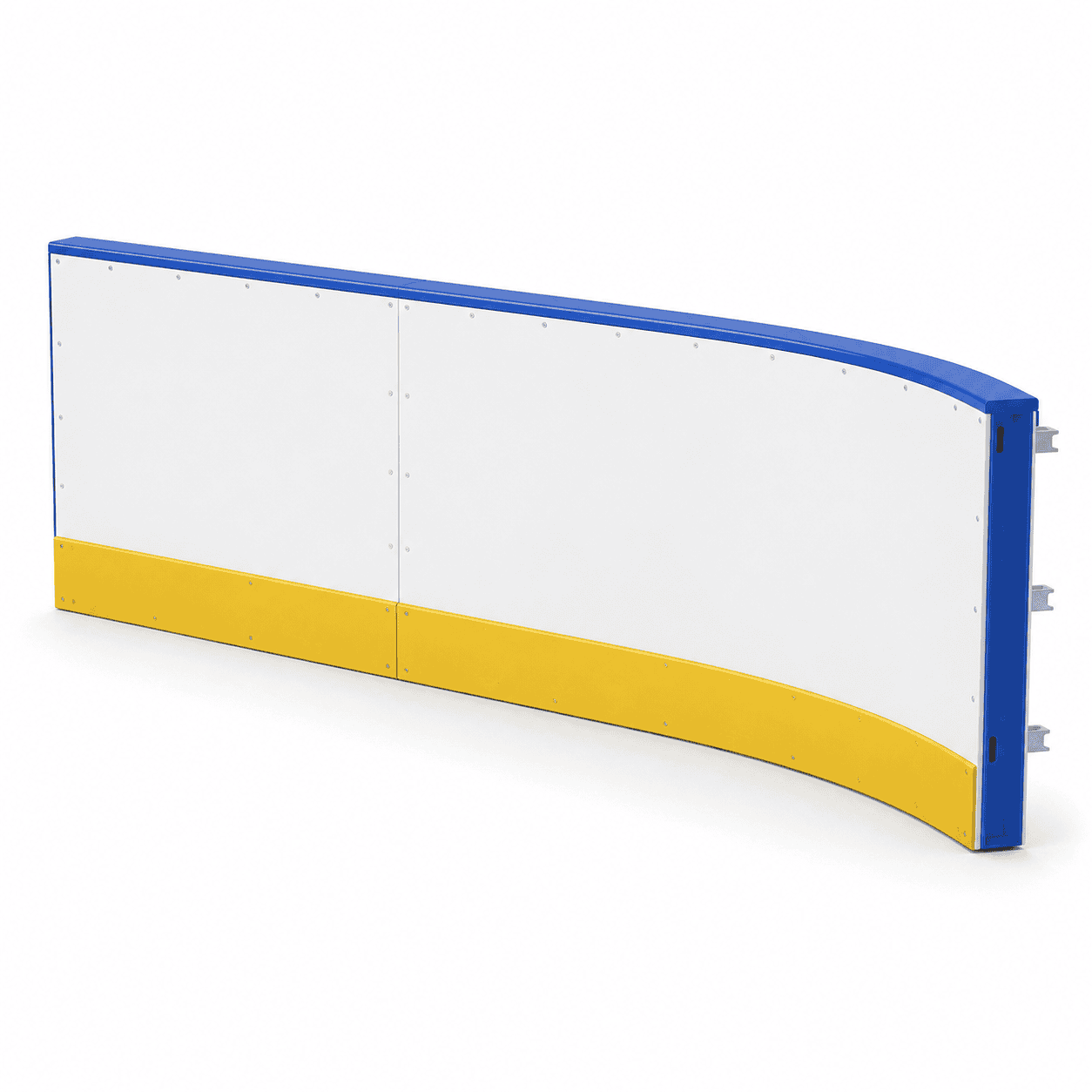

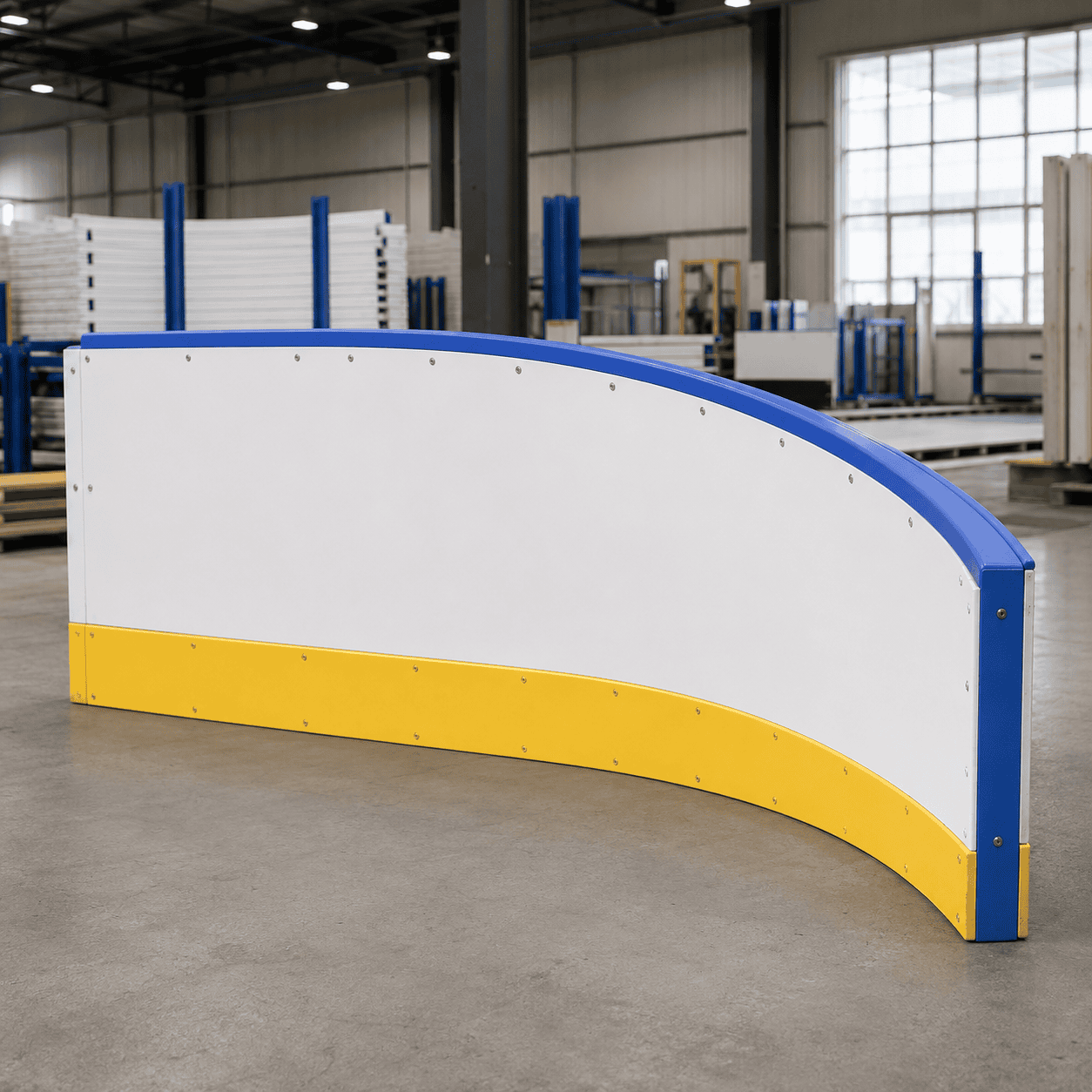

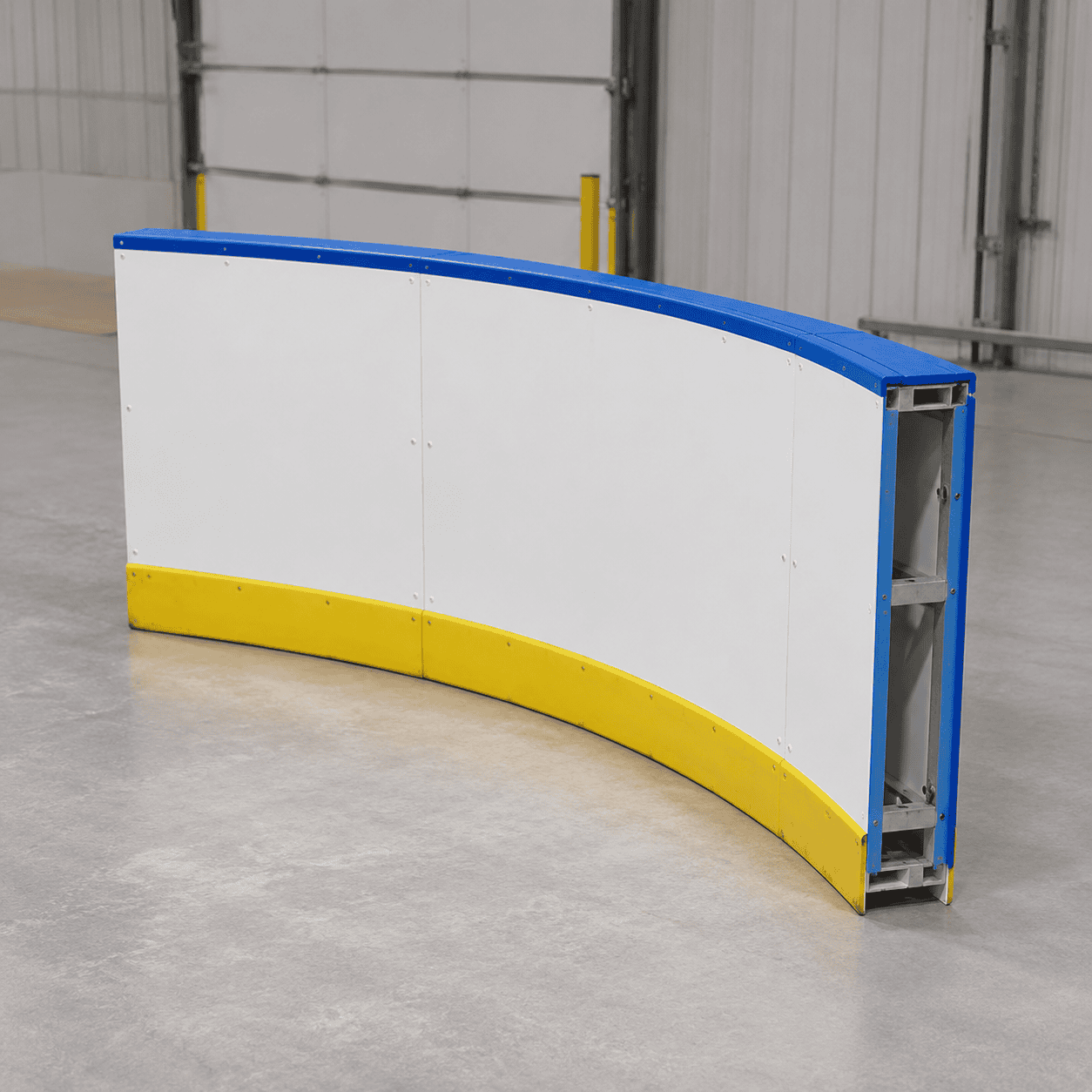

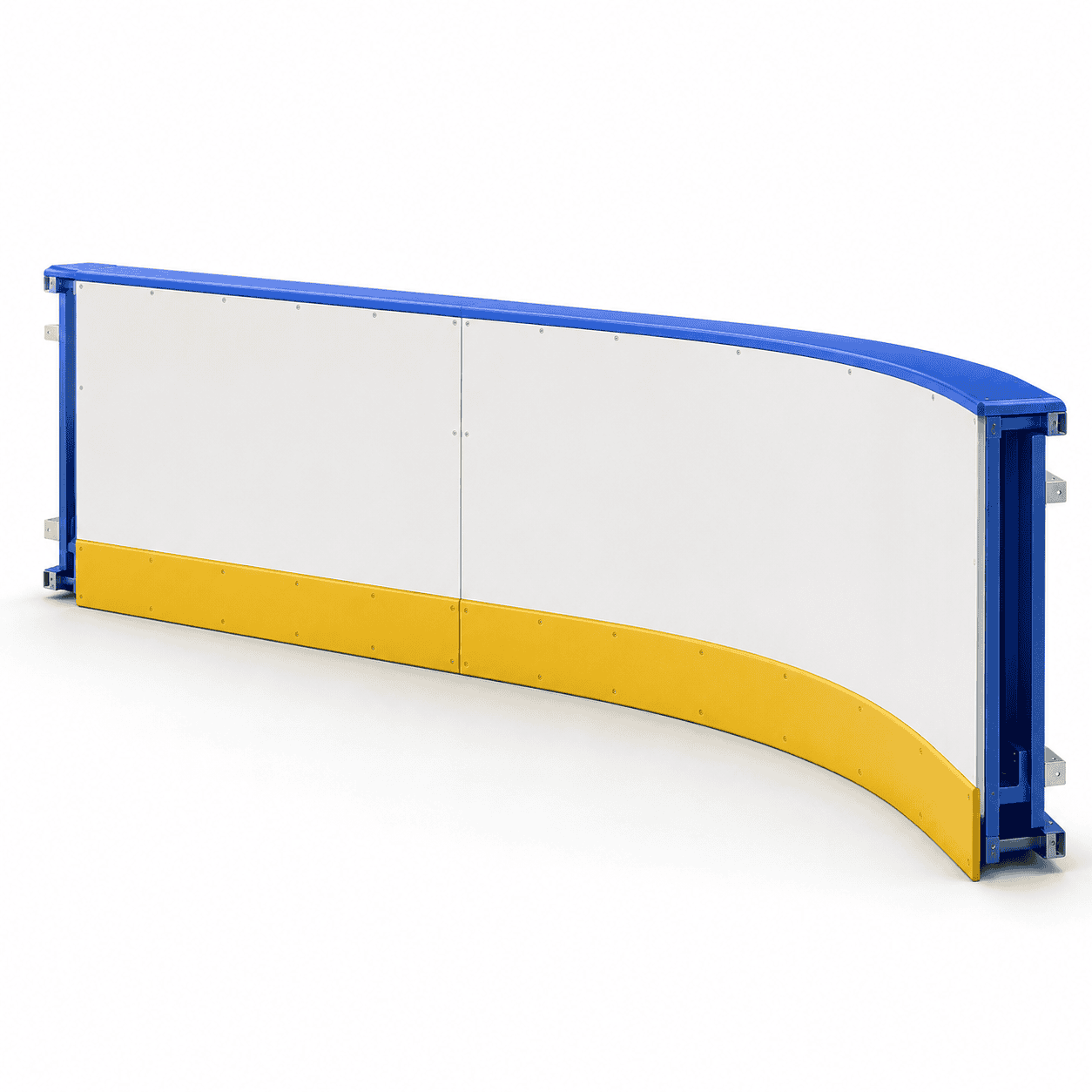

Curved corner sections create a smooth transition between the side and end boards. The corner structure can use specially manufactured curved frames or several shorter segmented modules.
The corner radius should be selected according to the arena dimensions and intended activity. Larger skating surfaces normally use wider curves, while compact exhibition rinks may use smaller segmented corners.
Each corner section should align correctly with the adjacent straight modules. Large gaps, exposed sharp edges and obvious height differences should be avoided on the arena side.
A colored kick plate can be installed along the lower section of the arena board. Yellow is frequently used for hockey-style rink layouts because it creates a clear visual boundary between the white board and skating surface.
Blue, red, black or other colors can be selected according to the event design. The kick plate can be removed and replaced separately if it becomes worn or damaged.
The top handrail covers the upper edge of the board system. It creates a finished appearance and helps protect the upper edge of the polyethylene facing panel.
A Removable Arena Dasher Board System can include access gates for players, performers, coaches, staff and maintenance personnel. A typical single-person opening may measure approximately 800–1000 mm wide.
Wider entrances measuring approximately 1200–1800 mm can be included for cleaning equipment, event materials, sports accessories and maintenance access.
Gate hinges, latches and frame connections should be aligned correctly so that the gate opens smoothly and closes securely. Gate positions should be confirmed before panel and frame production.
Acrylic or polycarbonate shielding can be installed above the dasher boards where additional puck containment or spectator separation is required.
The shielding height, thickness and post structure depend on the arena activity and venue requirements. Transparent panels are normally attached to aluminum or steel posts connected to the main frame.
Exhibition and recreational systems may use a different shielding arrangement from permanent professional hockey venues. The final design should be selected according to the intended application and local venue requirements.
The removable system is particularly suitable for sports exhibitions because it can create a complete demonstration arena inside an exhibition hall without permanently changing the building.
Typical applications include:
Advertising graphics, event information and sponsor branding can be applied to the white facing panels where appropriate.
The Removable Arena Dasher Board System can be configured for small demonstration areas or larger skating venues. Example footprints may include approximately 10 × 6 m, 15 × 8 m, 20 × 10 m or 30 × 15 m.
These dimensions are layout examples rather than official competition specifications. The final arena should consider corner radius, gate position, user capacity, surrounding clearance and emergency access.
Additional straight and curved modules can be added when the arena needs to be expanded. Selected long sections can also be divided into smaller transportable modules when permitted by the frame design.
Indoor systems are suitable for exhibition halls, shopping centers, sports centers, schools, hockey clubs and commercial entertainment venues.
The supporting floor should be level, stable and capable of carrying the complete barrier system. Pedestrian routes, emergency exits and maintenance access should remain clear after installation.
Rubber pads or suitable protective materials can be positioned beneath the supporting feet to reduce direct contact with finished exhibition flooring.
Outdoor systems can be used for seasonal events, temporary public skating areas and suitable sports demonstrations.
Outdoor installation should consider wind, rain, drainage, sunlight, temperature changes and anchoring. UV-stabilized polyethylene facing panels can be selected where extended sunlight exposure is expected.
Additional supports, anchors or ballast may be required according to the barrier height, wind exposure and local site conditions.
Before assembly, the arena outline should be measured and marked on the supporting floor. Straight sections, corner modules and gates can then be positioned before the final connectors are tightened.
All sections should be aligned to maintain a consistent height and smooth transition along the arena side. Bolts, locking pins, support feet and connecting plates should be inspected after the complete perimeter is assembled.
After the event, the system can be dismantled in reverse order. Smaller hardware should be labeled and stored with the corresponding modules to simplify the next installation.
Individual modules should be supported during transportation to protect the polyethylene facing panels, metal frames and connecting components.
Plastic panels should remain evenly supported during long-term storage. Stacking panels on an uneven surface may cause unnecessary bending or deformation.
Frames, gates, corner sections and accessories can be labeled according to their installation positions, reducing assembly time at the next venue.
The polyethylene facing panels can be cleaned using water, a soft cloth and a suitable neutral cleaning solution. Sharp metal scrapers and aggressive abrasive tools should be avoided.
Routine inspection should include the plastic panels, frame connections, supporting feet, bolts, gate hinges, handrails, transparent shielding and corner alignment.
Loose fasteners should be tightened before continued use. Damaged facing panels or unstable structural components should be repaired or replaced.
The facing panels are cut and machined according to the arena layout and metal-frame design. Processing may include cutting, drilling, countersinking, edge finishing and curved-section machining.
Panel inspection items include length, width, thickness, hole position, edge quality and visible surface condition.
Frame inspections can include overall module dimensions, welding quality, surface treatment, support alignment and gate operation. Trial assembly can be carried out before shipment to verify the connections between straight sections, corner modules and gates.
When selecting a Removable Arena Dasher Board System, consider the total arena dimensions, indoor or outdoor environment, installation frequency, required board height, frame material, gate configuration and available storage space.
Frequently transported systems may benefit from lightweight aluminum frames. Larger temporary arenas may prefer galvanized steel structures for increased strength and stability.
The plastic facing material should be selected according to expected wear, impact level and operating environment. Kick plates, handrails, gates, shielding and event graphics can then be configured according to the arena layout.
Learn more about our UHMWPE sheets, HDPE panels and engineering plastic processing capabilities on the Honsee engineering plastic manufacturer website.
The Removable Arena Dasher Board System provides a modular, reusable and convenient boundary solution for sports shows, temporary ice rinks, hockey demonstrations and seasonal recreational skating venues.
