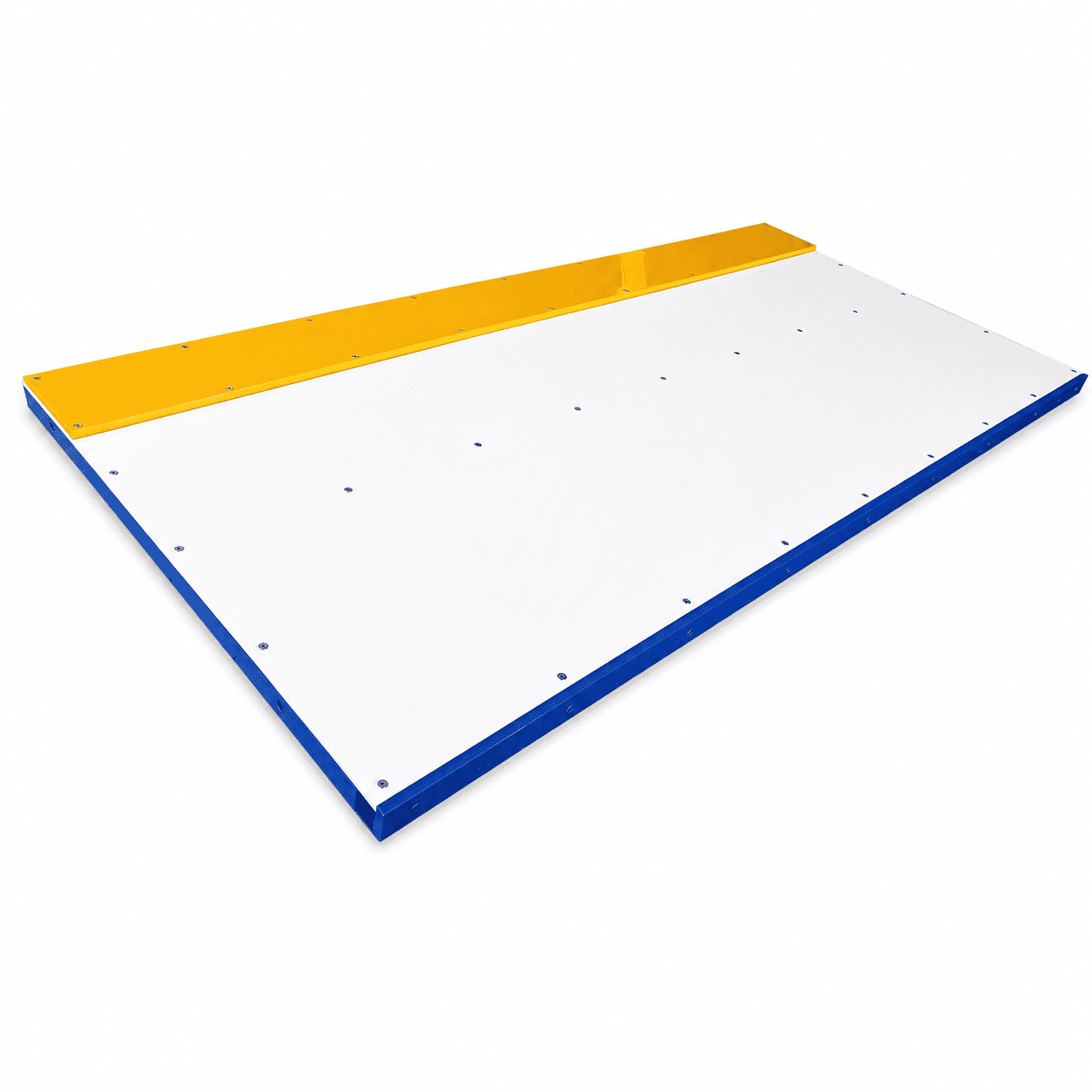

Synthetic Ice Hockey Skating Panels are manufactured from wear-resistant UHMWPE polymer material and designed to create a smooth skating and hockey training surface without conventional ice refrigeration equipment. The panels can be assembled using interlocking, puzzle-style or tongue-and-groove connection systems to form training areas of different sizes.
Typical panel sizes include 1000 × 1000 mm and 2000 × 1000 mm, with common thicknesses ranging from 10 mm to 20 mm. The smooth, low-friction surface is suitable for hockey shooting practice, stickhandling, goalie training, skating instruction, recreational skating and temporary indoor training rinks.
Synthetic Ice Hockey Skating Panels provide a practical polymer skating surface for ice hockey training, recreational skating and temporary ice rink installations. Manufactured from high-performance UHMWPE material, the panels combine excellent wear resistance, impact strength, low moisture absorption and a smooth skating surface.
Unlike conventional refrigerated ice surfaces, synthetic ice panels do not require water freezing, refrigeration pipes or continuous cooling equipment. Once installed on a flat and stable base, the panels can be used with standard metal-bladed hockey or figure skates. For a general explanation of the material and working principle, visit the Synthetic Ice overview on Wikipedia.
The skating panels are produced from ultra-high-molecular-weight polyethylene, commonly known as UHMWPE. This engineering plastic is widely selected for applications involving repeated sliding, abrasion and impact.
Compared with ordinary plastic sheets, UHMWPE offers a low-friction surface and high resistance to repeated skate-blade contact. Its low water absorption also helps the panels maintain stable performance in indoor skating areas, sports facilities, training centers and seasonal outdoor installations.
The material does not rust and is resistant to many common chemicals and cleaning agents. These characteristics make the panels easier to clean and maintain than many traditional flooring materials.
Synthetic ice panels can be supplied in several practical dimensions according to the required skating area and installation method. Common commercially used specifications include:
| Material | UHMWPE or high-performance polyethylene |
| Typical Panel Size | 1000 × 1000 mm |
| Large Panel Option | 2000 × 1000 mm |
| Common Thickness | 10 mm, 12 mm, 15 mm and 20 mm |
| Practical Thickness Range | Approximately 8–30 mm, depending on the installation structure |
| Connection Type | Interlocking edge, puzzle joint or tongue-and-groove joint |
| Typical Color | White; other rink-layout colors may be selected according to the project |
| Surface | Smooth skating surface with machined or molded joint edges |
The final panel size, thickness and connection system should be selected according to the total skating area, supporting floor condition, expected training frequency and installation environment. Larger panels can reduce the number of joints, while smaller interlocking panels are generally easier to transport, replace and assemble.
The connection system is an important part of a synthetic skating surface. Properly machined interlocking edges help keep adjacent panels aligned and reduce height differences between joints.
Depending on the panel design, the skating boards can use puzzle-shaped edges, straight tongue-and-groove joints or concealed connection structures. The complete surface should be installed on a level, solid and clean base such as concrete, wood flooring or another suitable structural platform.
Before installation, the supporting floor should be inspected for uneven areas, loose material and surface contamination. Correct base preparation helps improve panel alignment and provides a smoother transition between individual skating boards.
These synthetic skating panels are suitable for a wide range of hockey and skating applications, including:
For professional hockey training, the panels can be installed as a focused shooting or goalie practice zone. For recreational facilities, multiple panels can be connected to form a larger skating surface according to the available floor area.
During skating, small plastic shavings may appear on the surface because of contact between the skate blades and polymer panels. The skating area should be swept or vacuumed regularly to remove loose particles.
The surface can also be cleaned using a soft mop and a suitable neutral cleaning solution. Abrasive cleaning tools should be avoided because they may affect the smooth skating surface. Skate blades should be inspected and sharpened when necessary, as synthetic surfaces may require more frequent blade maintenance than conventional ice.
The panels are produced using controlled molding or sheet-manufacturing processes and then machined according to the required connection design. Important inspection items include panel dimensions, thickness consistency, surface flatness, joint alignment and edge condition.
Before shipment, panels should be assembled for joint inspection when required. This helps verify that adjacent sections fit correctly and that the connection edges are free from excessive gaps or obvious height differences.
Learn more about our UHMWPE production and engineering plastic manufacturing capabilities on the Honsee UHMWPE manufacturer website.
When selecting Synthetic Ice Hockey Skating Panels, consider the total rink dimensions, training intensity, installation base, panel thickness and preferred connection system. A stable supporting floor and correctly aligned joints are essential for achieving a smooth and reliable skating surface.
UHMWPE synthetic ice panels provide a durable solution for hockey clubs, training centers, sports facilities, schools and recreational venues that need a reusable skating surface without installing a complete refrigerated ice system.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
