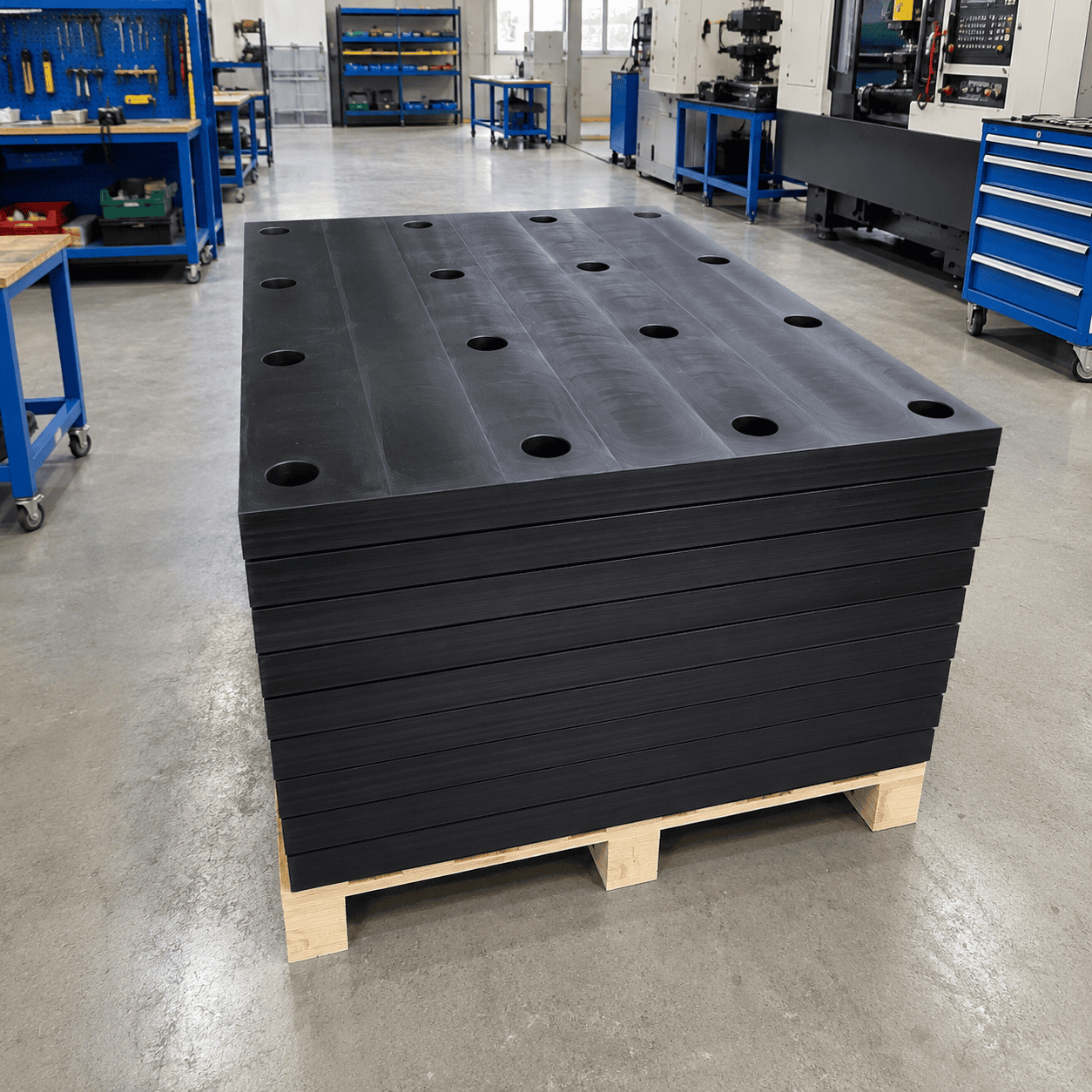

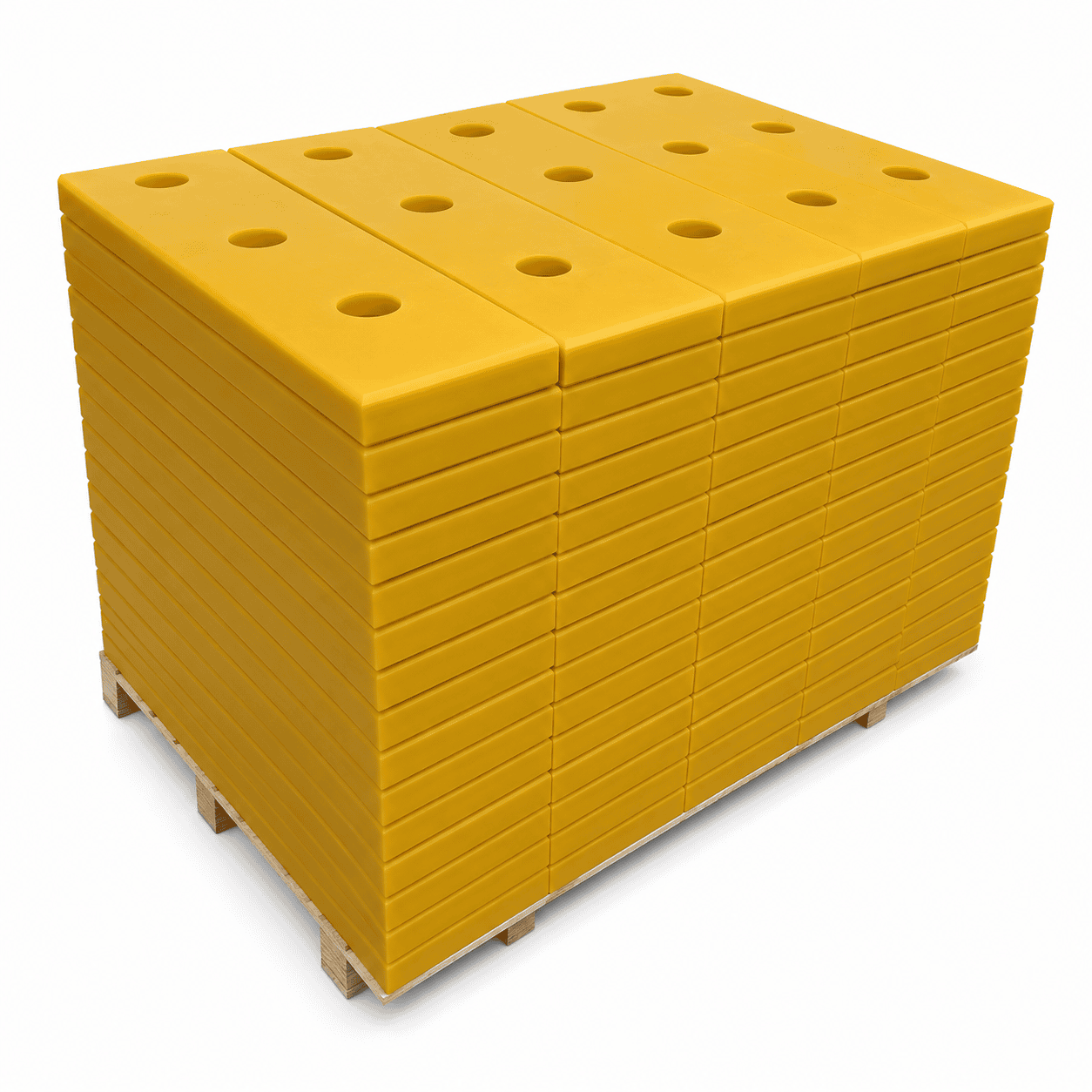

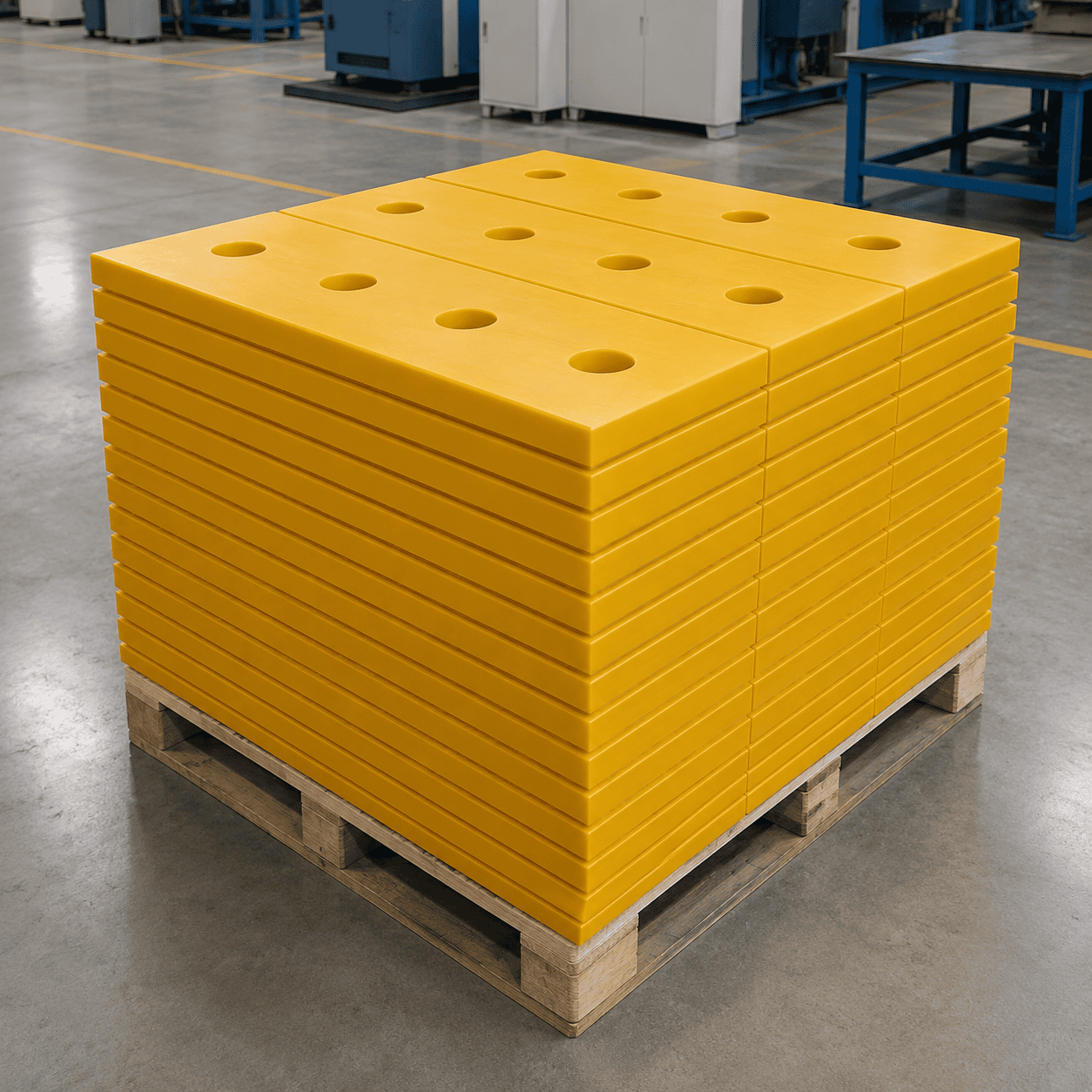

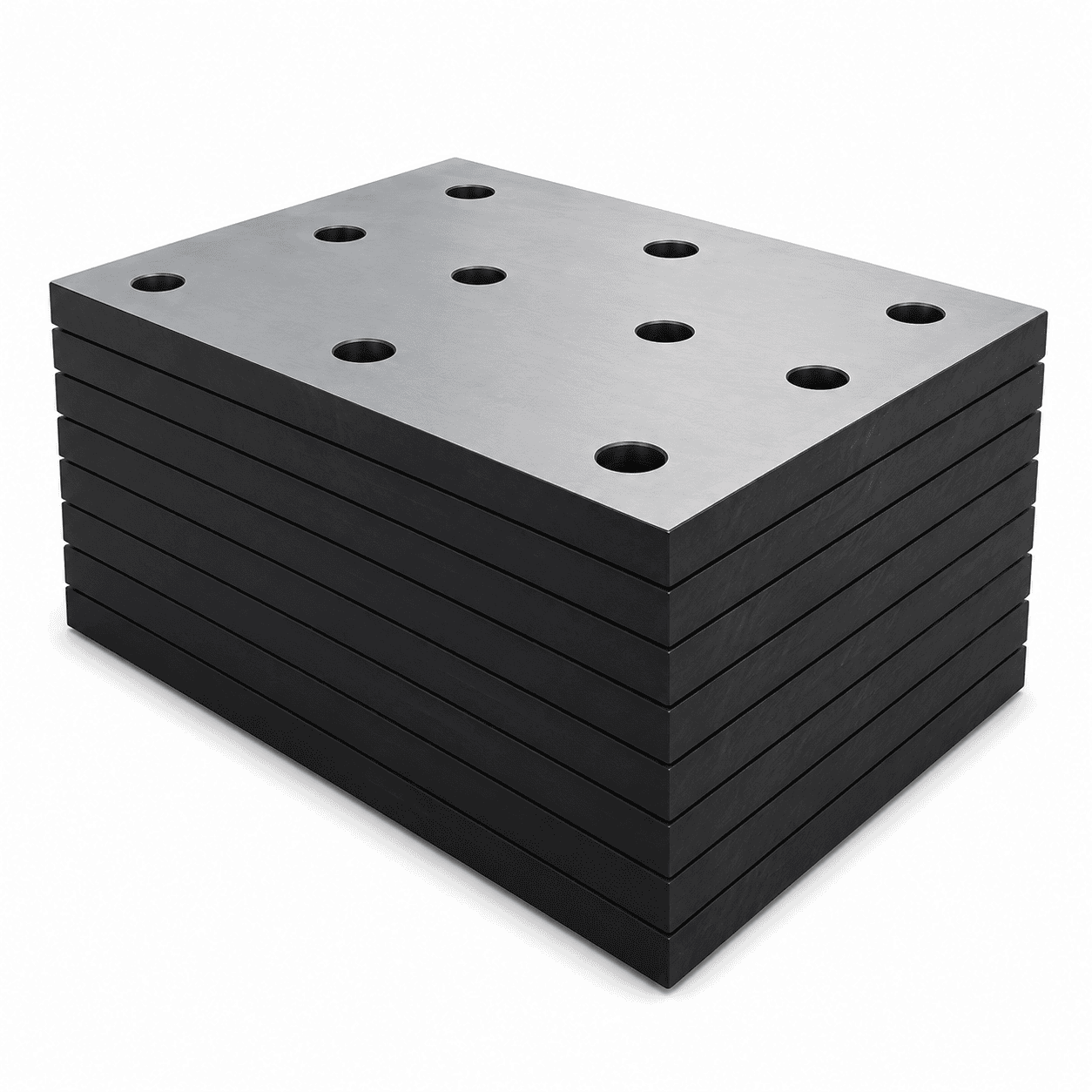

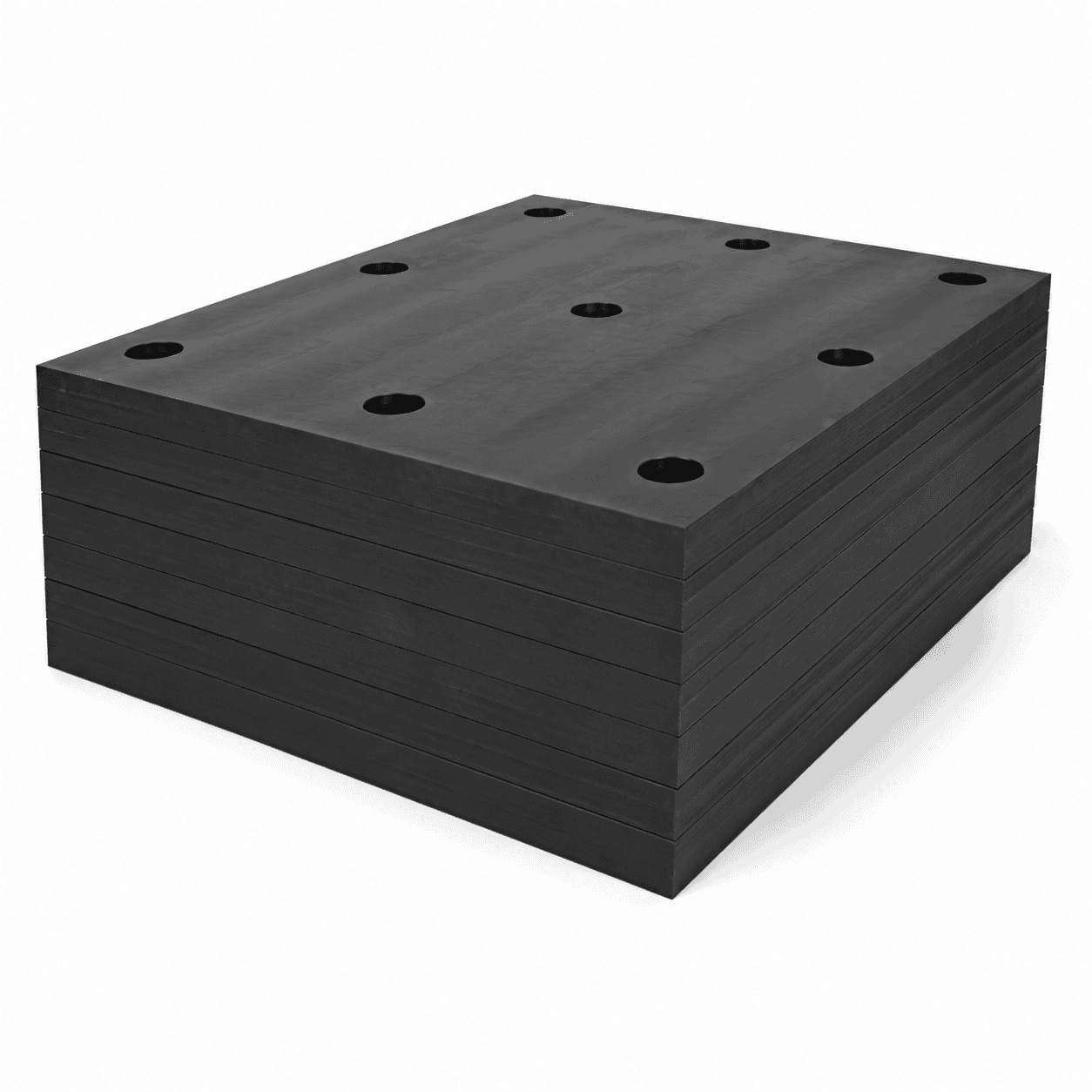

UHMWPE Marine Fender Facing Panel is a durable low-friction marine engineering plastic panel designed for quay walls, mooring dolphins, berthing structures and dock fender systems. Made from ultra-high molecular weight polyethylene, it offers excellent wear resistance, strong impact resistance, very low water absorption and reliable performance in seawater environments. Different sizes, thicknesses, mounting holes and machined structures can be produced according to drawings and marine project requirements.
UHMWPE Marine Fender Facing Panel is a durable marine engineering plastic component designed for quay walls, mooring dolphins, berthing structures, dock fender systems and other vessel protection applications. Made from ultra-high molecular weight polyethylene, the panel combines excellent wear resistance, low friction, strong impact toughness, very low water absorption and reliable performance in wet and seawater environments.
Quay walls and mooring dolphins are regularly exposed to vessel contact, sliding movement, impact, seawater, humidity and outdoor weather conditions. The contact surface of a marine fender system may experience repeated friction during vessel berthing and mooring operations. A UHMWPE facing panel provides a durable and replaceable surface between the vessel and the fender structure.
The low-friction surface helps reduce sliding resistance when a vessel moves vertically or horizontally against the fender system. At the same time, the wear-resistant material helps protect rubber fenders, steel support frames and other marine structures from repeated surface contact.
Compared with ordinary metal contact plates, UHMWPE facing panels are lighter and do not rust. Compared with many conventional plastic materials, ultra-high molecular weight polyethylene provides a practical combination of wear resistance, impact toughness and low-friction performance.
The panel can be supplied as a simple flat board or processed with mounting holes, counterbores, countersunk holes, chamfered edges, rounded corners and other structures according to marine engineering drawings.
Customers looking for related products can also visit our UHMWPE Sheet, UHMWPE Fender Facing Panel and CNC Plastic Machining pages.
A UHMWPE Marine Fender Facing Panel is a protective plastic board installed on the contact surface of a marine fender system. Its main purpose is to provide a durable, wear-resistant and low-friction interface between a vessel and the berth protection structure.
The panel is commonly mounted on:
During vessel contact, the facing panel becomes the direct wear surface. The panel helps reduce direct contact with harder structural components and provides a replaceable layer for long-term maintenance.
Common structural features include:
The final panel structure is normally produced according to the fender type, vessel size, contact conditions, installation layout and project drawings.
One of the main reasons UHMWPE is widely used in marine fender systems is its excellent wear resistance.
Quay wall and mooring dolphin protection systems may experience frequent vessel movement. During berthing, the vessel can slide against the front surface of the fender system.
A durable facing panel helps protect:
The facing panel can also serve as a replaceable wear component. This allows the worn contact surface to be inspected and replaced without changing the complete fender system.
Ultra-high molecular weight polyethylene has a naturally low coefficient of friction.
This characteristic is especially important in marine fender systems because a vessel may move against the panel during tidal changes, loading operations and berthing movement.
The low-friction surface can help:
The actual friction performance depends on vessel surface, contact pressure, installation angle and operating conditions.
Marine fender systems are exposed to repeated vessel contact and impact.
UHMWPE provides strong toughness and impact resistance for many demanding marine applications.
The correct panel design should consider:
The UHMWPE facing panel works together with the rubber fender and support structure. The complete system should be evaluated when selecting the final panel specification.
Unlike ordinary steel plates, UHMWPE does not rust in seawater environments.
This makes the material suitable for applications involving:
The rust-free contact surface can help reduce corrosion-related maintenance compared with some metal alternatives.
UHMWPE absorbs very little moisture.
This helps the material maintain stable performance in wet, humid and marine environments.
Very low water absorption is especially useful for quay walls and mooring dolphins where the panels may remain exposed to seawater and rain for long periods.
UHMWPE facing panels are lighter than many metal contact plates.
Lower weight can make individual panels easier to:
This is useful for larger marine fender systems where multiple panels may need to be installed.
Direct contact between hard metal surfaces can create noise and vibration.
A plastic facing panel can help reduce impact noise in selected marine contact applications.
The actual result depends on the complete fender structure, contact load and operating conditions.
UHMWPE Marine Fender Facing Panels can be processed according to marine engineering drawings.
Common machining methods include:
This processing flexibility allows the finished panel to match different quay wall, dolphin and fender installation structures.
Quay walls are one of the main application areas for UHMWPE marine facing panels.
The panel can be installed on the front surface of a rubber fender or steel support frame to provide a durable contact face for vessels.
It may help protect:
The panel can also act as a replaceable wear surface in the complete quay wall protection system.
Mooring dolphins are independent marine structures used in vessel mooring and berth arrangements.
Selected dolphin structures may require protective panels in areas where vessels or marine components experience repeated contact.
UHMWPE facing panels are suitable for these environments because they provide:
The final panel layout should match the dolphin structure and vessel contact direction.
Berthing dolphins are designed to manage vessel contact as part of a berth system.
UHMWPE facing panels can be installed on fender assemblies mounted to the dolphin structure.
The rubber fender helps absorb energy, while the plastic panel provides a low-friction contact surface.
Marine rubber fenders are commonly combined with UHMWPE facing panels.
The two components perform different functions:
This combination is widely used in modern ports and terminals.
Container terminals often experience frequent vessel movement.
A durable facing panel can provide a replaceable contact surface for high-use berthing positions.
The correct thickness and mounting structure should be selected according to vessel size and fender design.
Cargo terminals and industrial ports may use UHMWPE panels for vessels involved in loading, unloading and material handling operations.
Repeated vessel movement makes wear resistance and low-friction performance important for selected fender contact surfaces.
Passenger terminals and ferry berths may also use marine facing panels in regular vessel contact areas.
The low-friction surface can help provide a practical contact interface during repeated arrivals and departures.
Quay wall fender systems require a durable contact surface capable of handling repeated vessel movement.
A UHMWPE facing panel can provide:
The panel can be mounted on a steel frame, rubber fender structure or other support system according to the berth design.
For larger structures, several individual panels may be arranged together to create a wider contact surface.
Mooring dolphin applications may require different panel structures from conventional quay wall systems.
The product can be designed according to:
The panel may be installed as a single piece or as part of a multi-panel assembly.
Different hole positions and thicknesses can be selected according to the complete marine structure.
A single-panel structure uses one UHMWPE facing board as the main contact surface.
This type of arrangement may be suitable for smaller marine fender systems or compact contact areas.

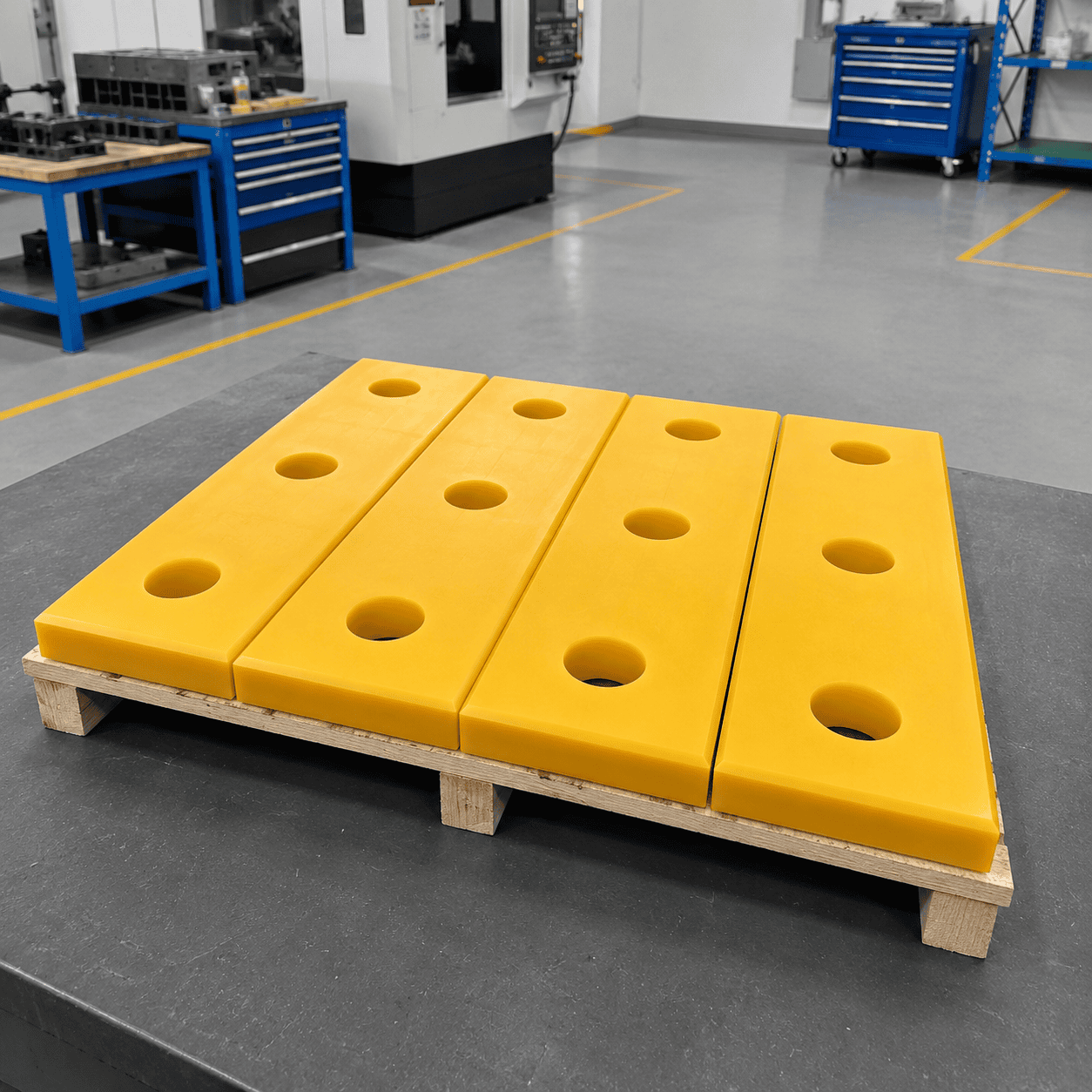

A multi-panel design uses several UHMWPE sections mounted on one support frame.
This design can provide:
The final arrangement should be selected according to the complete engineering design.
UHMWPE Marine Fender Facing Panels can be produced according to drawings, samples and marine project specifications.
Customers can provide:
These details help determine the suitable raw material size, machining process and installation structure.
For more information about processing capabilities, visit our CNC Plastic Machining page.
The facing panel can be supplied in different dimensions and thicknesses.
The correct specification depends on:
Large systems may use one large panel or several smaller sections.
The panel thickness should be selected according to the contact conditions, support spacing and installation design.
Different marine installations require different machining details.
Common structures include:
Complete technical drawings help ensure that the finished panel matches the support structure and installation hardware.
The panel dimensions should match the quay wall, mooring dolphin or fender support structure.
Different vessel sizes may create different contact conditions and require different panel specifications.
The panel coverage area should match the expected vessel contact zone.
The correct thickness depends on support spacing, contact pressure and installation method.
Hole positions and hardware should match the support frame.
Facing panels may function as wear components. The installation system should allow practical inspection and replacement.
Saltwater, sunlight, humidity and long-term outdoor exposure should be considered during material and structure selection.
In selected marine applications, UHMWPE facing panels can provide several practical advantages over metal contact surfaces.
However, the complete marine fender system should always be designed according to actual engineering requirements.
Different engineering plastics provide different performance characteristics.
UHMWPE is often selected for quay wall and mooring dolphin applications because it offers:
For related raw material options, customers can also view our UHMWPE Sheet products.
For general information about ultra-high molecular weight polyethylene, you can read the UHMWPE overview on Wikipedia.
You can also review the Polyethylene material reference from Encyclopaedia Britannica.
These external links do not include a nofollow attribute and can therefore be treated as DoFollow links by search engines.
This marine engineering plastic panel provides a practical combination of:
These characteristics make the panel suitable for quay walls, mooring dolphins, berthing dolphins, marine rubber fenders, ports, terminals and other vessel protection systems.
It is commonly used as a wear-resistant and low-friction contact panel for quay walls, mooring dolphins, marine fenders and vessel protection systems.
Yes. The panel can be processed according to the dolphin structure, mounting layout and vessel contact area.
Yes. Quay wall fender systems are one of the main applications for UHMWPE facing panels.
Yes. Standard holes, counterbored holes, countersunk holes and other mounting structures can be processed according to drawings.
Yes. The material does not rust and has very low water absorption.
Yes. Different thicknesses can be selected according to vessel contact conditions, support spacing and fender system design.
Yes. Multi-panel layouts are commonly used for larger contact areas and complex marine structures.
Yes. Panels can be produced according to 2D drawings, 3D models, physical samples and complete marine project specifications.
UHMWPE Marine Fender Facing Panel is a durable marine engineering plastic component designed for quay walls, mooring dolphins, berthing structures and marine fender systems.
It combines excellent wear resistance, low friction, strong impact toughness, very low water absorption and reliable performance in seawater environments.
The panel can be processed with mounting holes, counterbores, chamfers, rounded corners and other structures according to marine engineering drawings.
Different thicknesses, sizes, panel layouts and installation structures can be selected according to vessel requirements and berth design.
For related products and processing services, customers can also visit our UHMWPE Sheet, UHMWPE Fender Facing Panel and CNC Plastic Machining pages.
