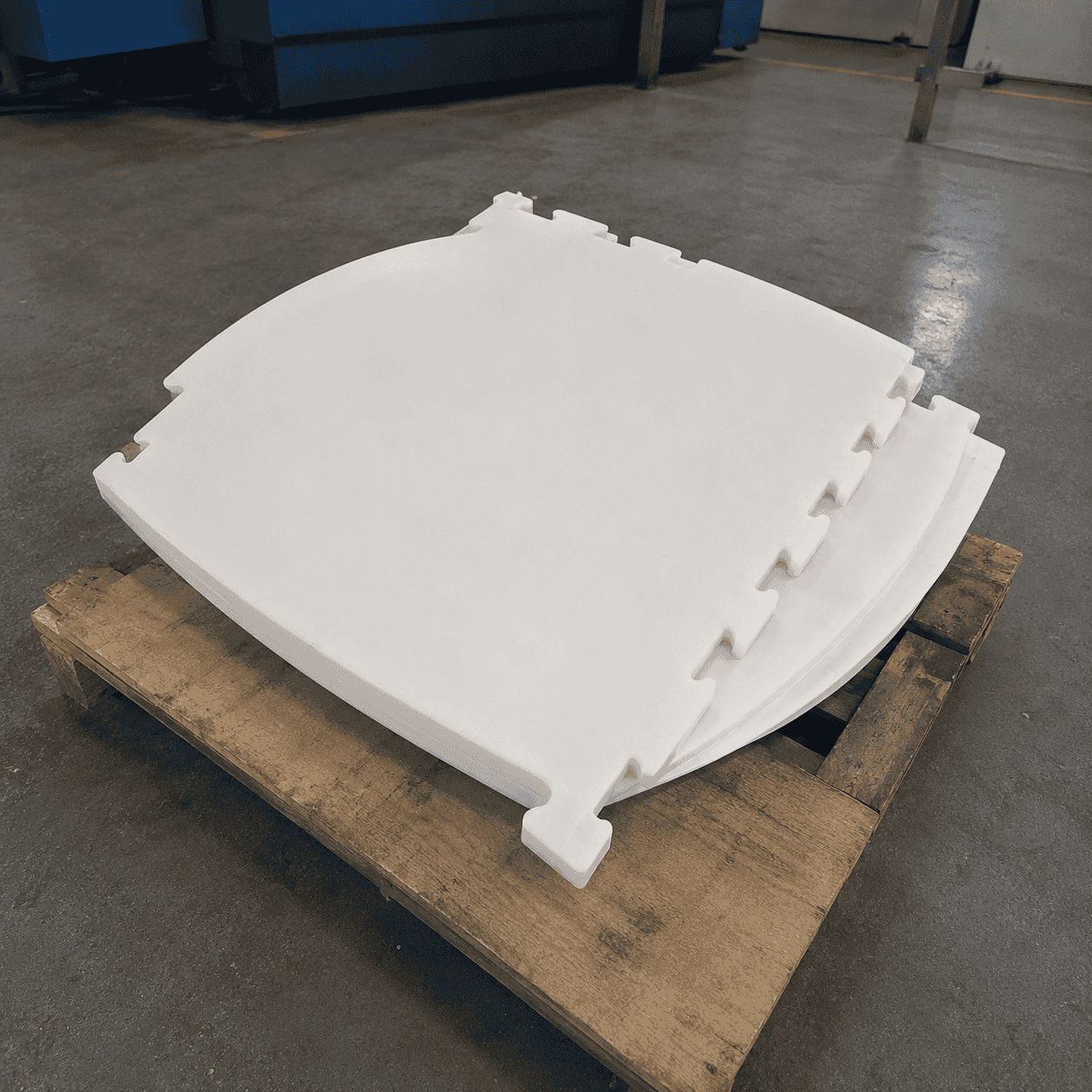

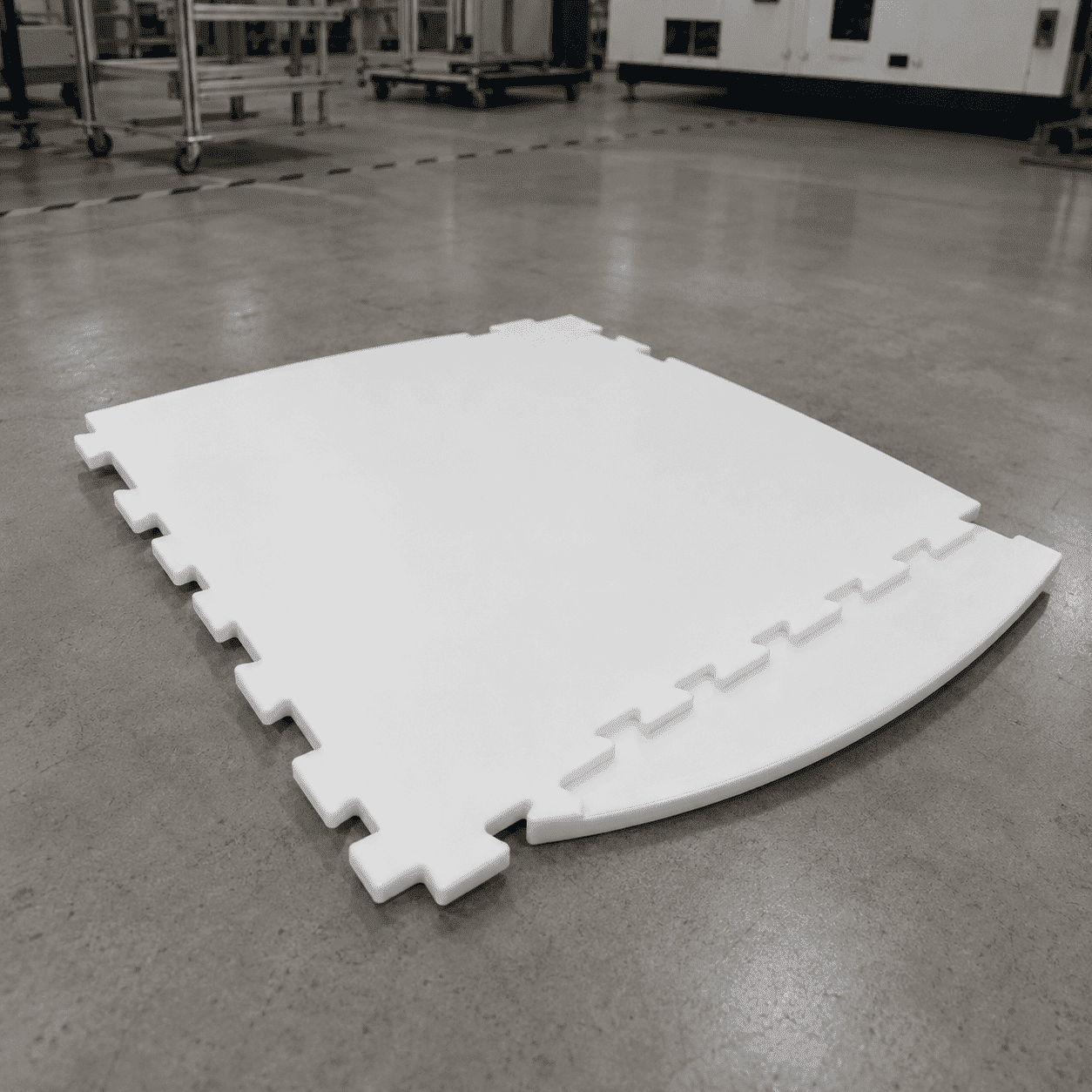

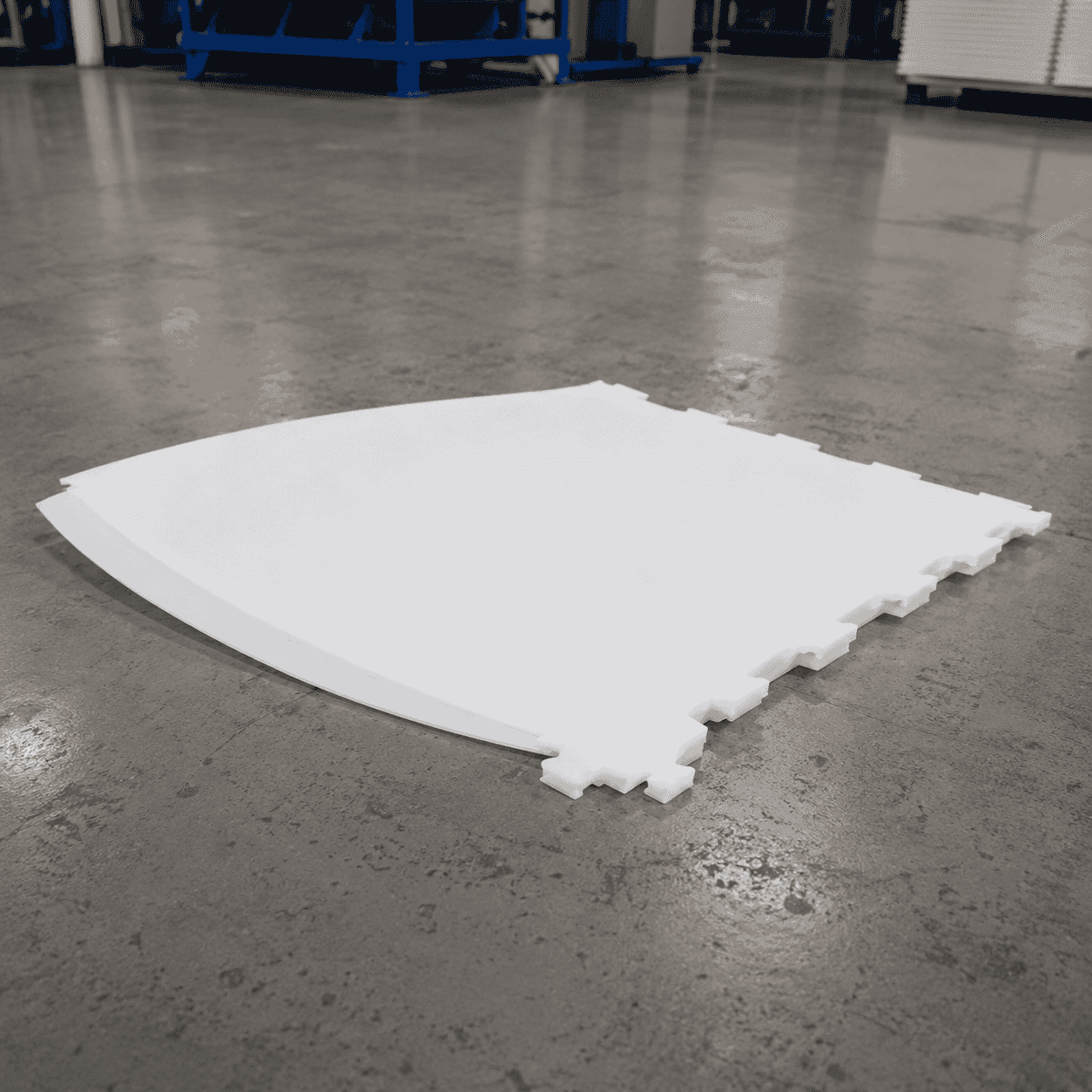

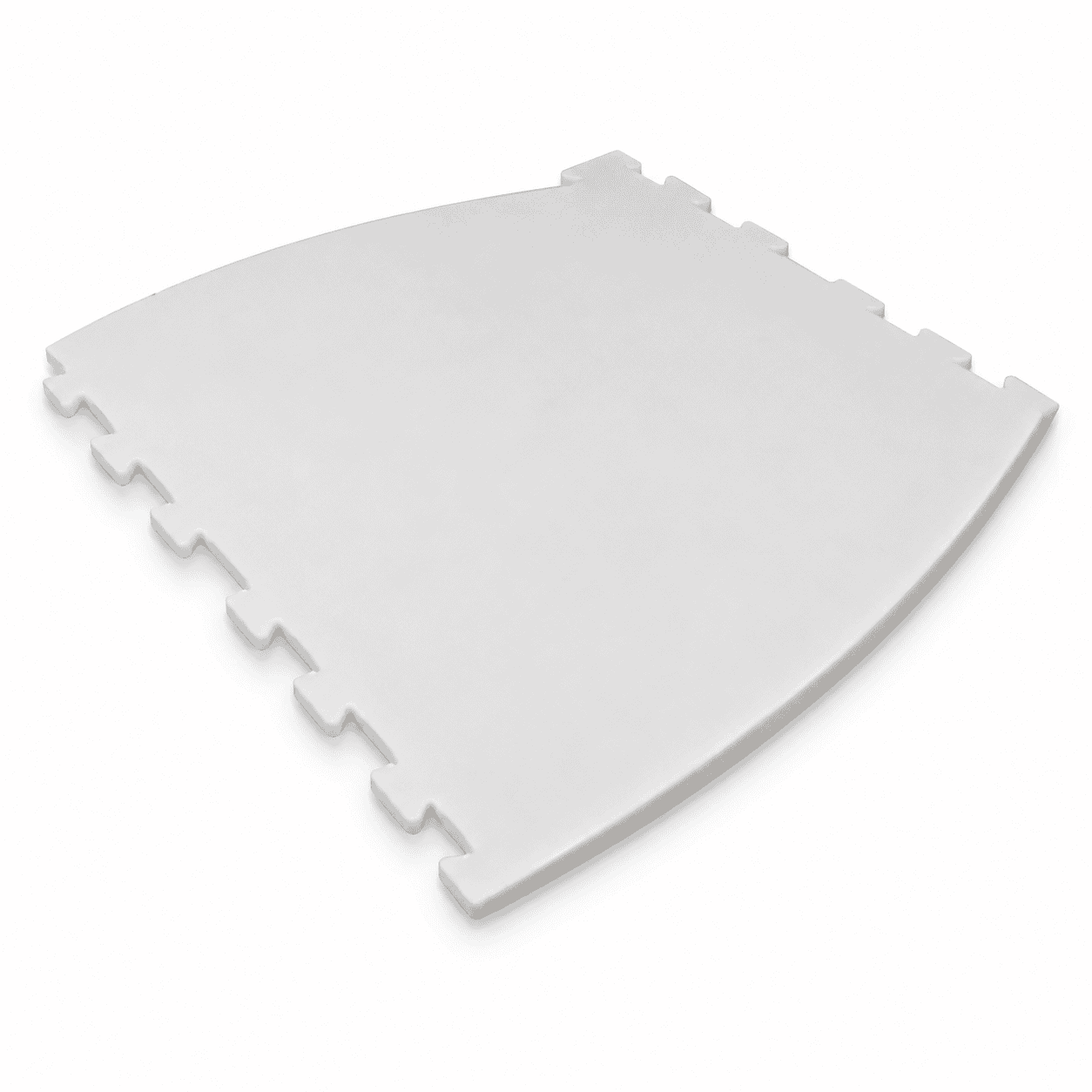

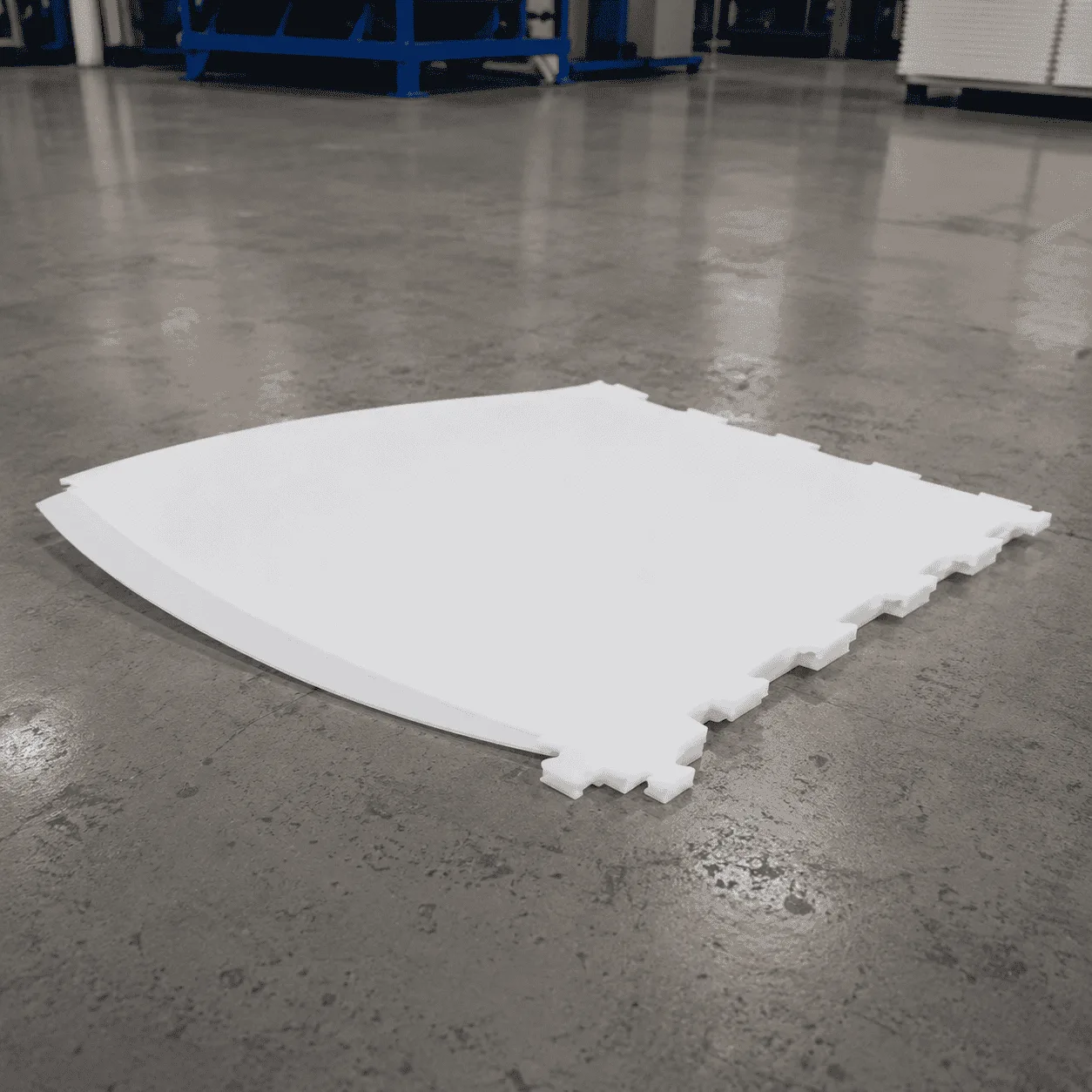

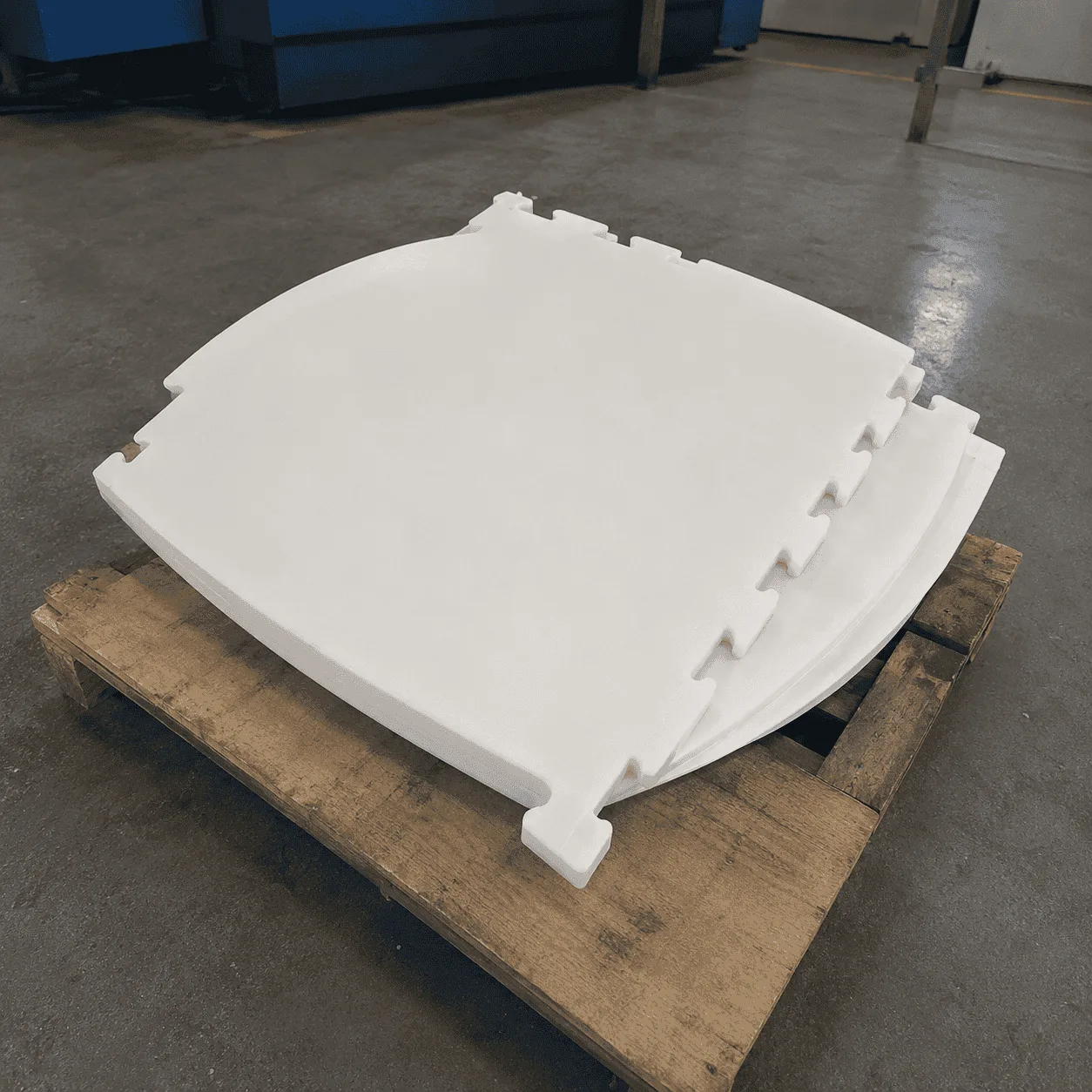

UHMWPE Synthetic Rink Panels are modular engineering plastic flooring panels designed for roller-skating practice, inline hockey, dryland hockey training and recreational sports facilities. Their wear-resistant surface and precision-machined joints help create a continuous rink floor on a rigid, level supporting base.
Typical panel sizes include approximately 1000 × 1000 mm, 1000 × 2000 mm and 1220 × 2440 mm, with common thickness options from approximately 8 to 20 mm. Puzzle, interlocking or tongue-and-groove connections allow the panels to form indoor or properly prepared outdoor skating areas.
The final surface finish should be selected according to wheel material, wheel hardness, skating speed and intended use. Panels intended for wheeled roller skates should be evaluated separately from synthetic ice surfaces intended for metal-bladed ice skates.
UHMWPE Synthetic Rink Panels are modular engineering plastic flooring panels designed for roller-skating practice, inline hockey, dryland hockey training and recreational sports facilities. Individual panels connect to form a smooth, stable and reusable rink surface on a rigid and level supporting floor.
The panels are manufactured from ultra-high-molecular-weight polyethylene, commonly known as UHMWPE. This high-performance engineering plastic offers excellent abrasion resistance, strong impact performance, low water absorption and reliable durability under repeated wheel and sports-equipment contact.
Precision-machined puzzle, interlocking or tongue-and-groove joints help align adjacent sections and reduce visible gaps or uneven transitions between panels. The modular construction also allows the rink floor to be expanded, dismantled, transported or repaired by replacing individual sections.
Synthetic ice normally refers to solid polymer panels designed for use with metal-bladed ice skates. For a general explanation of this type of surface, visit the Synthetic Ice overview on Wikipedia. Roller hockey is played on a hard, smooth and dry surface using wheeled skates; additional background is available from the Roller Hockey overview on Wikipedia.
UHMWPE Synthetic Rink Panels are solid polyethylene sheets connected to create a dry skating, roller-hockey or multi-sport surface. They can be installed in sports halls, roller-hockey clubs, schools, commercial skating areas, exhibition centers and properly prepared outdoor locations.
The finished surface should provide smooth wheel movement while maintaining sufficient grip for turning, stopping and directional control. The required finish depends on the wheel compound, wheel hardness, skating speed, user level and installation environment.
Although the term synthetic rink can cover several polymer sports surfaces, products designed for wheeled roller skates should not automatically be treated as identical to panels intended for metal-bladed ice skates. The two applications create different friction, wear and surface-performance requirements.
UHMWPE Synthetic Rink Panels can be supplied in several practical panel sizes and thicknesses. The final specification should be selected according to the total rink dimensions, expected use, transportation method, supporting-floor condition and connection structure.
| Product Name | UHMWPE Synthetic Rink Panels for Roller Skating |
| Material | Ultra-high-molecular-weight polyethylene |
| Square Panel Option | Approximately 1000 × 1000 mm |
| Rectangular Panel Option | Approximately 1000 × 2000 mm |
| Full Sheet Option | Approximately 1220 × 2440 mm |
| Common Thicknesses | 8 mm, 10 mm, 12 mm, 15 mm and 20 mm |
| Practical Thickness Range | Approximately 8–25 mm, depending on the project |
| Connection Type | Puzzle joint, interlocking edge or tongue-and-groove joint |
| Standard Surface Color | White |
| Optional Colors | Blue, red, yellow, black or project-specific colors |
| Surface Finish | Smooth or controlled-texture finish according to wheel type |
| Installation Base | Level concrete, stable wood floor or another rigid platform |
| Suitable Environment | Indoor and properly prepared outdoor sports facilities |
The listed dimensions are common engineering reference options rather than fixed specifications for every installation. Larger panels reduce the total number of joints, while smaller panels are generally easier to carry, install, remove and replace.
Thin panels are lighter but require a particularly flat supporting floor. Thicker panels provide greater rigidity and dimensional stability but increase module weight, transportation requirements and installation effort.
UHMWPE is widely used in applications involving abrasion, sliding, impact and repeated mechanical contact. Its long molecular chains provide excellent resistance to wear while maintaining useful toughness.
For roller-skating surfaces, the material must withstand repeated wheel contact, sudden direction changes, sports equipment and routine cleaning. UHMWPE also absorbs very little water, making it suitable for humid indoor environments and properly designed outdoor installations.
The final UHMWPE grade should be selected according to skating frequency, expected user weight, wheel type, surface speed and environmental exposure.
The finished surface should allow roller-skate wheels to move smoothly without creating excessive slipping. A rough surface can increase rolling resistance and wheel wear, while an excessively polished surface can reduce control during turning and stopping.
The appropriate texture should therefore be confirmed using sample panels and the intended roller skates or inline skates. Wheel hardness, wheel diameter and wheel material can all influence rolling speed, grip and braking performance.
Water, dust, oil and loose particles can significantly affect available grip. The rink floor should remain clean and dry before users begin skating.
The connection structure is one of the most important parts of a modular skating surface. Precisely machined joints help maintain alignment and reduce noticeable seam width or height differences between panels.
Puzzle-style joints use shaped edges that connect around the panel perimeter. Tongue-and-groove systems use matching male and female edges, while other designs can include concealed mechanical connectors.
Several sections should be trial-assembled before full production or installation. Trial assembly helps verify seam width, thickness consistency, joint alignment and the smoothness of transitions between adjacent panels.
UHMWPE Synthetic Rink Panels can be evaluated for quad roller skates, inline skates and compatible roller-hockey equipment. The intended skate and wheel type should be confirmed before the panel surface is finalized.
Softer wheels generally provide more grip but may create greater rolling resistance. Harder wheels may produce faster movement but require a properly controlled surface to maintain braking and directional stability.
Testing should cover acceleration, turning, stopping, seam transitions and wheel wear. A surface that performs well with one wheel compound may behave differently with another.
The modular panels can create practical surfaces for roller hockey, inline hockey and dryland hockey exercises. Straight and curved rink boards, goals, access gates and sports markings can be installed around the flooring according to the activity.
Common uses include:
The final rink layout should include sufficient clearance around goals, gates, player areas and surrounding walkways.
UHMWPE Synthetic Rink Panels can be assembled into compact practice areas or larger recreational rinks. Example project layouts may include:
These are project examples rather than official competition dimensions. The final size should consider the number of users, skating speed, turning radius, equipment position, gates, surrounding clearance and emergency access.
A flat, rigid and stable supporting floor is essential for reliable installation. Uneven ground can cause panel movement, seam height differences and increased wear around the connecting edges.
Suitable supporting bases can include prepared concrete, stable wood flooring or another structural platform capable of supporting the complete panel system and users.
Before installation, the base should be checked for loose material, sharp projections, large cracks, moisture problems and obvious uneven areas. Surface defects should be corrected before panel assembly begins.
The installation area should first be measured and marked according to the approved rink layout. The first panels can be positioned from a fixed corner, straight boundary or center reference line.
Each panel should then be connected according to the selected joint structure. Seams should be checked continuously to ensure that no dirt, packaging material or foreign objects are trapped between the edges.
After the floor is assembled, the complete surface should be inspected for loose sections, visible gaps, uneven transitions and surface damage. Perimeter trims or rink-barrier systems can then be installed where required.
Polyethylene expands and contracts as the surrounding temperature changes. This is particularly important for large surfaces and outdoor installations exposed to significant temperature variation.
Suitable expansion clearance should be included around the perimeter and fixed structures. The panels should not be tightly restricted in a way that prevents normal dimensional movement.
The required allowance depends on the total rink dimensions, expected temperature range, panel thickness and connection design.
Indoor installations are suitable for sports halls, roller-hockey clubs, schools, commercial skating areas, exhibition centers and private training facilities.
Indoor use reduces exposure to rain, strong sunlight and large temperature changes. It also makes cleaning, surface inspection and maintenance easier.
Lighting, ventilation, perimeter barriers, user access and emergency exits should be considered when planning a complete indoor rink.
The panels can also be installed outdoors when the supporting base, drainage, expansion allowance and environmental conditions are properly considered.
UV-stabilized UHMWPE can be selected where prolonged sunlight exposure is expected. The installation base should prevent standing water from collecting underneath the panel system.
Outdoor rink surfaces require regular cleaning because sand, dust, leaves and moisture can affect wheel movement, braking and surface grip.
UHMWPE Synthetic Rink Panels should be swept or vacuumed regularly to remove dust, sand and loose particles. A soft mop and suitable neutral cleaning solution can be used for deeper cleaning.
Oil, standing water and slippery contamination should be removed before the rink opens. Strong solvents, metal scrapers and aggressive abrasive tools should be avoided.
Panel joints should be inspected periodically for movement, edge damage and trapped debris. Skate wheels should also be checked to prevent embedded stones or sharp objects from scratching the floor.
A worn or damaged panel can be disconnected and replaced with another section of the same thickness, material grade and joint design.
The replacement panel should be inspected for height alignment and connection accuracy before the skating area returns to service.
When the floor is dismantled, panels should be cleaned and stored on a level supporting surface. Uneven stacking and unsupported edges may cause unnecessary bending during long-term storage.
The panels can be produced through controlled molding, pressing or sheet-manufacturing processes. Connection edges are then machined according to the required assembly structure.
Important quality inspection items include:
Accurate dimensions and consistent thickness help create smoother transitions between adjacent panels. Suitable packaging also protects the visible surface and connecting edges during transportation.
When selecting UHMWPE Synthetic Rink Panels, consider the total rink size, intended skate type, wheel hardness, skating frequency, panel thickness, connection method and supporting-floor condition.
Smaller modules are convenient for portable installations and frequent relocation. Larger sheets reduce the number of joints but require more space and equipment for transportation and handling.
A sample area should be tested with the intended skates before producing a complete rink. Testing should evaluate rolling speed, surface grip, turning, stopping, seam transitions and visible wear.
If the panels are also expected to support metal-bladed ice skates, separate material and performance testing is required because roller-skating and synthetic-ice surfaces have different friction and contact requirements.
Learn more about our UHMWPE sheets, synthetic rink materials and engineering plastic manufacturing capabilities on the Honsee UHMWPE manufacturer website.
UHMWPE Synthetic Rink Panels provide a modular, reusable and wear-resistant flooring solution for roller skating, inline hockey, dryland training and suitable indoor or outdoor sports facilities.
