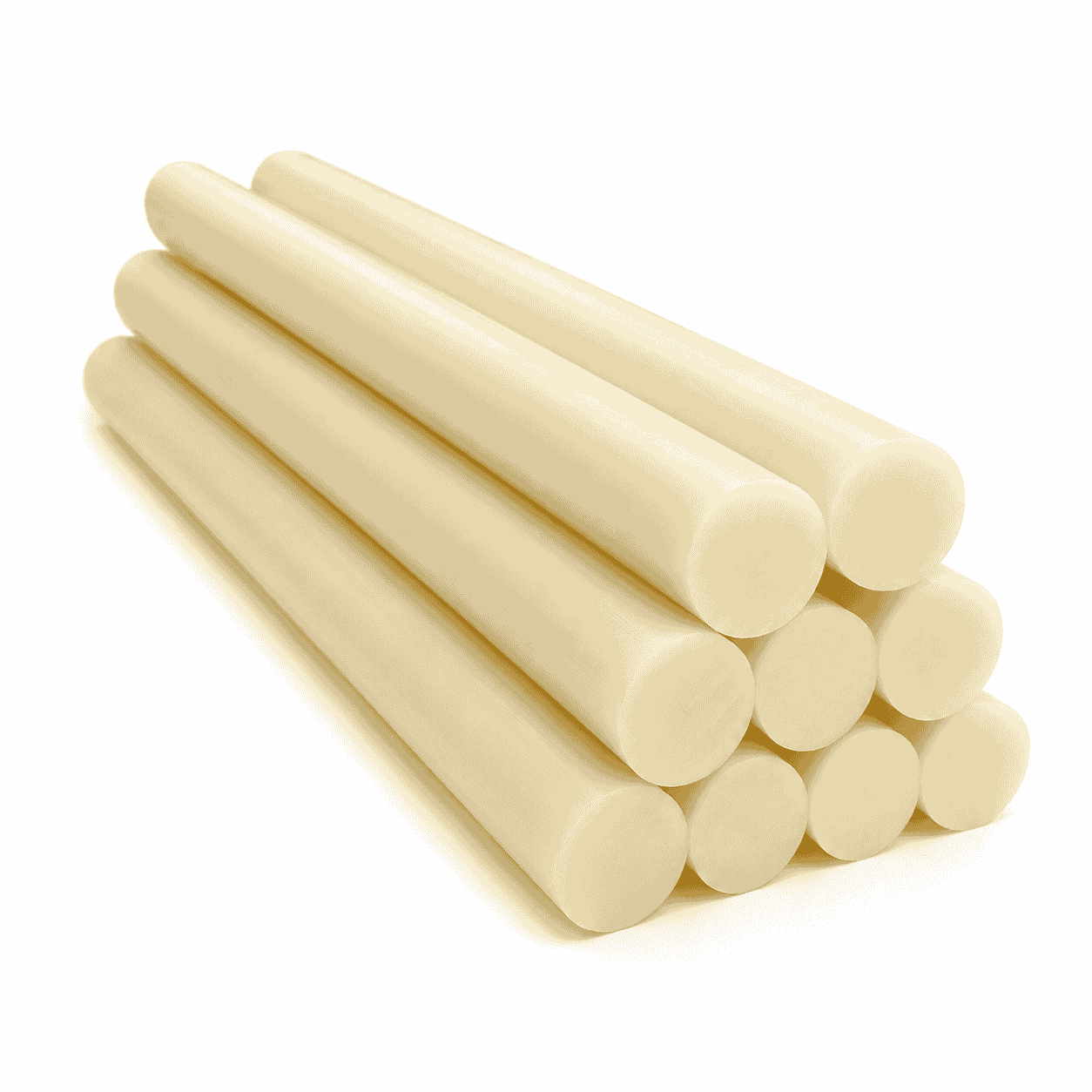

Wear-Resistant Nylon Rod is a modified polyamide round bar designed for industrial parts requiring improved abrasion resistance, good strength and reliable machining performance. It is suitable for bushings, rollers, guide blocks, wear pads, gears, spacers and other moving or contact components. Reference manufacturable diameters include Φ10 to Φ200 mm, with reference lengths of 500 mm, 1000 mm, 2000 mm and 3000 mm, and cut-to-length processing is available upon request.
Wear-Resistant Nylon Rod is a modified polyamide round bar developed for applications requiring improved abrasion resistance, reliable mechanical strength and stable service performance under repeated friction and sliding conditions. It is widely used for machining industrial components such as bushings, rollers, guide parts, wear pads, spacers and structural parts that need better wear performance than general-purpose nylon in many operating environments.
Compared with standard unmodified nylon, wear-resistant nylon rod is commonly selected for parts exposed to continuous movement, repeated contact and mechanical loading. In practical applications, it can help reduce wear, extend service life and lower maintenance frequency when the material grade is properly matched to the load, speed, temperature and mating surface.
For more nylon rod materials and related engineering plastic products, please visit our Polyamide PA and Nylon Rod page. For machined finished parts, please visit our CNC Plastic Machining page. General material information about nylon is available from Wikipedia’s Nylon page.
Wear-Resistant Nylon Rod can be machined into many types of industrial components, including:
This material is often used where the customer needs a nylon-based engineering plastic with good wear behavior, impact resistance and machining adaptability for moving or contact parts.
The following specifications are based on the reference size information shown in the supplied image and can be used as reference dimensions for product display and customer communication.
| Item | Reference Specification |
|---|---|
| Product Type | Wear-resistant nylon rod / modified PA round bar |
| Reference Manufacturable Diameters | Φ10, Φ12, Φ15, Φ20, Φ25, Φ30, Φ35, Φ40, Φ45, Φ50, Φ55, Φ60, Φ65, Φ70, Φ75, Φ80, Φ90, Φ100, Φ110, Φ120, Φ130, Φ140, Φ150, Φ160, Φ180 and Φ200 mm |
| Reference Manufacturable Lengths | 500 mm, 1000 mm, 2000 mm and 3000 mm |
| Custom Processing | Cut-to-length processing according to drawing requirements |
| Recommended Regular Sizes | Φ20, Φ25, Φ30, Φ35, Φ40, Φ45, Φ50, Φ60, Φ70, Φ80, Φ100, Φ120, Φ150, Φ180 and Φ200 mm × 1000 mm |
Additional note: The lower product-option area in the supplied image also shows 1-meter reference options such as Φ12, Φ15, Φ18, Φ20, Φ22, Φ25, Φ28, Φ30, Φ32, Φ35, Φ38, Φ40, Φ45, Φ50, Φ55, Φ60, Φ65, Φ70, Φ75, Φ80, Φ85, Φ90, Φ95, Φ100, Φ110, Φ120, Φ130, Φ140, Φ150, Φ160, Φ170, Φ180, Φ190, Φ200, Φ210, Φ220, Φ230, Φ240, Φ250, Φ260, Φ270, Φ280 and Φ300 mm. These should be treated as supplementary reference options from the image, and actual supply range should be confirmed before ordering.
Size notice: The dimensions above are reference sizes from the supplied image and are intended for product presentation. Actual production range, stock availability, tolerance, straightness, machining allowance and delivery form should be confirmed before order placement. Other diameters, lengths and machined finished parts can be produced according to drawings or samples.
Wear-Resistant Nylon Rod is suitable for CNC turning, milling, drilling, boring, grooving, cutting and chamfering. It can be processed into semi-finished or finished industrial parts according to customer drawings, application conditions and assembly requirements. Our CNC Plastic Machining service supports both sample making and batch production.
During machining, suitable cutting parameters should be selected according to the nylon grade, diameter and part structure. For parts with tighter tolerances, factors such as nylon moisture absorption, thermal expansion and long-part deformation should be considered during design and machining.
Wear-Resistant Nylon Rod is a practical engineering plastic choice for customers who need a machinable nylon material with improved wear behavior, dependable strength and flexible size options for industrial machinery and custom anti-wear components.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
