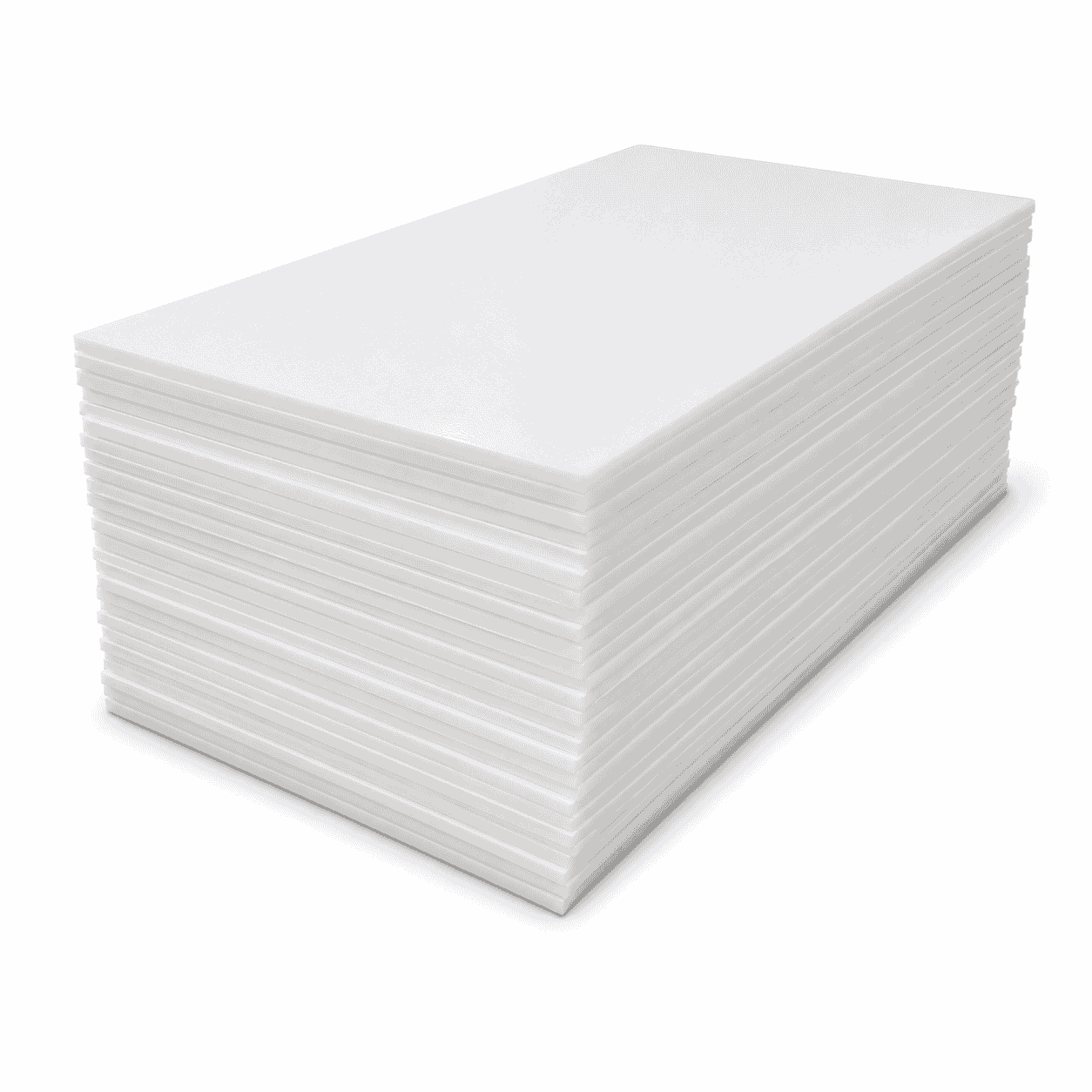

White Corrosion-Resistant UHMWPE Liner Sheet is a low-friction engineering plastic lining designed for hoppers, chutes, silos, storage bins, conveyor systems and industrial machinery components.
The material combines excellent abrasion resistance, high impact strength, self-lubricating performance, very low water absorption and resistance to many commonly encountered acids, alkalis, salts and industrial chemicals. It does not rust and can help isolate conveyed materials from the supporting metal structure.

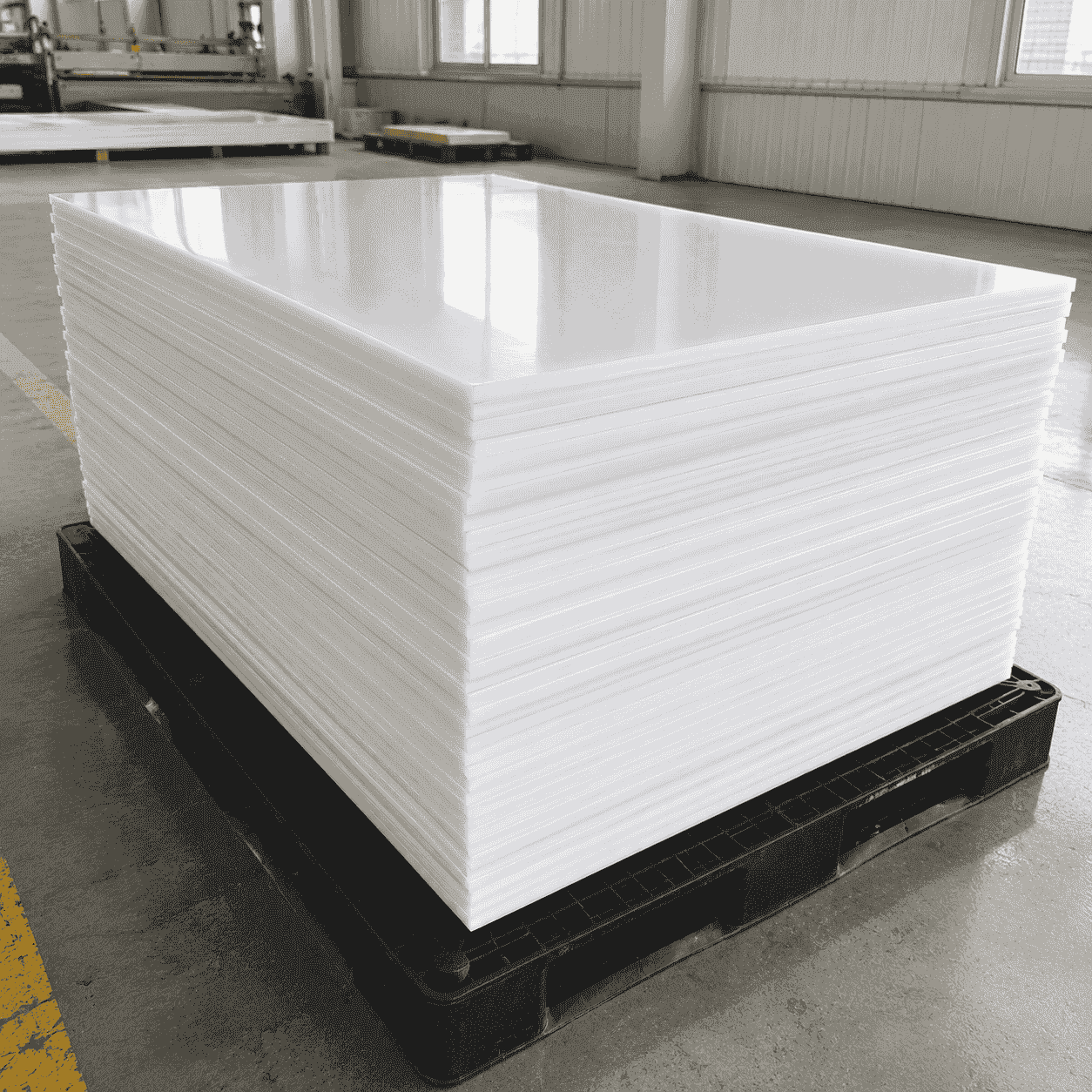

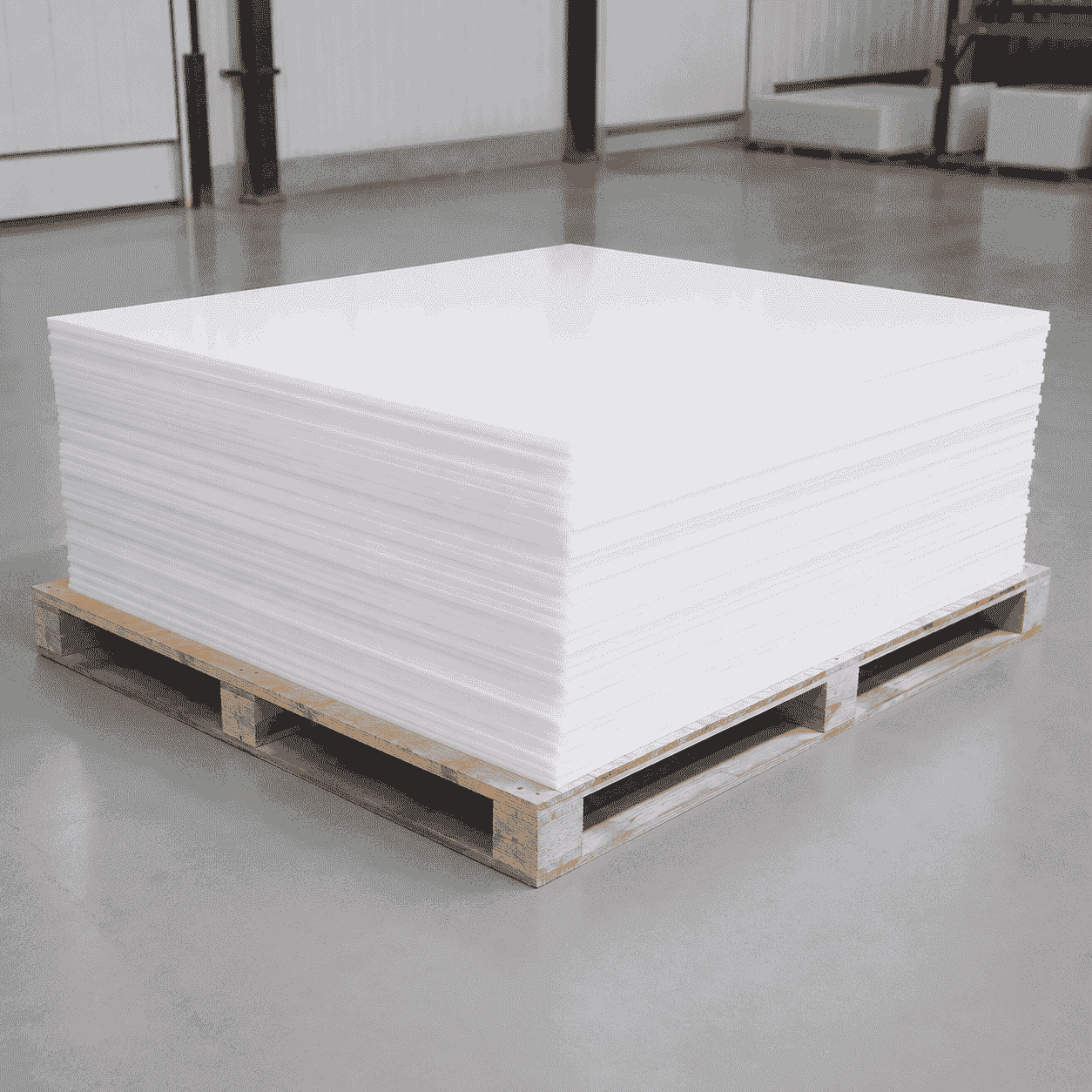

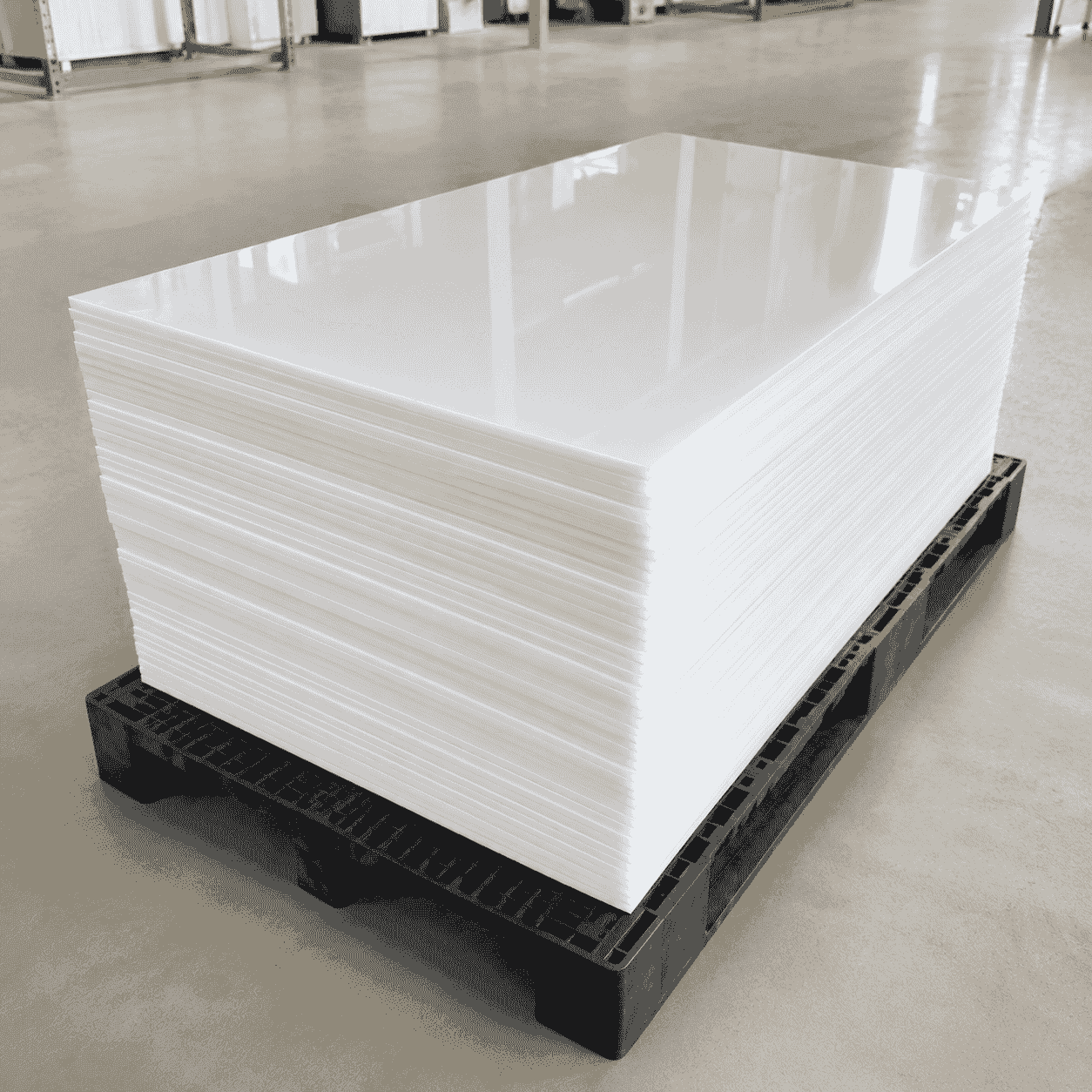

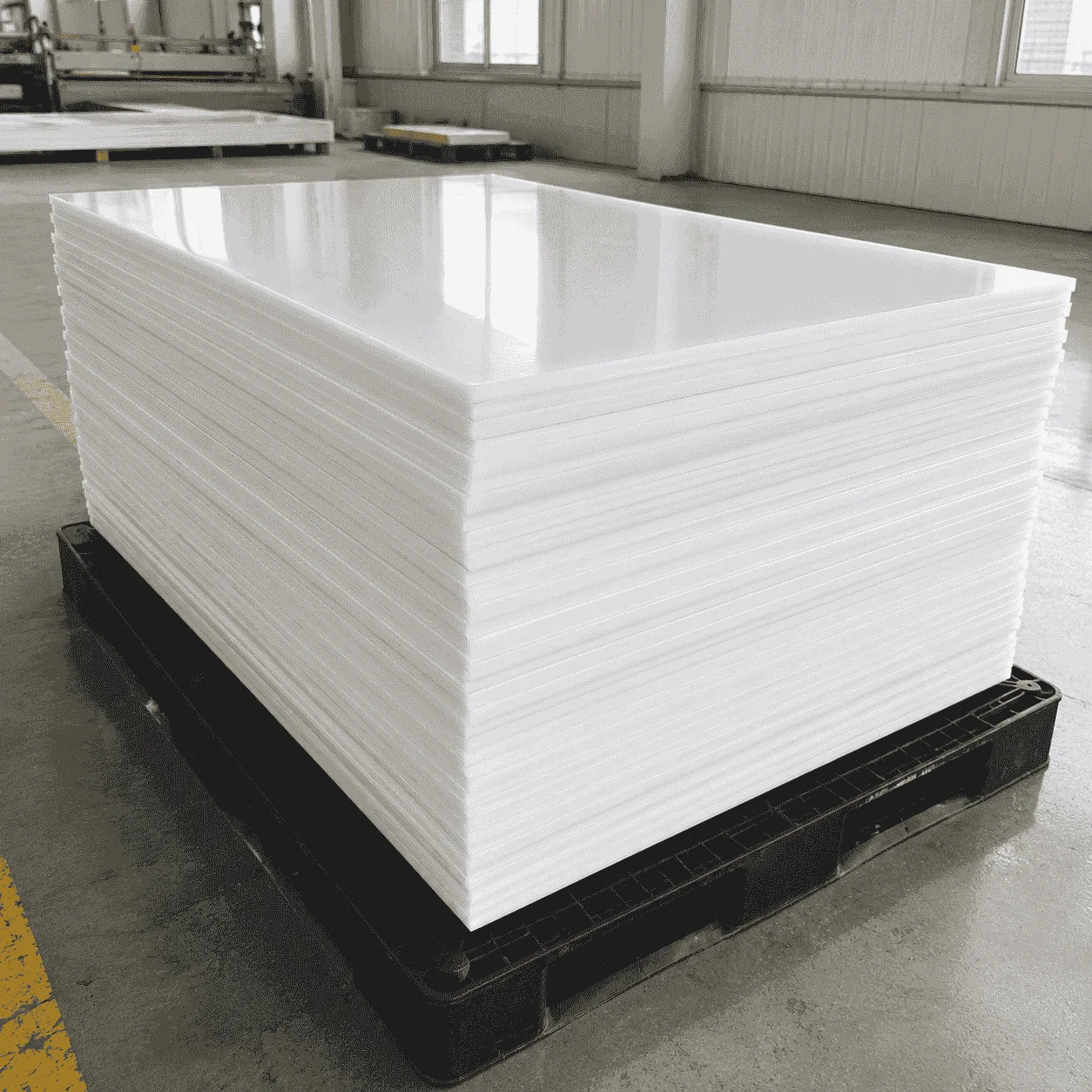

Natural-white sheets are available in standard, large-format and thick-plate specifications. Cutting, planing, drilling, countersinking, grooving and CNC machining can be completed according to customer drawings and operating conditions.
White Corrosion-Resistant UHMWPE Liner Sheet is a durable engineering plastic lining manufactured from ultra-high-molecular-weight polyethylene. It is designed for industrial equipment exposed to abrasive materials, repeated impact, continuous sliding, moisture and chemically demanding operating environments.
The material combines excellent wear resistance, high impact strength, a low-friction working surface, self-lubricating performance and very low water absorption. Unlike conventional steel liners, the UHMWPE lining does not rust and normally requires no anti-corrosion paint or protective metal coating.
The natural-white liner can be supplied as a complete molded sheet, cut-to-size panel, narrow wear strip, equipment lining plate, thick machining blank or finished CNC-machined component. Length, width, thickness, mounting holes, countersinks, slots, grooves, stepped edges and special outside profiles can be manufactured according to customer drawings.
General information about the material is available in the
Wikipedia explanation of ultra-high-molecular-weight polyethylene.
Additional information about the polyethylene material family is available in the
Wikipedia explanation of polyethylene.
Information about material corrosion is available in the
Wikipedia explanation of corrosion.
A White Corrosion-Resistant UHMWPE Liner Sheet is a solid polyethylene panel installed between conveyed materials, chemicals or moving components and the supporting metal equipment structure.
UHMWPE contains extremely long molecular chains that contribute to material toughness, impact resistance and resistance to repeated sliding and abrasive contact. Its smooth working surface also helps reduce friction and allows many components to operate without continuous oil or grease lubrication.
The liner functions as a replaceable material-contact surface. It can protect steel hoppers, chutes, tanks, bins, conveyor frames and machinery components from direct abrasion, scratching and moisture exposure.
The term “corrosion resistant” means the plastic does not undergo metal rusting and resists many commonly encountered industrial chemicals. It does not mean that the material is unaffected by every chemical, concentration or temperature.
Strong oxidizing agents, specialized solvents, highly concentrated chemicals and elevated-temperature media should be reviewed separately before material selection.
The UHMWPE liner creates a physical barrier between the handled material and the steel equipment wall. This helps reduce direct abrasion, scratching and exposure of the metal structure to moisture or corrosive process materials.
Where the conveyed material contains salts, fertilizers, moisture or mildly corrosive substances, the plastic lining can help reduce direct contact with the supporting steel surface.
The liner acts as a replaceable working layer. Once the contact surface reaches its maintenance limit, individual panels can be removed and replaced while the main equipment structure remains in service.
This can reduce repair time and avoid replacing the complete hopper, chute, bin or machinery frame.
Rough, rusted or damaged steel surfaces can create areas where bulk materials accumulate. The smooth UHMWPE working surface can help reduce sticking, bridging and material buildup in properly designed equipment.
Actual material-flow performance depends on particle shape, moisture content, wall angle, contact pressure, operating temperature and equipment geometry.
The low-friction UHMWPE surface helps bulk materials, packages and machinery components move with less resistance than rough or damaged steel surfaces.
Friction, lubrication and wear between interacting surfaces are studied within the field of tribology. More information is available in the
Wikipedia explanation of tribology.
White Corrosion-Resistant UHMWPE Liner Sheet is suitable for equipment exposed to repeated rubbing, sliding and abrasive material movement.
It can be used with powders, grains, coal, minerals, fertilizers, aggregates, cartons, containers and industrial components. Actual service life depends on material hardness, particle shape, contact pressure, sliding speed, impact angle and installation quality.
The UHMWPE liner does not rust and normally requires no anti-corrosion paint. It can be used in humid production areas, washing environments and equipment exposed to water, salt or selected industrial chemicals.
The lining can also help reduce direct exposure of the supporting steel structure to the handled material.
UHMWPE resists many commonly encountered acids, alkalis, salts and chemical solutions. This makes the liner suitable for selected chemical-processing, fertilizer, wastewater and material-handling equipment.
Chemical compatibility must be evaluated according to the exact chemical name, concentration, contact temperature and exposure time.
The tough UHMWPE structure helps the sheet withstand repeated impact and vibration without easily cracking under suitable operating conditions.
This characteristic is useful in loading areas, transfer points, hoppers and chutes where falling materials repeatedly strike the lining surface.
The smooth liner surface can help reduce sliding resistance, material drag and direct contact with rough metal surfaces.
This property is useful for hopper liners, chute liners, conveyor guides, sliding plates, chain rails and product-transfer components.
Many sliding components manufactured from White Corrosion-Resistant UHMWPE Liner Sheet can operate without continuous oil or grease lubrication.
This can simplify routine maintenance and reduce the accumulation of lubricant, dust and abrasive particles around the working area.
UHMWPE absorbs very little moisture compared with many conventional engineering plastics. Routine humidity and occasional water exposure do not normally cause significant swelling.
This supports use in humid workshops, washing areas, outdoor equipment and material-handling systems.
Installing UHMWPE between conveyed materials and metal structures can help reduce direct contact noise, vibration and mechanical impact.
The degree of noise reduction depends on liner thickness, equipment speed, supporting structure and operating load.
The natural-white appearance makes surface contamination, wear marks and material residues easier to observe during routine inspection.
Natural-white color alone does not confirm virgin material, food-contact compliance or a specific resin grade. These requirements must be supported by the selected formulation and corresponding technical documents.
White Corrosion-Resistant UHMWPE Liner Sheet can be cut, planed, drilled, turned, milled, grooved and CNC-machined.
Available structures include mounting holes, countersinks, counterbores, elongated installation slots, positioning grooves, stepped edges, overlapping joints, curved profiles and recessed fastener positions.
White Corrosion-Resistant UHMWPE Liner Sheet is suitable for equipment requiring wear protection, chemical resistance, low friction, moisture resistance or a replaceable working surface.
Additional UHMWPE sheets, liner panels, wear plates and CNC-machined engineering plastic components are available through our
UHMWPE sheet and engineering plastic product center.
| Product Name | White Corrosion-Resistant UHMWPE Liner Sheet |
|---|---|
| Focus Keyword | White Corrosion-Resistant UHMWPE Liner Sheet |
| Base Material | Ultra-high-molecular-weight polyethylene |
| Common Material Designation | PE-UHMW, PE1000, UPE or UHMWPE |
| Standard Color | Natural white or ivory white |
| Optional Colors | Black, blue, green, yellow, red, orange, grey or project-specified colors |
| Main Properties | Corrosion resistance, wear resistance, impact strength, low friction and low water absorption |
| Common Liner Thickness | 6–50 mm |
| Heavy-Duty Thickness | 50–100 mm |
| Thick Plate Range | 100–200 mm after production-feasibility review |
| Extra-Thick Option | More than 200 mm and up to approximately 300 mm for selected dimensions |
| Common Sheet Size | 1000 × 2000 mm |
| 4 × 8 ft Equivalent | Approximately 1220 × 2440 mm |
| Optional Sheet Sizes | 1000 × 3000 mm, 1500 × 2000 mm and 1500 × 3000 mm |
| Large-Format Options | Approximately 1800 × 6000 mm or 2000 × 6000 mm for selected thicknesses |
| Surface Options | As-molded, smooth, planed, lightly textured or CNC-machined |
| Available Grades | Standard, virgin, enhanced wear-resistant, UV-stabilized, antistatic or project-specified grades |
| Processing Services | Cutting, planing, drilling, countersinking, grooving, milling and CNC machining |
| Supply Form | Full sheets, cut liner panels, wear strips, blocks and finished components |
The listed dimensions are common manufacturing options rather than guaranteed combinations. Maximum length, width and thickness cannot always be produced together in one panel.
Final dimensions should be confirmed according to mold capacity, material grade, liner thickness, required flatness, machining allowance and transportation conditions.
Relatively thin sheets are suitable for lightweight equipment liners, protective surfaces, conveyor strips and components with continuous structural support.
Thin sheets normally require closer fastener spacing and an even supporting surface.
This thickness range is commonly selected for hoppers, chutes, storage bins, conveyor transfer points and general industrial wear linings.
It provides a practical balance between wear allowance, panel weight and installation flexibility.
Thicker plates provide additional impact absorption and wear allowance for mining, aggregate, fertilizer and heavy bulk-material applications.
Thick plates can be processed into wear blocks, impact pads, support components and deeply machined industrial parts.
Extra-thick blanks can be evaluated for large support blocks, heavy-duty impact components and parts requiring deep three-dimensional machining.
Production feasibility depends on overall dimensions, mold capacity, cooling time, internal stress, machining allowance and required tolerances.
Standard sizes such as 1000 × 2000 mm and approximately 1220 × 2440 mm are convenient for transportation, cutting, machining and individual replacement.
Large-format sheets can reduce the number of joints in hoppers, chutes, storage bins, truck bodies and long industrial equipment structures.
Panels approximately four to six metres long can be evaluated according to the required width, thickness, flatness and transportation conditions.
Standard natural-white UHMWPE is suitable for general wear, impact, chemical-resistance and low-friction applications.
A controlled virgin-resin formulation can be selected where consistent appearance, traceability or project-specific documentation is required.
An enhanced wear formulation can be evaluated for abrasive minerals, high-frequency sliding and equipment requiring longer replacement intervals.
A UV-stabilized formulation can be specified for outdoor machinery and sunlight-exposed liners. Natural-white color alone does not confirm UV resistance.
Antistatic or conductive grades can be evaluated where electrostatic accumulation must be controlled.
The required surface-resistance or volume-resistance range, test method, testing voltage and installation requirements should be specified before production.
White UHMWPE liners may be used in food-processing or packaging equipment when a suitable documented formulation is selected.
White appearance alone does not demonstrate food-contact compliance. The resin, pigments, stabilizers, additives and intended conditions of use must be reviewed as a complete material system.
Chemical resistance depends on more than the UHMWPE material name. The following information should be reviewed before selecting a liner:
Material compatibility should be confirmed separately for strong oxidizing agents, concentrated chemicals, specialized solvents and elevated-temperature process liquids.
White Corrosion-Resistant UHMWPE Liner Sheet can be supplied as a full molded sheet, cut-to-size liner panel or finished CNC-machined component.
Available processing services include:
White Corrosion-Resistant UHMWPE Liner Sheet can be installed using countersunk bolts, recessed fasteners, mechanical clamps, backing plates or equipment-specific mounting systems.
The supporting metal surface should be clean, reasonably flat and capable of supporting the liner evenly. Sharp weld beads, projecting fasteners and damaged steel surfaces should be corrected before installation.
UHMWPE expands and contracts more than steel when temperature changes. Suitable thermal-expansion clearance should be provided around mounting holes, panel edges and joints.
Fasteners should not be excessively tightened because concentrated pressure can deform the liner around the mounting holes.
For material-flow applications, panel joints and exposed edges should be arranged according to the direction of material movement to reduce catching points.
Quality inspection can be completed according to customer drawings and agreed technical requirements. Typical inspection items include:
To prepare an accurate quotation for White Corrosion-Resistant UHMWPE Liner Sheet, please provide:
The final White Corrosion-Resistant UHMWPE Liner Sheet grade, dimensions, thickness, chemical suitability and machining process should be confirmed according to customer drawings, contact media and production-feasibility review before manufacturing.
