Polyethylene Trackway Panels are wide-format heavy-duty access panels designed for temporary vehicle routes and ground protection across mud, soft soil, grass, gravel, and other unstable surfaces.
The main XD-01 model measures approximately 3000 × 2500 × 38 mm, weighs around 292 kg, and has a stated load capacity of up to 150 tonnes under suitable ground and installation conditions.
The large one-piece structure, raised anti-slip surface, durable polyethylene material, and bolted connection system make these panels suitable for heavy vehicle access, industrial transport, equipment movement, energy projects, infrastructure operations, and temporary outdoor working areas.
Polyethylene Trackway Panels are large-format temporary access panels designed to create more stable vehicle routes across mud, soft soil, gravel, grass, wet ground, and other surfaces that may be unsuitable for repeated heavy traffic.
The main product featured on this page is a wide-format panel measuring approximately 3000 × 2500 × 38 mm. Each panel weighs around 292 kg and has a stated load capacity of approximately 150 tonnes under suitable ground, support, connection, and installation conditions.
With a nominal surface area of approximately 7.5 m² per panel, the wide 3000 × 2500 mm format can cover substantial sections of temporary access routes with fewer individual panels than smaller lightweight ground protection mats.
Polyethylene Trackway Panels are suitable for heavy vehicle routes, industrial transport access, energy projects, equipment movement, infrastructure operations, outdoor logistics, remote access, and temporary working areas where ground protection and load distribution are important.
The main XD-01 specification combines a wide panel format with a heavy-duty 38 mm thickness. Typical product data includes:
The stated 150-ton capacity should not be considered a universal operating limit for every location. Actual performance depends on the complete temporary access system.
Important factors include ground bearing capacity, moisture level, vehicle gross weight, axle loading, tyre pressure, track contact area, turning frequency, braking forces, panel support, connection layout, and installation quality.
Extremely soft, water-saturated, or unstable ground may require levelling, drainage, geotextile, aggregate, or another supporting layer before the panels are installed.
In addition to the main 3000 × 2500 × 38 mm model, this product series includes several large-format specifications for different route layouts and vehicle requirements.
| Model | Panel Size | Thickness | Approx. Weight | Stated Load Capacity |
|---|---|---|---|---|
| XD-01 | 3000 × 2500 mm | 38 mm | 292 kg | 150 tonnes |
| XD-02 | 4000 × 2000 mm | 38 mm | 312 kg | 150 tonnes |
| XD-03 | 4500 × 2000 mm | 38 mm | 351 kg | 160 tonnes |
| XD-04 | 6000 × 2000 mm | 40 mm | 490 kg | 170 tonnes |
| XD-05 | 3000 × 2500 mm | 25 mm | 195 kg | 120 tonnes |
The standard XD-01 model provides a wider 2500 mm panel width than the longer 2000 mm wide versions. This can be useful when a project requires broad vehicle routes or large temporary working surfaces.
The 3000 × 2500 mm panel provides approximately 7.5 m² of nominal coverage, while the 4000 × 2000 mm model provides approximately 8 m².
The correct panel should be selected according to roadway width, access length, vehicle configuration, ground conditions, transportation requirements, and lifting capabilities.
Polyethylene Trackway Panels are manufactured from durable polyethylene material suitable for demanding outdoor operating conditions.
Compared with conventional steel plates, polyethylene panels do not rust during normal outdoor exposure and do not require conventional painting or corrosion protection.
Compared with untreated timber access mats, they do not rot, splinter, or absorb large amounts of moisture.
Other practical material characteristics include:
These characteristics are important because temporary access panels may be repeatedly installed, loaded, removed, transported, cleaned, stored, and used again.
For general information about the material, read more about polyethylene and its properties.
The main Polyethylene Trackway Panels on this product page use a wide 3000 × 2500 mm format.
The 2500 mm panel width can be particularly useful for creating broad vehicle access routes or temporary working surfaces. A single panel provides approximately 7.5 m² of nominal surface coverage.
This large one-piece construction can reduce the number of separate panels required when covering wide areas.
Typical uses for the wide-format design include:
The large format also means that suitable lifting and installation equipment should be considered during project planning.

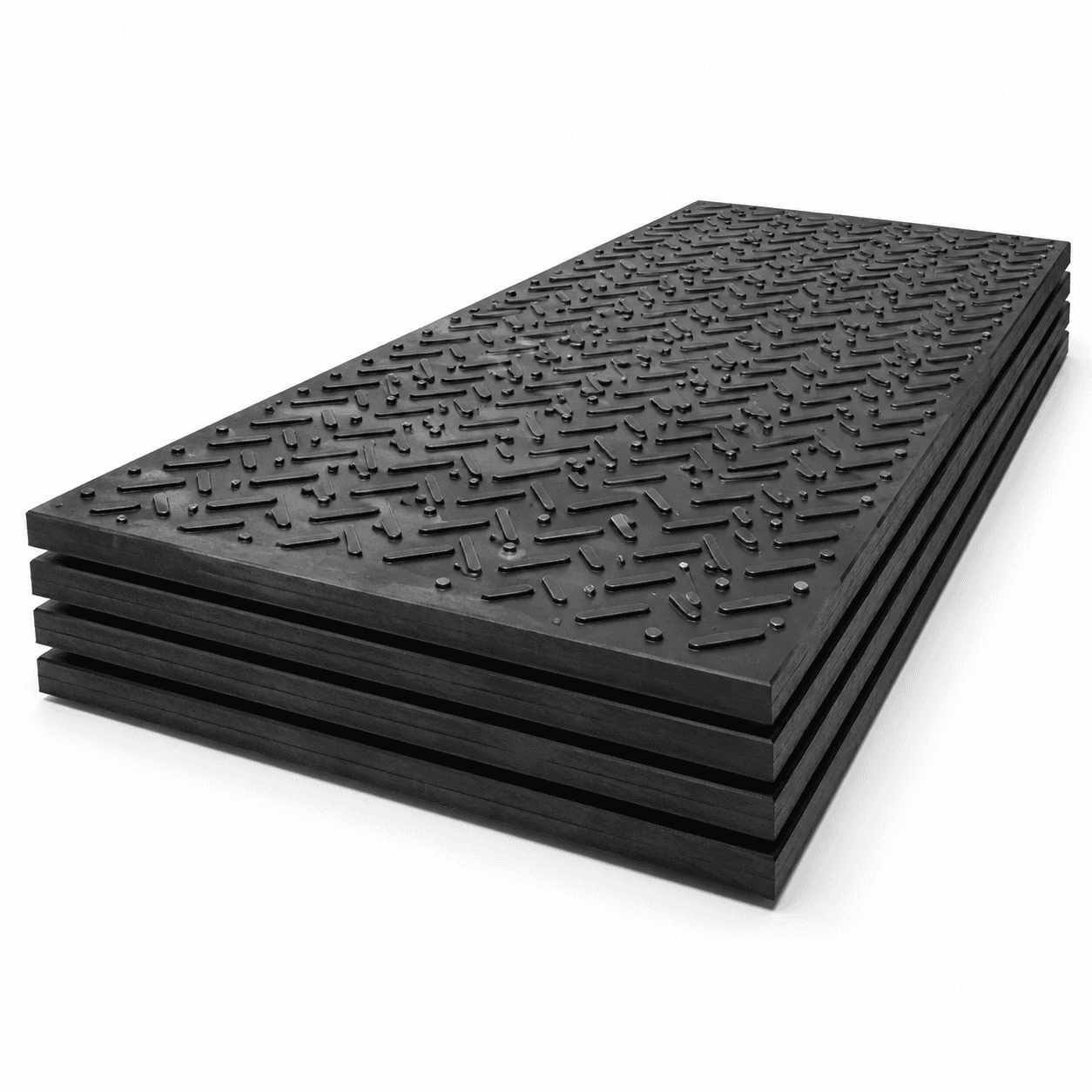

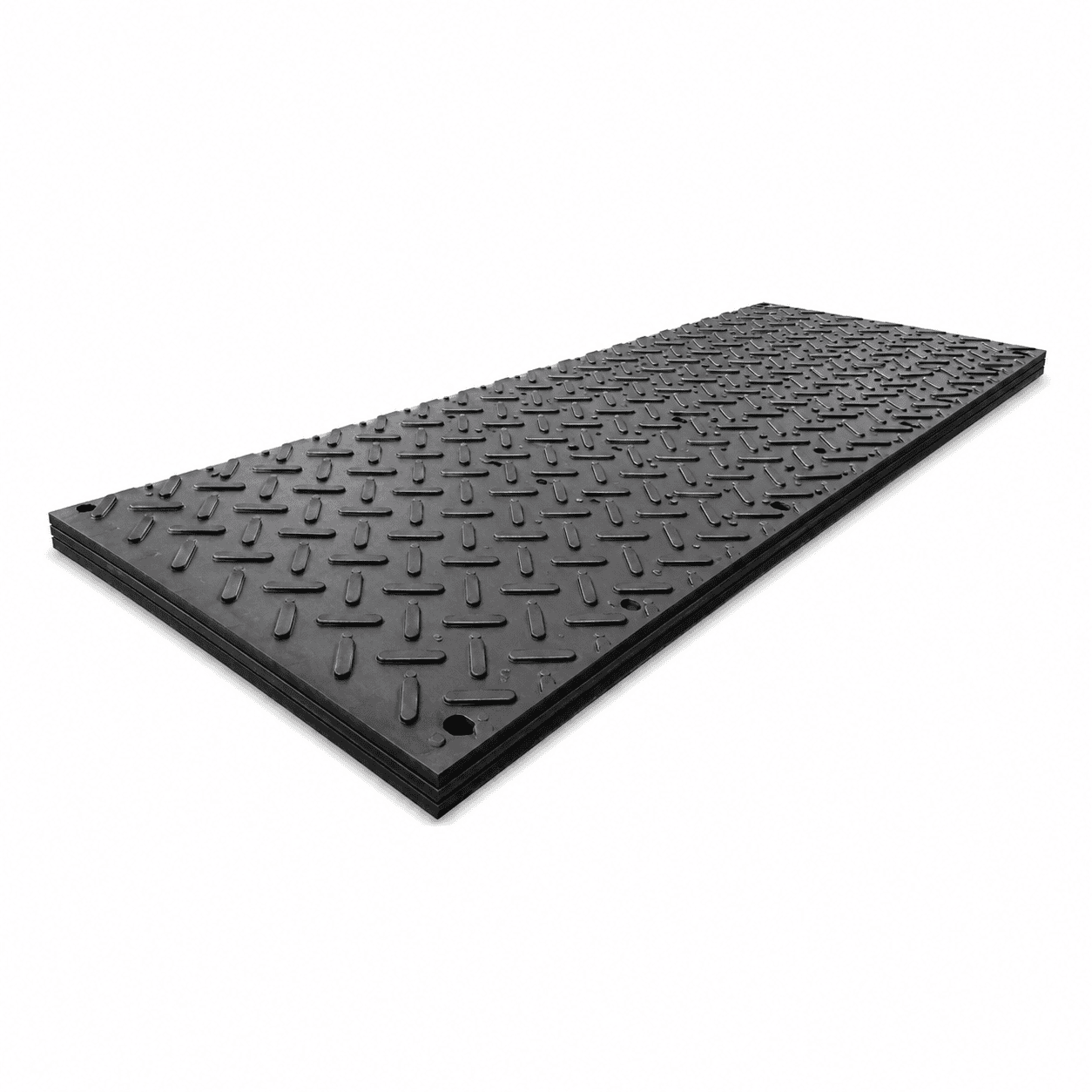

Polyethylene Trackway Panels feature a raised surface profile designed to improve contact between the panel and vehicle tyres or tracks.
The product shown uses a heavy-duty directional traction pattern across the main working surface. Compared with a completely smooth plastic panel, the raised structure provides a more practical surface for outdoor vehicle movement.
The traction pattern can be useful in environments affected by:
The exact surface profile may vary according to the panel model and manufacturing specification.
The purpose of the texture is to improve surface interaction while maintaining a durable working surface suitable for repeated outdoor use.

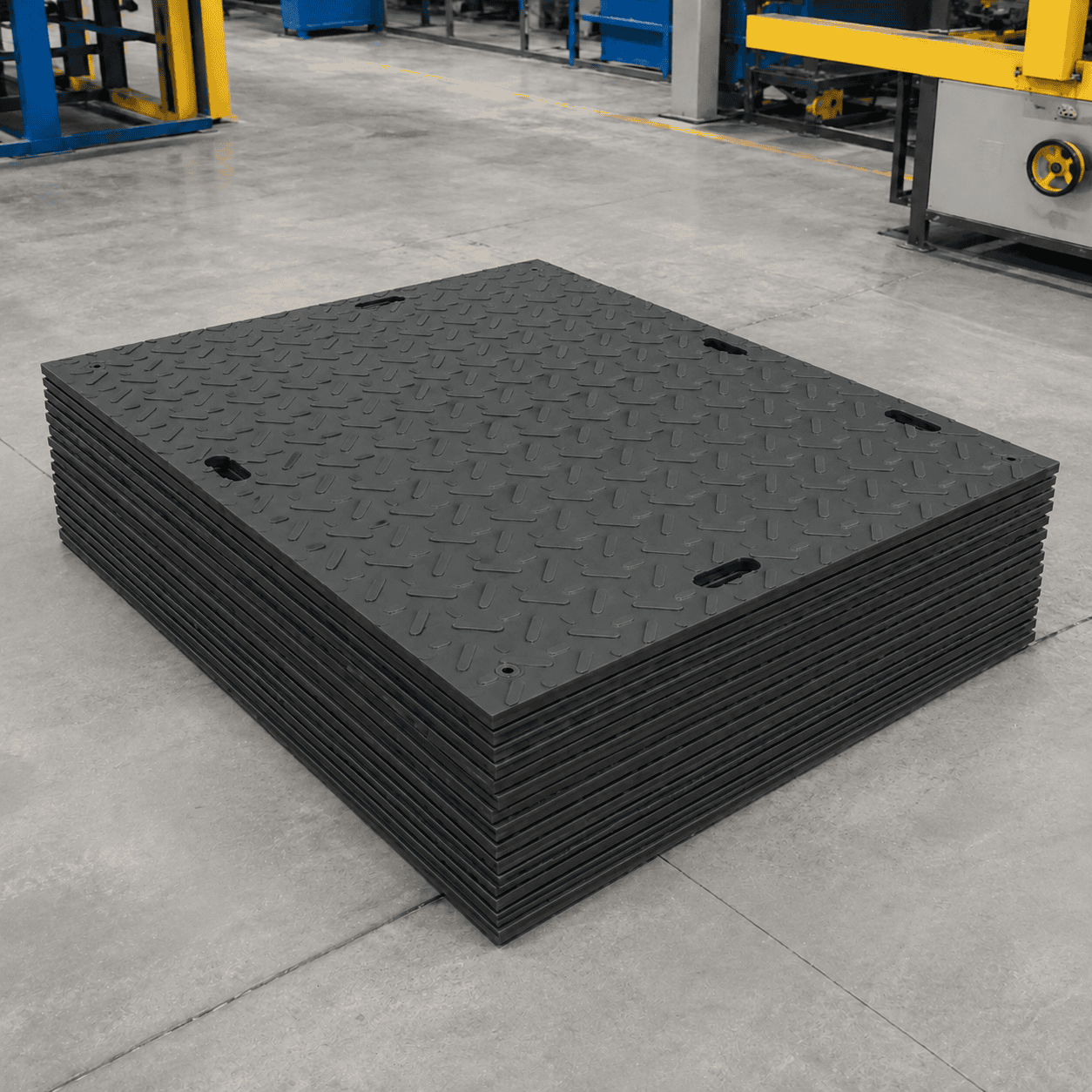

Individual panels can be joined together using robust bolted connections. Product information for this type of access system indicates the use of approximately 16 mm bolted connection hardware.
This allows multiple panels to form:
Correct panel connections help reduce unwanted movement between adjacent units and create a more continuous access surface.
The final connection layout should be planned according to route width, traffic direction, turning frequency, vehicle type, ground condition, and operating requirements.
Polyethylene Trackway Panels can be used for a wide variety of temporary access and surface protection requirements.
Typical applications include:
The wide panel dimensions are particularly useful where lightweight ground protection mats may be too small for the required route or equipment size.
Explore more ground protection and engineering plastic solutions for temporary access, heavy vehicle movement, and outdoor surface protection.
Repeated heavy vehicle movement across soft ground can quickly create deep ruts and unstable access routes.
Polyethylene Trackway Panels provide a physical separation between vehicle tyres or tracks and the original ground surface.
The broad panel area helps distribute contact over a wider section of ground and can help reduce concentrated pressure.
This can be useful for:
However, very weak ground may still require preparation before panel installation. Ground protection panels cannot completely replace appropriate site assessment and support preparation.
The XD-01 model shown has a stated capacity of approximately 150 tonnes under suitable conditions.
This figure should always be considered together with the actual operating environment.
A distributed load across wide tyres or tracks on well-supported ground creates different stresses from a highly concentrated wheel load on saturated soil.
Important load factors include:
For concentrated equipment loads or small contact areas, additional engineering evaluation may be required.
Polyethylene provides electrically non-conductive characteristics compared with conventional metal road plates.
This can be useful for certain power, transmission, infrastructure, and industrial access applications where metal panels may be less desirable.
Plastic panels also have minimal conventional scrap metal value, which can be a practical consideration at temporary or remote access locations.
These material characteristics do not replace project-specific electrical or operational safety requirements.
One of the main practical advantages of Polyethylene Trackway Panels is that they can form a reusable access system.
After a temporary route is no longer required, the panels can be:
Before reuse, panel edges, connection points, surface traction profiles, and the main panel body should be checked for visible damage.
Correct handling, transport, and storage can help extend the practical service life of the panels.
The main 3000 × 2500 × 38 mm Polyethylene Trackway Panels are suitable for many heavy-duty applications, but the correct model should be selected according to actual project conditions.
Important selection factors include:
The main XD-01 panel weighs approximately 292 kg. Larger 6000 × 2000 × 40 mm panels weigh approximately 490 kg.
For this reason, a larger panel is not automatically the best solution. Coverage, transport, handling, route geometry, and available lifting equipment should all be considered.
Before installing Polyethylene Trackway Panels, the intended access route should be inspected.
Deep holes, unsupported voids, sharp protrusions, standing water, and severe level differences should be addressed before installation.
Panels should be positioned to provide consistent support along the main traffic route. Connection hardware should be installed correctly where required.
Turning zones, braking areas, concentrated loads, and high-traffic sections should receive additional attention during route planning.
Polyethylene Trackway Panels provide a durable solution for temporary vehicle access and ground protection across mud, soft soil, grass, gravel, and other demanding outdoor surfaces.
The main XD-01 model measures approximately 3000 × 2500 × 38 mm, weighs around 292 kg, and has a stated load capacity of approximately 150 tonnes under suitable ground and installation conditions.
With wide one-piece construction, durable polyethylene material, a raised traction surface, bolted connections, and reusable design, these panels are suitable for heavy vehicle routes, equipment movement, industrial access, energy operations, infrastructure projects, and temporary outdoor working areas.
The final panel size, installation layout, ground preparation, and operating requirements should always be selected according to the actual project conditions.
