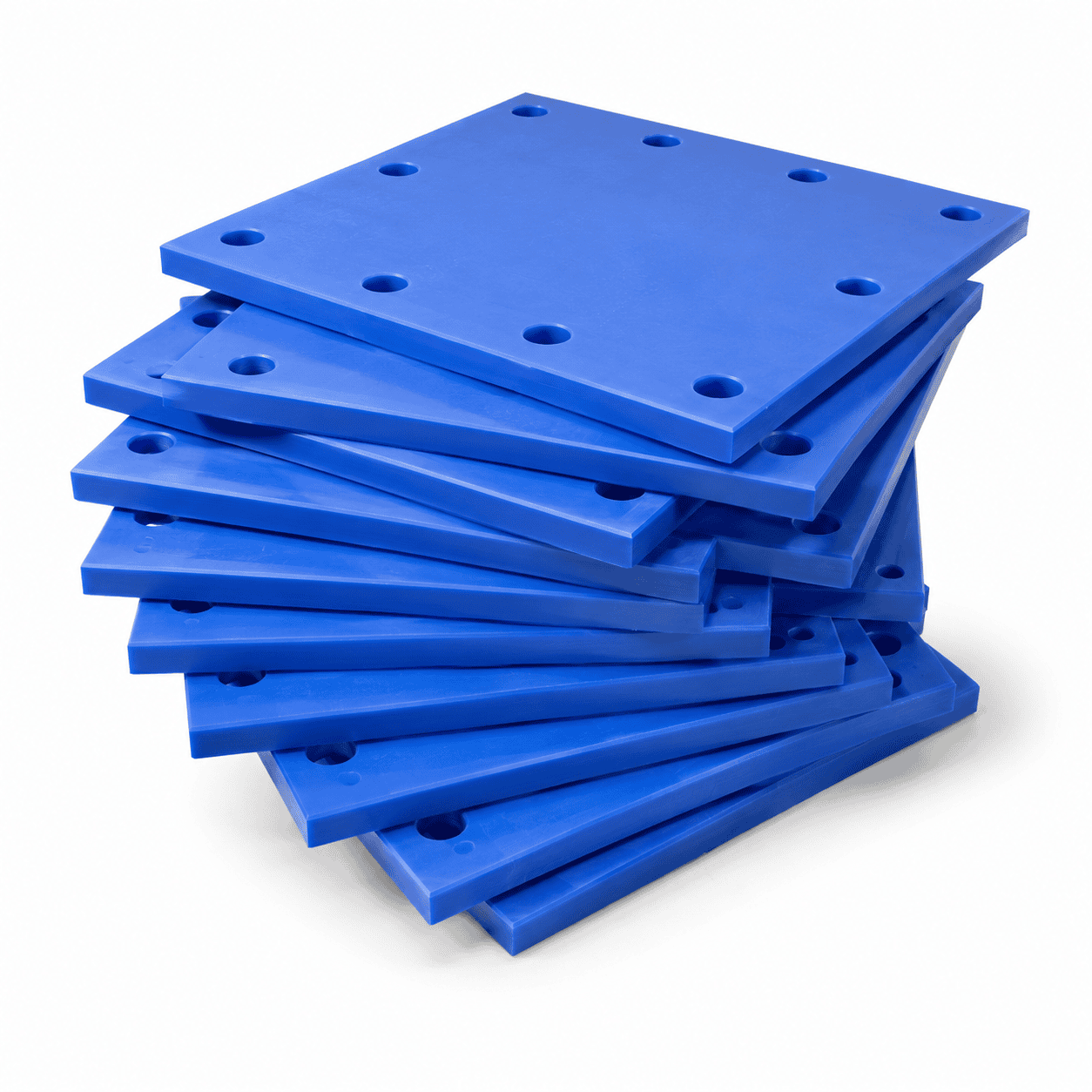

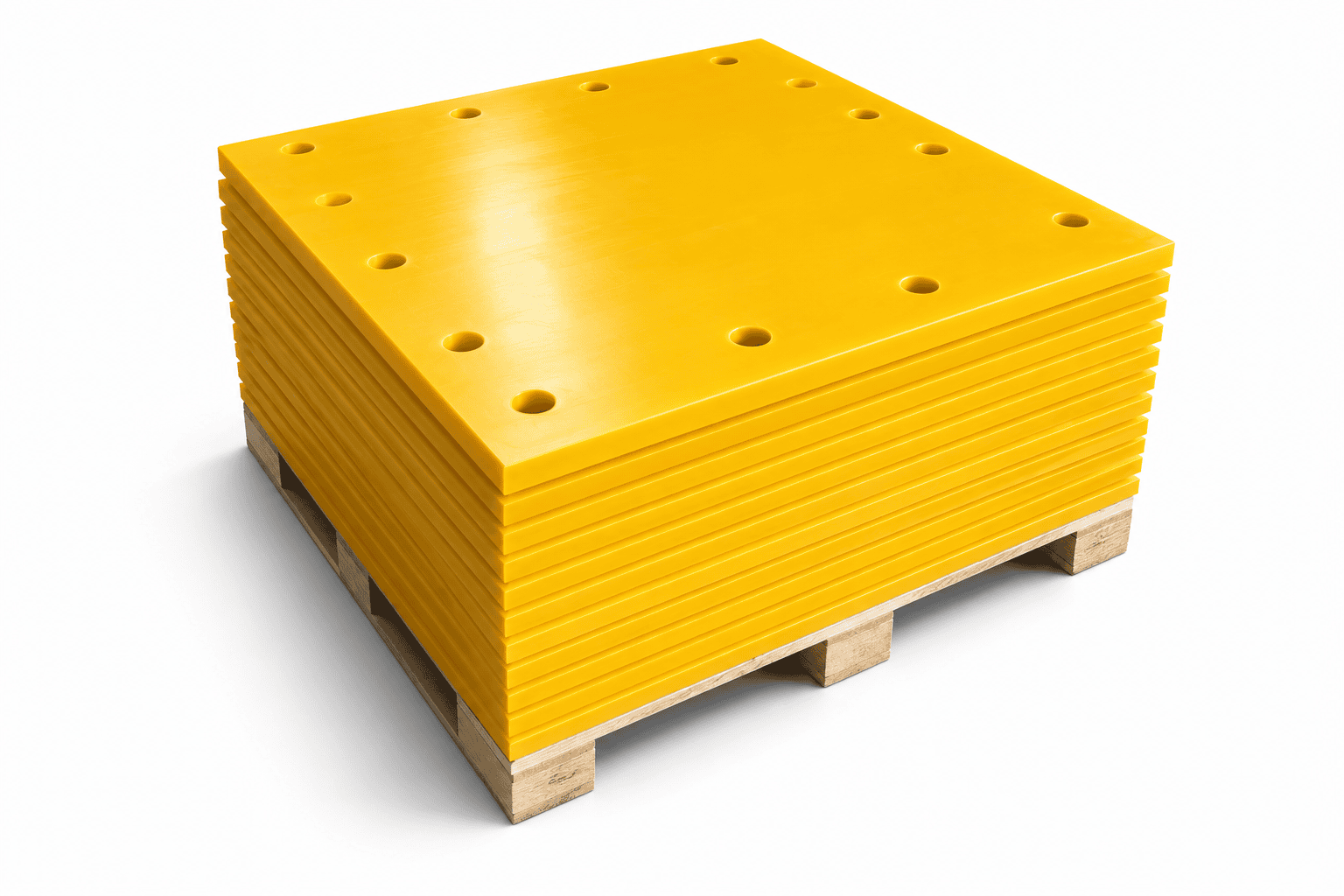

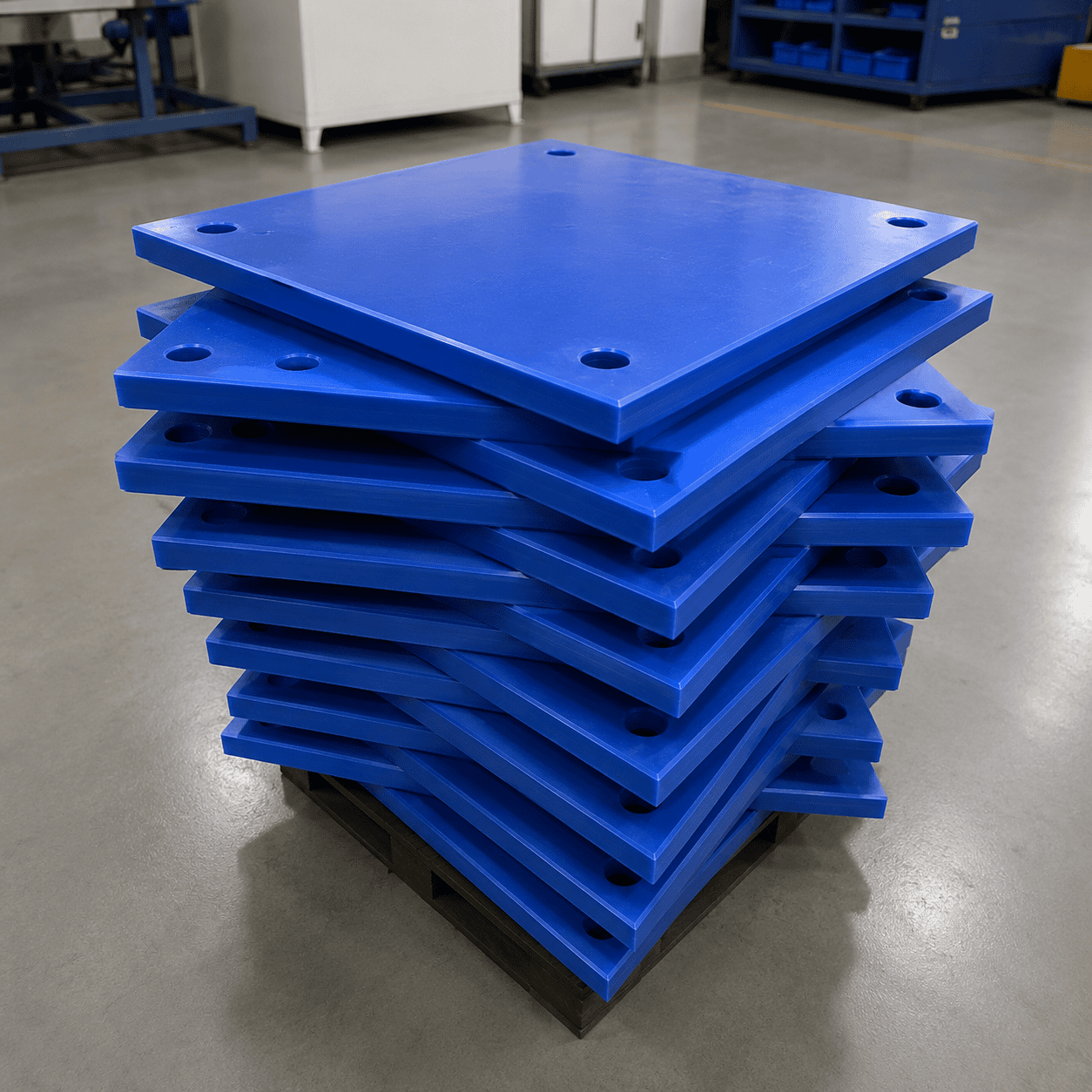

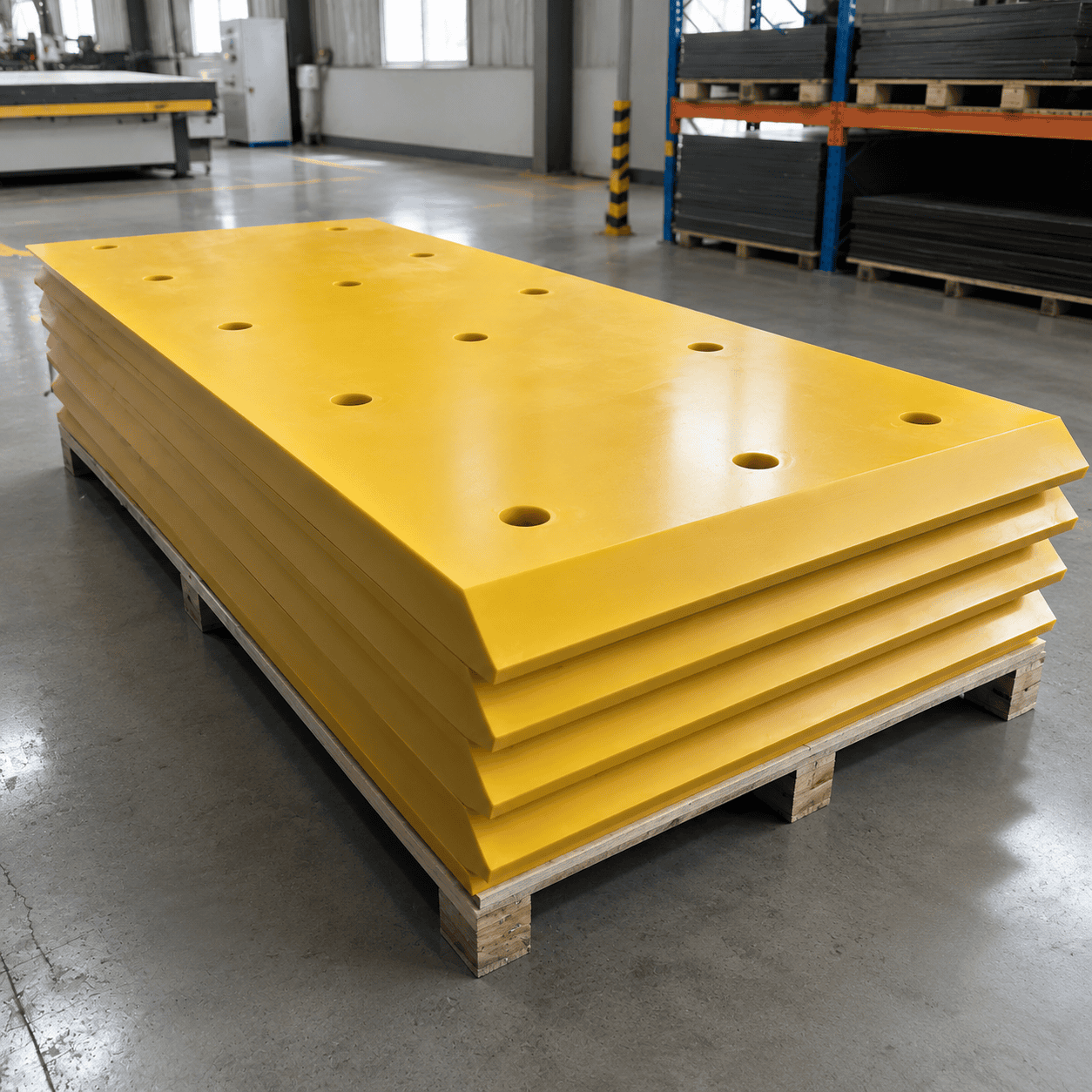

UHMWPE Marine Fender Facing Pad is a durable low-friction marine engineering plastic component designed for ship fender systems, docks, quay walls and vessel protection structures. It offers excellent wear resistance, strong impact resistance, low water absorption and stable performance under selected marine temperature conditions. Different sizes, thicknesses, mounting holes and machined structures can be produced according to drawings and marine project requirements.
UHMWPE Marine Fender Facing Pad is a durable marine engineering plastic component designed for ship fender systems, docks, quay walls, berthing structures and other vessel protection applications. Made from ultra-high molecular weight polyethylene, the pad combines excellent wear resistance, low friction, strong impact resistance, low water absorption and reliable performance in demanding marine environments.
This type of marine facing pad is commonly installed on the contact side of a fender system. During vessel berthing, the pad may experience repeated sliding, impact, compression and surface friction. Its low-friction surface helps reduce resistance between the vessel and the fender structure, while the tough material helps protect the original contact area from repeated wear.
The product can be used as a fender facing pad, wear pad, sliding pad, contact plate or protective marine component. Depending on the project, it can be manufactured as a flat pad or processed with mounting holes, counterbores, chamfers, rounded corners, curved edges and other structures.
For applications that involve changing outdoor temperatures, selected UHMWPE grades can provide stable performance within their intended operating range. The exact material grade should be chosen according to continuous temperature, peak temperature, impact load and marine operating conditions.
Customers looking for related materials and processing services can also visit our UHMWPE Sheet, UHMWPE Fender Facing Panel and CNC Plastic Machining pages.
A UHMWPE Marine Fender Facing Pad is a protective plastic component used as the contact surface in marine fender and vessel protection systems.
Its main functions include:
The pad is commonly fixed to rubber fenders, steel frames, dock structures, quay walls or other marine systems through mechanical mounting hardware.
Common structural features may include:
The final design is normally based on the fender system, installation position, vessel type and project drawing.
One of the main reasons UHMWPE is widely used in marine fender systems is its excellent wear resistance.
Facing pads may experience repeated vessel contact and sliding movement. Over time, these conditions can create significant surface wear.
A durable UHMWPE contact surface helps protect:
The pad can also act as a replaceable wear component, allowing the contact surface to be serviced without replacing the complete fender system.
Marine berthing systems are exposed to impact and repeated mechanical contact.
UHMWPE provides excellent toughness and strong impact resistance for many marine applications.
This characteristic helps the facing pad withstand repeated contact under suitable design and installation conditions.
The correct product specification should consider:
The complete fender system should always be evaluated when selecting the final dimensions.
Marine structures may experience temperature changes caused by sunlight, seasonal weather and different operating environments.
Selected UHMWPE grades can maintain useful toughness and impact performance across their intended operating temperature range.
For applications described as heat-resistant, the actual operating conditions should be confirmed before material selection.
Important factors include:
UHMWPE is not normally selected as an extreme high-temperature plastic. For very high-temperature applications, alternative engineering materials may be more suitable.
Ultra-high molecular weight polyethylene has a naturally low coefficient of friction.
This is especially important in marine fender systems because vessels may move vertically or horizontally against the contact surface during berthing.
The low-friction surface can help:
The actual friction performance depends on the contact pressure, vessel surface, environmental conditions and product design.
Unlike ordinary steel components, UHMWPE does not rust in seawater.
This makes it suitable for:
The rust-free nature of the material can help reduce maintenance issues associated with metal corrosion.
UHMWPE absorbs very little moisture.
This helps the facing pad maintain stable performance in wet and humid environments.
Low water absorption is useful for products exposed to:
UHMWPE facing pads are lighter than many metal alternatives.
Lower weight can make the product easier to:
This can be particularly useful for large marine fender assemblies.
Direct contact between hard metal surfaces may create impact noise and vibration.
A plastic facing pad can help reduce noise in selected marine contact applications.
The actual effect depends on the complete equipment structure and contact conditions.
UHMWPE Marine Fender Facing Pads can be machined according to project drawings.
Common processing methods include:
This processing flexibility allows the finished product to match different marine fender systems.

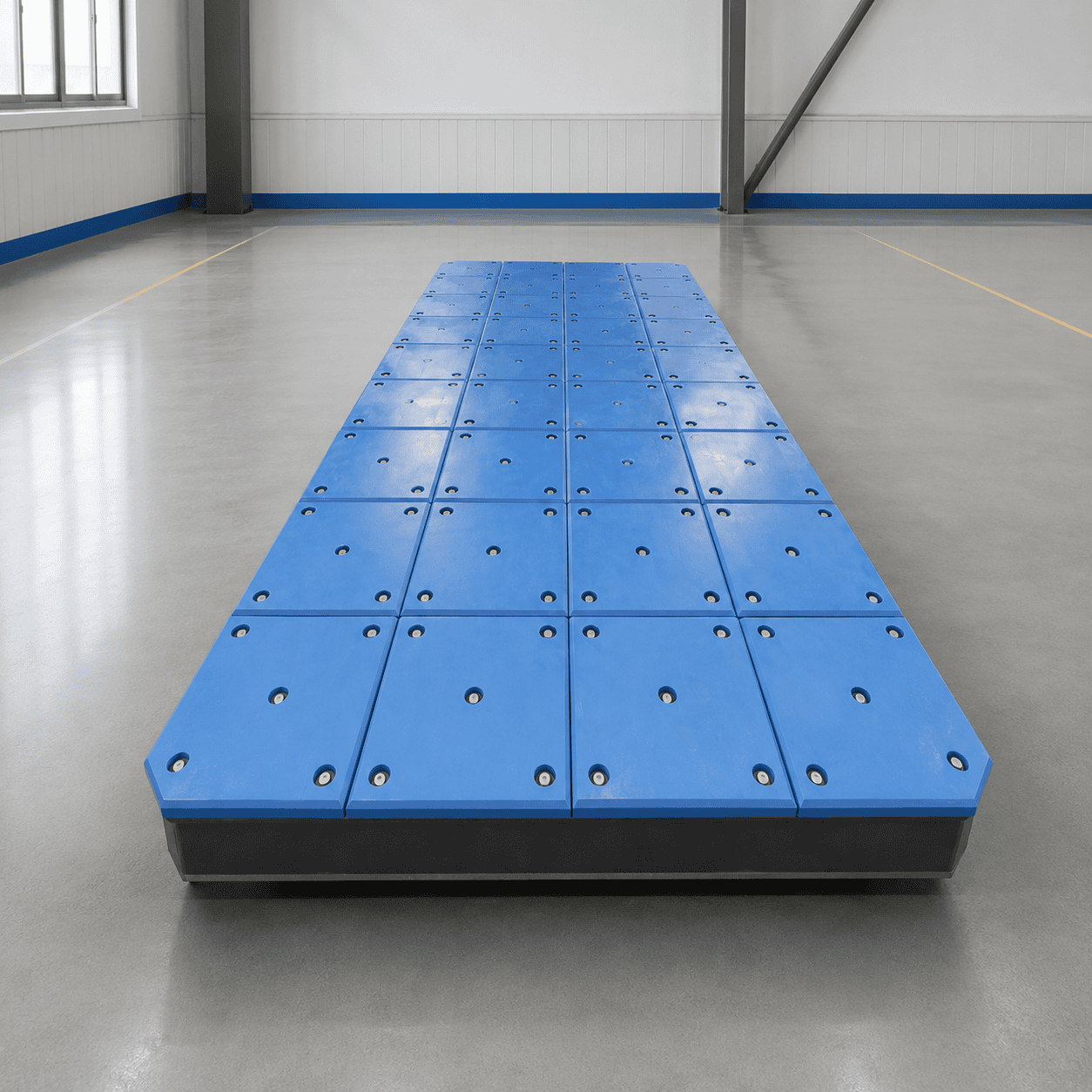

Marine rubber fenders are one of the most common applications.
The rubber fender absorbs energy during vessel berthing, while the UHMWPE facing pad provides a durable and low-friction contact surface.
This combination can help separate the energy absorption function from the wear and sliding contact function.
The pad can be used in selected ship side protection systems where a tough and low-friction contact surface is required.
It helps reduce direct hard contact between the vessel and surrounding marine structures.
Dock fender systems use UHMWPE pads as contact and wear components.
The product can help protect:
Quay walls may use marine facing pads in areas exposed to vessel contact and sliding.
The low-friction surface helps reduce resistance during vessel movement, while the wear-resistant material provides a replaceable protective layer.
Berthing systems often require durable contact components that can tolerate repeated vessel movement.
UHMWPE facing pads can be used in selected positions to provide:
Mooring and berthing dolphins may use UHMWPE pads as protective contact components.
The material is suitable for outdoor marine environments and can be processed into different dimensions and mounting structures.
UHMWPE facing pads can be used in:
The correct pad specification should be selected according to the vessel and berth design.
Repeated vessel contact can create demanding impact conditions.
For these applications, the pad design should consider the complete system rather than the plastic material alone.
Important design factors include:
A correctly supported facing pad can provide a durable contact surface while the overall fender system manages the main berthing energy.
Outdoor marine equipment may be exposed to sunlight, seasonal temperature changes and different climate conditions.
Selected UHMWPE grades can provide stable toughness within their specified operating range.
Before selecting the product, customers should provide information about:
This helps determine whether standard UHMWPE or a specially selected grade is more appropriate.
UHMWPE Marine Fender Facing Pads can be produced according to drawings, samples and marine project requirements.
Customers can provide:
These details help determine the suitable raw material size and machining process.
For more information about plastic processing capabilities, visit our CNC Plastic Machining page.
The facing pad can be supplied in different sizes and thicknesses.
The correct specification depends on:
Large pads can be supplied as complete pieces, while smaller components can be cut and machined from UHMWPE sheet.
Different marine systems require different product structures.
Common machining features include:
Complete drawings help ensure that the finished component matches the installation system.
The vessel size, contact frequency and fender system should be evaluated before selecting the pad thickness.
Continuous and maximum working temperatures should be confirmed before material selection.
The pad design should match the ship side, fender frame, quay wall or dock structure.
Hole positions and mounting hardware should be confirmed before machining.
Flat, curved and stepped structures may require different pad designs.
Facing pads may act as wear components. The installation structure should allow inspection and replacement when required.
In selected marine applications, UHMWPE pads can provide several practical advantages over metal.
However, the final material selection should always be based on the complete marine structure and operating conditions.
Different engineering plastics provide different levels of performance.
UHMWPE is often selected for marine contact applications because it offers:
For related raw material options, customers can also view our UHMWPE Sheet products.
For general information about ultra-high molecular weight polyethylene, you can read the UHMWPE overview on Wikipedia.
You can also review the Polyethylene material reference from Encyclopaedia Britannica.
These external links do not include a nofollow attribute and can therefore be treated as DoFollow links by search engines.
This marine engineering plastic component provides a practical combination of:
These characteristics make it suitable for ship fender systems, docks, quay walls, berthing structures, mooring dolphins and other marine protection applications.
It is used as a wear-resistant and low-friction contact pad for marine fenders, docks, quay walls and vessel protection systems.
Yes. UHMWPE provides strong toughness and impact resistance for many marine applications.
Selected UHMWPE grades can provide stable performance within their intended operating temperature range. The actual continuous and maximum temperatures should be confirmed before selection.
Yes. It can be cut, drilled, milled, counterbored, countersunk and machined according to drawings.
Yes. The material does not rust and absorbs very little moisture.
Yes. Different thicknesses can be selected according to impact load, fender design and installation conditions.
Yes. Large components can be produced according to raw material size, machining capability and project requirements.
Yes. Pads can be manufactured according to 2D drawings, 3D models, physical samples and marine project specifications.
UHMWPE Marine Fender Facing Pad is a durable marine engineering plastic component designed for ship fender systems, docks, quay walls and vessel protection structures.
It combines excellent wear resistance, strong impact resistance, low friction, low water absorption and reliable performance in demanding marine environments.
The product can be processed with mounting holes, counterbores, chamfers, curved surfaces and other structures according to drawings.
Different thicknesses, dimensions and material grades can be selected according to impact conditions, operating temperature and installation requirements.
For related materials and services, customers can also visit our UHMWPE Sheet, UHMWPE Fender Facing Panel and CNC Plastic Machining pages.
Check drawings for full specifications and confirm materials according to service conditions to prevent product defects.
Inspect all key processing steps and fully verify dimensions, holes, grooves and fitting surfaces.
Deburr, chamfer and clean products for easy installation. Ensure uniform quality among batch products.
Choose appropriate packaging solutions based on product features to protect goods from collision, deformation and mixing during transit.
Unlike metal parts, engineering plastic components still require strict control over dimensions, holes, edges, surface, materials and assembly performance for equipment use.
Engineering plastic parts suit friction, guide, support, buffer, anti-corrosion and insulation areas. We supply UHMWPE, POM, PA, PP/PE components for conveyor, food, mining, machinery, chemical and cable systems, with custom OEM service available.
